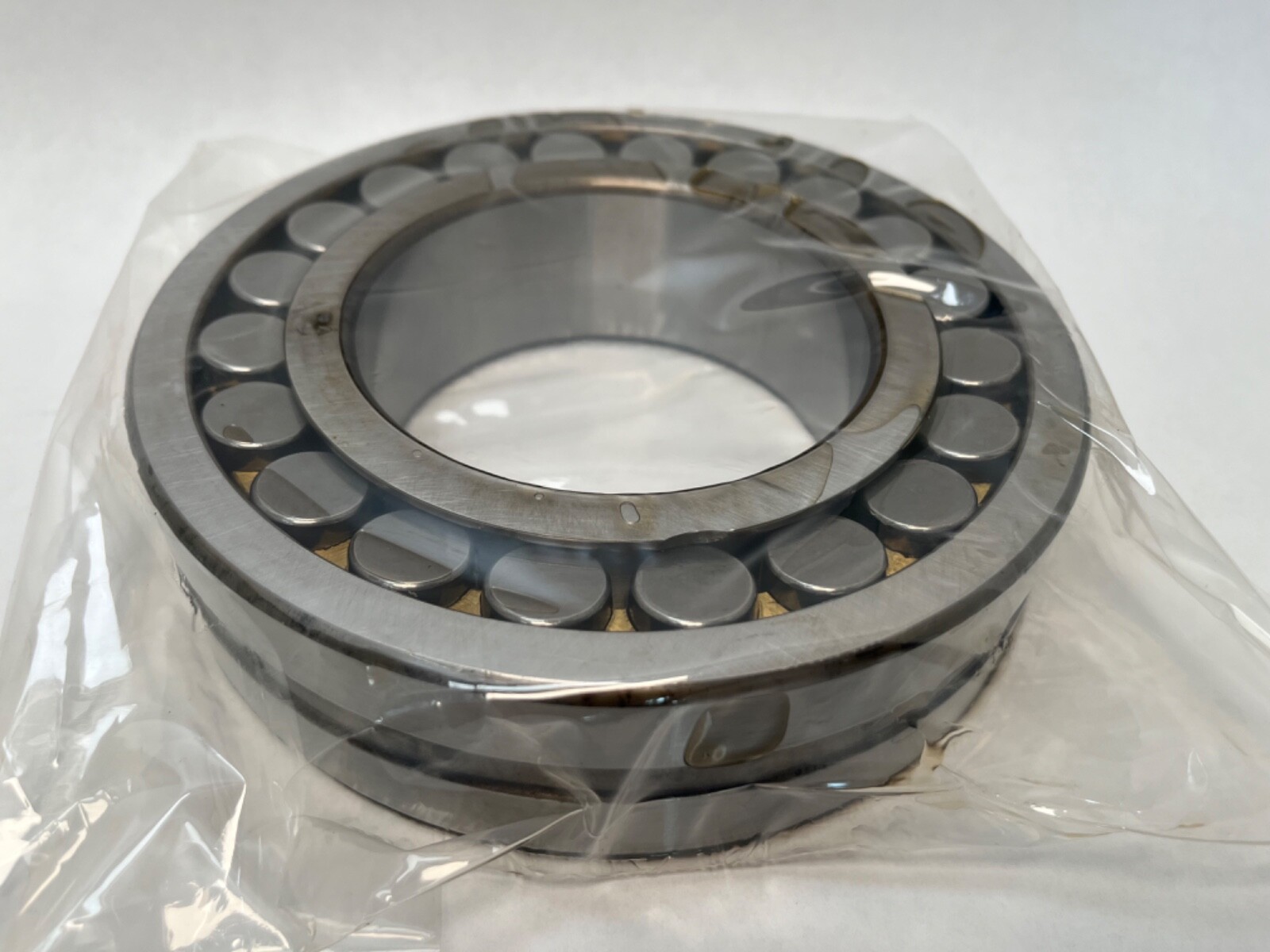

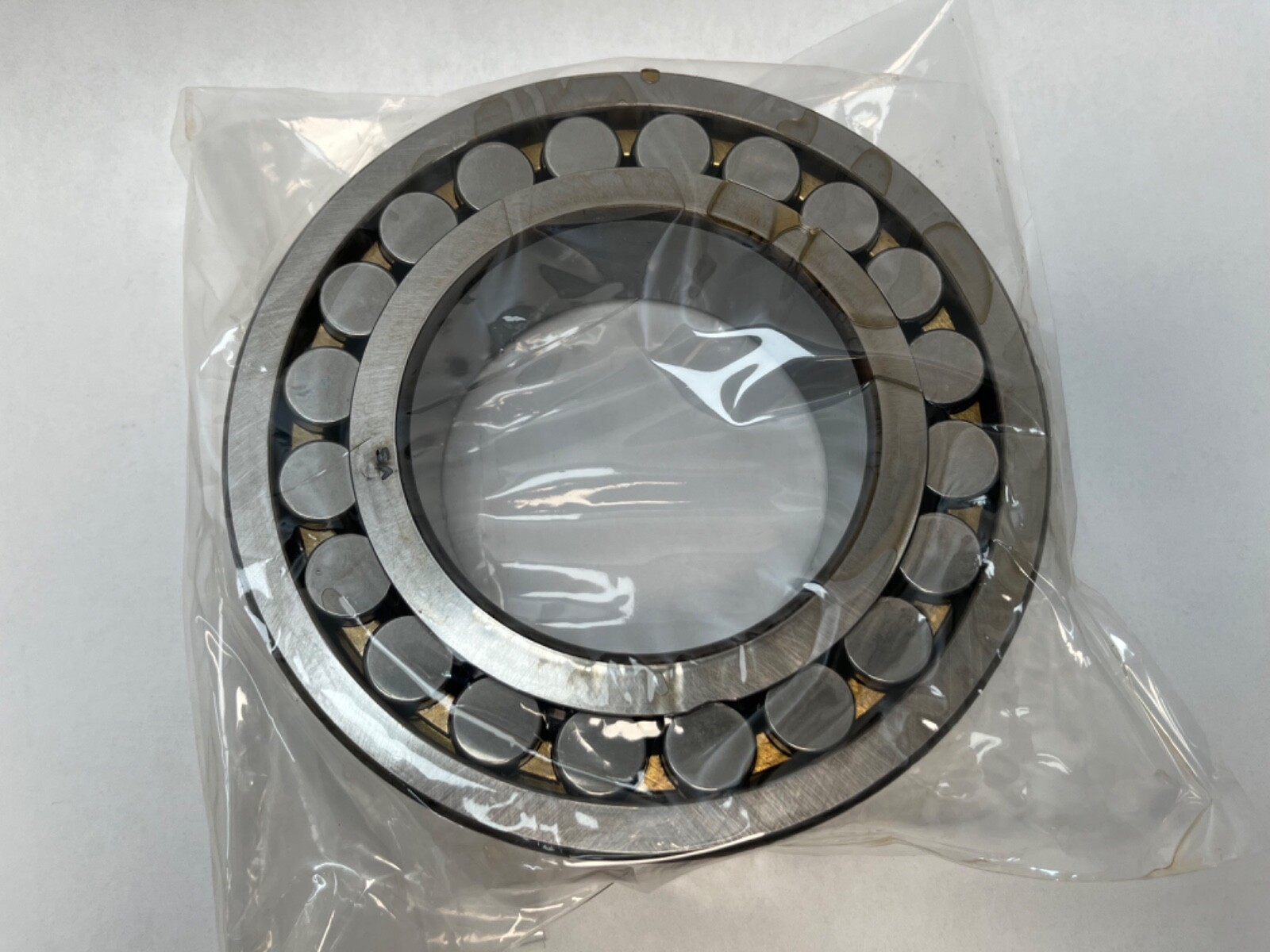

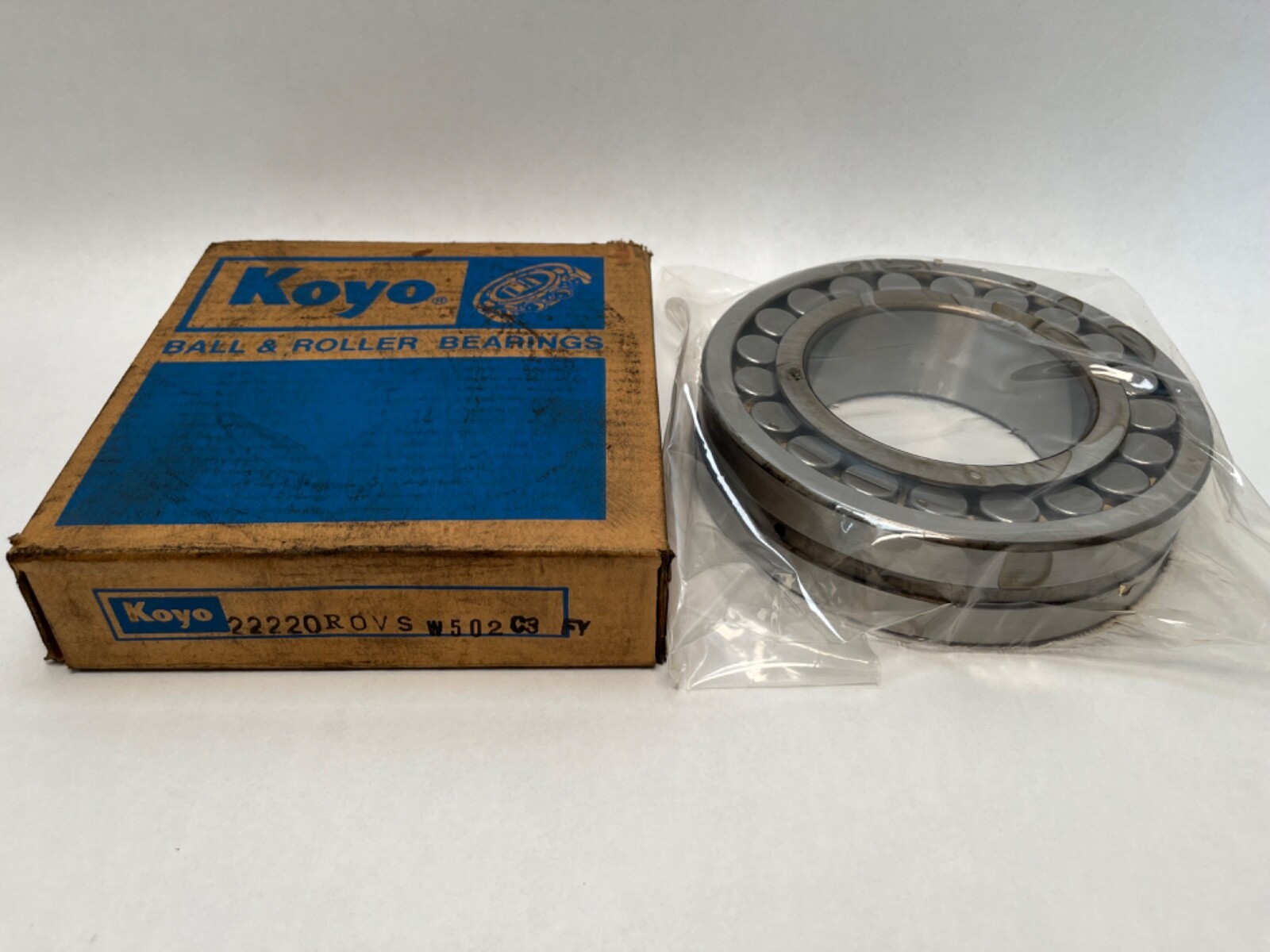

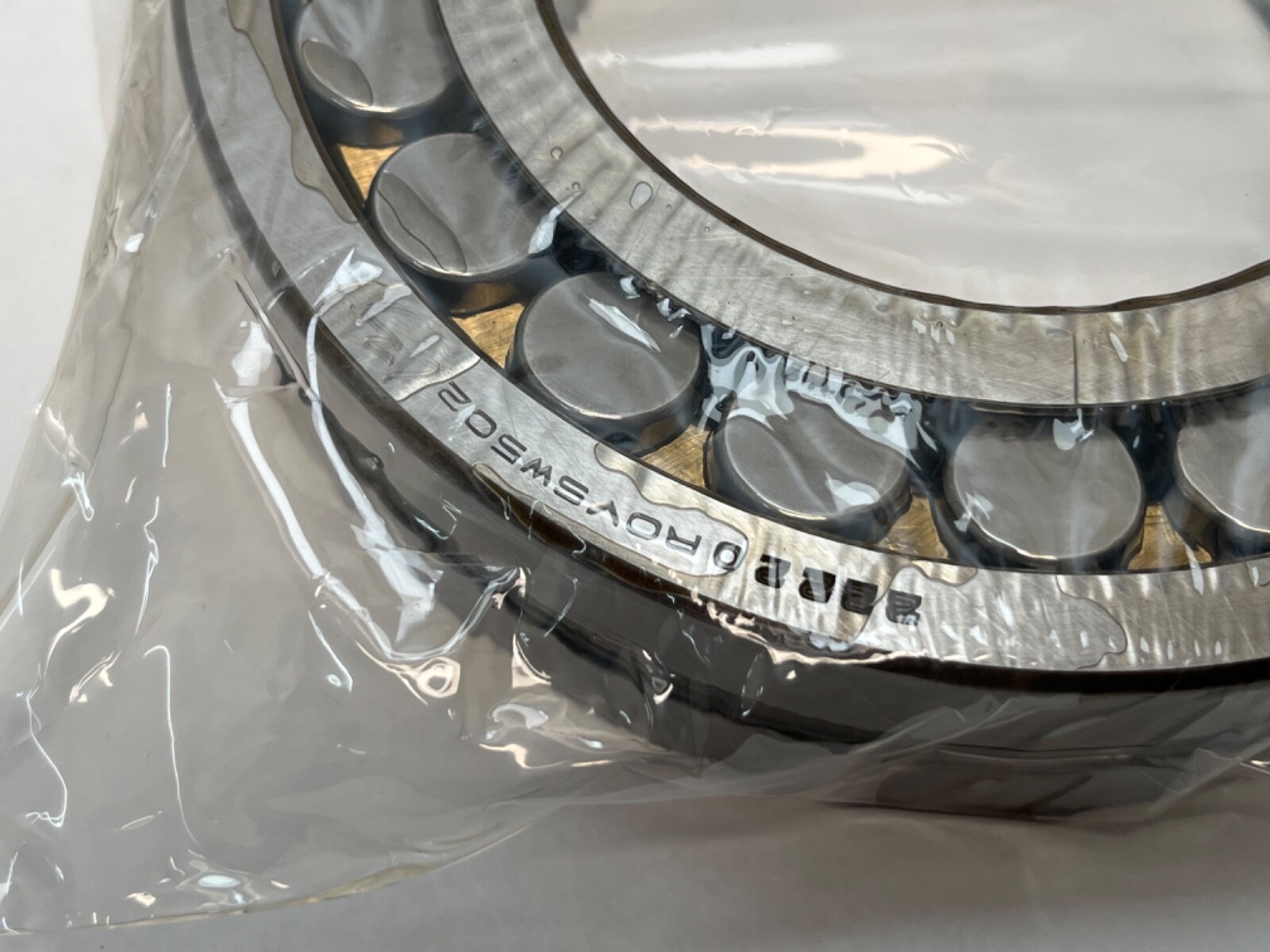

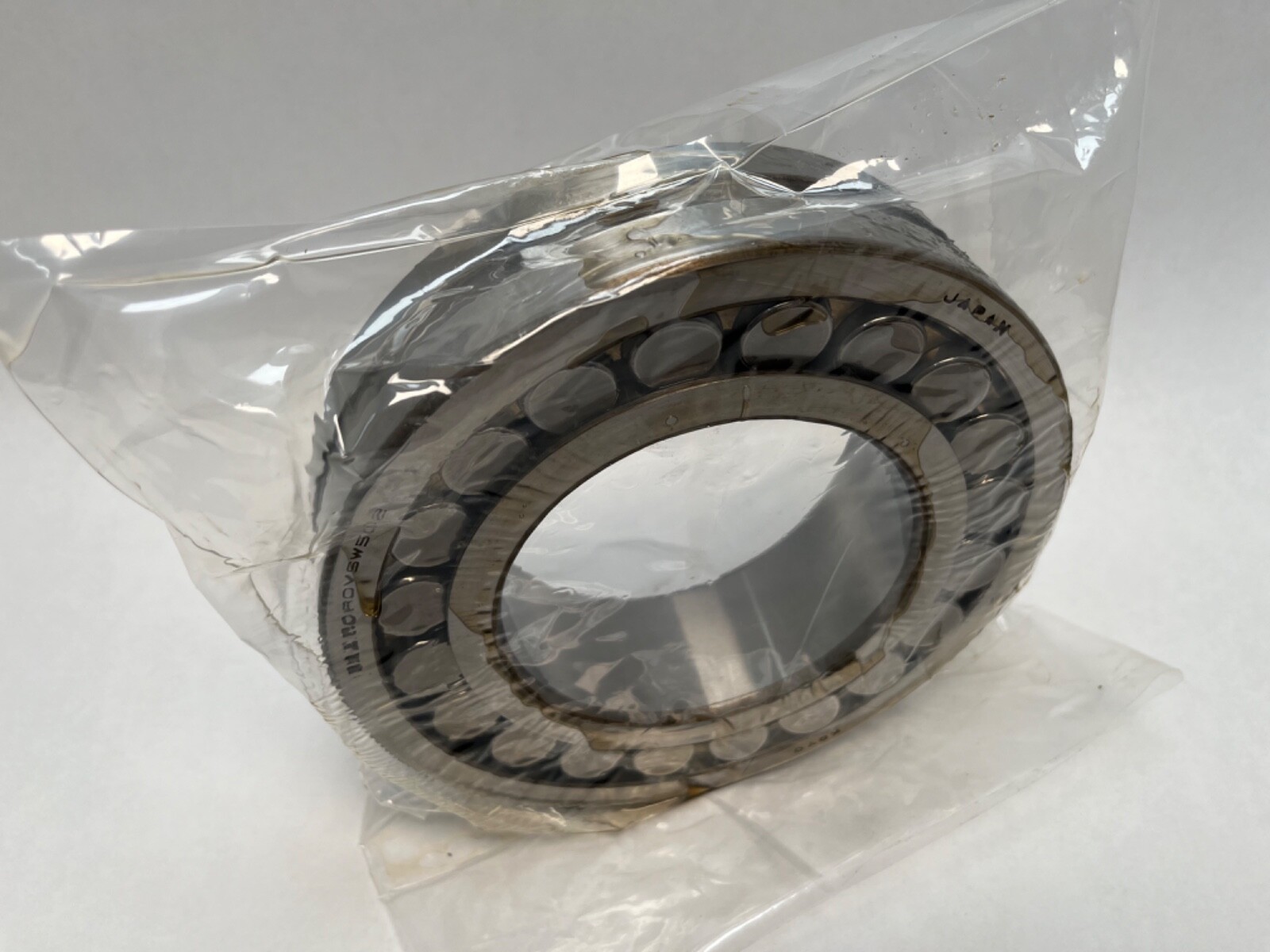

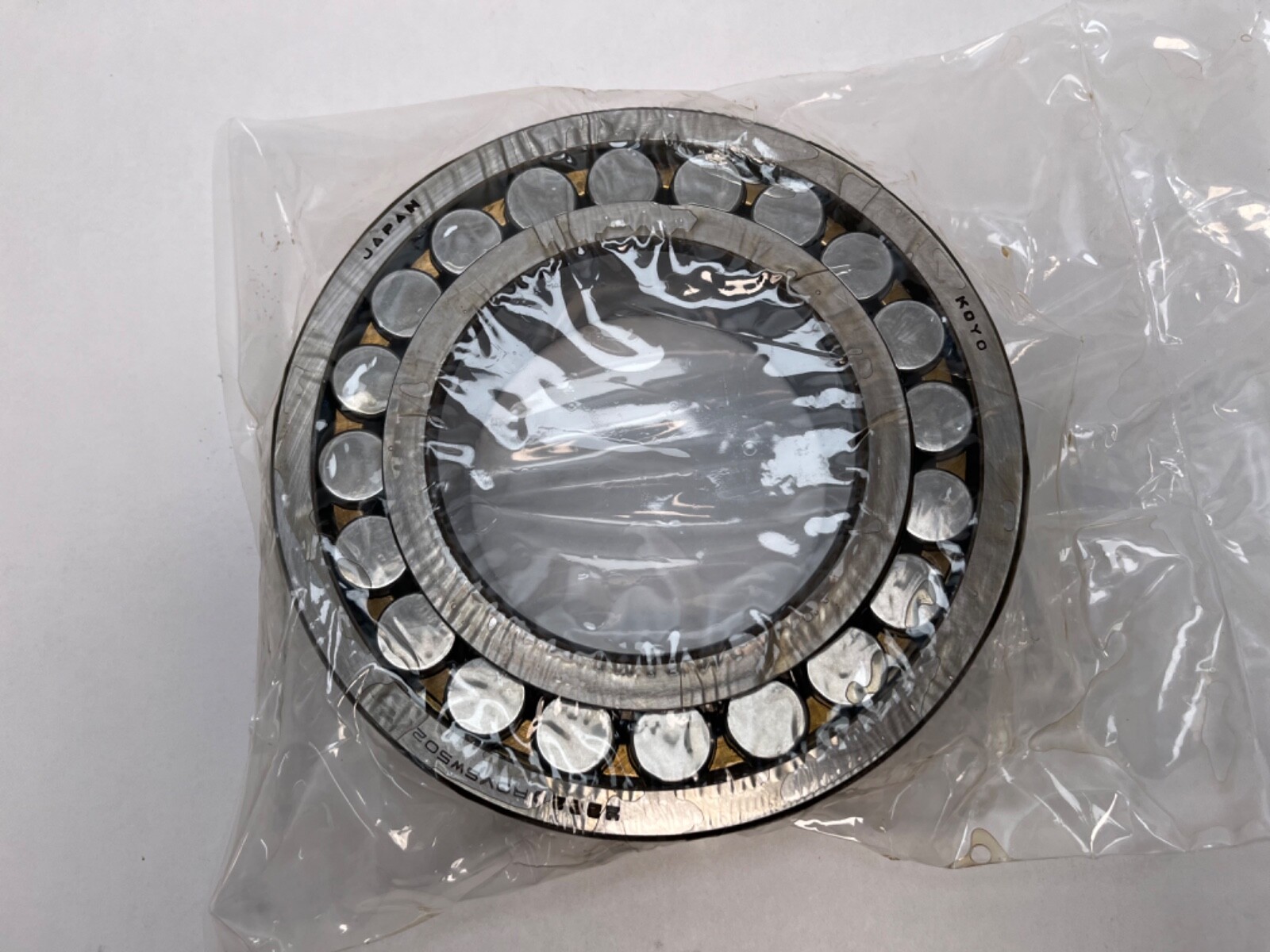

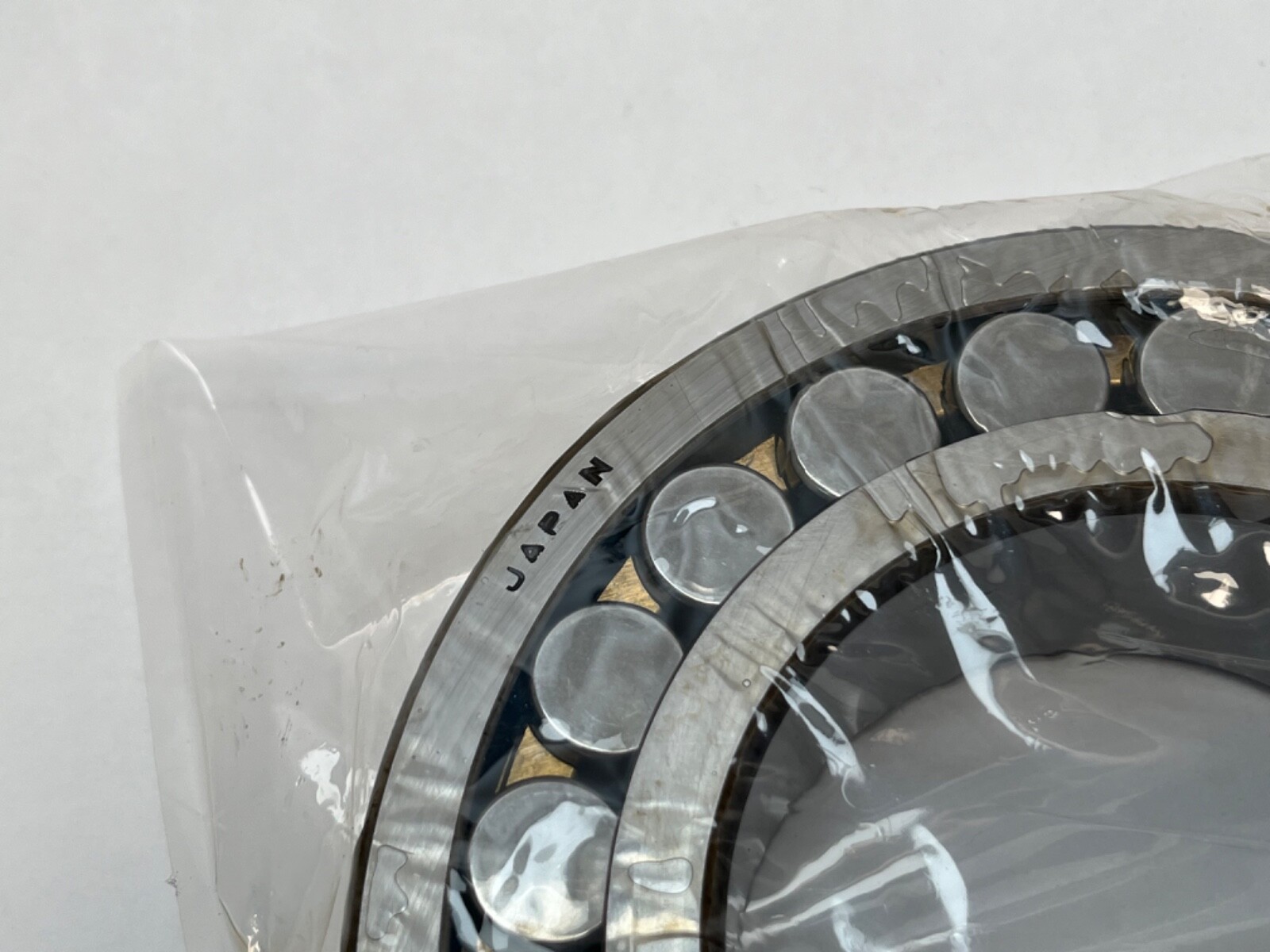

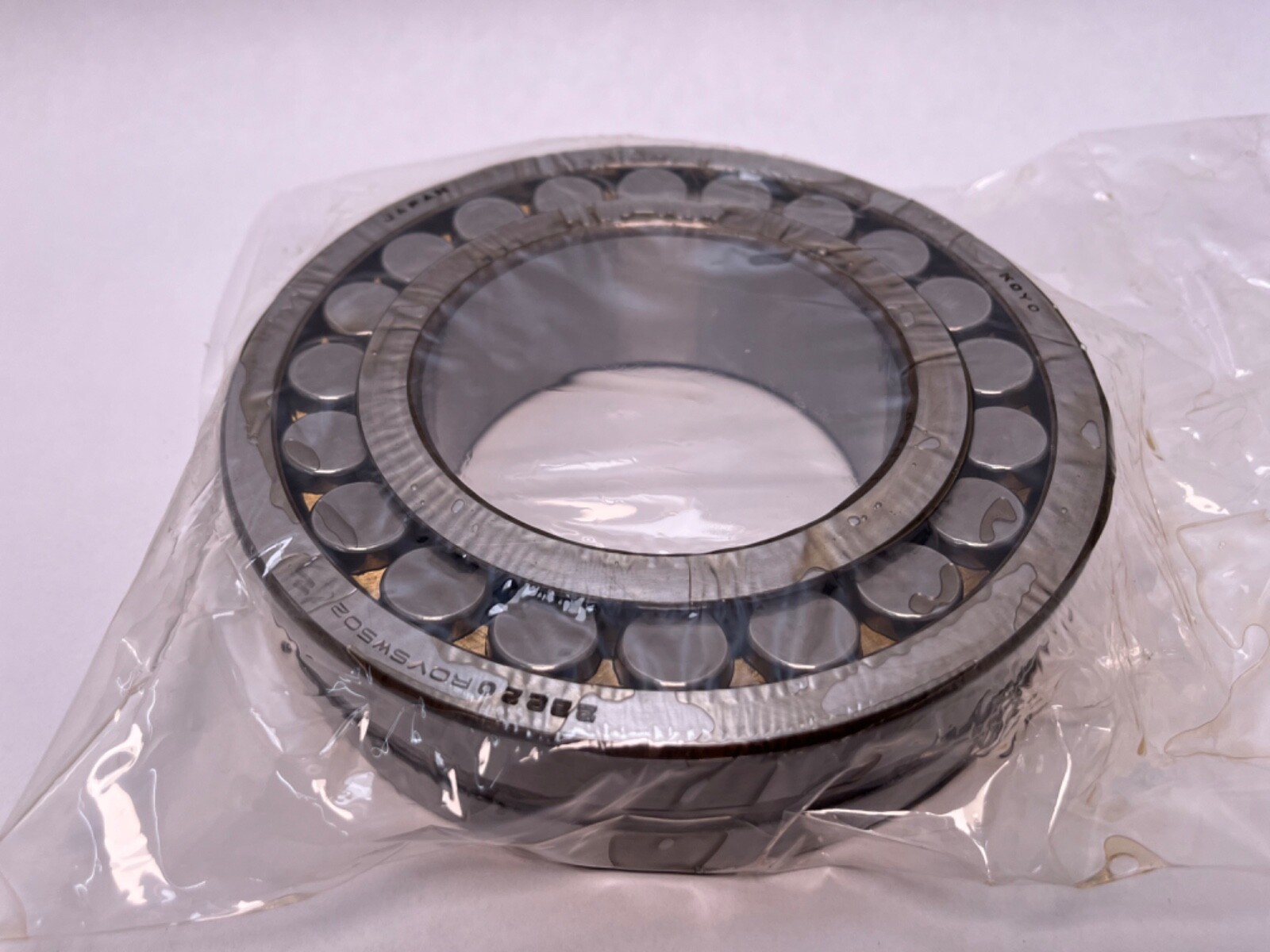

Koyo 22220ROVSW502C3FY spherical roller bearing, 100 mm bore, 180 mm OD, 46 mm width, straight bore, C3 clearance, brass cage. Double row, open, 22200 series.
List Price
$122.33
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | 22220ROVSW502C3FY |
| Model | 22220 ROVS W502 C3 FY |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 46 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 22220ROVSW502C3FY, 22220 ROVS W502 C3 FY, 22220-ROVS-W502-C3-FY, 22220M, 22220MB |
| Compatible With Replaces | Current Koyo equivalent 22220RHRC3 (successor) |
| Additional Attributes | Successor 22220RHR data: Dynamic Load Rating 470,000 N; Static Load Rating 481,000 N; Limiting Speed 2,600 rpm grease; 3,400 rpm oil; Mass 5.11 kg (11.27 lb); r min 2.1 mm; da min 112 mm; Da max 168 mm; ra max 2 mm |
| Cross Reference 1 | SKF 22220 E/C3 - pressed steel cage |
|---|---|
| Cross Reference 2 | FAG 22220-E1-C3 - pressed steel cage |
| Cross Reference 3 | NSK 22220EA - steel cage, C3 version |
| Cross Reference 4 | NTN 22220B - steel cage, C3 version |
| Cross Reference 6 | Timken 22220EJ - steel cage, C3 version |
The Koyo 22220ROVSW502C3FY is a double-row spherical roller bearing in the 22200 series with a straight (cylindrical) bore. The outer ring raceway is a common sphere, so the bearing self-aligns under shaft deflection or housing misalignment while carrying heavy radial load and axial load in both directions.
22220 — 222 series spherical roller bearing, bore code 20 = 100 mm bore, 180 mm OD, 46 mm width.
R — Koyo R-type internal design with machined brass cage.
C3 — radial internal clearance greater than normal.
Bore Diameter: 100 mm. Outside Diameter: 180 mm. Overall Width: 46 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Brass. Internal Clearance: C3. Closure Type: Open.
C3 clearance suits interference fits and running temperatures where the inner ring grows more than the outer ring.
Successor 22220RHR data: Dynamic Load Rating 470,000 N. Static Load Rating 481,000 N. Limiting Speed 2,600 rpm grease; 3,400 rpm oil. Mass 5.11 kg (11.27 lb).
Successor 22220RHR data: chamfer r (min.) 2.1 mm, shaft abutment da (min.) 112 mm, housing abutment Da (max.) 168 mm, fillet ra (max.) 2 mm.
Unit Quantity: 1 Pc.
Cross-references, all 100 x 180 x 46 mm straight bore with pressed steel cages versus the brass cage here: SKF 22220 E/C3, FAG 22220-E1-C3, NSK 22220EA, NTN 22220B, Timken 22220EJ. Current Koyo successor: 22220RHRC3.
