Spherical Roller Bearing 100x180x46mm Tapered Bore 1:12 Brass Cage C3 Clearance W33 Lube Groove$102.88
Double-Row Spherical Roller Bearing 100 x 180 x 46 mm, 1:12 Tapered Bore, C3 Clearance, W33 Lubrication Groove and Three Holes$82.00
Double-Row Spherical Roller Bearing 100x180x46 mm 1:12 Taper Bore C3 Clearance W33 Lube Groove$120.29
Spherical Roller Bearing - Tapered Bore, 100 mm ID, 180 mm OD, 46 mm Width, Open, C3 Internal clearance.$129.23| MFR / Brand | HYATT |
|---|---|
| MPN | 22220KMBC3W33 |
| Model | 22220 K MB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 46 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Lubricant | Grease |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 425 kN / 95544 lbf |
| Static Load Rating | 490 kN / 110156 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical rollers |
| Max Temp | 200 °C |
| Item Weight | 10.8 lbs |
| Cage Material | Brass |
| Limiting Speed | 4300 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Running Accuracy | 0.020 mm |
| Running Accuracy Radial And Axial Runout | 0.020 mm |
| Cross Reference 1 | SKF 22220 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 22220-E1-K-C3 |

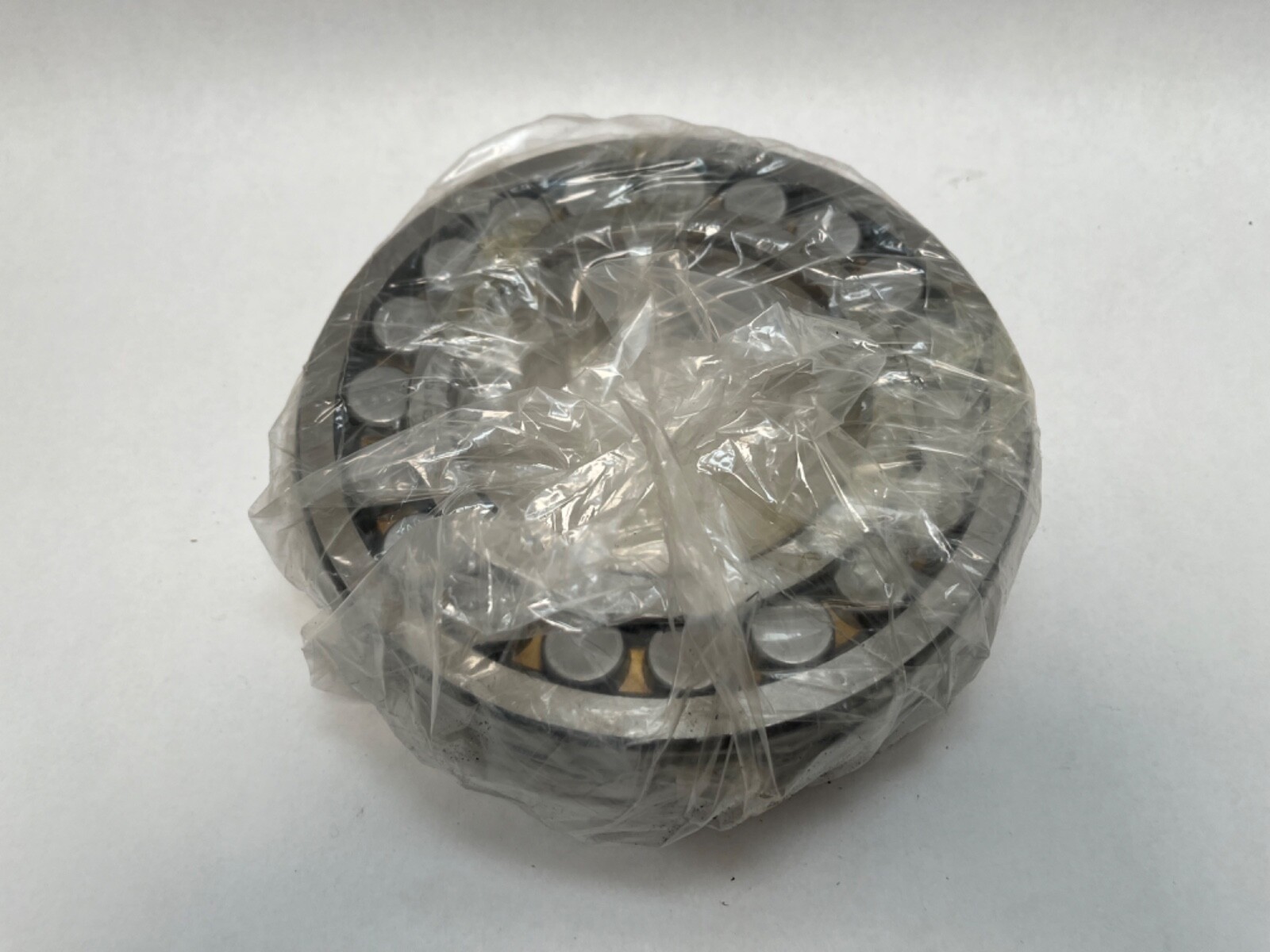

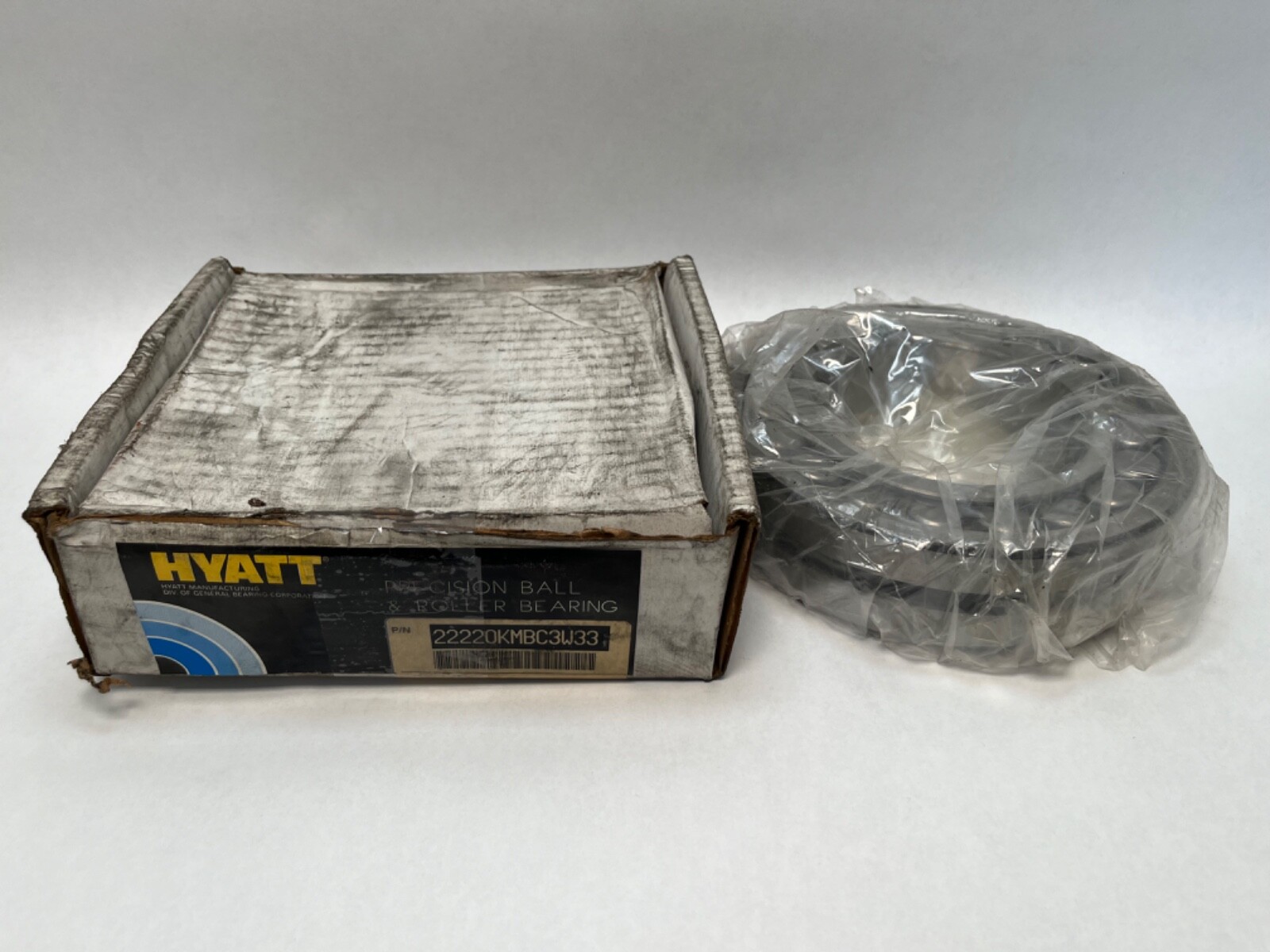

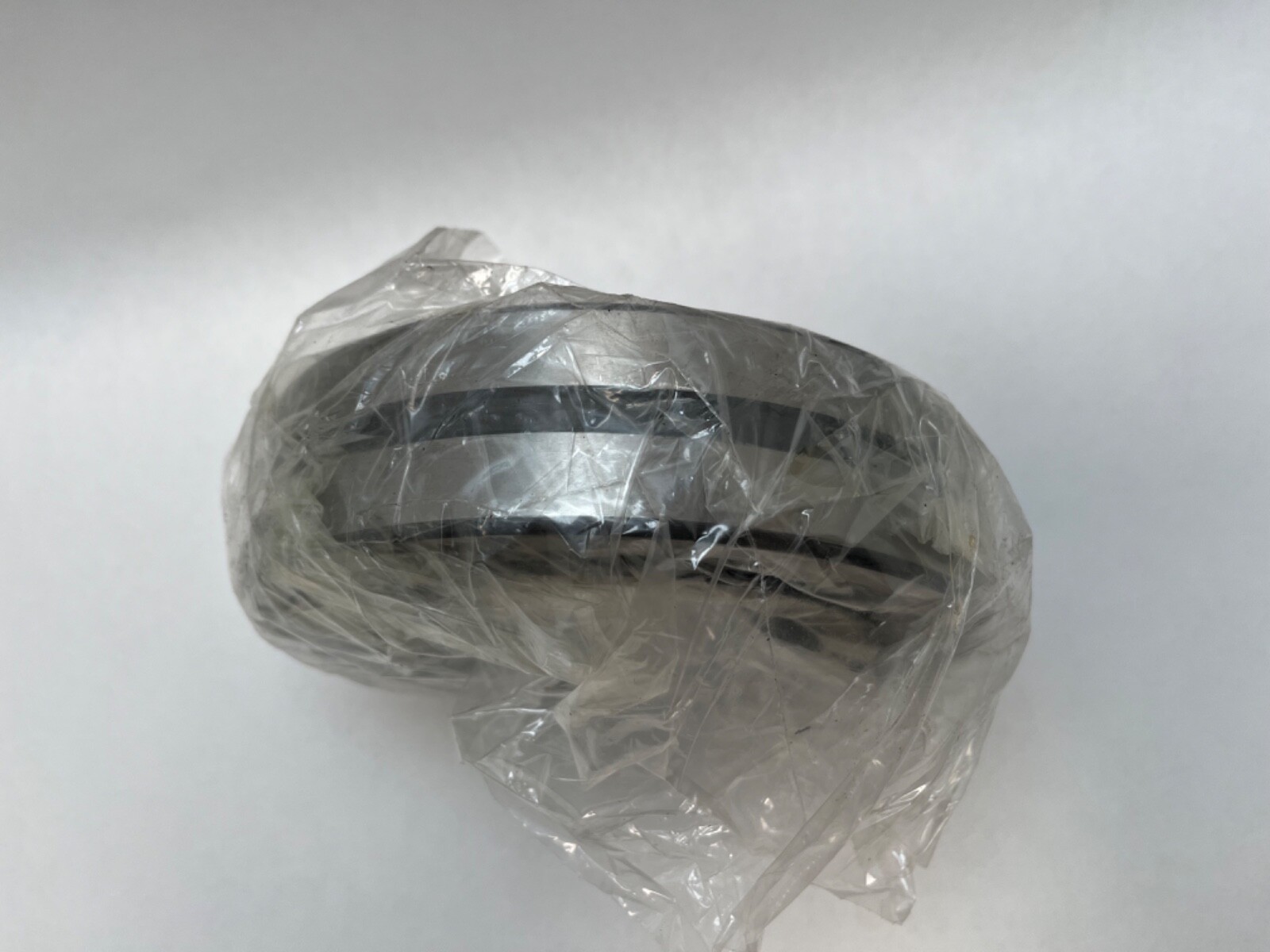

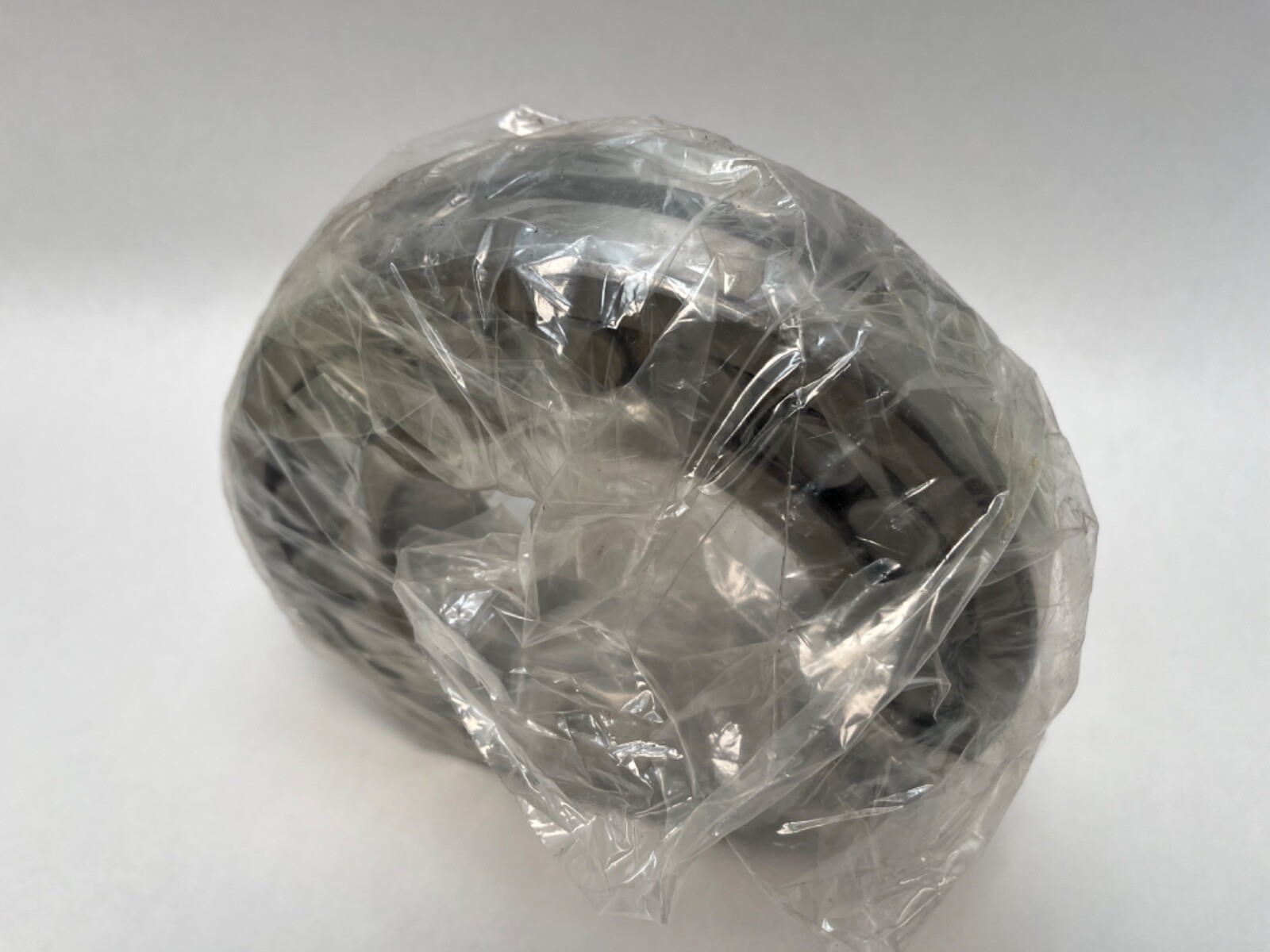

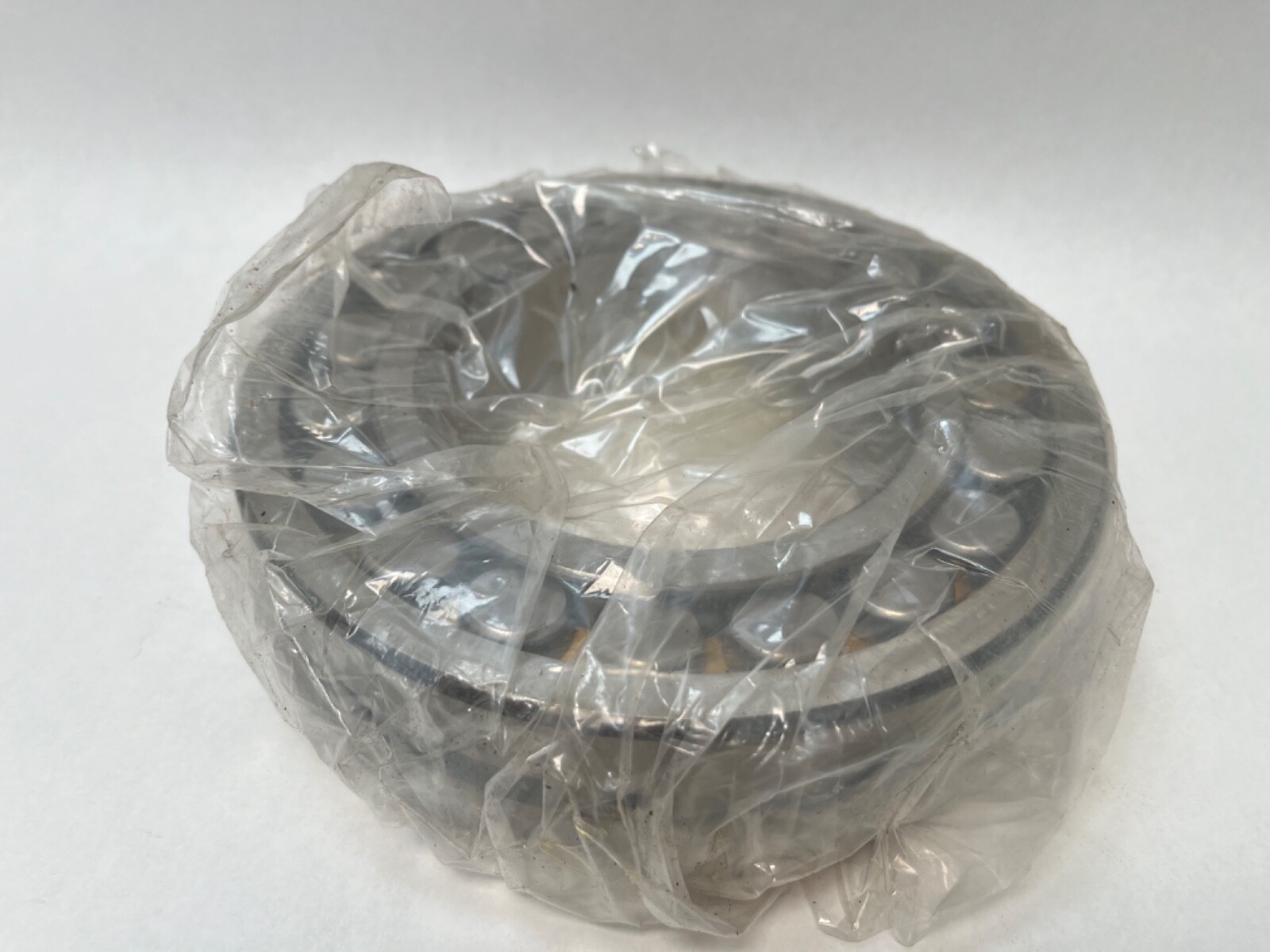

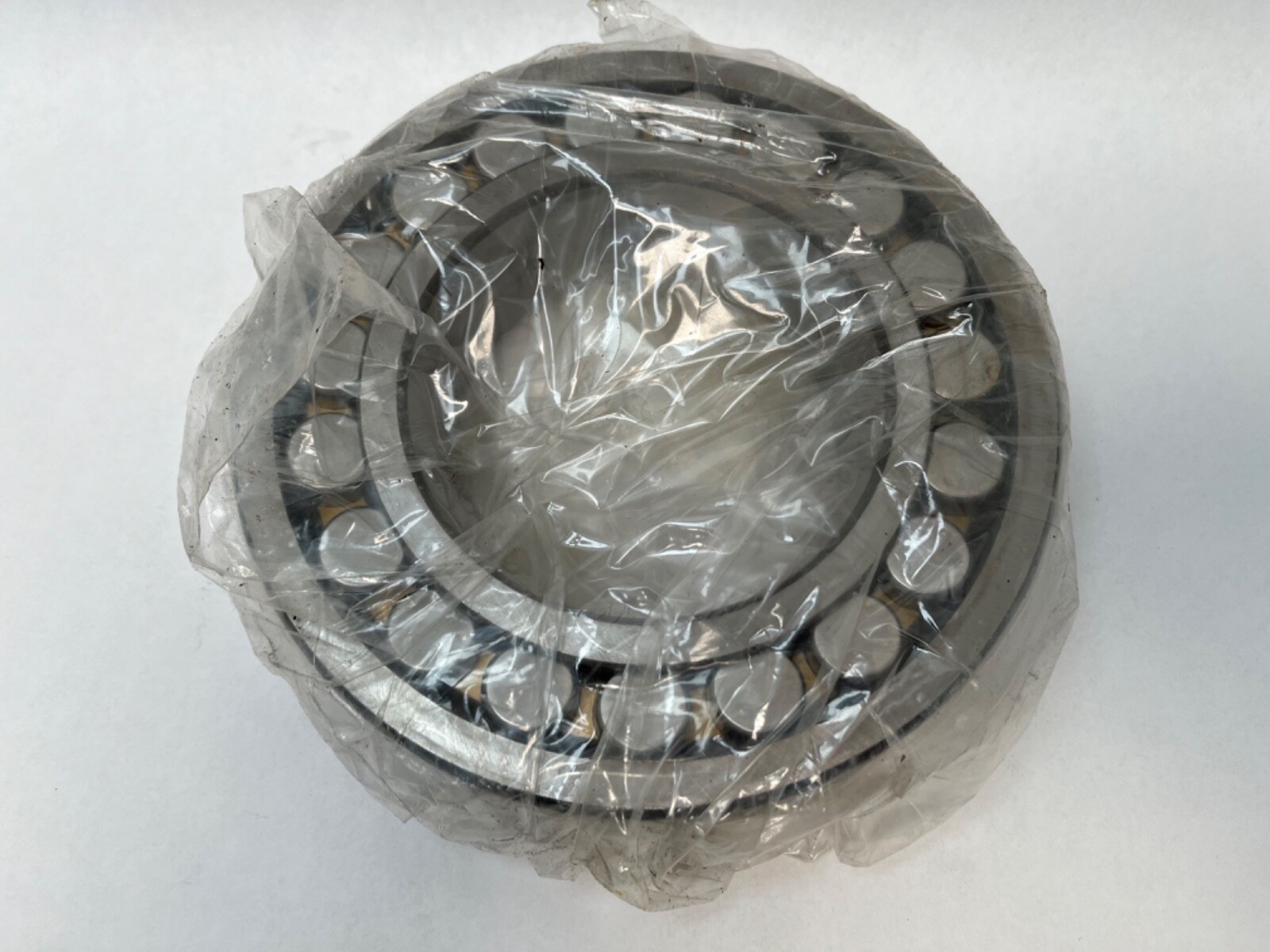

Introducing the Hyatt 22220KMBC3W33 Bearing, designed to be your reliable solution for high-performance applications. With dimensions of 100x180x46 mm, this new spherical roller bearing is manufactured by the renowned brand Hyatt, guaranteeing exceptional quality and durability.
This bearing is engineered for various industrial uses, featuring a taper bore that enhances functionality and simplifies installation. Its robust specifications include:
Model: 22220 K MB C3 W33
Type: Spherical Roller Bearing
Country of Manufacture: United States
Bore Diameter: Taper Bore
Width: 46 mm
Whether you require it for heavy machinery or precision equipment, the Hyatt 22220KMBC3W33 Bearing ensures reliable performance and minimal maintenance. Enjoy competitive pricing and be assured that you will have the necessary parts for seamless operation.
We provide international shipping on all orders, ensuring prompt delivery. With same-day shipping available and next-day service options at checkout, you can minimize production downtime significantly.
Contact us today for additional parts or queries; we are here to assist you with all your bearing needs!
