FAG23222E1AXLMSpherical Roller Bearing – 110 mm ID, 200 mm OD, 69.8 mm Width, Straight Bore, W33, Machined Brass Cage

Product Description

What this part is

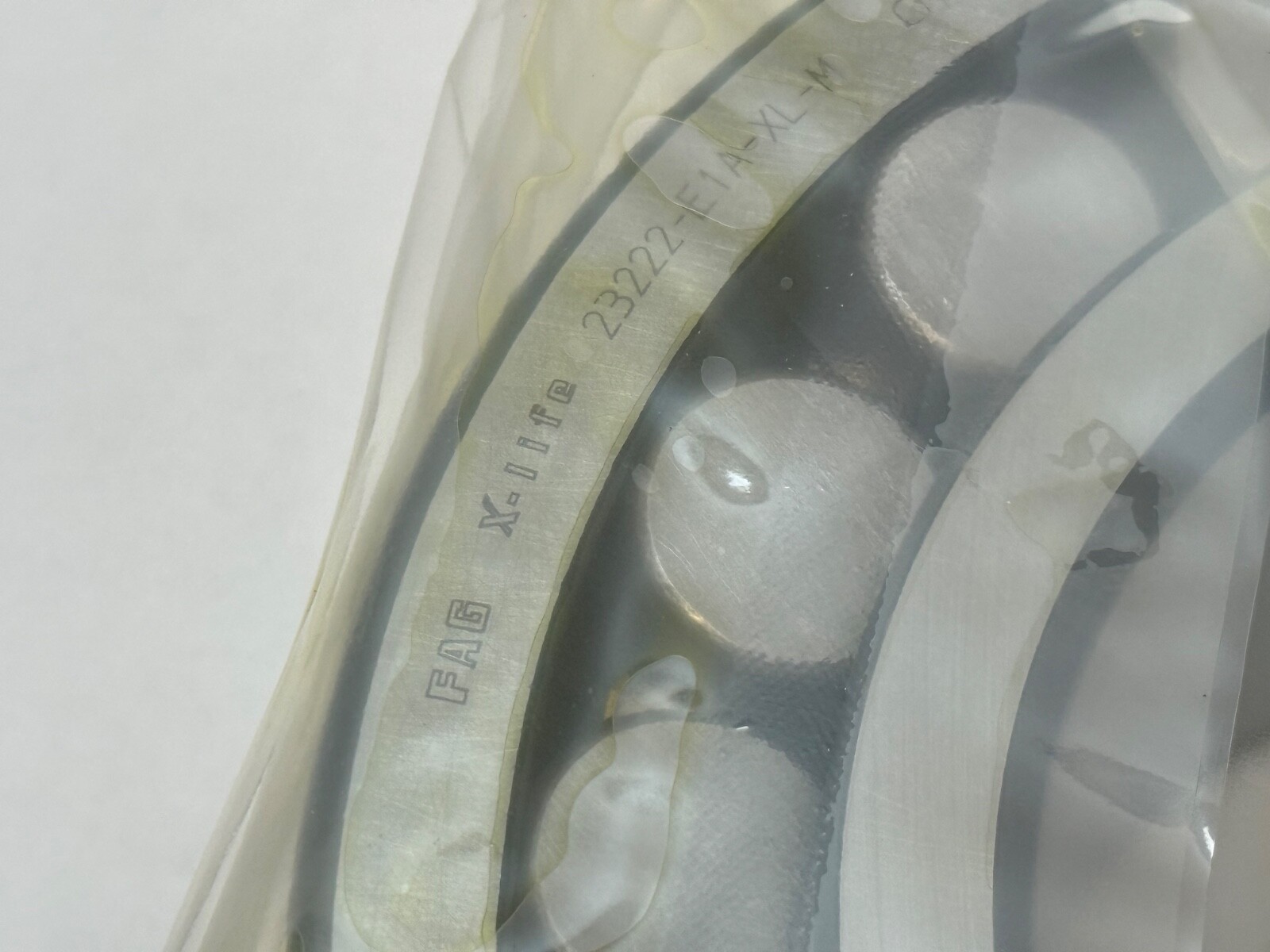

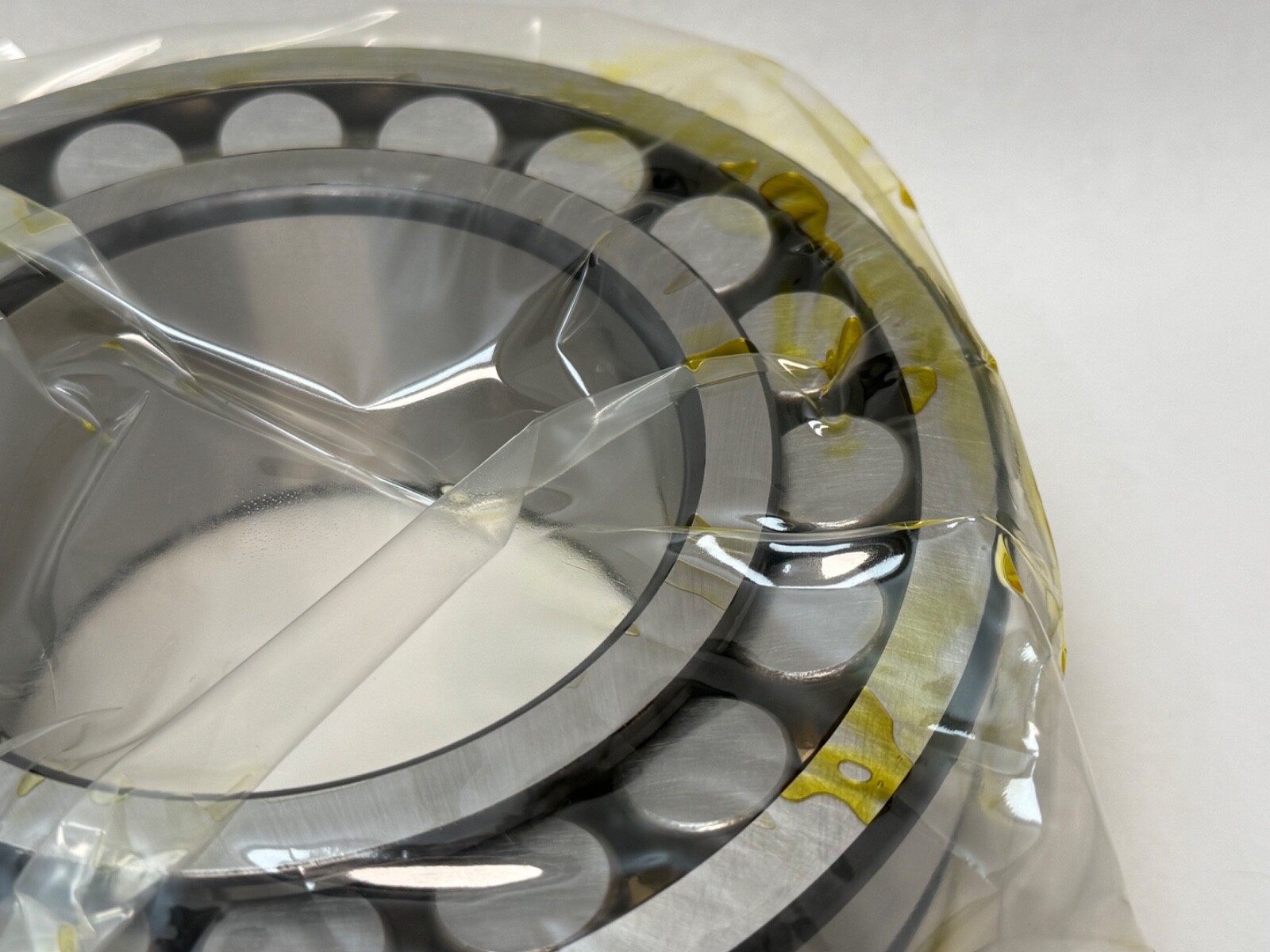

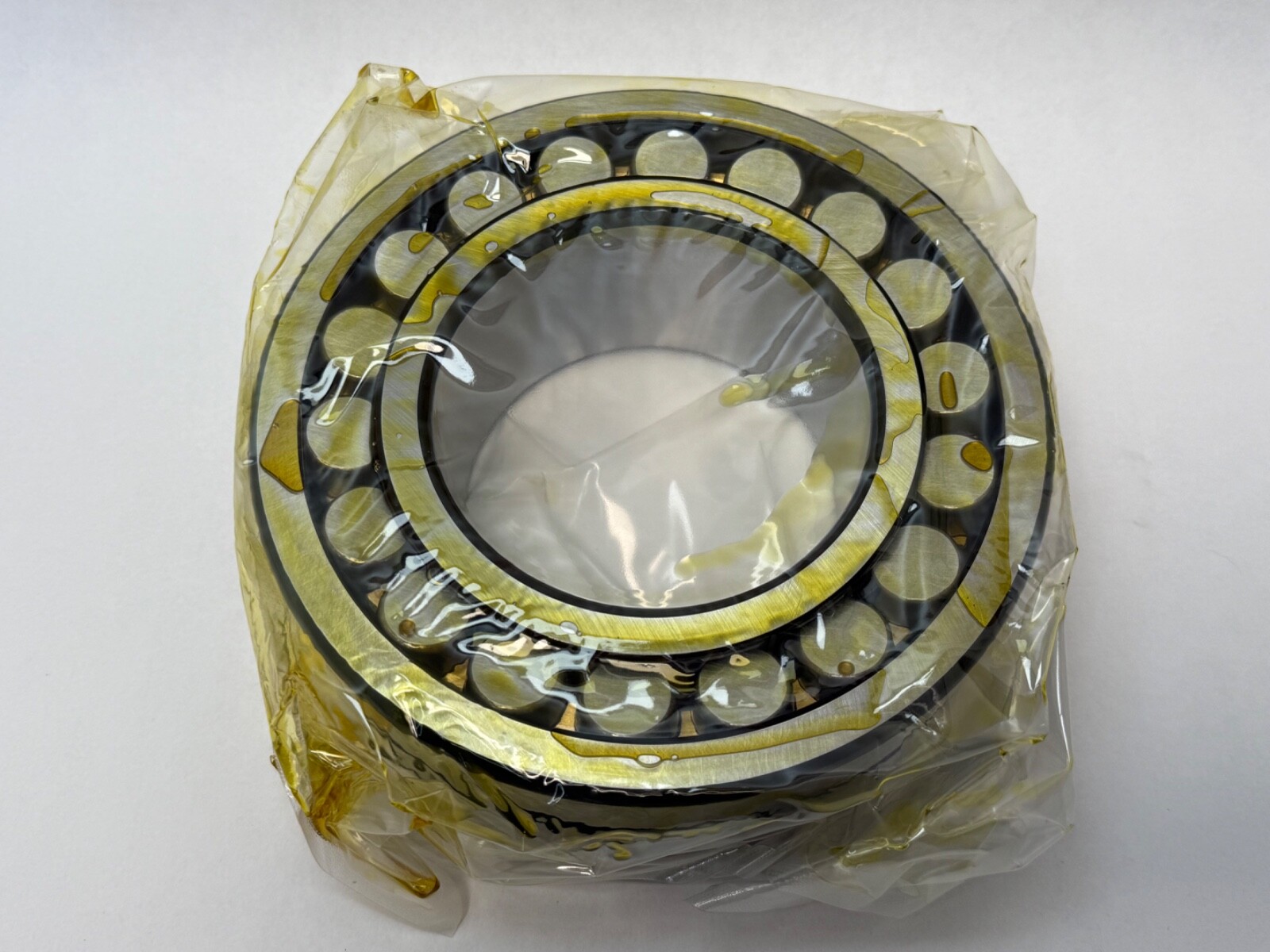

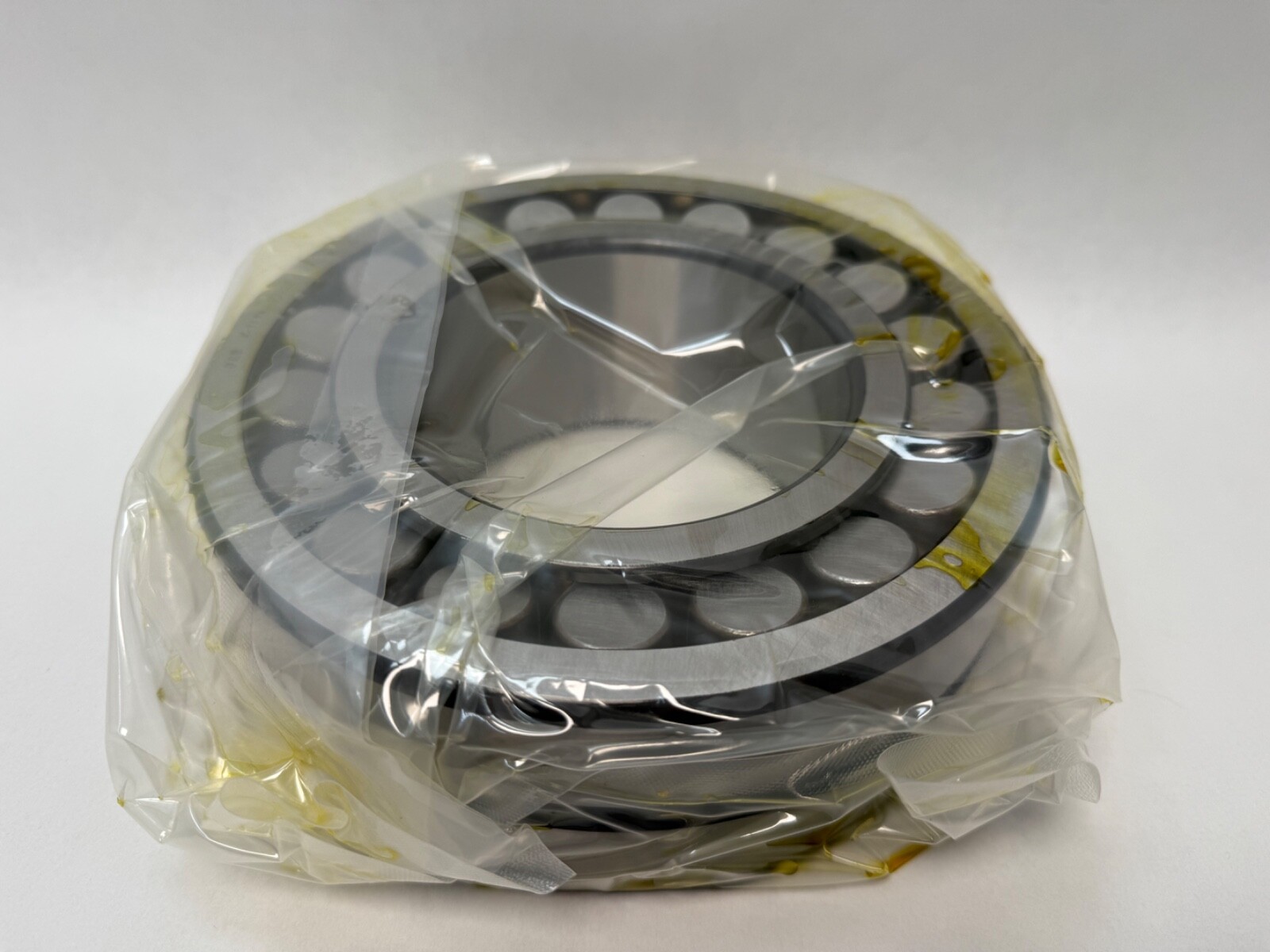

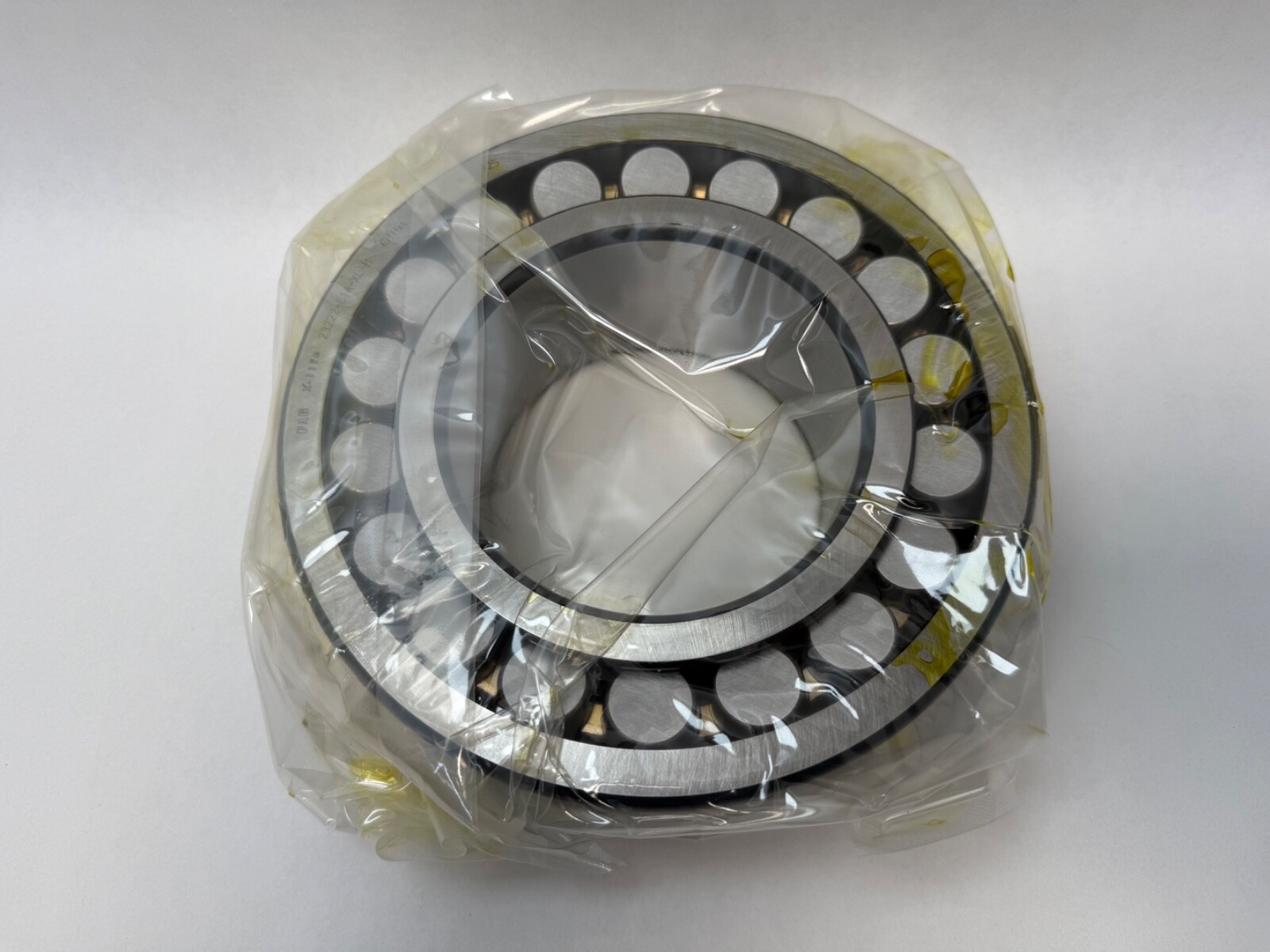

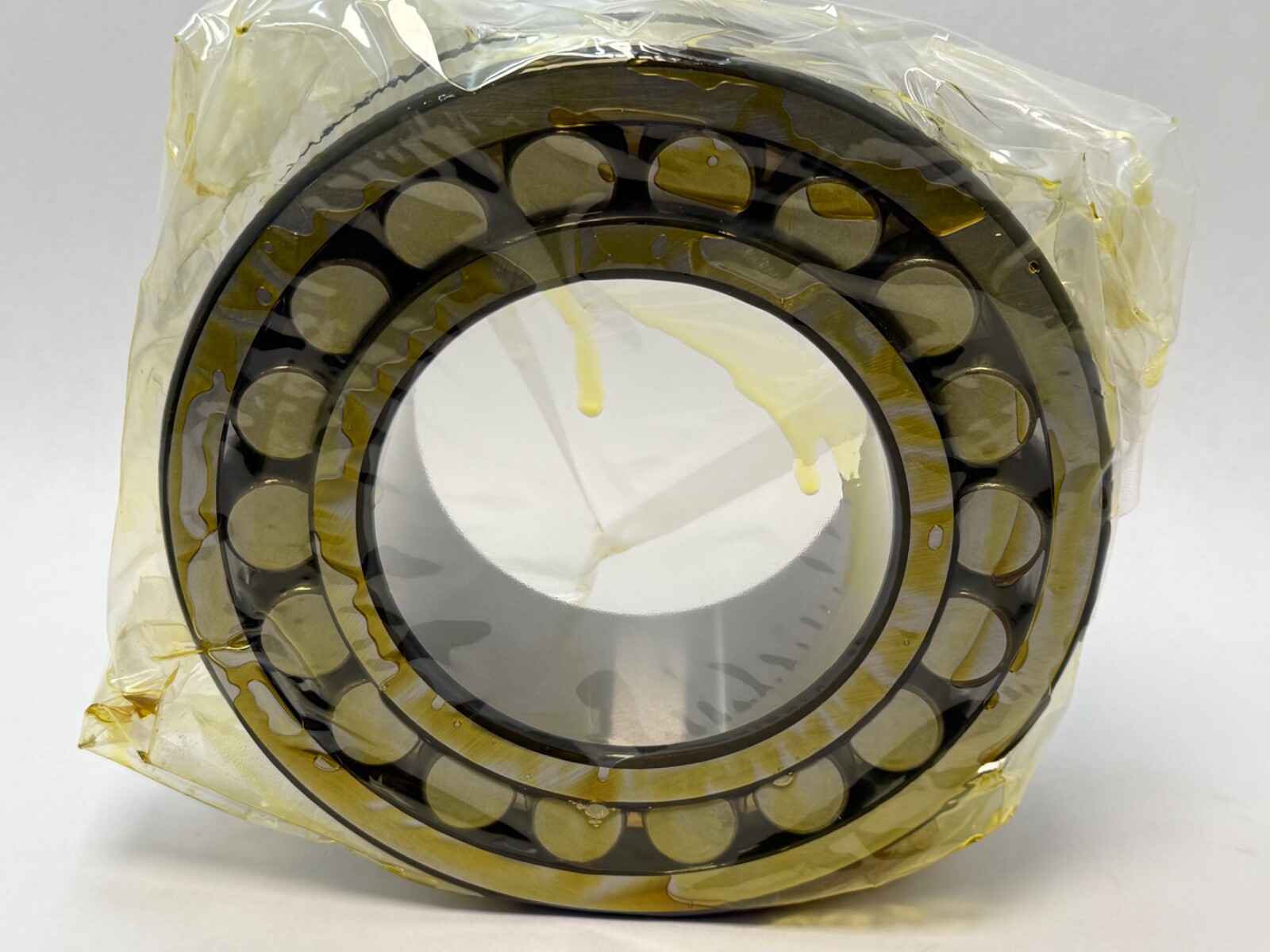

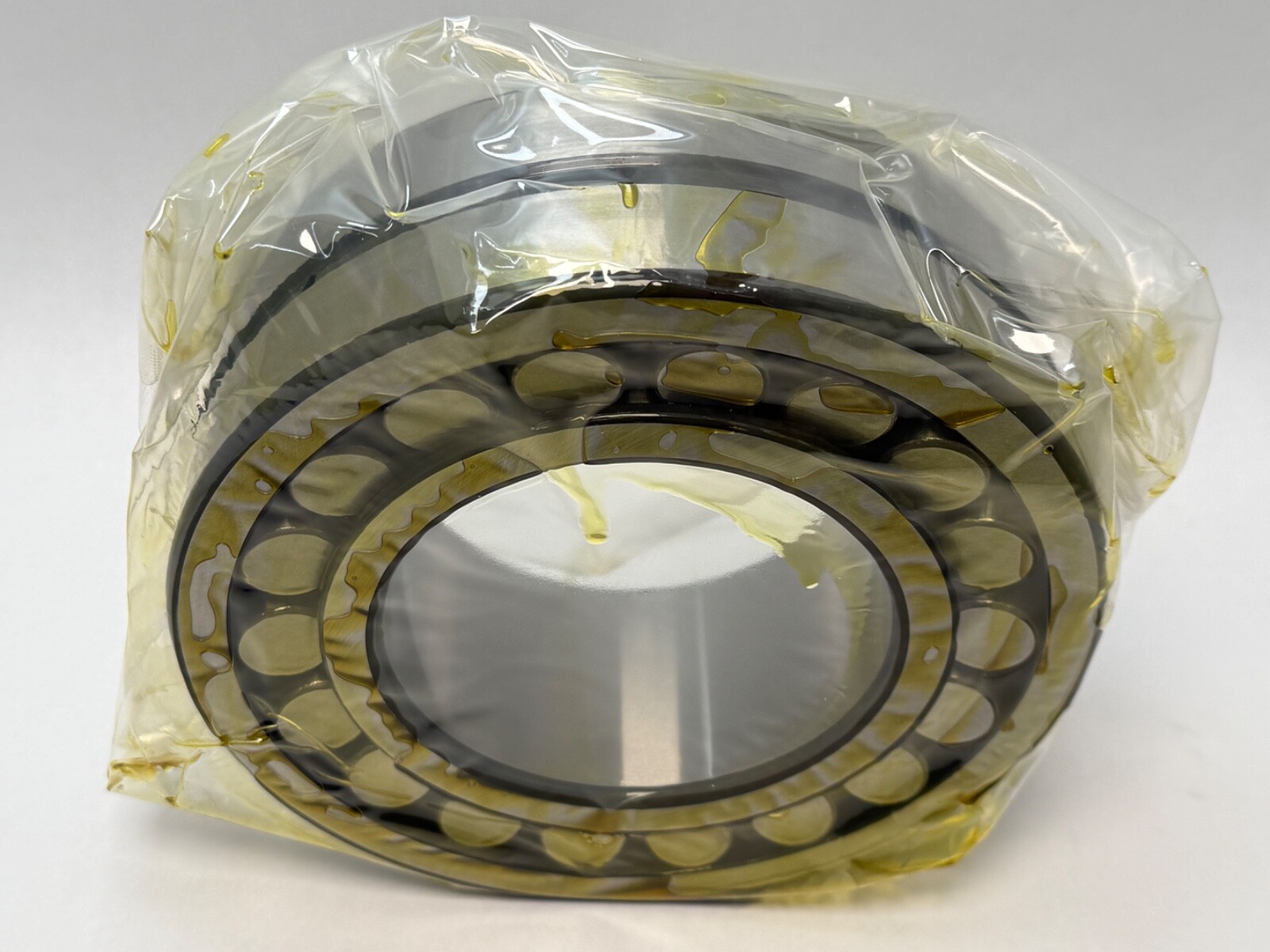

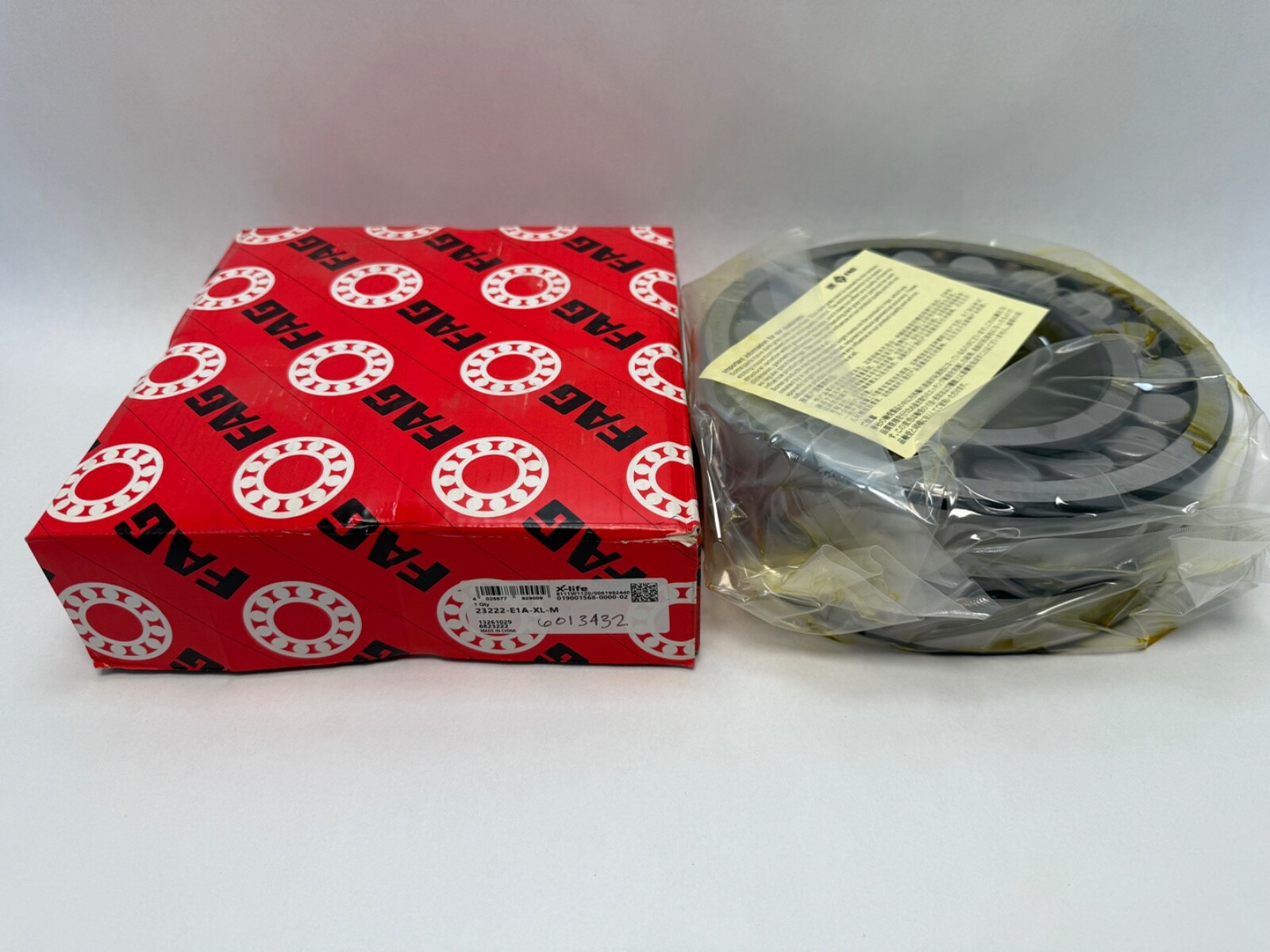

FAG 23222-E1A-XL-M is a double-row spherical roller bearing. Bore Diameter: 110 mm. Outside Diameter: 200 mm. Overall Width: 69.8 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Straight. Closure Type: Open. Cage Material: Machined brass. Bearing Material: Chrome steel. Item Weight: 9.56 kg (21.07 lb). GTIN: 4026677829009.

Decoding the designation

232 — Double-row spherical roller series to DIN 635-2 in the wide section. At 69.8 mm across a 110 mm bore it carries far more than the narrower 222 section of the same bore.

22 — Bore code. Multiply by five: 110 mm.

E1A — Reinforced design with an enlarged roller complement.

XL — Schaeffler’s current generation of the design.

M — Machined brass cage.

W33 — Annular groove in the outer ring outside diameter with three radial holes through to the rolling elements. Groove width 9.5 mm, hole diameter 4.8 mm. The passage takes grease or oil from the housing lubrication port and distributes it around the full circumference.

What these specs mean in practice

Dynamic Load Rating: 710,000 N. Static Load Rating: 870,000 N. Limiting Speed: 3,250 rpm. Reference Speed: 2,100 rpm. Fatigue load limit, radial: 73,000 N. Cage Material: Machined brass. Lubricant: grease or oil. Operating temperature range: -30 °C to +200 °C.

On a double-row spherical roller the static rating sits above the dynamic rating, which is normal for the type. Dynamic axial load factor 3.06, static axial load factor 2.01, with the factor change at an Fa/Fr ratio of 0.33.

A machined brass cage tolerates higher temperature and shock loading than a pressed steel cage and suits the elevated 200 °C ceiling. Series: 232. Base Number: 23222.

Mounting data

Minimum shaft shoulder diameter 122 mm. Maximum housing shoulder diameter 188 mm. Outer ring bore diameter 172.7 mm. Minimum chamfer dimension 2.1 mm; maximum housing recess radius 2.1 mm.

Bore Type: Straight, so the bearing mounts directly on a cylindrical shaft seat. Imperial equivalents of the envelope: 4.331 in bore, 7.874 in outside diameter, 2.748 in width.

Quantity and configuration

Unit Quantity: 1 Pc.

Interchange guidance

Same-envelope equivalents: SKF 23222 CCK/W33 in the straight-bore CC/W33 form 23222 CC/W33, NSK 23222CAME4, NTN 23222B and Timken 23222EMW33. Cage material is part of the match where temperature matters: a pressed steel cage execution of the same number is a related build with a lower temperature ceiling.

Searchable forms of the number: 23222-E1A-XL-M, 23222E1AXLM, 23222-E1A-M, 23222E1A.M, 23222 E1A XL M, 23222E.
