A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
3 in stock

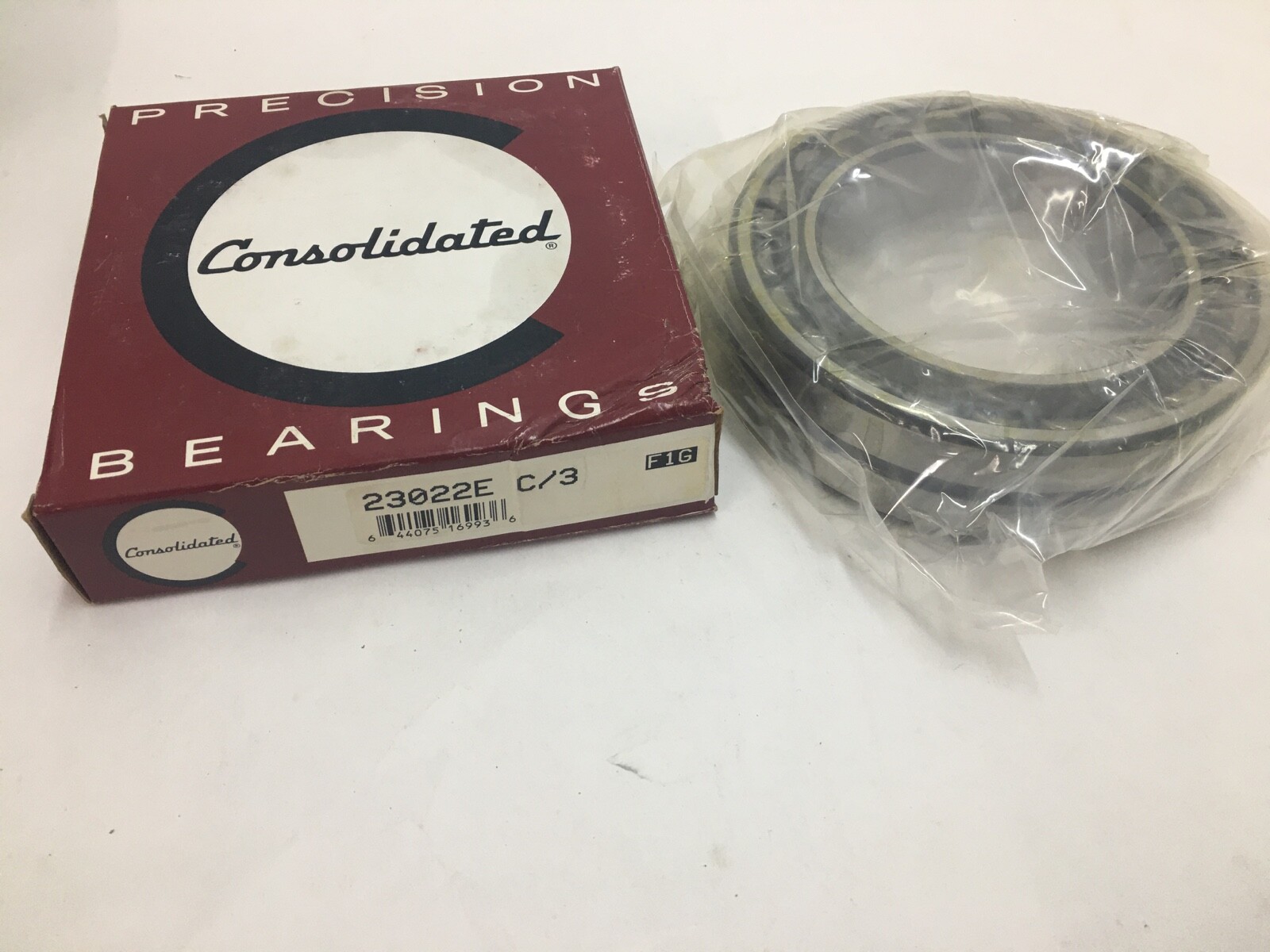

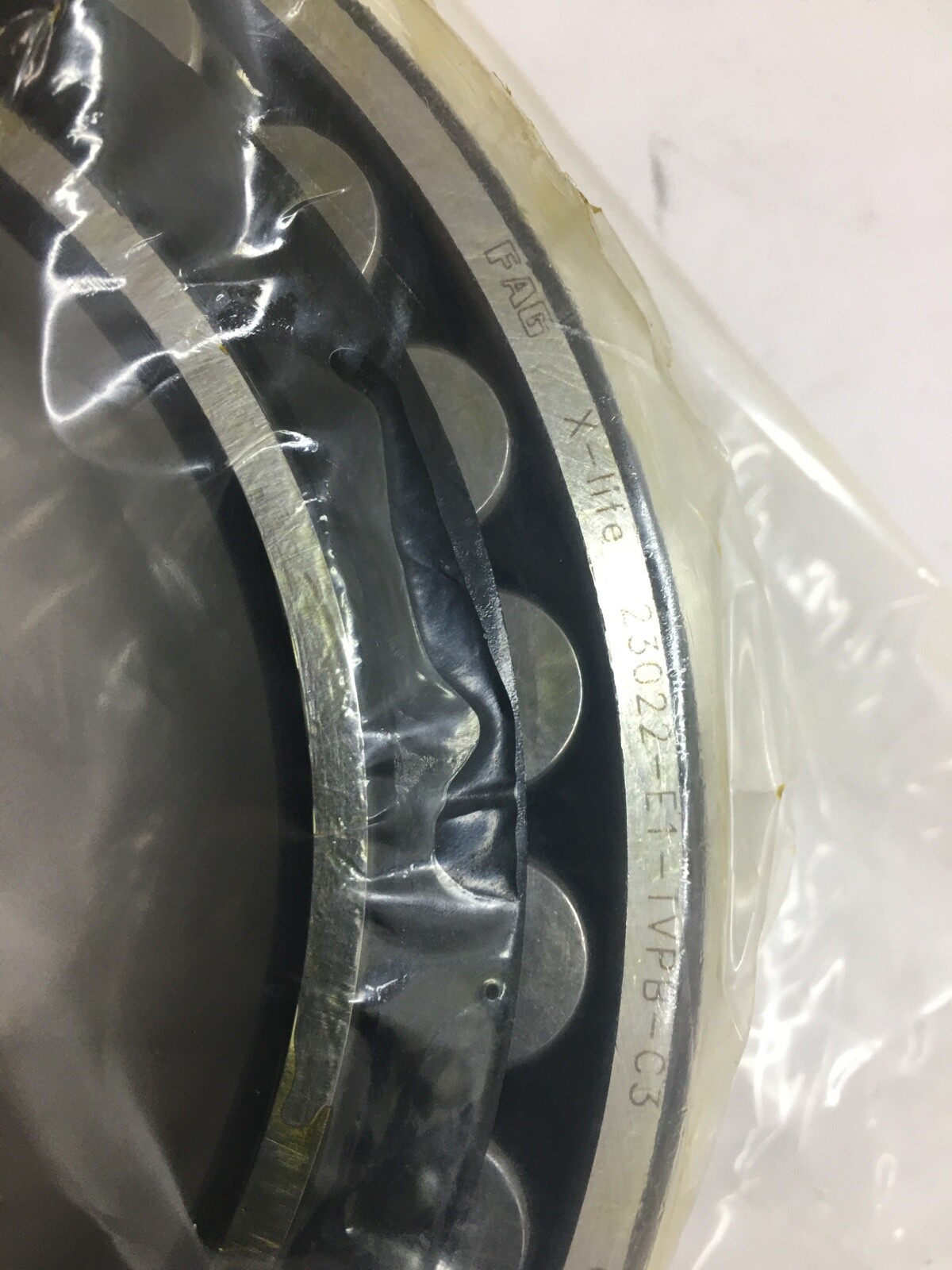

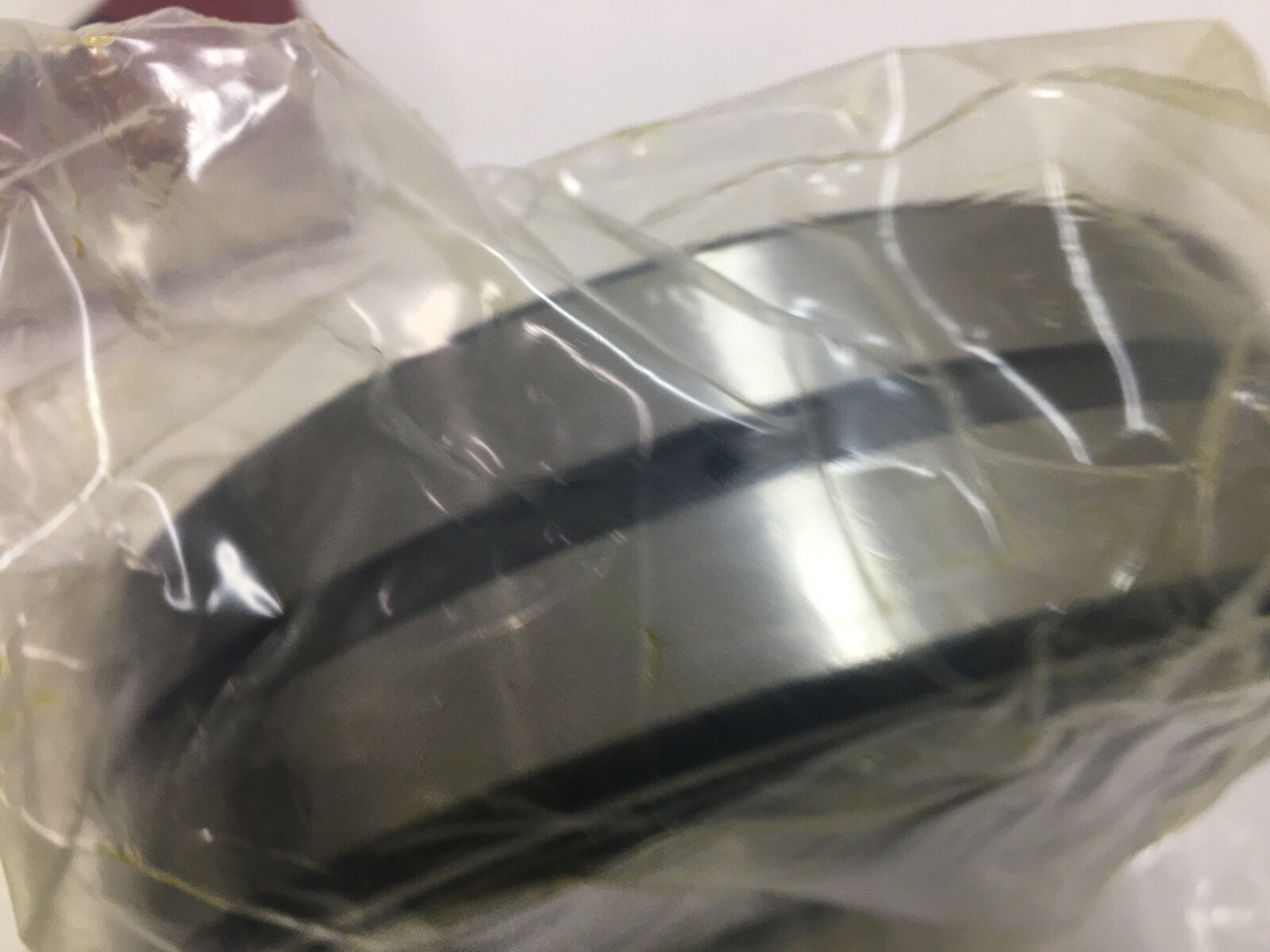

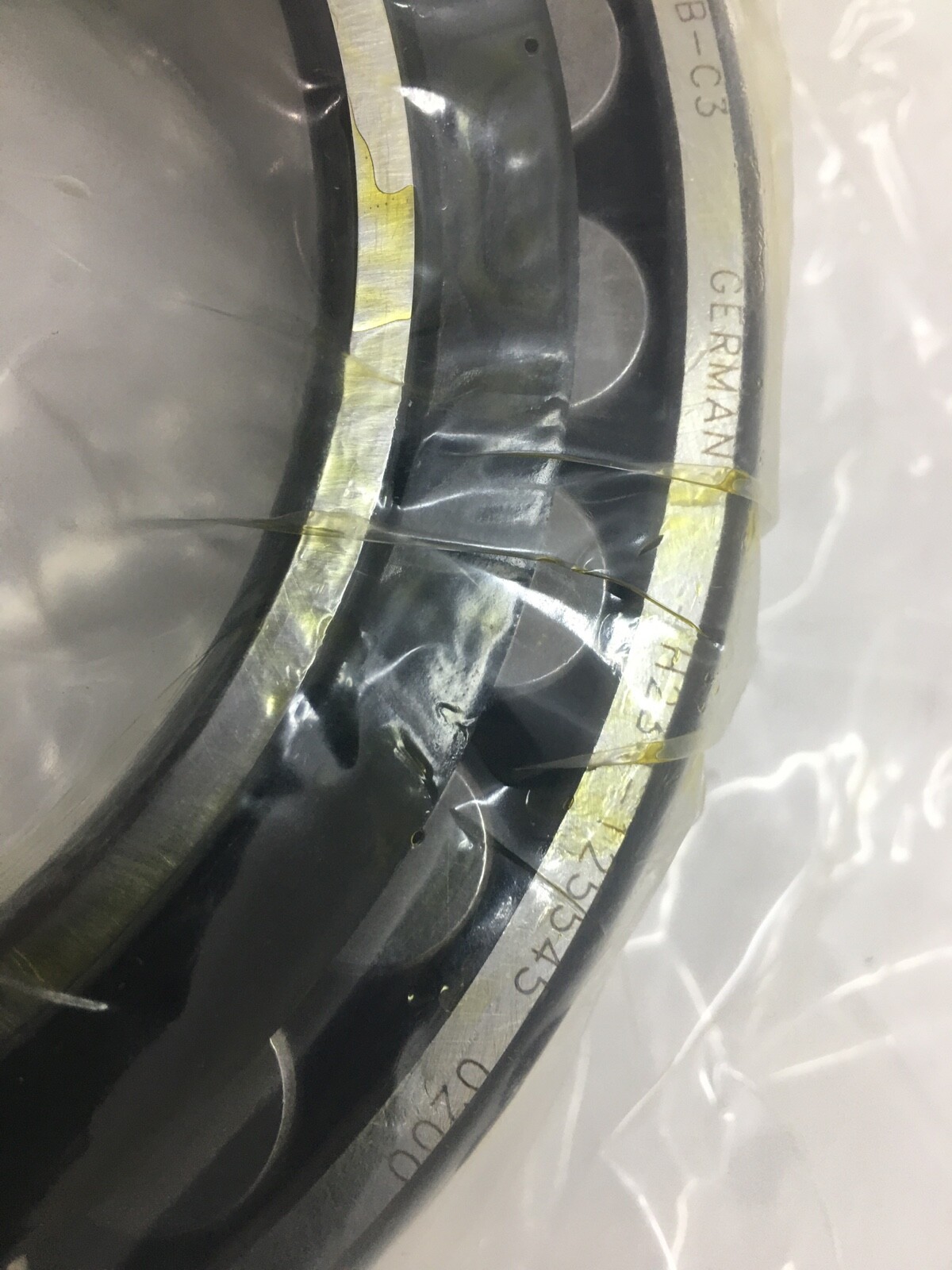

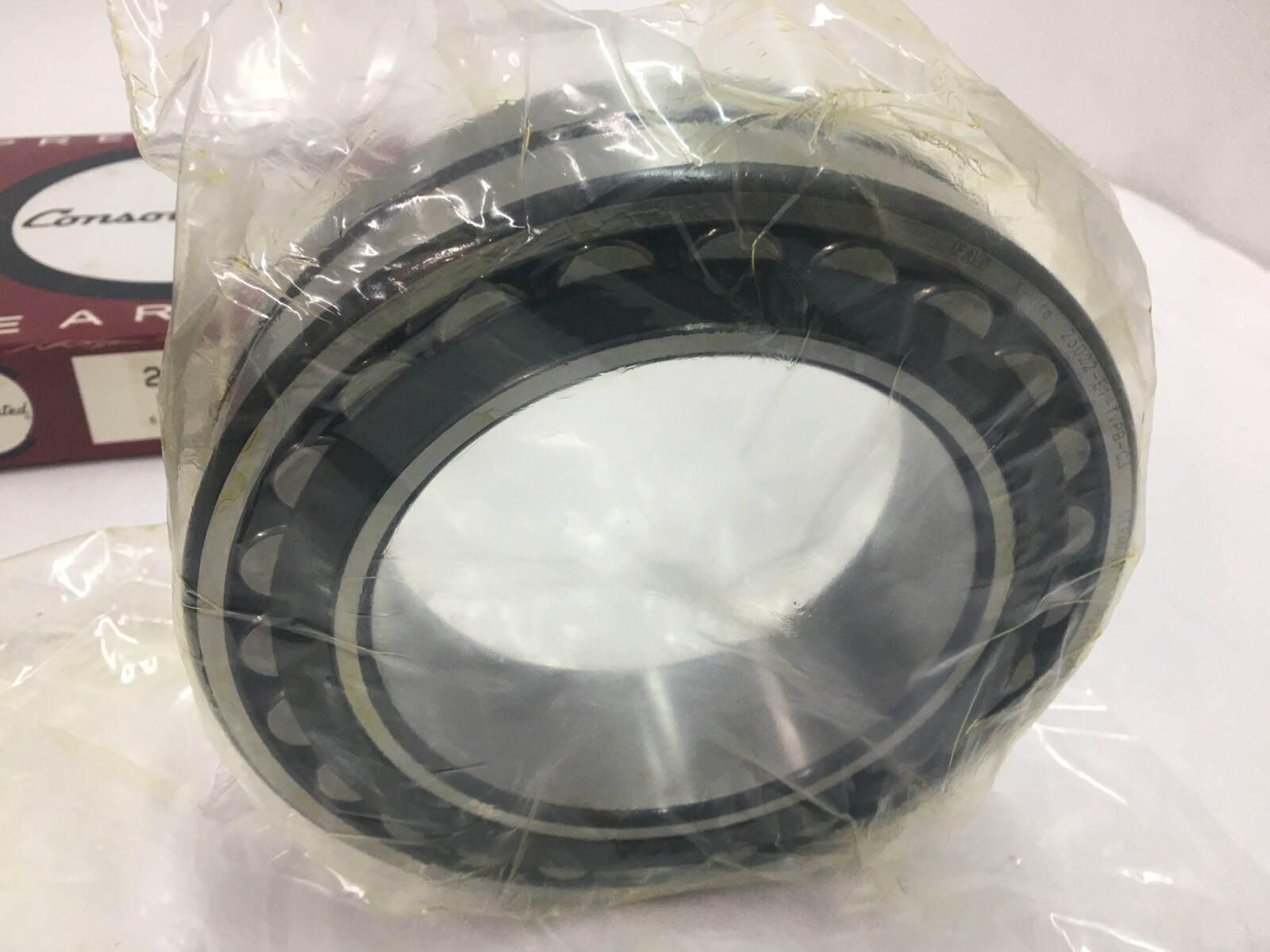

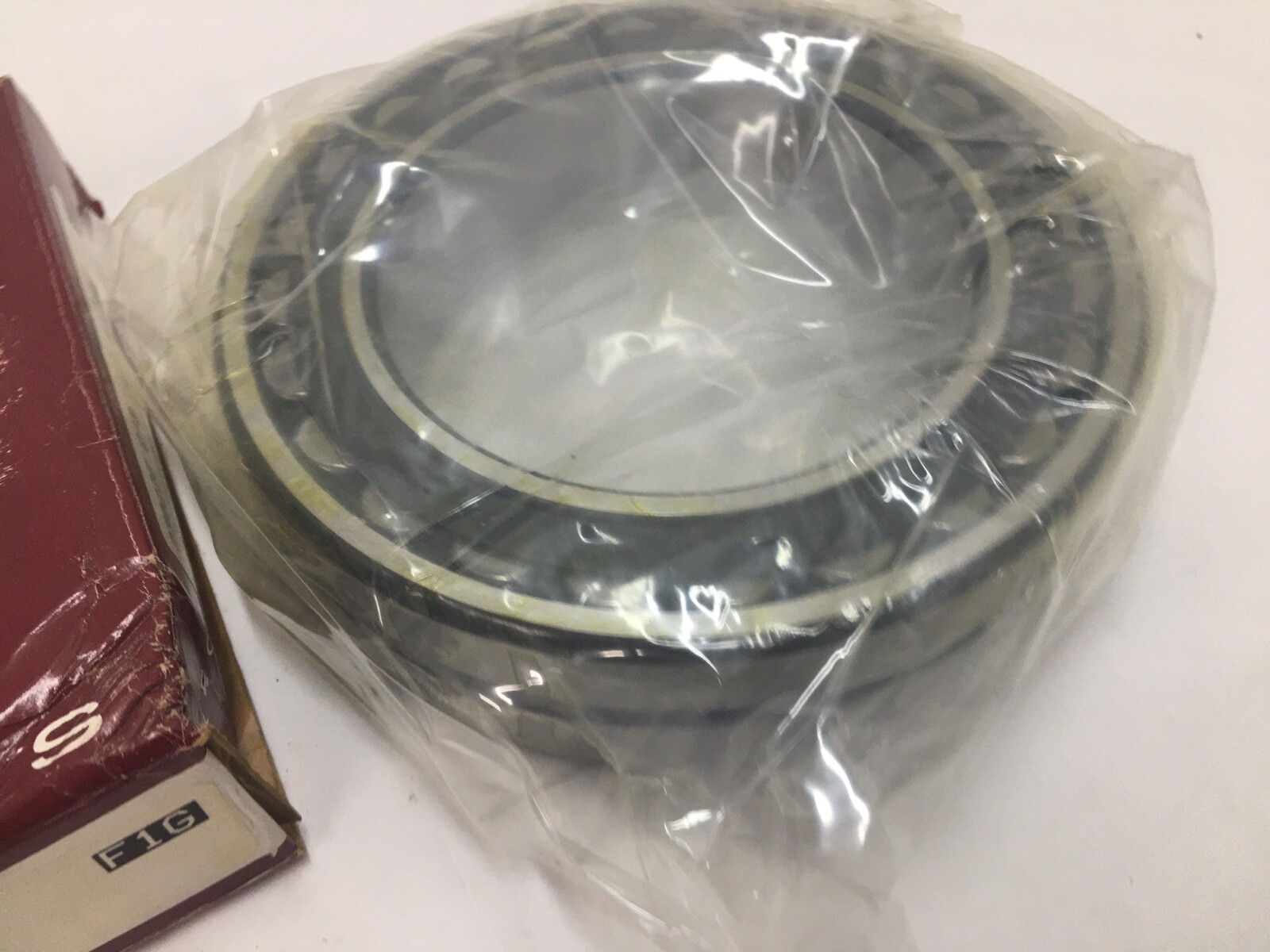

Spherical roller bearing, 110 mm bore x 170 mm OD x 45 mm wide, C3 clearance, polyamide cage, lubrication groove and holes. Consolidated (FAG 23022-E1-TVPB-C3).
List Price
$213.40
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 23022EC3 |
| Model | 23022E C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 110 mm |
| OD | 170 mm |
| Width | 45 mm |
| Material | Chrome Steel |
|---|---|
| Series | 23000 |
| Overall Width | 45 mm |
| Mpn Variants | 23022EC3, 23022E C3, 23022 E1 TVPB C3, 23022-E1-TVPB-C3, 23022 E1 TVBP C3, 23022-E1-XL-TVPB-C3, Consolidated 23022-E1-TVPB-C3 |
| Cage Type | Window, glass-fibre reinforced (TVPB) |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring (W33 equivalent) |
| Harmonization Code | 8482.30.00.40 |
| Cross Reference 1 | SKF 23022 CC/C3W33 |
|---|---|
| Cross Reference 2 | NSK 23022CE4C3 |
| Cross Reference 3 | NTN 23022BD1C3 |
| Cross Reference 4 | Timken 23022EJW33C3 |
| Cross Reference 5 | FAG 23022-E1-XL-TVPB-C3 |
Consolidated 23022 E1 TVPB C3 (FAG designation), a double-row spherical roller bearing in the 230 series. Bore Diameter: 110 mm. Outside Diameter: 170 mm. Width: 45 mm. Bore Type: Straight. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.
230 — spherical roller bearing, dimension series 30.
22 — bore code, 22 x 5 = 110 mm.
E1 — reinforced internal design without a central rib, with lubrication groove and holes in the outer ring.
TVPB — glass-fibre reinforced polyamide cage.
C3 — internal clearance greater than normal.
Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the bearing self-aligns to shaft deflection and misalignment. C3 clearance allows for interference fits and a warmer-running inner ring. Rolling Elements: Spherical Roller. Number Of Rows: 2.
Minimum Chamfer Dimension: 2 mm. Shaft Shoulder Diameter: 118.8 mm. Housing Shoulder Diameter: 161.2 mm. Maximum Recess Radius: 2 mm. Lubrication Groove Width: 6.5 mm. Lubrication Hole Diameter: 3.2 mm.
Unit Quantity: 1 Pc. Single bearing, straight bore, open.
Same 110 x 170 x 45 mm envelope, C3, with lubrication groove and holes: SKF 23022 CC/C3W33, NSK 23022CE4C3, NTN 23022BD1C3, Timken 23022EJW33C3. Current FAG equivalent: 23022-E1-XL-TVPB-C3.
