FAG 22309-E1-C3 double-row spherical roller bearing, 45 x 100 x 36 mm, straight bore, E1 reinforced design, C3 clearance, pressed steel cage, Cr 187 kN.
List Price
$82.60
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing 45 x 100 x 36 mm, Double Row, Straight Bore, Polyamide Cage, C3$82.60
Spherical Roller Bearing - Straight Bore, 45 mm ID, 100 mm OD, 36 mm Width, Open, Steel Cage, Reinforced E Design.$80.73
Spherical Roller Bearing - Straight Bore, 45 mm ID, 100 mm OD, 36 mm Width, Open, Machined Brass Cage, C3 Internal Clearance, W33 Lubrication Groove.$80.73
Spherical Roller Bearing, Tapered Bore — 45 mm ID, 100 mm OD, 25 mm Width, C3 Clearance$60.53| MFR / Brand | FAG |
|---|---|
| MPN | 22309-E1-C3 |
| GTIN | 4026677806710 |
| Model | 22309E1C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 100 mm |
| Width | 36 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22300 |
| Lubricant | Grease or oil |
| Base Number | 22309 |
| Industry Terms | spherical roller bearing; barrel roller bearing; self-aligning roller bearing; double row spherical roller; wide section spherical roller; 45mm bore roller bearing |
| Common Misspellings | 22309E1C3; 22309 E1C3; 2309E1; 22390E1; 22309-EI-C3; spherical rolller bearing; spherical roler bearing |
| Application Types | Vibrating screens; crushers; conveyor pulleys; fan and blower shafts; gearbox shafts; agricultural drives |
| Bore Shaft Size | 45 mm, straight (cylindrical) bore |
| Mpn Variants | 22309-E1-C3; 22309E1C3; 22309 E1 C3; 22309E1; 22309E; 22309C3; 22309 |
| Compatible With Replaces | ISO base 22309. Same-spec: SKF 22309 E/C3, NSK 22309EAE4C3, NTN 22309EAD1C3, Timken 22309EJC3. Related sizes: 22309-E1-K-C3 (taper bore), 22309-E1-C3-W33 (with lube groove and holes), 22209 and 21309 (narrower sections) |
| Precision Class | RBEC 1 / P0 |
| Additional Attributes | Fatigue load rating Cu 16,100 N; E1 reinforced internal design; spherical outer raceway, self-aligning |
| Dynamic Load Rating | 187,000 N |
| Static Load Rating | 183,000 N |
| Precision Rating | RBEC 1 / P0 |
| Rolling Elements | Spherical (barrel) rollers |
| Item Weight | 1.39 kg (3.06 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00.40 |
| Part Number | 22309-E1-C3 |
| Closure Type | Open |
| Cross Reference 1 | FAG 22309-E1-XL-C3 - current FAG nomenclature |
|---|---|
| Cross Reference 2 | SKF 22309 E/C3 |
| Cross Reference 3 | NTN 22309EAD1C3 |
| Cross Reference 4 | NSK 22309EAE4C3 |
| Cross Reference 5 | Timken 22309EJC3 |
| Cross Reference 6 | FAG 22309-E1-C3-W33 - adds outer-ring groove and holes |
| Cross Reference 7 | FAG 22309-E1-K-C3 - tapered bore, not straight |

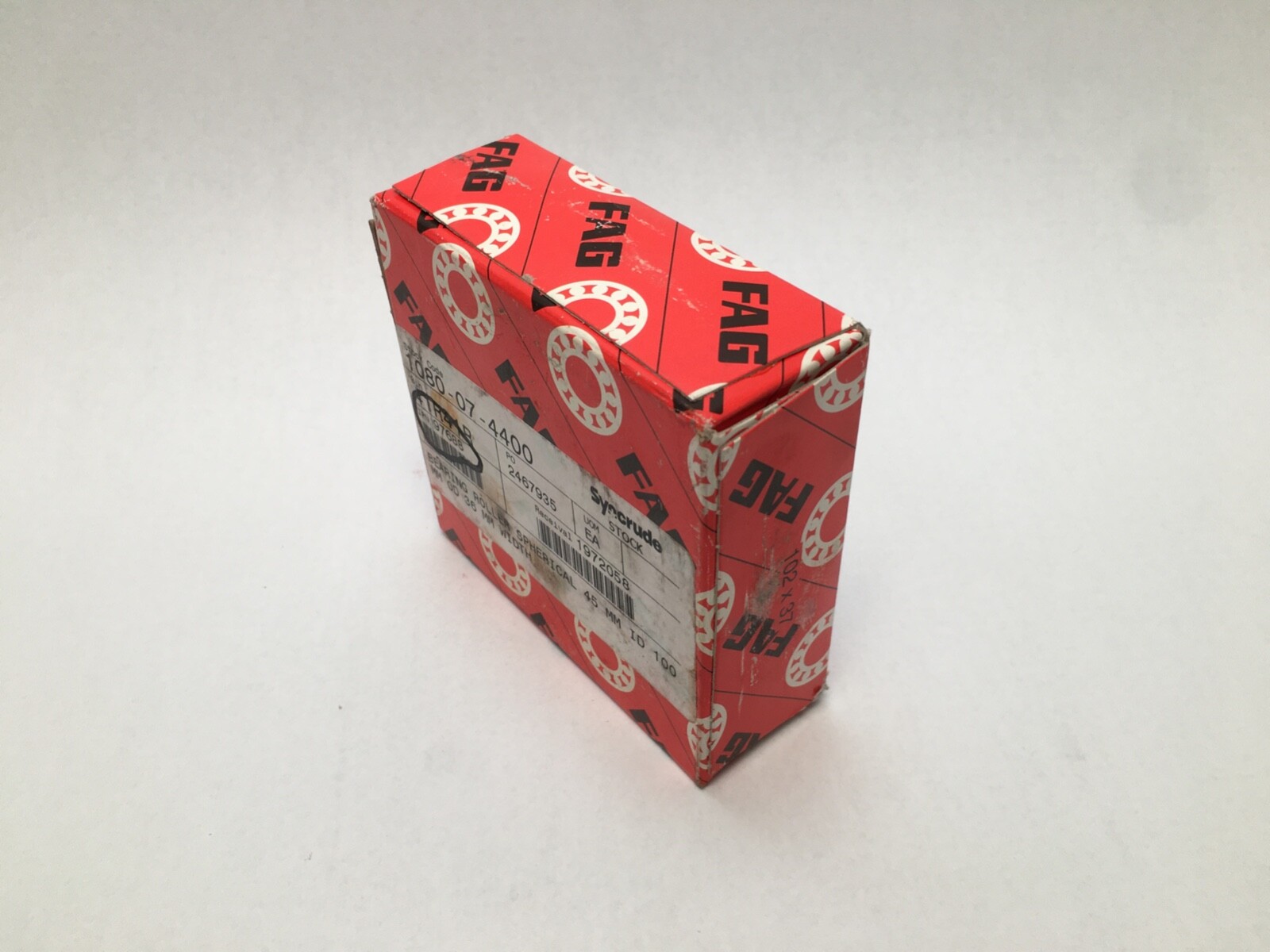

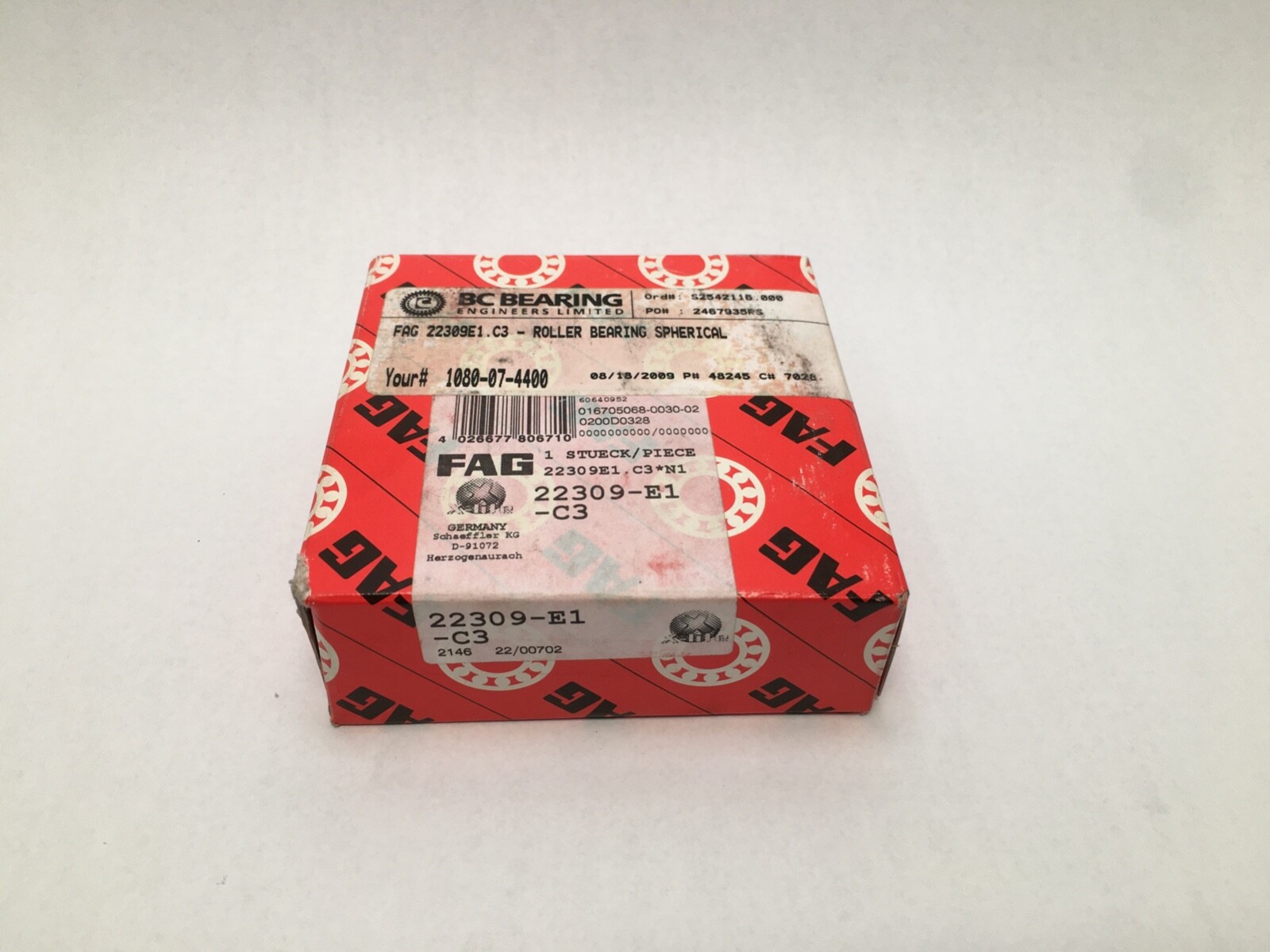

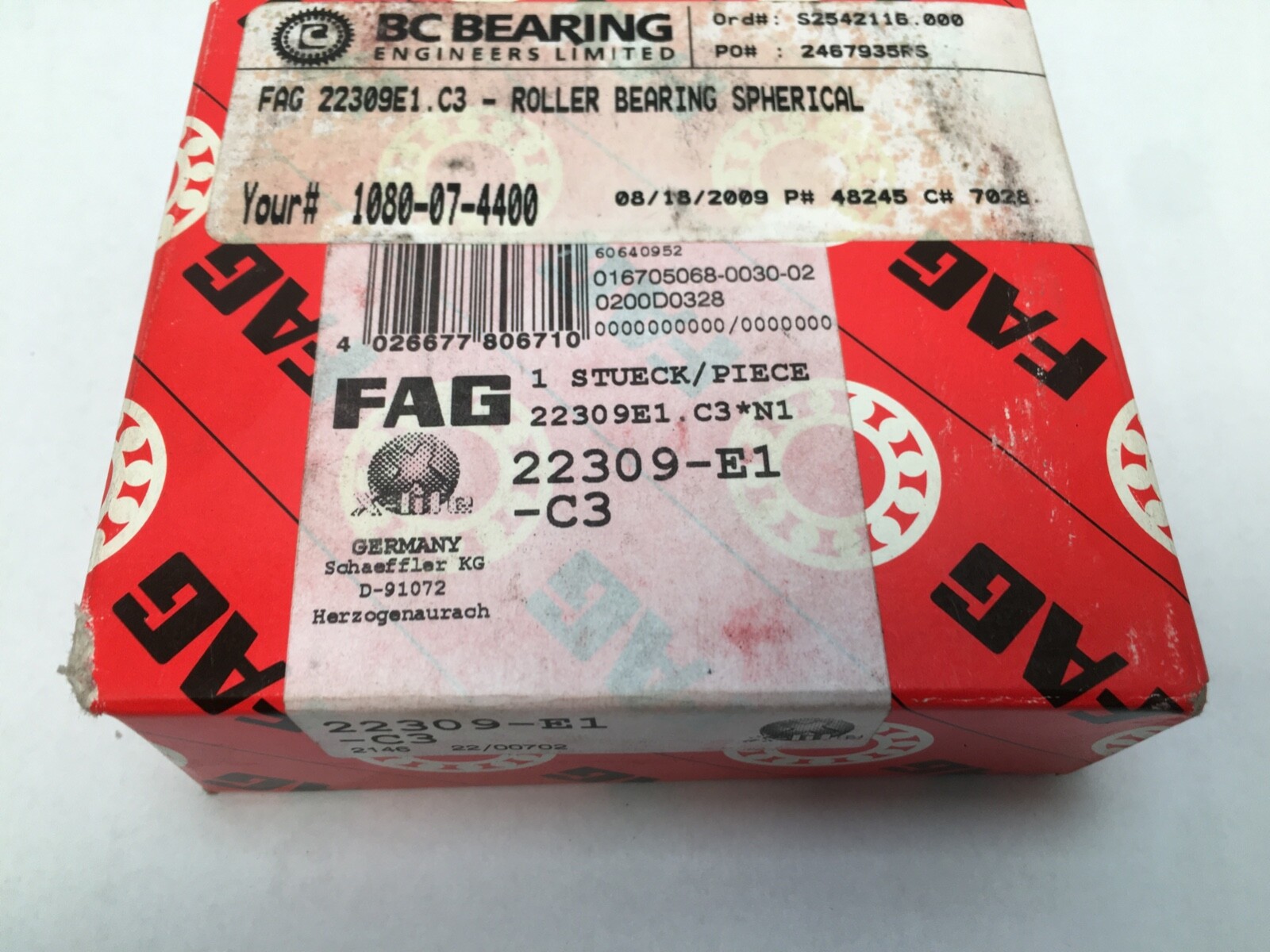

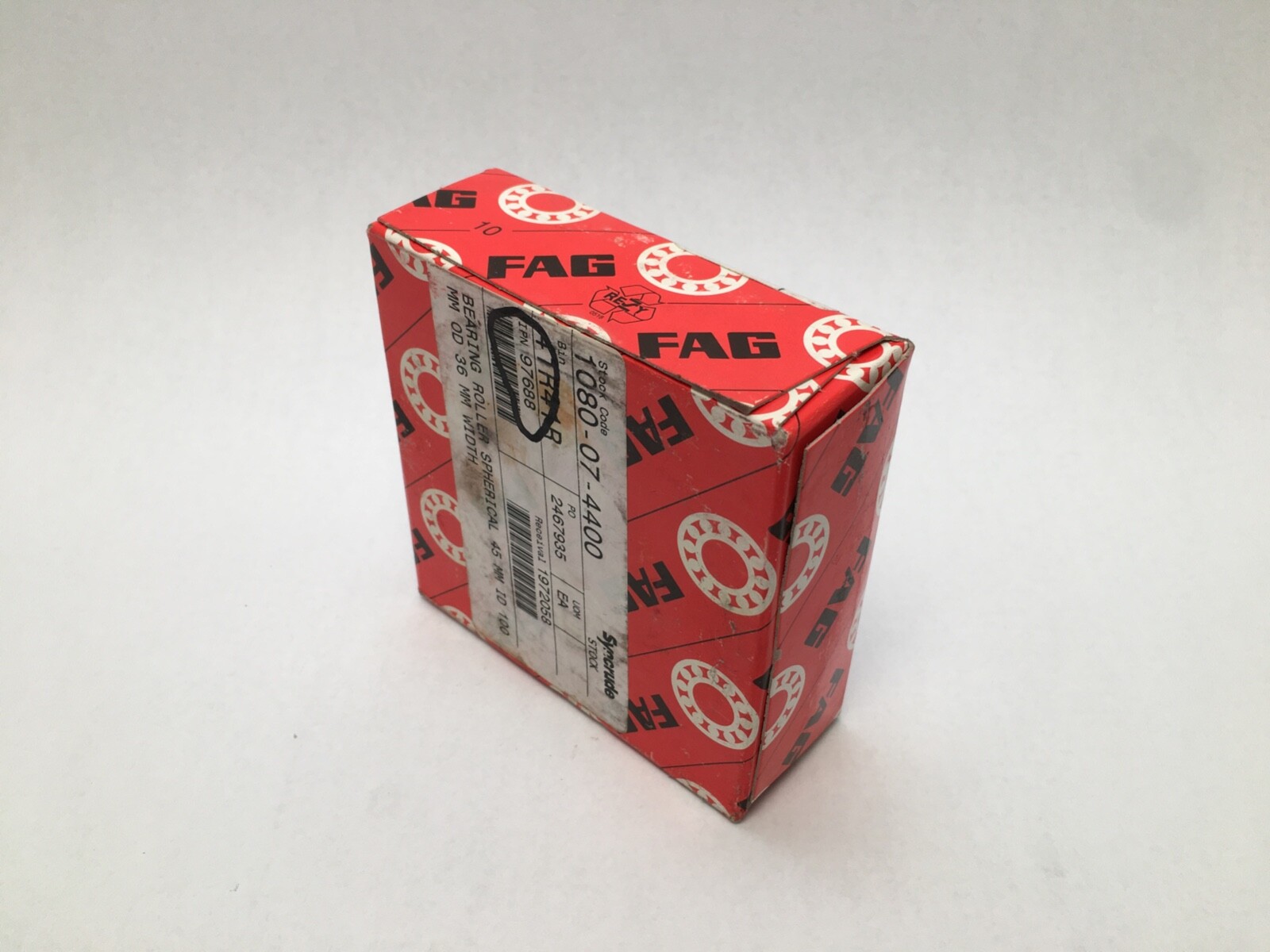

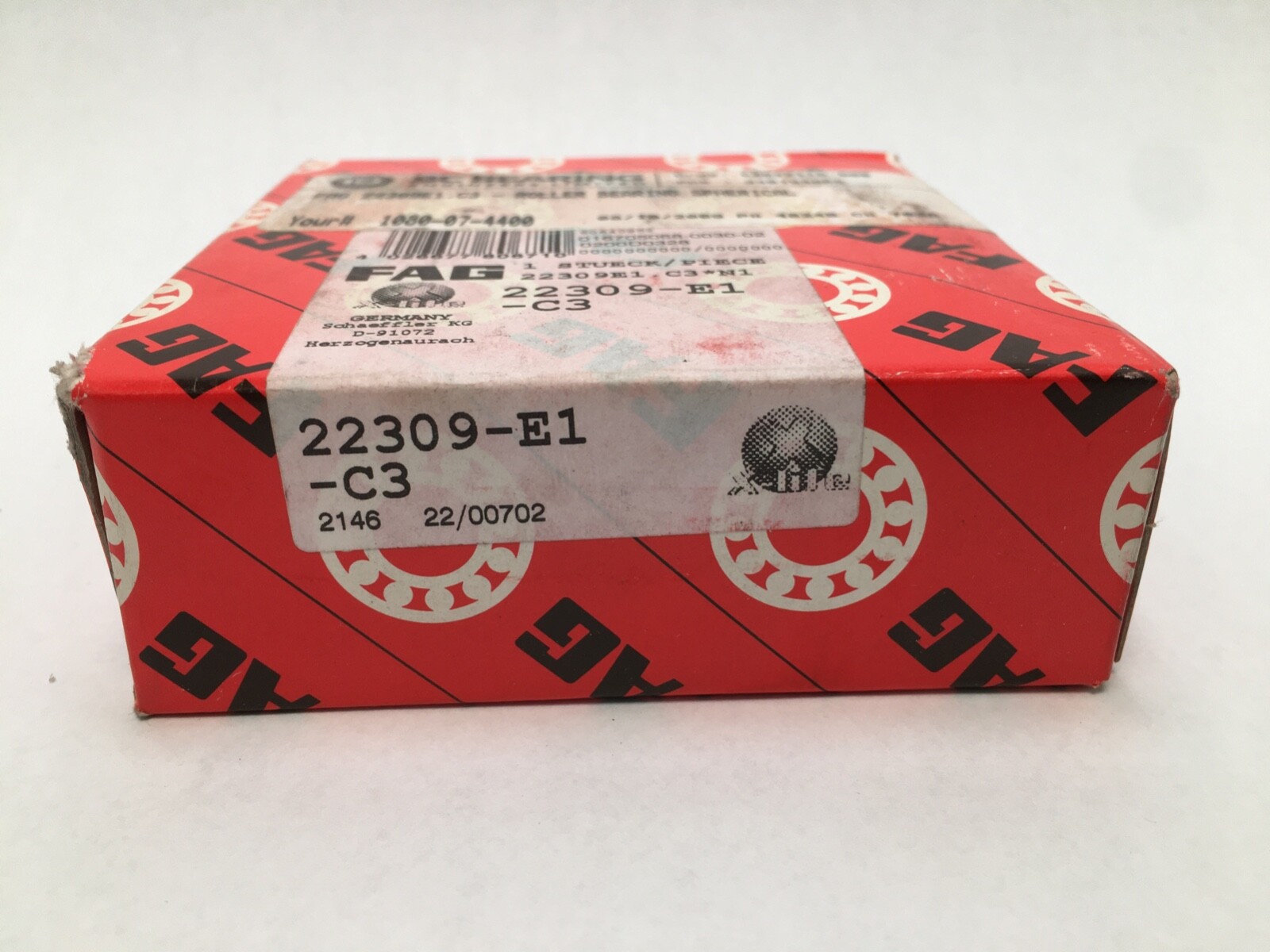

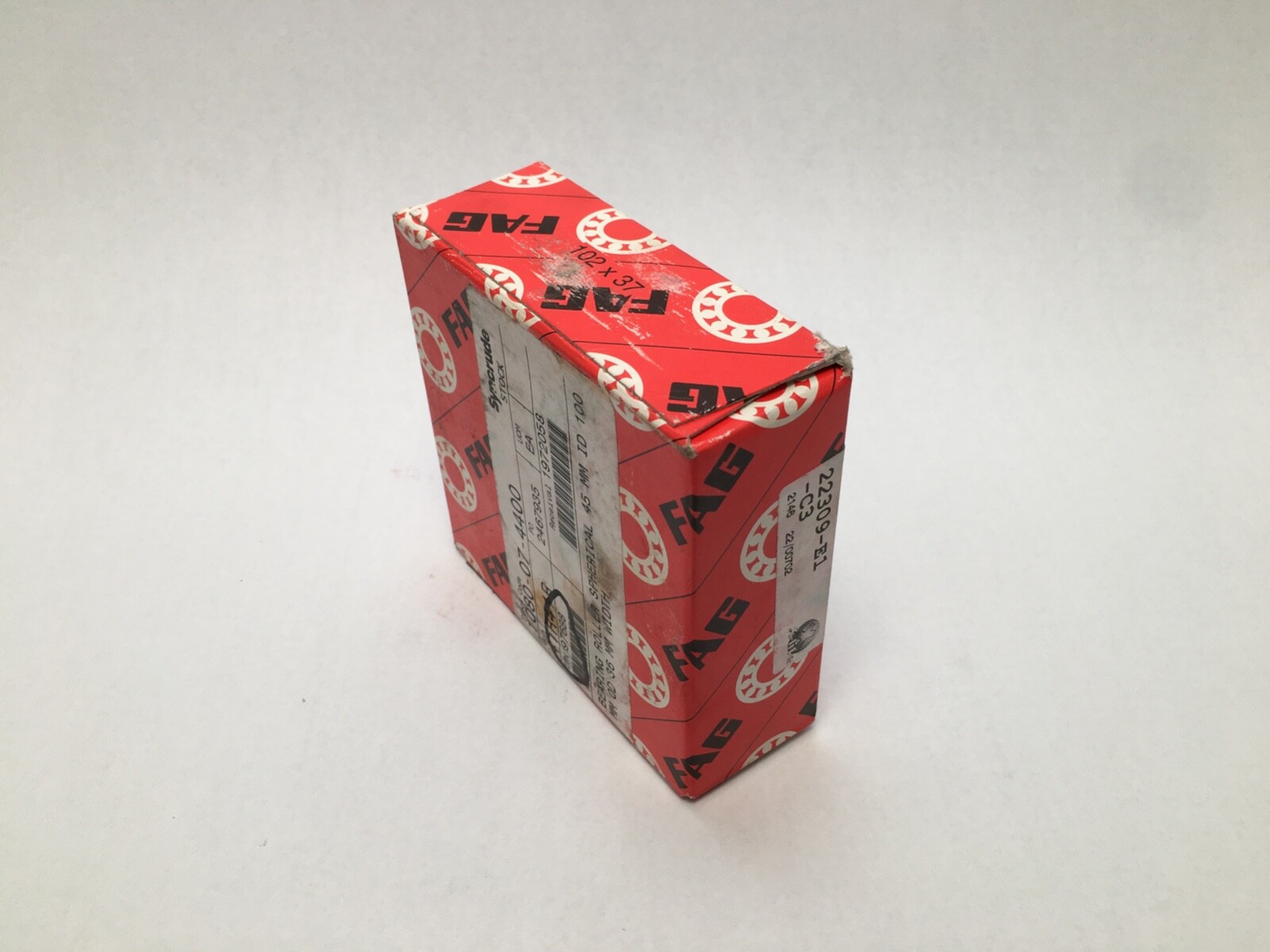

FAG 22309-E1-C3 double-row spherical roller bearing: 45 mm straight bore, 100 mm outside diameter, 36 mm width, E1 reinforced internal design, C3 radial internal clearance, pressed steel cage. One complete bearing. Country of Origin: Germany.
22309 — FAG’s ISO number for a double-row spherical roller bearing in dimension series 23, bore code 09 = 45 mm.
E1 — FAG’s reinforced internal design with higher load capacity than the base 22309.
C3 — radial internal clearance greater than Normal.
Bearing Type: spherical roller bearing, double row. Bore Diameter: 45 mm, straight. Outside Diameter: 100 mm. Width: 36 mm. Number of Rows: 2. Rolling Elements: spherical roller. Series: 22300. Internal Clearance: C3. Cage Material: pressed steel. Closure Type: open. Dynamic Load Rating (Cr): 187,000 N. Static Load Rating (C0r): 183,000 N. Fatigue Load Rating (Cu): 16,100 N. Lubricant: grease or oil. Item Weight: 1.39 kg (3.06 lb). Harmonization Code: 8482.30.00.40. GTIN: 4026677806710.
Bore Diameter: 45 mm, cylindrical. Outside Diameter: 100 mm. Width: 36 mm. Outer ring: plain, self-aligning on its spherical outer raceway.
Cross-references: FAG 22309-E1-XL-C3 (current FAG nomenclature); SKF 22309 E/C3; NTN 22309EAD1C3; NSK 22309EAE4C3; Timken 22309EJC3. Related FAG parts: 22309-E1-C3-W33 adds an outer-ring groove and radial holes; 22309-E1-K-C3 has a tapered bore.
45 mm straight bore, 100 mm outside diameter and 36 mm width.
E1 is FAG’s reinforced internal design. C3 is radial internal clearance greater than Normal.
Dynamic load rating Cr: 187,000 N. Static load rating C0r: 183,000 N.
$67.31
10 in stock
$67.31
10 in stock
$64.17
13 in stock
