FAG 22309E double-row spherical roller bearing, 45 x 100 x 36 mm, straight bore, open, steel cage, reinforced E design, axial load capacity in both directions.
List Price
$80.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22309-E-T41A |
| GTIN | 4026677008312 |
| Model | 22309-E-T41A |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 100 mm |
| Width | 36 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 22309 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; 22300 series; barrel roller bearing; heavy duty roller bearing |
| Common Misspellings | 22309 E FAG; 2309E; 22309-E T41-A; 22309EA |
| Application Types | Vibrating and screening plant; crushers; conveyor drives; fans; gearboxes and heavy shaft supports |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 22309E; 22309 E; 22309ET41A; 22309-E-T41A; 22309 |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Part Number | 22309E |
| Cross Reference 1 | SKF 22309 E |
|---|---|
| Cross Reference 2 | NTN 22309EAE4 |
| Cross Reference 3 | FAG 22309E.W33 (adds W33 lubrication groove) |
| Cross Reference 4 | FAG 22309EK (1:12 tapered bore, adapter sleeve) |
FAG 22309E double-row spherical roller bearing. Bore Diameter: 45 mm. Outside Diameter: 100 mm. Overall Width: 36 mm. Straight cylindrical bore, open, steel cage, reinforced E internal design. Complete bearing: outer ring, two roller rows, cage and inner ring. Unit Quantity: 1 Pc.
223 — double-row spherical roller bearing in the 23 dimension series, the widest and heaviest of the common spherical roller series.
09 — bore code, 45 mm.
E — reinforced FAG internal design with a larger roller set and a higher dynamic rating than the base design.
No K — straight bore, mounted directly on the shaft.
Bearing Type: Double row spherical roller bearing. Rolling Elements: Spherical (barrel) rollers. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Cage: Steel. Material: Bearing steel. Series: FAG 22300 series, 23 dimension series. Axial Load Capacity: Both directions.
Bore Diameter: 45 mm. Outside Diameter: 100 mm. Overall Width: 36 mm. The straight bore takes an interference fit on a cylindrical shaft seat. The outer ring carries no lubrication groove.
Cross-references: SKF 22309 E and NTN 22309EAE4, both in the reinforced E design. FAG 22309E.W33 adds a lubrication groove and three feed holes in the outer ring. FAG 22309EK has a 1:12 tapered bore for an H2309 adapter sleeve.

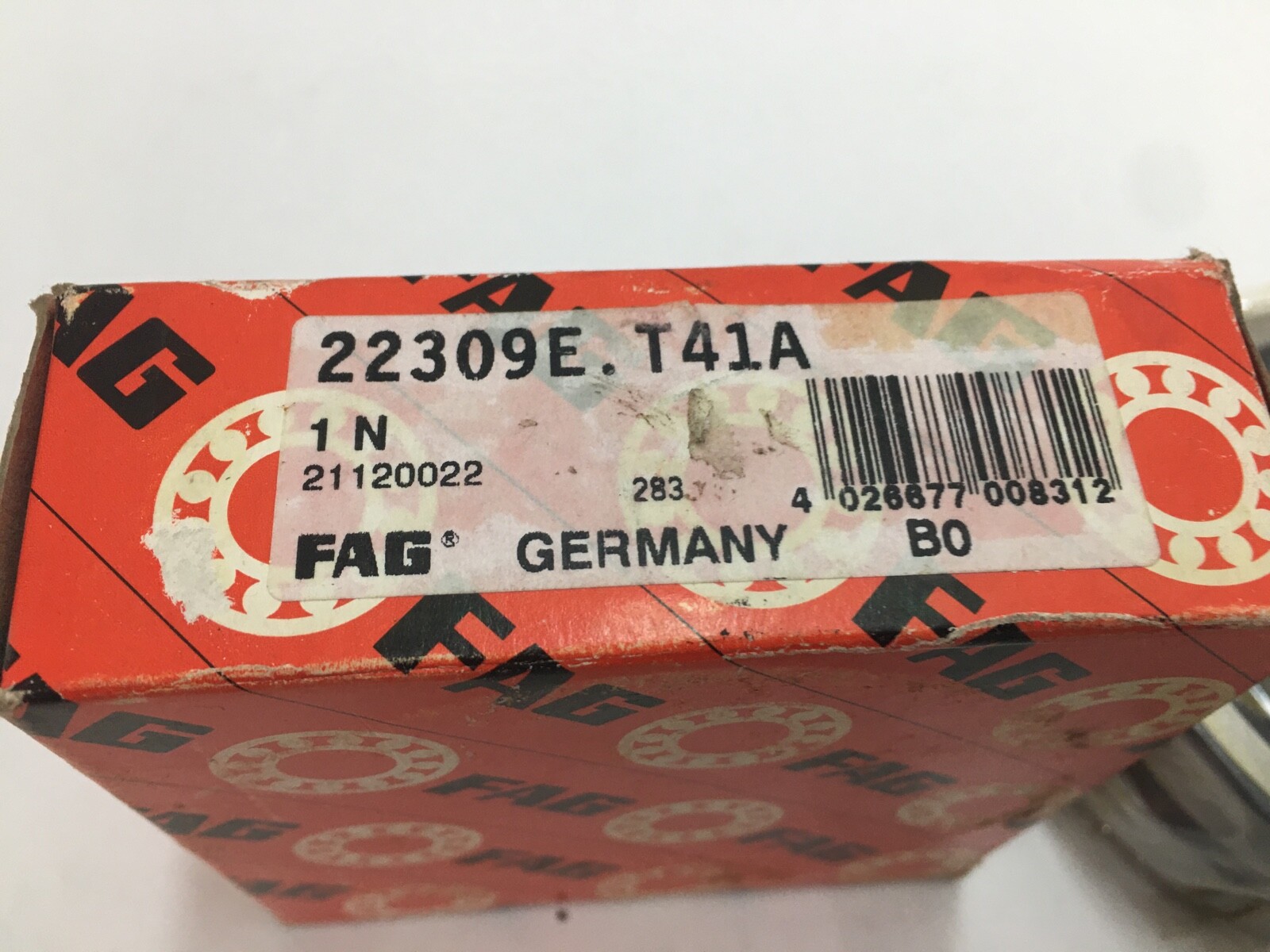

Other carton designations: 22309-E-T41A, 22309ET41A.
45 mm bore, 100 mm outside diameter, 36 mm width.
Yes, axial load in both directions.
Straight. A K in the designation would mark a 1:12 tapered bore.
