1 in stock
FAG double-row spherical roller bearing, 45 mm bore x 100 mm OD x 36 mm wide, straight bore, polyamide cage, C3 clearance, open both faces. 1 Pc.
List Price
$82.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22309-E1-TVPB-C3 |
| Model | 22309 E1 TVPB C3 |
| Bearing Type | Spherical Roller Bearing |
| ID | 45 mm |
| OD | 100 mm |
| Width | 36 mm |
| Material | Steel |
|---|---|
| Base Number | 22309 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; 223 series |
| Common Misspellings | 22309E1TVBPC3; 22309 E1 TVPB-C-3; FAG 22309ETVPB; 2230-9-E1-TVPB |
| Application Types | Gearboxes; crushers and screens; conveyor pulleys; fans |
| Bore Shaft Size | 45 mm (1.7717 in) |
| Mpn Variants | 22309-E1-TVPB-C3; 22309E1TVPBC3; 22309 E1 TVPB C3; 22309 |
| Manufacturer Status | Active FAG/Schaeffler catalogue designation |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Part Number | 22309-E1-TVPB-C3 |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 22309 E/C3 - E design |
|---|

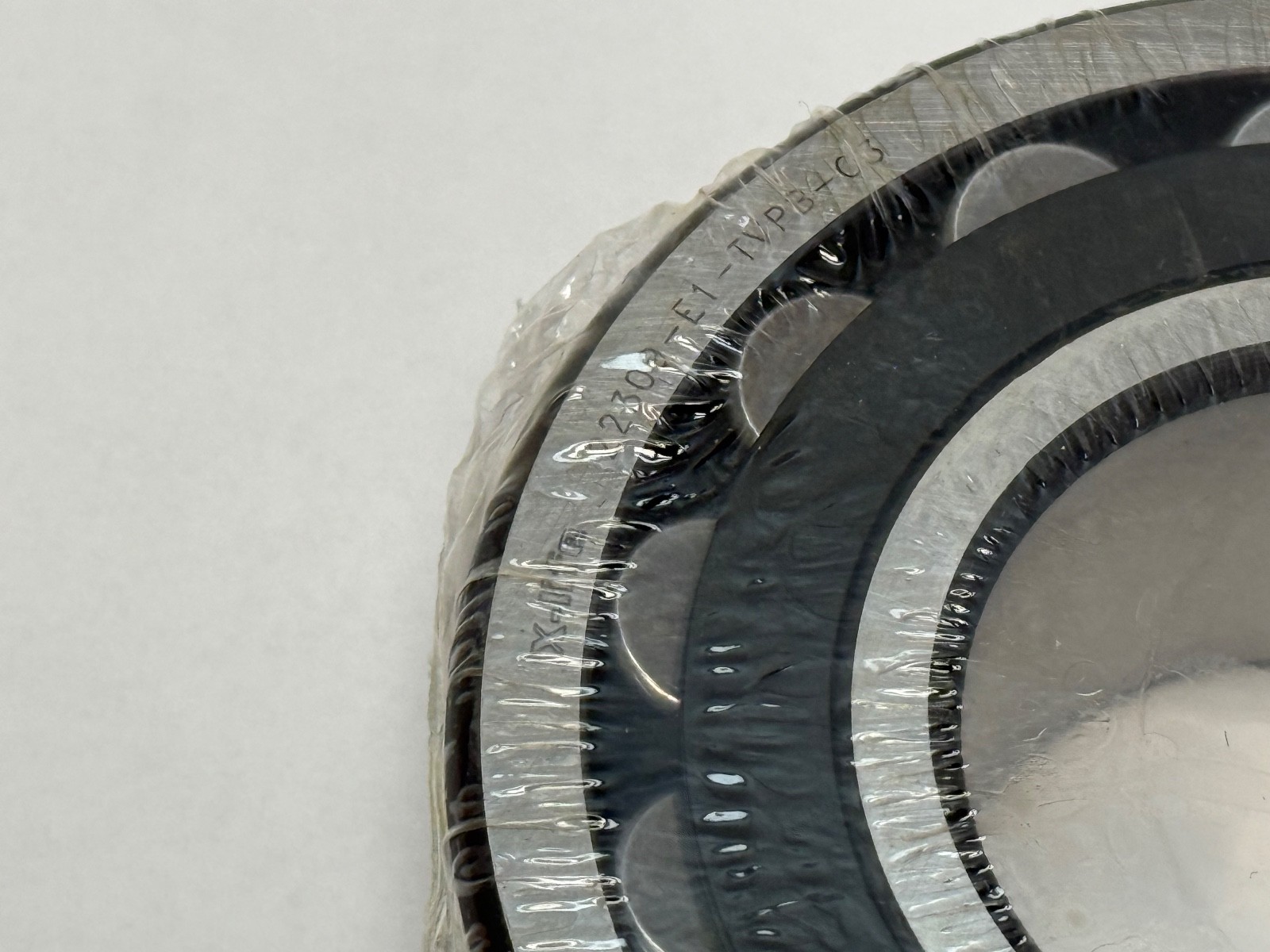

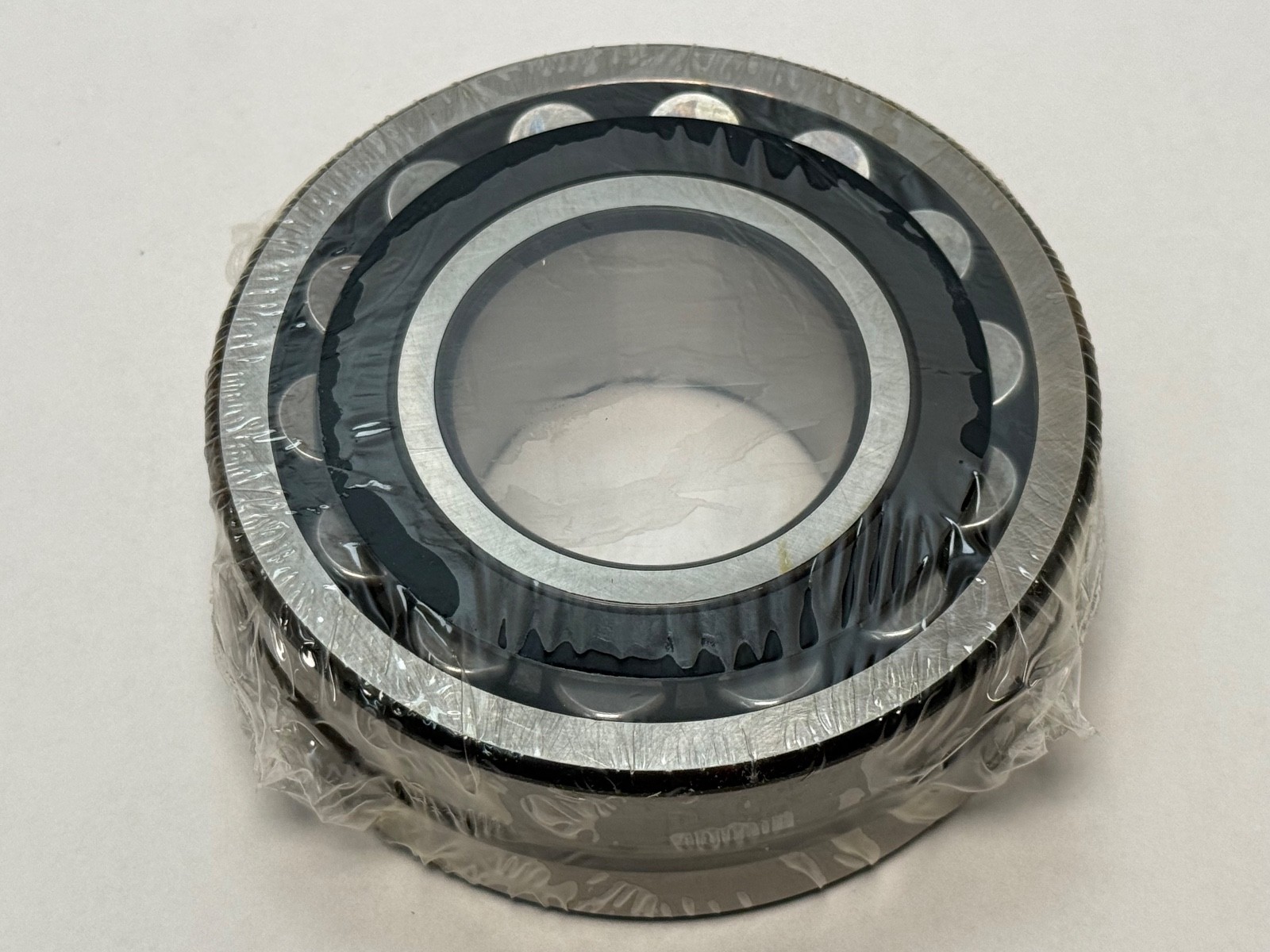

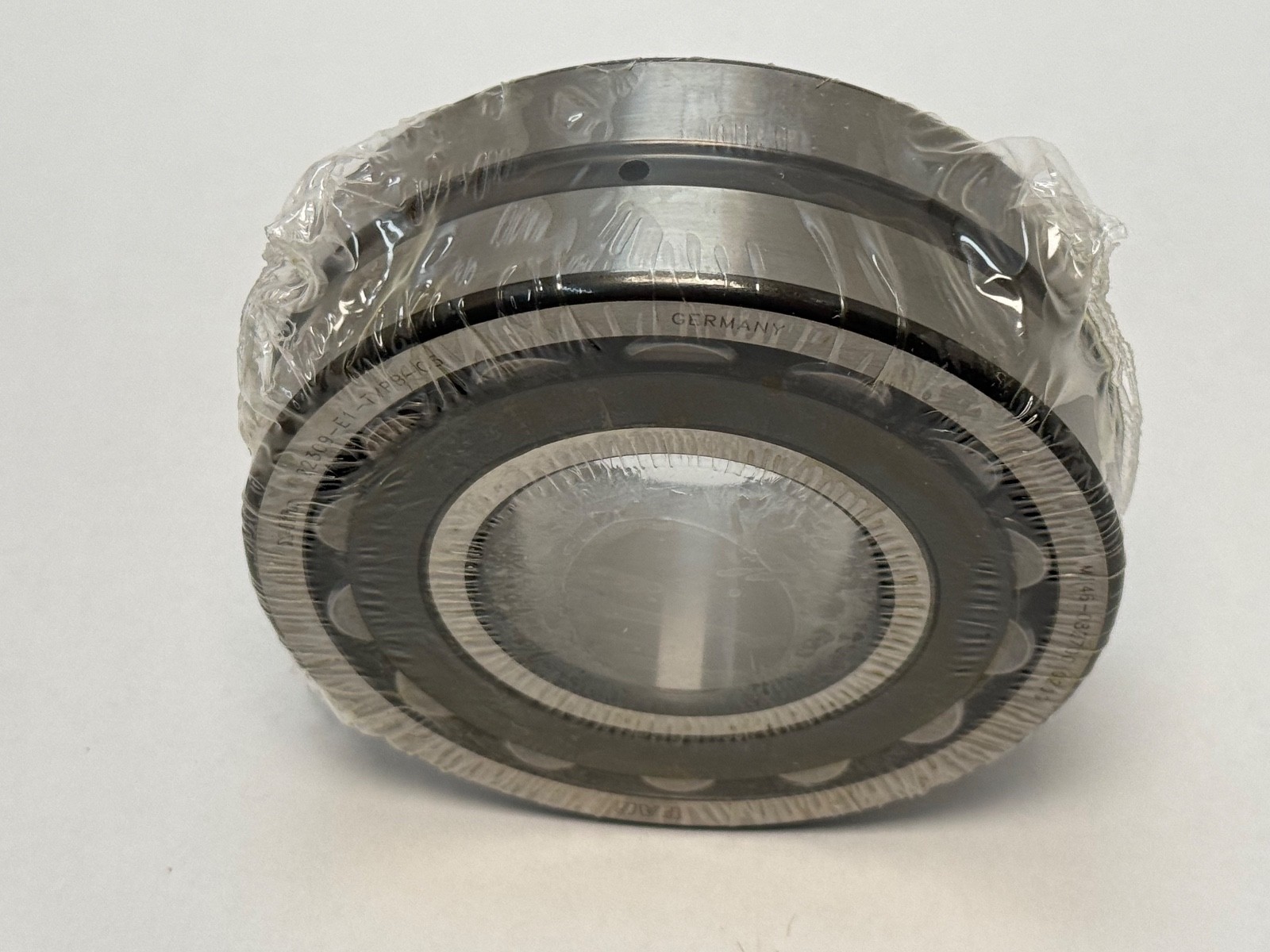

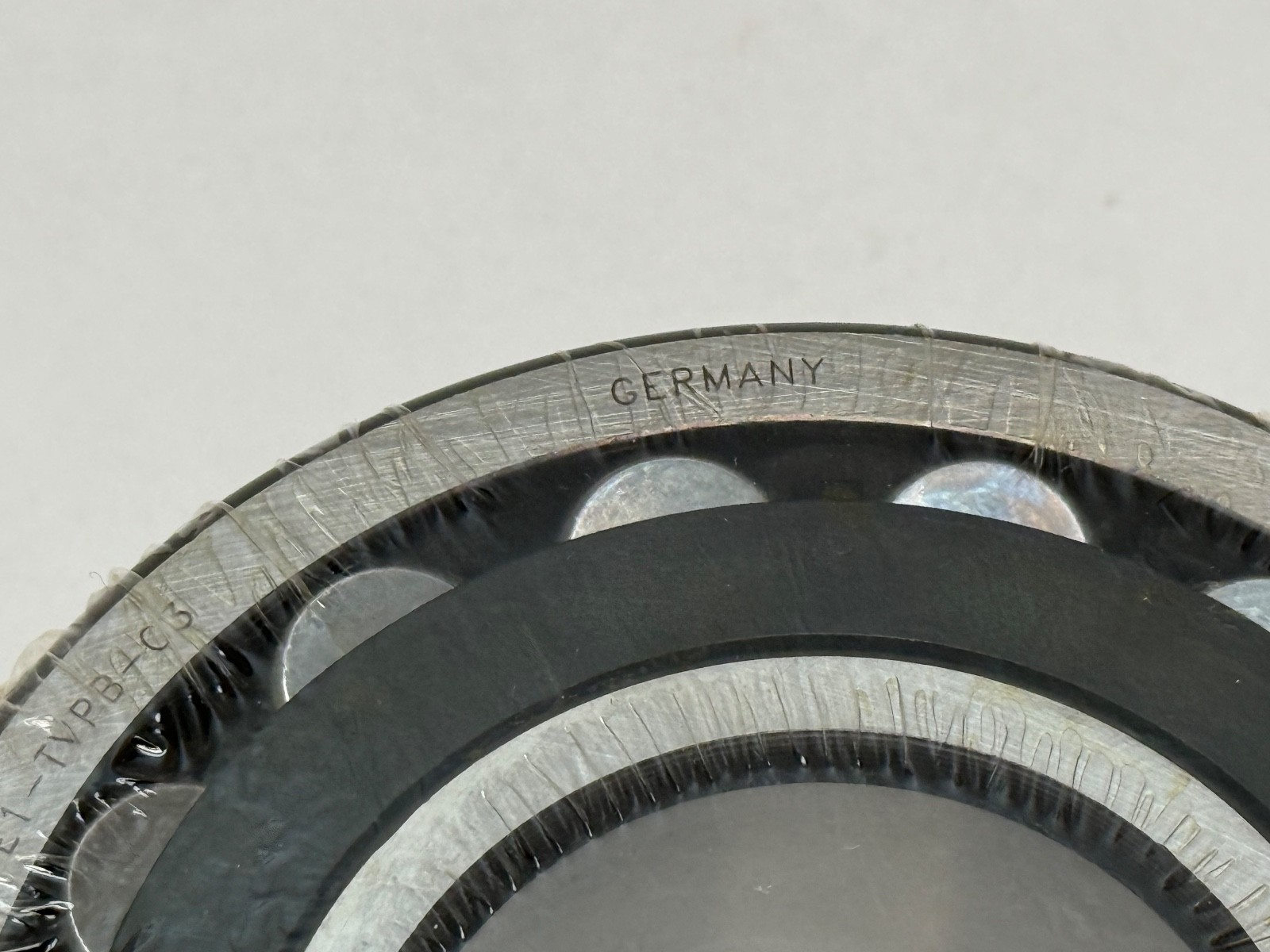

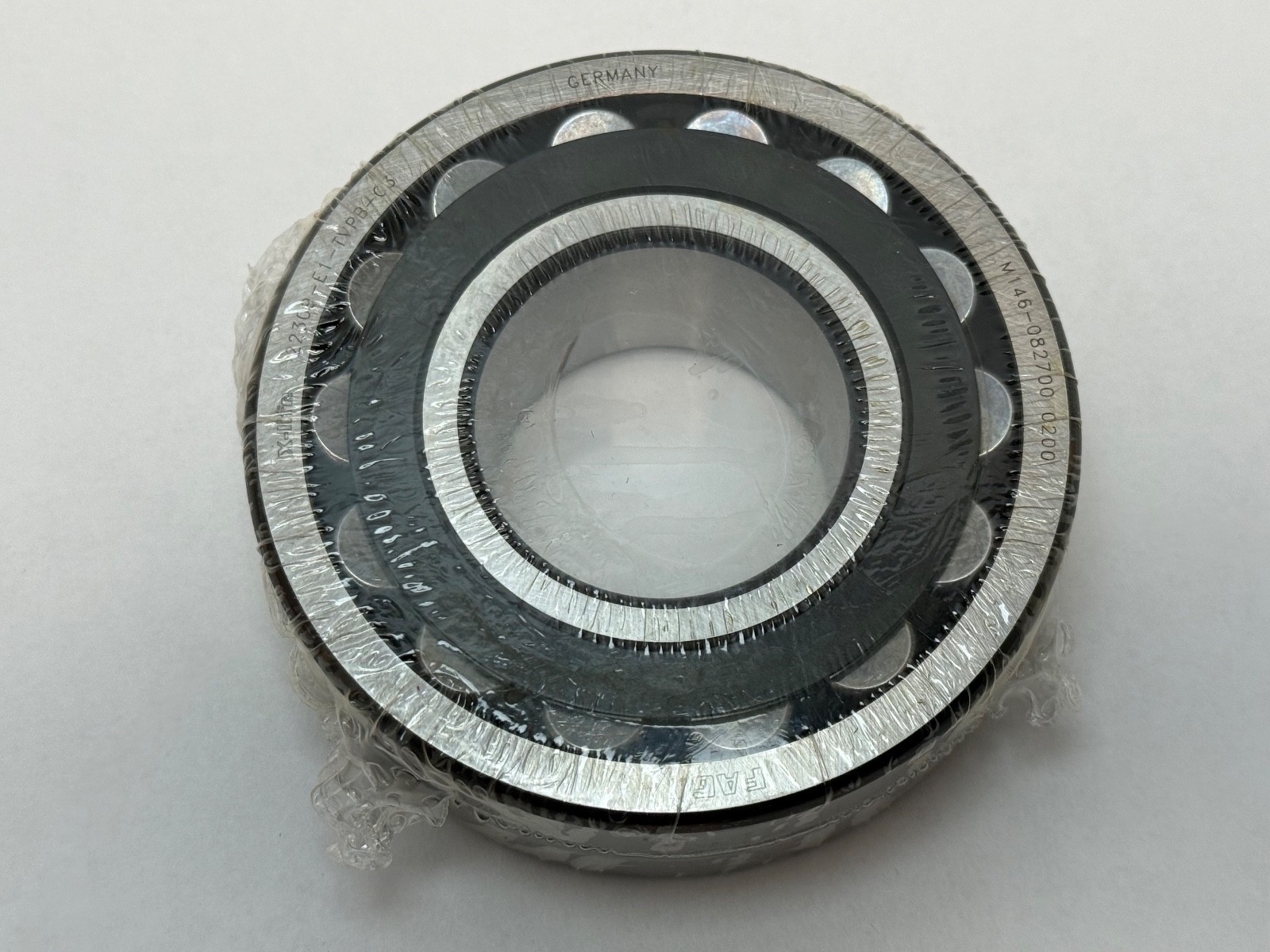

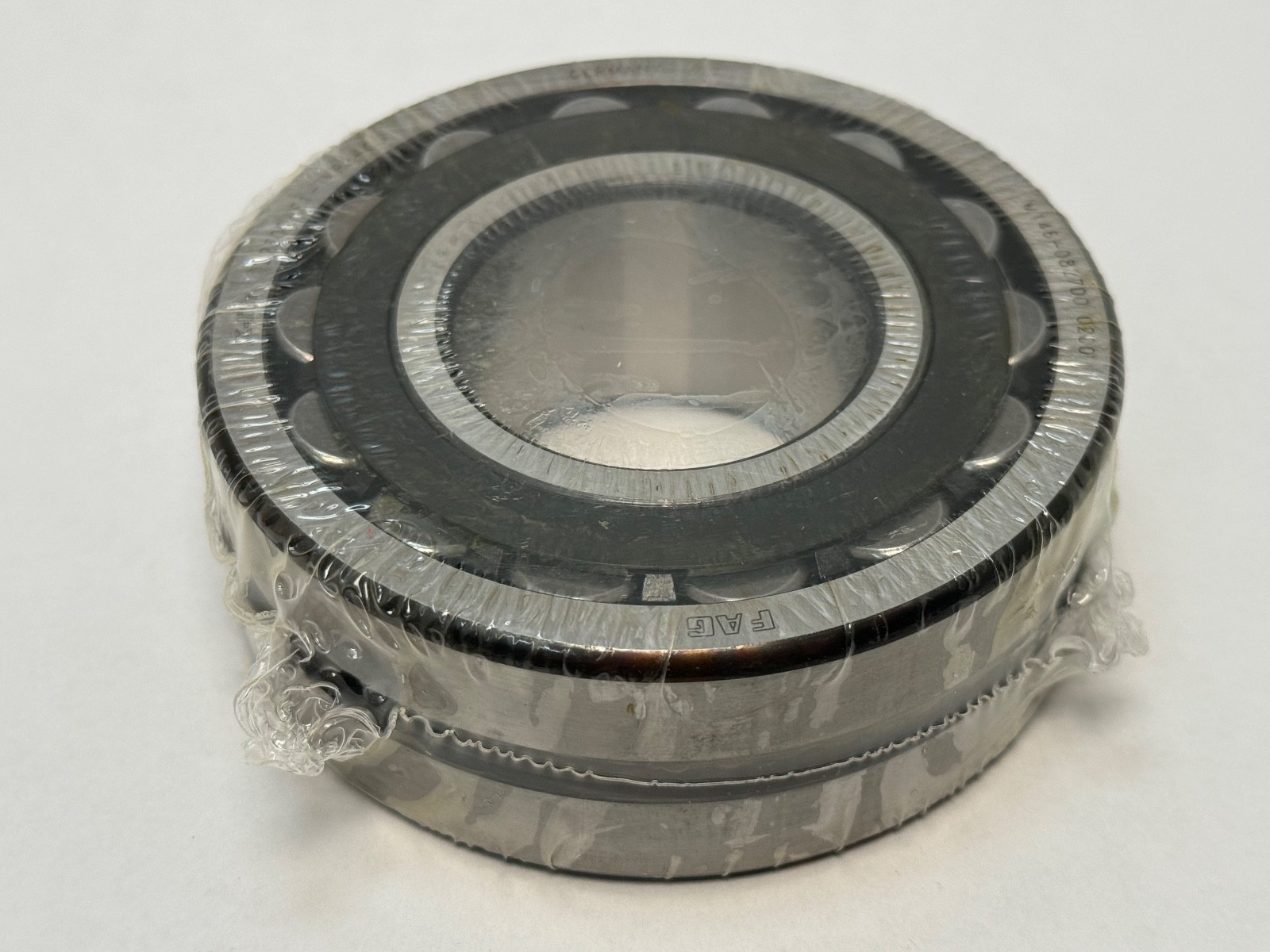

FAG 22309-E1-TVPB-C3, a double-row spherical roller bearing, 45 mm bore, 100 mm outside diameter, 36 mm width, straight bore, glass-fibre reinforced polyamide cage, C3 internal clearance, open on both faces. Two rows of barrel rollers run on a single spherical outer raceway. Unit Quantity: 1 Pc.
223 — wide ISO dimension series of the double-row spherical roller family.
09 — bore code, 9 x 5 = 45 mm.
E1 — reinforced internal design with larger rollers and a raised load rating.
TVPB — glass-fibre reinforced polyamide cage.
C3 — radial internal clearance greater than normal.
Bore Diameter: 45 mm (1.7717 in). Outside Diameter: 100 mm. Width: 36 mm. Series: 223 (22309). Number Of Rows: 2. Bore Type: Straight. Closure Type: Open both faces. Rolling Elements: Spherical roller. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Country of Origin: Germany. Unit Quantity: 1 Pc.
Straight cylindrical bore for an interference fit directly on the shaft seat. The bearing carries heavy radial load with thrust in both axial directions and accommodates shaft-to-housing misalignment.
Cross-reference: SKF 22309 E/C3 (E design, ratings differ between makers). Related variants: 22309-E1-K-TVPB-C3 (1:12 tapered bore, H2309 adapter sleeve), 22309-E1A-TVPB-C3 (brass cage) and 22309-E1-TVPB-C3-W33 (lubrication groove and radial holes). Alternate written forms: 22309-E1-TVPB-C3, 22309E1TVPBC3, 22309 E1 TVPB C3, 22309-E1-XL-TVPB-C3.
Straight cylindrical bore, 45 mm.
A glass-fibre reinforced polyamide cage.
C3, radial clearance greater than normal.
