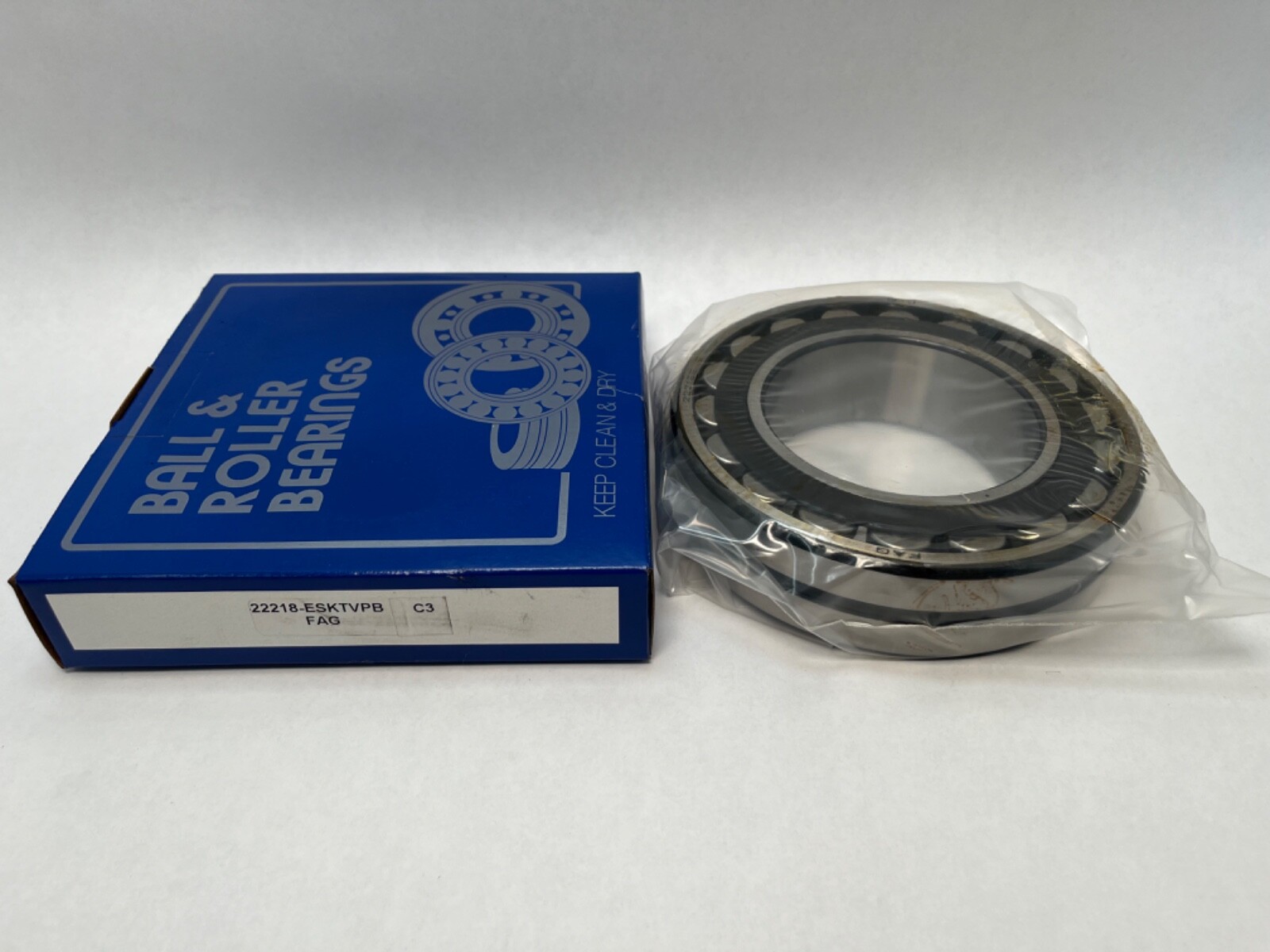

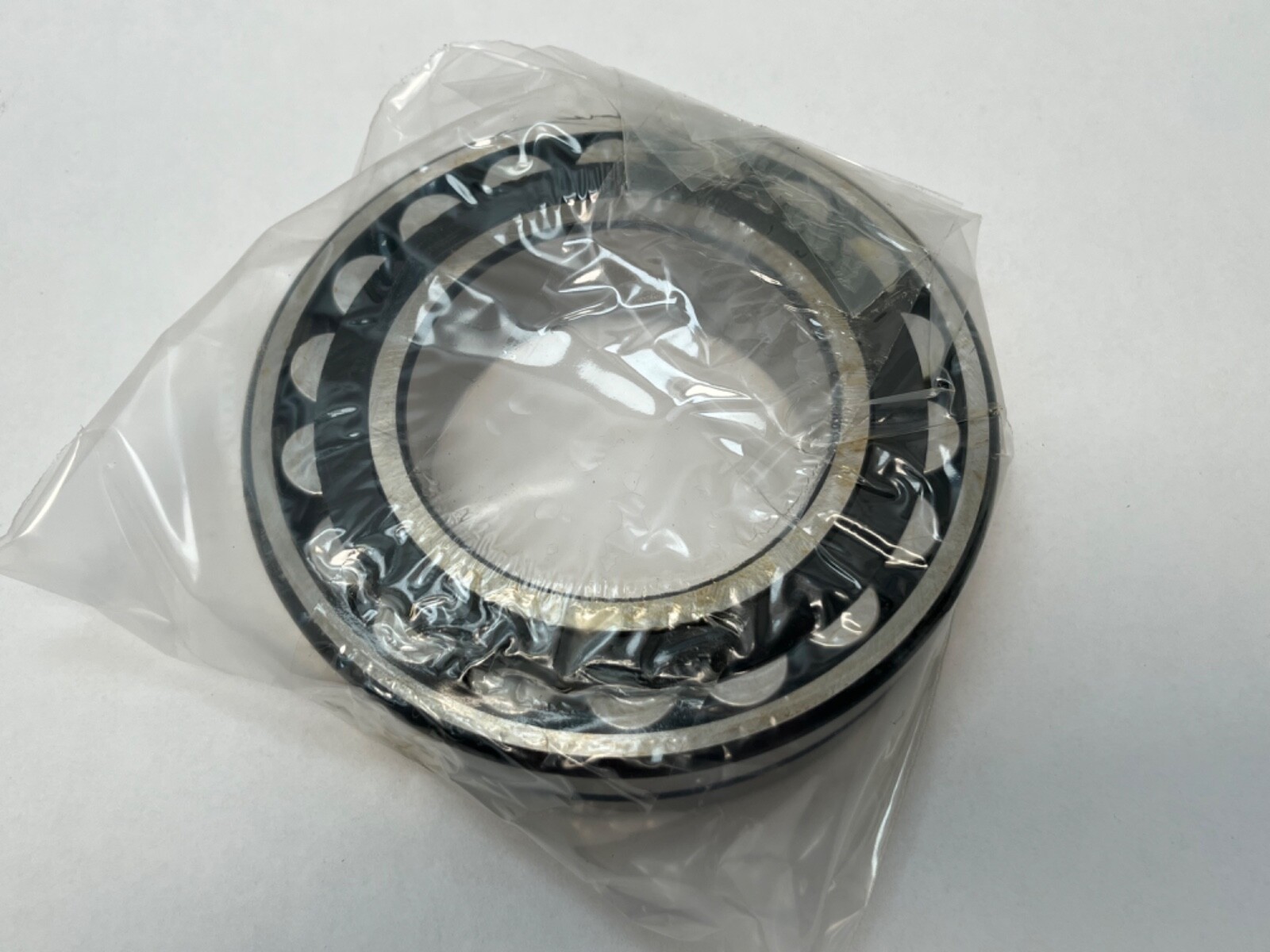

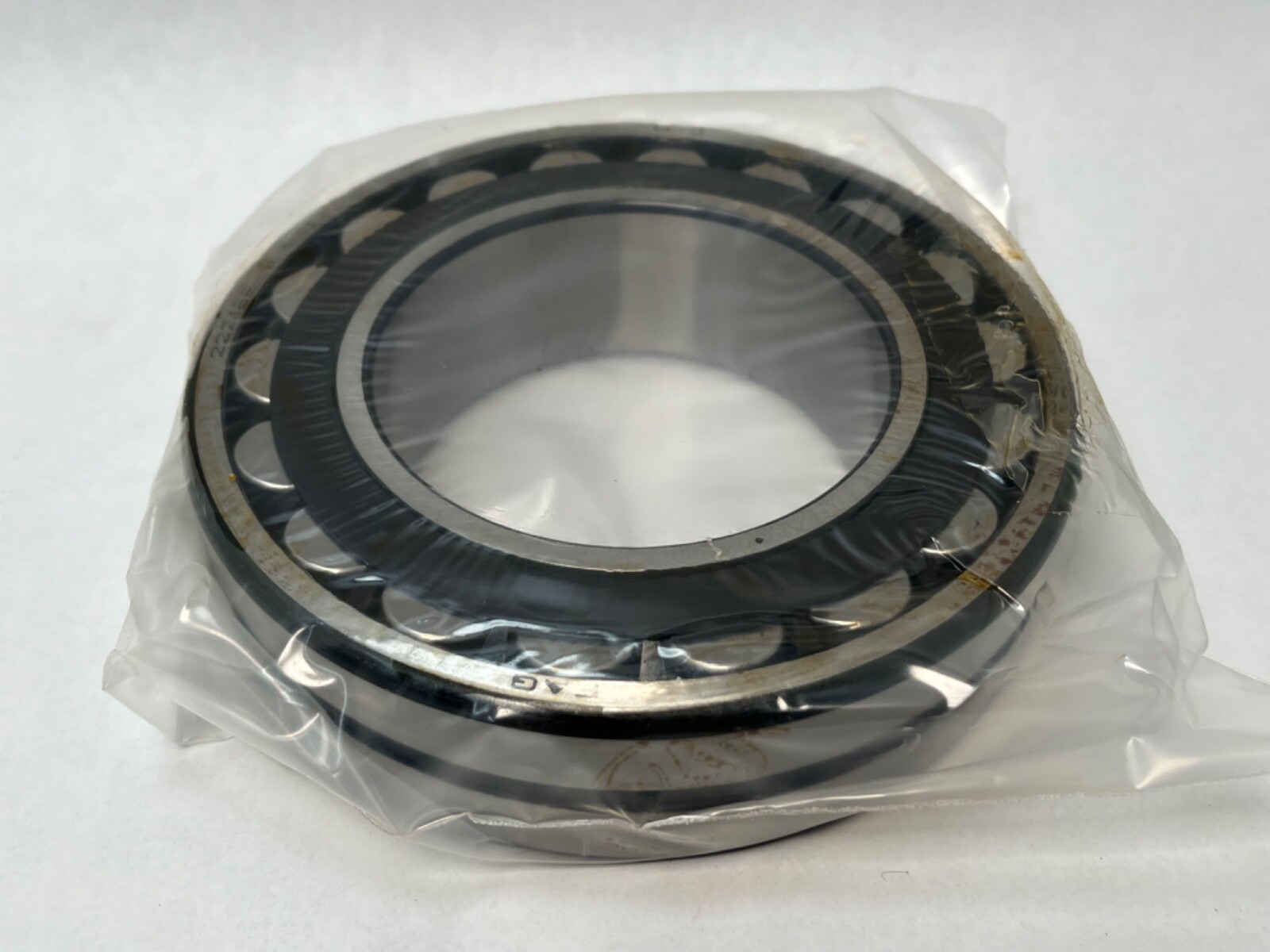

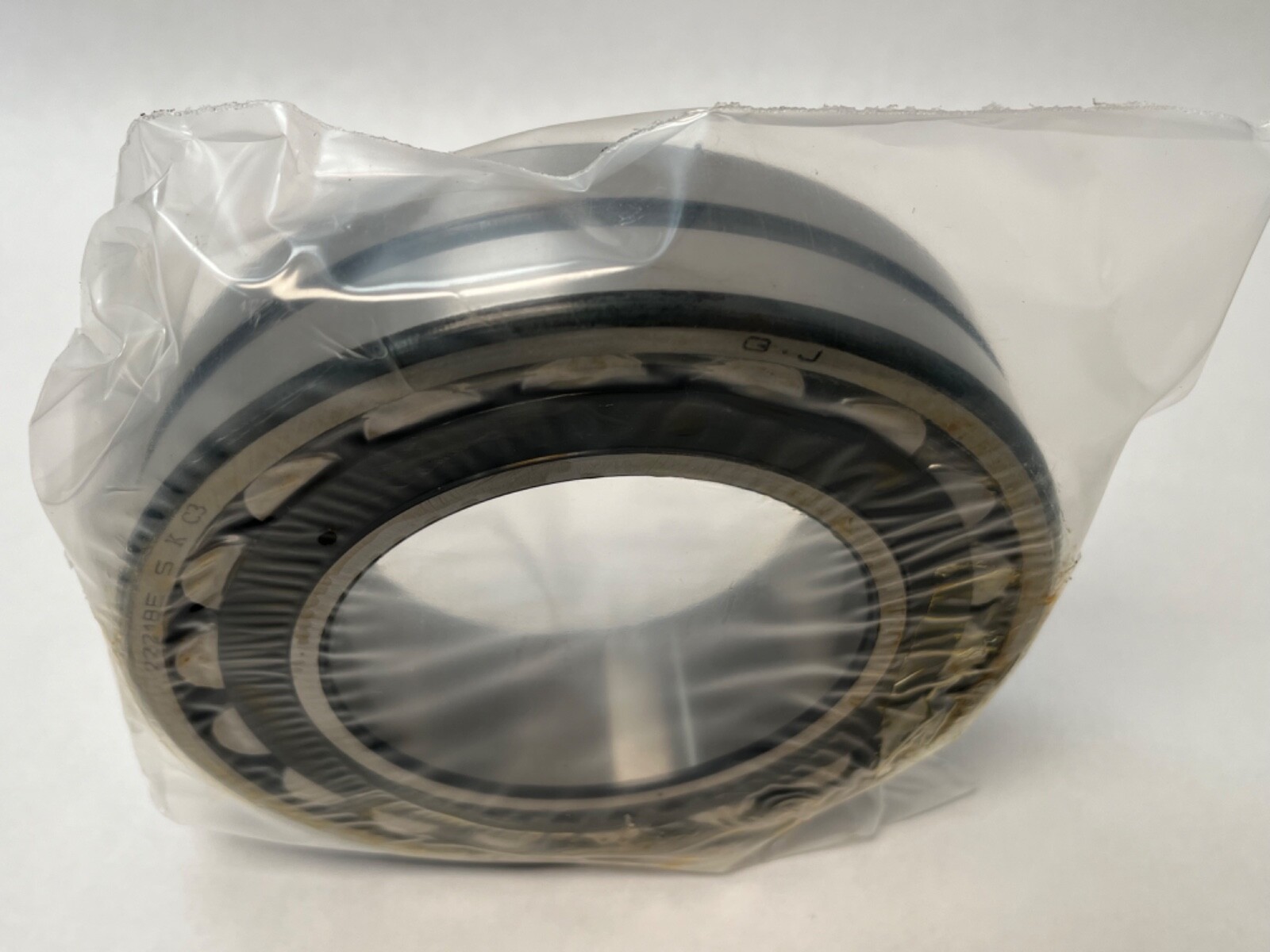

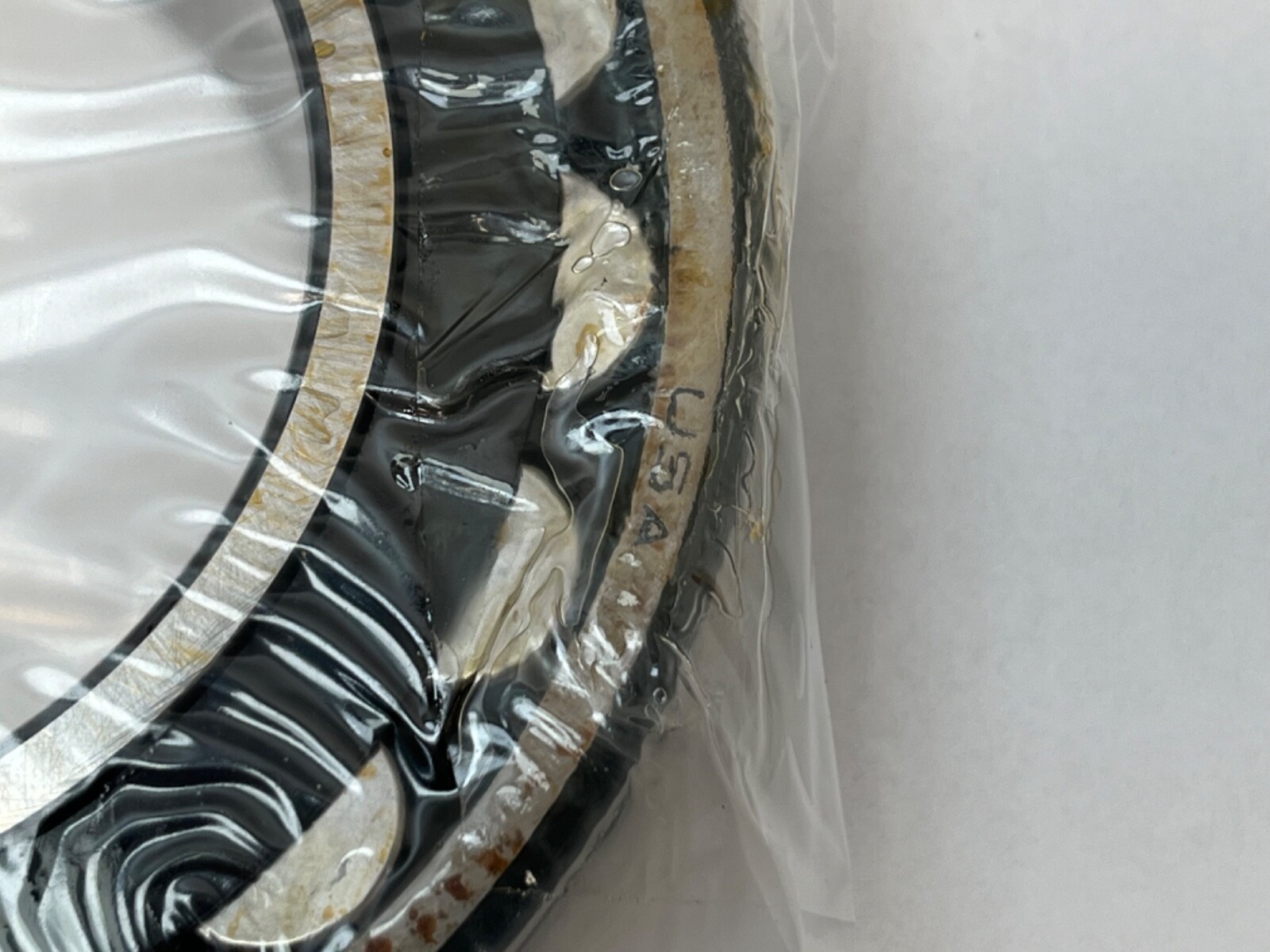

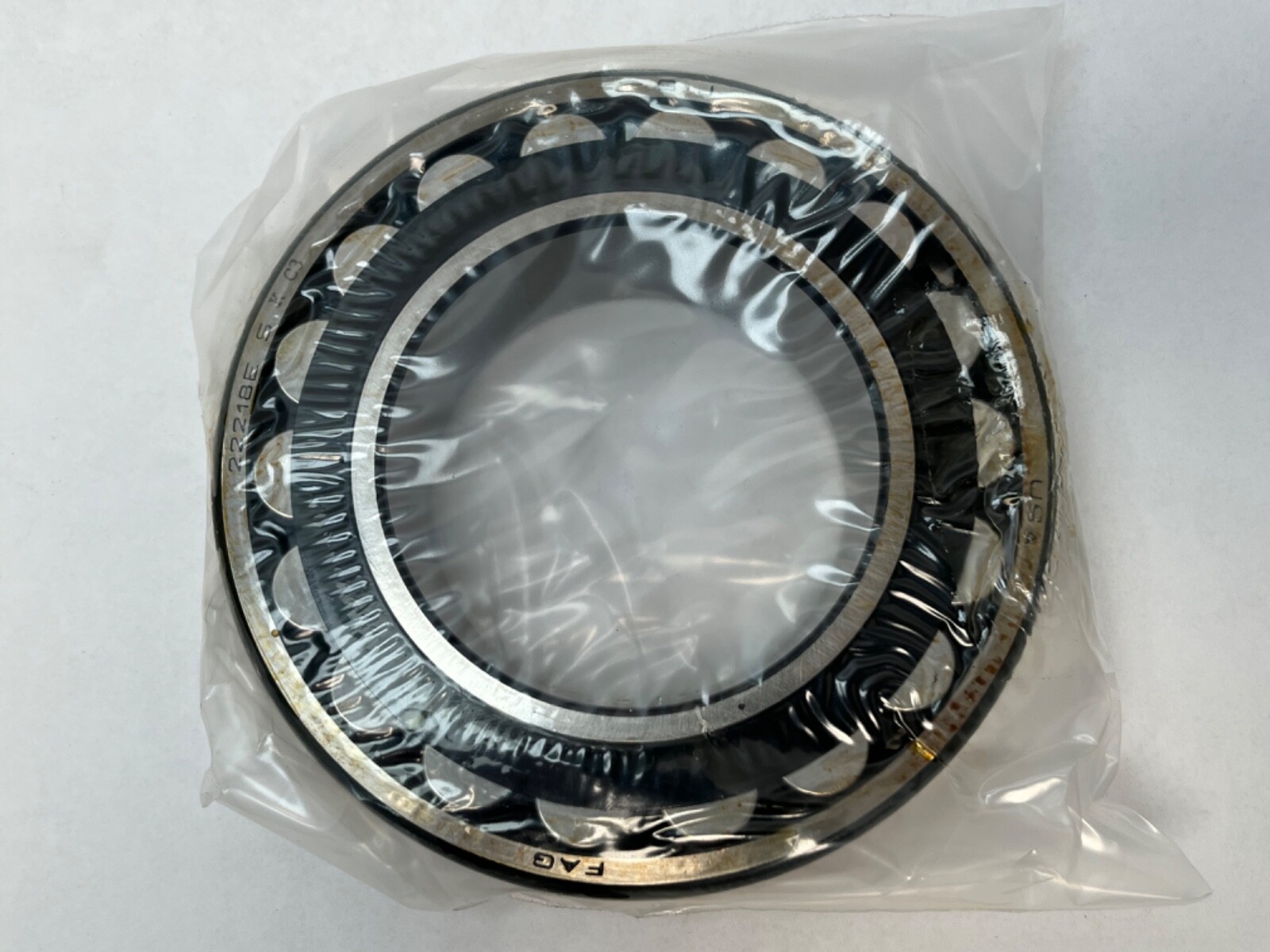

Spherical roller bearing, 90x160x40 mm, two rows, 1:12 tapered bore, C3 clearance, polyamide cage, lubrication groove and holes in the outer ring.
List Price
$120.83
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22218ESK.TVPB.C3 |
| Model | 22218ESK.TVPB.C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease |
| Rolling Elements | Spherical rollers |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Industry Terms | spherical roller bearing; tapered bore spherical roller; 22218 K C3; self-aligning roller bearing; 90 mm tapered bore bearing |
| Mpn Variants | 22218ESK.TVPB.C3; 22218-ES-K-TVPB-C3; 22218 ESK TVPB C3; 22218ESKTVPBC3; 22218E |
| Cross Reference 1 | SKF 22218 EK/C3 |
|---|---|
| Cross Reference 2 | NSK 22218EAKE4C3 |
FAG spherical roller bearing, E design, tapered bore, two rows of rollers. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm.

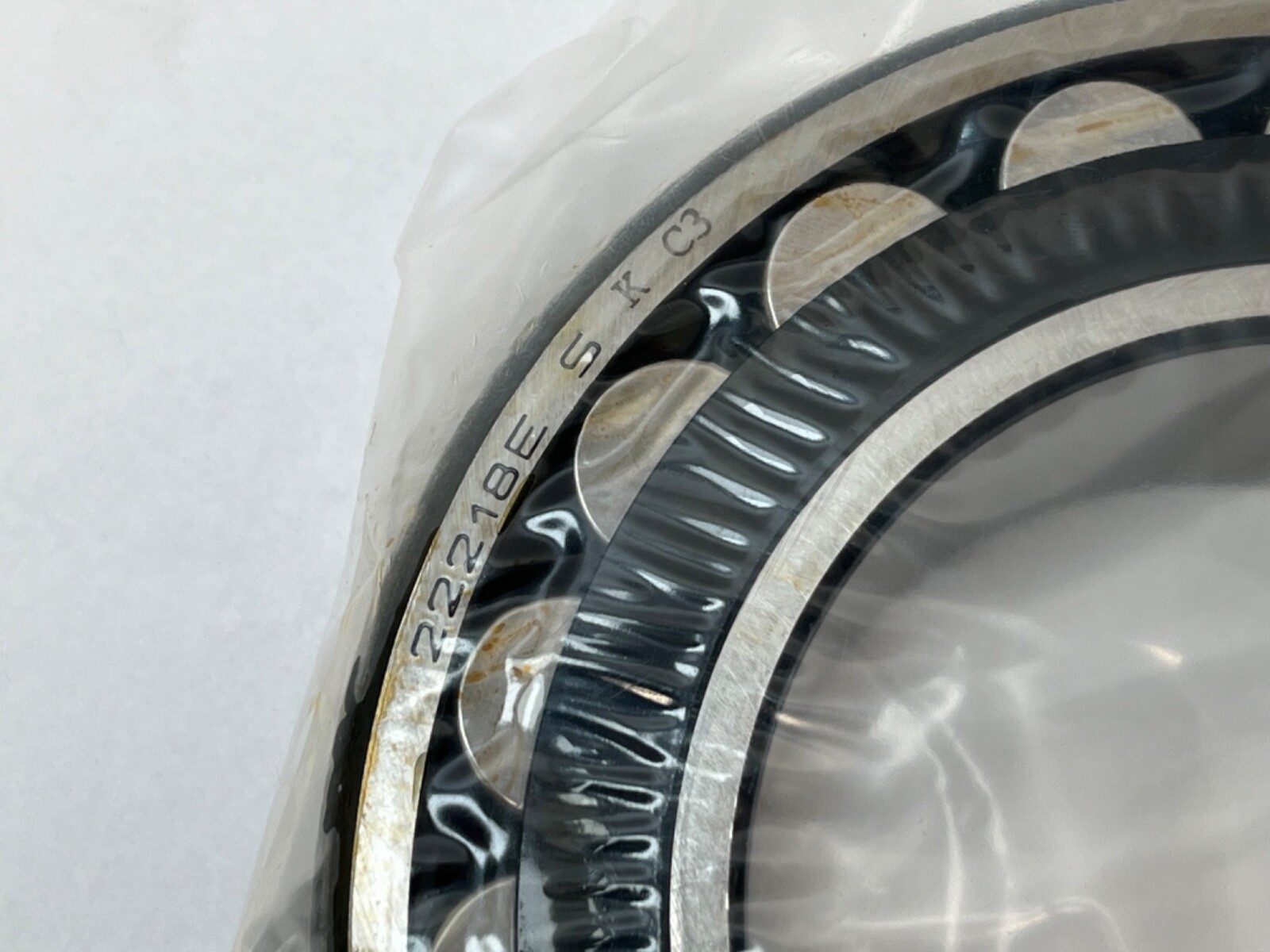

22218 — ISO 22218 size, 90 x 160 x 40 mm.
E — reinforced, higher-capacity design.
S — lubrication groove and holes in the outer ring.
K — 1:12 tapered bore.
TVPB — glass-fibre reinforced polyamide cage.
C3 — internal clearance greater than normal.
Bearing Type: Spherical Roller Bearing. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Number Of Rows: 2. Bore Type: Tapered, 1:12. Internal Clearance: C3. Cage Material: Polyamide. Closure Type: Open. Series: 22200.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Tapered 1:12 bore for an adapter sleeve or a tapered shaft seat.
Cross-references: SKF 22218 EK/C3; NSK 22218EAKE4C3.
Bore 90 mm, outside diameter 160 mm, width 40 mm.
Yes. The K in the designation marks a 1:12 tapered bore.
A glass-fibre reinforced polyamide cage (TVPB) and C3 internal clearance.
