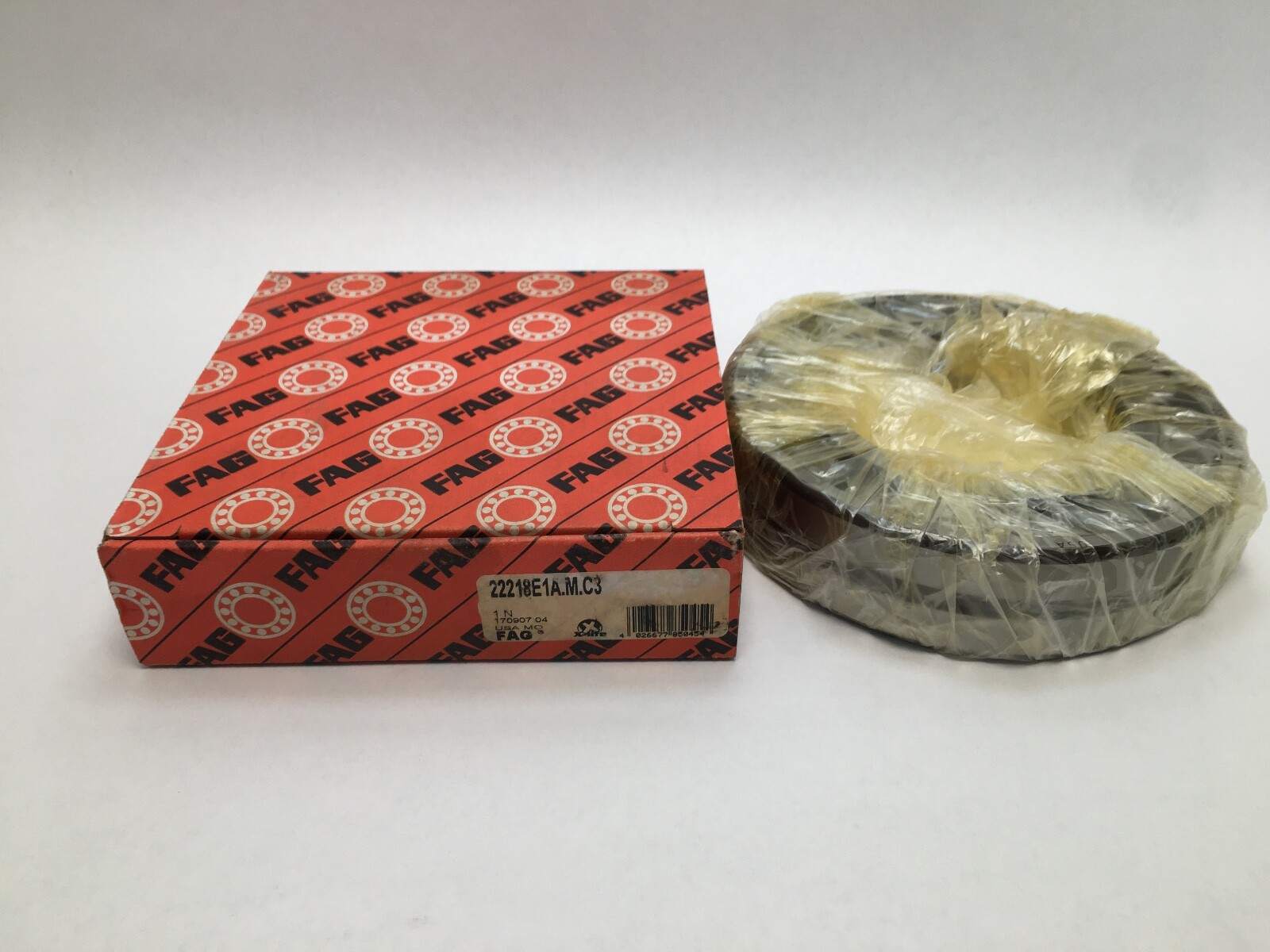

Double row spherical roller bearing, 90 mm straight bore x 160 mm OD x 40 mm wide, machined brass cage, C3 clearance, thrust in both directions. 1 Pc.
List Price
$120.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22218E1A.M.C3 |
| GTIN | 4026677850454 |
| Model | 22218-E1A-M-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22218 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; double row roller bearing; pendelrollenlager; X-life |
| Common Misspellings | 22218 E1AMC3; 22218-E1-A-M-C3; 22218EIA; 222 18E1A |
| Application Types | Conveyor pulleys; fans and blowers; crushers and vibrating screens; mill drives; gearbox output shafts; pumps |
| Bore Shaft Size | 90 mm (3.543 in), straight cylindrical bore |
| Mpn Variants | 22218E1A.M.C3; 22218-E1A-M-C3; 22218 E1A M C3; 22218E1AMC3; 22218E1A; 22218E1; 22218 |
| Rolling Elements | Barrel-profile spherical rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Harmonization Code | 8482.30.00.80 |
| Part Number | 22218E1A.M.C3 |
| Cross Reference 1 | SKF 22218E - SKF E design vs Schaeffler E1A |
|---|---|
| Cross Reference 2 | NSK 22218EAE4 - NSK EA design vs Schaeffler E1A |
| Cross Reference 3 | NTN 22218EAD1 - NTN EAD1 design vs Schaeffler E1A |
| Cross Reference 4 | Timken 22218EMW33C3 - W33 outer ring groove and holes |

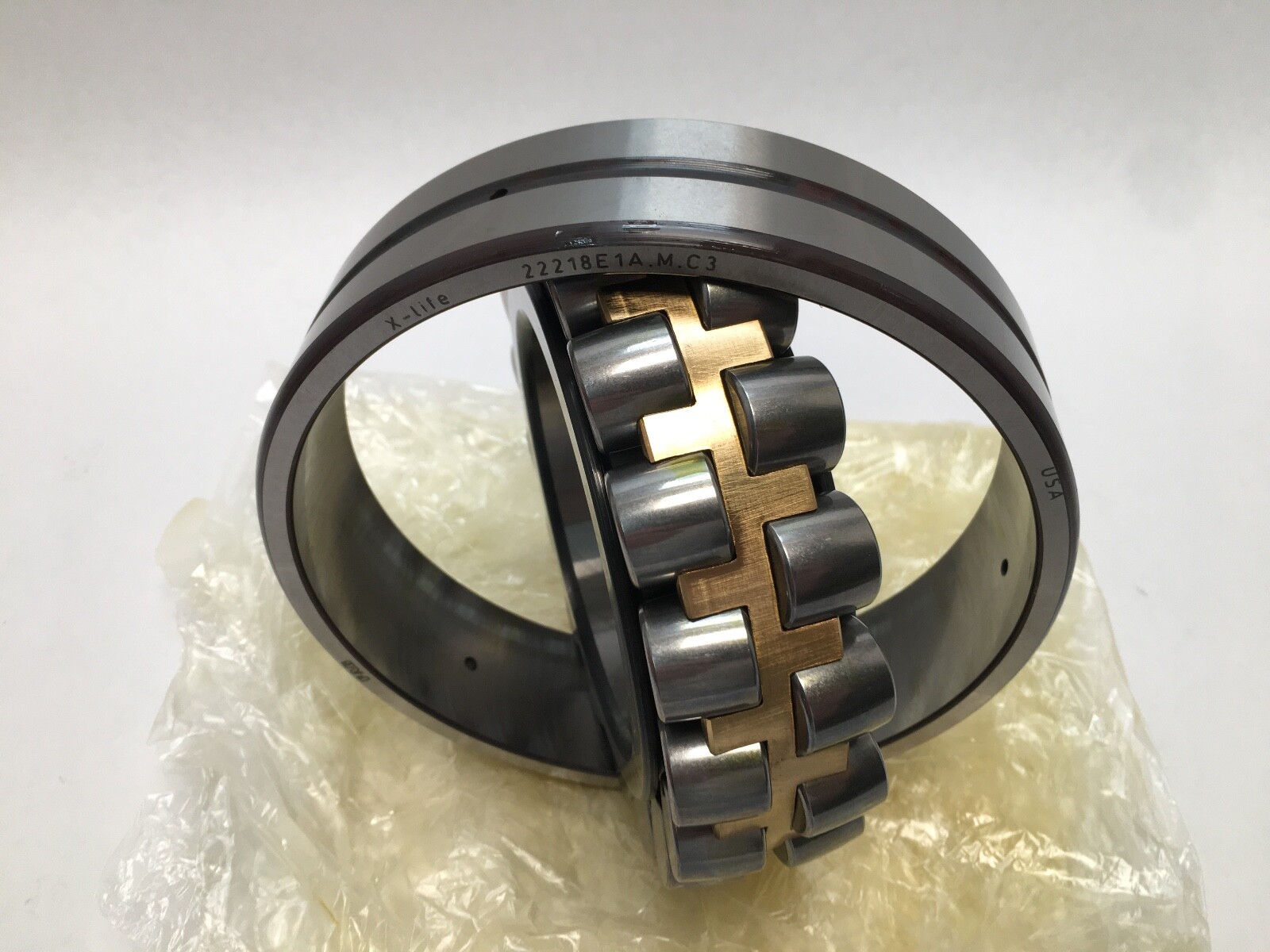

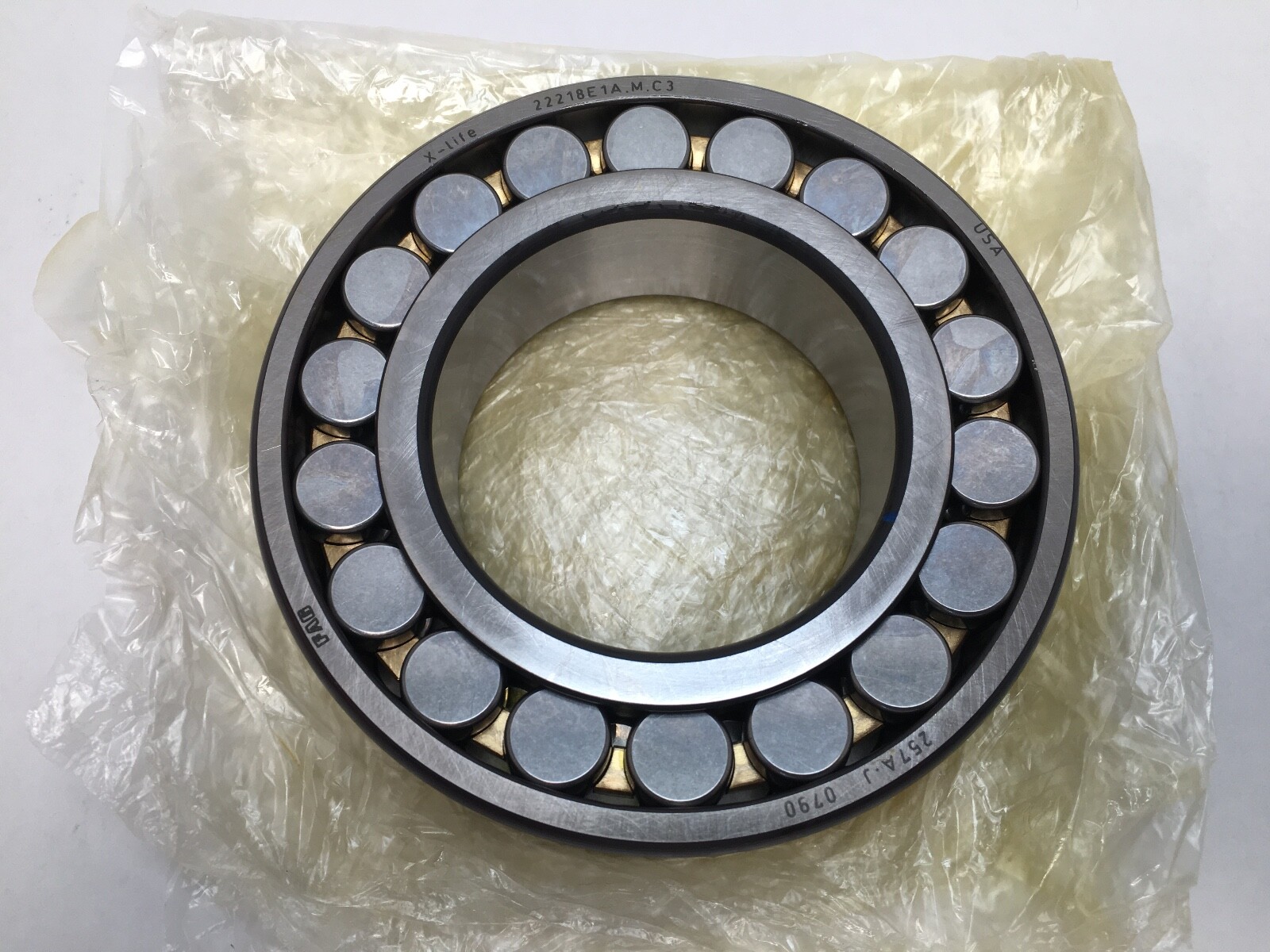

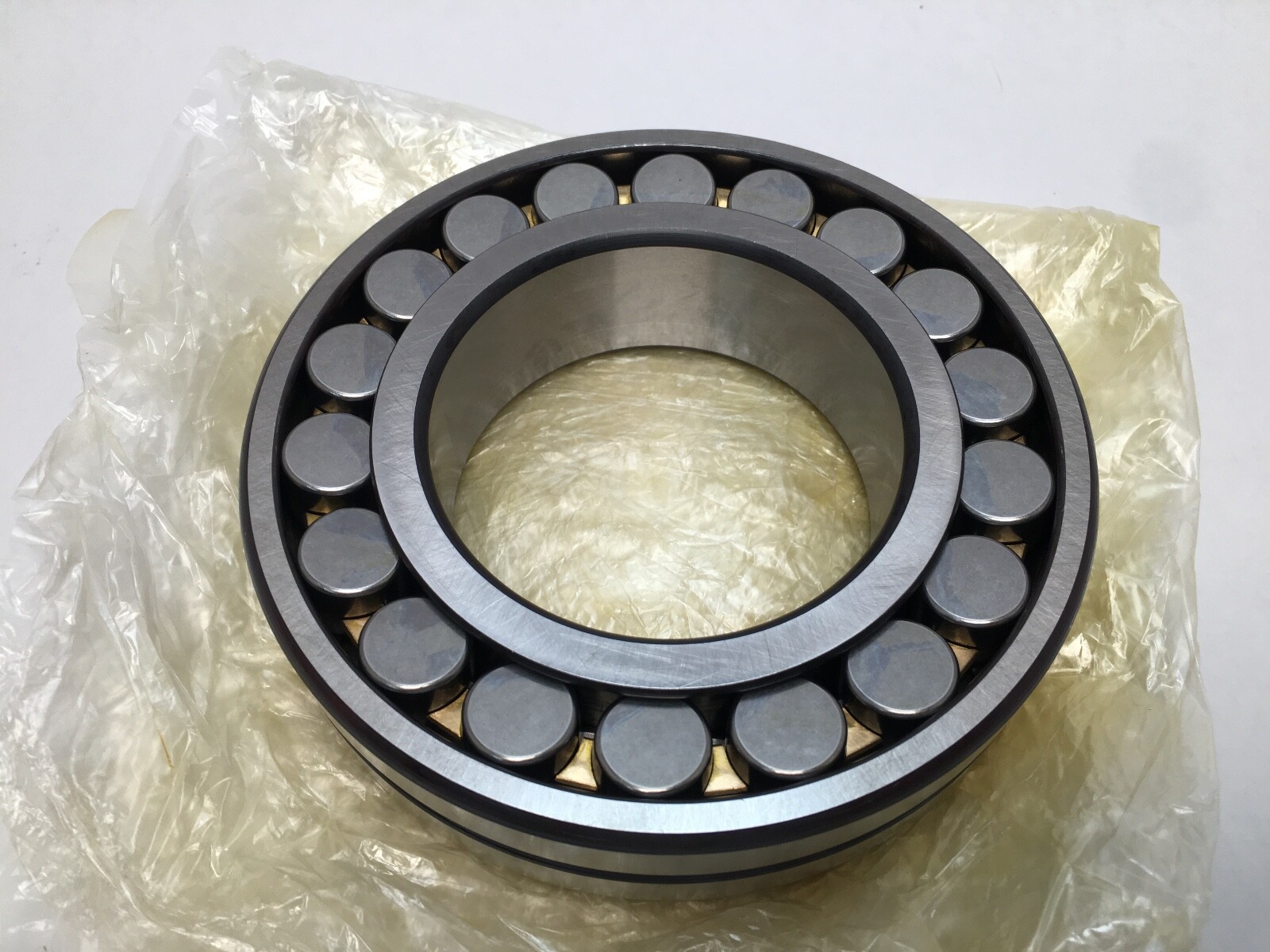

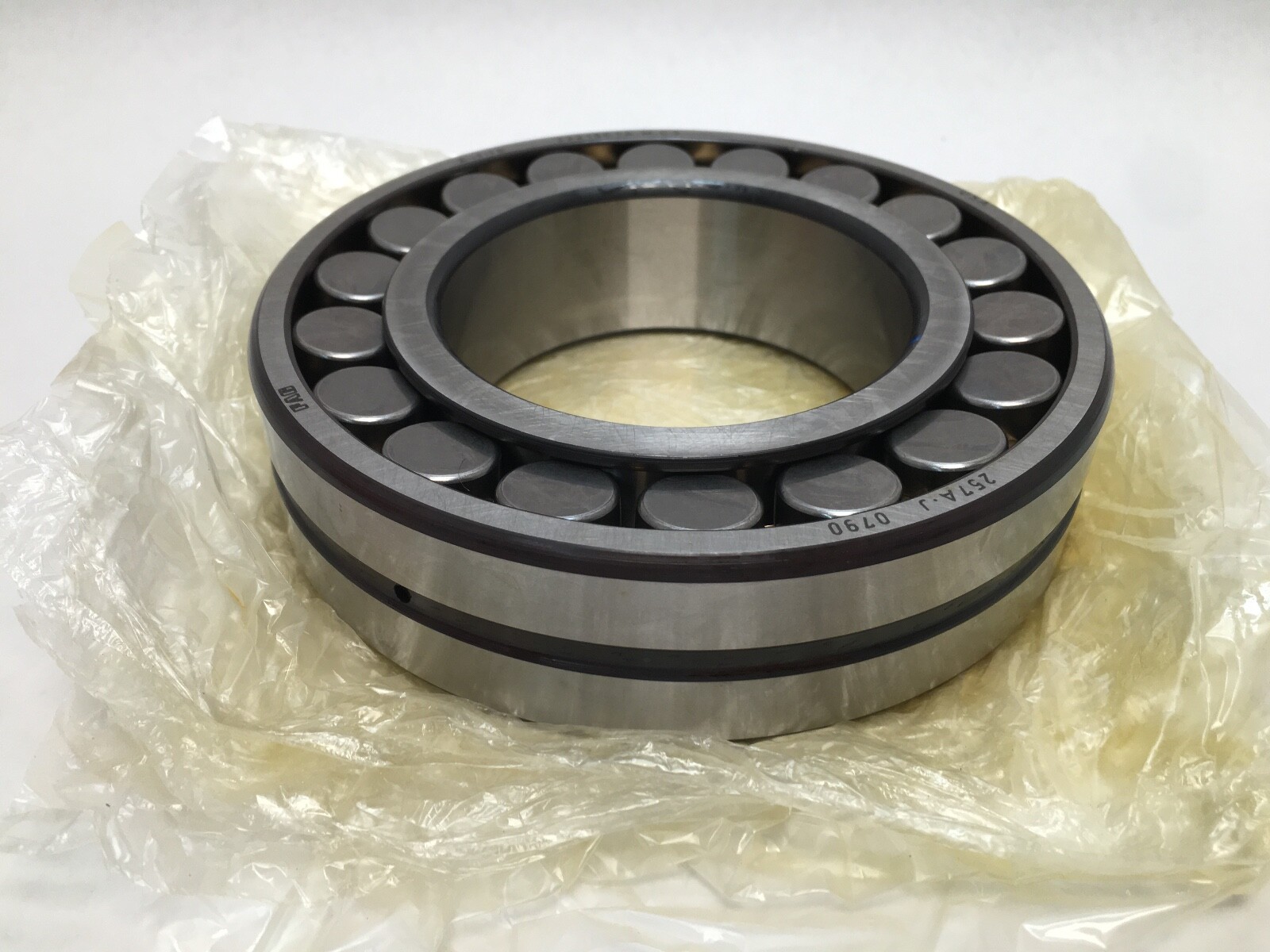

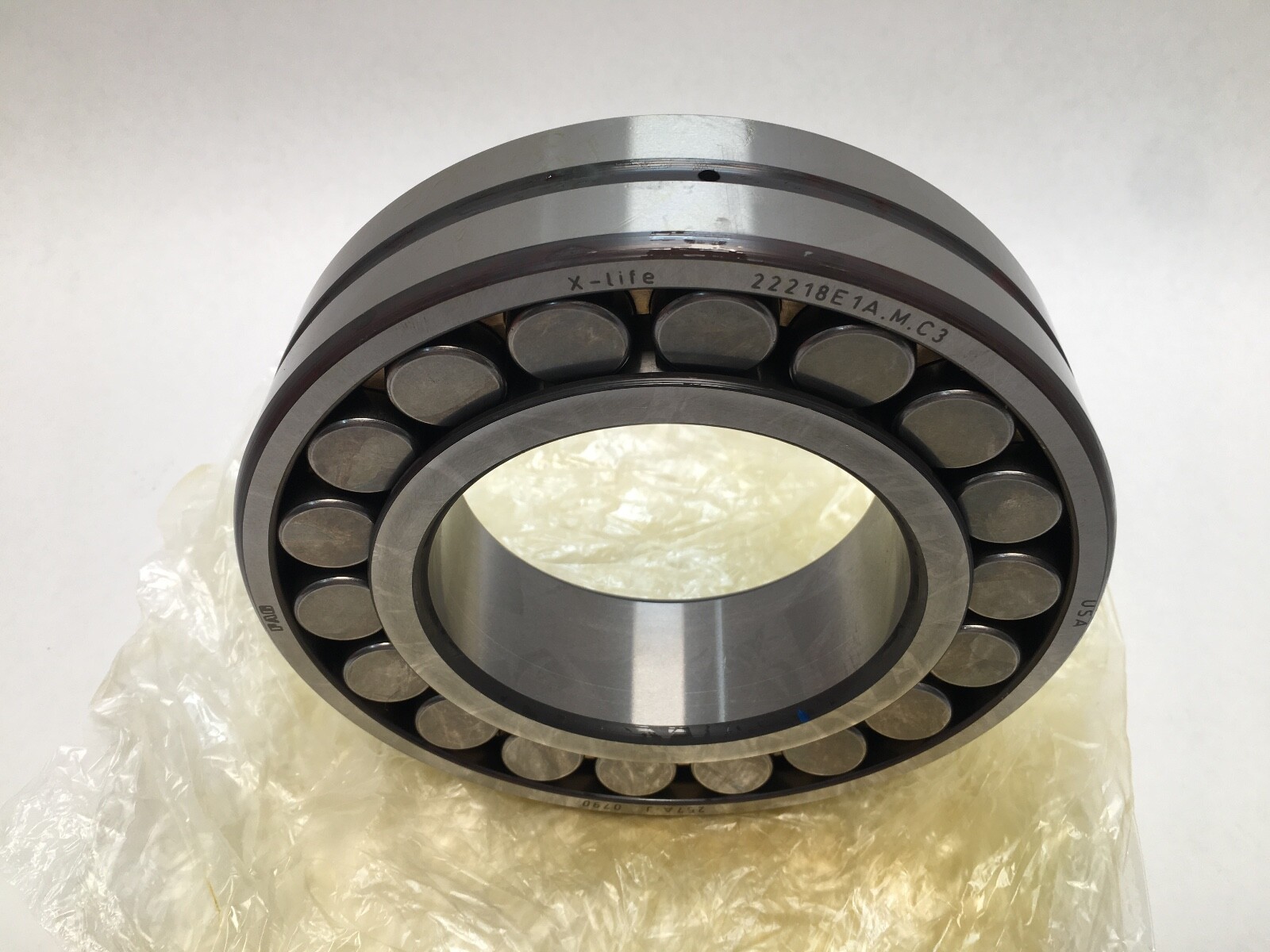

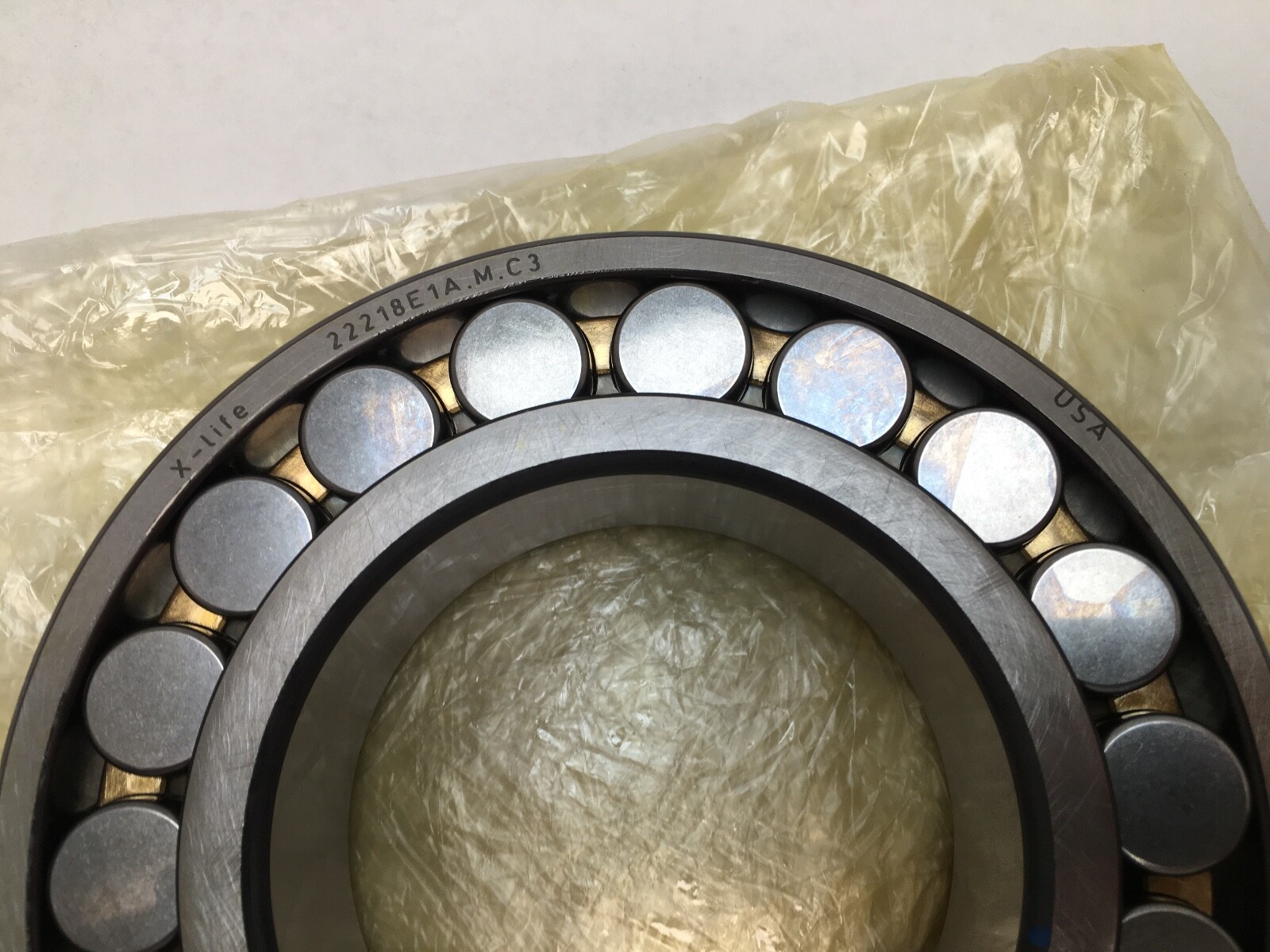

A double row spherical roller bearing in the FAG 222xx wide dimension series. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Width: 40 mm. Bore Type: Straight cylindrical. Cage: machined brass. Internal Clearance: C3. Number Of Rows: 2. Rolling Elements: barrel-profile spherical rollers. Seal Type: Open. Bearing Material: Bearing Steel. Unit Quantity: 1 Pc. Two rows of rollers run in a common spherical outer raceway, so the bearing self-aligns and carries thrust in both axial directions.
222 — FAG wide double row spherical roller dimension series.
18 — ISO bore code multiplied by five, 90 mm.
E1A — Schaeffler X-life reinforced design for this family.
M — machined brass cage.
C3 — radial internal clearance greater than normal.
No K — straight bore.

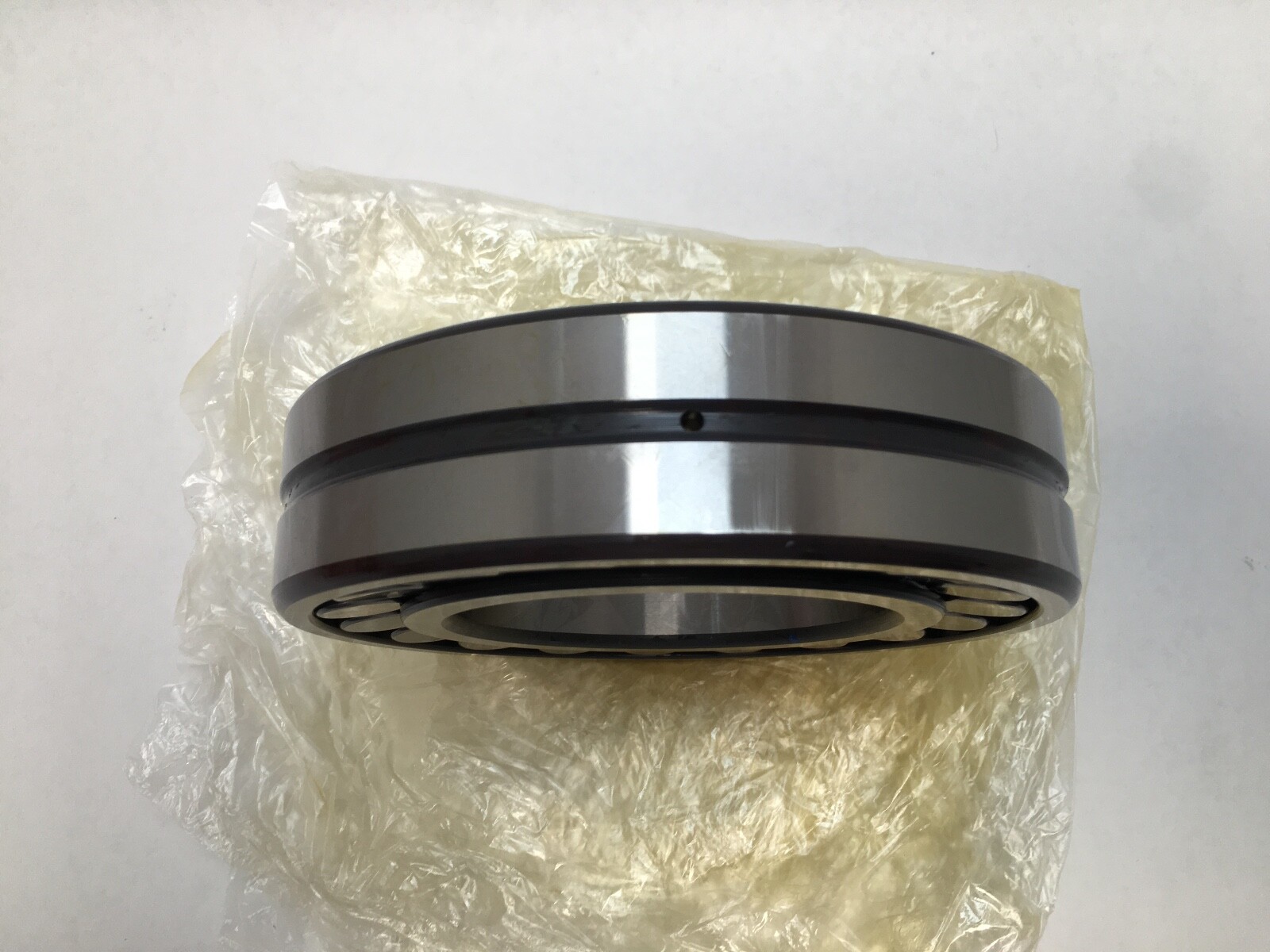

No W33 — no lubrication groove or holes in the outer ring.
Series: 222 (22200). Base Number: 22218. Harmonization Code: 8482.30.00.80. UPC: 4026677850454.
Bore: 90 mm (3.543 in), straight cylindrical, mounts directly on the shaft seat. Outside Diameter: 160 mm. Width: 40 mm. Open on both faces.
ISO 22218 size, 90 x 160 x 40 mm. Other makers: SKF 22218E, NSK 22218EAE4, NTN 22218EAD1, Timken 22218EMW33C3. Design codes are maker-specific: Schaeffler E1A, SKF E and NSK EA each denote that maker’s own roller complement and rating. 22218EK is the tapered-bore version for an H2318 adapter sleeve. A W33 variant adds an outer ring groove and holes. MPN variants: 22218E1A.M.C3, 22218-E1A-M-C3, 22218 E1A M C3, 22218E1AMC3, 22218E1A, 22218E1, 22218.
90 mm bore, 160 mm outside diameter, 40 mm width.
Radial internal clearance greater than normal.
A machined brass cage, code M.
