FAG22218ASTVPBC3W33Double-Row Spherical Roller Bearing 90x160x40 mm Straight Bore C3 Clearance Polyamide Cage W33 Lube

Product Description

What this part is

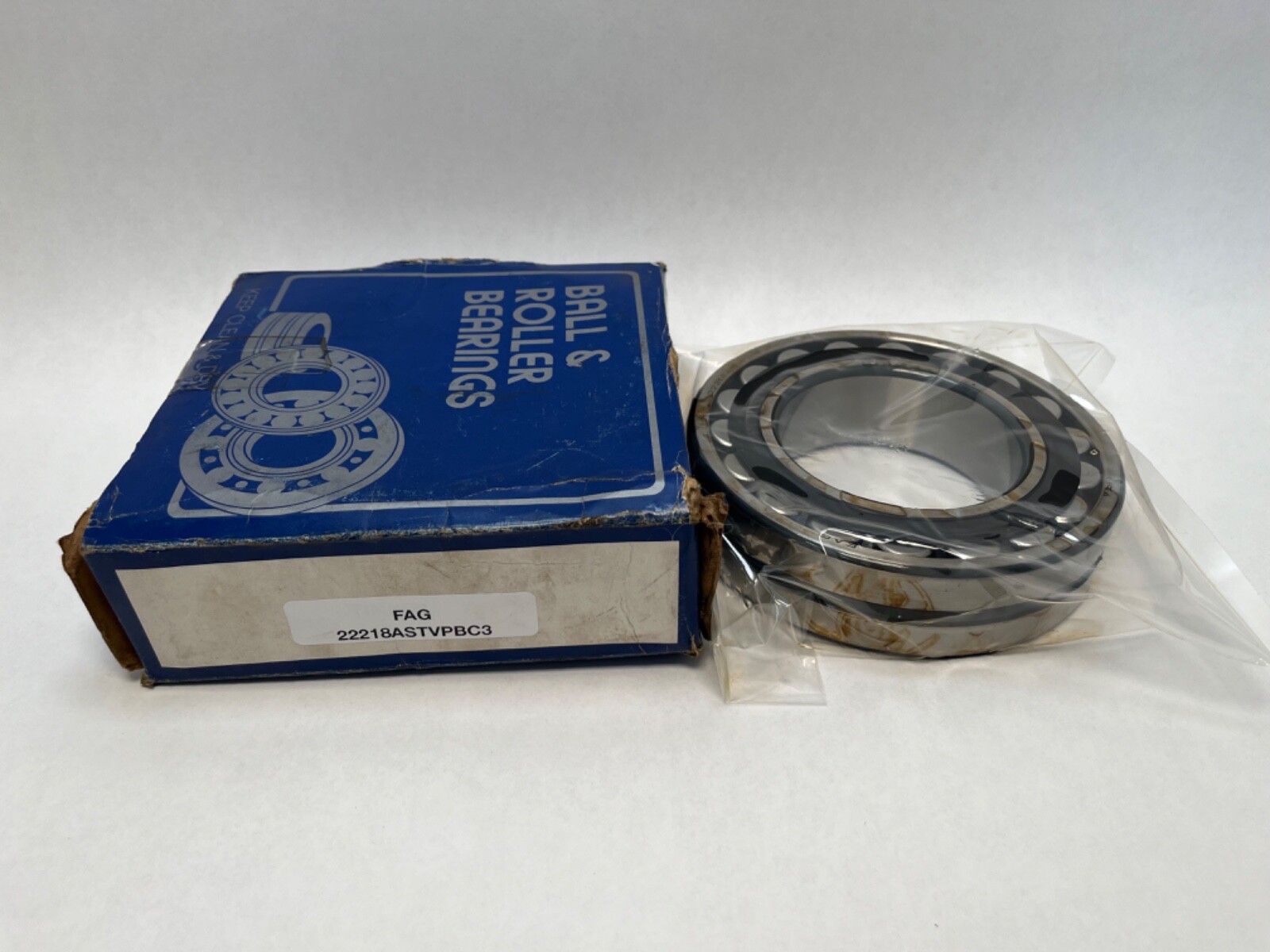

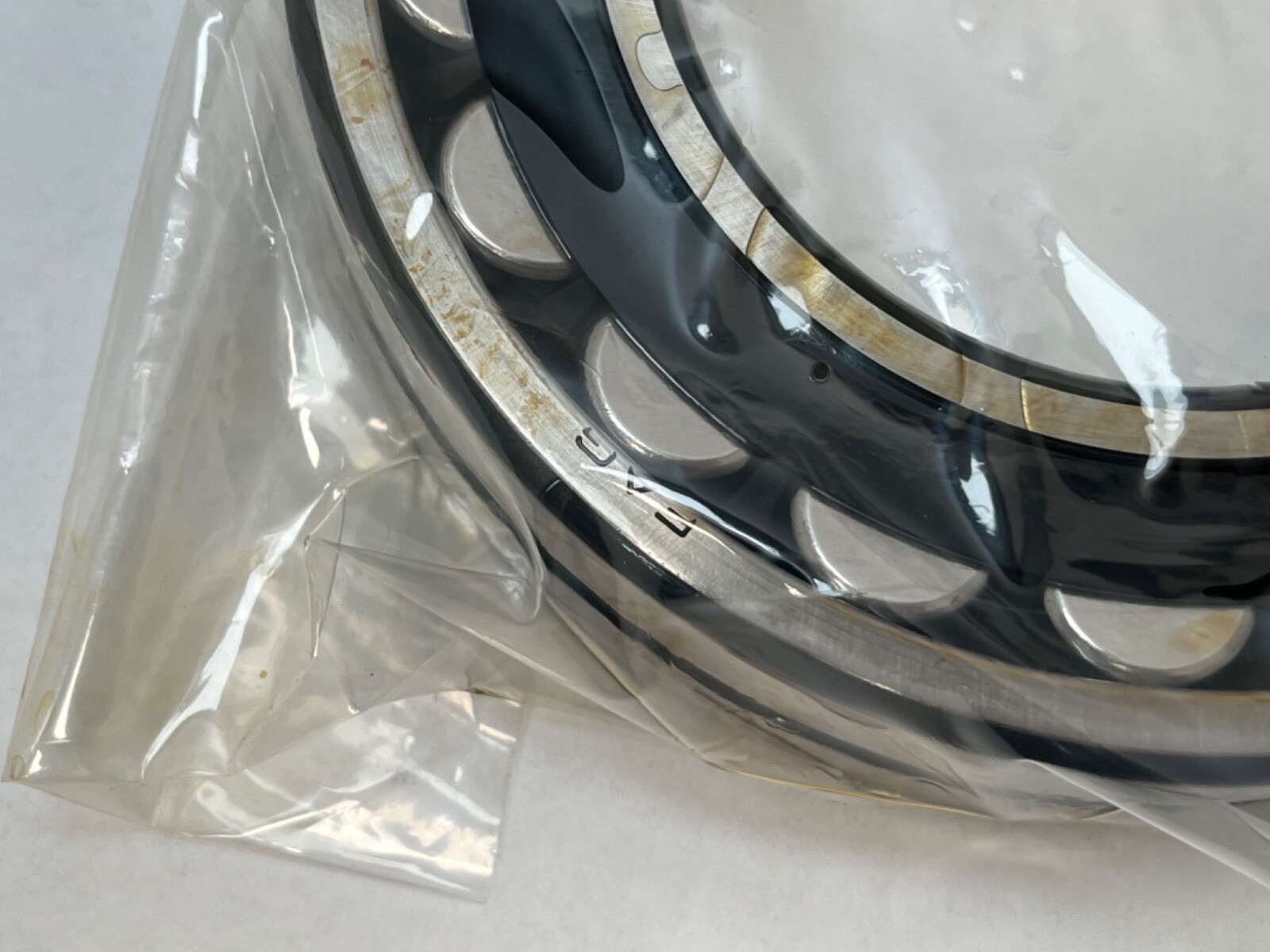

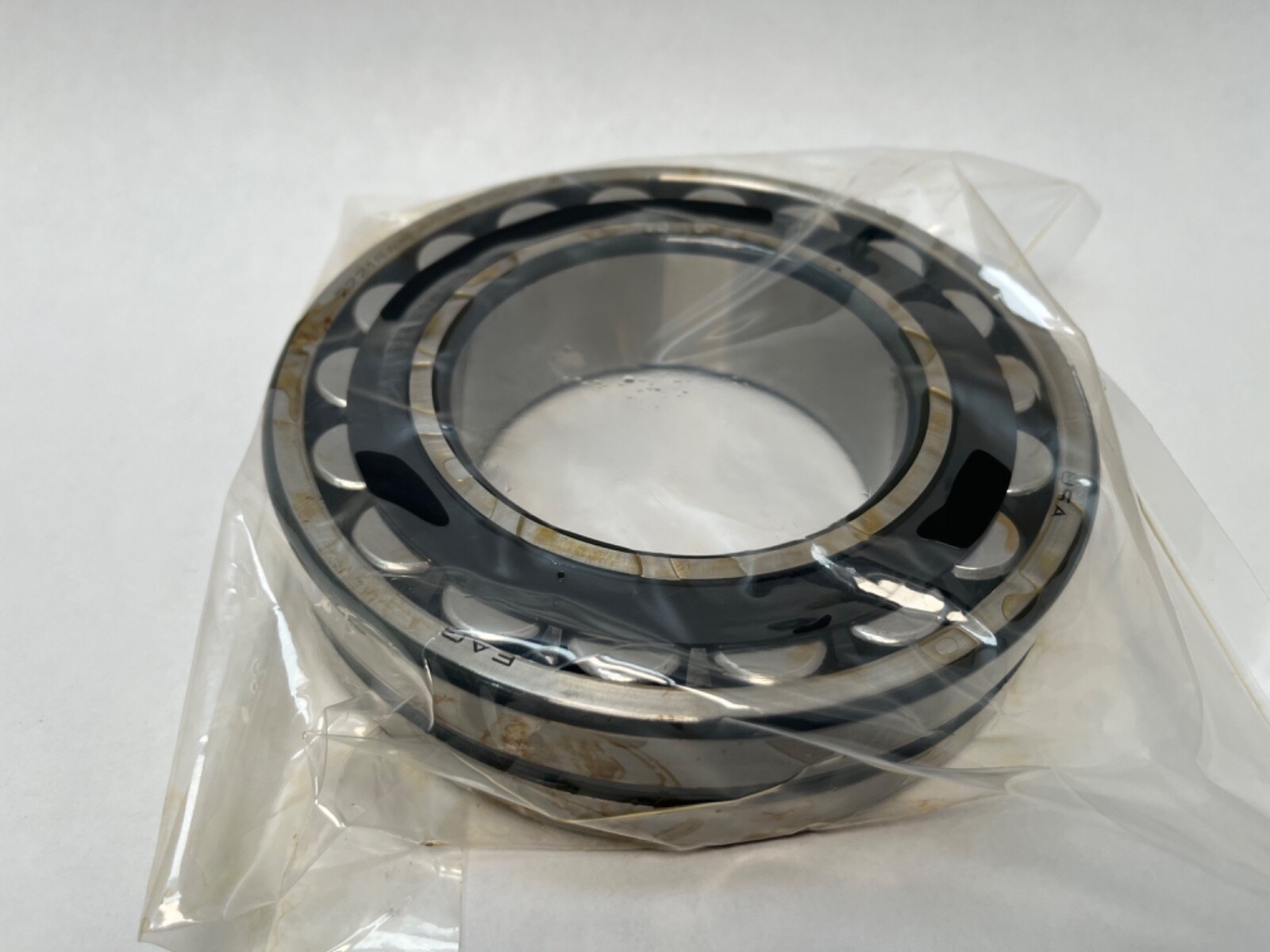

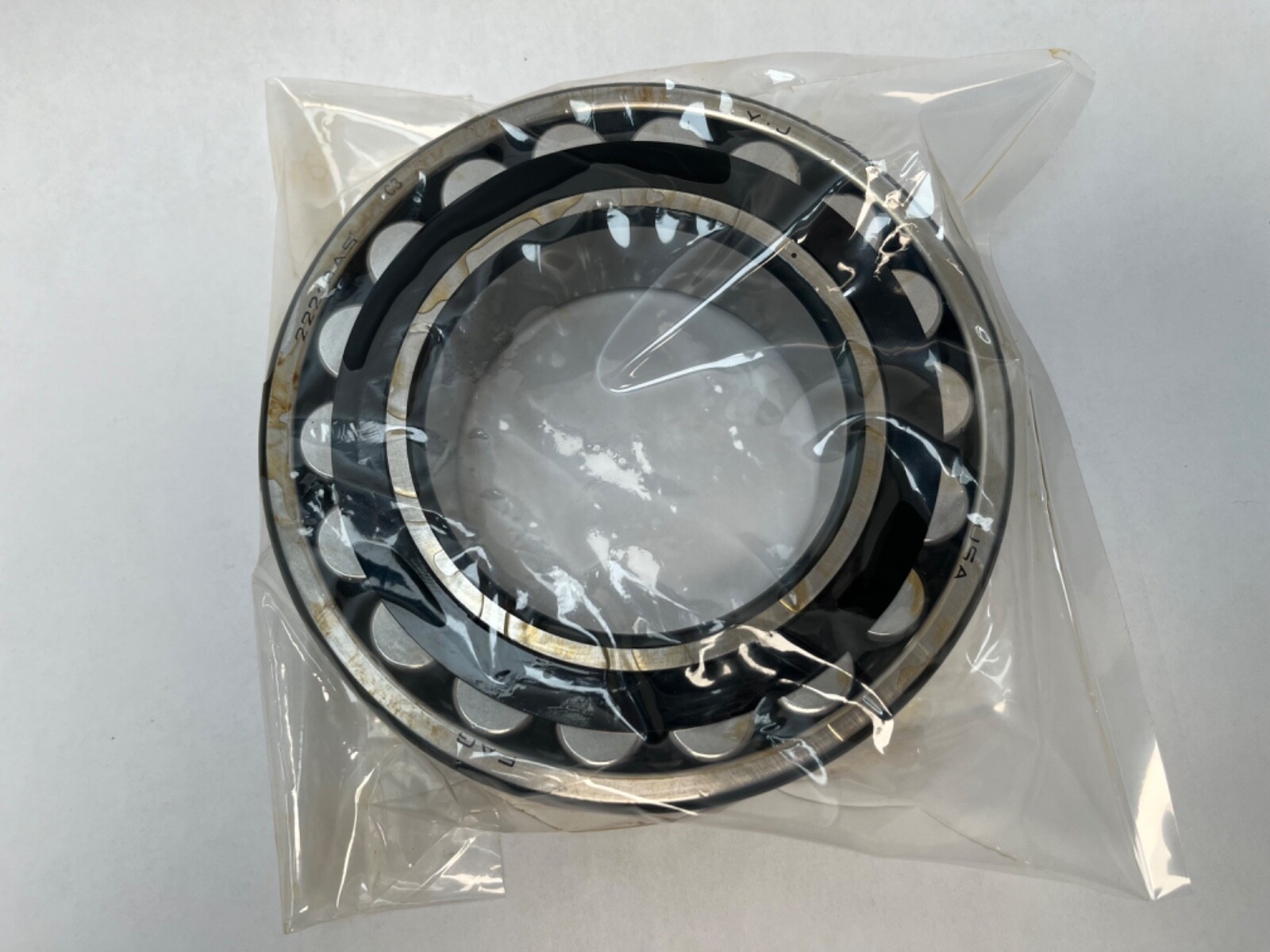

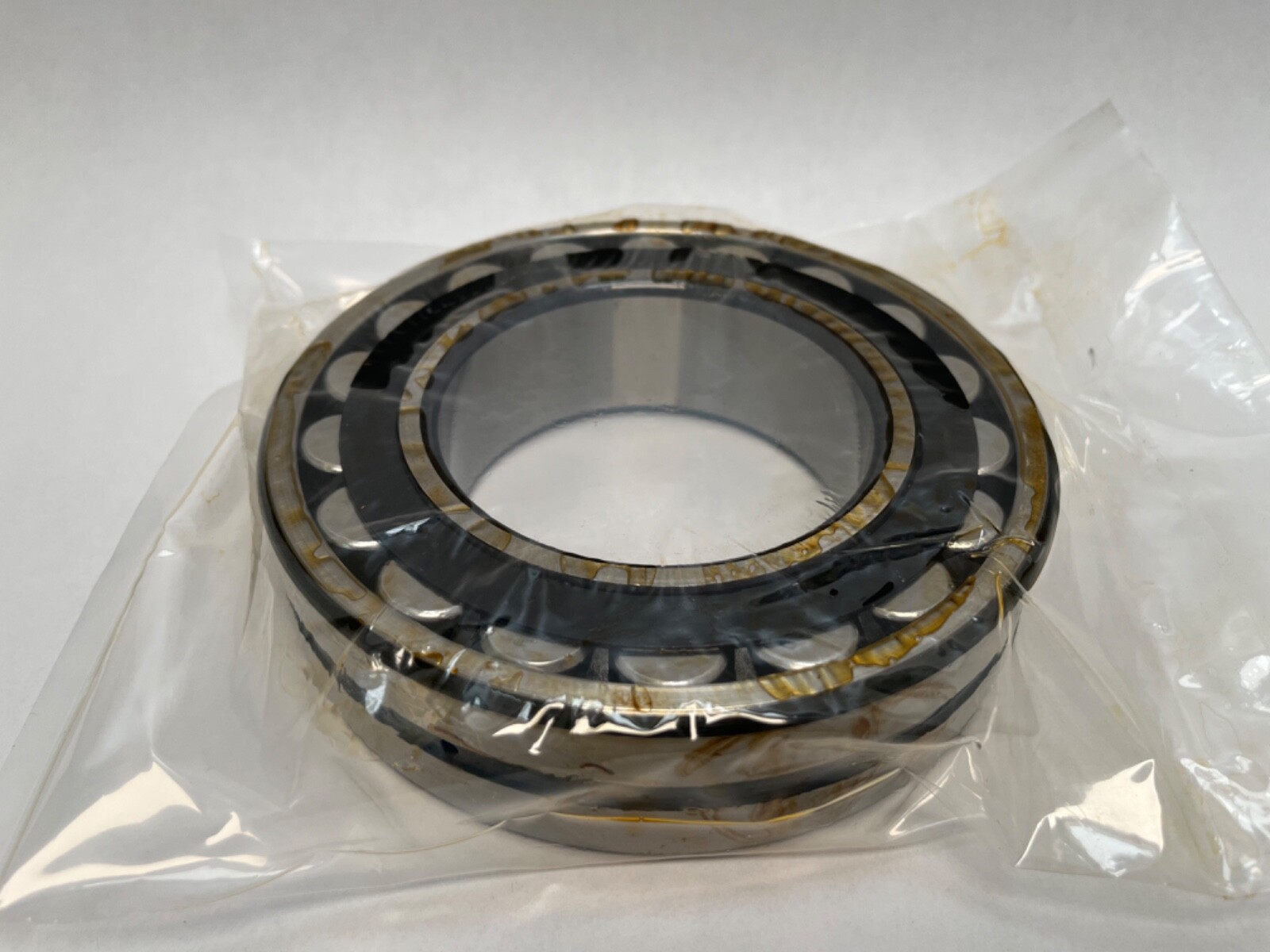

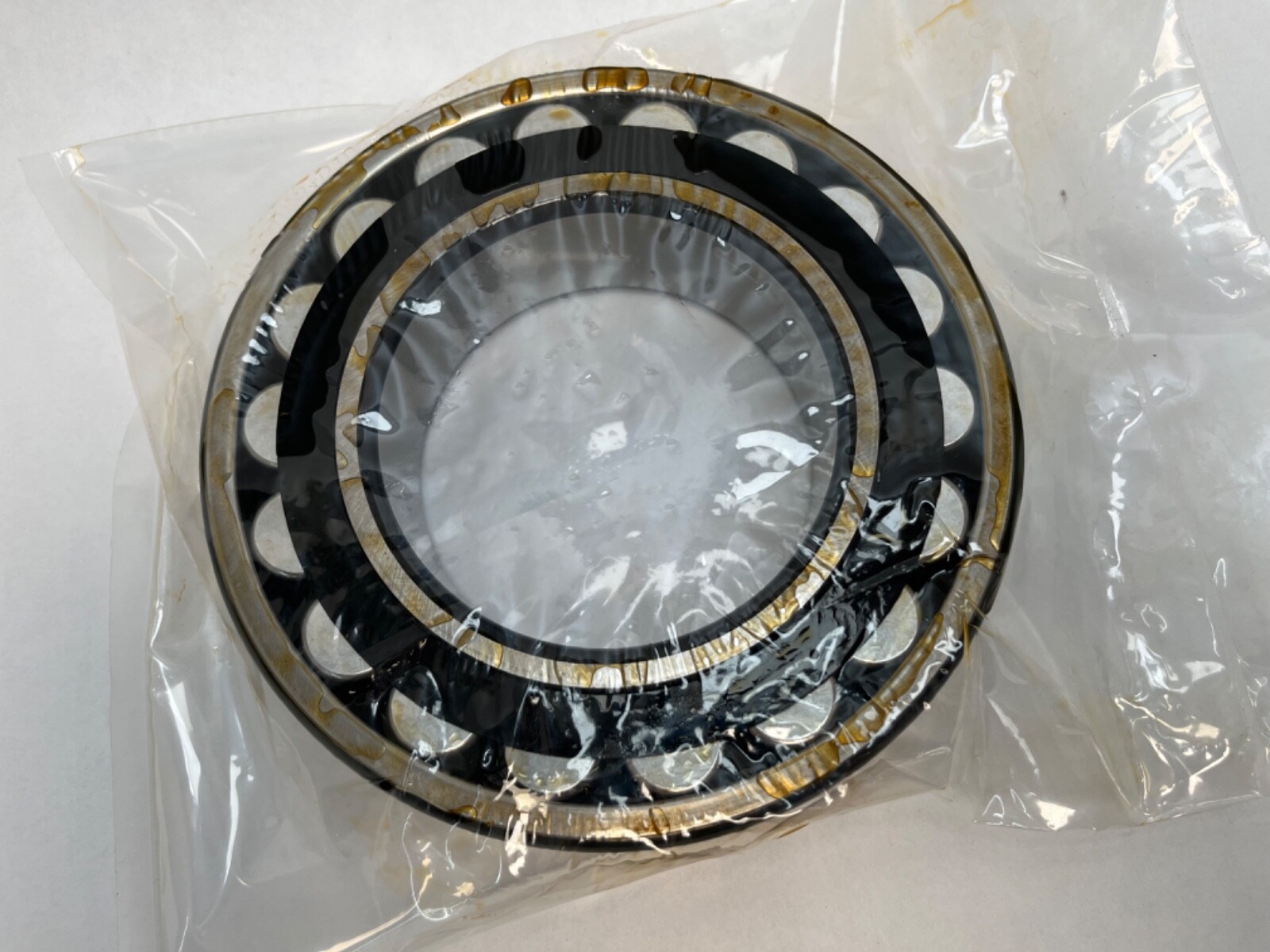

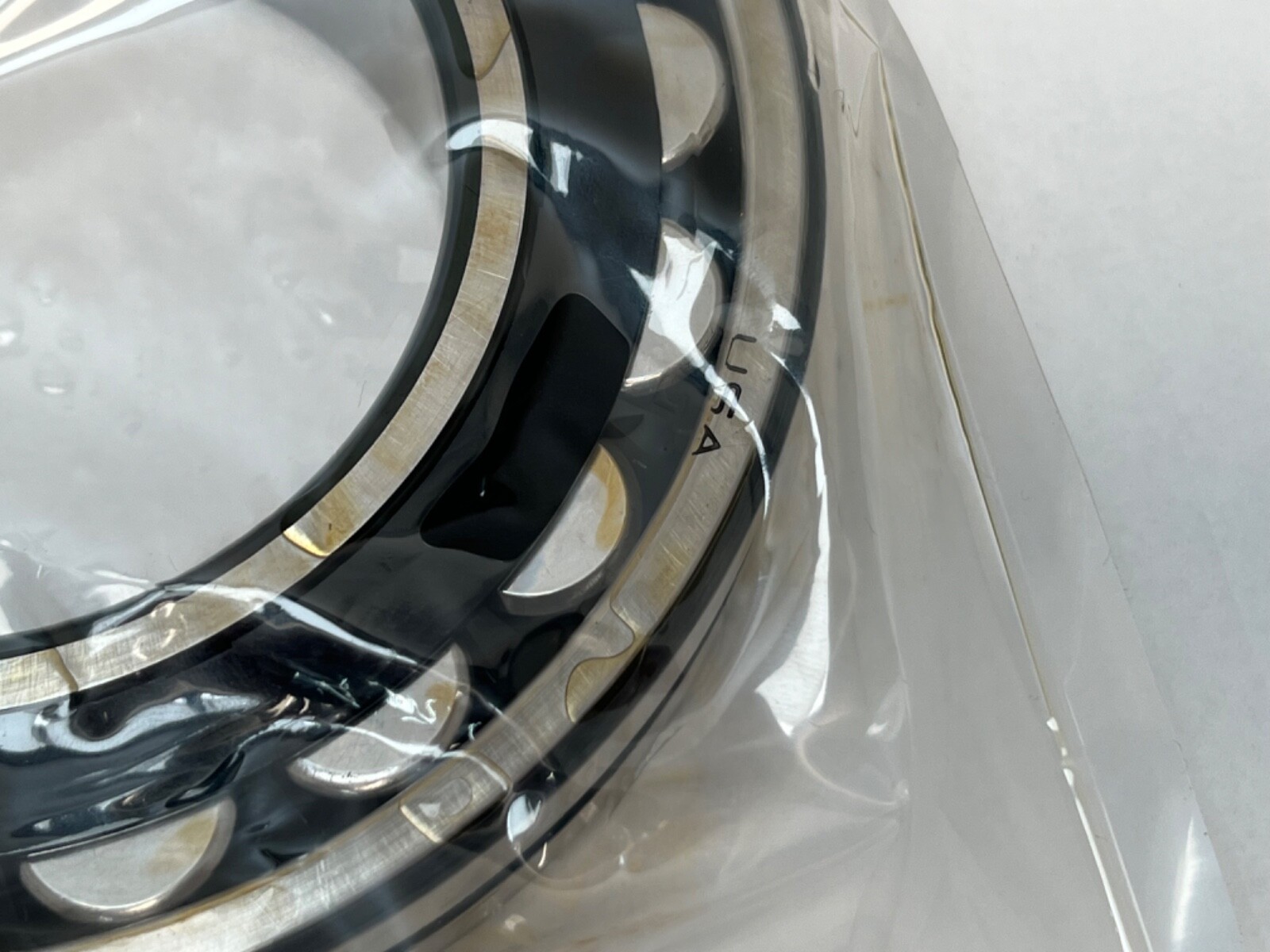

A FAG 22218AS.TVPB.C3 double-row spherical roller bearing, 90 mm bore by 160 mm outside diameter by 40 mm width, with a cylindrical bore. Two rows of barrel-shaped rollers run on a shared spherical outer raceway, so the bearing self-aligns while carrying heavy radial load and axial load in both directions. It suits fans, conveyor pulleys, gearboxes, vibrating equipment, pumps and process machinery.

Decoding the designation

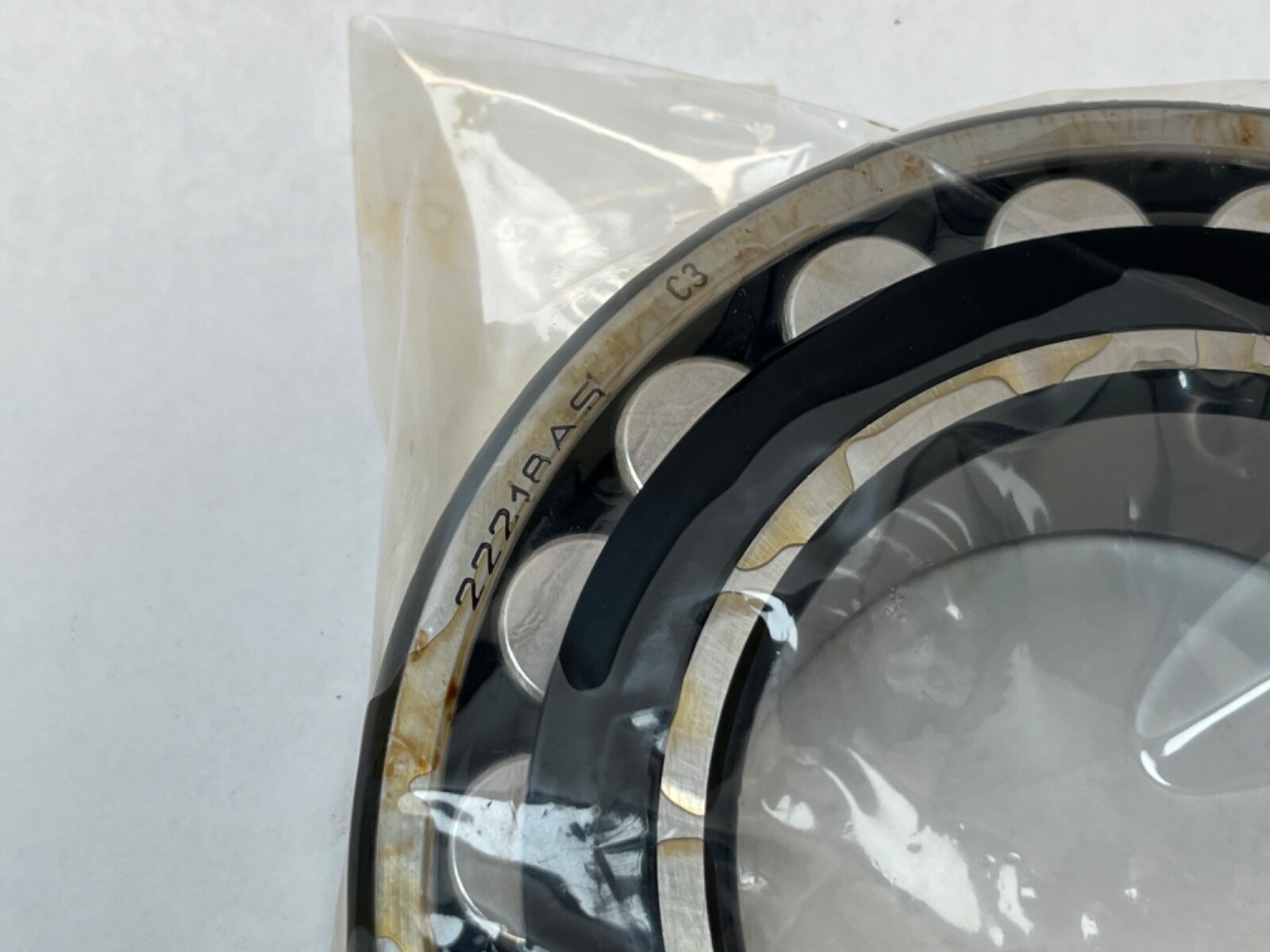

22218: double-row spherical roller bearing, 90 x 160 x 40 mm, 222-series section. AS: lubrication groove around the outer ring plus three radial lubrication holes, the FAG equivalent of the W33 feature. TVPB: glass-fibre reinforced polyamide cage. C3: radial internal clearance greater than normal. No K suffix: cylindrical bore.

What these specs mean in practice

The spherical outer raceway lets the roller set and inner ring swivel inside the outer ring, so a shaft running slightly out of line with its housing still loads the rollers evenly. That is why this bearing type dominates long conveyor and fan shafts where alignment cannot be held to a fine tolerance.

Two opposed roller rows mean the bearing carries thrust in both directions as well as radial load, so a separate thrust bearing is often unnecessary in the arrangement.

C3 clearance leaves more room between rollers and raceways than the normal class. That extra room is consumed by thermal growth of the inner ring and by an interference shaft fit, which is why C3 is the usual specification where the shaft runs hotter than the housing or where the fit is tight.

The polyamide cage is light and quiet and tolerates momentary shock better than a pressed-steel cage, with a continuous service ceiling of 120 °C. Above that, or in oil containing aggressive additives, a brass or steel cage variant is the correct specification.

Published ratings and mounting data

Bore: 90 mm, cylindrical. Outside diameter: 160 mm. Width: 40 mm. Rows: 2. Dynamic load rating C: 345 kN. Static load rating C0: 390 kN. Radial internal clearance: C3. Cage: glass-fibre reinforced polyamide. Operating temperature range: –30 °C to +120 °C. Lubrication features: groove and three outer-ring holes. Closure: open.

Quantity and configuration

One bearing ships. The bore is cylindrical, so the bearing mounts directly on a plain shaft seat and no adapter sleeve applies. Housings, seals, lock nuts and locking hardware are supplied separately.

Interchange guidance

Same-specification equivalents are cylindrical-bore 22218 spherical rollers with a polymer or reinforced cage at C3 clearance and W33-type lubrication features: SKF 22218 EK/C3 in its straight-bore form 22218 E/C3, NSK 22218EAE4C3, Timken 22218EJW33C3, Koyo 22218RHRW33C3. The tapered-bore 22218ASK.TVPB variant is a different part — it mounts on an adapter sleeve rather than a plain shaft. Brass-cage forms such as 22218AS.MB carry different temperature limits and speed ratings.
