Double-row spherical roller bearing, 75 x 130 x 31 mm, straight bore, open, W33 lubrication groove, C3 clearance, increased load capacity. Steel cage.
List Price
$82.20
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing — 75 mm ID, 130 mm OD, 31 mm Width, Straight Bore, W33 Lubrication Groove, C3 Clearance$59.76
Spherical Roller Bearing — 75 mm ID, 130 mm OD, 31 mm Width, Straight Bore, C3 Clearance, D1 Oil Groove$68.78
Spherical Roller Bearing 75 x 130 x 31 mm, Double Row, Straight Bore, W33 Lubrication Groove, Polyamide Cage$75.57
Spherical Roller Bearing - Straight Bore, 75 mm ID, 130 mm OD, 31 mm Width, Open, Machined Brass Cage, CN Clearance, AS Lubrication Groove$76.47| MFR / Brand | FAG |
|---|---|
| MPN | 22215HLSC3W33 |
| Model | 22215 HL S C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 31 mm |
| Material | Bearing Steel |
|---|---|
| Relubrication | W33 lubrication groove with three radial feed holes in the outer ring |
| Base Number | 22215 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; W33 bearing; C3 clearance bearing; increased capacity roller bearing |
| Common Misspellings | 22215 HLS C3W33; 22215HL SC3 W33; FAG 22215-HLS; 2215HLSC3W33 |
| Application Types | Vibrating screens; conveyor pulleys; fans and blowers; gearboxes; central-greasing and circulating-oil installations |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 22215HLSC3W33; 22215-HL-S-C3-W33; 22215 HL S C3 W33; 22215HL; 22215 |
| Arrangement Configuration | Self-aligning, axial capacity in both directions |
| Precision Class | P0 (normal, ABEC 1) |
| Min Temp | -40°C |
| Cage Type | Steel |
| Dynamic Load Rating | 216 kN |
| Static Load Rating | 240 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200°C |
| Item Weight | 3.42 lbs |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Design Units | Metric |
| Bearing Class | HL increased load capacity design |
| Internal Clearance | C3 |
| Part Number | 22215HLS.C3.W33 |
| Limiting Speed | 5600 rpm |
| Cross Reference 1 | SKF 22215 E/C3 |
|---|---|
| Cross Reference 2 | NTN 22215EAE4C3 |
| Cross Reference 3 | NSK 22215EAE4C3 |
| Cross Reference 4 | Timken 22215EJW33C3 |

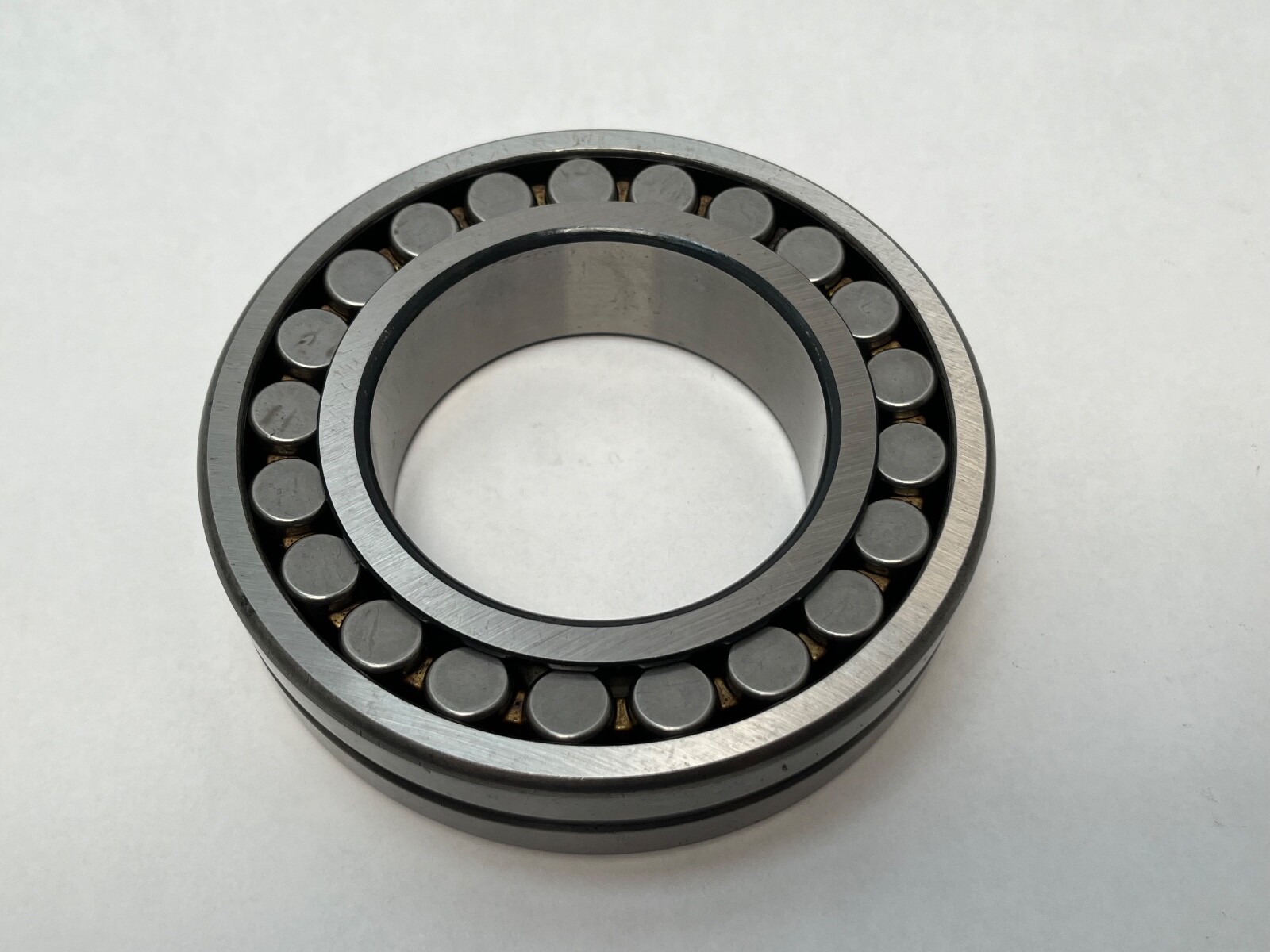

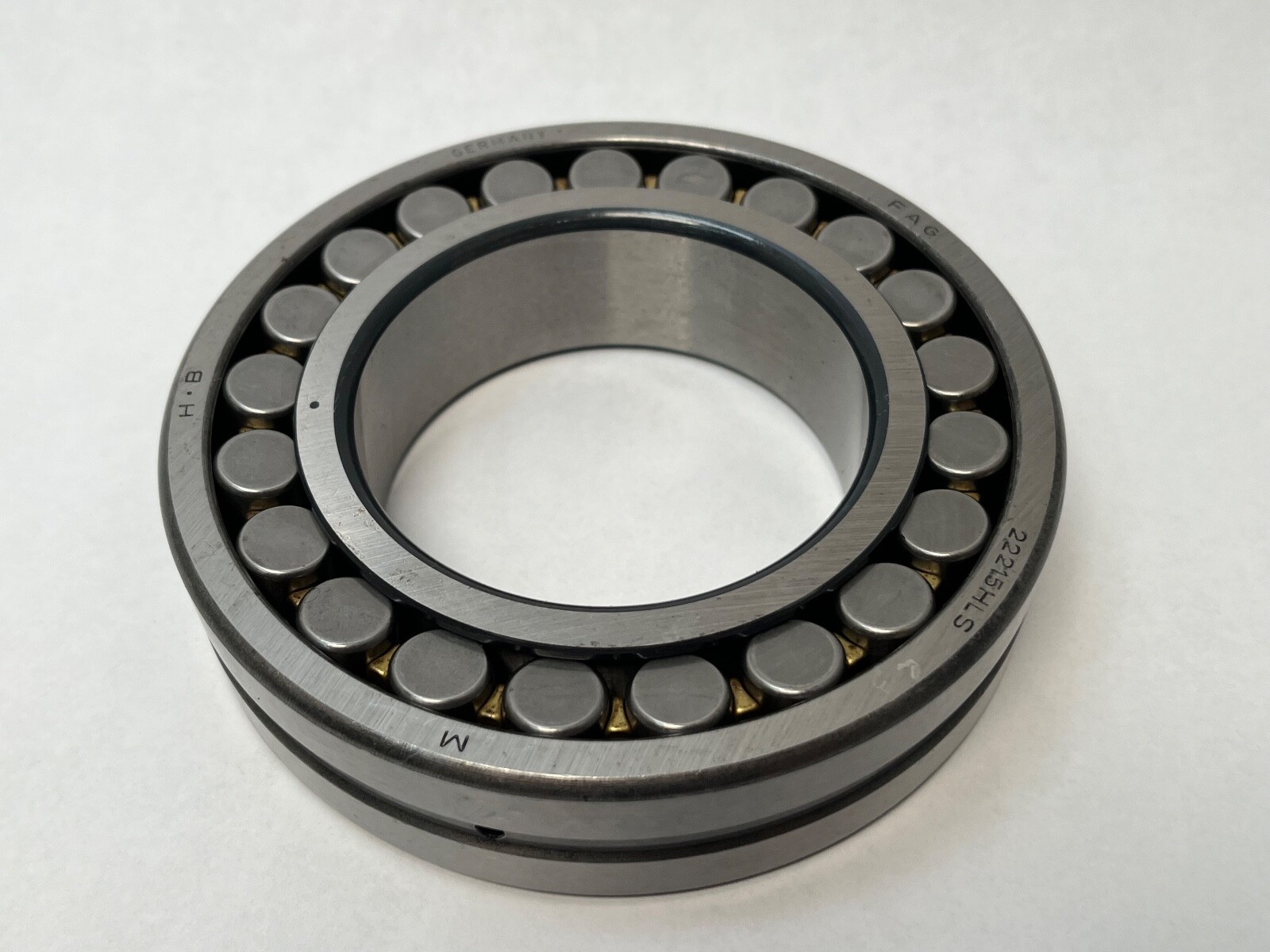

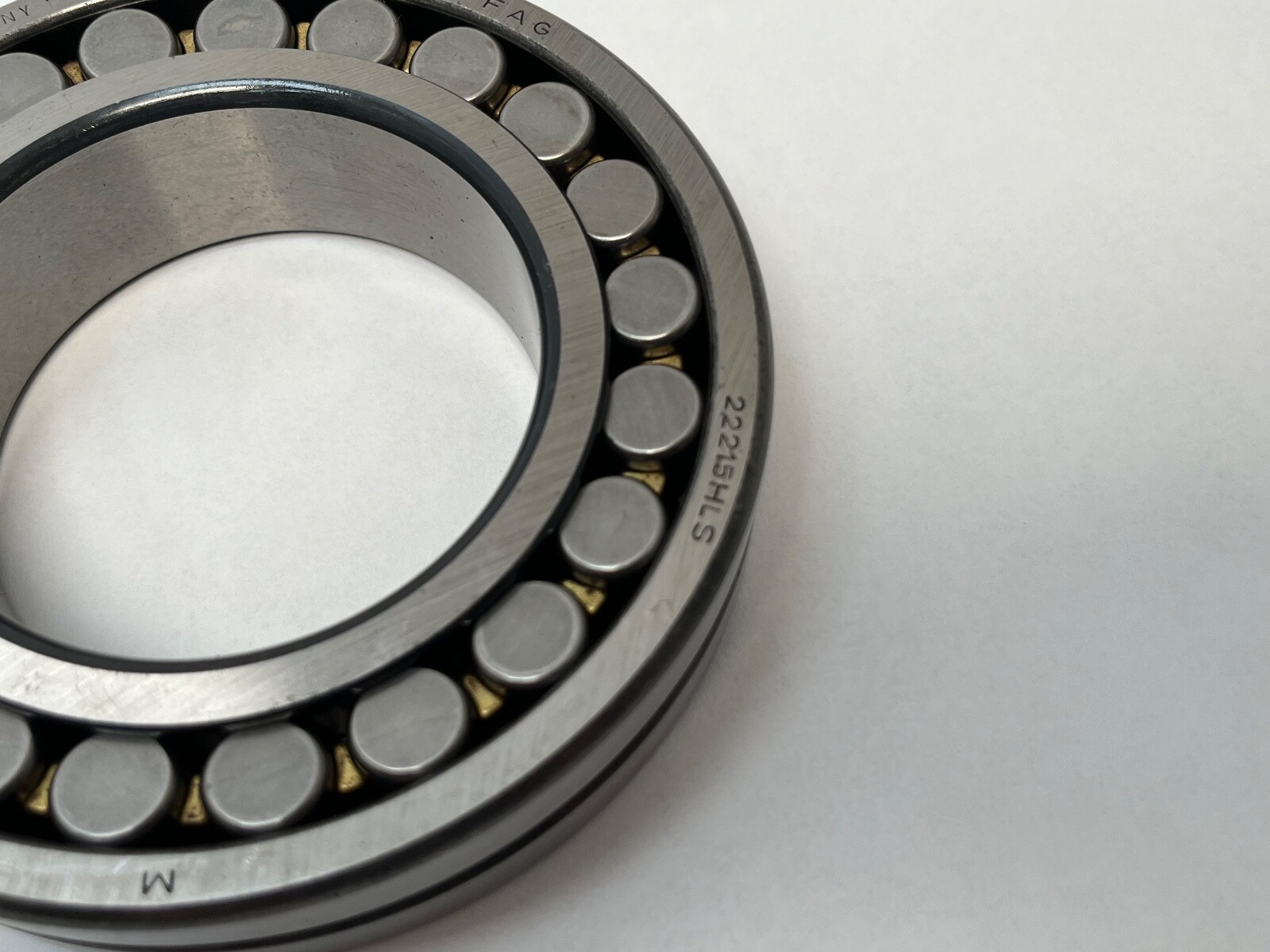

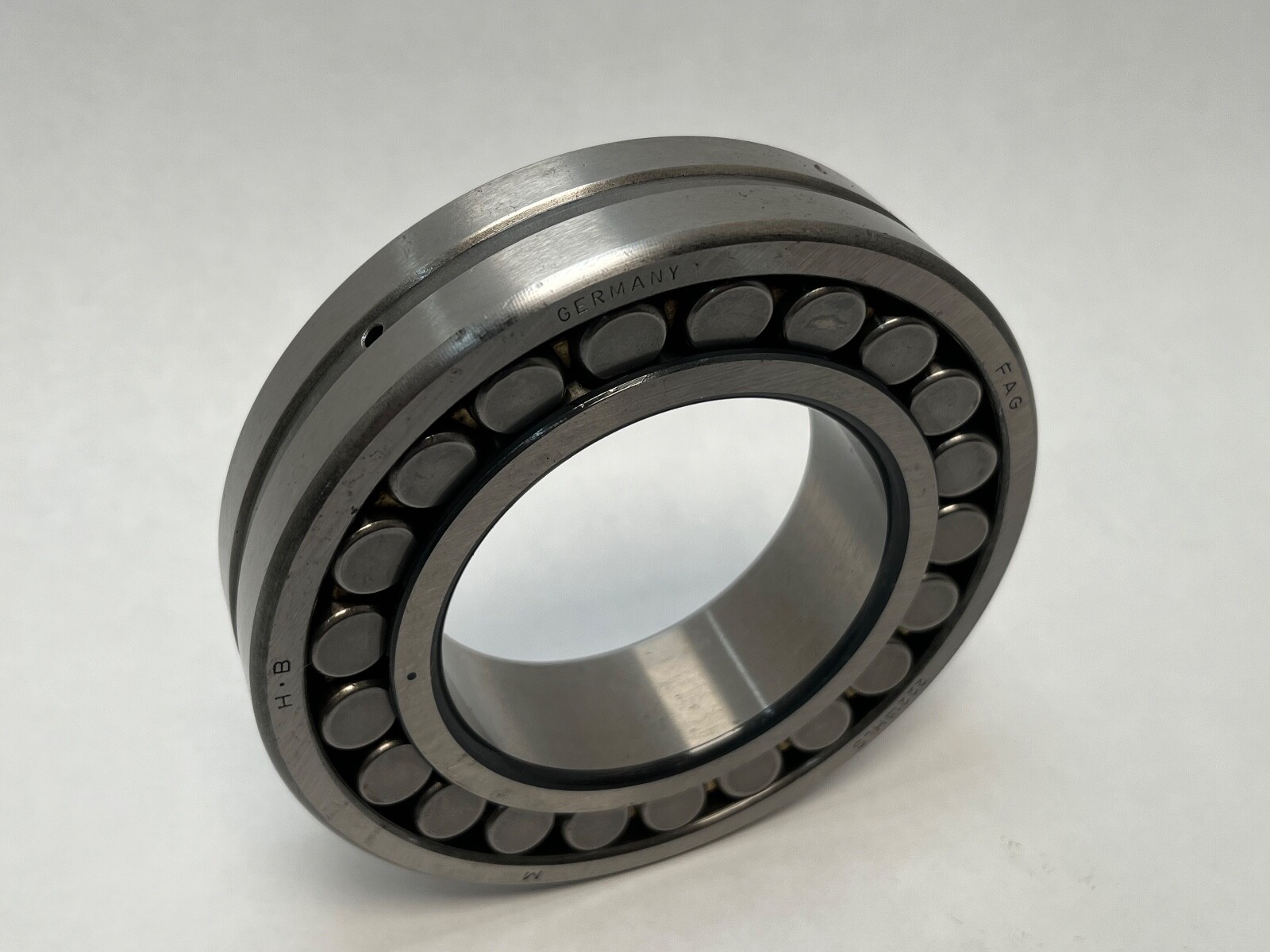

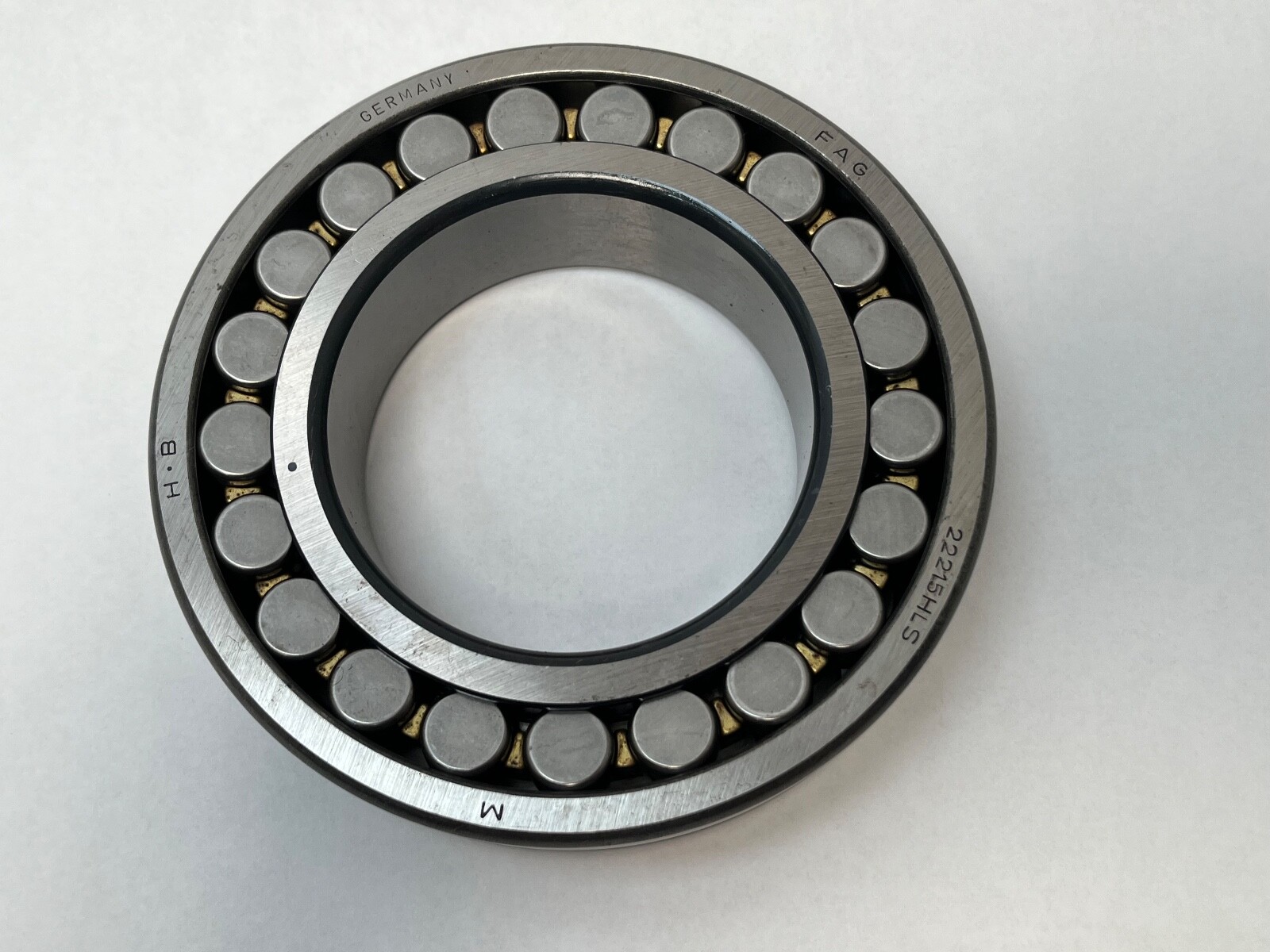

A FAG 22215HLS.C3.W33 double-row spherical roller bearing, 75 mm bore, 130 mm outside diameter, 31 mm width. Straight bore, open, steel cage, increased-capacity HL design, lubrication groove and three radial feed holes in the outer ring, C3 internal clearance.
222 identifies the double-row spherical roller bearing in the 22 dimension series and the bore code 15 gives 75 mm. HL is the FAG increased load capacity design. S is FAG’s lubrication groove with radial feed holes, a feature of the outer ring, and W33 states the same groove with three holes. C3 is radial internal clearance greater than normal. No K appears, so the bore is straight and the bearing mounts directly on the shaft.

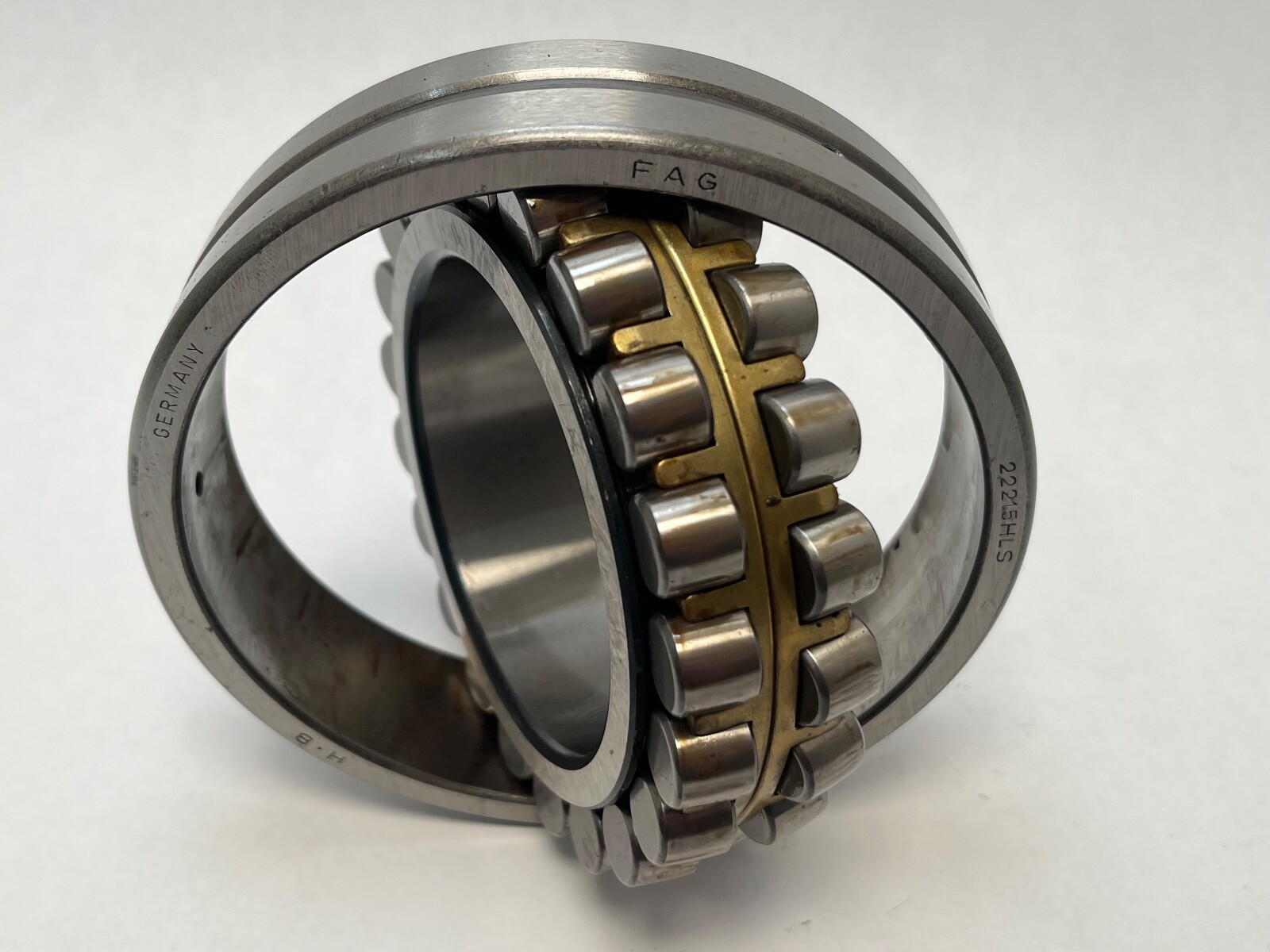

Two rows of barrel rollers share a spherical outer raceway, so the roller set swivels within the outer ring, absorbing shaft misalignment and housing deflection while carrying very heavy radial load and thrust in both directions. The groove and holes let grease or oil enter through the housing at the centre of the roller path, which is where lubricant reaches both rows evenly and is the arrangement used in circulating-oil and central-greasing systems. C3 clearance suits hot running and heavy interference fits.
1 Pc. Complete bearing: outer ring with lubrication groove and feed holes, two roller rows, cage and inner ring. Open both faces, without snap ring.
The straight bore takes an interference fit on a cylindrical shaft seat, mounted by induction or oil-bath heating. The housing lubrication port aligns with the feed holes in the outer ring, so the outer ring is oriented to the port at assembly.
SKF 22215 E/C3 and NTN 22215EAE4C3 are same-envelope C3 equivalents; the SKF and NSK W33 forms are 22215 E/C3W33 and 22215EAKE4C3. FAG 22215K is a related size with a 1:12 tapered bore for an H315 adapter sleeve.
