This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double-Row Spherical Roller Bearing, 65 x 120 x 31 mm, 1:12 Tapered Bore, Solid Brass Cage, W33 Lubrication, C3 Clearance - Bearing Only$71.12
Double-Row Spherical Roller Bearing, 65 x 120 x 31 mm, 1:12 Tapered Bore, Machined Brass Cage, W33 Lubrication, C3 Clearance$72.64
Double-Row Spherical Roller Bearing – 65 x 120 x 31 mm, 1:12 Tapered Bore, C3 Clearance, W33 Lubrication Groove$67.30
Spherical Roller Bearing - 65 mm Tapered Bore, 120 mm OD, 31 mm Width, C3 Clearance, W33 Lubrication Groove$67.30| MFR / Brand | FAG |
|---|---|
| MPN | 22213KM |
| Model | 22213 K M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 198 kN / 44500 lbf |
| Static Load Rating | 216 kN / 48500 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200 °C |
| Item Weight | 3.42 lbs |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Limiting Speed | 4300 rpm |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | SKF 22213 EK |
|---|---|
| Cross Reference 2 | NTN 22213EAKD1 |
| Cross Reference 3 | Timken 22213K |

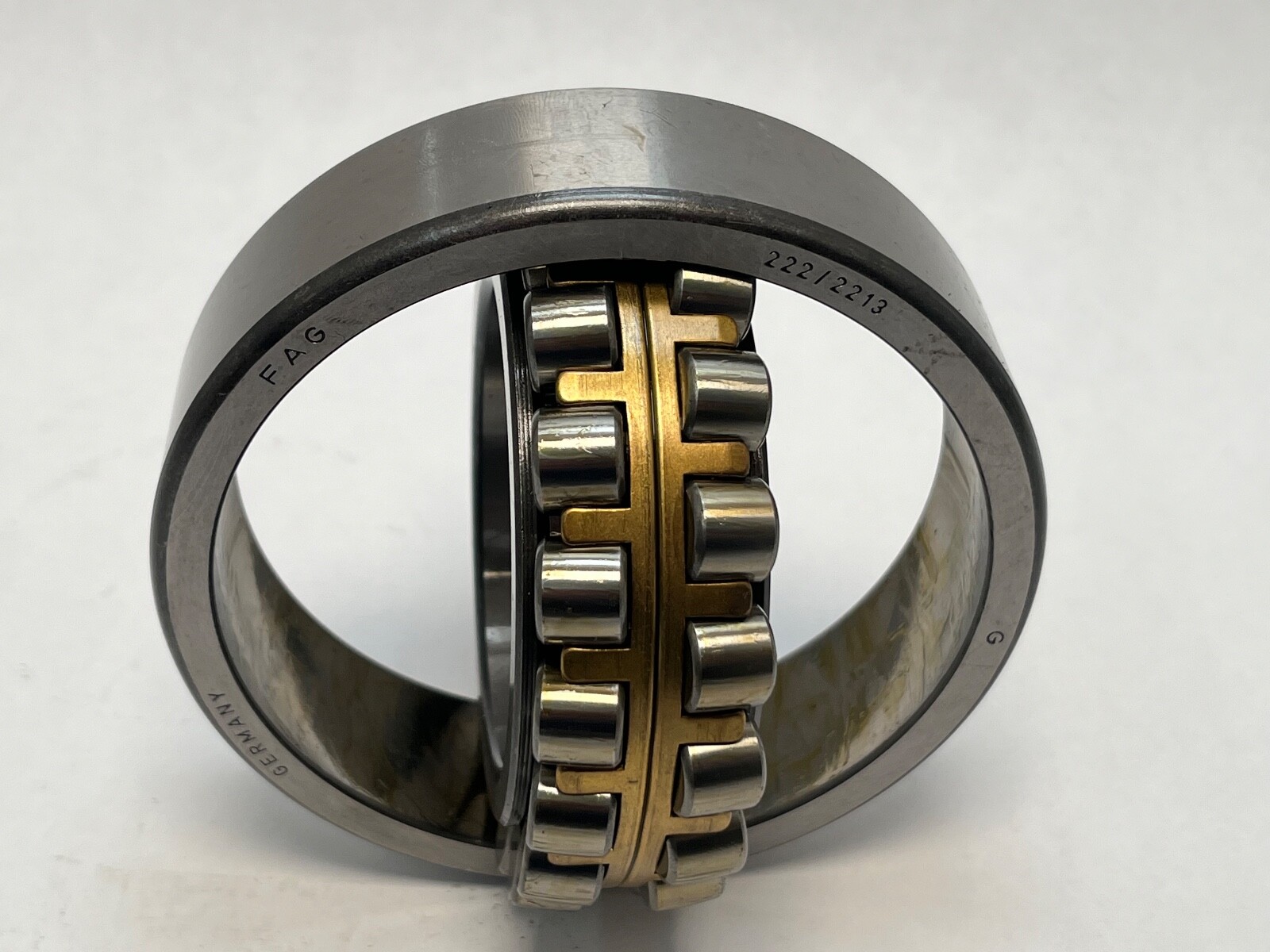

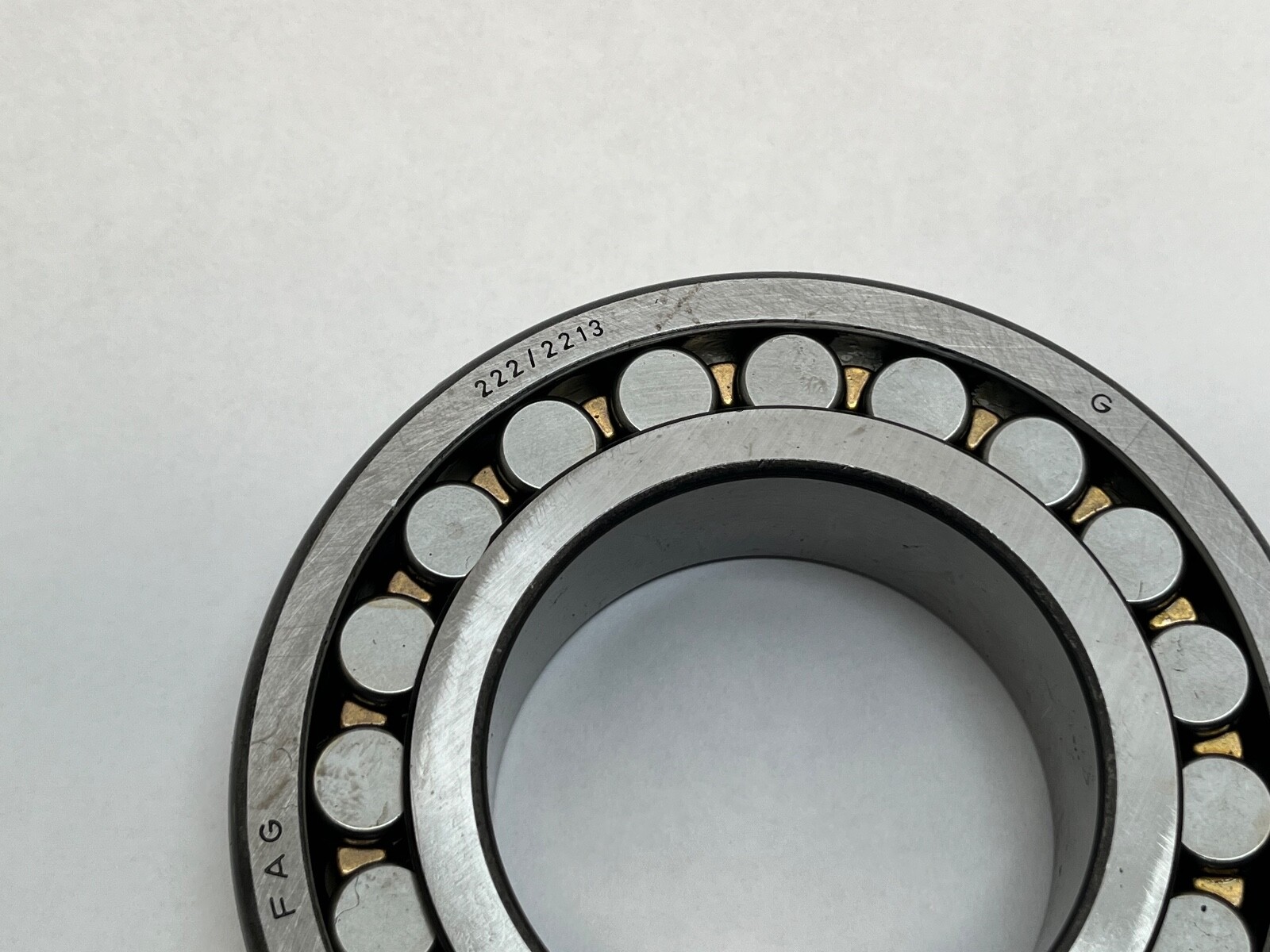

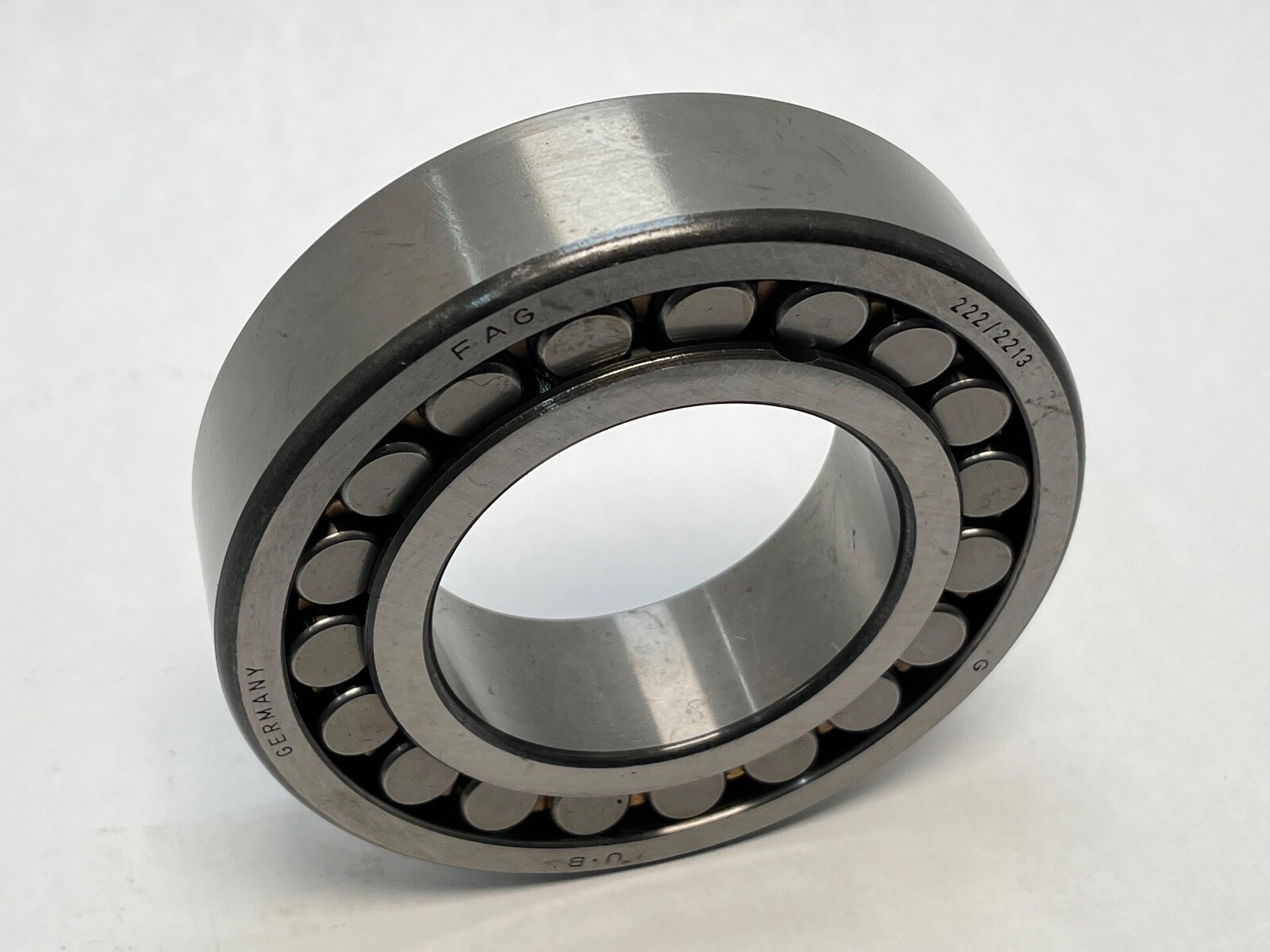

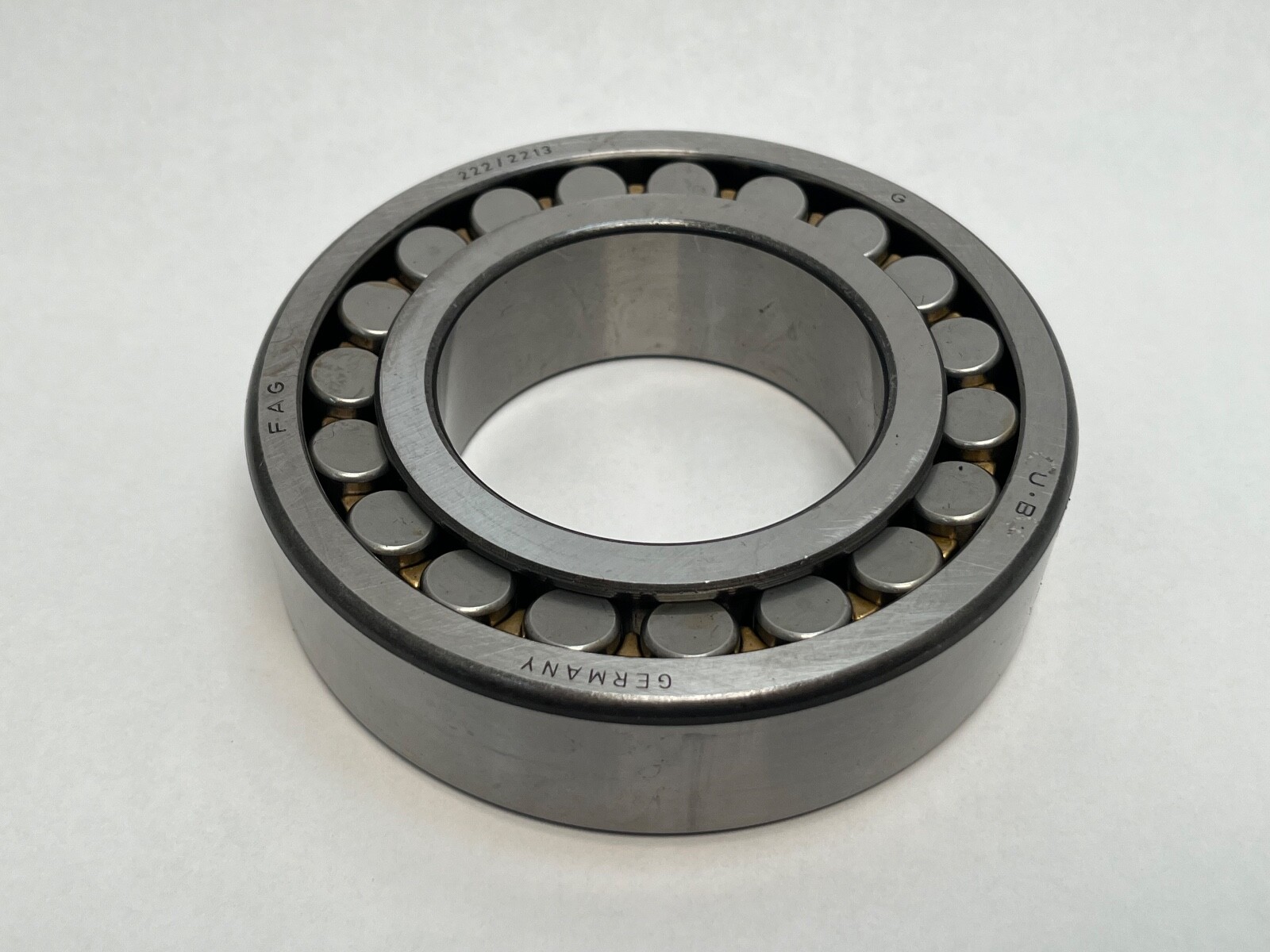

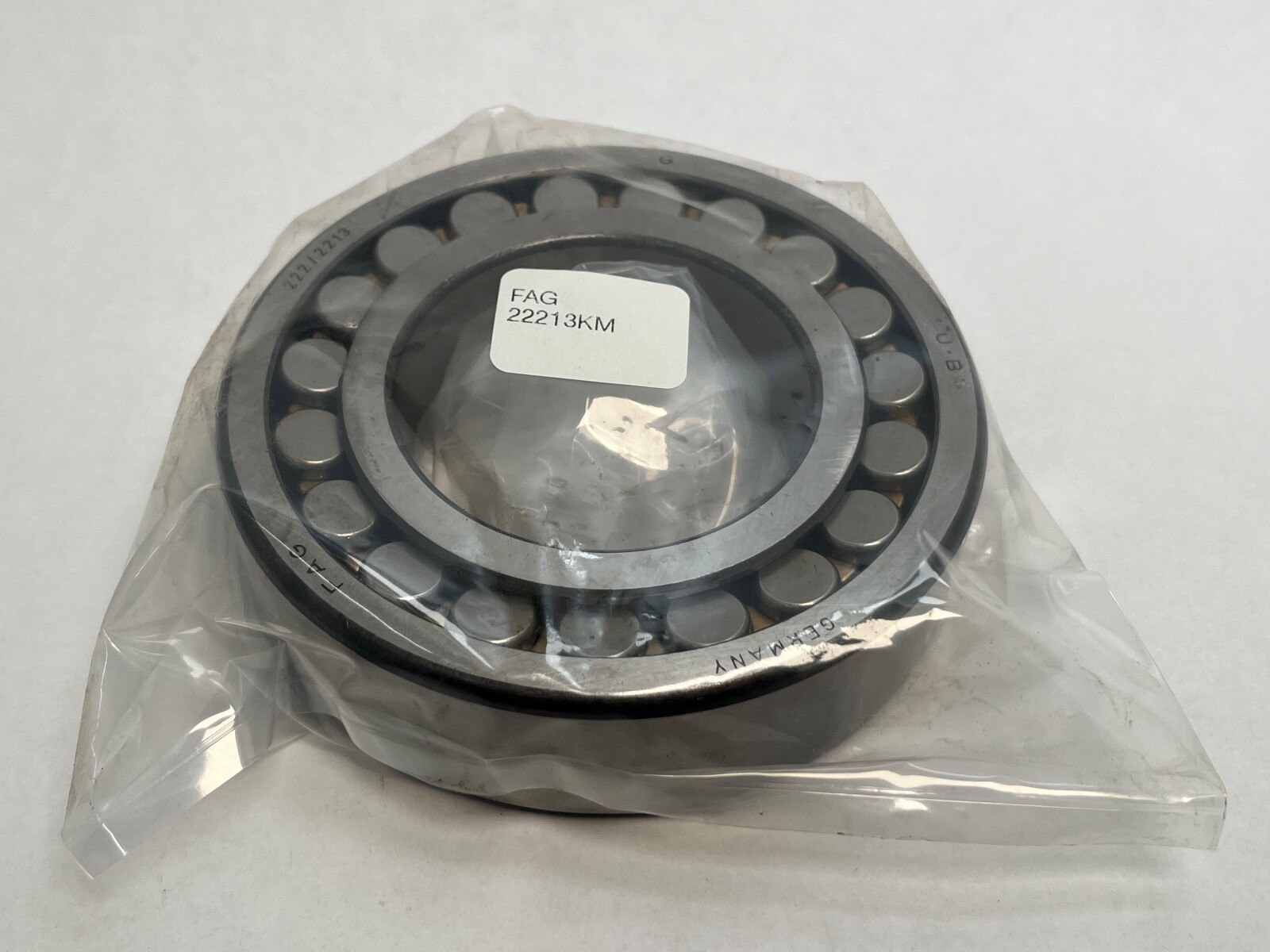

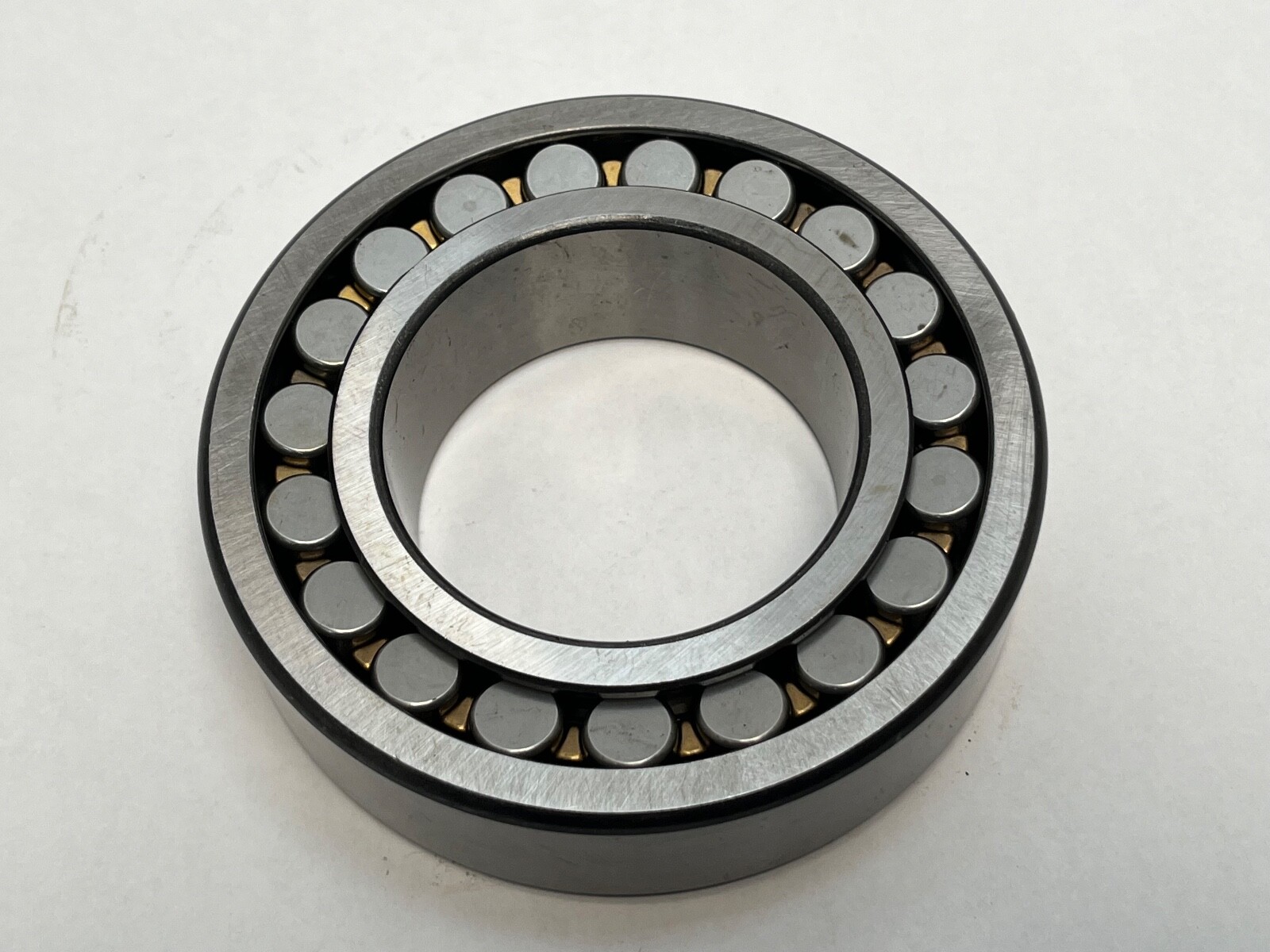

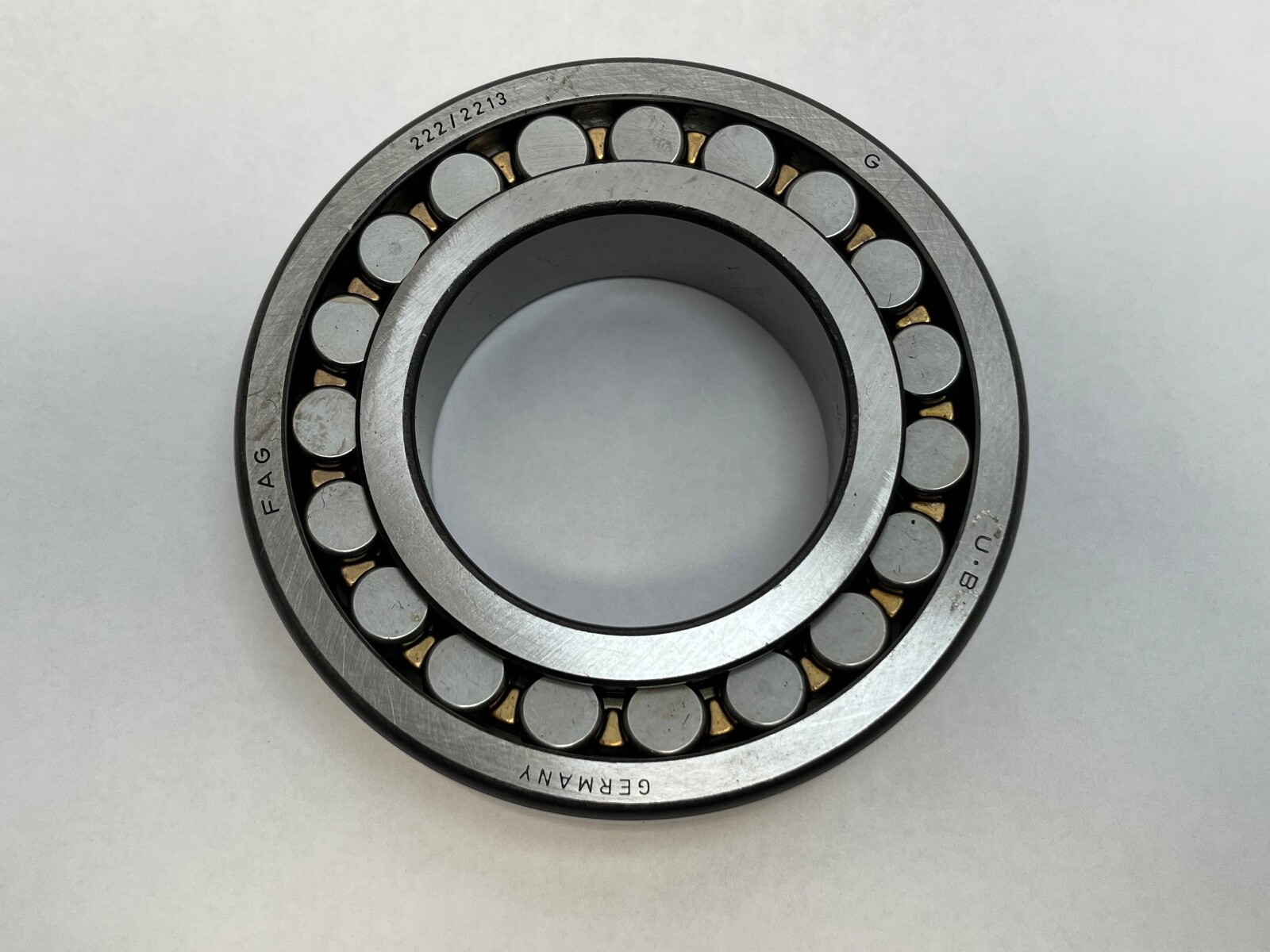

Spherical Roller Bearing – Tapered Bore, 65 mm ID, 120 mm OD, 31 mm Width, Open, CN Internal clearance
$94.03
19 in stock
$64.17
13 in stock
$44.26
14 in stock
