FAG 21310E.TVPB spherical roller bearing, 50 x 110 x 27 mm, cylindrical bore, glass-fibre polyamide cage, normal clearance. Successor 21310-E1-XL-TVPB.
List Price
$55.47
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 21310E.TVPB |
| Model | 21310-E-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 110 mm |
| Width | 27 mm |
| Series | 213 |
|---|---|
| Cage Type | Solid window cage, roller-guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Base Number | 21310 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row, polyamide cage, 213 series |
| Common Misspellings | 21310 E TVPB, 21310ETVP, 2310ETVPB |
| Application Types | Gearboxes, pumps, fans, conveyors, crushers |
| Overall Width | 27 mm |
| Mpn Variants | 21310-E-TVPB, 21310E.TVPB, 21310ETVPB, 21310E, 21310-E1-TVPB |
| Compatible With Replaces | Successor: FAG 21310-E1-XL-TVPB |
| Lubricant | Grease or oil |
| Closure Type | Open |
| Cross Reference 1 | NSK 21310EAE4 (oil groove and holes, E4) |
|---|---|
| Cross Reference 2 | Timken 21310EJW33 (W33 lubrication groove) |
| Cross Reference 3 | Koyo 21310RHRW33 (W33 lubrication groove) |
| Cross Reference 4 | SKF 21310 E (no W33 lubrication groove) |

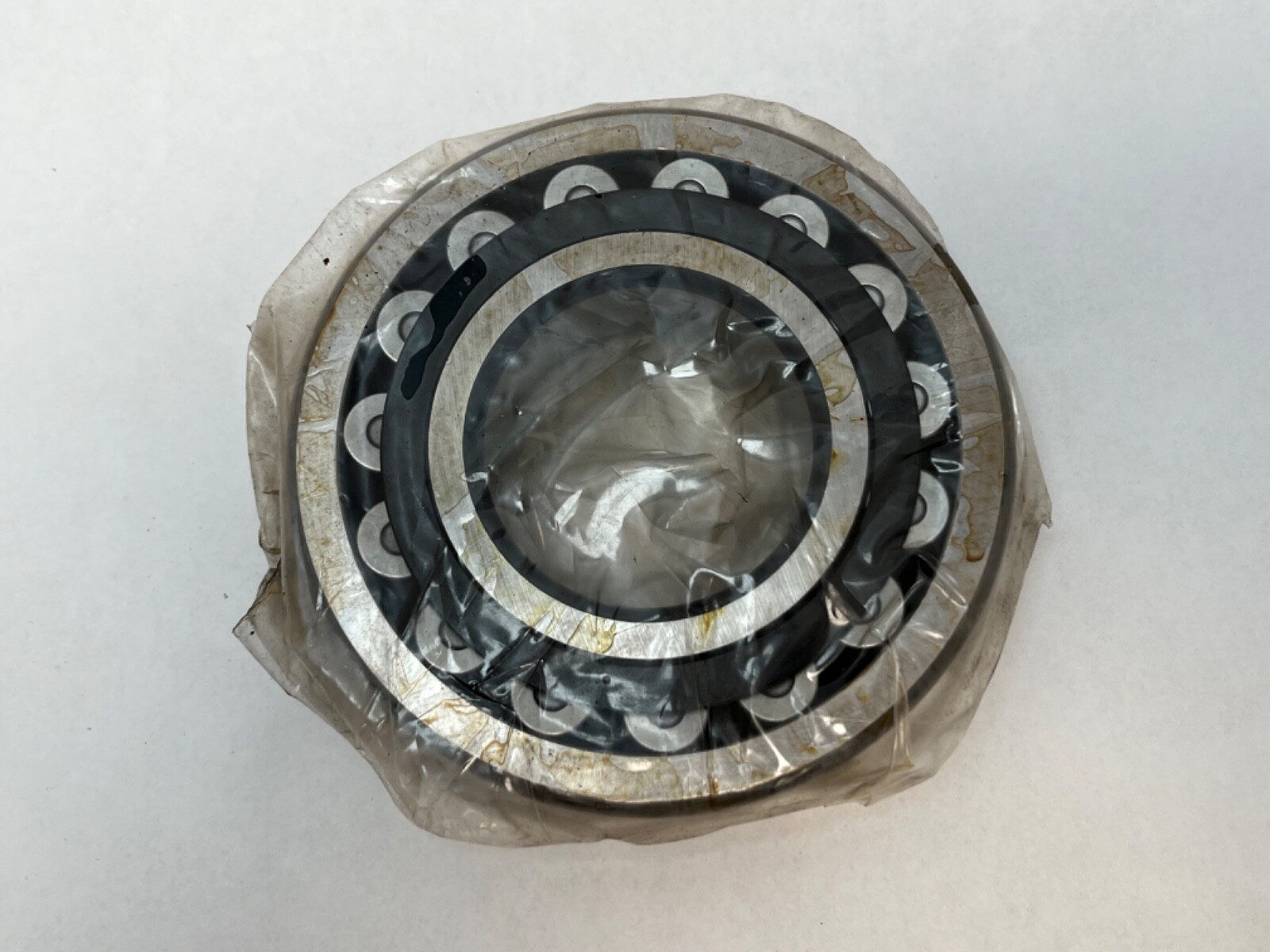

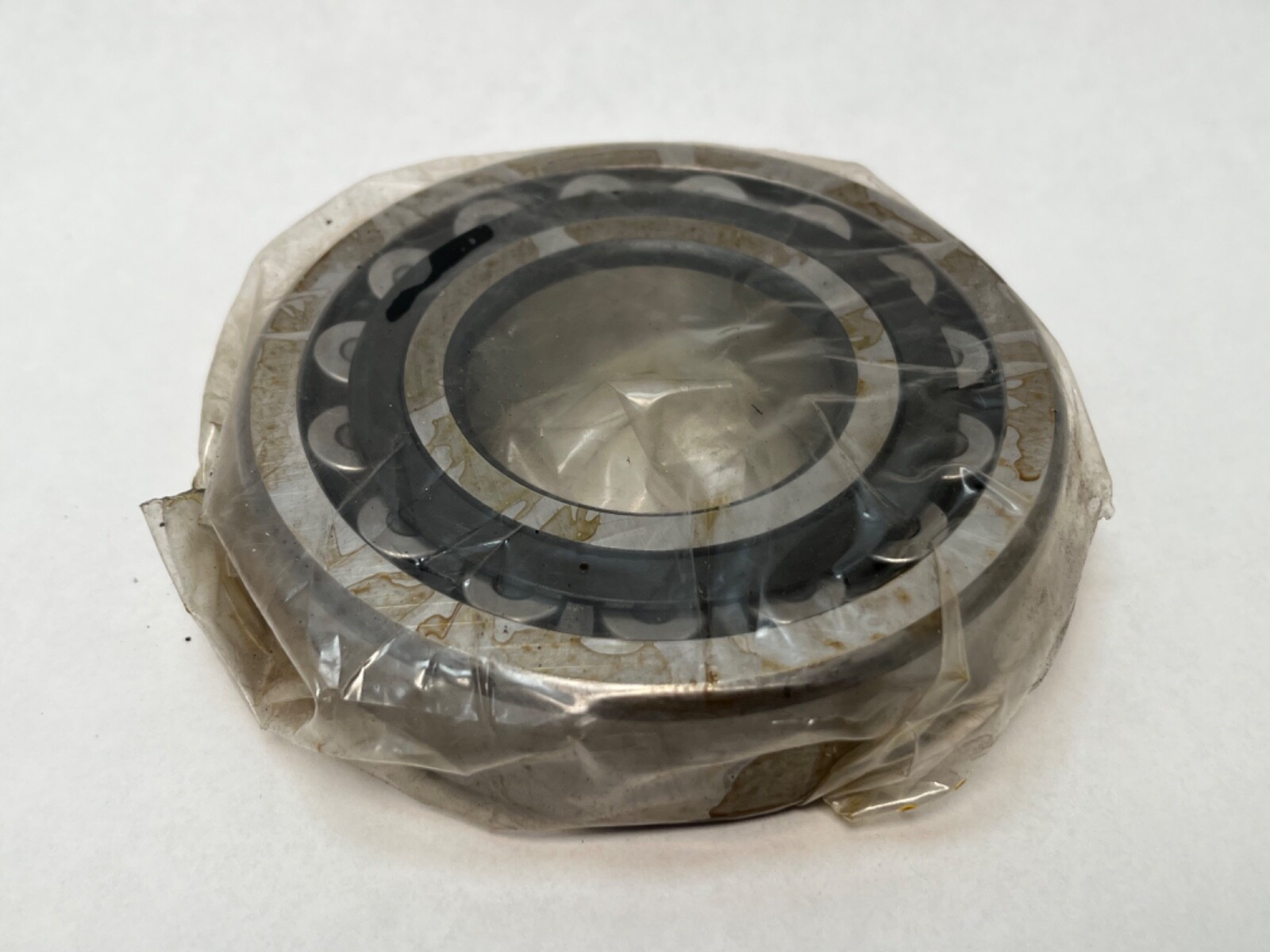

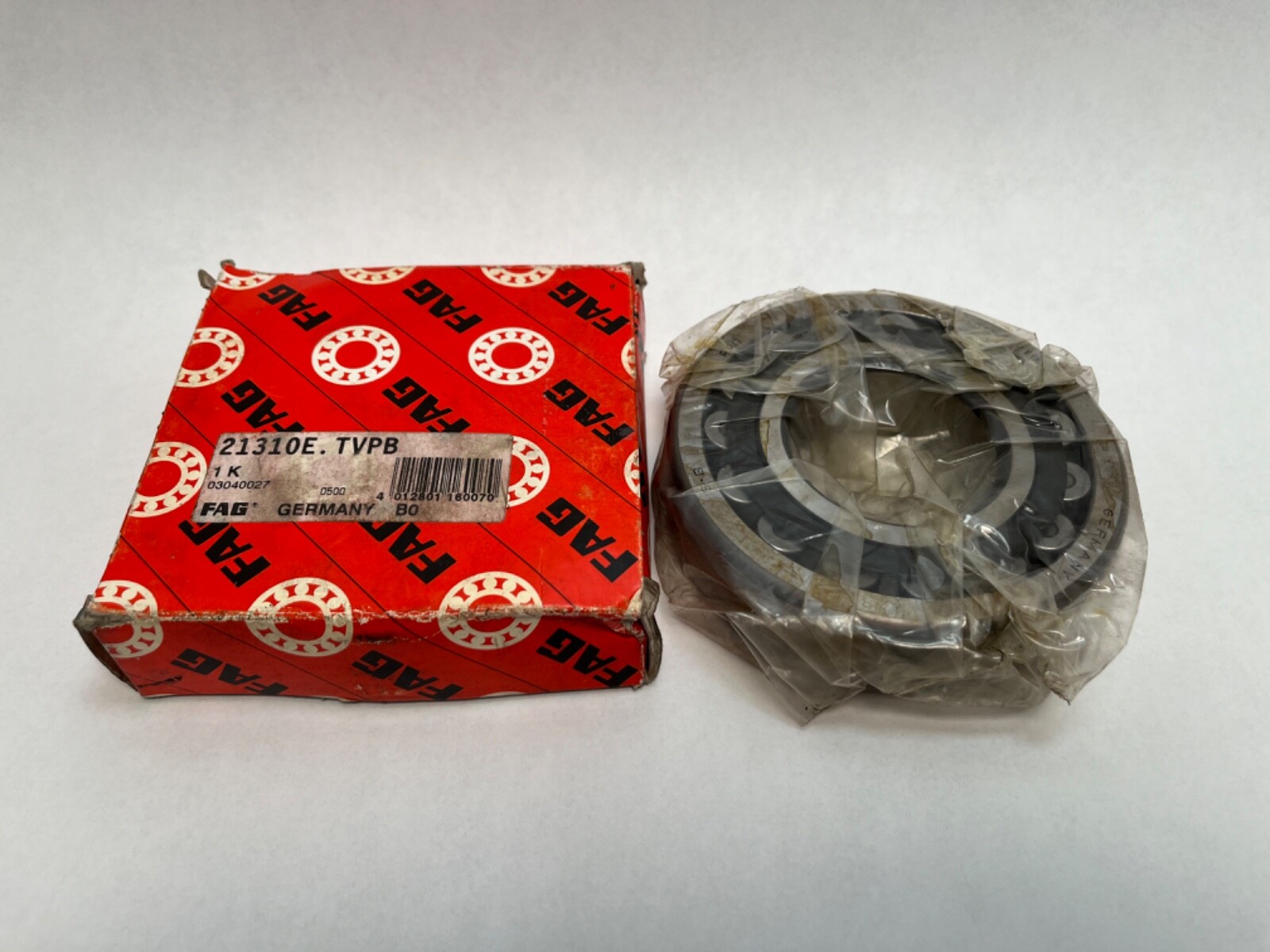

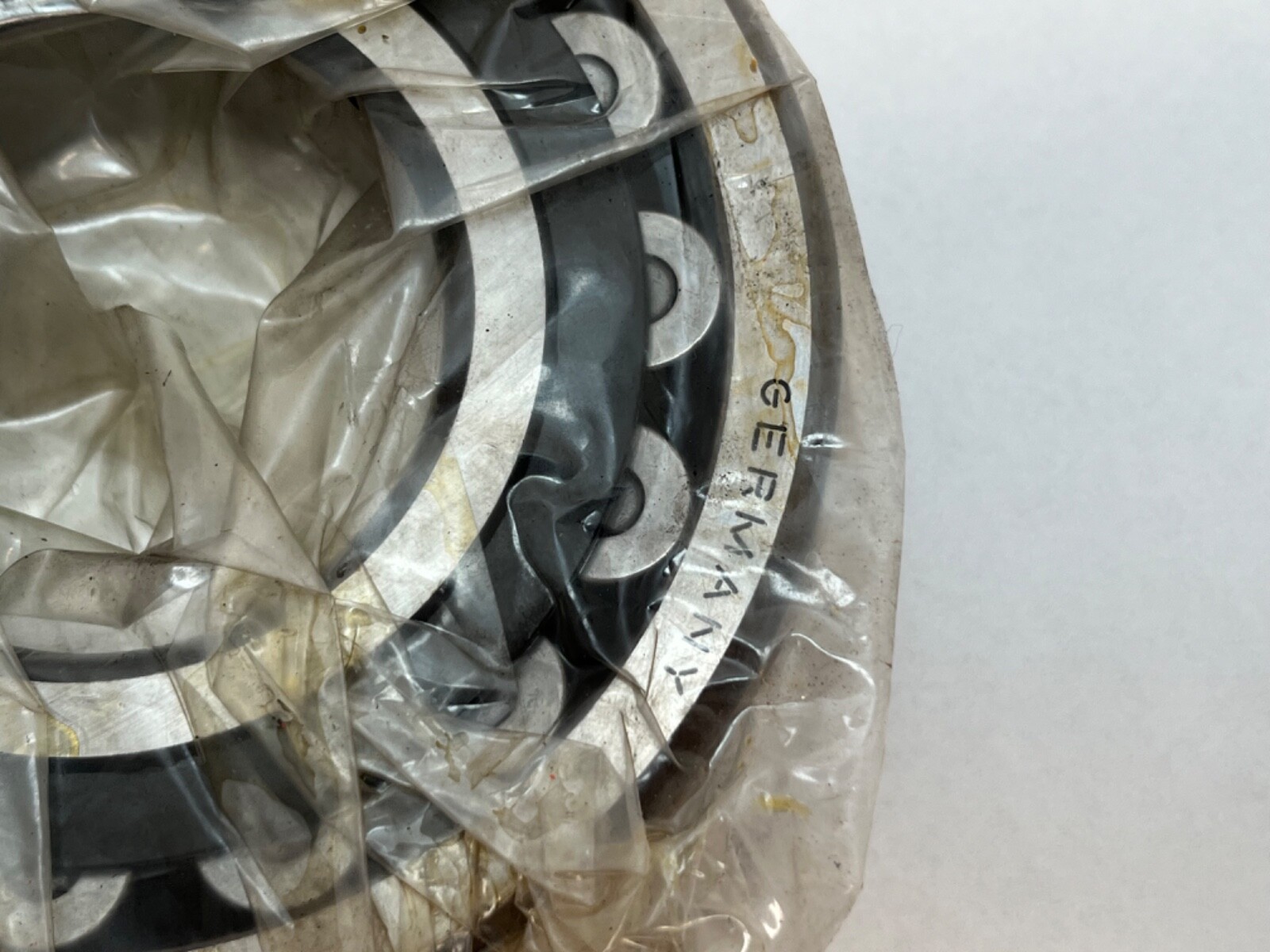

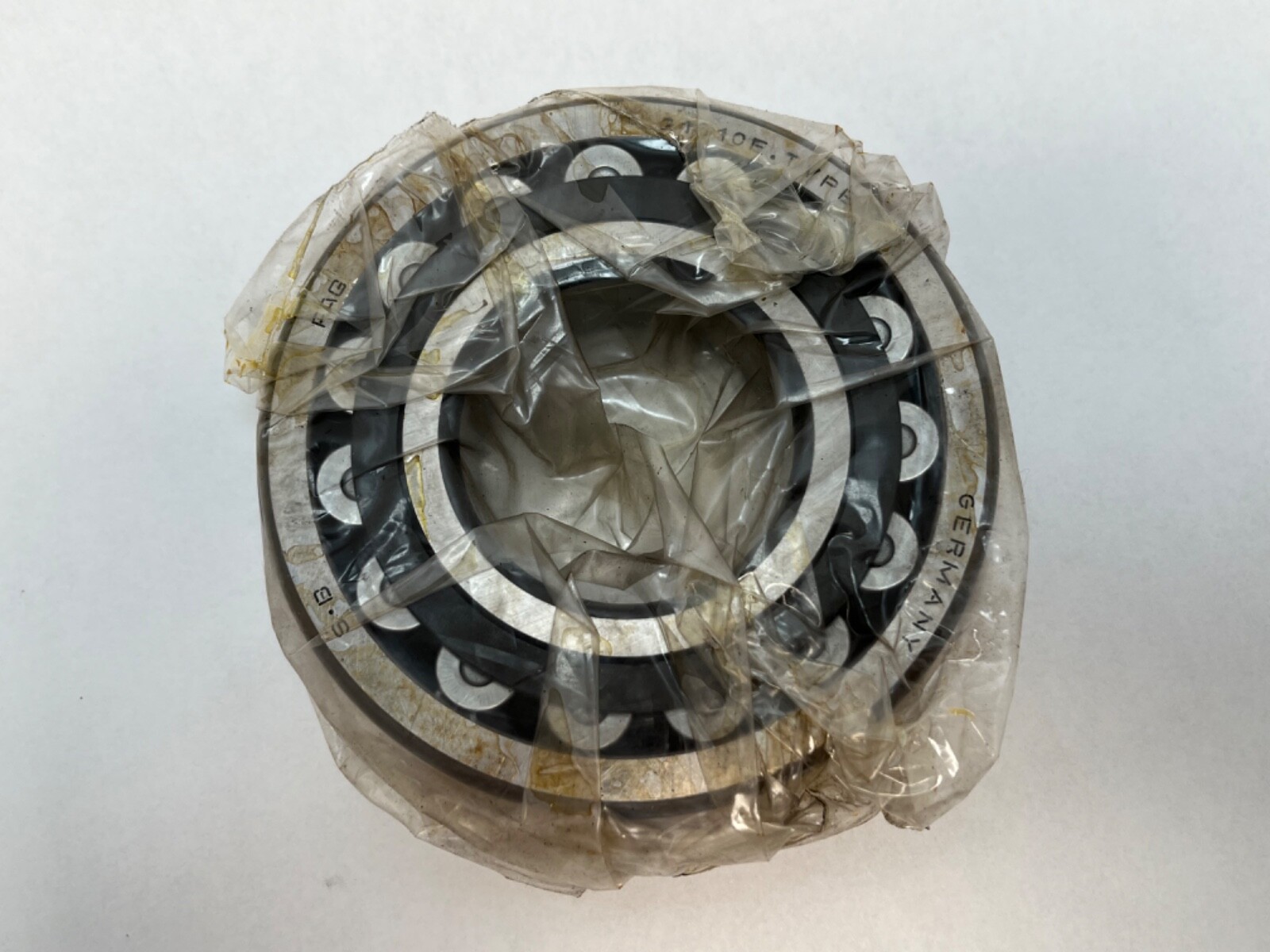

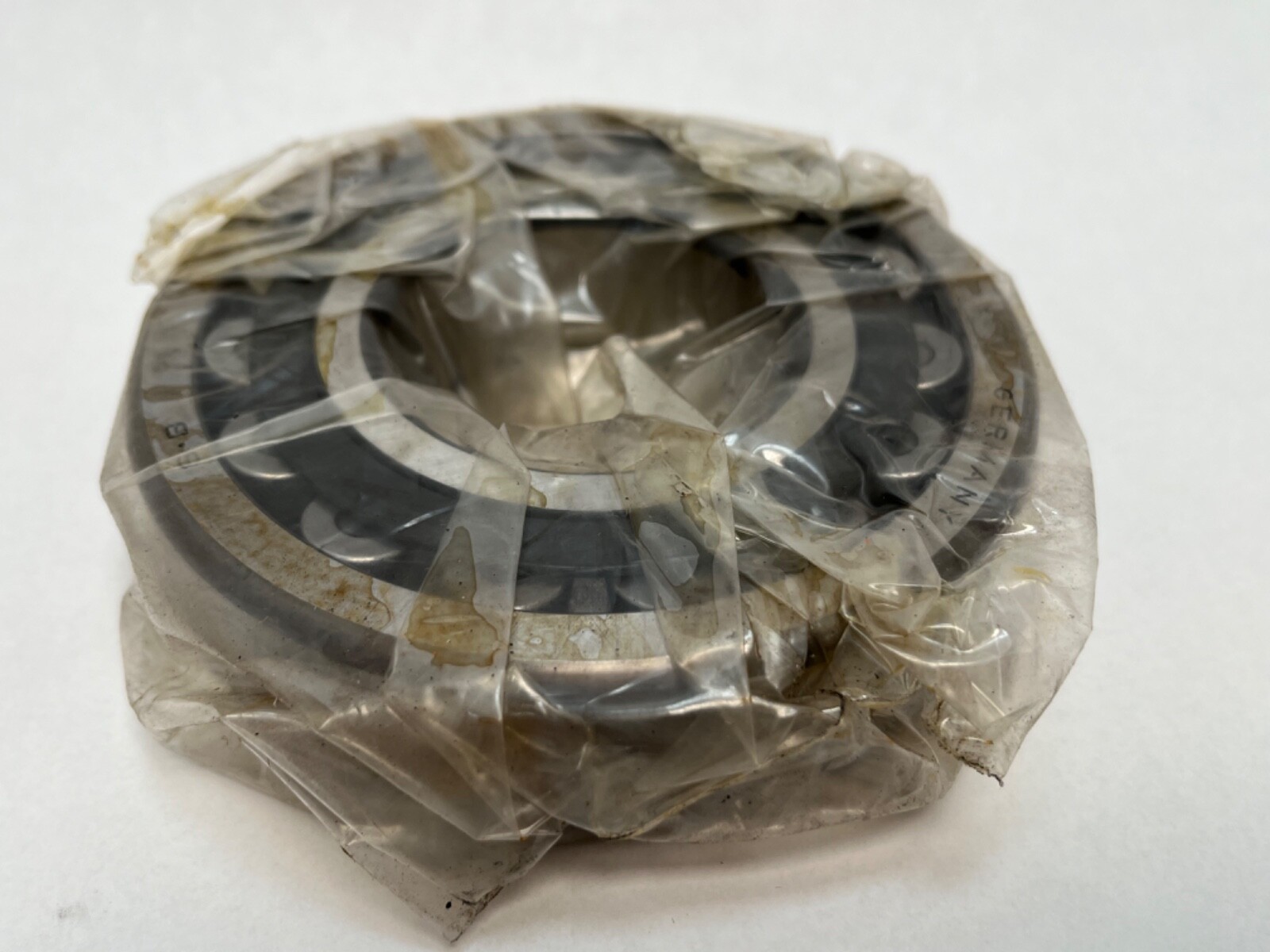

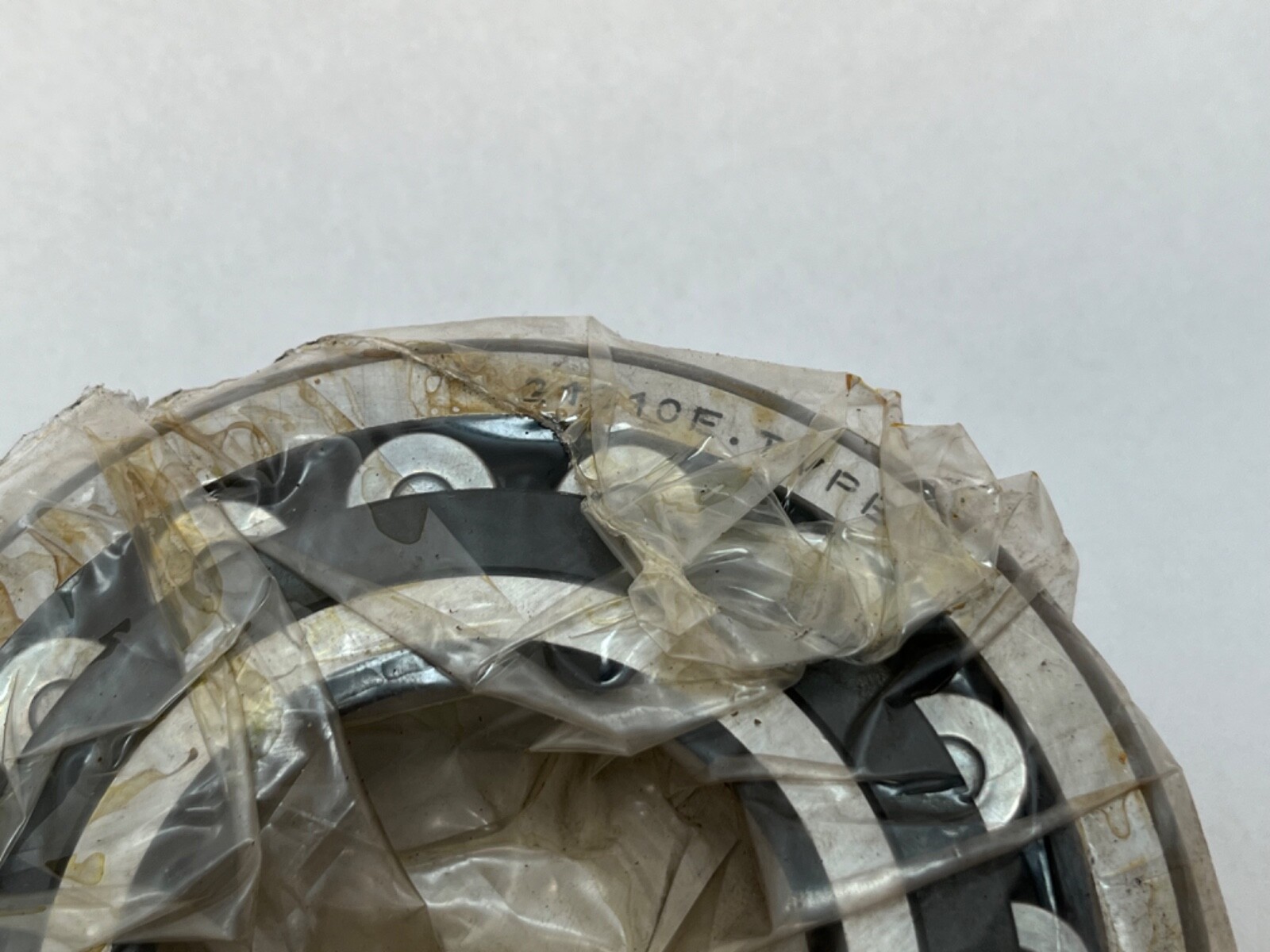

FAG 21310E.TVPB (21310-E-TVPB) is a double-row spherical roller bearing with a cylindrical bore and a glass-fibre reinforced polyamide cage. Bore 50 mm, outside diameter 110 mm, width 27 mm. The bearing carries heavy radial load plus axial load in both directions and self-aligns against shaft misalignment.
21310 — spherical roller bearing, dimension series 213, bore code 10 = 50 mm.
E — FAG reinforced internal design with increased load rating.
TVPB — solid window cage of glass-fibre reinforced polyamide, roller-guided.
No clearance suffix — normal radial internal clearance (CN).
Bore Diameter: 50 mm. Outside Diameter: 110 mm. Overall Width: 27 mm. Series: 213. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Seal Type: Open. Internal Clearance: CN. Cage Material: Glass-fibre reinforced polyamide. Cage Type: Solid window cage, roller-guided. Lubricant: grease or oil. Unit Quantity: 1 Pc.
Bore Diameter: 50 mm. Outside Diameter: 110 mm. Width: 27 mm. The outer ring carries a lubrication groove with radial lubrication holes.
Current Schaeffler successor: FAG 21310-E1-XL-TVPB. MPN variants: 21310-E-TVPB, 21310E.TVPB, 21310ETVPB, 21310E, 21310-E1-TVPB. Related 50 x 110 x 27 mm spherical roller bearings: NSK 21310EAE4 (oil groove and holes, E4), Timken 21310EJW33 (W33 lubrication groove), Koyo 21310RHRW33 (W33 lubrication groove), SKF 21310 E (no W33 lubrication groove).
FAG 21310-E1-XL-TVPB.
A solid window cage of glass-fibre reinforced polyamide, roller-guided.
50 mm bore, 110 mm outside diameter, 27 mm width.
