Availability:
Out of stock
Single-row barrel (self-aligning) roller bearing, 80x140x26 mm, solid brass cage (MB), 129 kN dynamic / 173 kN static, 4,800 rpm — FAG, New Old Stock.
List Price
$174.00
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Single Row Barrel Roller Bearing 80x140x26 mm Tapered Bore Brass Cage C3$191.23
Double-Row Spherical Roller Bearing, 80 x 140 x 33 mm, 1:12 Tapered Bore, Machined Brass Cage, C3 Clearance, Relubricatable Outer Ring$70.33
Double-Row Spherical Roller Bearing, 80 x 140 x 33 mm, 1:12 Tapered Bore, Machined Brass Cage, Relubricatable Outer Ring, 200 C Rated$74.35
Spherical Roller Bearing 80 x 140 x 33 mm, Double Row, 1:12 Taper Bore, W33 Lubrication Groove, Polyamide Cage$75.82| MFR / Brand | FAG |
|---|---|
| MPN | 20216MB |
| Model | 20216 MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Condition | New – Open box |

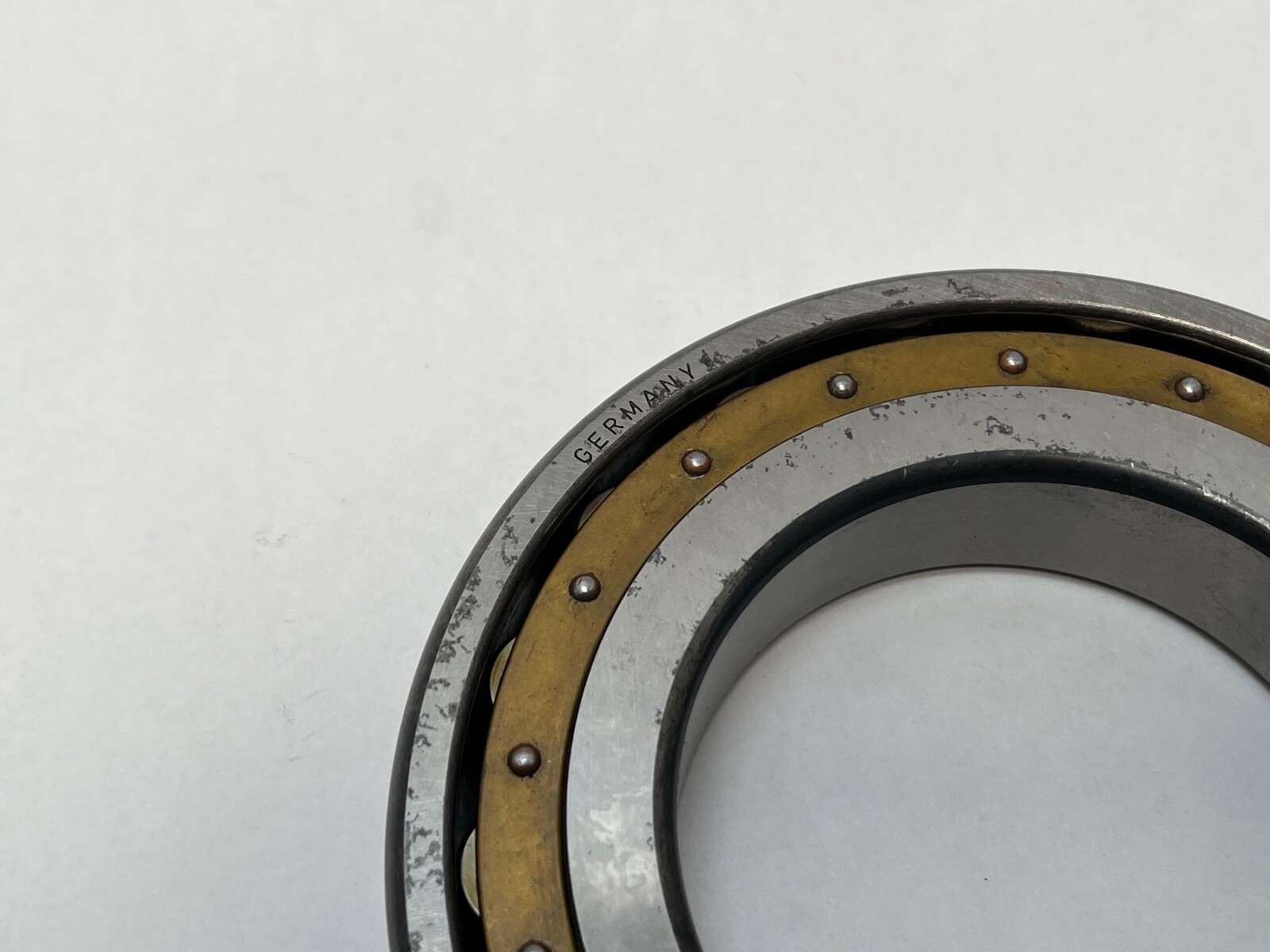

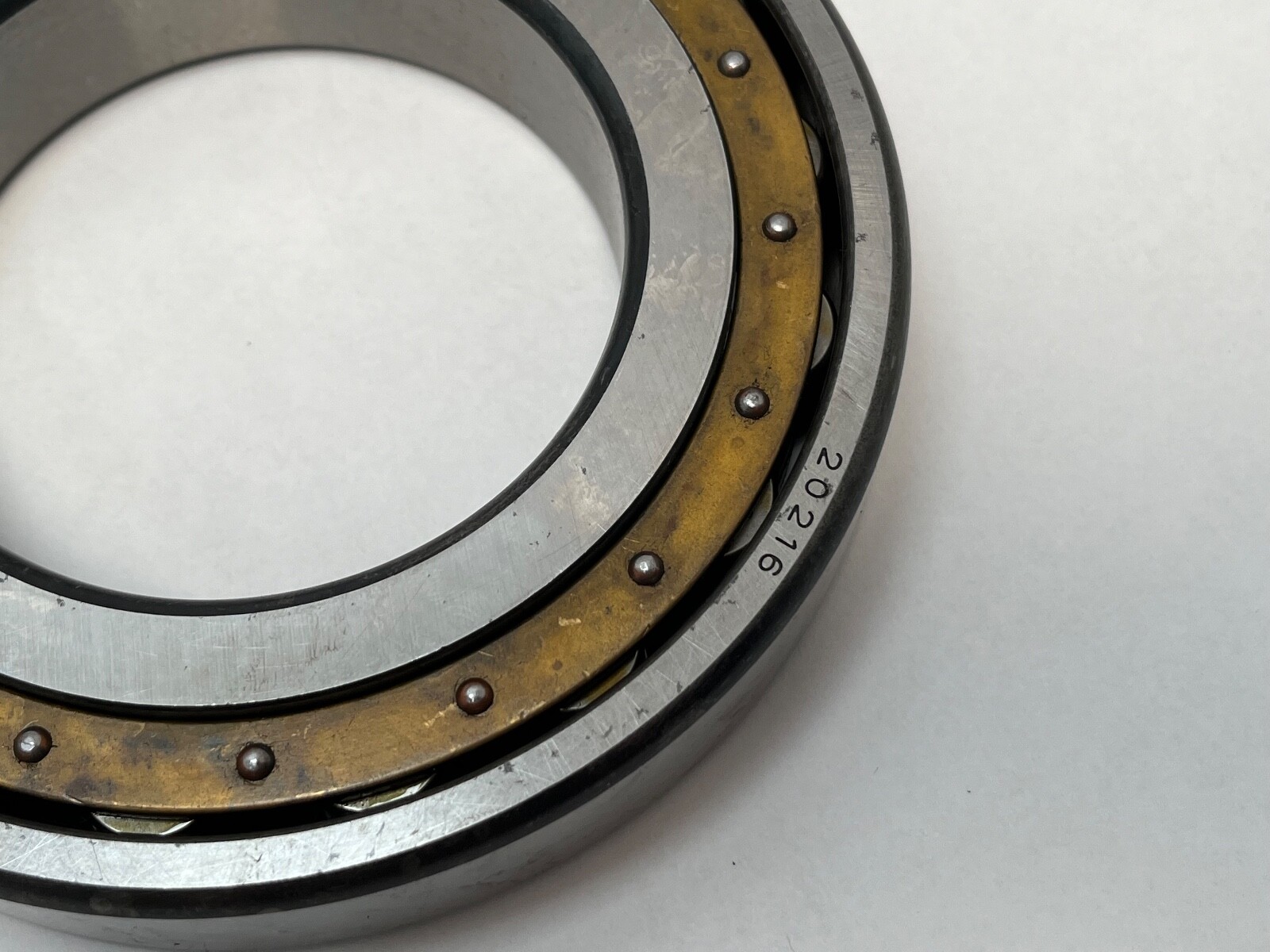

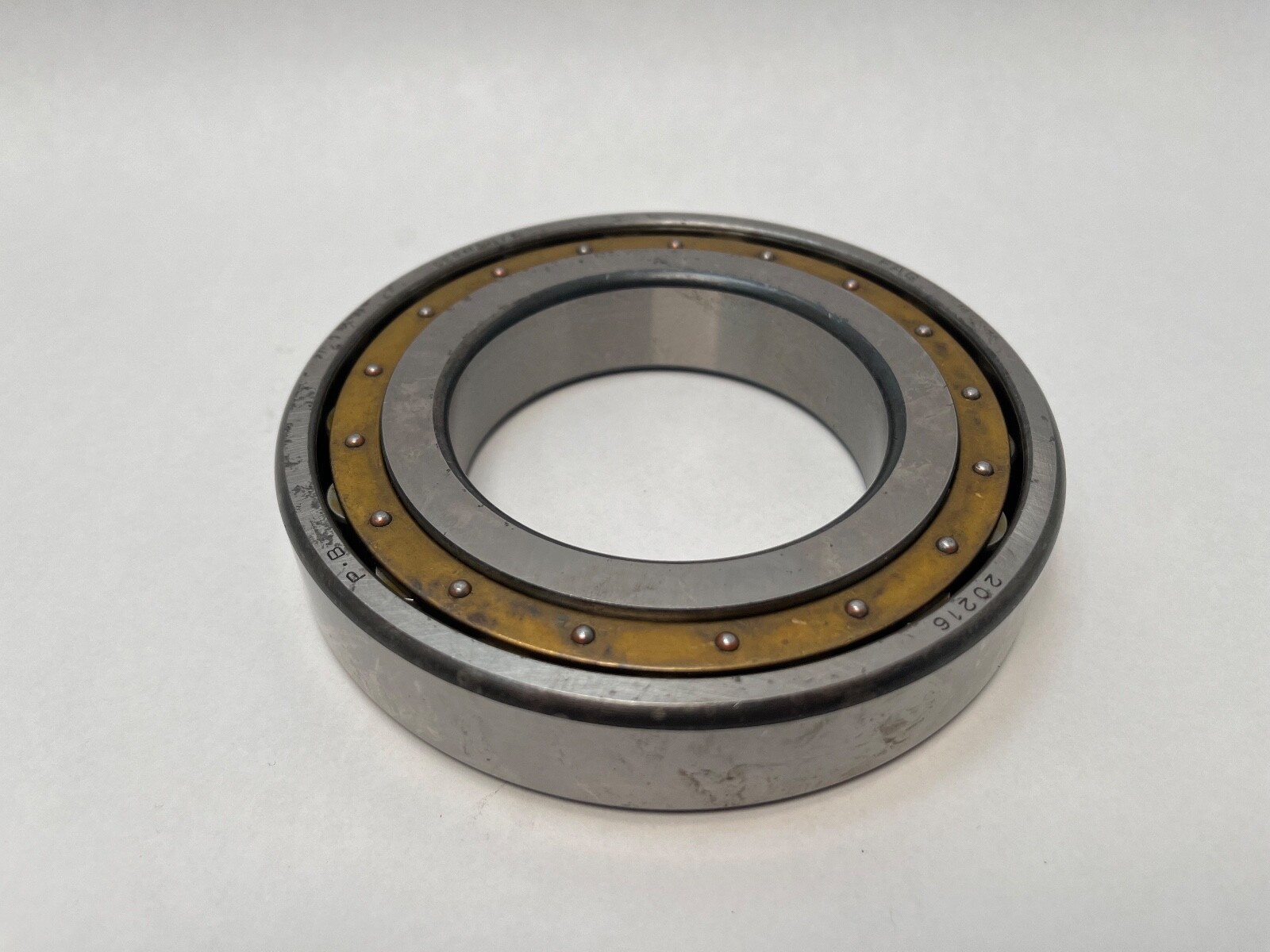

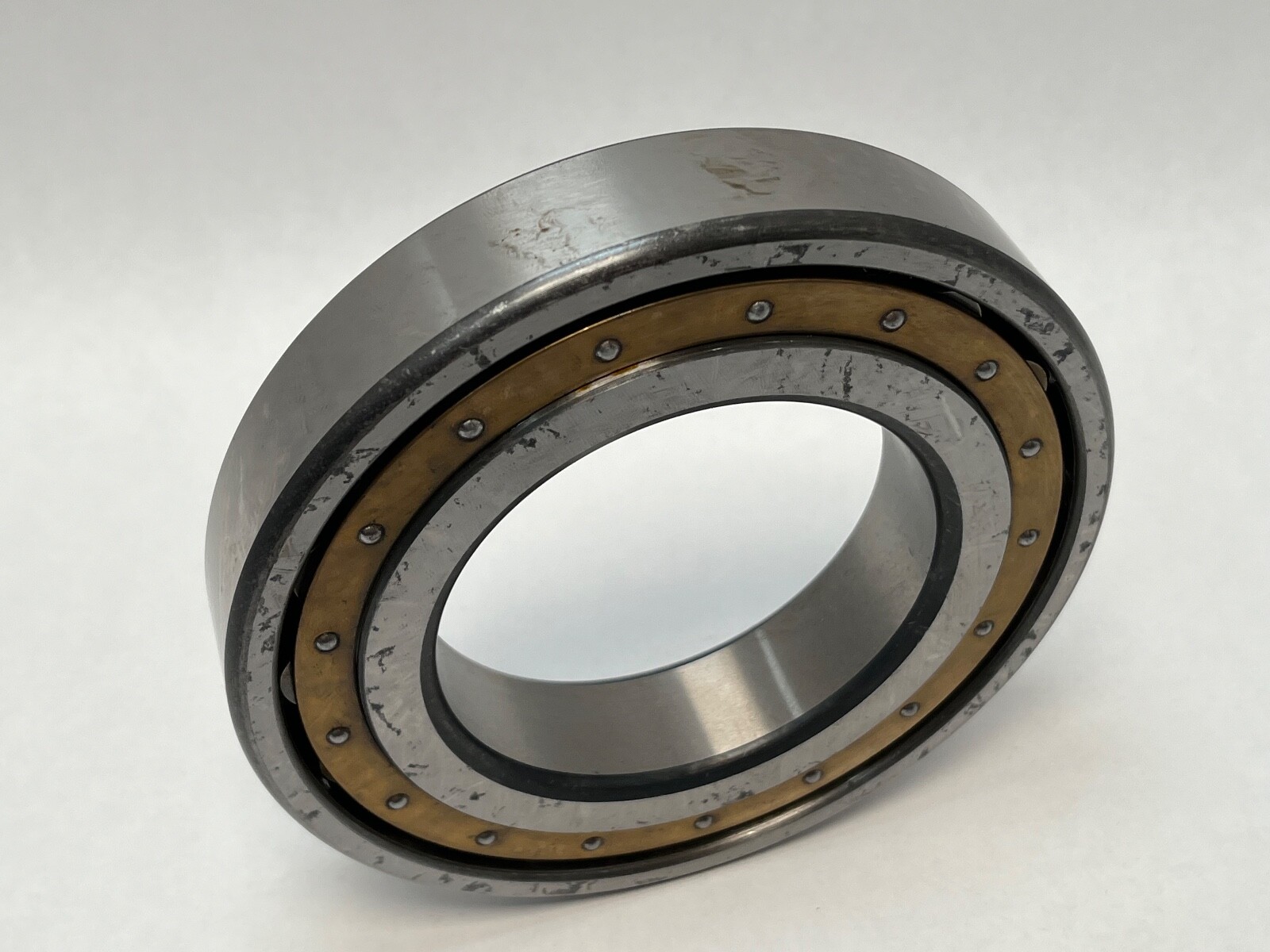

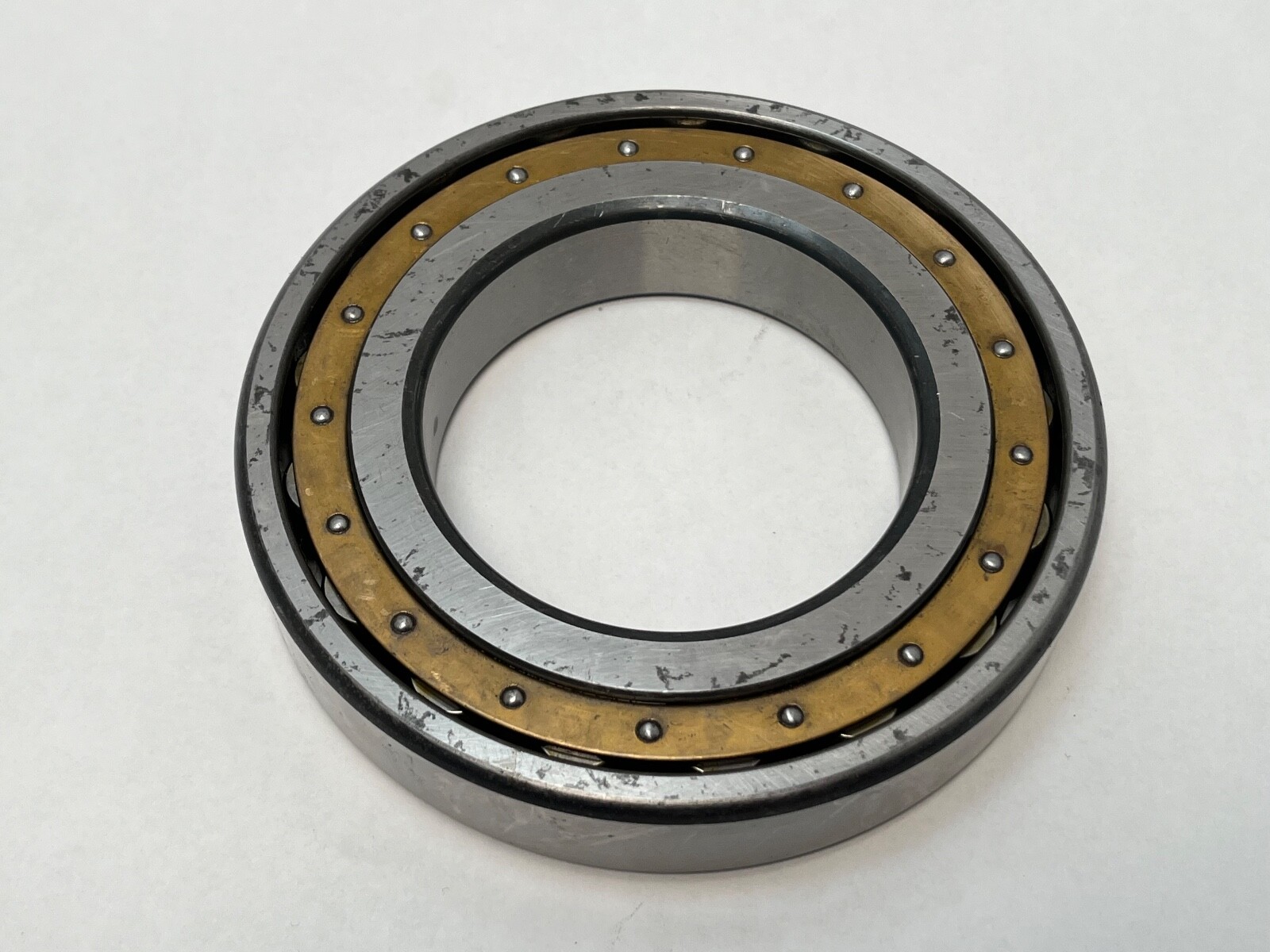

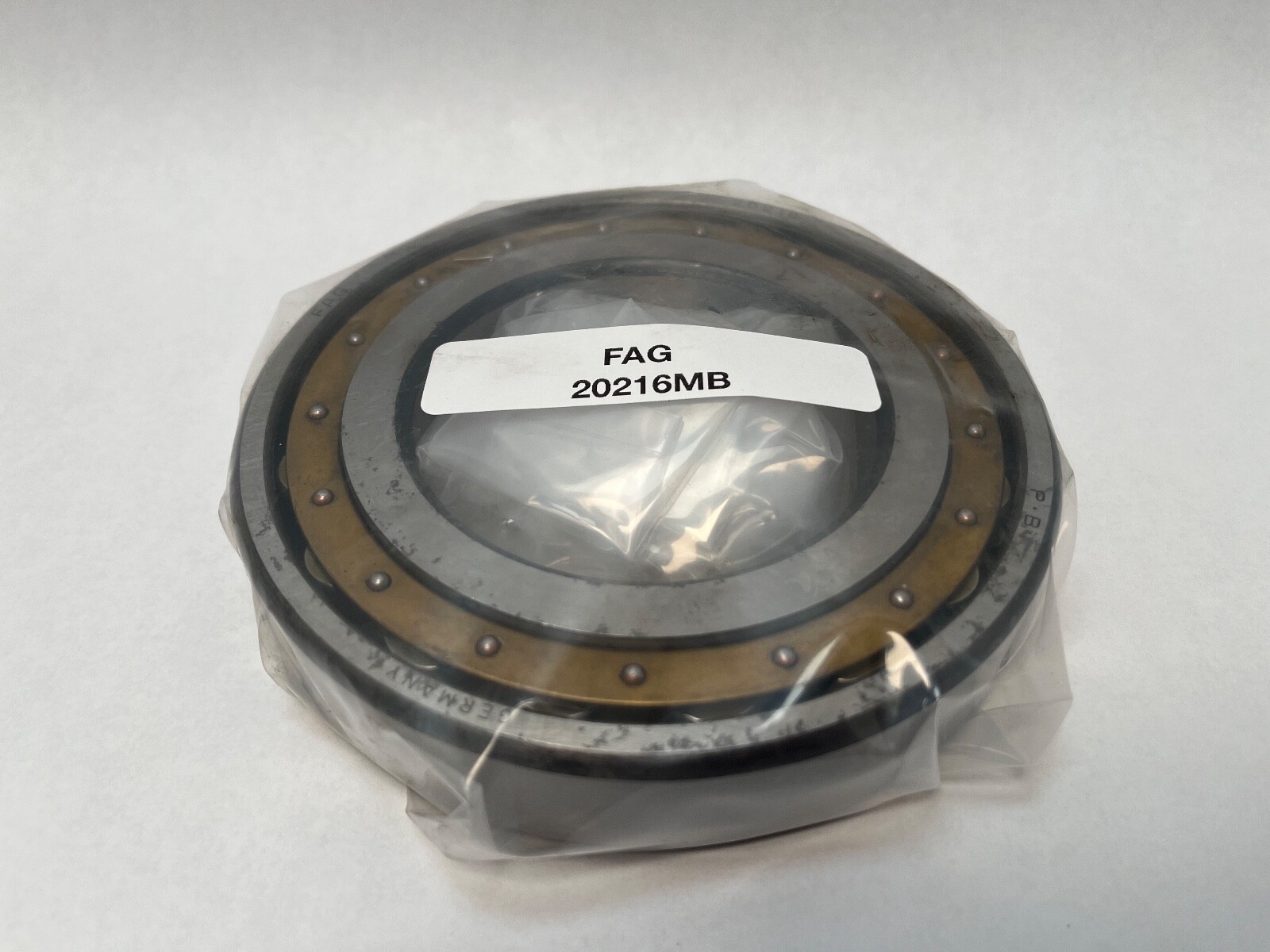

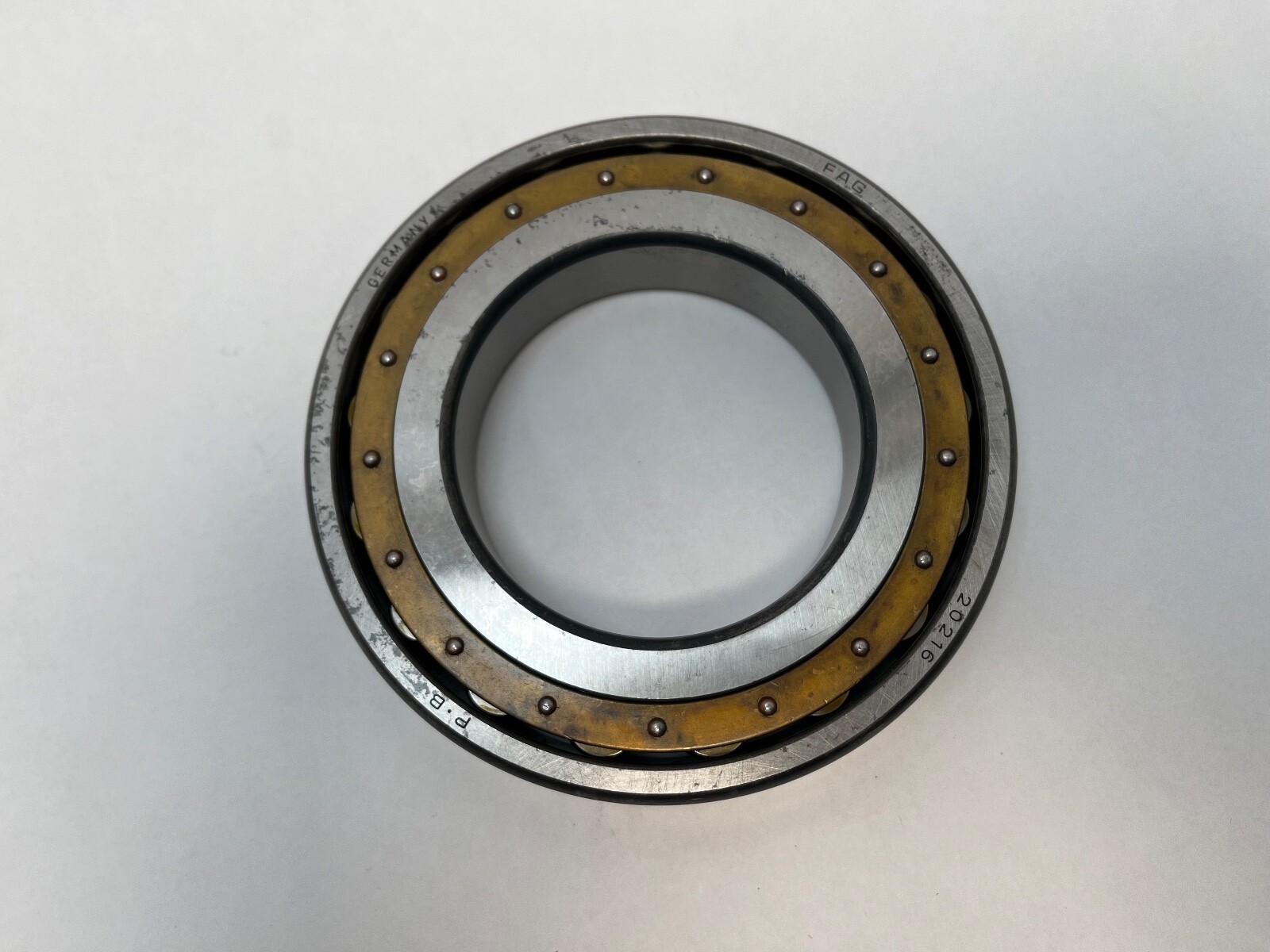

| Condition Note | Made In Germany, New Old Stock, Stained (see pictures). |
| Min Temp | -30 °C |
| Cage Type | Roller Guided |
| Dynamic Load Rating | 129 kN / 29000 lbf |
| Static Load Rating | 173 kN / 38890 lbf |
| Rolling Elements | Roller |
| Max Temp | 200 °C |
| Item Weight | 3.42 lbs |
| Cage Material | Machined Brass |
| Limiting Speed | 4800 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 20216 MB |
|---|---|
| Cross Reference 2 | NSK 20216M |
| Cross Reference 3 | NTN 20216 |

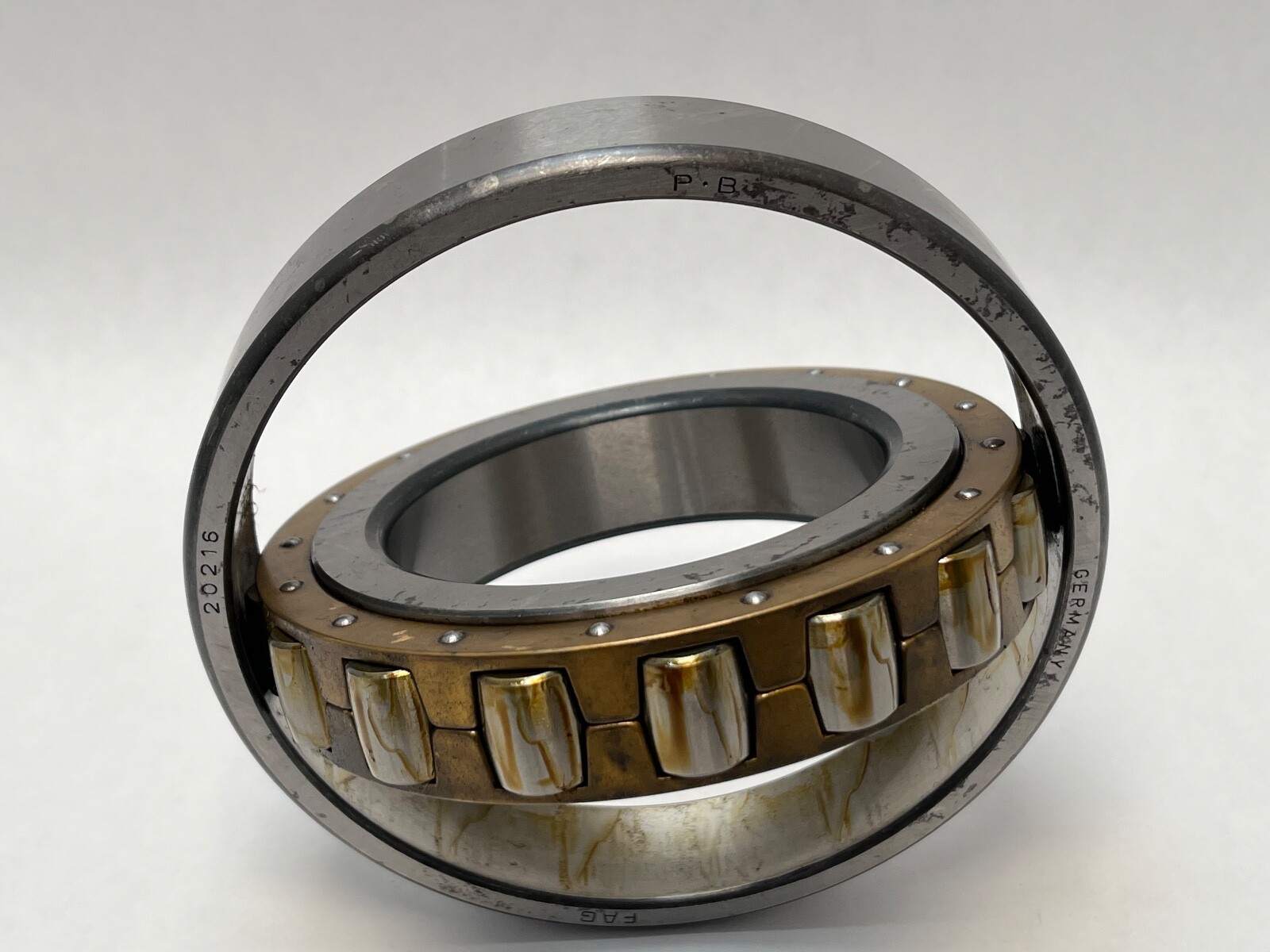

The FAG 20216MB is a single-row barrel roller bearing (a self-aligning roller bearing), measuring 80 mm bore x 140 mm OD x 26 mm width. The 202-series barrel design tolerates static angular misalignment and carries heavy radial loads, making it well suited to shafts subject to deflection or mounting misalignment. It is often cataloged as a single-row spherical roller bearing.
Suffix decode: 20216 (barrel roller, 80 mm bore) · MB (solid machined brass cage, guided on the inner ring). Cylindrical (straight) bore, Normal (CN) radial internal clearance, open/unsealed construction.
Type: Single-row barrel / self-aligning roller bearingBore (ID): 80 mm (3.1496 in)Outside diameter (OD): 140 mm (5.5118 in)Width: 26 mm (1.0236 in)Bore type: Straight (cylindrical)Cage: Solid machined brass, inner-ring guided (MB)Radial internal clearance: CN (Normal)Sealing: Open (unsealed)Basic dynamic load rating (Cr): 129 kNBasic static load rating (C0r): 173 kNLimiting speed: 4,800 rpmMax operating temperature: 120 °C (standard, no heat stabilization)Weight: 1.75 kg (3.86 lb)Brand / origin: FAG (Schaeffler), made in GermanyInterchange references: 20216-M, 20216-MB-C3 (C3 clearance), 20216-TVP (polyamide cage), 20216-K-MB (tapered bore). Item is New Old Stock (some staining shown in photos; see pictures).
Also searched as: 20216 MB, 20216-M, 2021-MB, FAG barrel roller bearing 80x140x26, single row spherical roller bearing 80x140x26, self-aligning roller bearing.
