Single-row barrel roller bearing, 30 mm bore x 62 mm OD x 16 mm wide. Cylindrical bore, machined brass cage, radial load with self-alignment. 1 Pc.
List Price
$52.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20206-MB |
| Model | 20206 MB |
| Bearing Type | Barrel Roller Bearing |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Base Number | 20206 |
|---|---|
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | 20206-MB, 20206MB, 20206M, 20206 |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Internal Clearance | CN |
| Industry Terms | barrel roller bearing; single row barrel bearing; 202 series bearing; 30x62x16 roller bearing; self-aligning roller bearing; brass cage roller bearing |
| Common Misspellings | FAG 20206 MB; FAG 20206M; Fag 20206-M-B; FAG 202O6-MB; 20206MB |
| Application Types | Gearboxes; pumps; electric motors; general machinery shafts with misalignment and radial load |
| Overall Width | 16 mm |
| Rolling Elements | Barrel Roller |

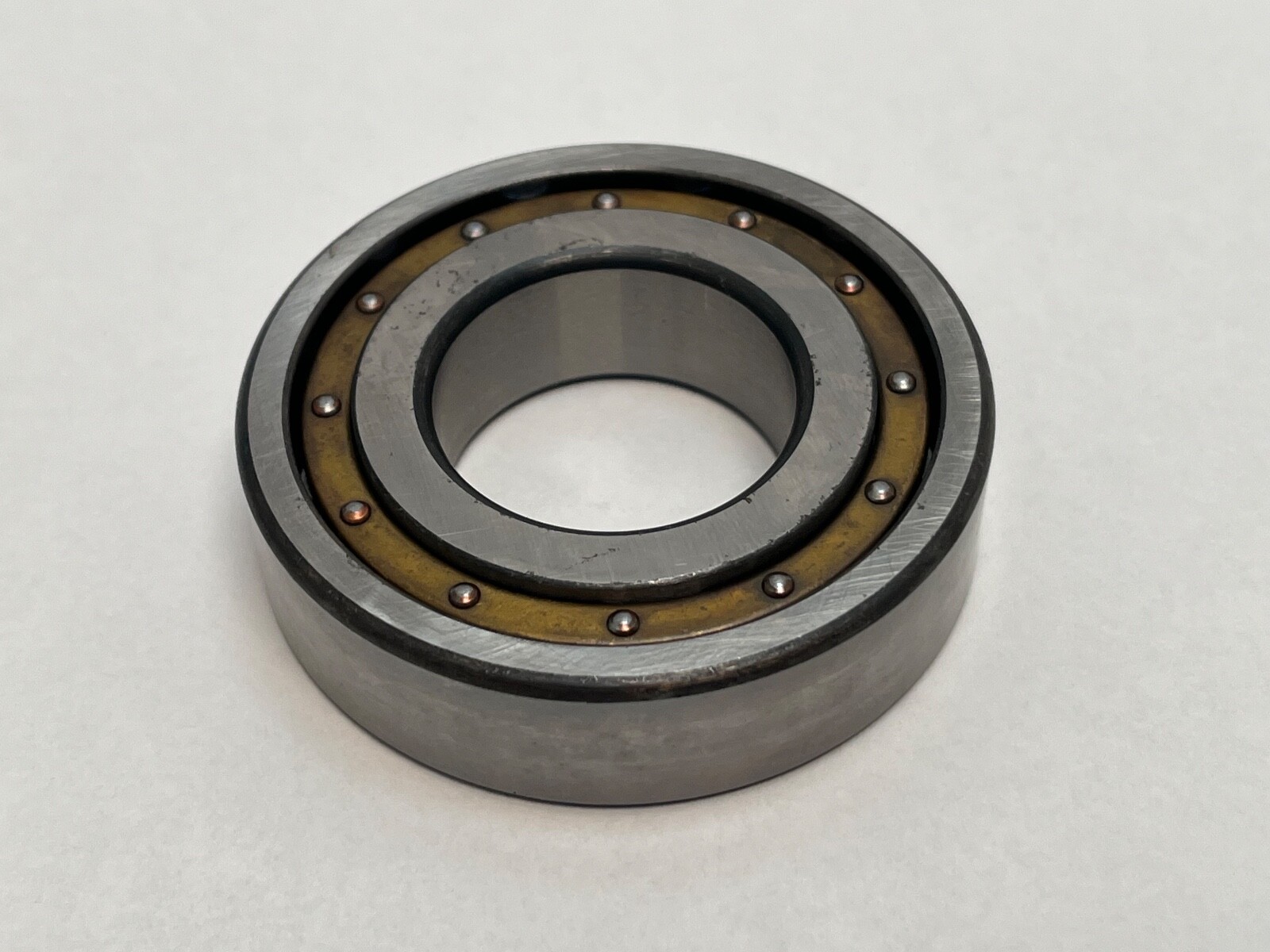

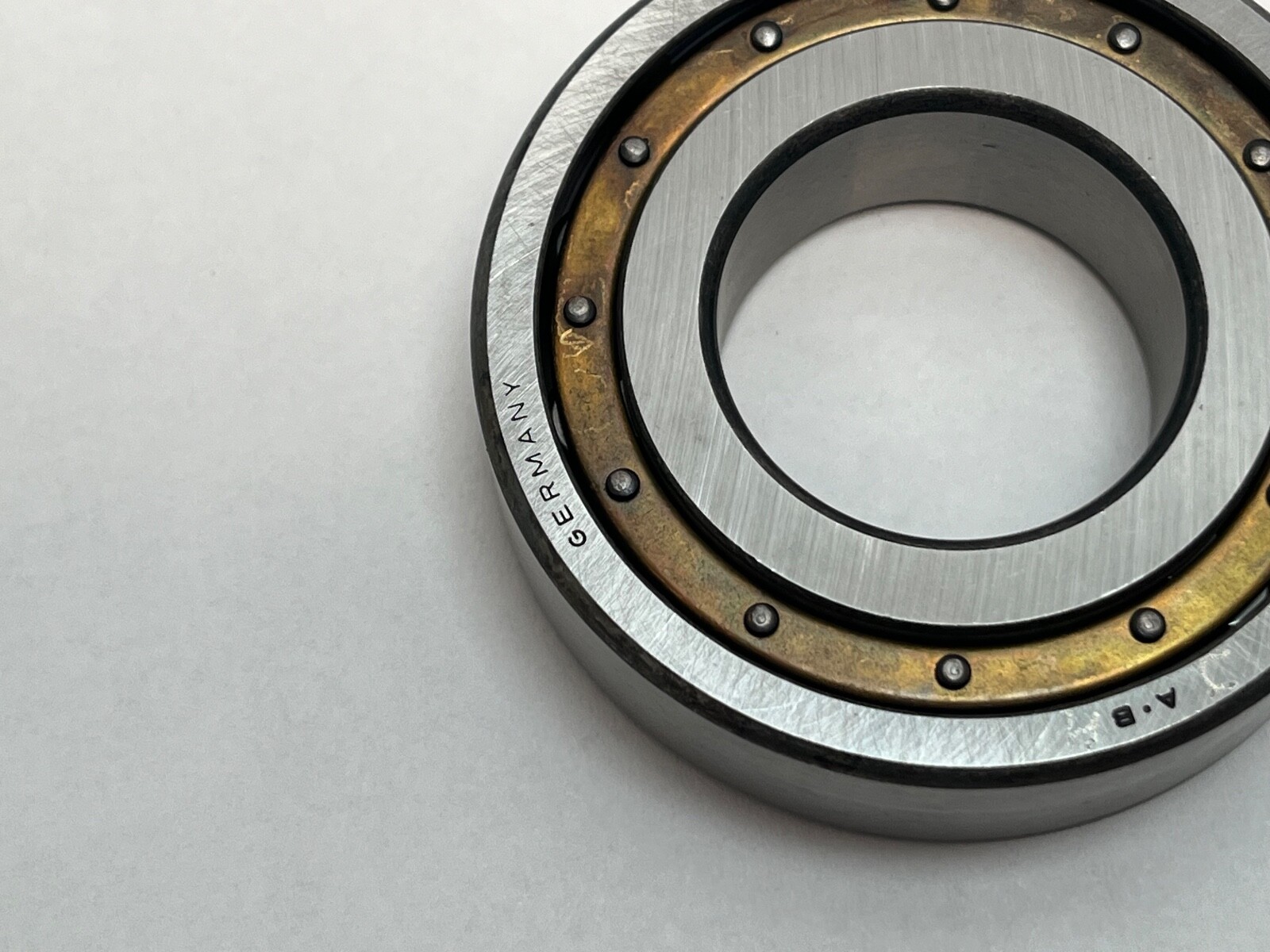

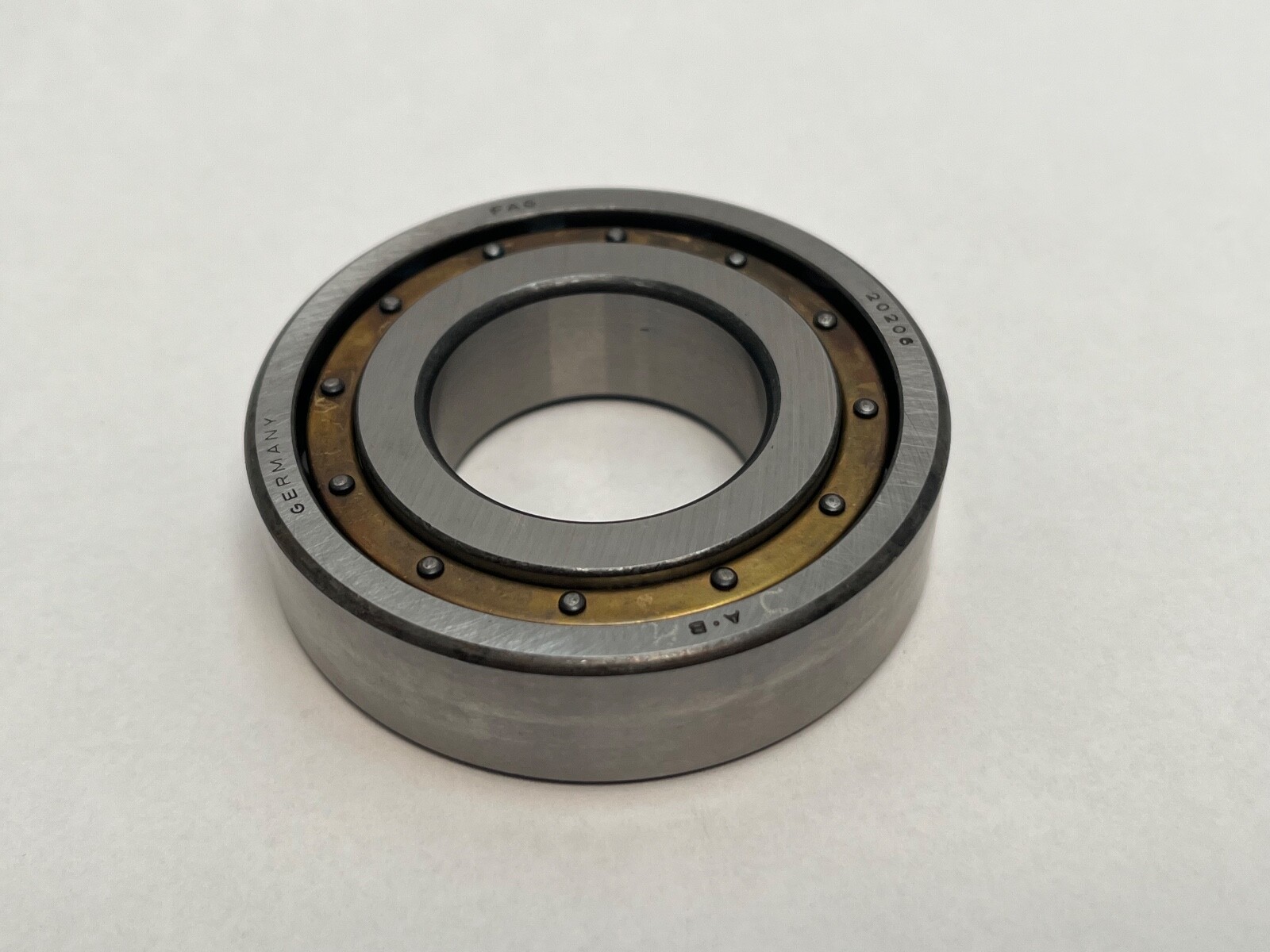

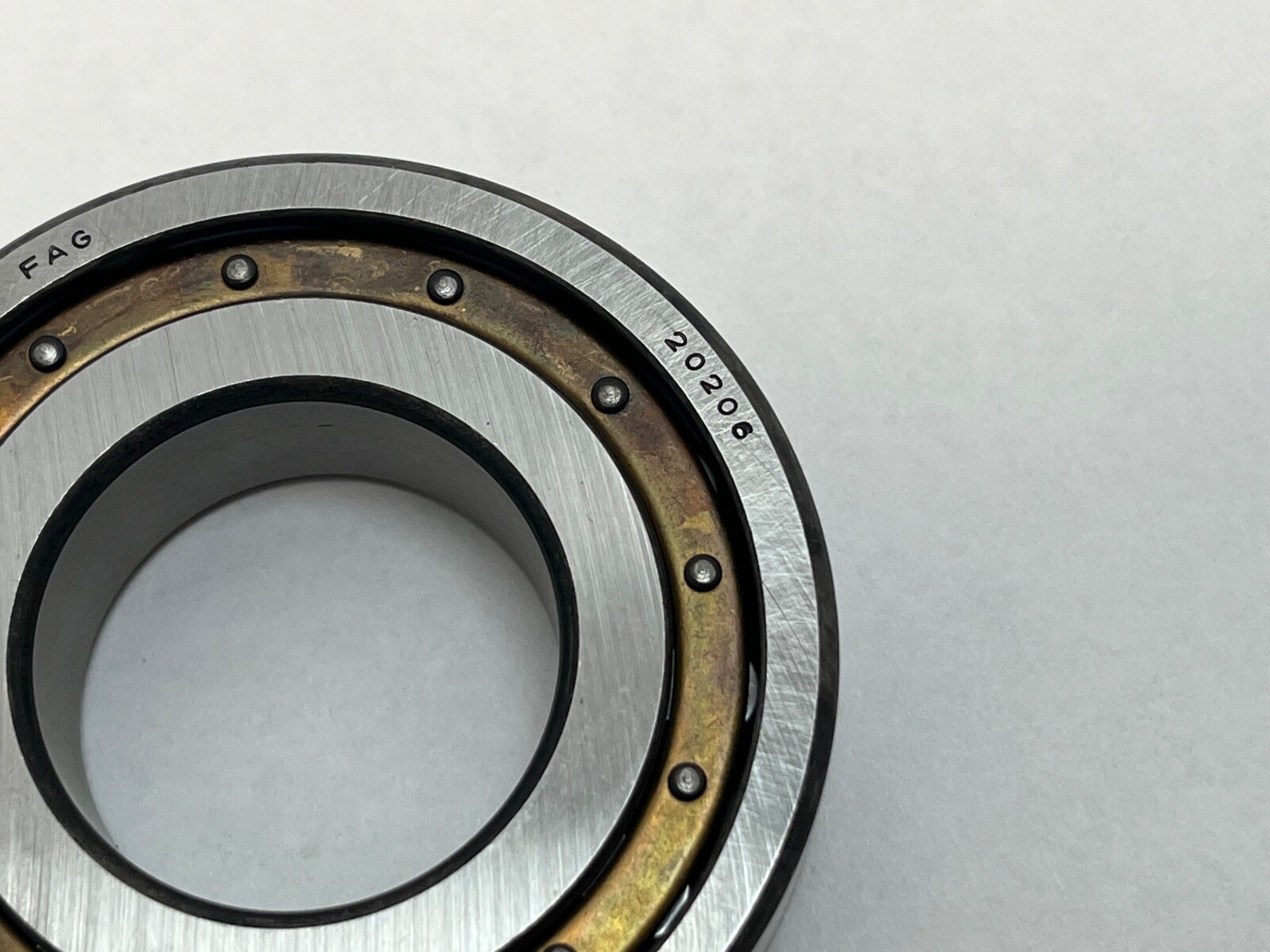

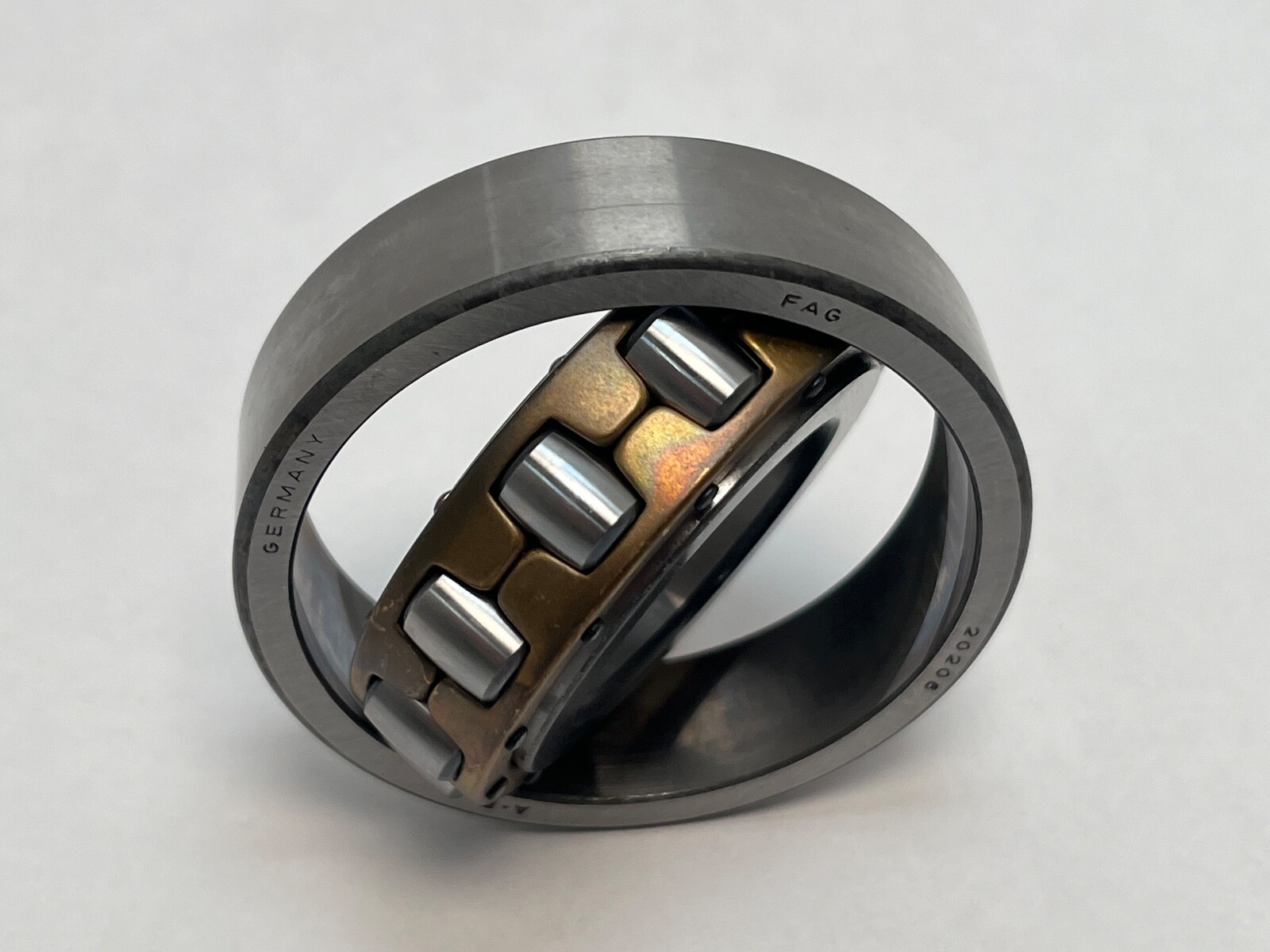

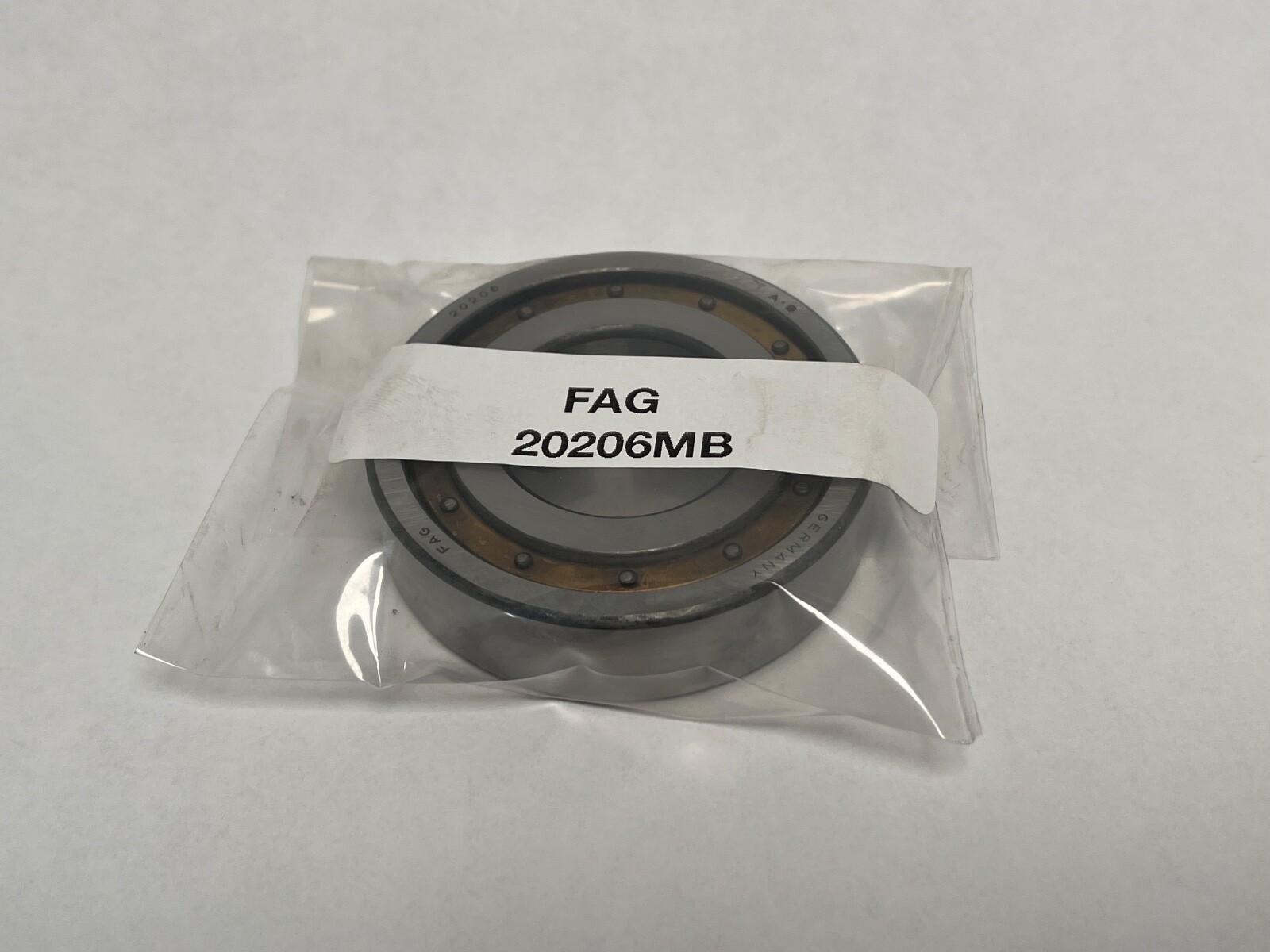

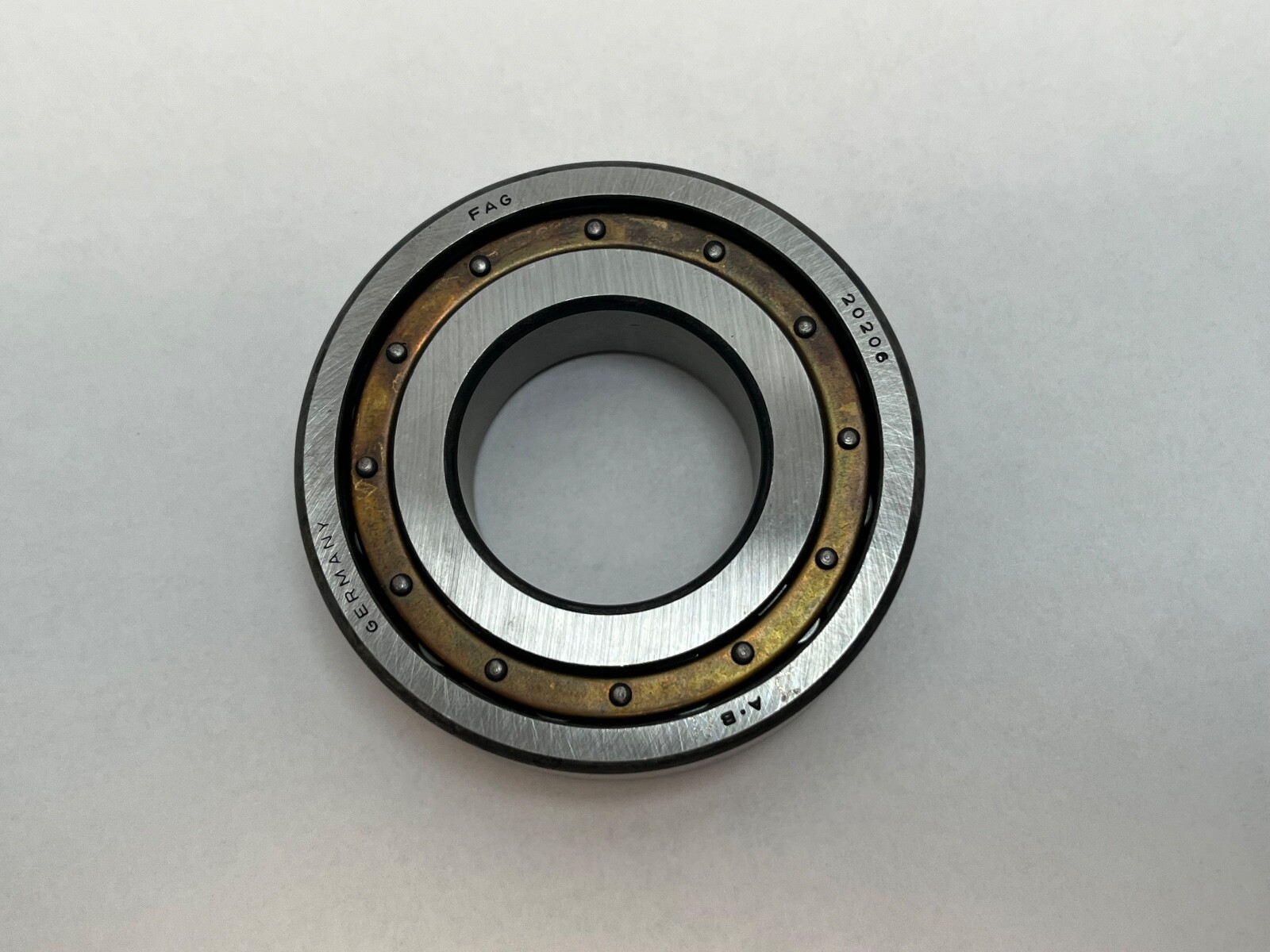

FAG 20206-MB single-row barrel roller bearing: one row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Cylindrical bore. Unit Quantity: 1 Pc.
20 — barrel roller bearing, single row.
2 — ISO dimension series.
06 — bore code, 6 x 5 = 30 mm bore.
MB — machined brass cage, inner-ring guided.
Bearing Type: Single row barrel roller bearing. Rolling Elements: Barrel Roller. Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm (2.4409 in). Overall Width: 16 mm (0.6299 in). Number Of Rows: 1. Bore Type: Cylindrical. Cage Material: Machined brass. Internal Clearance: CN. Series: 202. Base Number: 20206. Load direction: radial, with self-alignment on the spherical outer raceway. Unit Quantity: 1 Pc.
Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm (2.4409 in). Overall Width: 16 mm (0.6299 in). Cylindrical bore, mounted directly on the shaft seat.
FAG 20206-MB. Searchable forms of the designation: 20206-MB, 20206MB, 20206M, 20206.
A single-row barrel roller bearing with a cylindrical bore and a machined brass cage.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm.
MB is a machined brass cage, inner-ring guided.
