FAGGE114-ZOSpherical Plain Bearing — 4-1/2 in ID, 7 in OD, 3.937 in Inner Ring Width, 3-3/8 in Outer Ring Width, Inch Series

Product Description

What this part is:

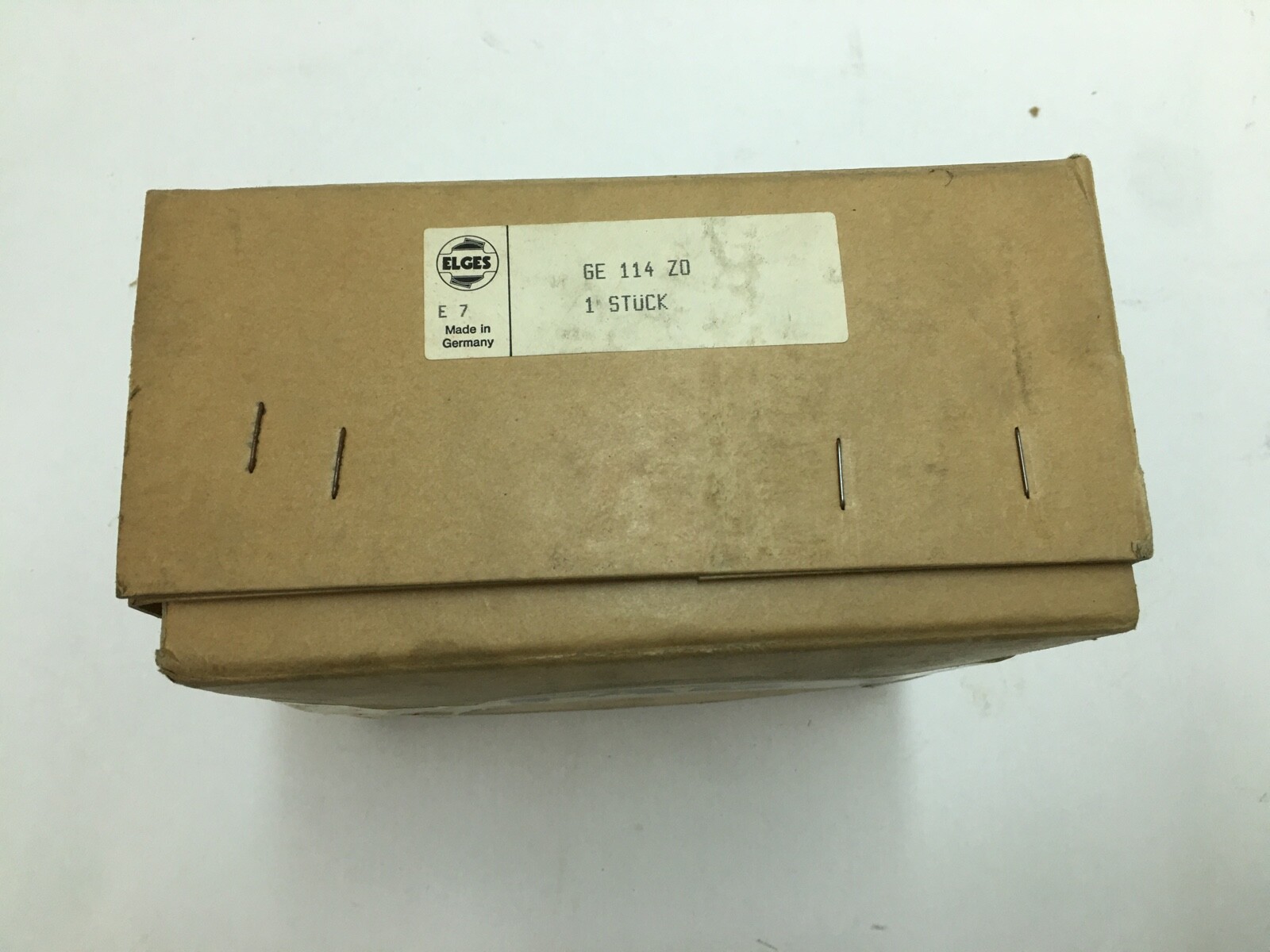

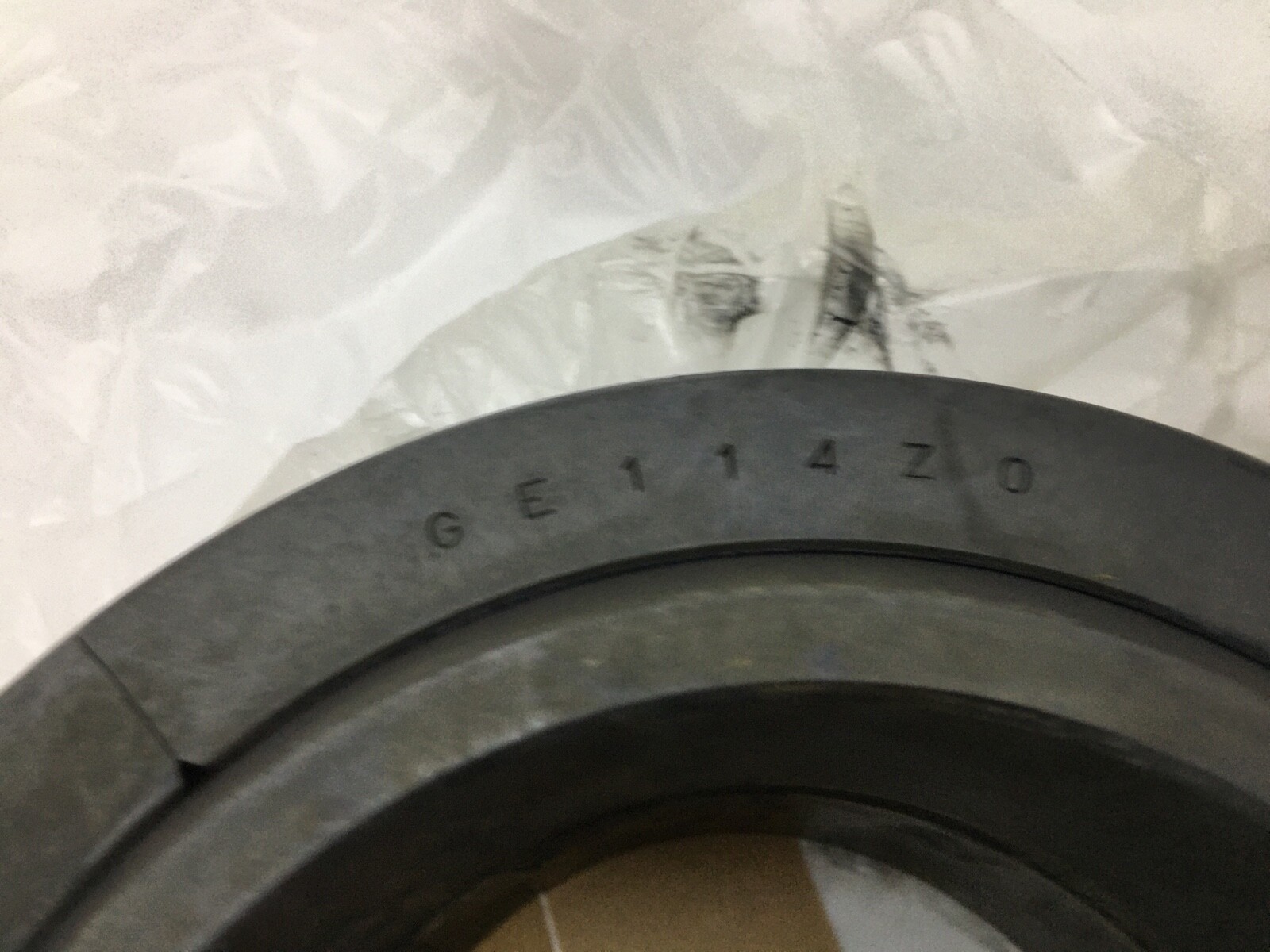

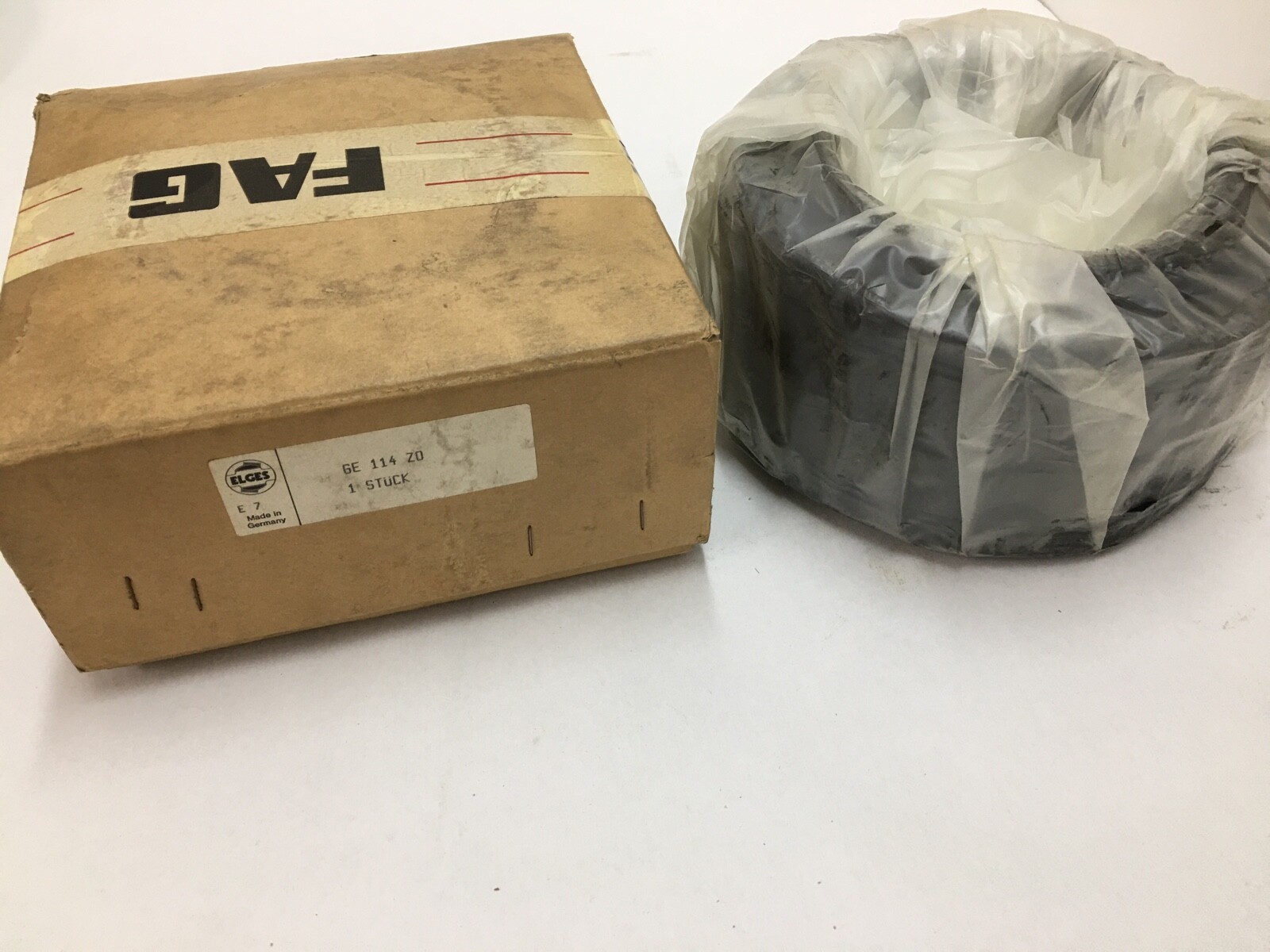

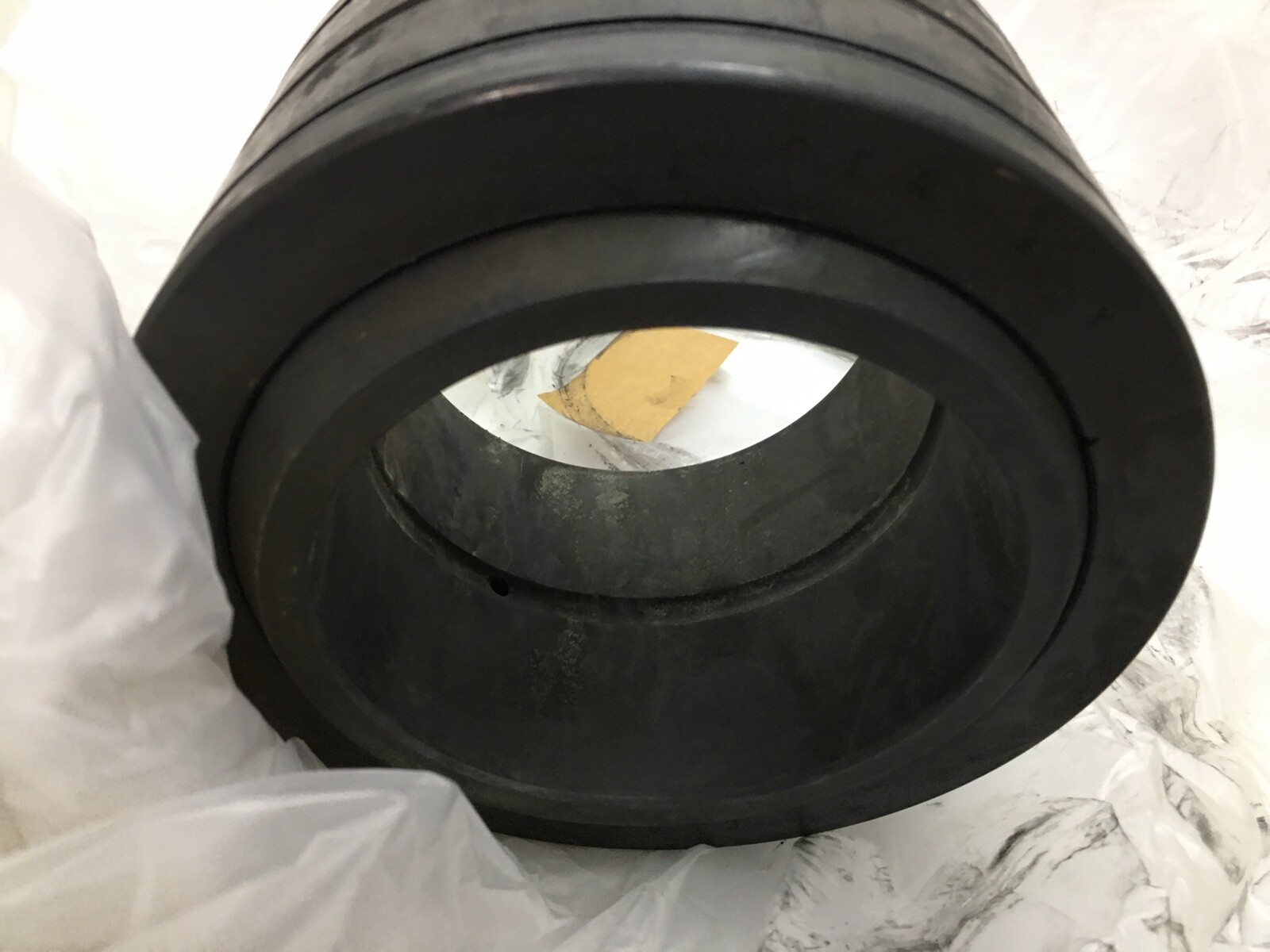

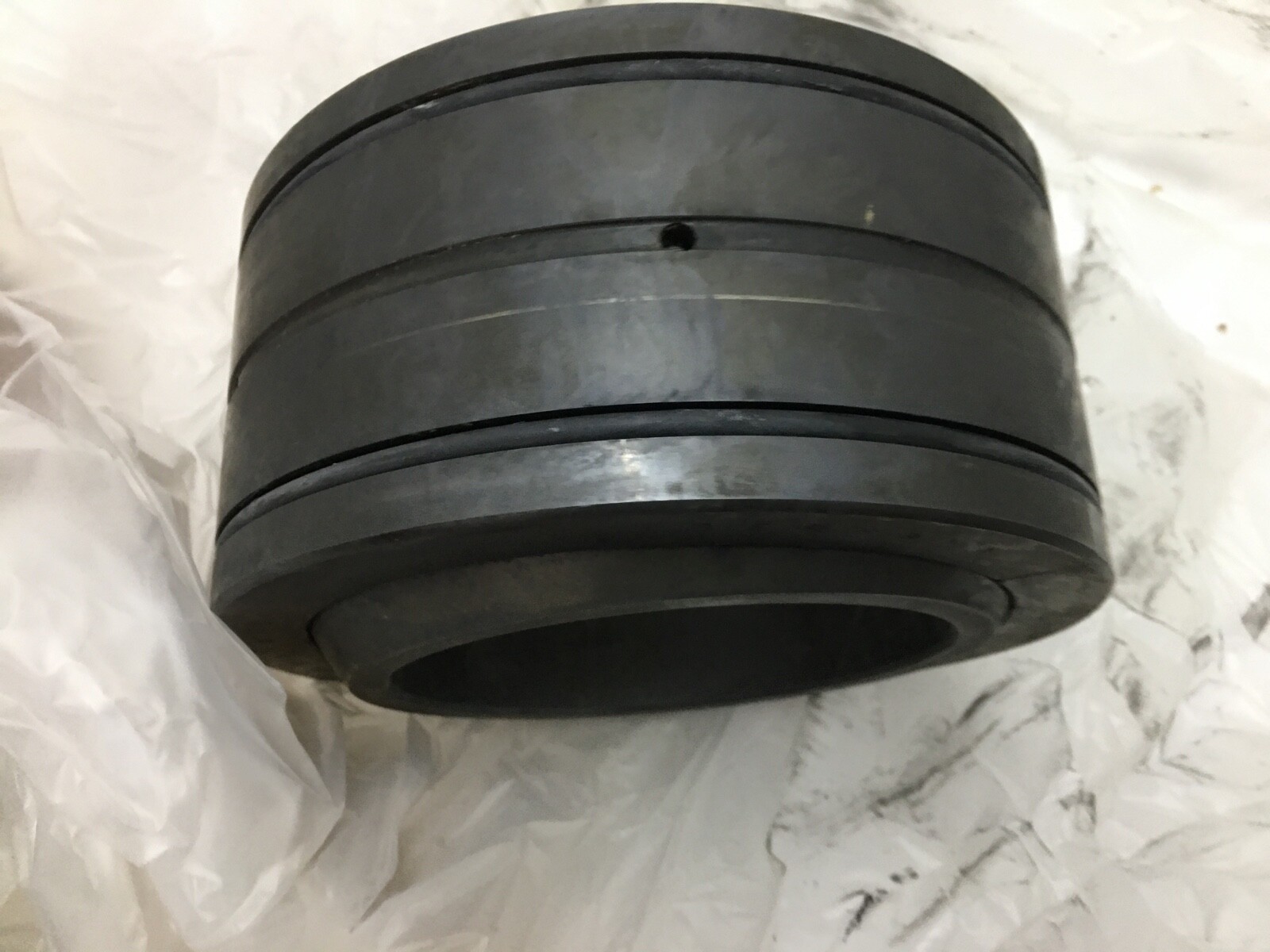

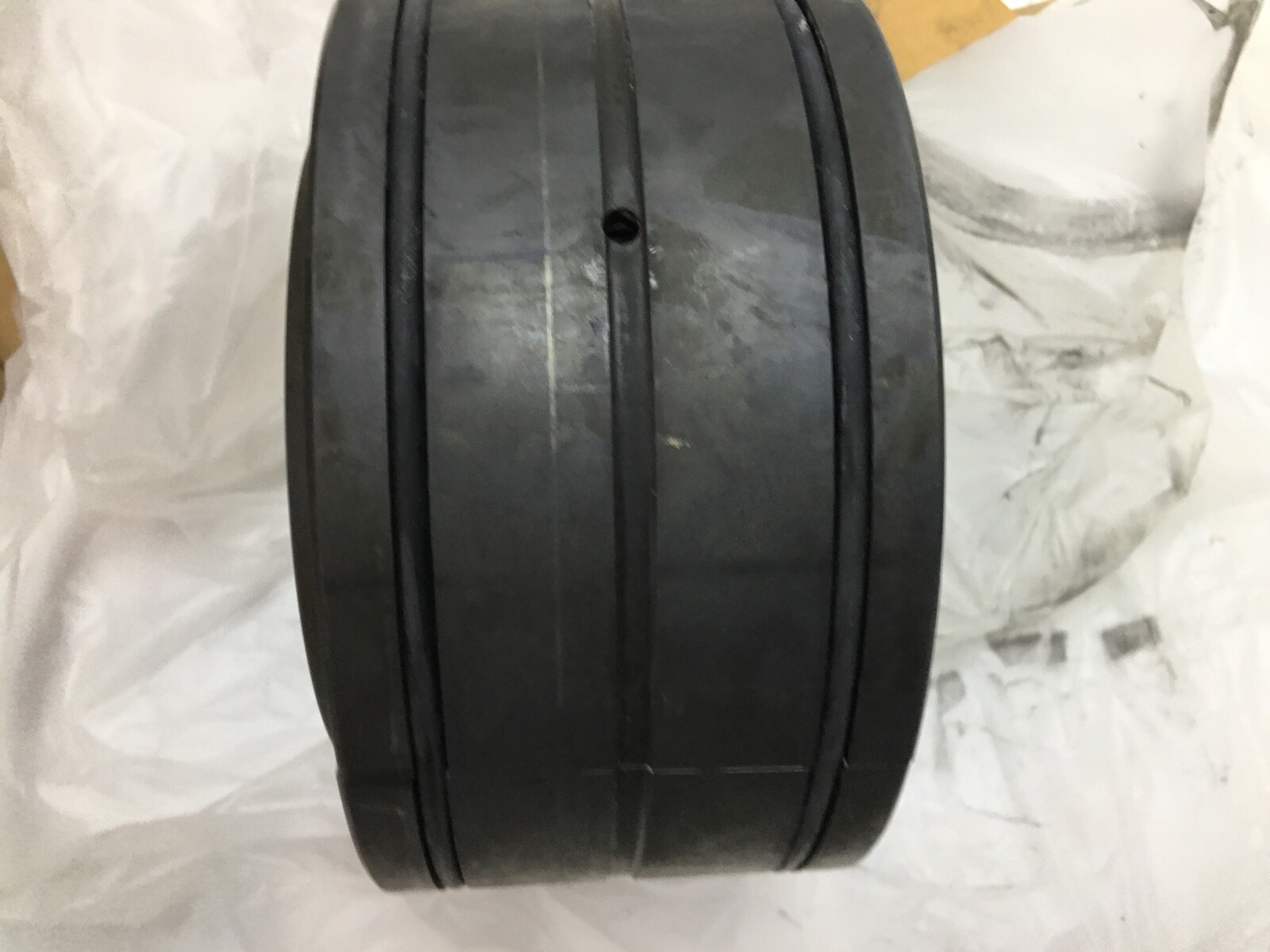

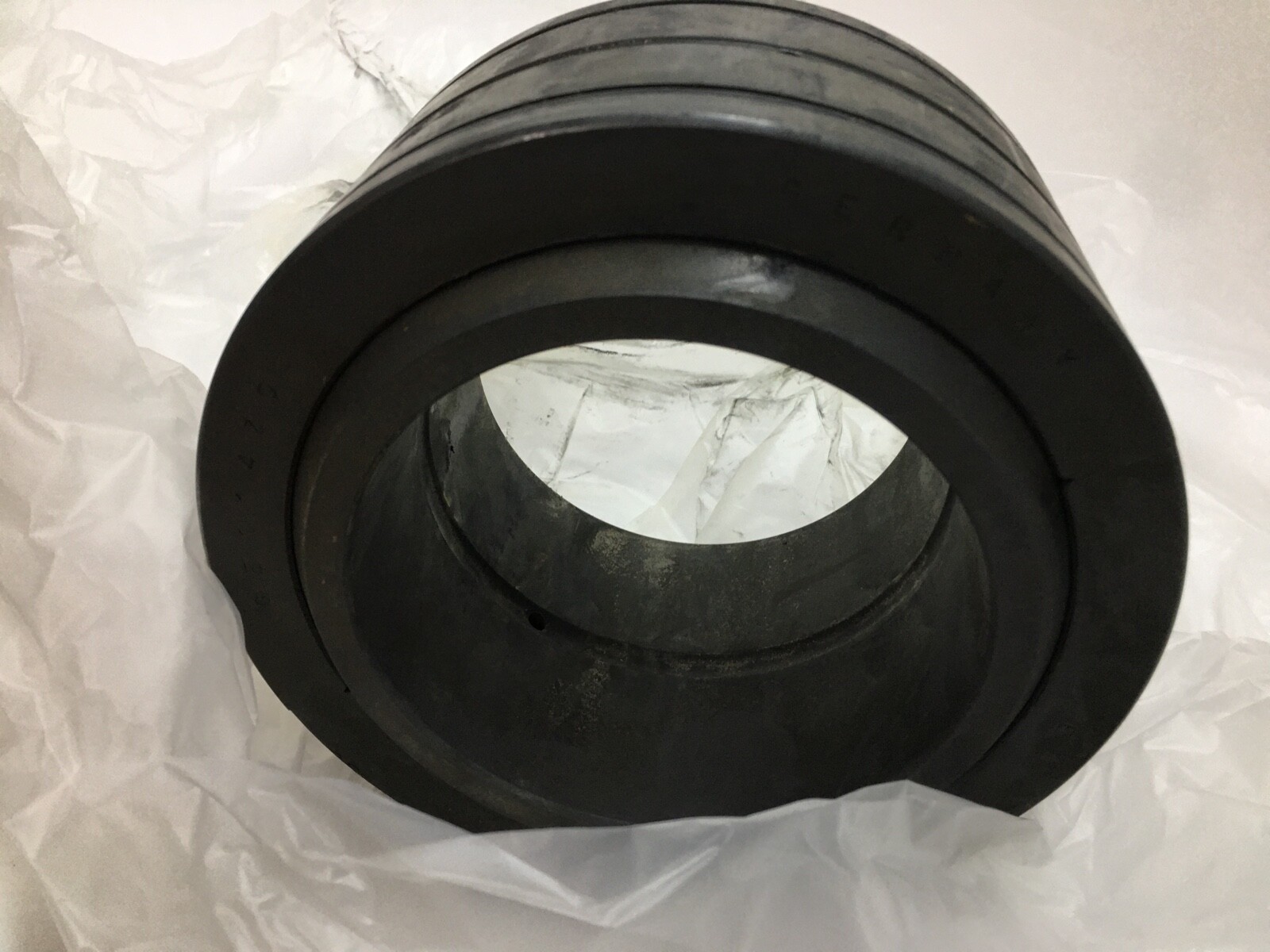

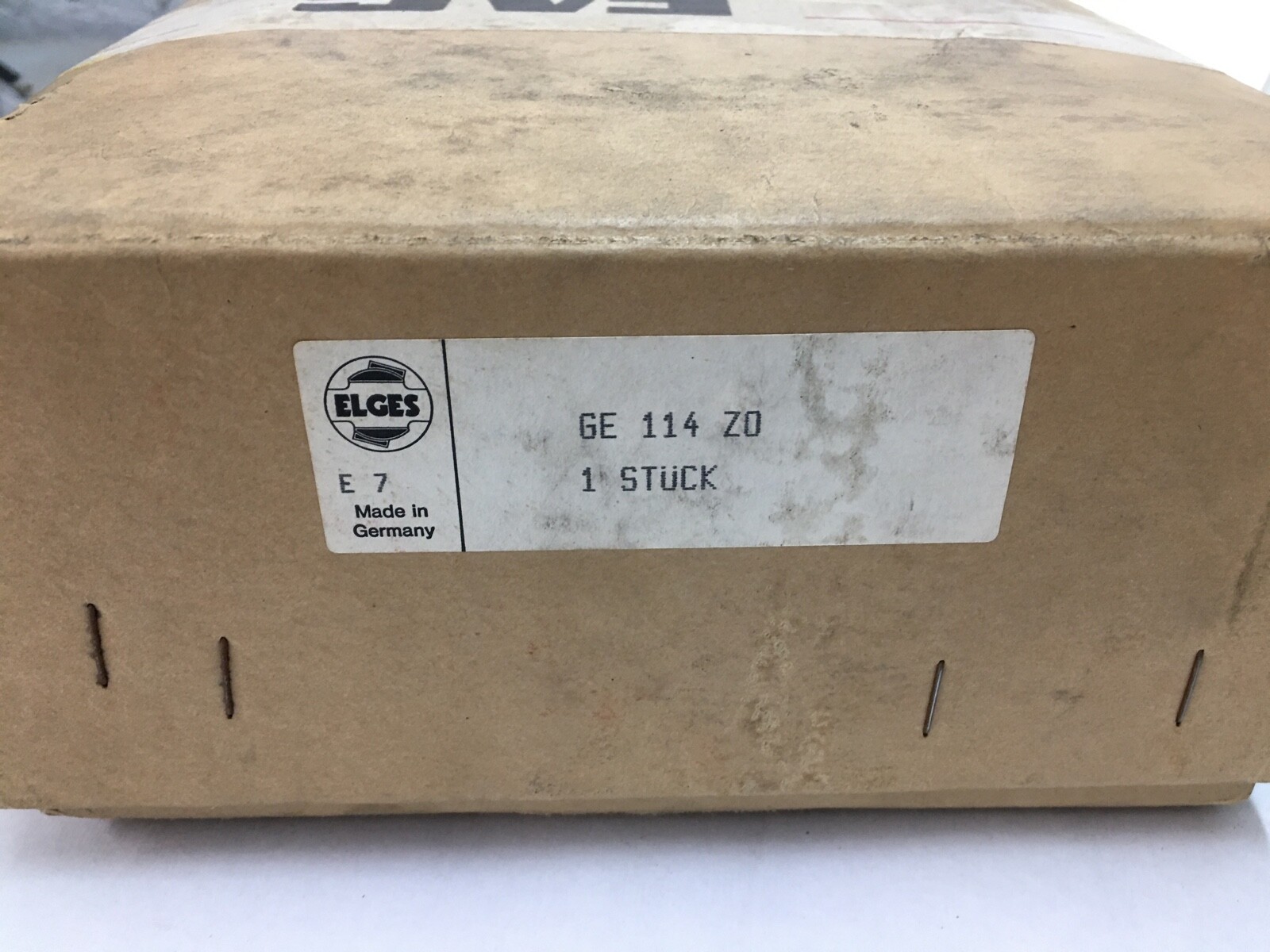

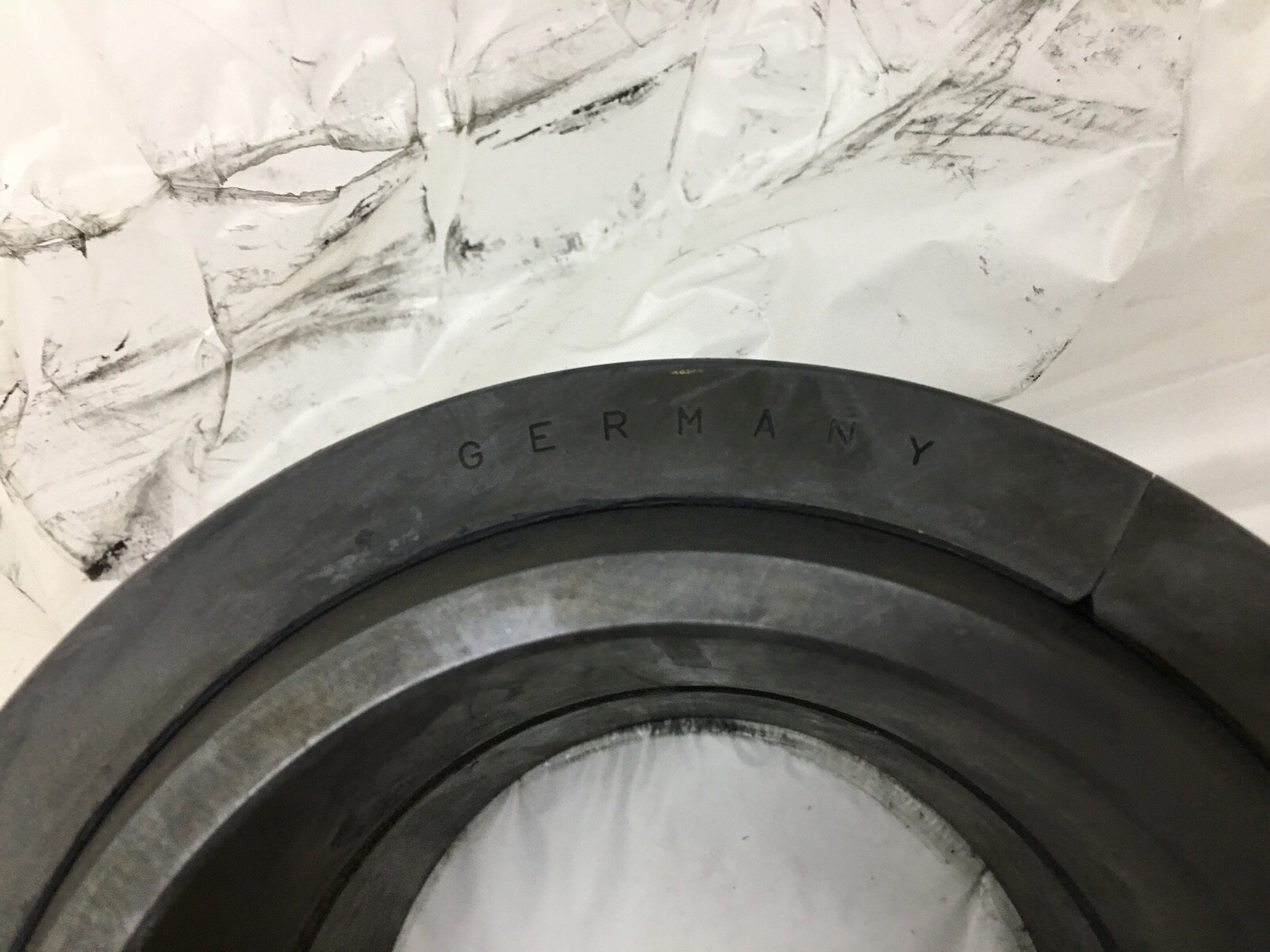

FAG GE114-ZO radial spherical plain bearing, inch dimensions. Inner ring and outer ring supplied as one assembled bearing, open design. Bore Diameter: 4.5000 in (114.300 mm). Outside Diameter: 7.0000 in (177.800 mm). Sold as 1 Pc.

Decoding the designation:

GE — radial spherical plain bearing. An inner ring with a convex outer surface slides inside an outer ring with a matching concave bore.

114 — 114.3 mm (4-1/2 in) bore.

ZO — inch-dimension series.

Specifications:

Bore Diameter: 4.5000 in (114.300 mm). Outside Diameter: 7.0000 in (177.800 mm). Inner Ring Width: 3.9370 in (100.000 mm). Outer Ring Width: 3.3750 in (85.725 mm). Seal Type: Open. Series: GE..ZO inch series. Unit Quantity: 1 Pc.

Dimensions and mounting:

The inner ring (3.9370 in) is wider than the outer ring (3.3750 in).

Compatibility and replacement:

Cross-reference: SKF GEZ408ES, matching bore, outside diameter and ring widths. Related Schaeffler execution: GE114-ZO-E. MPN variants: GE114-ZO, GE114ZO, GE-114ZO, GE 114 ZO.

Frequently asked questions:

What are the dimensions of the FAG GE114-ZO?

Bore 4.5000 in (114.300 mm), outside diameter 7.0000 in (177.800 mm), inner ring width 3.9370 in (100.000 mm), outer ring width 3.3750 in (85.725 mm).

What does GE114-ZO mean?

GE is a radial spherical plain bearing, 114 is the 114.3 mm (4-1/2 in) bore, and ZO is the inch-dimension series.

Which SKF part matches the GE114-ZO?

SKF GEZ408ES has the same bore, outside diameter and ring widths.
