Double-row self-aligning ball bearing, 90 x 190 x 43 mm, 1:12 tapered bore for an H318 adapter sleeve, open, steel cage, CN clearance. 117 kN dynamic.
List Price
$183.63
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Self-Aligning Ball Bearing — Straight Bore, 55 mm ID, 100 mm OD, 25 mm Width, Open, CN Clearance$28.48
Self-Aligning Ball Bearing - 55 mm ID, 100 mm OD, 25 mm Width, 1:12 Tapered Bore, C3 Clearance, Open$28.88
Self-Aligning Ball Bearing – 50 mm ID, 90 mm OD, 20 mm Width, 1:12 Tapered Bore, Polyamide Cage$29.91
Self-Aligning Ball Bearing - 65 mm Tapered Bore 1:12, 120 mm OD, 23 mm Width, Open$31.28| MFR / Brand | SKF |
|---|---|
| MPN | 1318K |
| Model | 1318 K |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 90 mm |
| OD | 190 mm |
| Width | 43 mm |
| Material | Steel |
|---|---|
| Series | 1300 |
| Bore | Taper Bore |
| Base Number | 1318 |
| Industry Terms | Self-aligning ball bearing, double row ball bearing, tapered bore bearing, adapter sleeve mount, 1300 series |
| Bore Shaft Size | 90 mm |
| Locking Method | H318 adapter sleeve with KM 18 locknut and MB 18 lockwasher |
| Mpn Variants | 1318 K, 1318K, 1318-K, 1318 -K |
| Compatible With Replaces | FAG 1318-K-M-C3, NSK 1318 K, NTN 1318 K |
| Precision Class | P0 (ABEC 1) |
| Additional Attributes | Fatigue load limit Pu 1.93 kN |
| Cage Type | Pressed window cage |
| Dynamic Load Rating | 117 kN |
| Static Load Rating | 44 kN |
| Precision Rating | P0 / ABEC 1 |
| Rolling Elements | Ball |
| Item Weight | 5.8 kg (12.79 lb) |
| Cage Material | Pressed steel |
| Limiting Speed | 4500 |
| Number Of Rows | 2 |
| Bore Type | 1:12 tapered |
| Internal Clearance | CN |
| Design Units | Metric |
| Part Number | 1318 K |
| Cross Reference 1 | FAG 1318-K-M-C3 |
|---|---|
| Cross Reference 2 | H318 adapter sleeve |

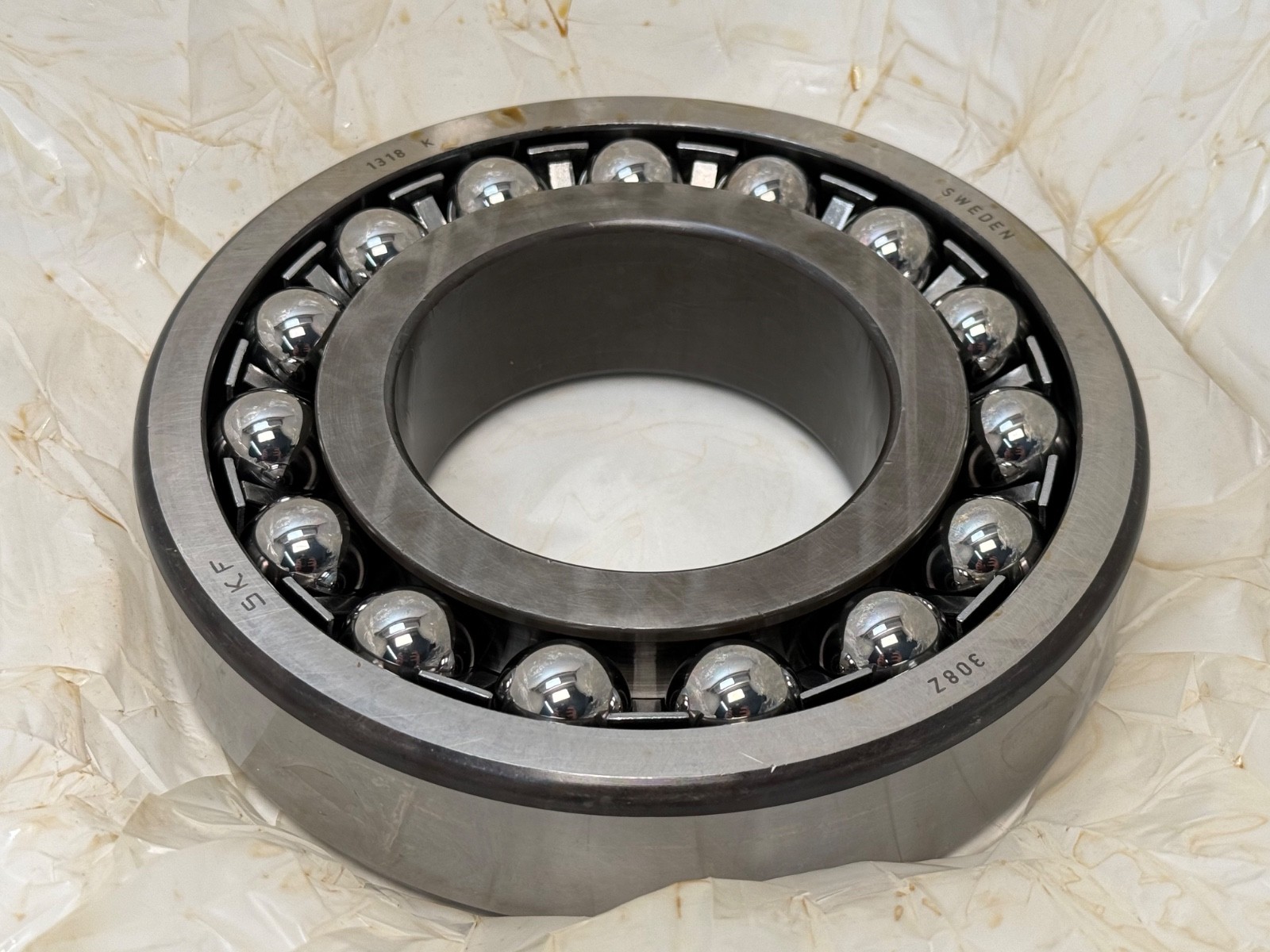

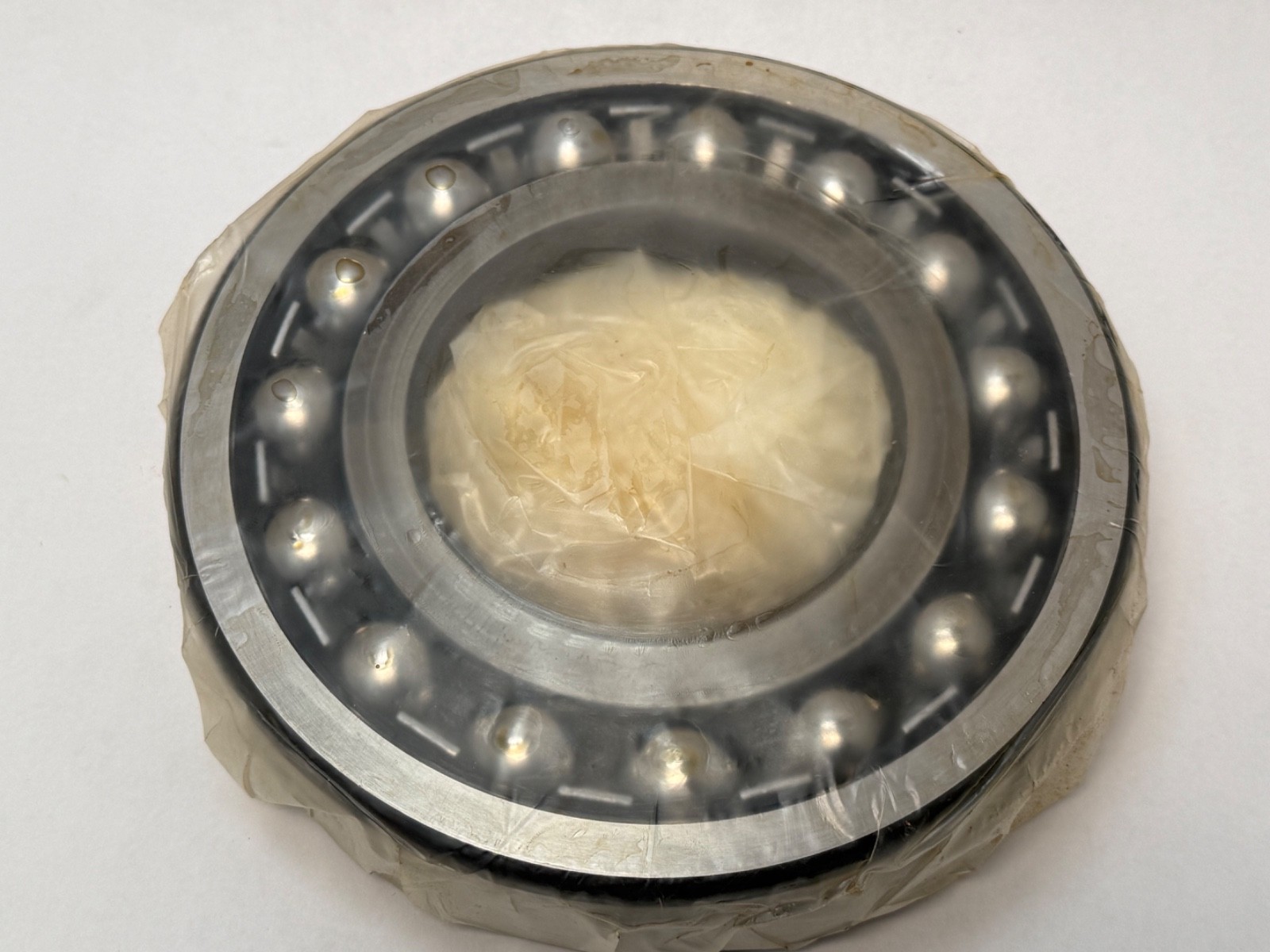

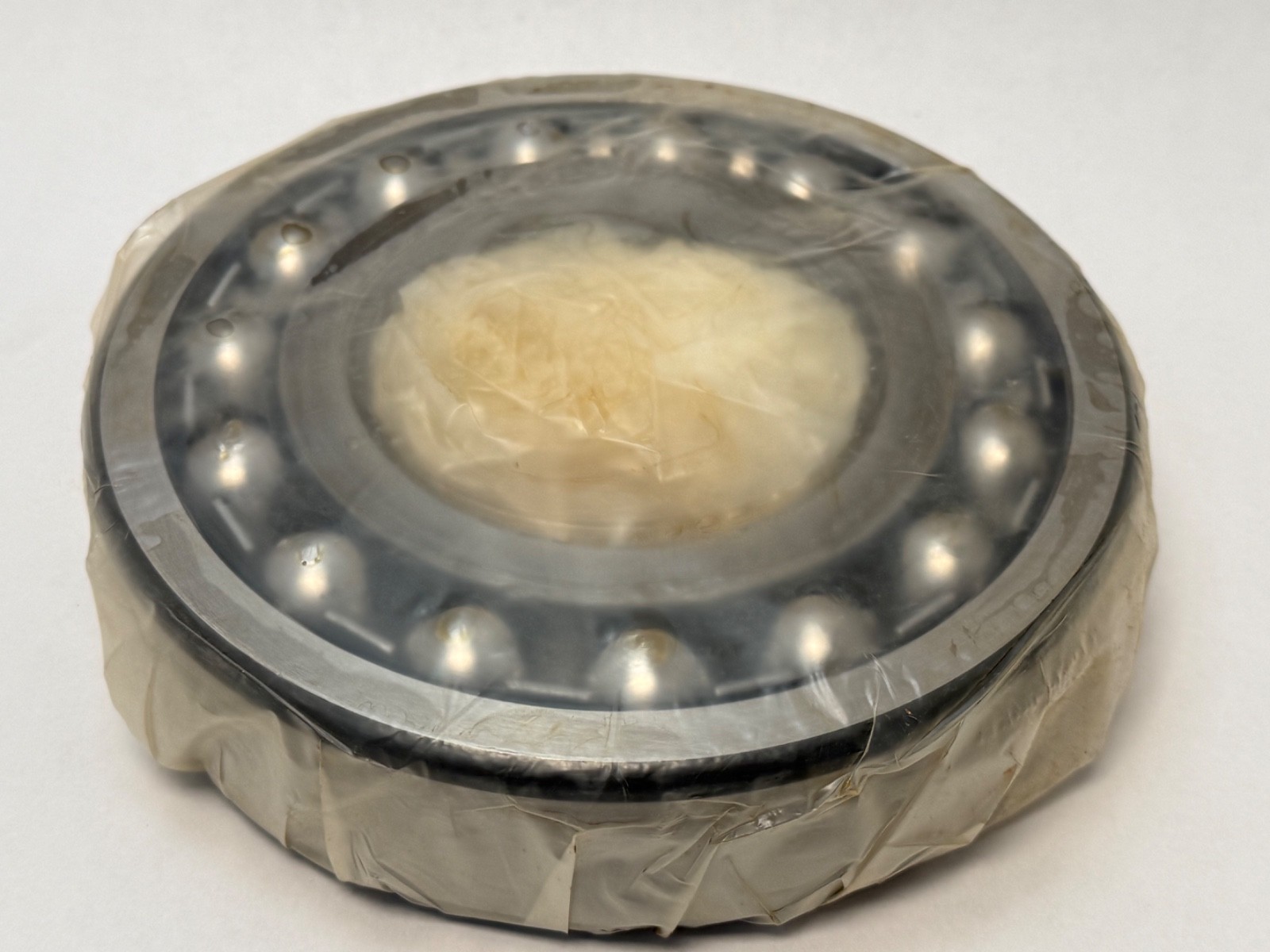

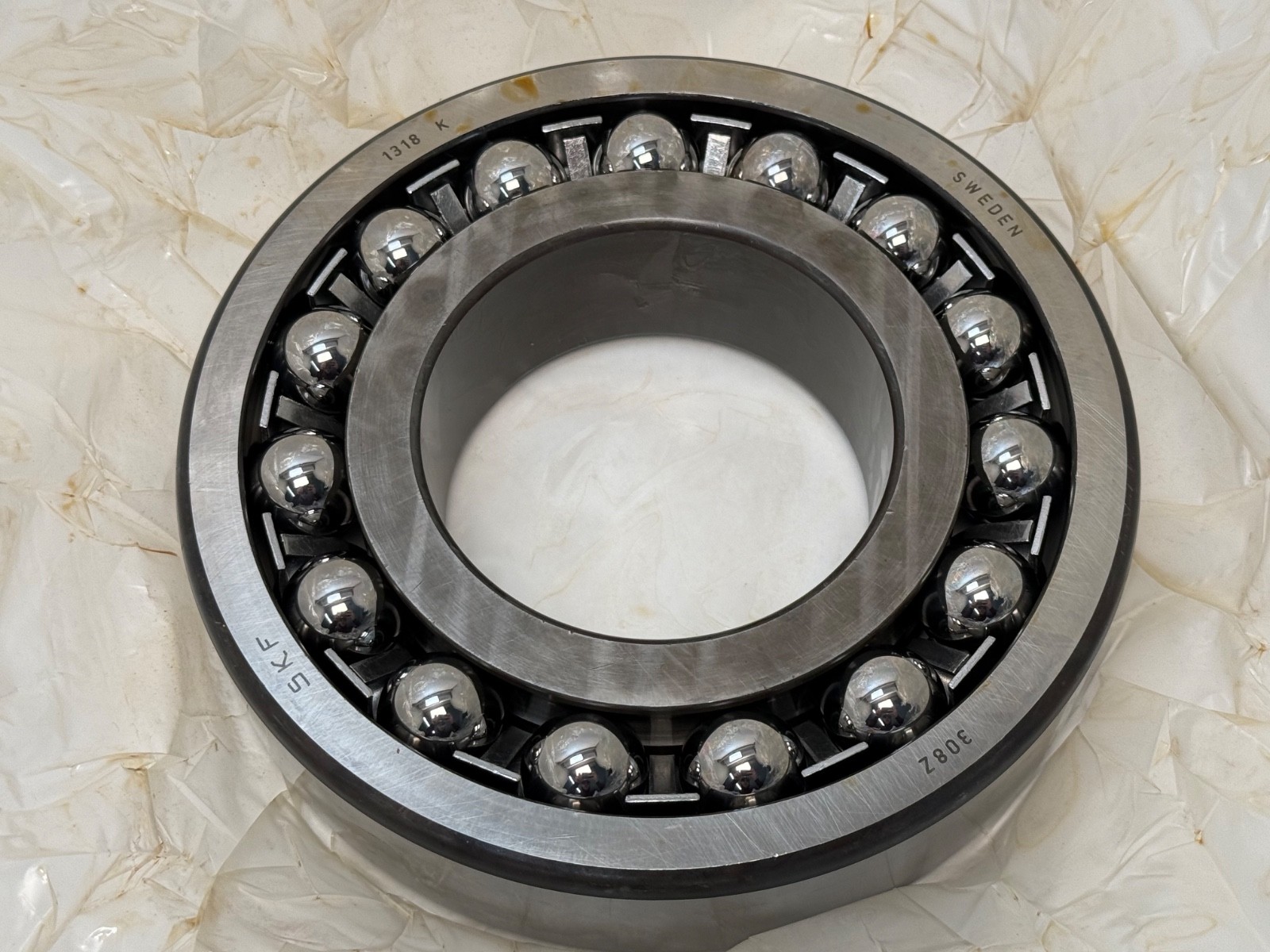

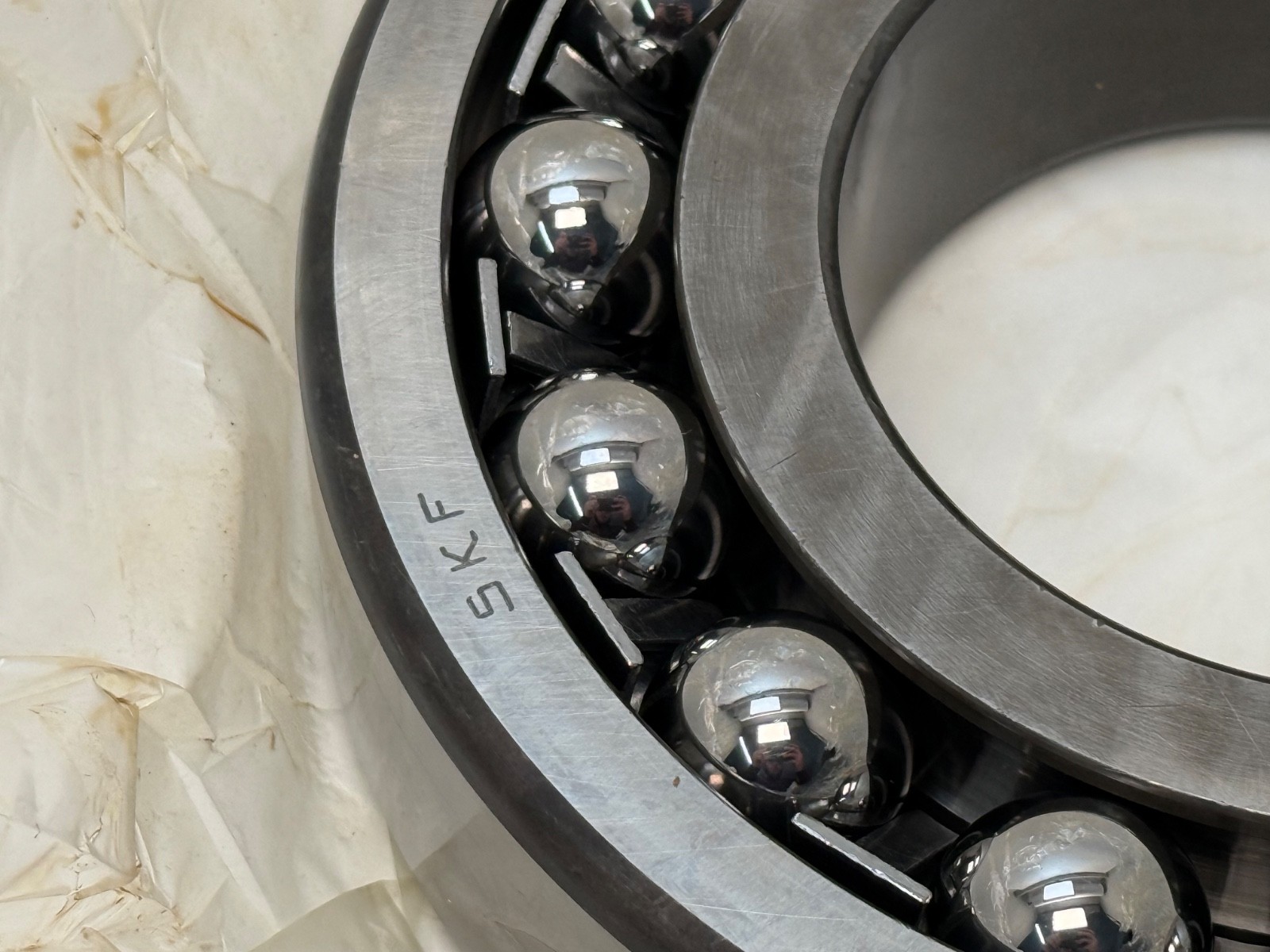

SKF 1318 K, a double-row self-aligning ball bearing with a tapered bore. Bore: 90 mm. Outside Diameter: 190 mm. Overall Width: 43 mm. Bore Type: 1:12 tapered. Number Of Rows: 2. Rolling Elements: steel balls. Cage Material: pressed steel. Cage Type: pressed window cage. Closure Type: open. Internal Clearance: CN. Precision Class: P0 (ABEC 1). Dynamic Load Rating: 117 kN. Static Load Rating: 44 kN. Fatigue Load Limit: 1.93 kN. Reference Speed: 6,700 r/min. Limiting Speed: 4,500 r/min. Mass: 5.8 kg. Adapter sleeve: H318.
13 — SKF’s self-aligning ball bearing series 13, the wider of the two standard sections, with two ball rows running on a common sphered raceway in the outer ring.
18 — the bore code, 18 x 5 = 90 mm.
K — 1:12 tapered bore, mounts on an H318 adapter sleeve.

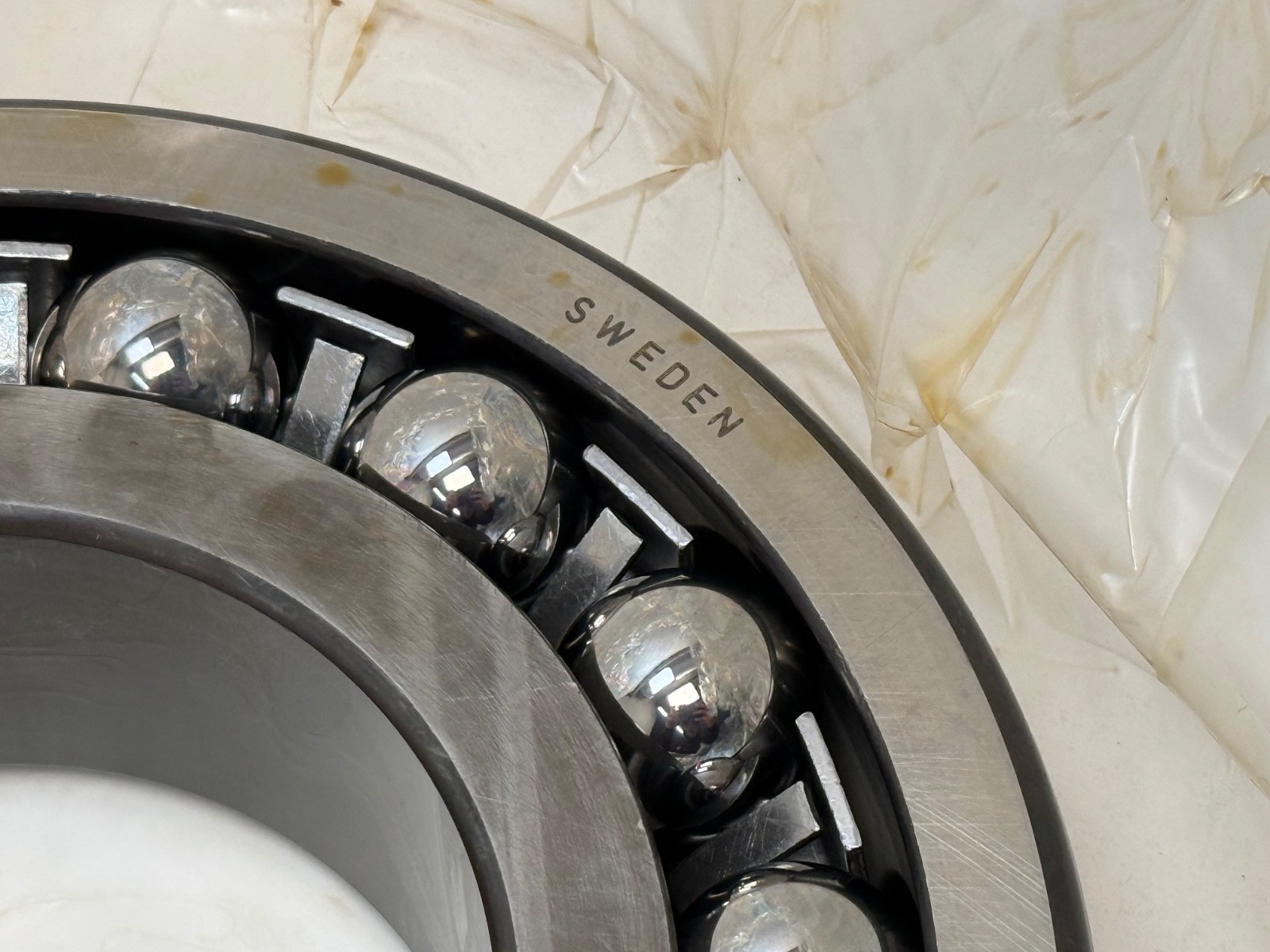

Dynamic Load Rating: 117 kN. Static Load Rating: 44 kN. Fatigue Load Limit: 1.93 kN. Reference Speed: 6,700 r/min is the thermally permitted figure and Limiting Speed: 4,500 r/min is the mechanical ceiling, so 4,500 r/min is the number to design to. The outer ring raceway is a single sphere with the inner ring, ball rows and cage free to swivel inside it, so the bearing tolerates several degrees of shaft-to-housing misalignment and shaft deflection with no rise in friction. That is why a self-aligning ball bearing is the standard choice for long line shafts, fans and conveyor drives where the two pedestals cannot be bored in one setting. Internal Clearance: CN. Cage Material: pressed steel. Mass: 5.8 kg.
Bore: 90 mm, 1:12 taper. Outside Diameter: 190 mm. Overall Width: 43 mm. The 90 mm tapered bore seats on an H318 adapter sleeve, whose tapered outside diameter is 90 mm over an 80 mm cylindrical shaft seat, secured with a KM 18 locknut and an MB 18 lockwasher. Driving the inner ring up the taper both grips the shaft and sets the running clearance by measured drive-up, so the shaft itself needs only a plain turned seat.

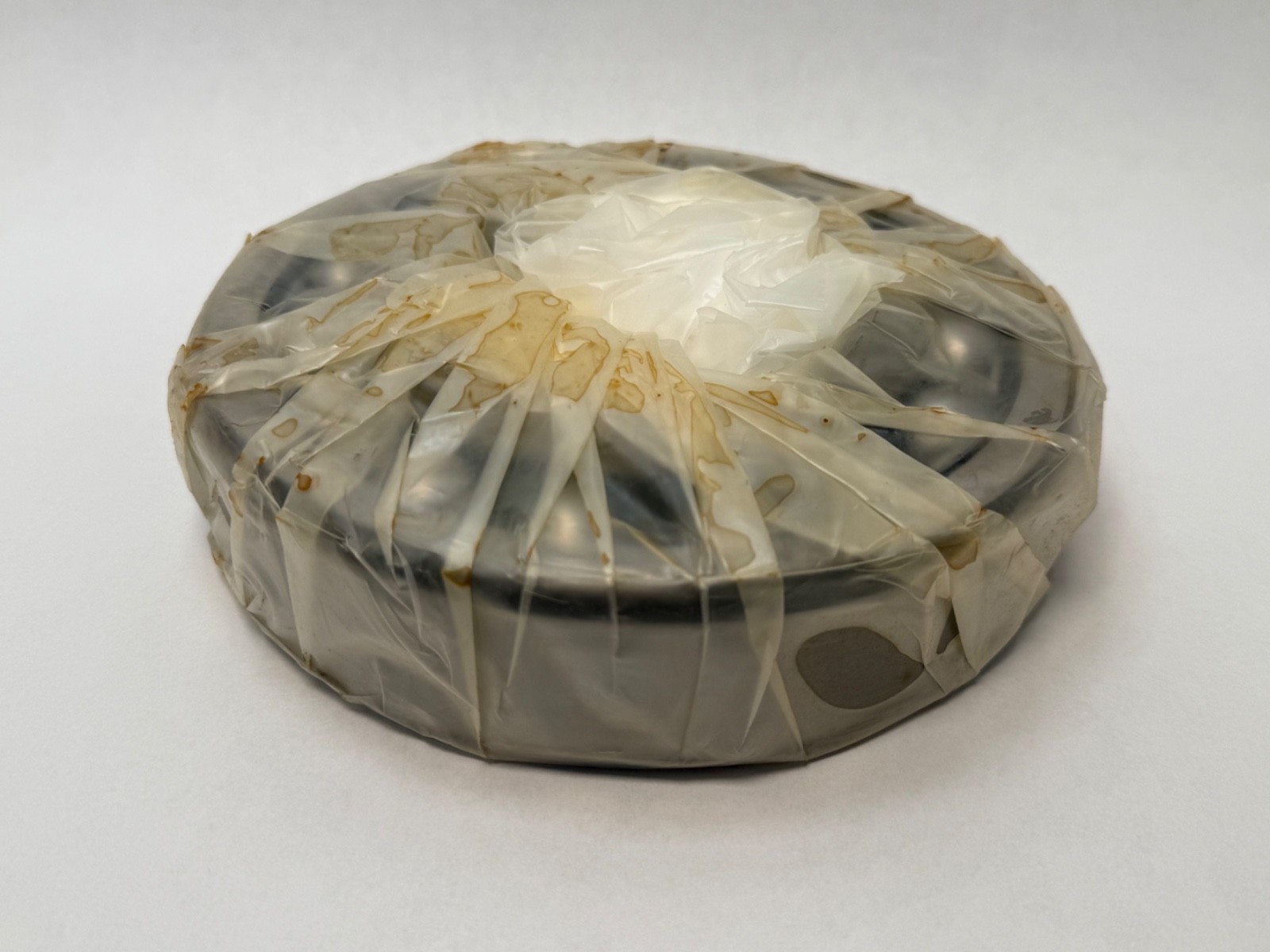

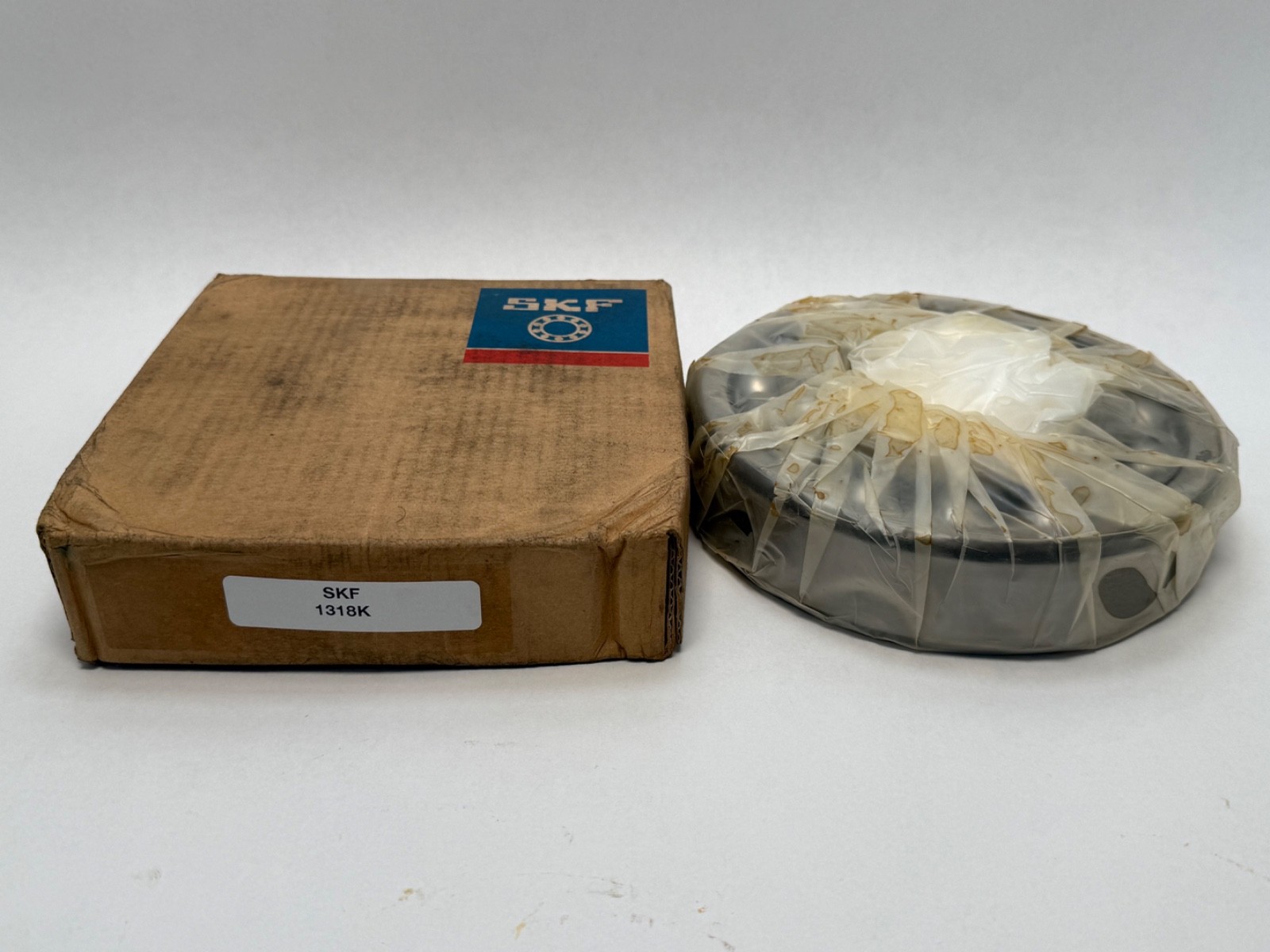

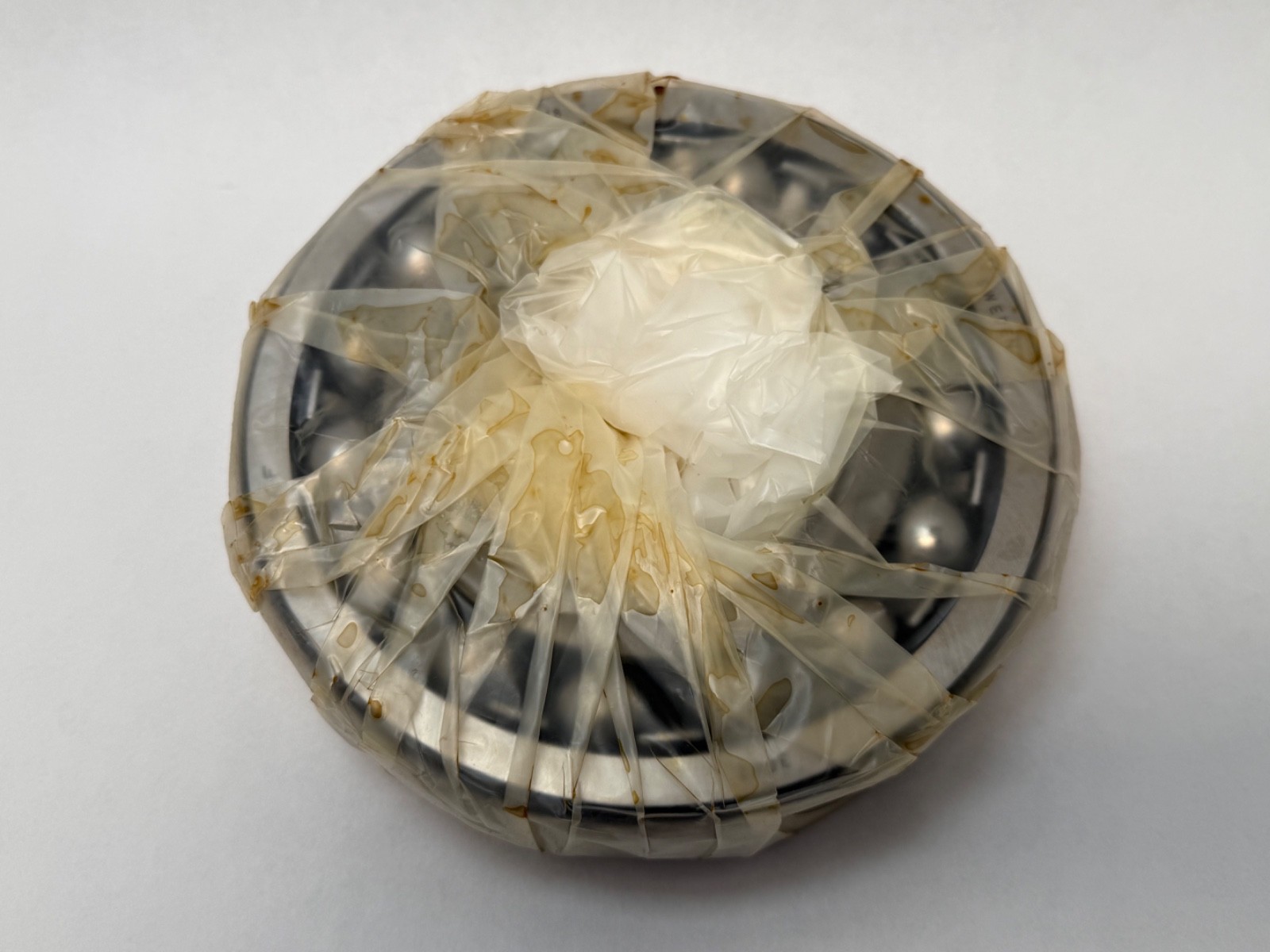

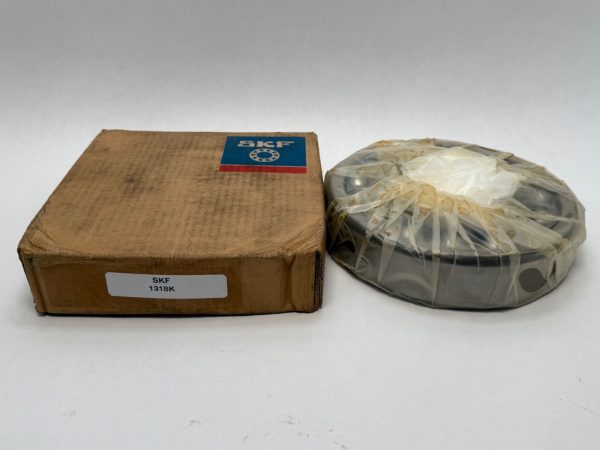

Unit Quantity: 1 Pc. Supplied as a single bearing.

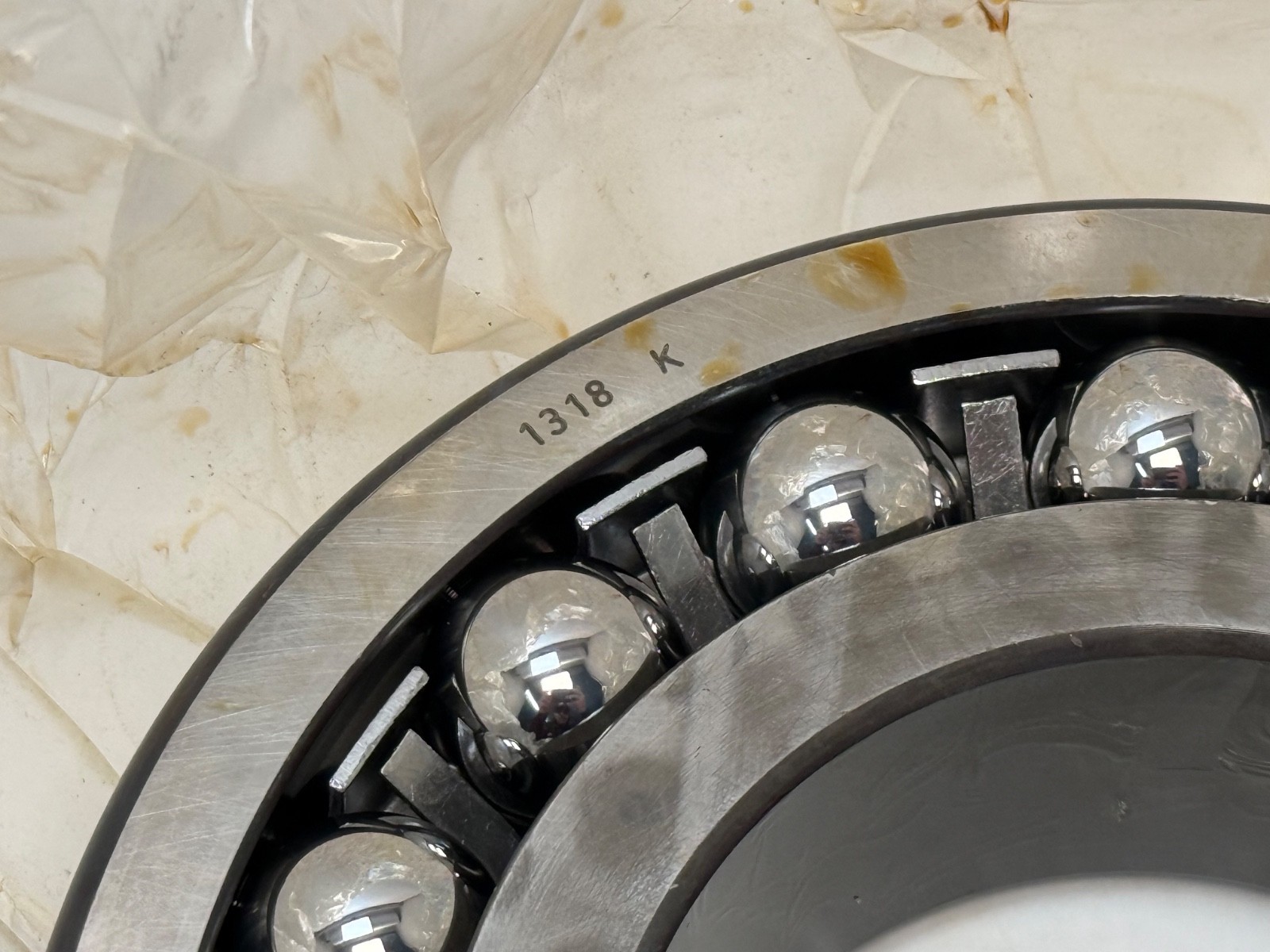

Manufacturer part number variants: 1318 K, 1318K, 1318-K. The 1318 K envelope is an ISO-standard self-aligning ball size, so an FAG 1318-K-M-C3, NSK 1318 K and NTN 1318 K share the 90 x 190 x 43 mm boundary dimensions and the 1:12 taper. A straight-bore 1318 is the same bearing on a cylindrical seat and is a related size rather than an interchange; a 1318 KM carries a machined brass cage in place of the pressed steel one.
