Self-Aligning Ball Bearing - 55 mm Tapered Bore, 100 mm OD, 21 mm Width, C3 Clearance$32.23| MFR / Brand | NSK |
|---|---|
| MPN | 1216KC3 |
| Model | 1216-K-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Series | 1200 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Steel |
| Dynamic Load Rating | 48.5 kN |
| Static Load Rating | 22.4 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 3.55 lbs |
| Cage Material | Steel |
| Limiting Speed | 4300 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.1 |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 1216 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 1216-K-TVH-C3 |
| Cross Reference 3 | NTN 1216SKC3 |

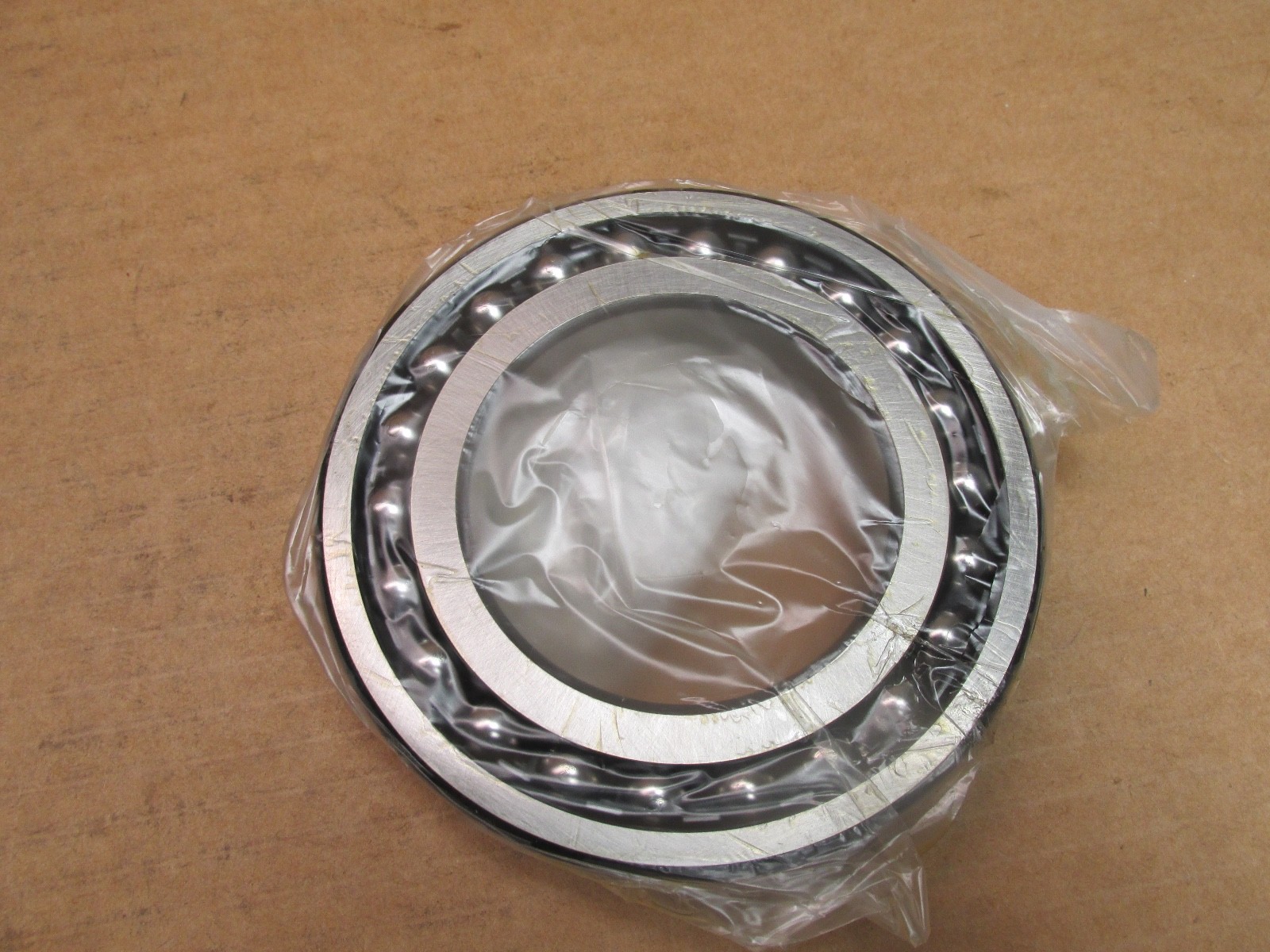

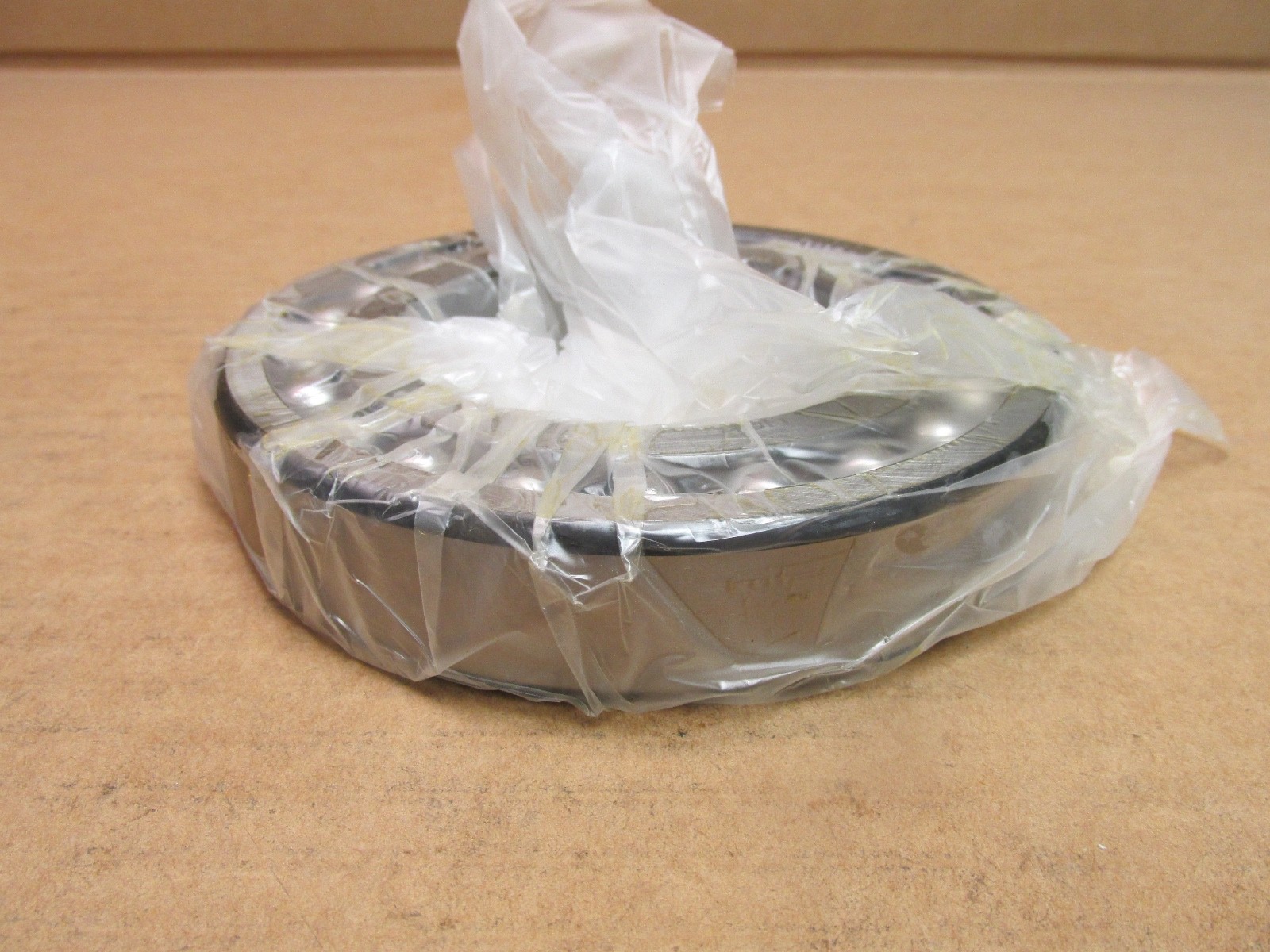

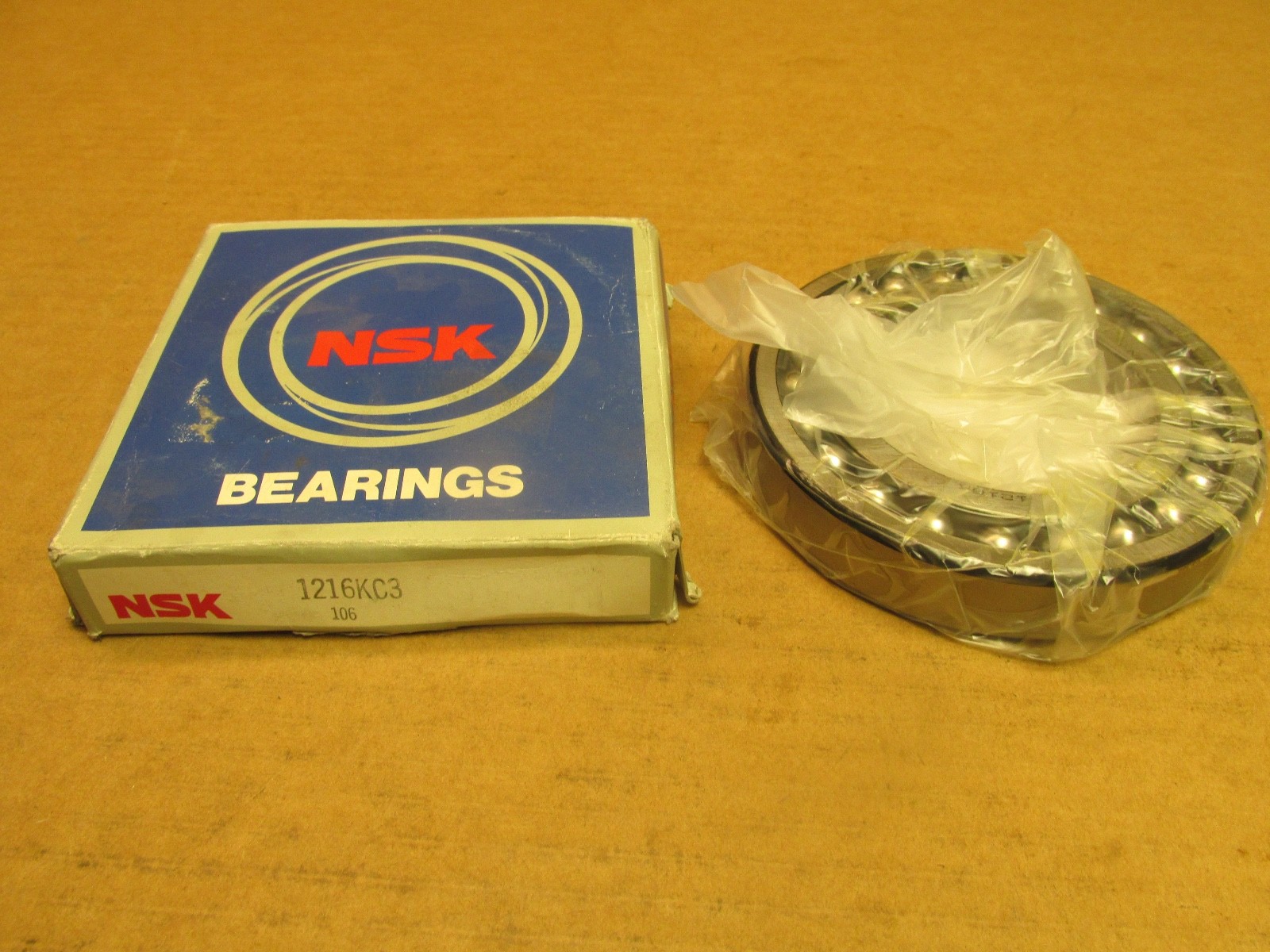

Self Aligning Ball Bearing – Tapered Bore, 80 mm ID, 140 mm OD, 26 mm Width, Open, C3 Internal clearance.
$49.15
2 in stock
