Self-Aligning Ball Bearing — 45 mm Tapered Bore 1:12, 85 mm OD, 23 mm Width, Open, C3 Clearance$35.51
Self-Aligning Ball Bearing - 45 mm ID, 85 mm OD, 23 mm Width, Tapered 1:12 Bore, C3 Clearance, Polyamide Cage$41.20
Double Row Self-Aligning Ball Bearing, 45 mm ID, 85 mm OD, 19 mm Width, Straight Bore, Polyamide Cage$24.71
Self-Aligning Ball Bearing — 45 mm ID, 85 mm OD, 19 mm Width, 1:12 Tapered Bore, Polyamide Cage$51.82| MFR / Brand | FAG |
|---|---|
| MPN | 2209K |
| Model | 2209-K |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 2200 |
|---|---|
| Lubricant | Standard Grease |
| Material | Bearing Steel |
| Min Temp | -30 C |
| Cage Type | TVH |
| Dynamic Load Rating | 28.5 kN / 6407 lbf |
| Static Load Rating | 9 kN / 2023 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 120 C |
| Item Weight | 1.18 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 8600 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Duty Type | Standard |
| Harmonization Code | 8482.1 |
| Internal Clearance | CN |
| Maximum Permissible Misalignment | 2.5 degrees |
| Cross Reference 1 | SKF 2209 EKTN9 |
|---|---|
| Cross Reference 2 | NTN 2209K |
| Cross Reference 3 | NSK 2209K |
| Cross Reference 4 | KOYO 2209K |
| Cross Reference 5 | TIMKEN 2209K |

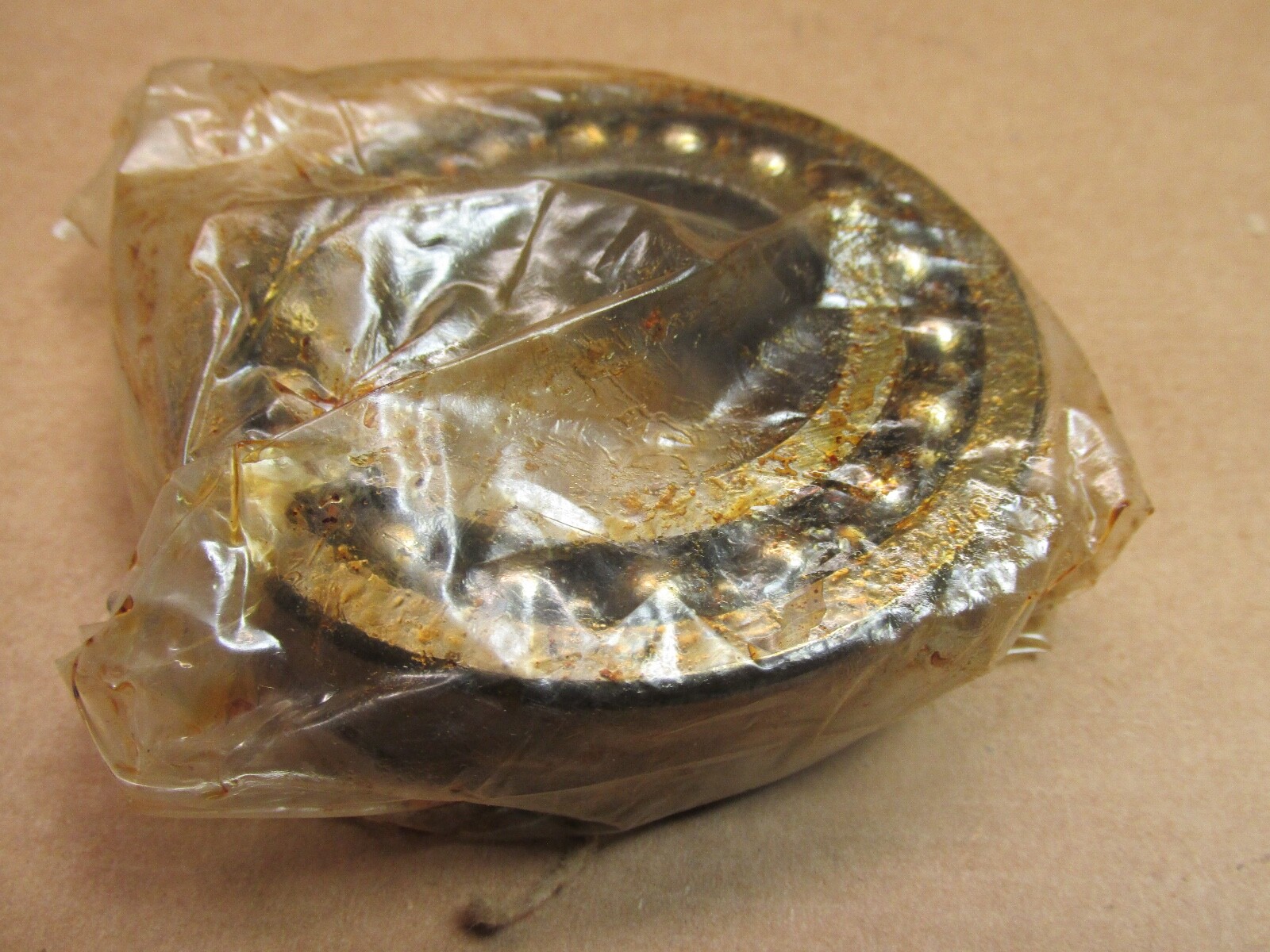

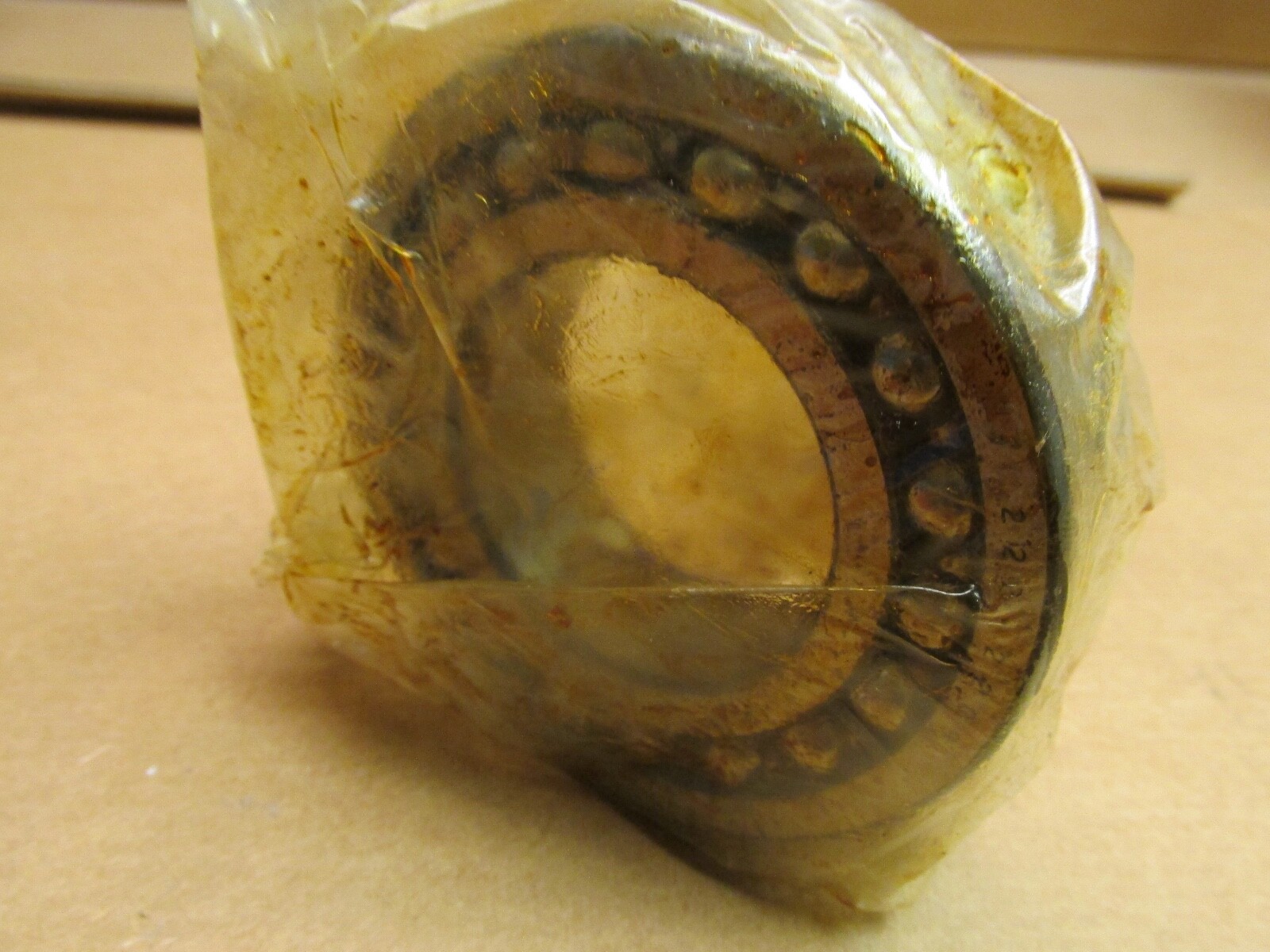

FAG 2209K Self-Aligning Ball Bearing 45x85x23mm. Features tapered bore (1:12) and TVH polyamide cage. Ideal for applications with shaft misalignment.
$49.15
2 in stock
