Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Self-aligning ball bearing, 35 mm bore x 72 mm OD x 23 mm wide, SKF E design, straight bore, C3 clearance, glass-fibre polyamide cage, open design.
List Price
$51.68
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 2207 ETN9/C3 |
| Model | 2207-E TN9 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 35 mm |
| OD | 72 mm |
| Width | 23 mm |
| Series | 2200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 2207 |
| Overall Width | 23 mm |
| Mpn Variants | 2207 ETN9/C3, 2207-ETN9/C3, 2207ETN9C3, 2207 ETN9 C3, 2207-E TN9, 2207E |
| Additional Attributes | Double row; SKF E design; glass-fibre polyamide cage; 2.5 deg misalignment |
| Rolling Elements | Ball |
| Cage Material | Polyamide, glass-fibre reinforced |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.50 |
| Maximum Permissible Misalignment | 2.5° |
| Industry Terms | self-aligning ball bearing; double row self aligning bearing; 2207 ETN9 bearing; 35x72x23 self aligning ball bearing; 2207 E-TN9; SKF E design bearing |
| Common Misspellings | SKF 2207 ETN 9 C3; SKF 2207ETN9-C3; SKF 2207 E TN9 C3; SFK 2207 ETN9/C3; SKF 2207 ENT9/C3; SKF 2207ETN9/C3 |
| Application Types | general industrial machinery; fans and blowers; conveyors; agricultural machinery; shafts with misalignment or deflection |
| Cross Reference 1 | FAG 2207-TVH-C3 |
|---|---|
| Cross Reference 2 | NSK 2207 C3 |
| Cross Reference 3 | NTN 2207 C3 |
| Cross Reference 4 | Koyo 2207 C3 |
| Cross Reference 5 | SNR 2207 C3 |

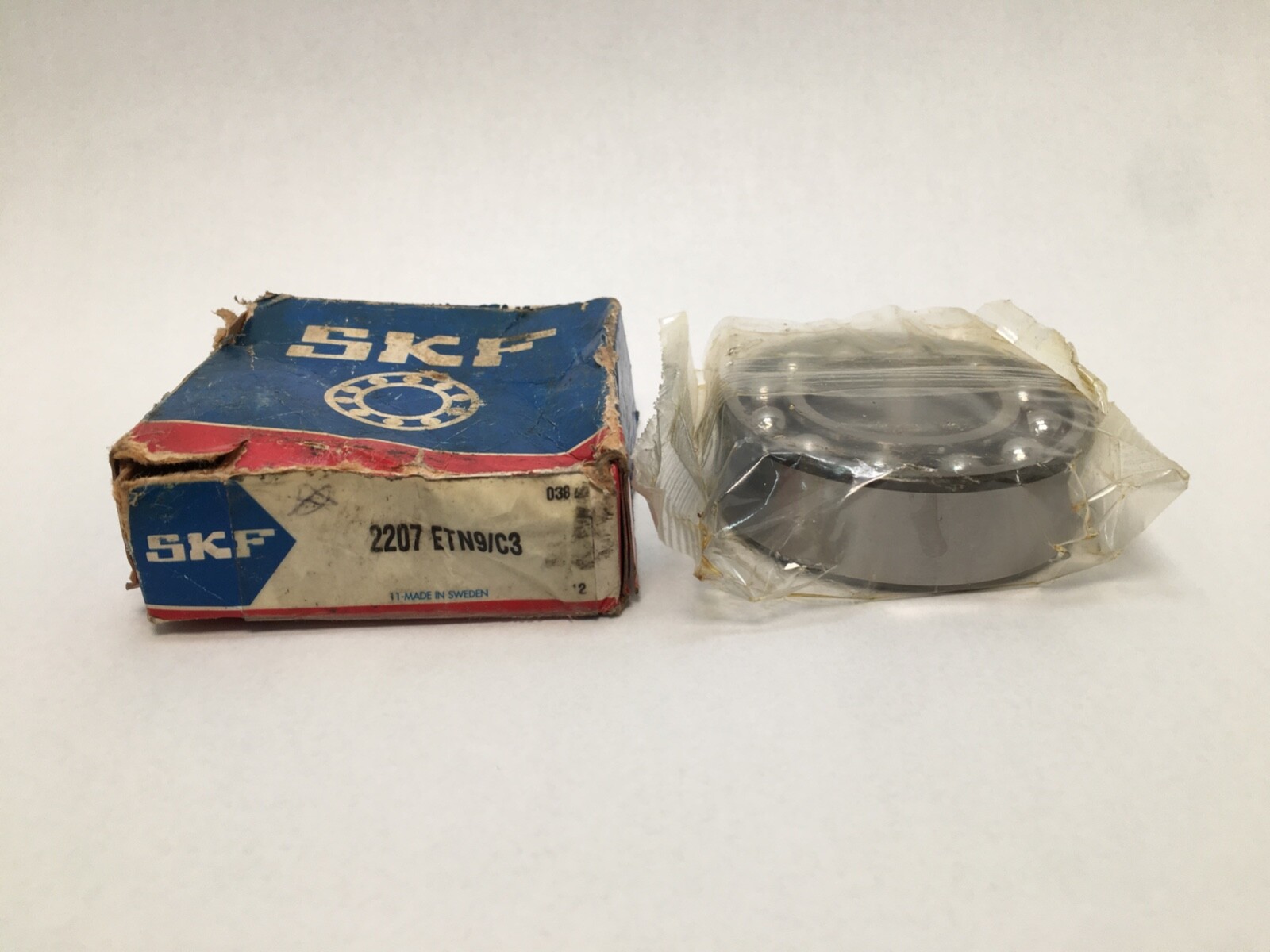

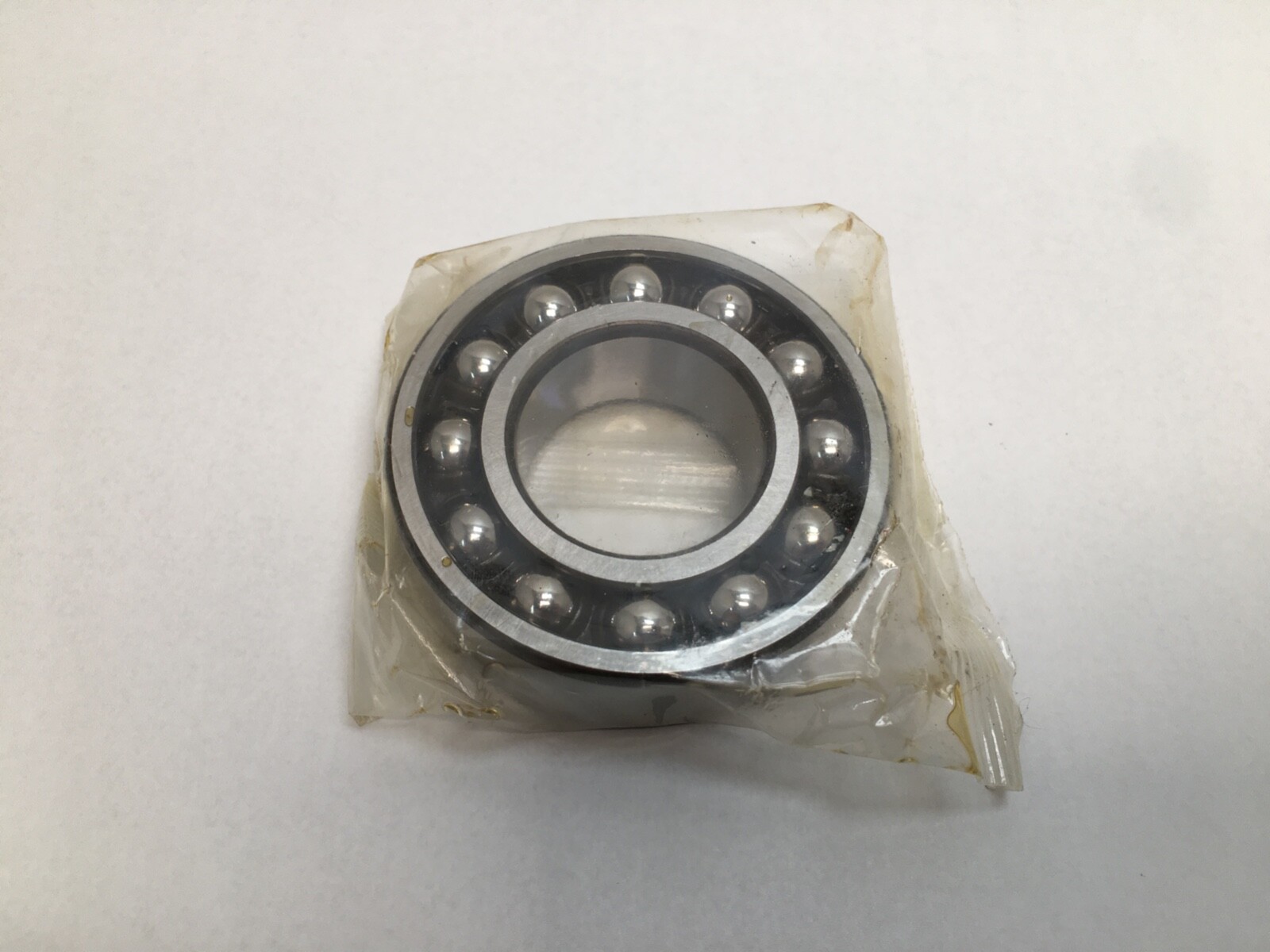

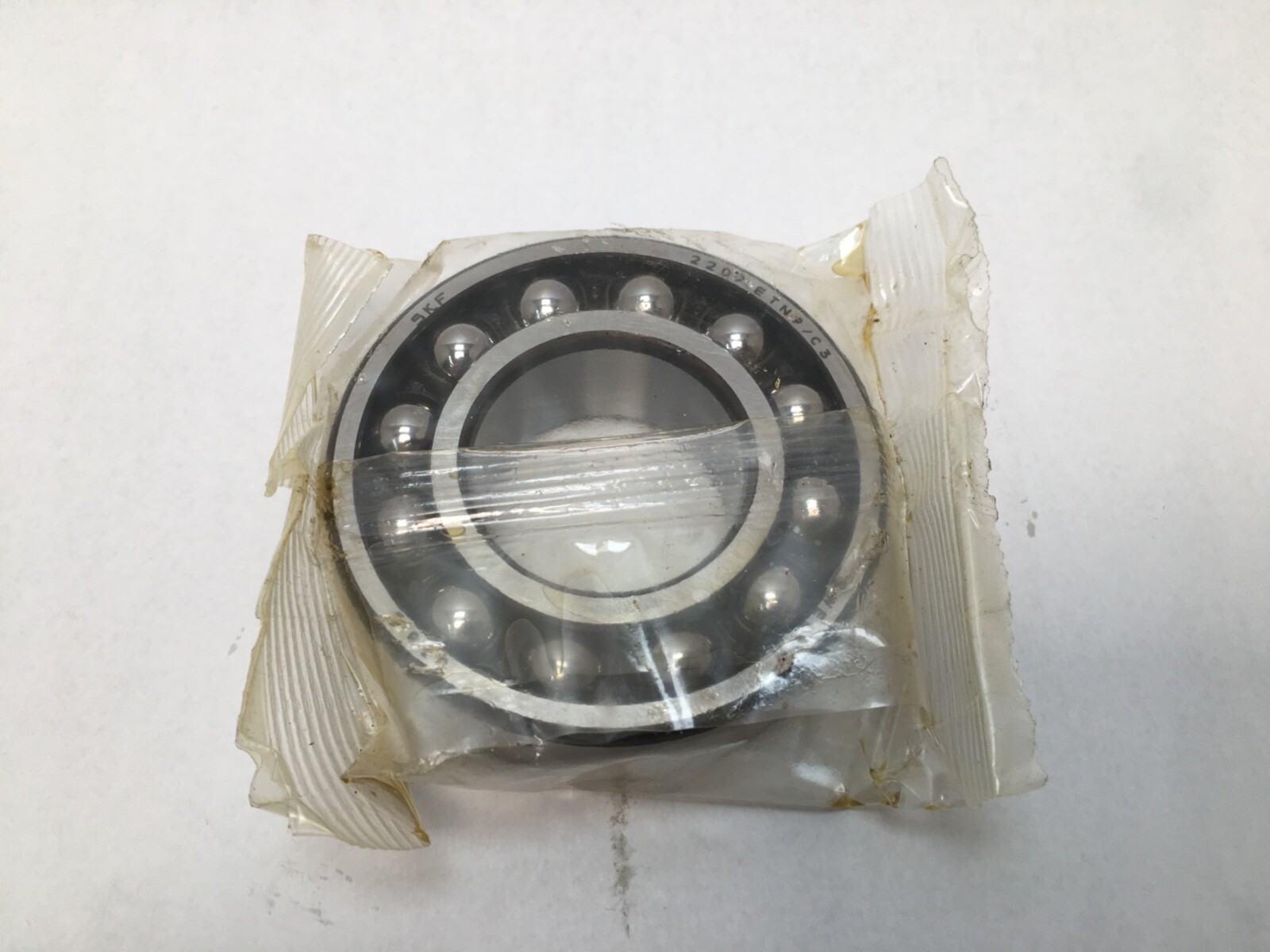

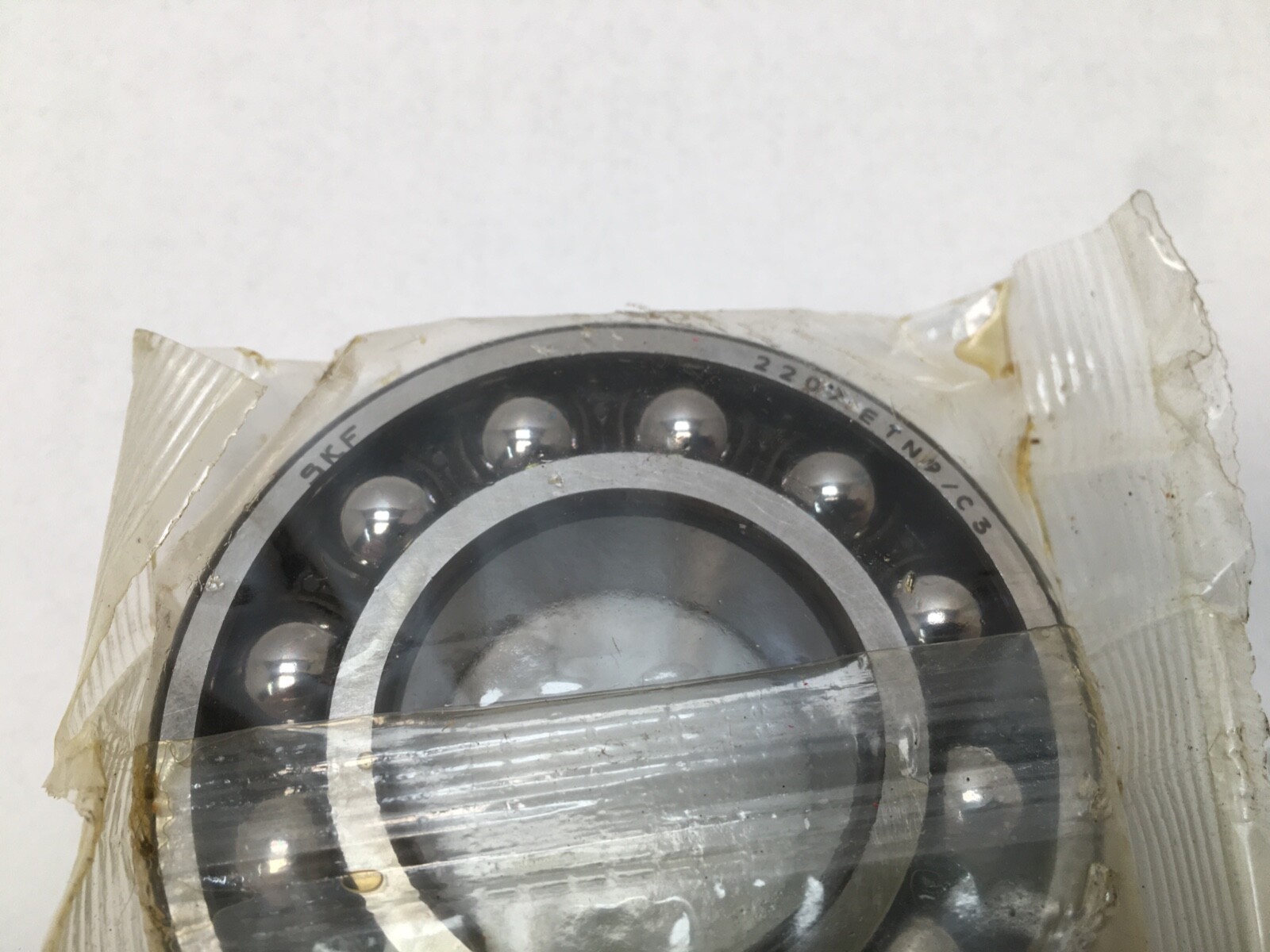

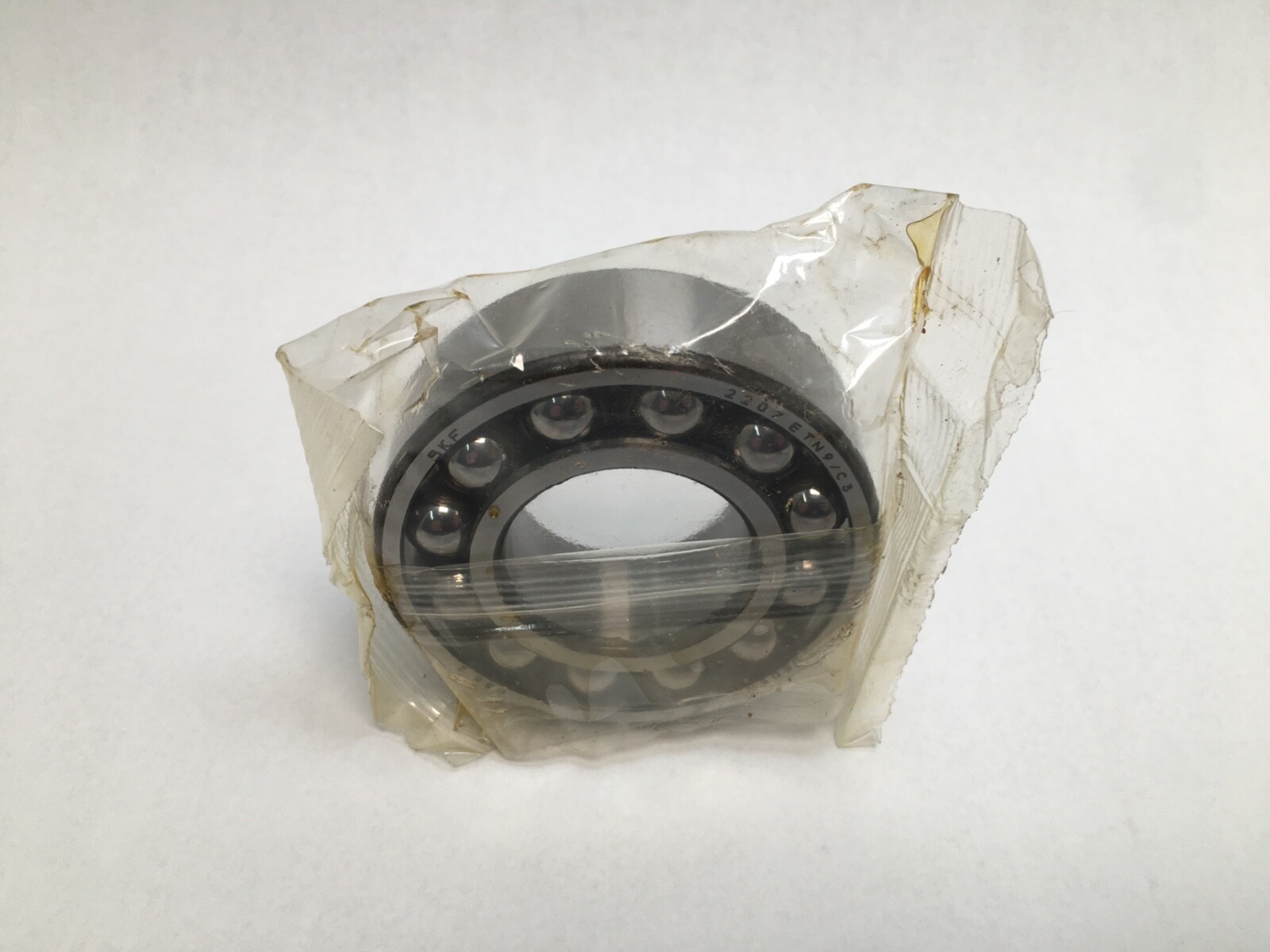

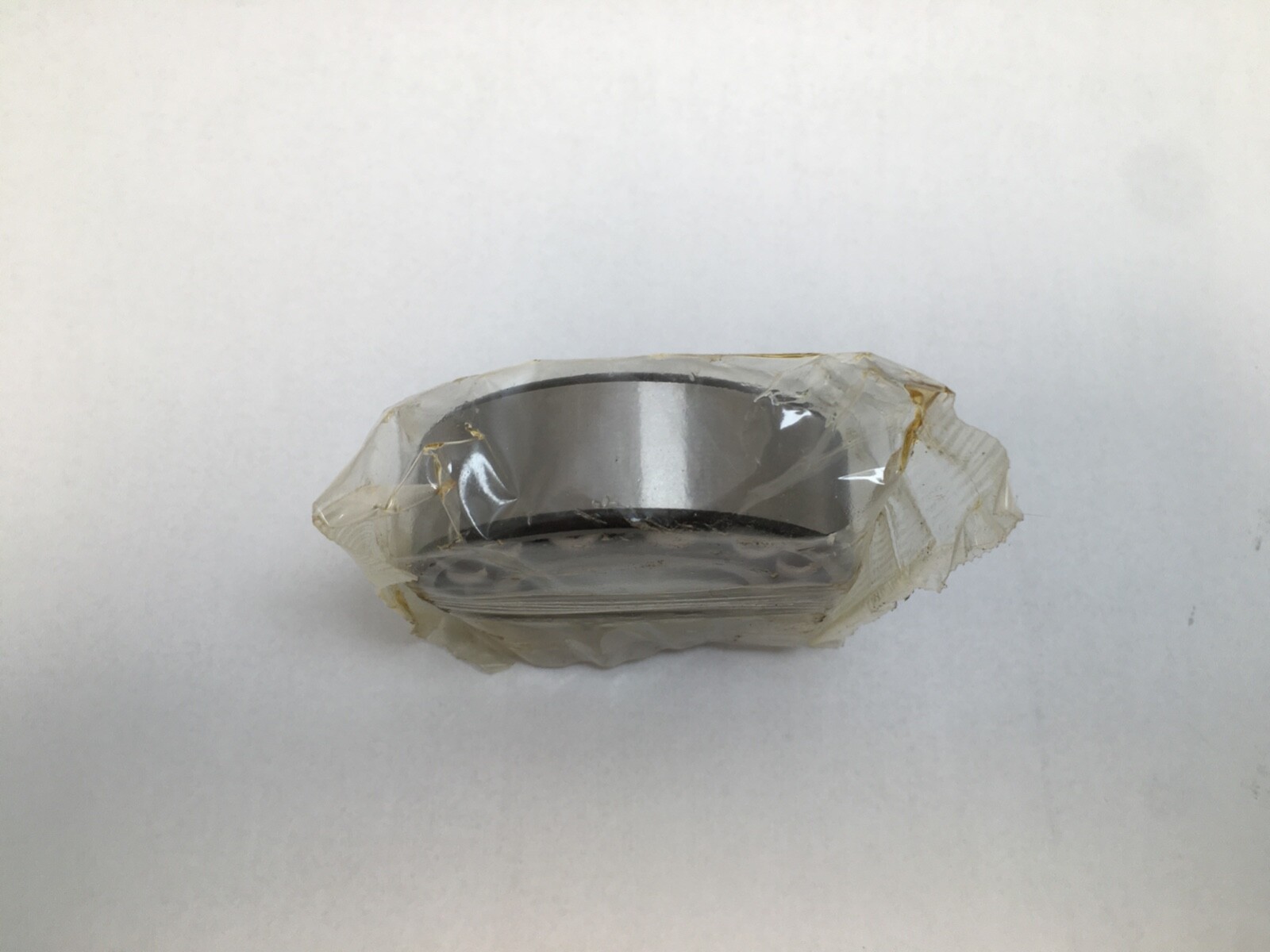

SKF 2207-ETN9/C3 double-row self-aligning ball bearing, SKF E design, with a straight bore, a glass-fibre reinforced polyamide cage and C3 internal clearance. Unit Quantity: 1 Pc. One complete bearing: inner ring, two ball rows with cage, and outer ring.
2207 — ISO self-aligning ball bearing, 22 series, bore code 07: 35 mm bore, 72 mm outside diameter, 23 mm width.
E — SKF E design, the current internal design on this envelope.
TN9 — glass-fibre reinforced polyamide cage.
C3 — radial internal clearance greater than normal.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 23 mm. Rolling Elements: Ball. Number Of Rows: 2. Cage Material: Polyamide, glass-fibre reinforced. Internal Clearance: C3. Closure Type: Open. Bore Type: Straight. Maximum Permissible Misalignment: 2.5°. Harmonization Code: 8482.10.50.
Both ball rows run in a common spherical outer raceway, so the bearing self-aligns to shaft deflection and housing misalignment. The straight bore fits a cylindrical shaft seat. Envelope: 35 x 72 x 23 mm.
Cross-references on the ISO 2207 envelope, straight bore, C3 clearance: FAG 2207-TVH-C3, NSK 2207 C3, NTN 2207 C3, Koyo 2207 C3, SNR 2207 C3.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 23 mm.
Cage Material: Polyamide, glass-fibre reinforced. Internal Clearance: C3.
Maximum Permissible Misalignment: 2.5°.
