Availability:
1 in stock

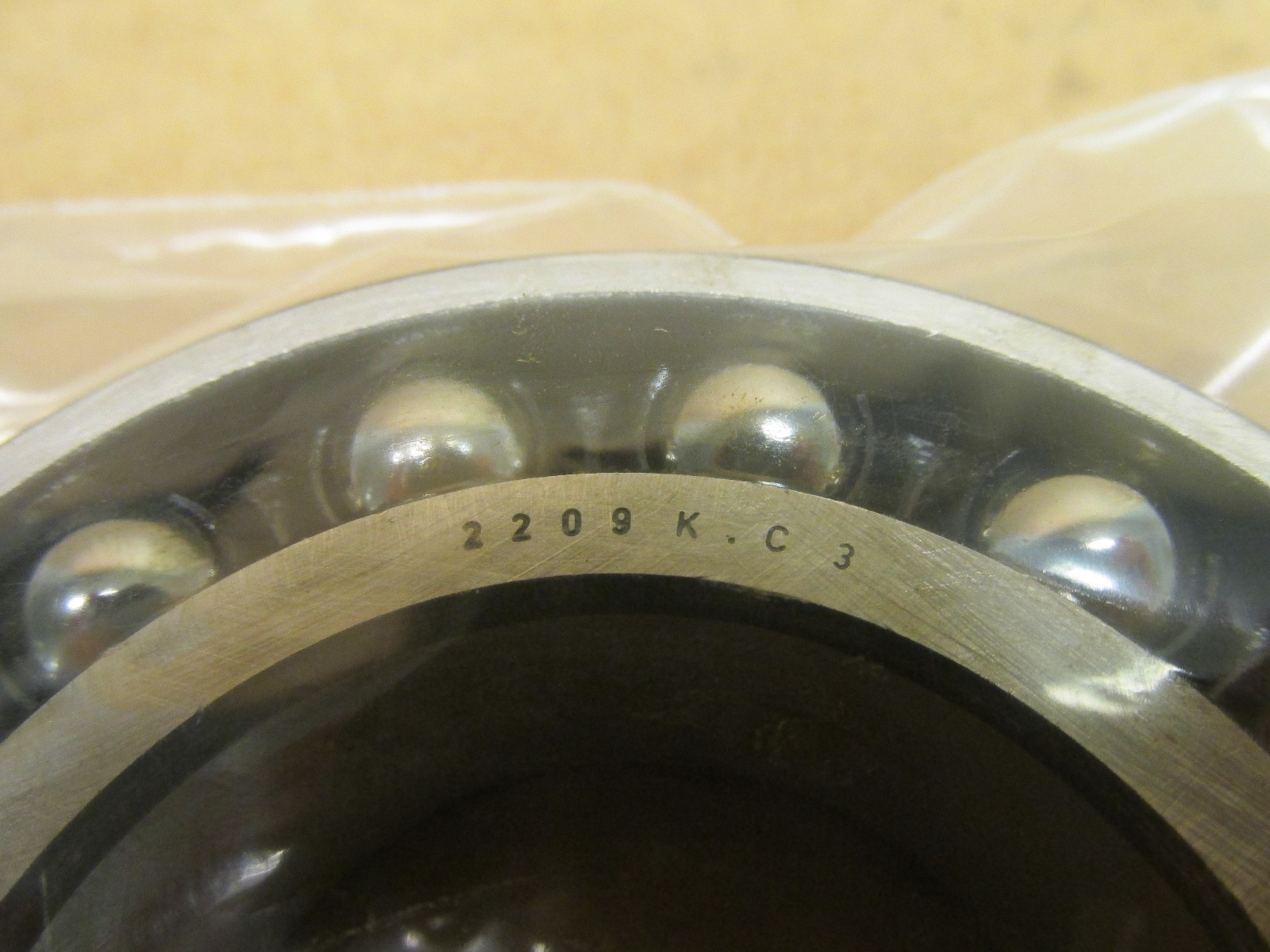

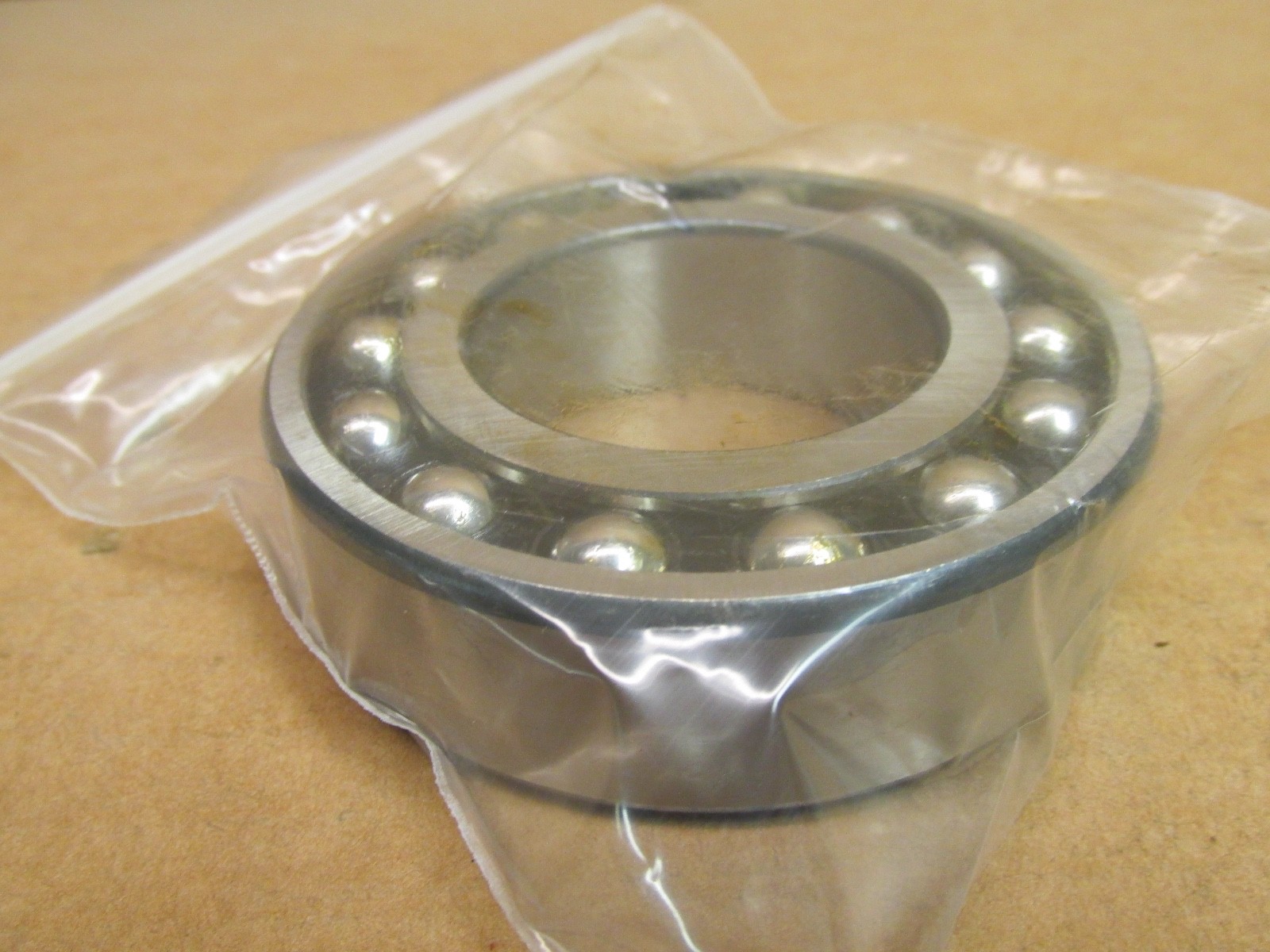

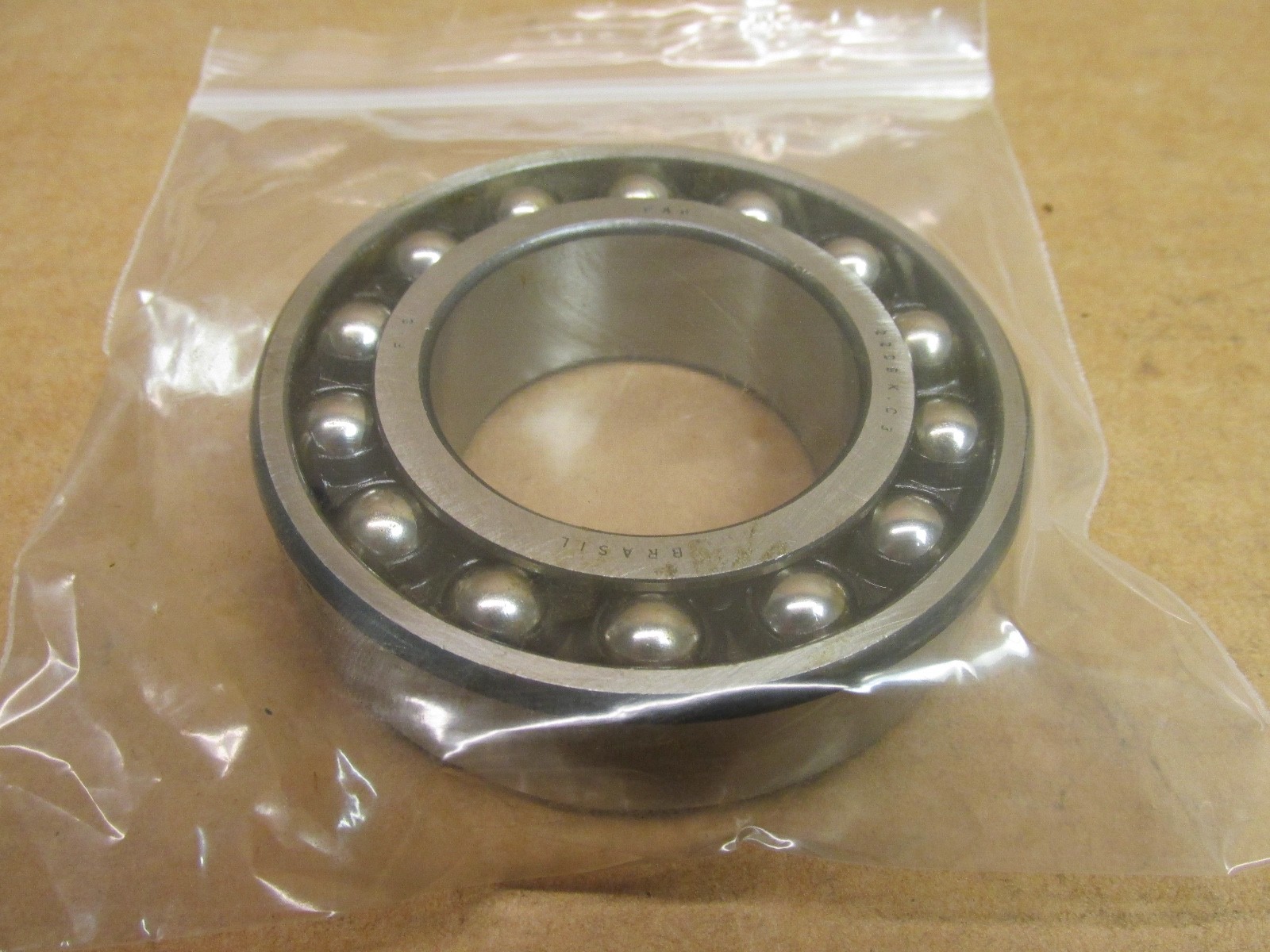

FAG 2209-K-C3 self-aligning ball bearing, 45 mm tapered bore (1:12) x 85 mm OD x 23 mm wide, open, C3 clearance. Mounts on an H309 adapter sleeve.
List Price
$35.51
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 2209 K C3 |
| Model | 2209-K-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Dynamic Load Rating | 28,500 N |
|---|---|
| Static Load Rating | 9,000 N |
| Lubricant | Oil Preservative |
| Series | 2200 |
| Duty Type | Standard |
| Rolling Elements | Ball |
| Item Weight | 0.533 kg (1.18 lb) |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Base Number | 2209 |
| Industry Terms | self-aligning ball bearing, tapered bore bearing, adapter sleeve bearing, 2200 series |
| Common Misspellings | 2209-KC3, 2209K-C3, 229KC3 |
| Application Types | line shafts, fans, conveyors, agricultural machinery |
| Mpn Variants | 2209-K-C3, 2209K C3, 2209KC3, 2209 K C3, 2209 KC3, 2209-K-TVH-C3 |
| Compatible With Replaces | Successor: FAG 2209-K-TVH-C3; adapter sleeve H309 |
| Additional Attributes | Successor 2209-K-TVH-C3 data: Dynamic Load Rating, Static Load Rating, Limiting Speed and Item Weight rows carry Schaeffler figures for 2209-K-TVH-C3. Adapter sleeve H309. |
| Limiting Speed | 8,600 rpm |
| Cross Reference 1 | SKF 2209 EKTN9/C3 |
|---|---|
| Cross Reference 2 | NSK 2209KC3 |
| Cross Reference 3 | Koyo 2209KC3 |
| Cross Reference 5 | Koyo 2209KC3 |
FAG 2209-K-C3 double-row self-aligning ball bearing with a 1:12 tapered bore and C3 clearance, open. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. The spherical outer-ring raceway accommodates static shaft misalignment and shaft deflection.
22 — FAG 22 series, wide light-section self-aligning ball bearing.
09 — bore code; 09 × 5 = 45 mm bore.
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.
The current Schaeffler successor is 2209-K-TVH-C3, with a glass-fibre reinforced polyamide cage.
Successor 2209-K-TVH-C3 data: Dynamic Load Rating: 28,500 N. Static Load Rating: 9,000 N. Limiting Speed: 8,600 rpm. Item Weight: 0.533 kg (1.18 lb). Internal Clearance: C3. Rolling Elements: Ball. Number Of Rows: 2.
Adapter sleeve: H309 (40 mm shaft). Successor 2209-K-TVH-C3 data: Minimum shaft shoulder diameter: 52 mm. Maximum housing shoulder diameter: 78 mm. Maximum fillet radius: 1 mm.
Same 45 x 85 x 23 mm tapered-bore C3 envelope: SKF 2209 EKTN9/C3, NSK 2209KC3, Koyo 2209KC3. Schaeffler successor: FAG 2209-K-TVH-C3.
