RHP7011-E-T-DUM-P4Angular Contact Ball Bearing, 55 mm ID, 90 mm OD, 18 mm Width, 25° Contact Angle, Medium Preload, ABEC 7.

Product Description

What this part is:

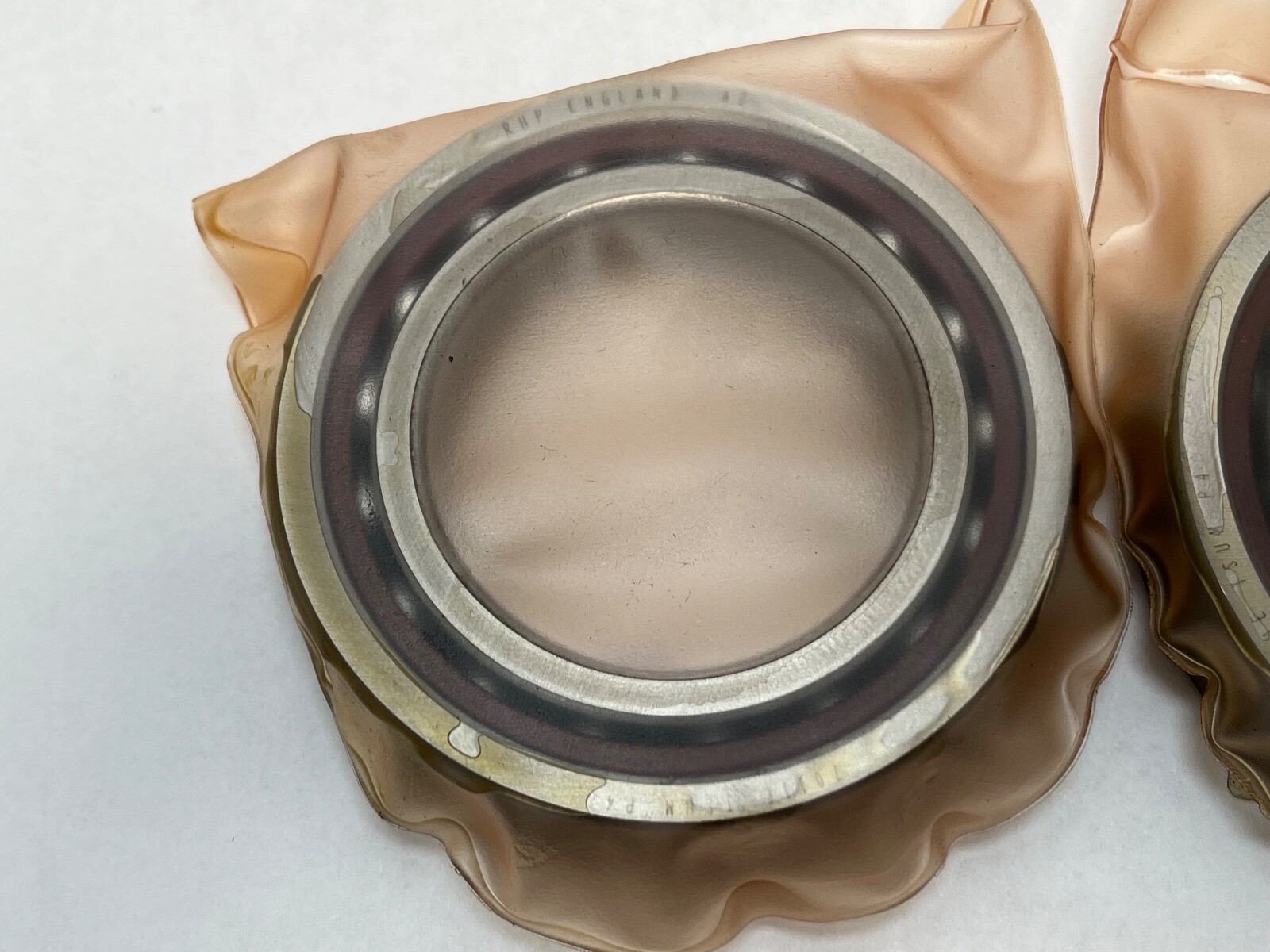

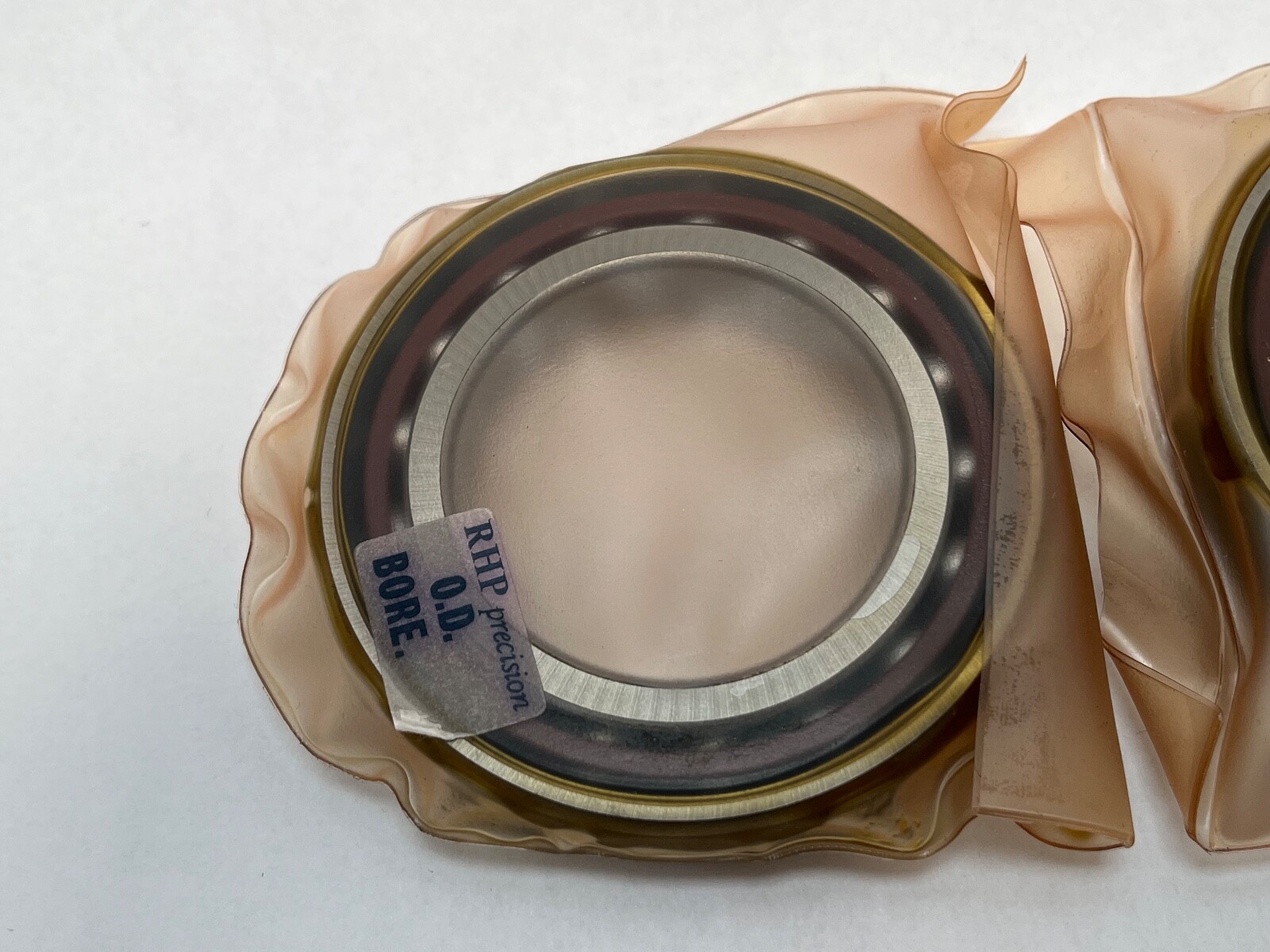

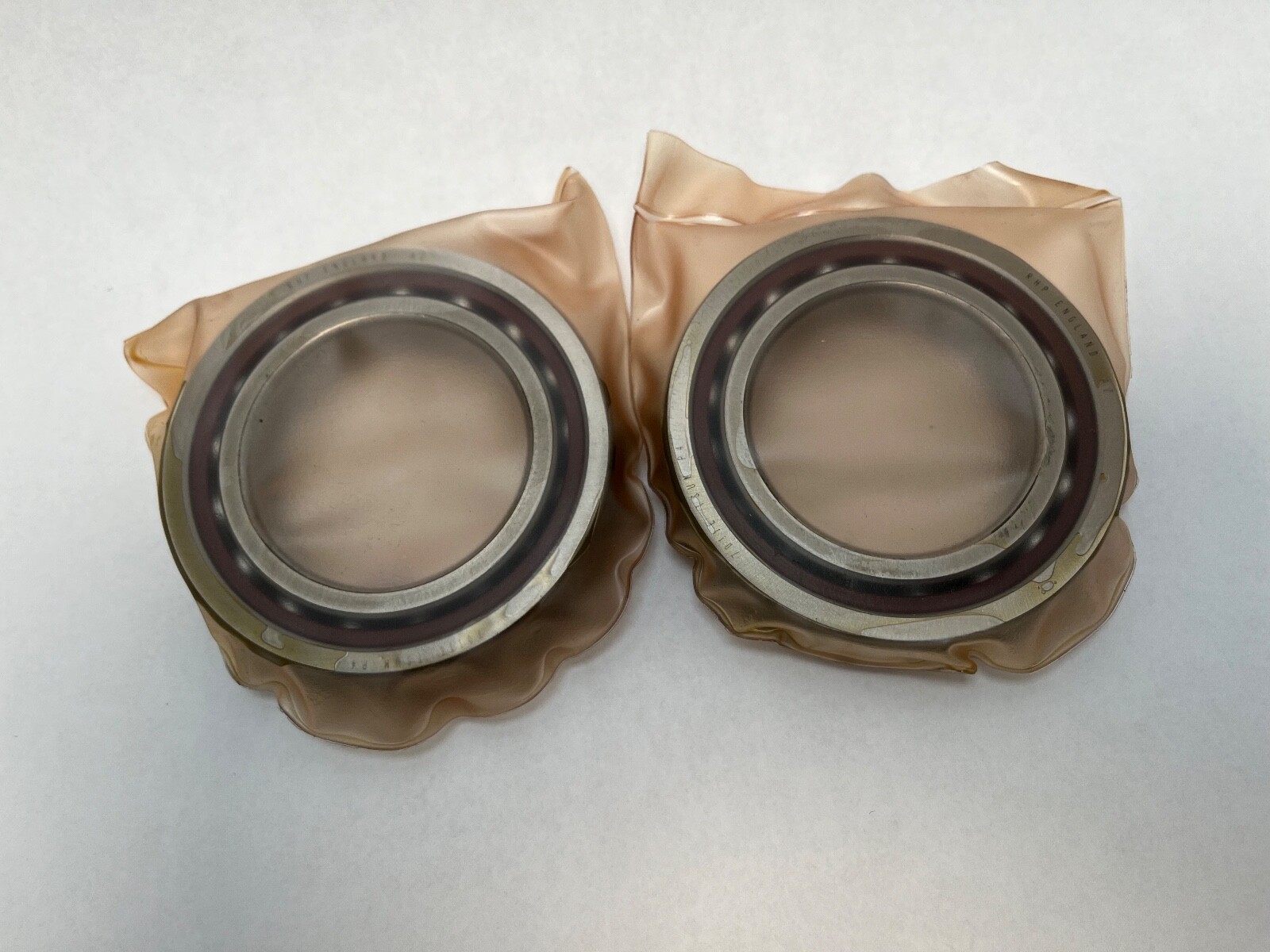

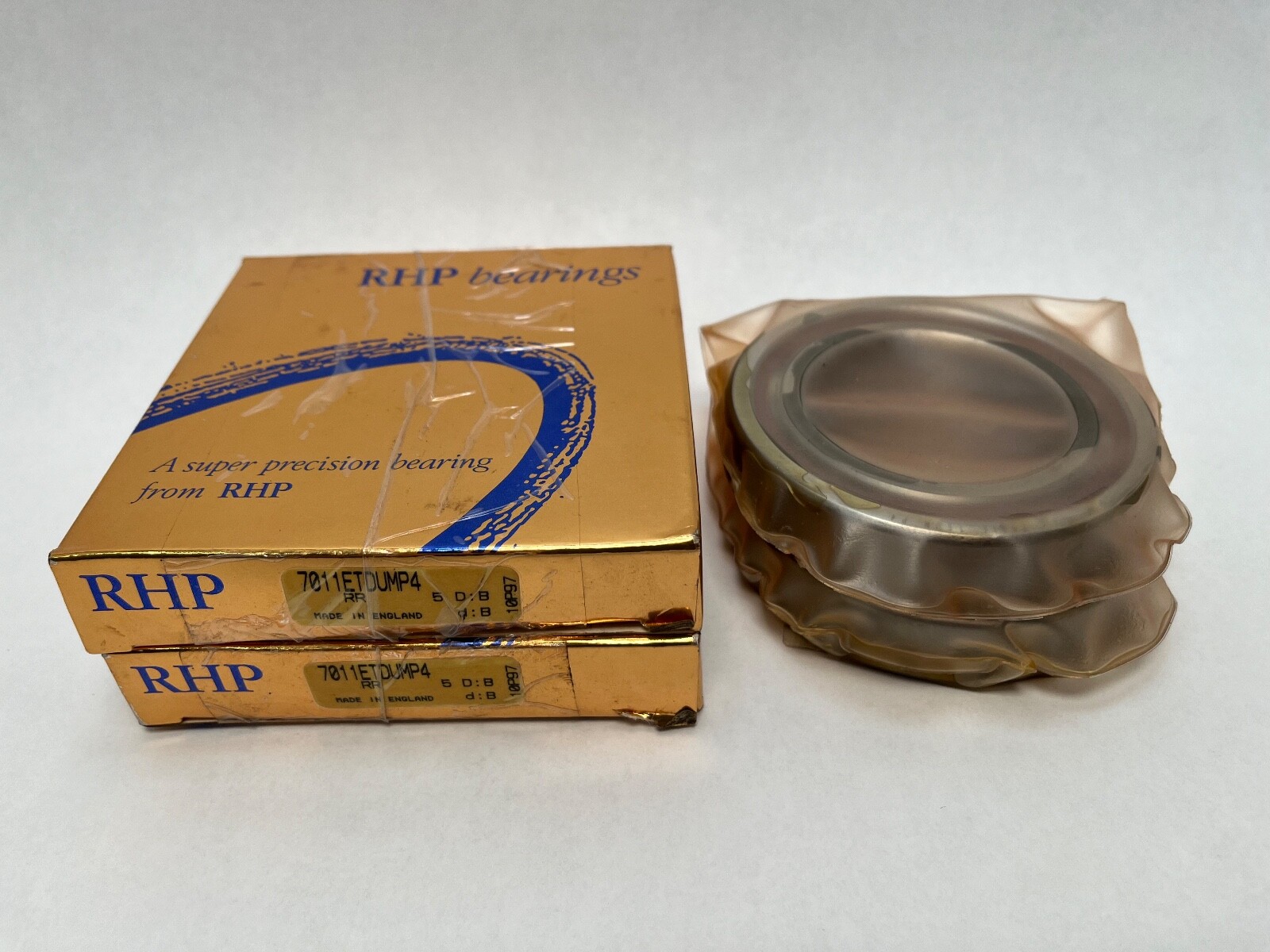

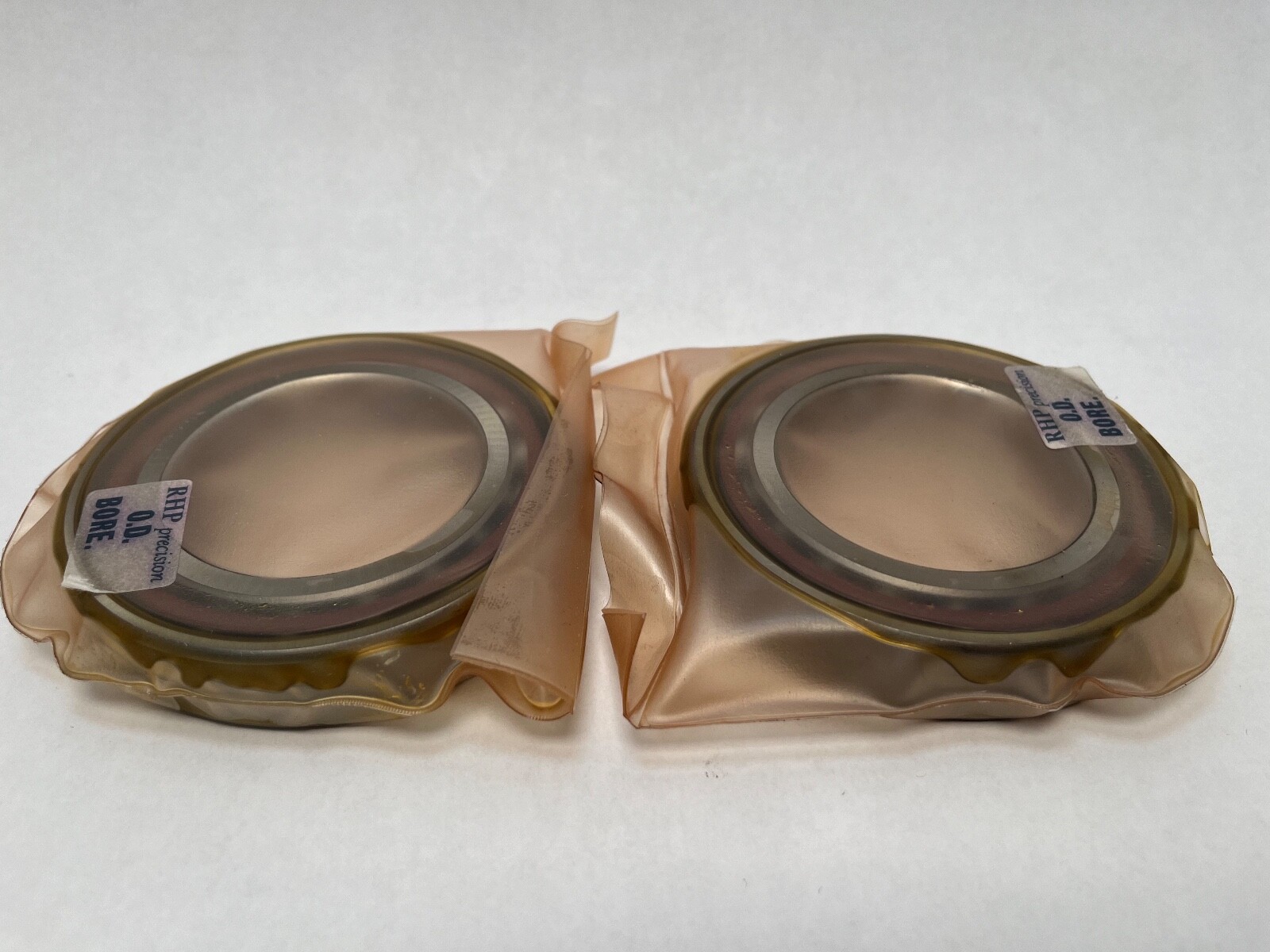

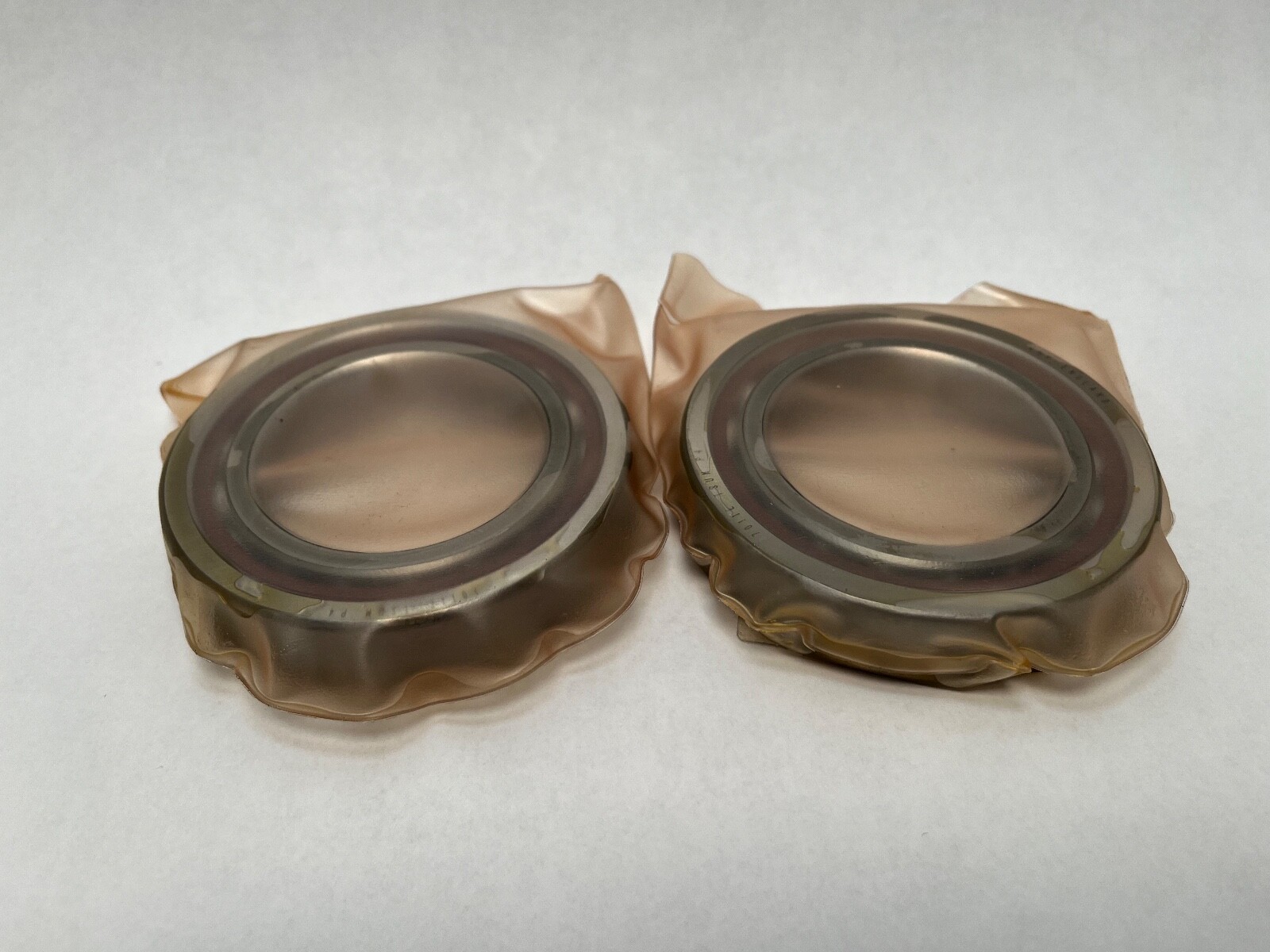

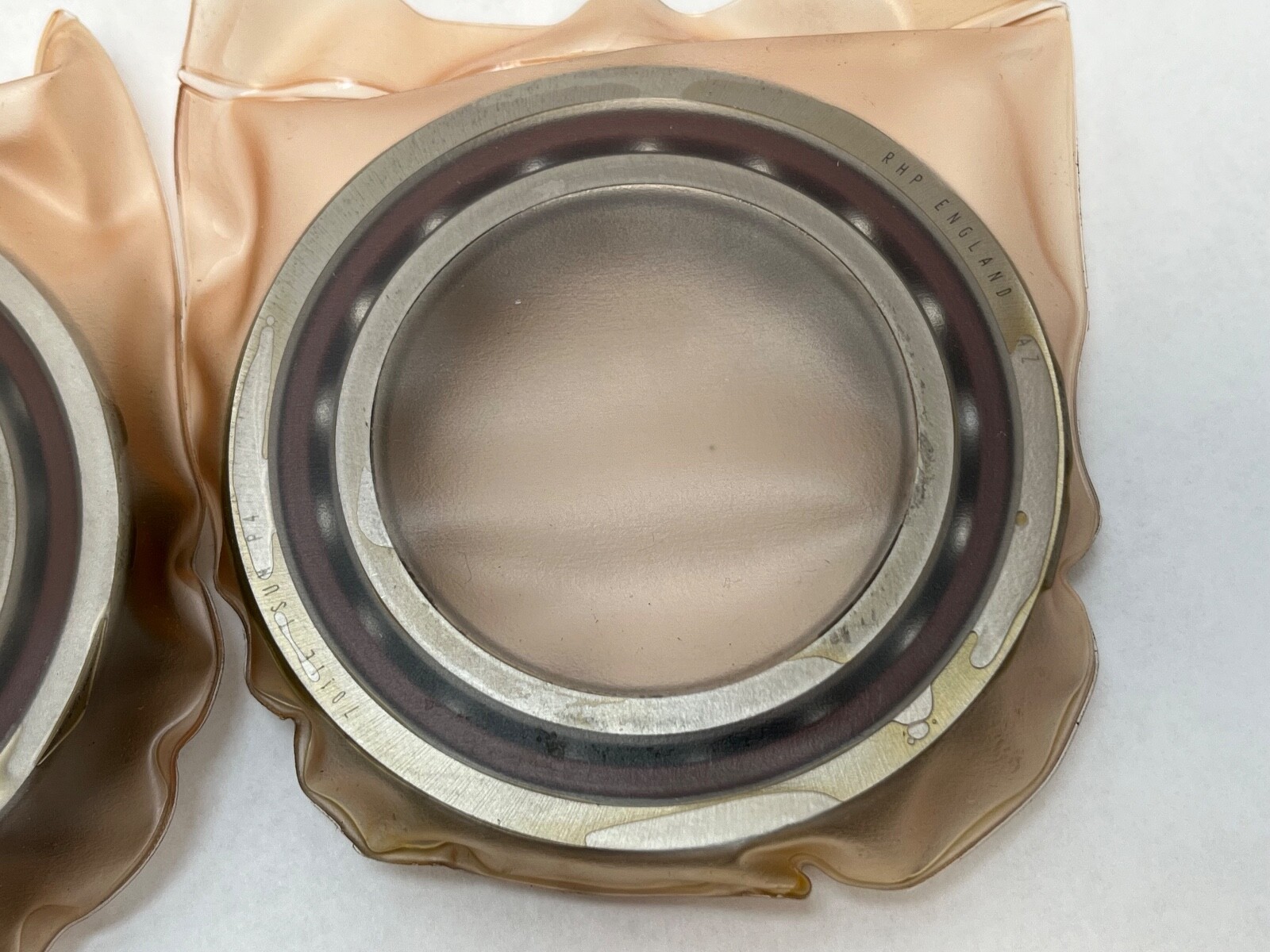

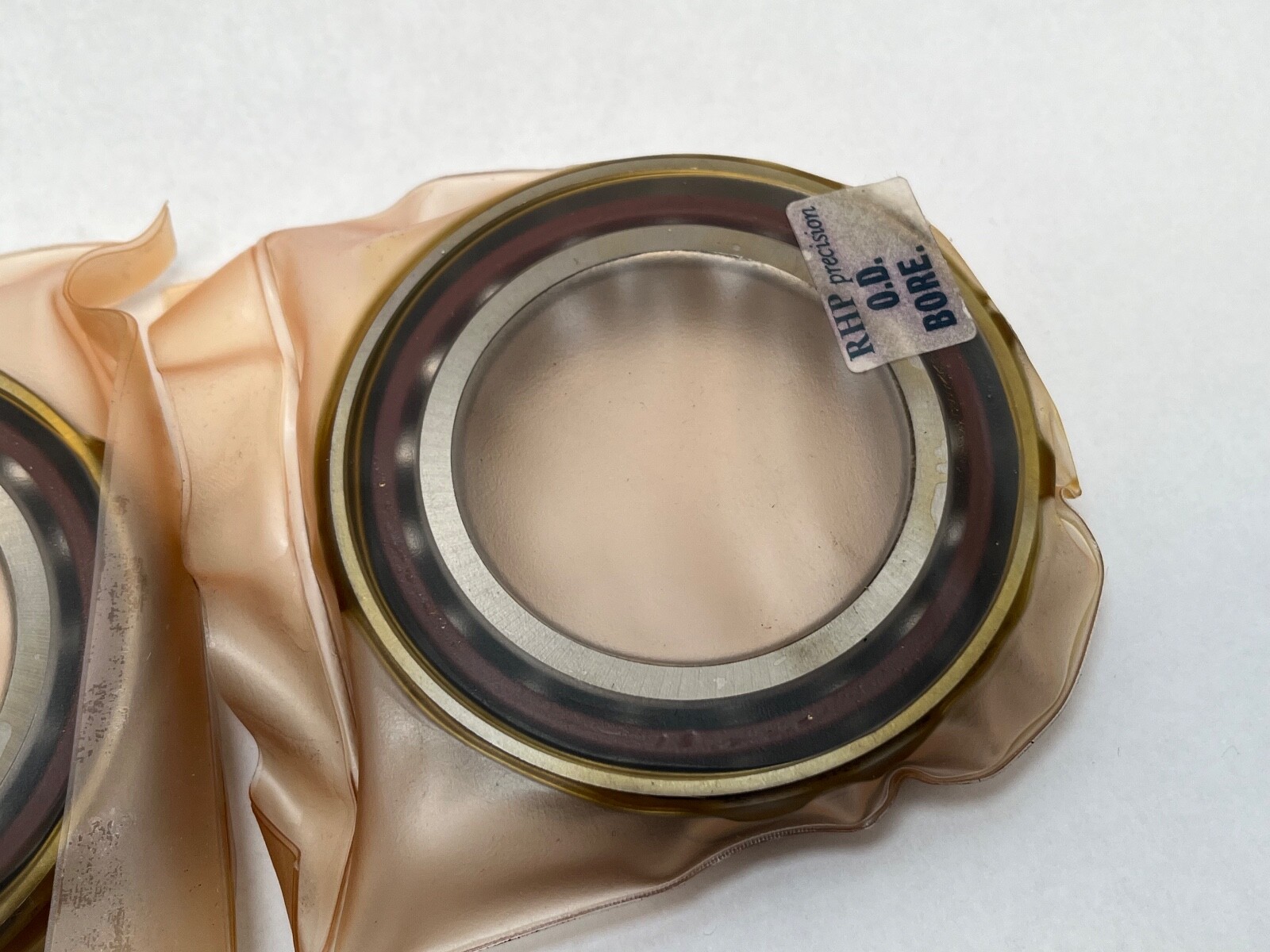

RHP 7011-E-T-DUM-P4 is a matched pair of two super-precision single-row angular contact ball bearings. Each bearing is 55 mm bore, 90 mm outside diameter and 18 mm wide, 36 mm across the assembled pair, with a 25° contact angle, open faces, a phenolic cage and medium preload. Unit Quantity: 2 Pcs. The carton also carries B7011X3-TA-DUM-EP7 and Fafnir 3MM9111WI-CR-DUM.

Decoding the designation:

7011 — ISO 7011 size, 55 x 90 x 18 mm.

E — 25° contact angle in the RHP scheme.

T — phenolic cage.

DUM — universally matchable duplex pair, M = medium preload.

P4 — ABEC 7 precision class.

B7011X3-TA-DUM-EP7 — RHP B-series carton designation: X3 = 25° contact angle, TA = outer-ring-centred phenolic cage, DUM = universally matchable duplex pair at medium preload, EP7 = ABEC 7.

Specifications:

Bore Diameter: 55 mm. Outside Diameter: 90 mm. Width: 18 mm per bearing, 36 mm assembled pair. Contact Angle: 25°. Preload: Medium. Precision Class: P4 (ABEC 7). Cage Material: Phenolic. Closure Type: Open. Number Of Rows: 1 per bearing. Unit Quantity: 2 Pcs. Country of Origin: United Kingdom.

Dimensions and mounting:

Universally matchable duplex construction: the pair mounts back-to-back, face-to-face or in tandem, and the ground faces set the medium preload when clamped. The preload-set pair carries no internal clearance class.

Compatibility and replacement:

Cross-references: SKF 7011 ACD/P4ADGC (medium preload), FAG B7011-E-T-P4S-DUM, Fafnir 3MM9111WI-CR-DUM. SKF 7011 CD/P4A shares the 55 x 90 x 18 mm envelope at a 15° contact angle.

Frequently asked questions:

What are the size and contact angle of the RHP 7011-E-T-DUM-P4?

Each bearing is 55 mm bore, 90 mm outside diameter and 18 mm wide, with a 25° contact angle.

How many bearings are included?

Two bearings supplied as one matched DUM pair.

What do the E, T, DUM and P4 codes mean?

E is a 25° contact angle, T is a phenolic cage, DUM is a universally matchable duplex pair at medium preload, and P4 is the ABEC 7 precision class.
