Single-row cylindrical roller bearing, 45 x 85 x 19 mm, N design for free axial displacement. Machined brass cage, C2 clearance, P4 precision.
List Price
$75.90
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | N209MCC2P4 |
| Model | N 209 M C C2 P4 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Condition | New |
|---|---|
| Material | Bearing Steel |
| Series | N200 |
| Base Number | N209 |
| Mpn Variants | N 209 M C C2 P4 / N-209-M-CC2-P4 / N209M / N209 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Raceway diameter of outer ring 75 mm; chamfer 1.1 mm min; shaft abutment 51.5 mm min; housing abutment 77-78.5 mm; fillet radius 1 mm max |
| Min Temp | -30°C |
| Cage Type | Machined |
| Dynamic Load Rating | 56.5 kN / 12700 lbf |
| Static Load Rating | 47.0 kN / 10565 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Cylindrical Rollers |
| Max Temp | 120°C |
| Item Weight | 1.05 lbs |
| Cage Material | Brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Internal Clearance | C2 |
| Relubrication Feature | Not specified |
| Expansion Type | Non-locating, free axial displacement |
| Bearing Material | Bearing Steel |
| Running Accuracy | P4 |
| Part Number | N209MCC2P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Cross Reference 1 | SKF N 209 ECP |
|---|---|
| Cross Reference 2 | FAG N209-E-M1 |

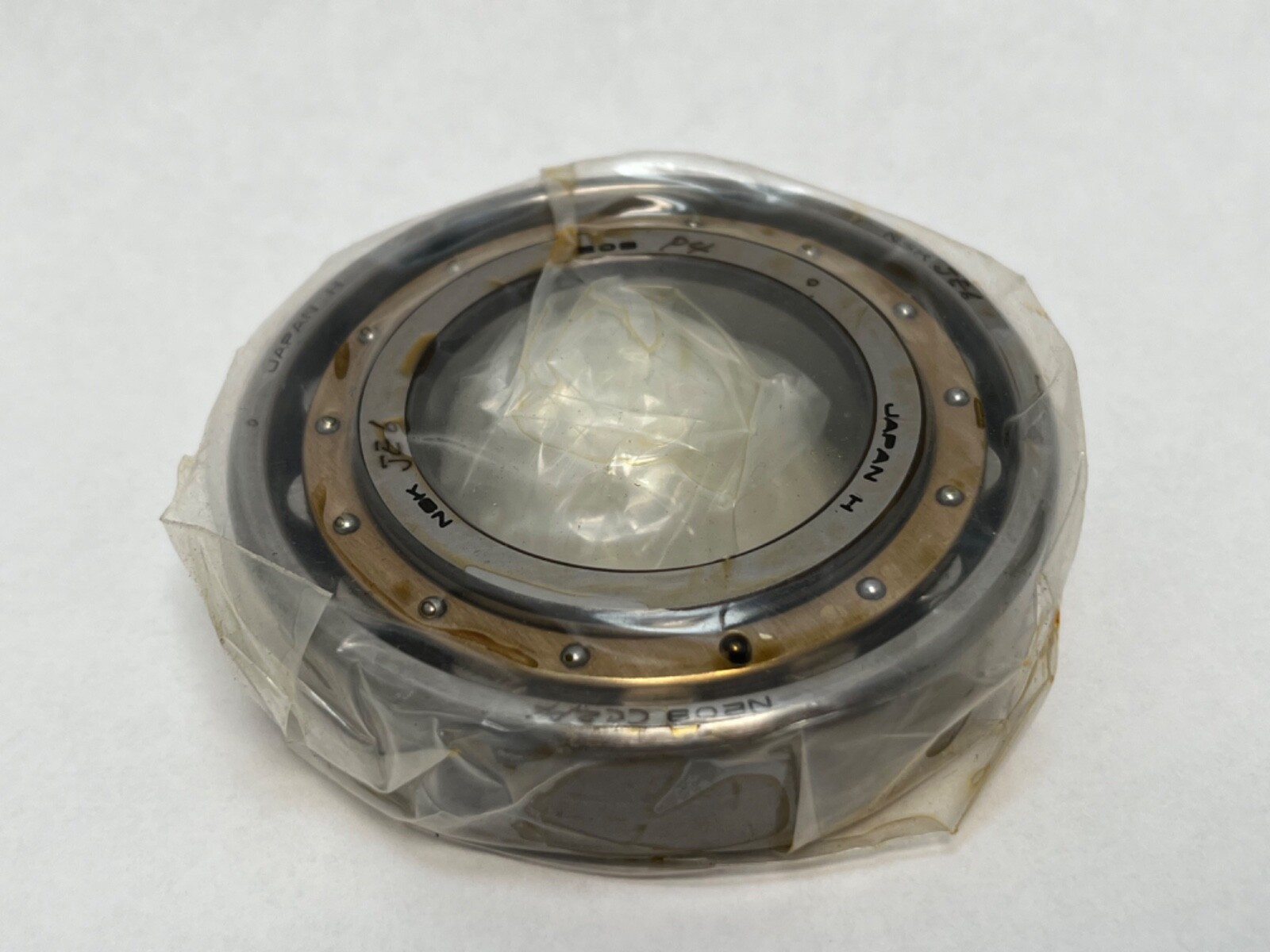

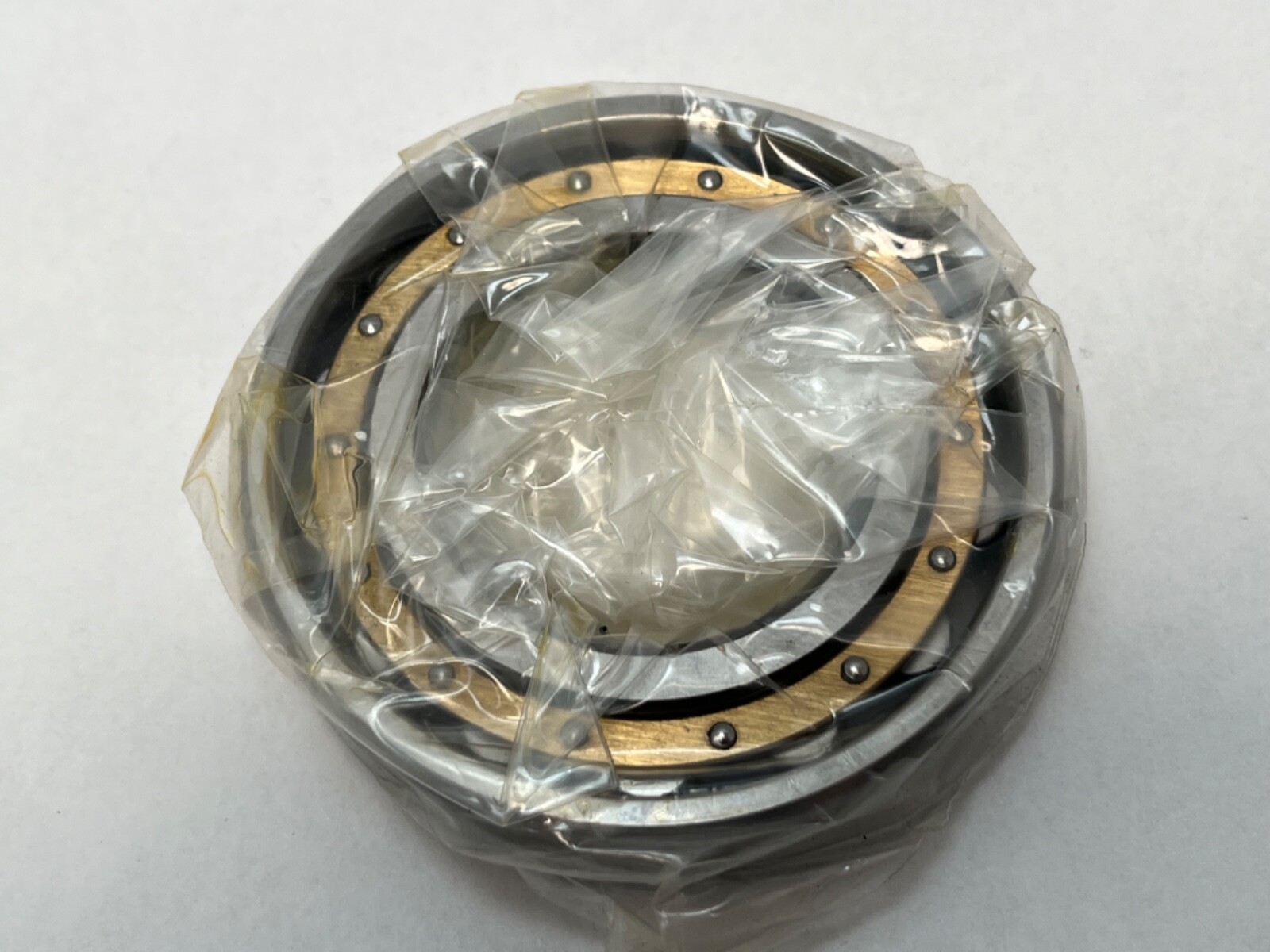

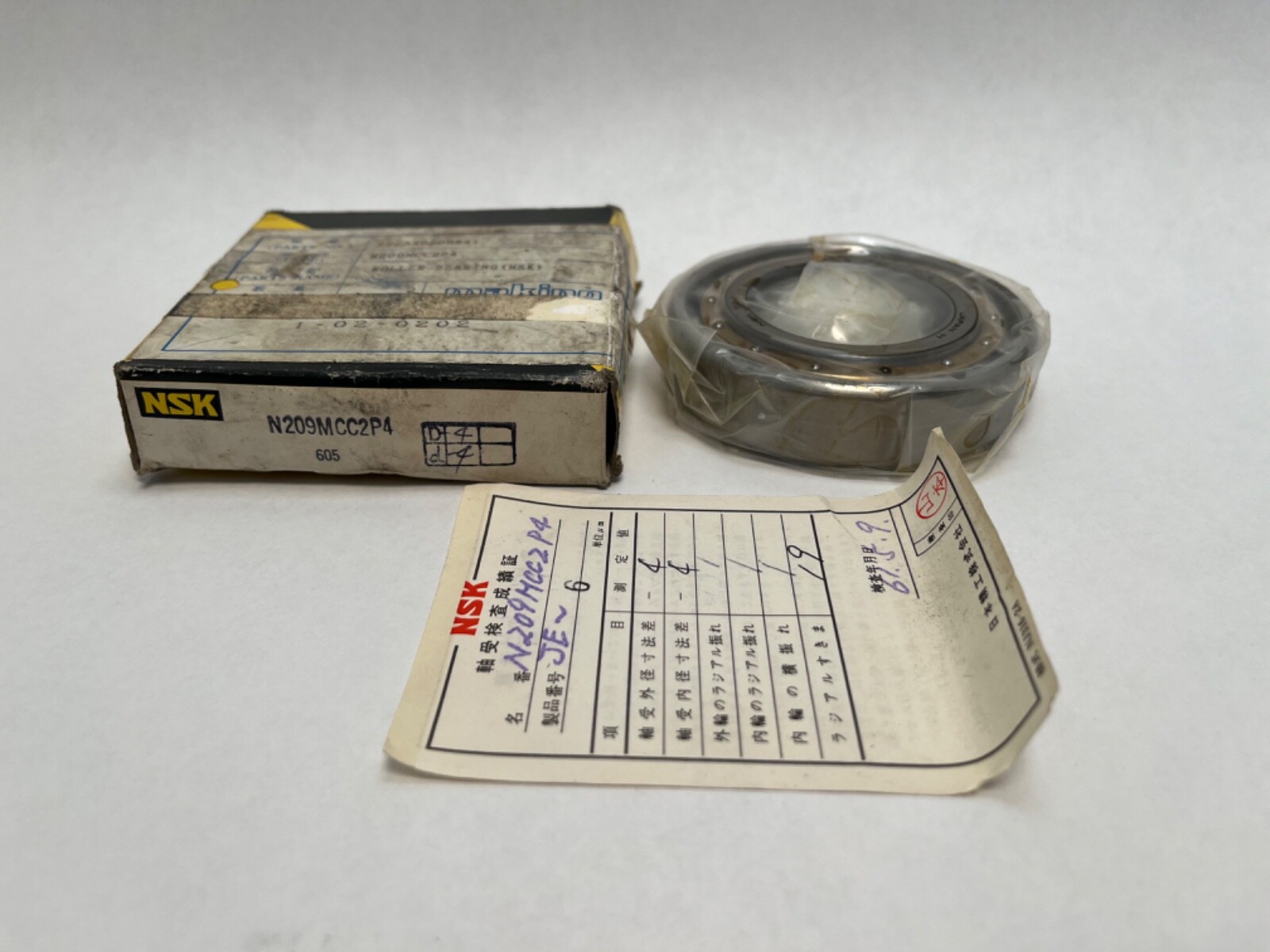

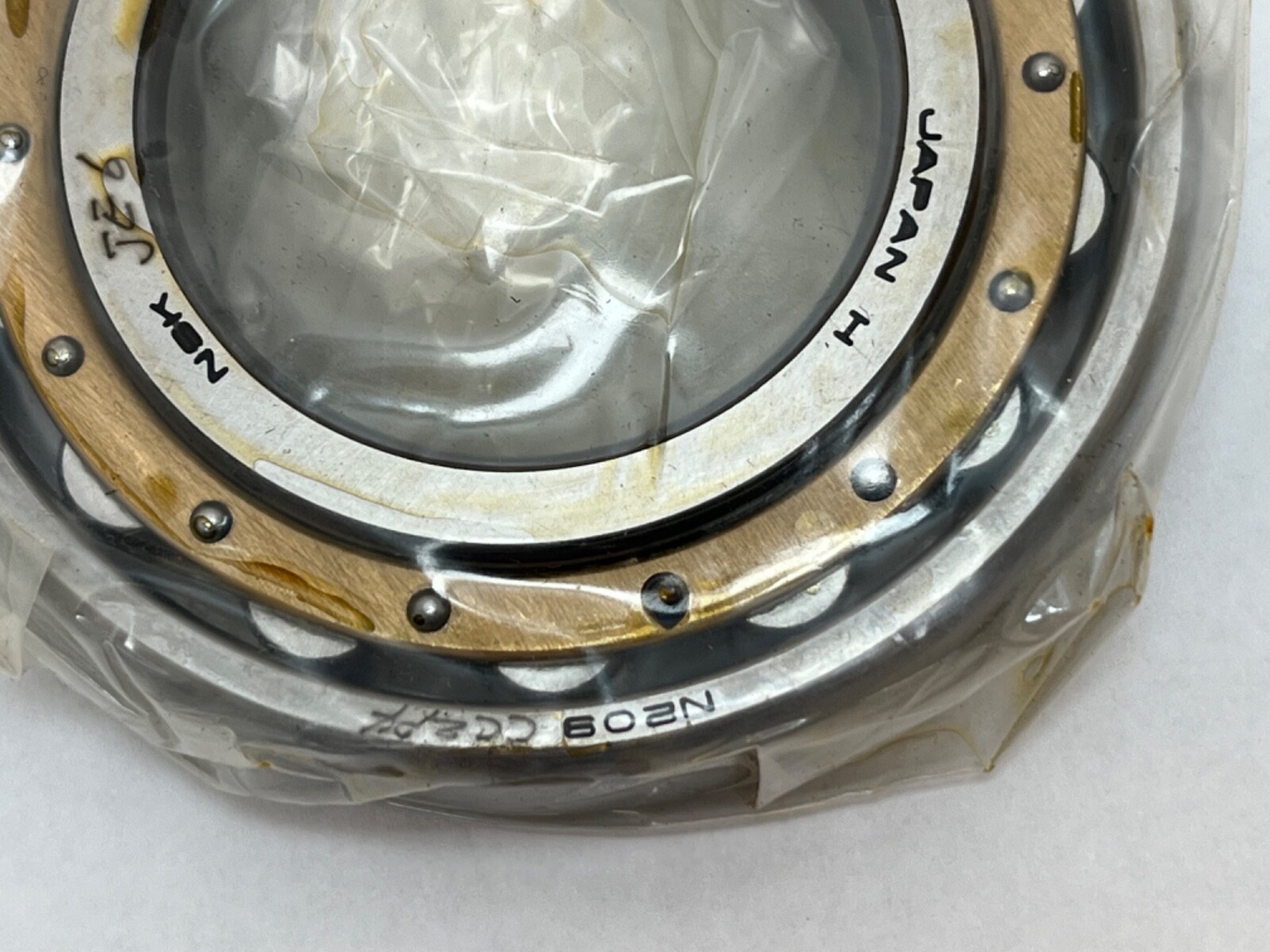

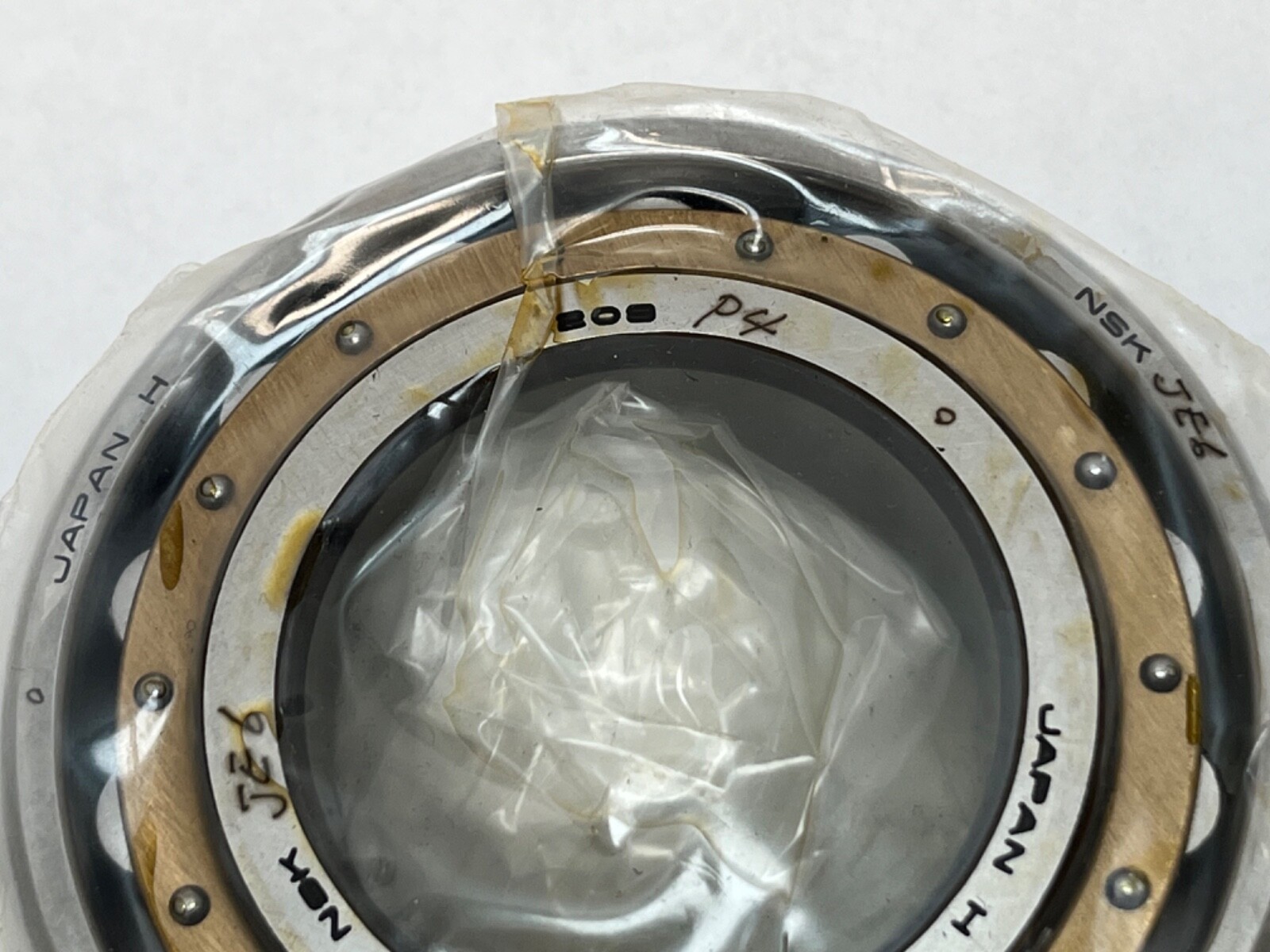

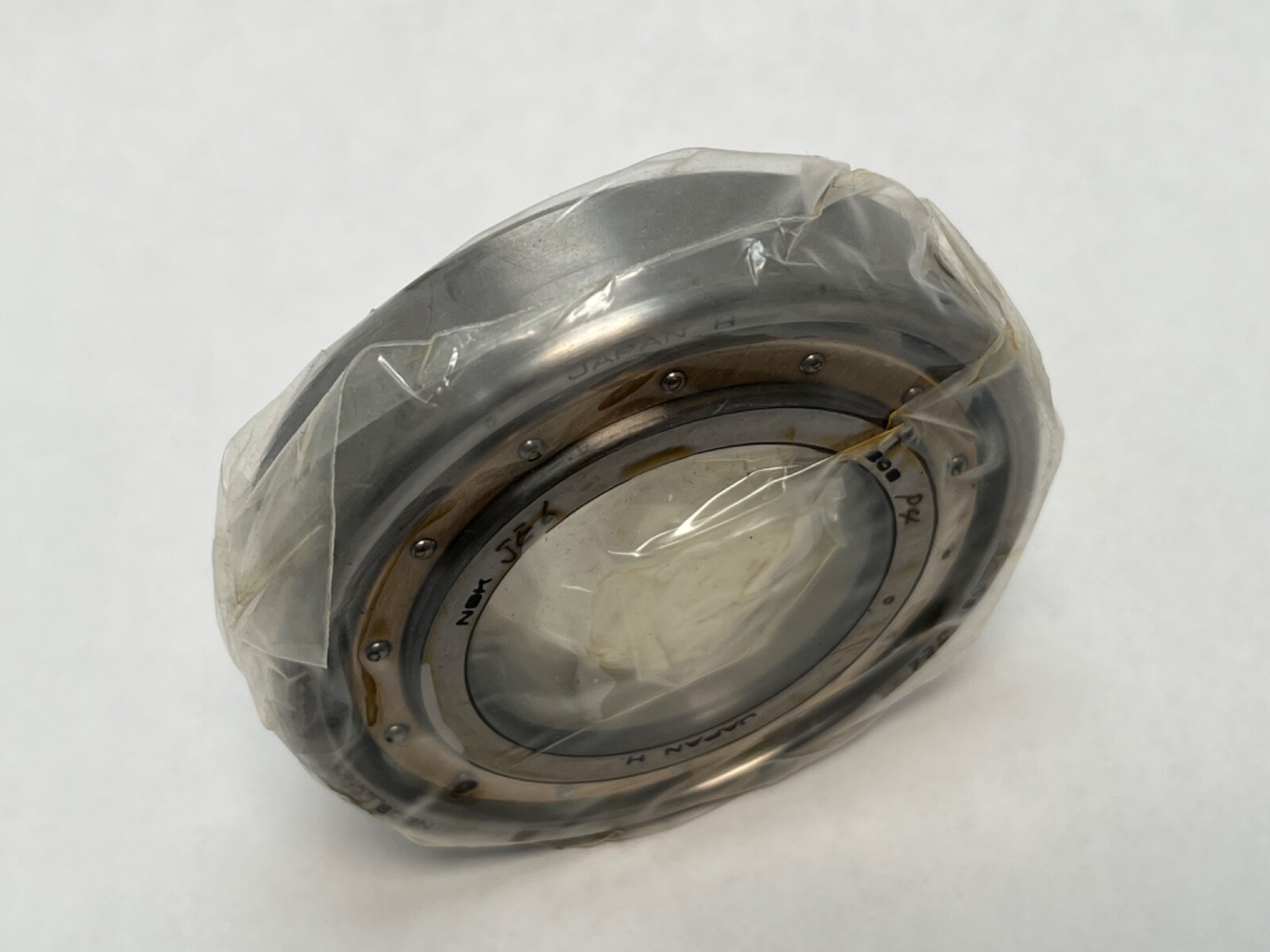

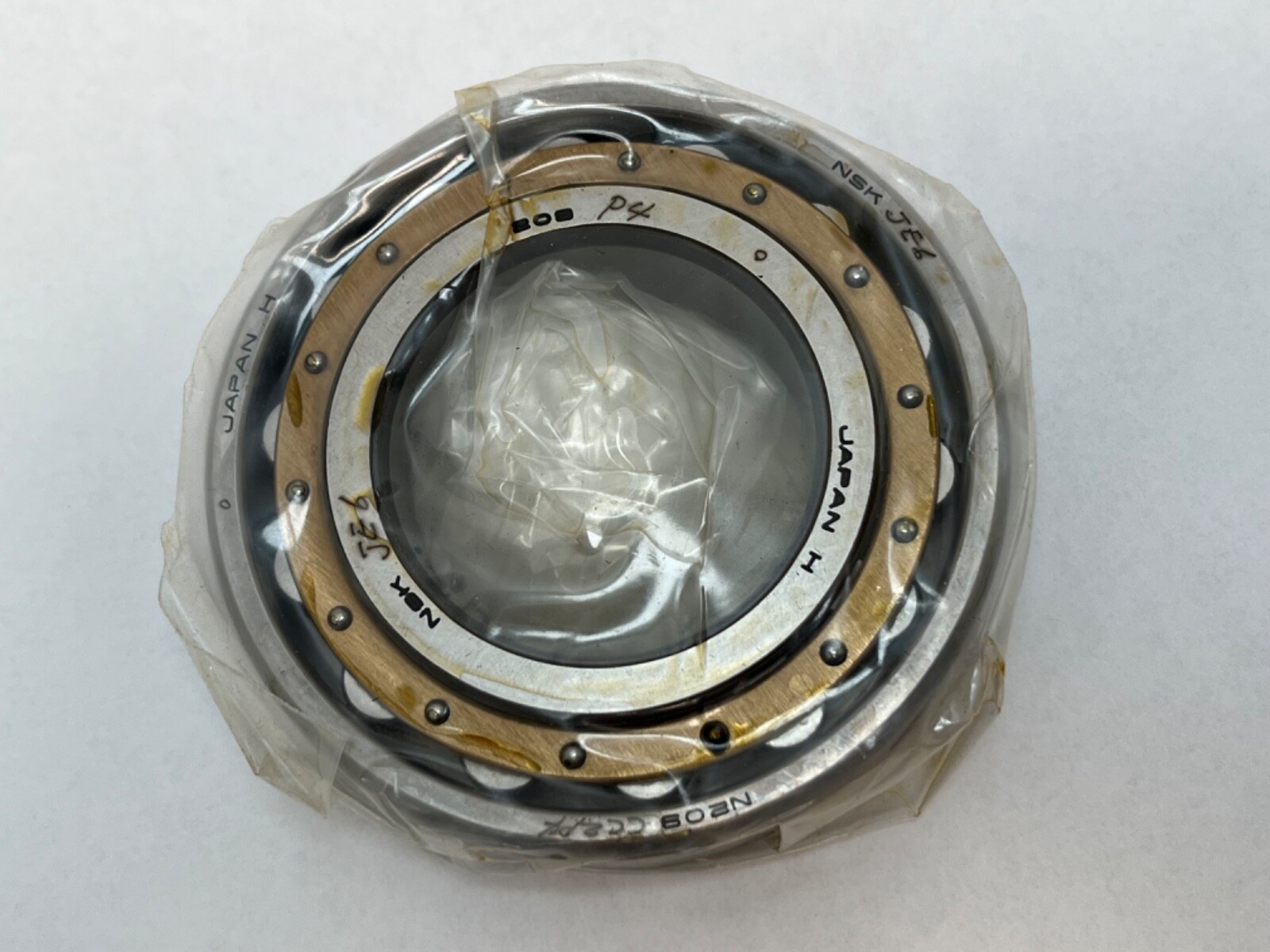

NSK N209MCC2P4 single-row cylindrical roller bearing. Brand: NSK. Manufacturer Part Number: N209MCC2P4. Bearing Type: Cylindrical roller bearing, N design. Series: N200. Bore: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Cylindrical rollers. Country of Origin: Japan.
Cage Type: Machined. Cage Material: Brass. Internal Clearance: C2. Precision Class: ABEC 7 / P4. Running Accuracy, radial and axial runout: P4. Searchable designation variants: N209MCC2P4, N 209 M C C2 P4, N209M, N209.
Dynamic Load Rating: 56.5 kN (12,700 lbf). Static Load Rating: 47.0 kN (10,565 lbf). Limiting Speed, grease lubrication: 7,500 rpm. Limiting Speed, oil-bath lubrication: 9,000 rpm. Item Weight: 1.05 lb (0.476 kg). Line contact between roller and raceway gives a cylindrical roller several times the radial capacity of a ball bearing on the same envelope. An N design carries ribs on the outer ring only, so the inner ring and roller set travel axially relative to the outer ring: the bearing takes radial load and lets the shaft expand. C2 is a tighter radial internal clearance than normal, which raises radial stiffness and reduces runout. ABEC 7 / P4 holds bore, outside-diameter and runout tolerances to machine-tool spindle limits.
Bearing Material: Bearing steel. Cage Material: Brass, machined. Raceway Diameter Of Outer Ring: 75 mm. Chamfer Dimension: 1.1 mm minimum.
Diameter Of Shaft Abutment: 51.5 mm minimum. Diameter Of Housing Abutment: 77 mm minimum to 78.5 mm maximum. Radius Of Shaft Or Housing Fillet: 1 mm maximum.
Unit Quantity: 1 Pc. One single bearing, open, straight bore, with a separable outer ring.
Cross-Reference 1: SKF N 209 ECP. Cross-Reference 2: FAG N209-E-M1. Both share the 45 x 85 x 19 mm envelope and the N axial-displacement design. An NU, NJ or NUP design on the same envelope locates the shaft axially and is a related size rather than a substitution.
