Availability:
1 in stock

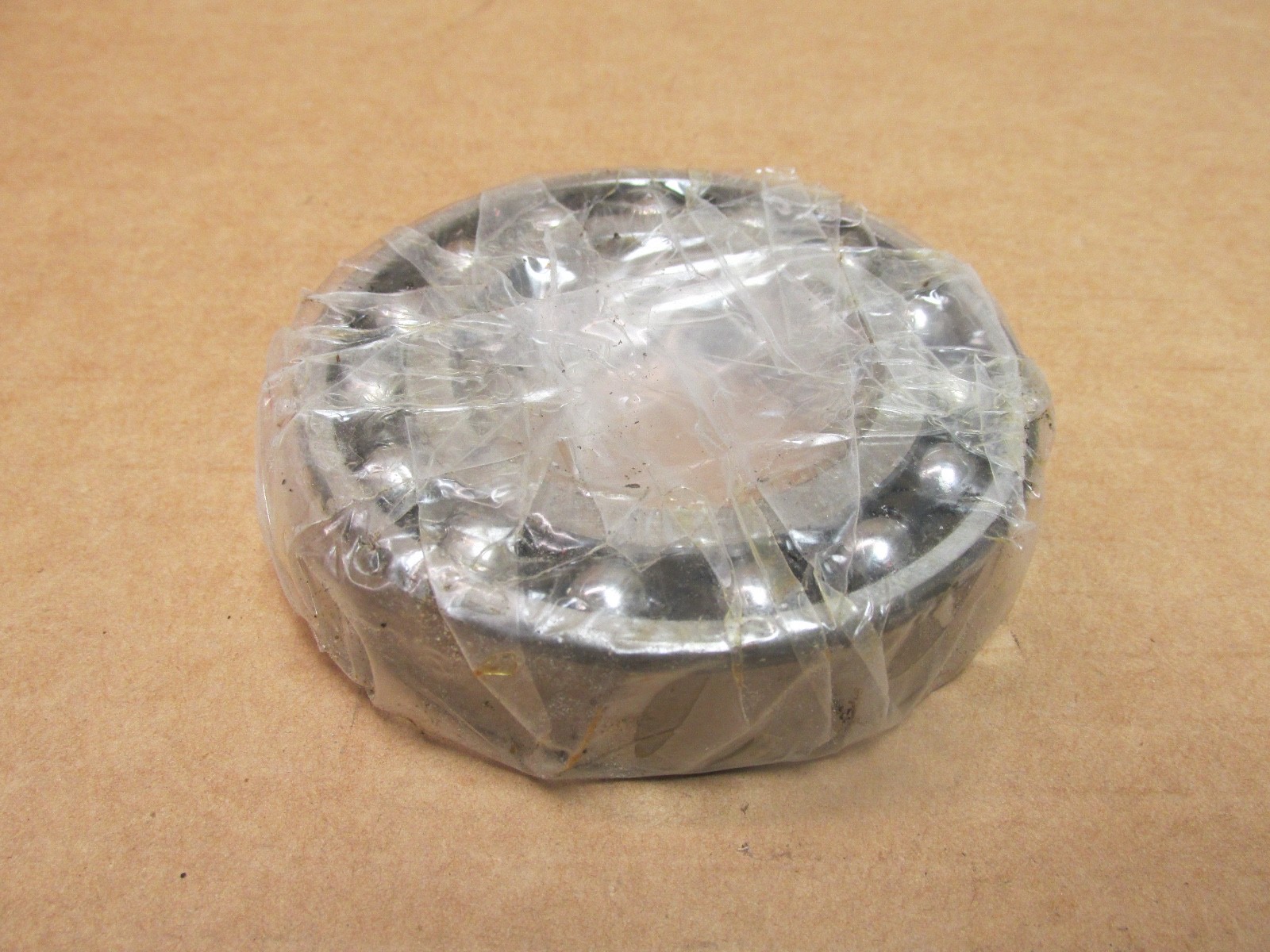

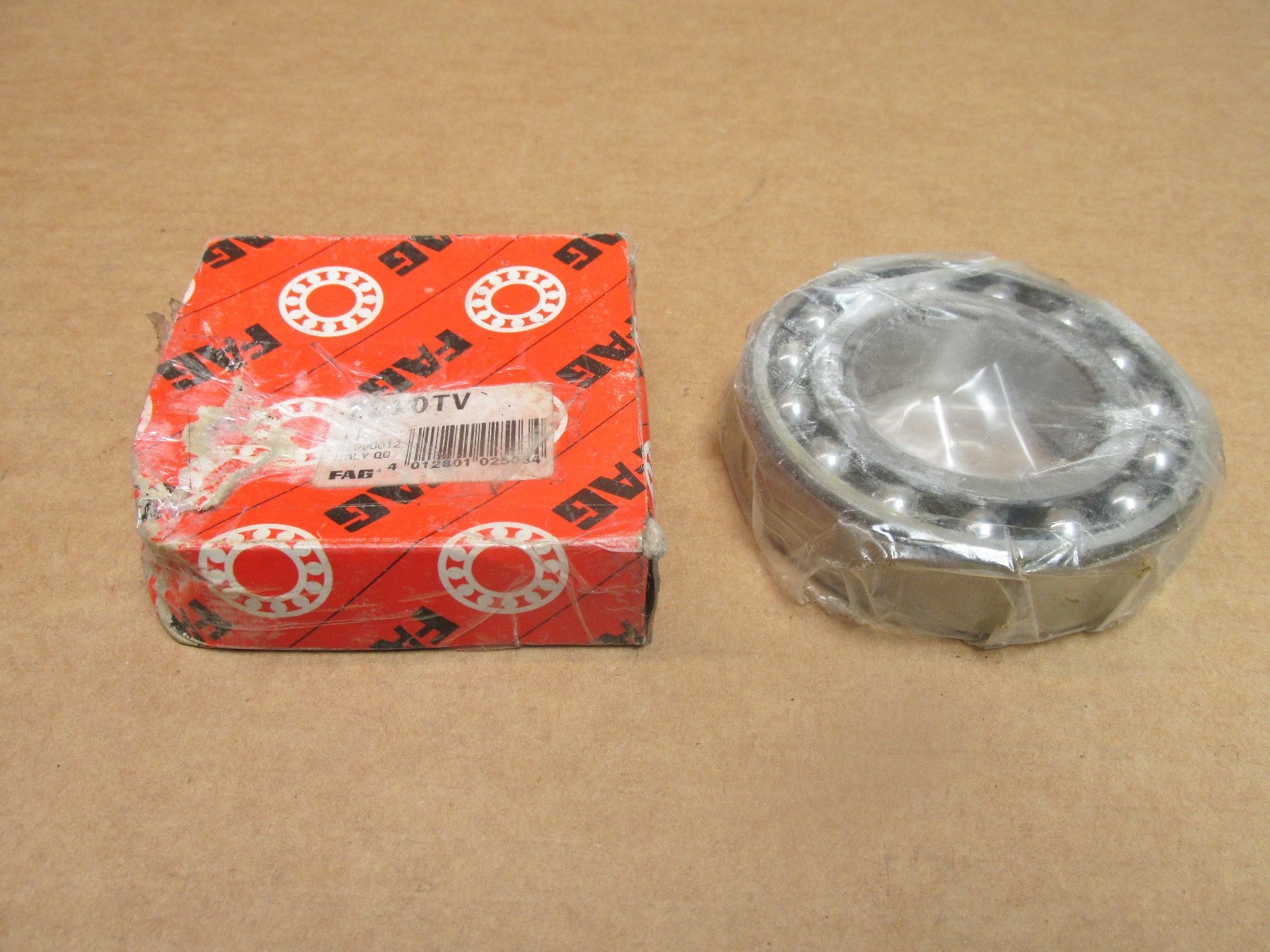

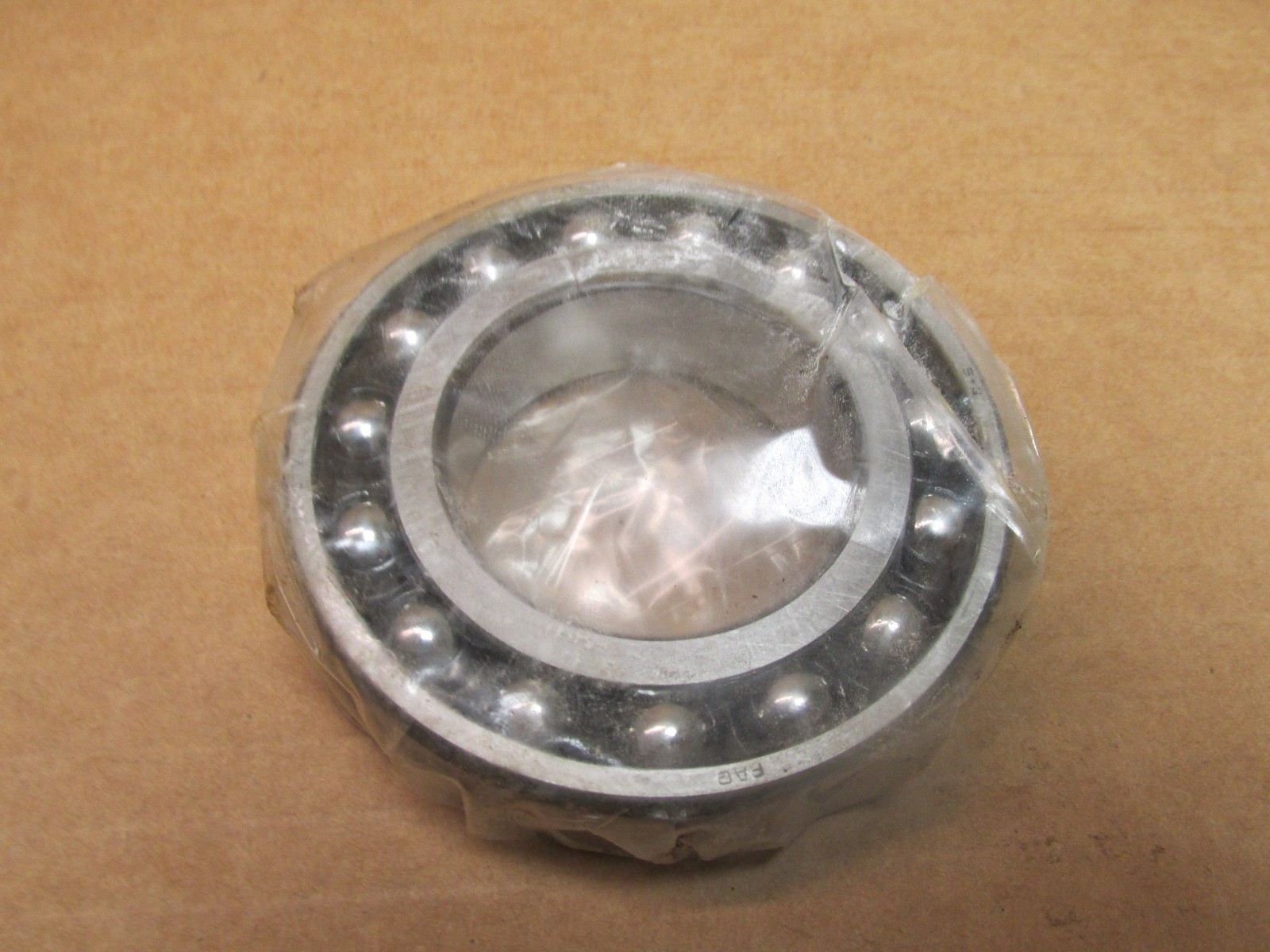

FAG 2210TV self-aligning ball bearing, 50 mm bore x 90 mm OD x 23 mm wide, straight bore, open, polyamide cage, CN clearance, 28,500 N dynamic rating.
List Price
$36.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 2210TV |
| Model | 2210-TVH |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Dynamic Load Rating | 28,500 N |
|---|---|
| Static Load Rating | 9,500 N |
| Lubricant | Oil Preservative |
| Series | 2200 |
| Max Temp | 120 °C |
| Min Temp | -30 °C |
| Duty Type | Standard |
| Rolling Elements | Ball |
| Item Weight | 0.55 kg (1.21 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Cage Type | Window cage, glass-fibre reinforced (TV/TVH) |
| Base Number | 2210 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, 2200 series |
| Common Misspellings | 2210T, 221OTV, 2210-TW |
| Application Types | line shafts, fans, conveyors, agricultural machinery, textile machinery |
| Mpn Variants | 2210TV, 2210-TV, 2210 TV, 2210-TVH |
| Compatible With Replaces | Current designation FAG 2210-TVH |
| Additional Attributes | Thermal speed rating 7,100 rpm; fatigue load limit 600 N; min shaft shoulder 57 mm; max housing shoulder 83 mm |
| Limiting Speed | 8,100 rpm |
| Cross Reference 1 | SKF 2210 ETN9 |
|---|---|
| Cross Reference 2 | NSK 2210 |
| Cross Reference 3 | NTN 2210 |
| Cross Reference 4 | Koyo 2210 |
| Cross Reference 5 | Koyo 2210 |
FAG 2210TV double-row self-aligning ball bearing, straight bore, open, polyamide cage. Current Schaeffler designation: 2210-TVH. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. The spherical outer-ring raceway accommodates static shaft misalignment and shaft deflection.
22 — FAG 22 series, wide light-section self-aligning ball bearing.
10 — bore code; 10 × 5 = 50 mm bore.
TV / TVH — solid window cage of glass-fibre reinforced polyamide.
No clearance suffix — normal (CN) radial internal clearance.
Dynamic Load Rating: 28,500 N. Static Load Rating: 9,500 N. Limiting Speed: 8,100 rpm. Thermal speed rating: 7,100 rpm. Item Weight: 0.55 kg (1.21 lb). Operating temperature: −30 °C to 120 °C. Internal Clearance: CN. Cage Material: Polyamide.
Minimum shaft shoulder diameter: 57 mm. Maximum housing shoulder diameter: 83 mm. Maximum fillet radius: 1 mm. Minimum chamfer dimension: 1.1 mm.
Same 50 x 90 x 23 mm envelope: SKF 2210 ETN9, NSK 2210, NTN 2210, Koyo 2210. Current FAG designation 2210-TVH replaces 2210TV.
