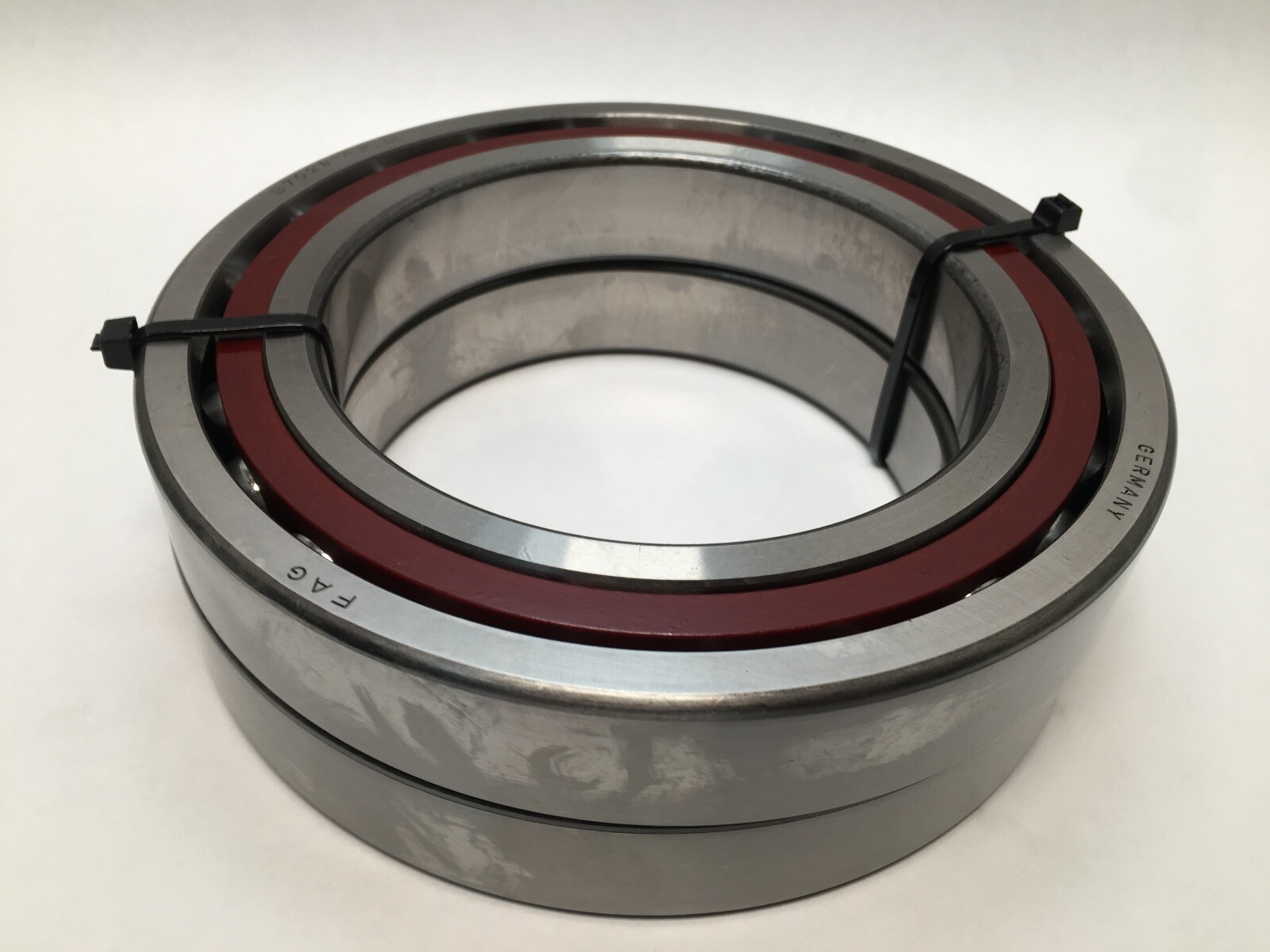

FAGB7028-C-A-P2-DULAngular Contact Ball Bearing Pair – 140 mm ID, 210 mm OD, 33 mm Width, 15° Contact Angle, Light Preload, ABEC 9

Condition: New

Availability:

1 in stock

Angular contact spindle bearing pair, 140 x 210 x 33 mm, 15° contact angle, Light preload 866 N. FAG B7028C P2 DUL, 2 bearings, ABEC 9 / P2, Cr 153,000 N.

Same day shipment

List Price

$1,784.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB7028-C-A-P2-DUL
ModelB7028-C-A-P2-DUL / 2MM9128 / 128
Bearing TypeAngular Contact Ball Bearing, Open
ID140 mm
OD210 mm
Width33 mm

Technical Specifications

MaterialSteel
SeriesB70
PreloadLight (866 N)
Industry Termsultra precision spindle bearing, ABEC 9 angular contact ball bearing, matched pair, duplex spindle bearing set
Mpn VariantsB7028CAP2DUL, B7028-C-A-P2-DUL, B-7028-C-A-P2-DUL, B7028C
Precision ClassABEC 9 / P2
Additional AttributesFatigue load limit 9,100 N; shaft shoulder 152 mm; housing shoulder 199 mm; pressure cone apex distance 39.9 mm
Dynamic Load Rating153,000 N
Static Load Rating114,000 N
Rolling ElementsBall
Item Weight3.288 kg (7.25 lb) per bearing
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Lubricantgrease or oil
Harmonization Code8482.10.50
Contact Angle15°
Mounting ArrangementMatched pair, universal (DU)
Common MisspellingsFAG B 7028 C, FAG B7028C P2 DUL, Fag B7028CAP2DUL, FAG B7O28-C-A-P2-DUL
Application Typesmachine tool spindles; high-speed milling and grinding spindles; precision rotary tables
Closure TypeOpen

Cross-References

Cross Reference 1SKF 7028 CD/PA9A
Cross Reference 2NSK 7028C (P2)
Cross Reference 3Fafnir 2MMX9128WI
Seller Part Number: B-CB6#NOH3AB

Product Description

What this part is:

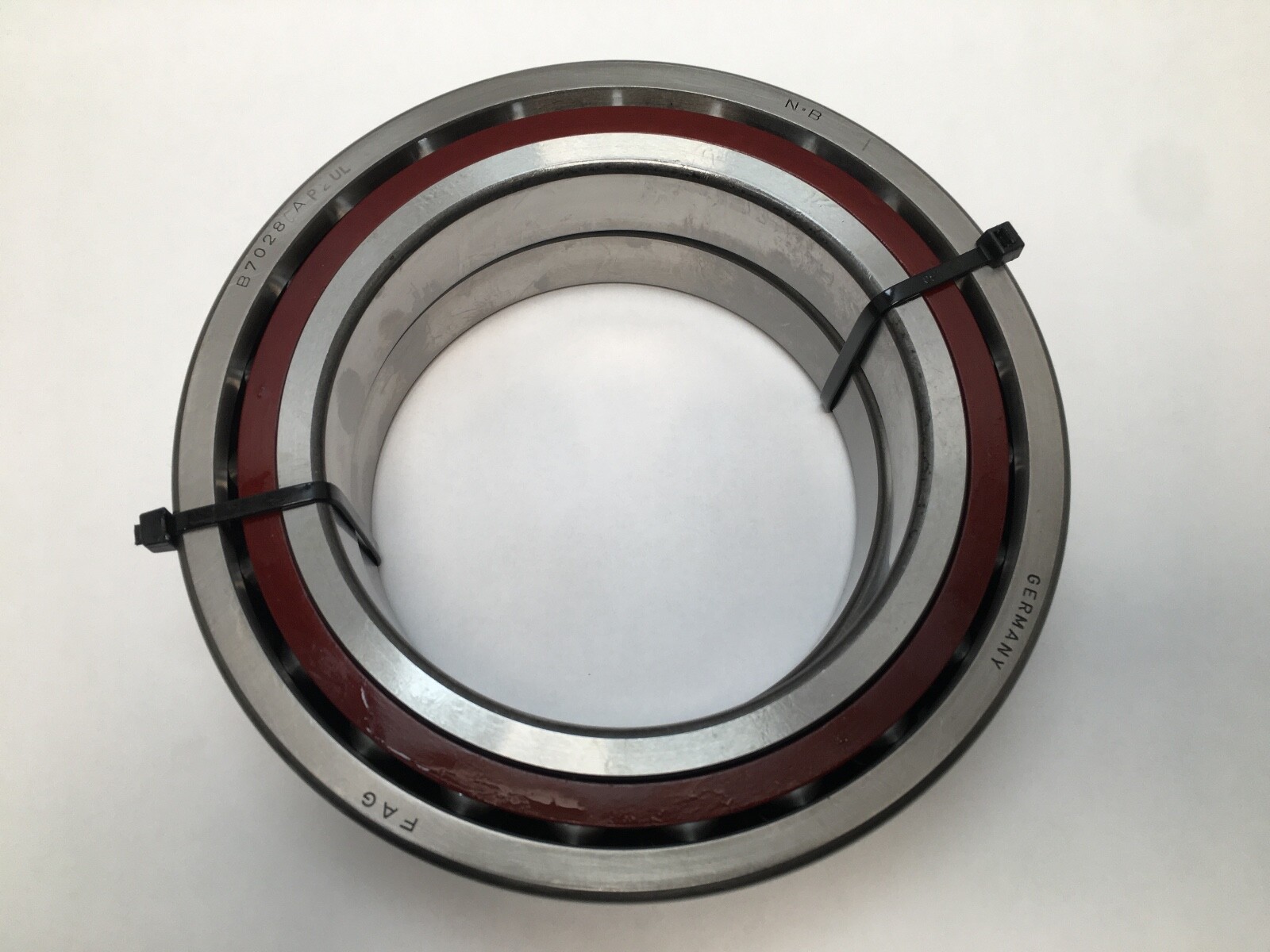

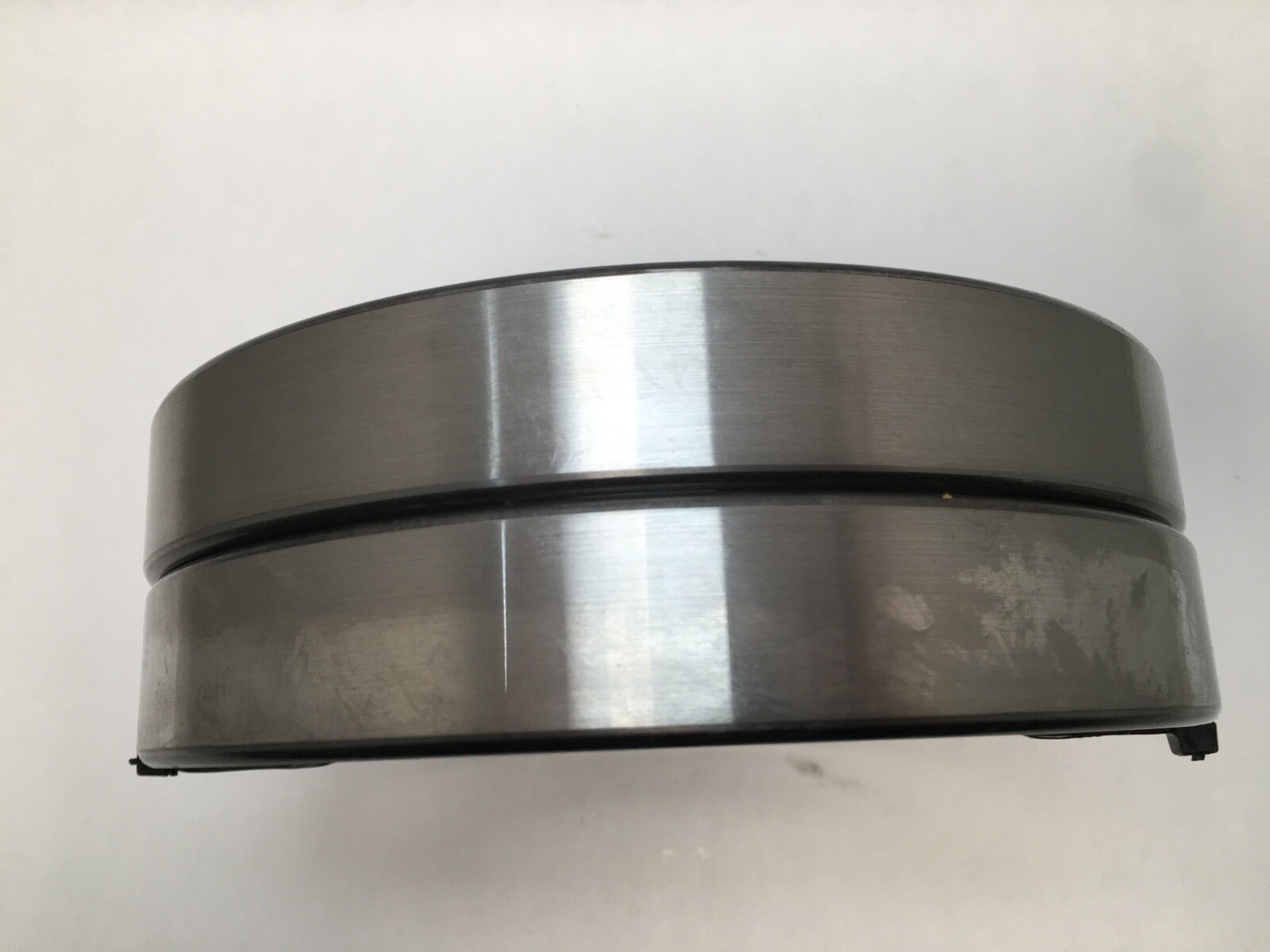

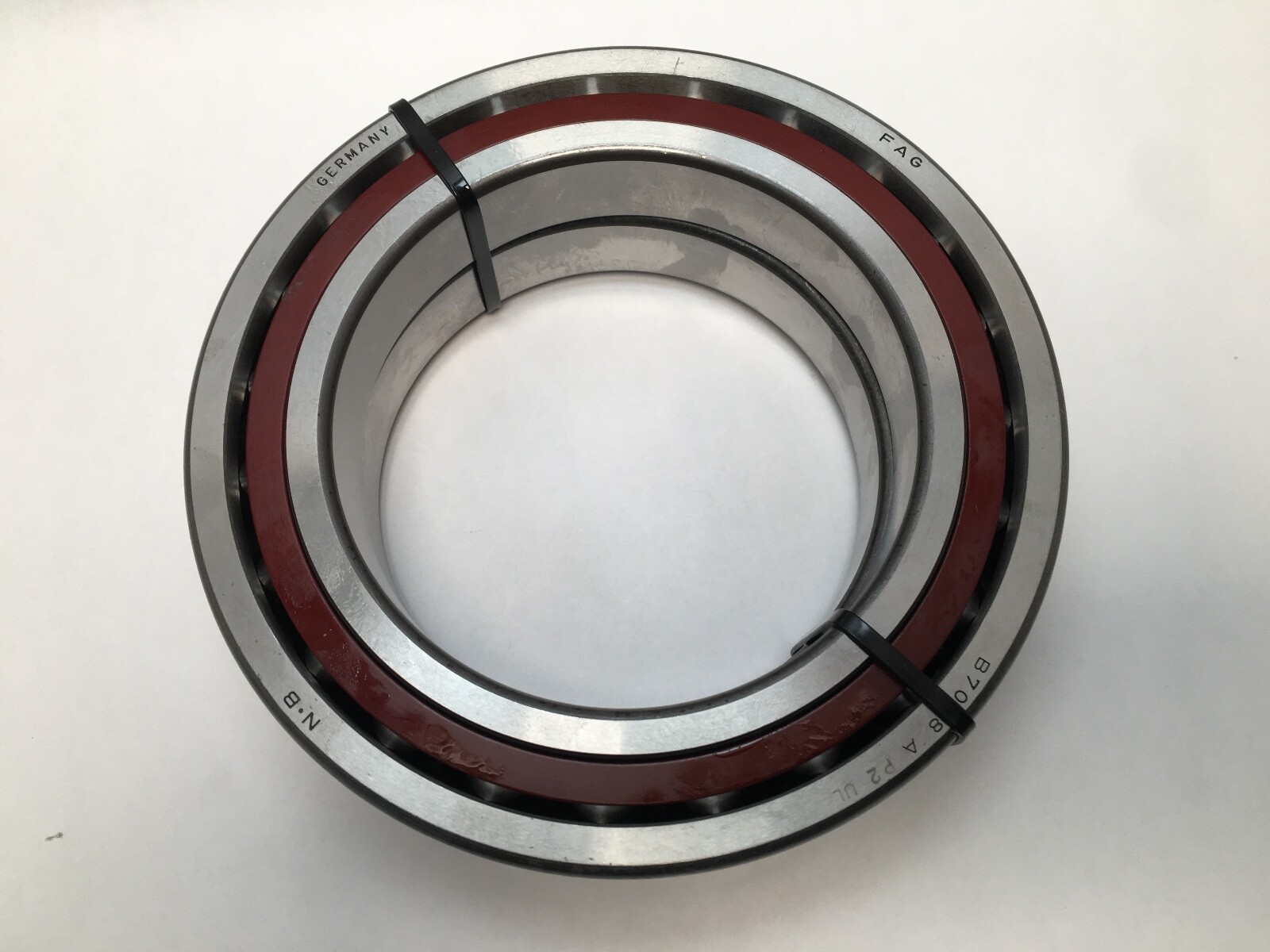

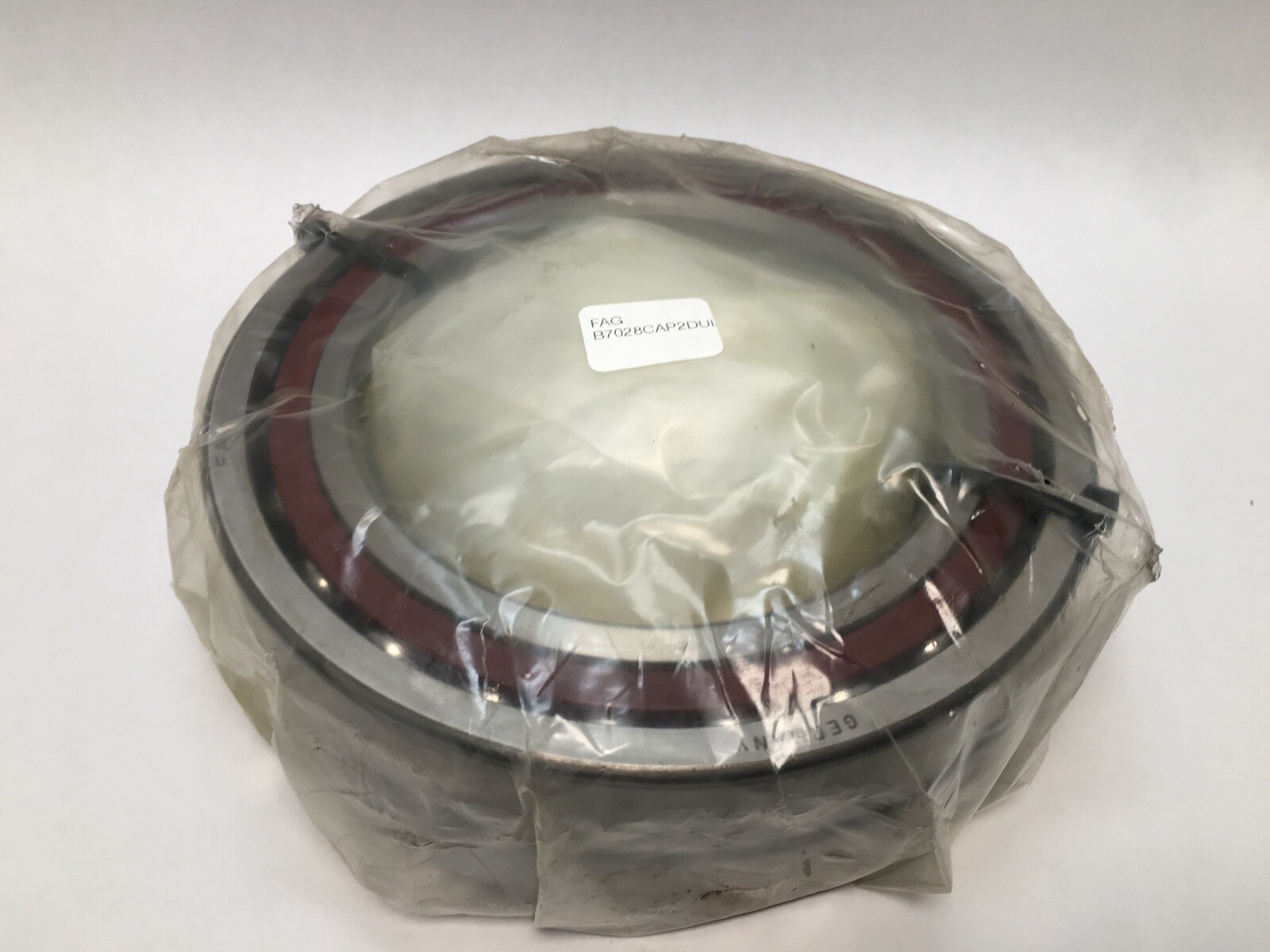

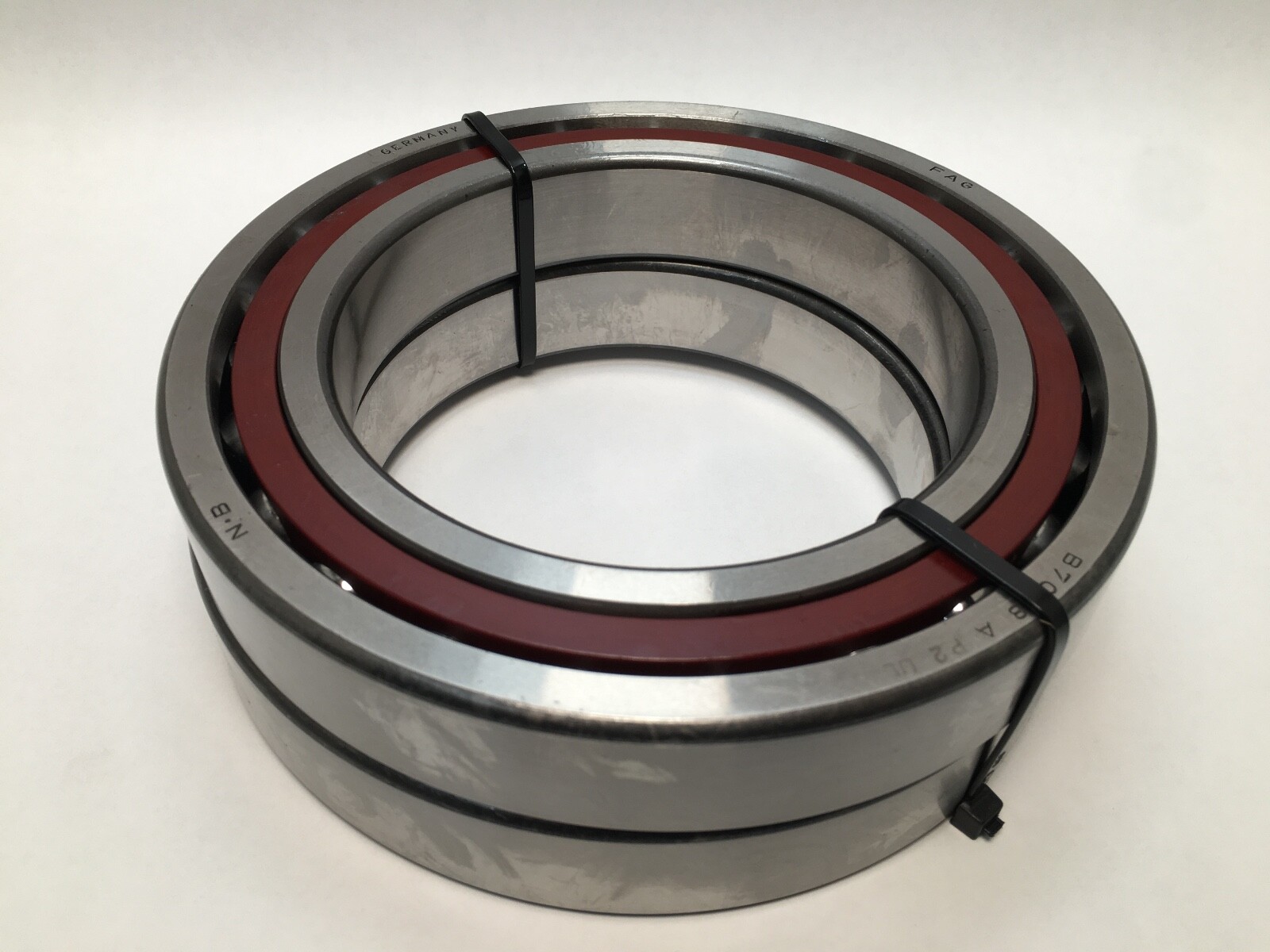

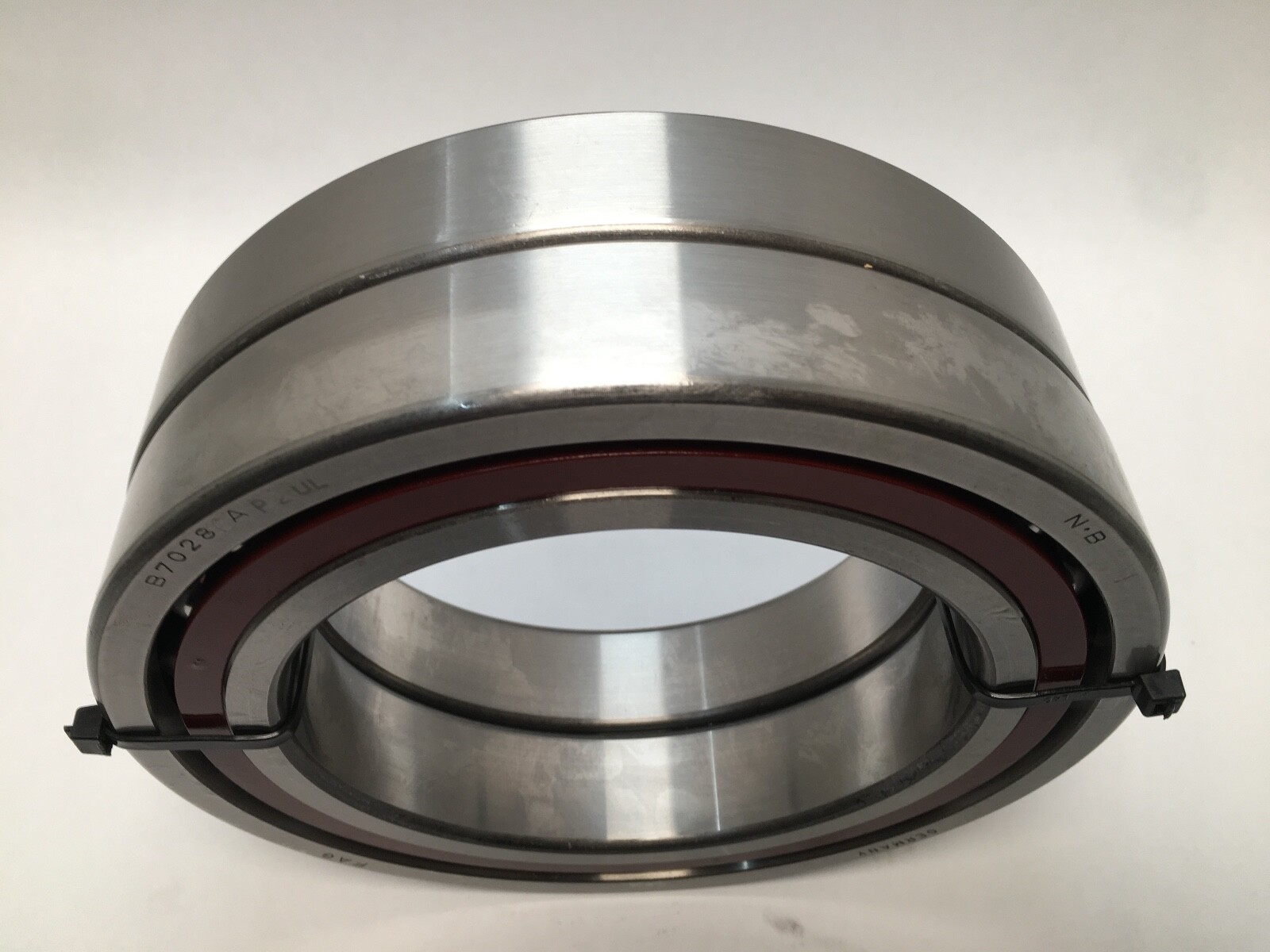

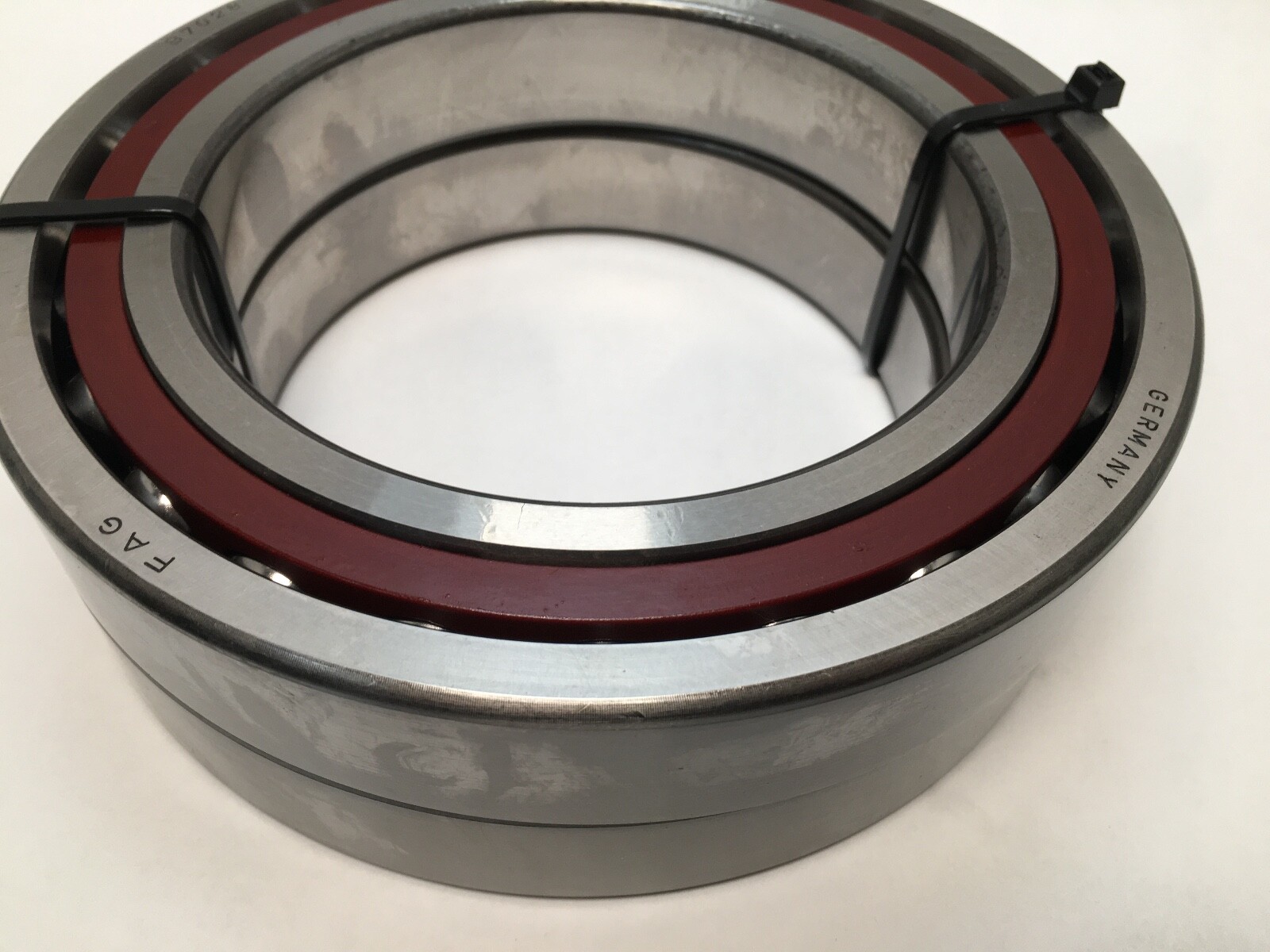

FAG B7028-C-A-P2-DUL super-precision spindle bearings, a matched pair of two single-row angular contact ball bearings in ultra-precision class P2. Unit Quantity: 2 Pcs. Light preload. Bore Diameter: 140 mm. Outside Diameter: 210 mm. Width: 33 mm per bearing. Contact Angle: 15°. Preload: Light (866 N).

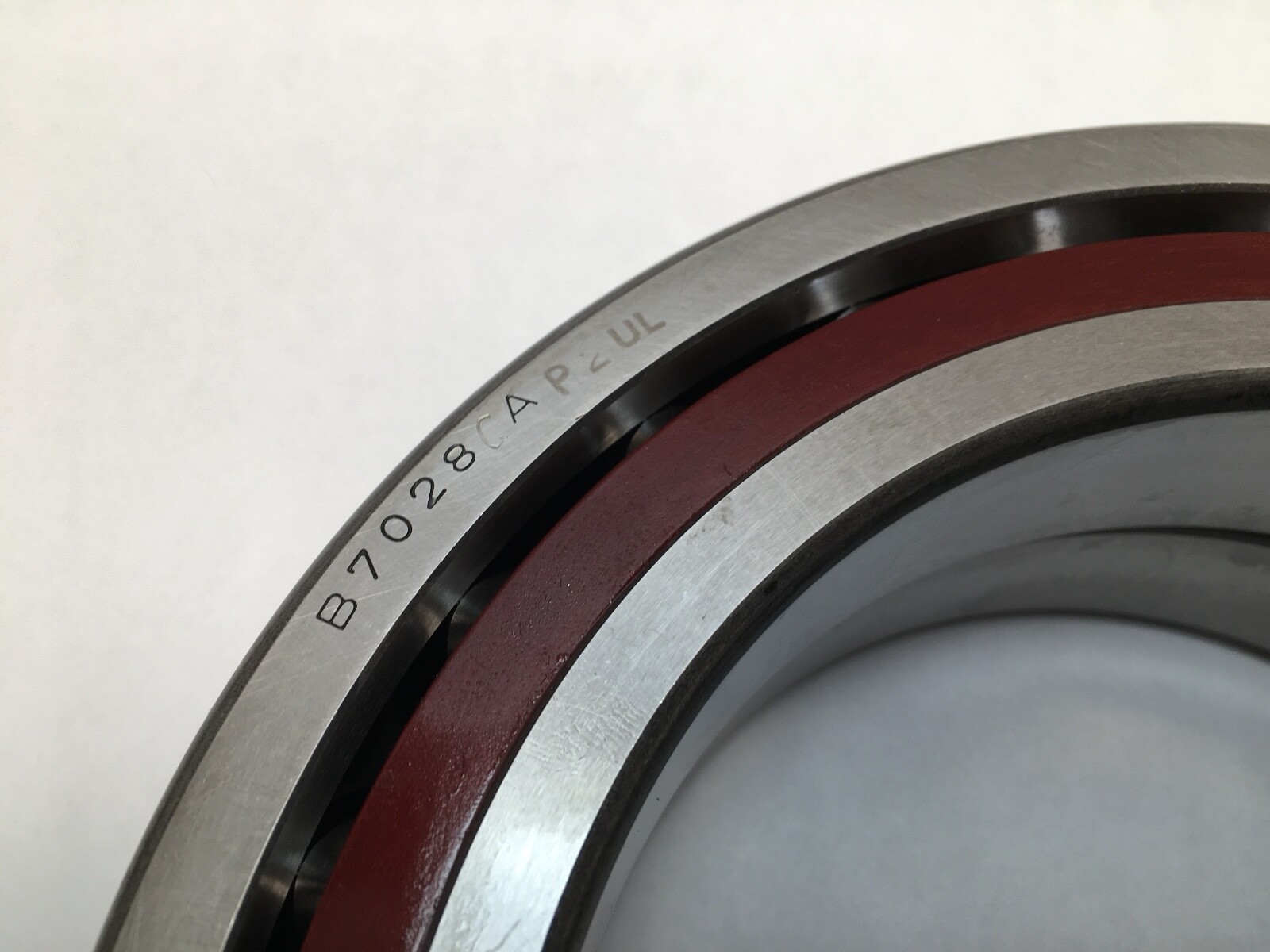

Decoding the designation:

B70 — FAG spindle bearing, ISO dimension series 10 (70xx).

28 — bore code, 28 x 5 = 140 mm.

C — 15° contact angle, for high speed with moderate axial rigidity.

P2 — ISO tolerance class P2, equivalent to ABEC 9.

DU — matched pair, universally ground, for back-to-back, face-to-face or tandem mounting.

L — Light preload.

Specifications:

Dynamic Load Rating: 153,000 N per bearing. Static Load Rating: 114,000 N per bearing. Fatigue Load Limit: 9,100 N. Precision Class: ABEC 9 / P2. Item Weight: 3.288 kg (7.25 lb) per bearing. Lubricant: grease or oil. Closure Type: Open. Number Of Rows: 1 per bearing.

Preload: Light, 866 N for the pair in back-to-back or face-to-face arrangement. The same size is also built with Medium (2,724 N) and Heavy (5,429 N) preload.

Dimensions and mounting:

Bore Diameter: 140 mm. Outside Diameter: 210 mm. Width: 33 mm per bearing. Shaft shoulder diameter: 152 mm. Housing shoulder diameter: 199 mm. Distance between pressure cone apexes: 39.9 mm.

Compatibility and replacement:

Cross-references with the same 140 x 210 x 33 mm envelope, 15° contact angle and P2 class: SKF 7028 CD/PA9A, NSK 7028C (P2), Fafnir 2MMX9128WI.

Frequently asked questions:

What are the dimensions of the FAG B7028-C-A-P2-DUL?

Each bearing measures 140 mm bore, 210 mm outside diameter and 33 mm width.

What does P2 mean in this designation?

P2 is ISO tolerance class P2, equivalent to ABEC 9.

What contact angle and preload does it have?

Contact angle is 15° (C). Preload is Light (L), 866 N for the pair.
