Availability:
1 in stock

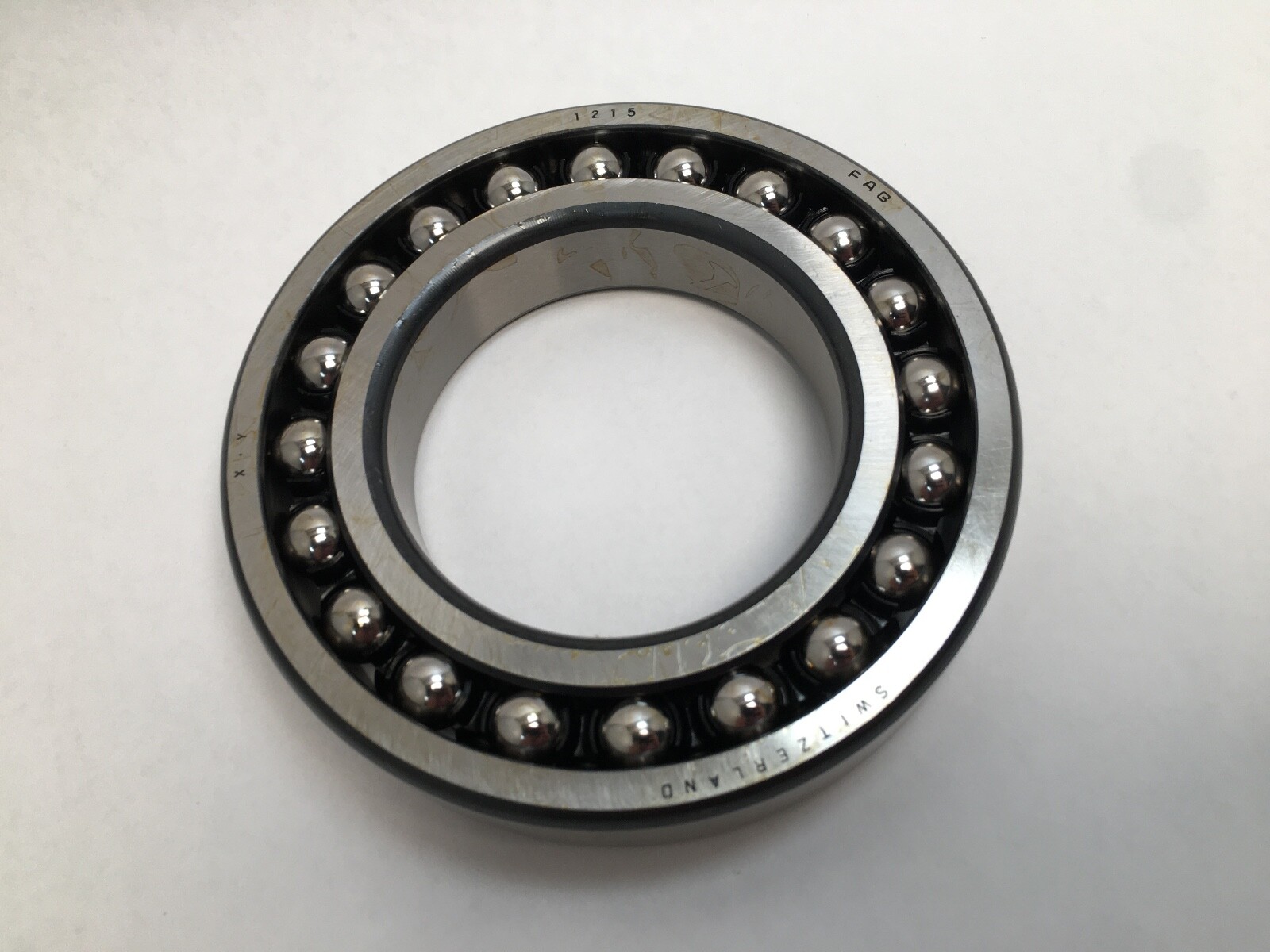

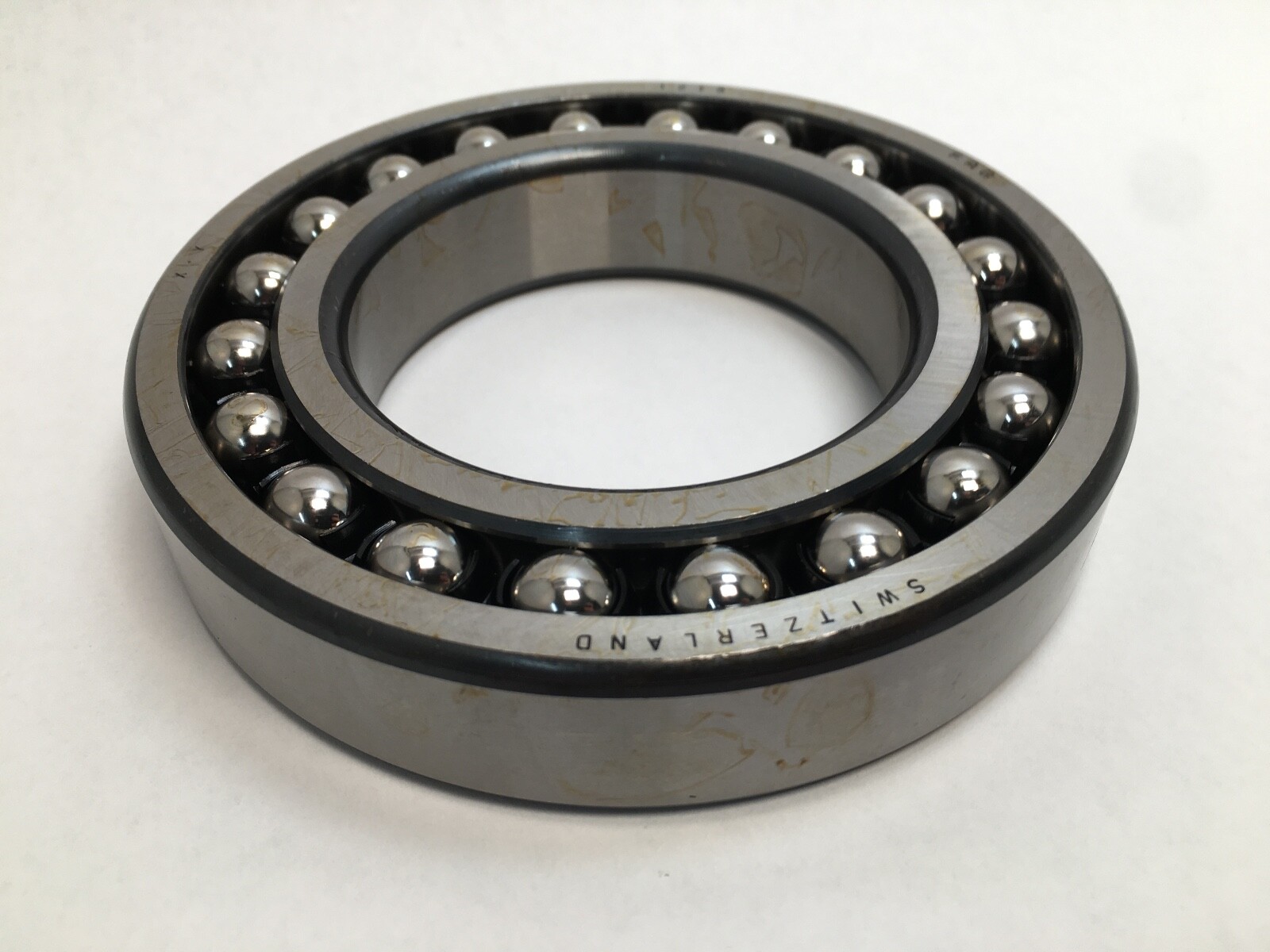

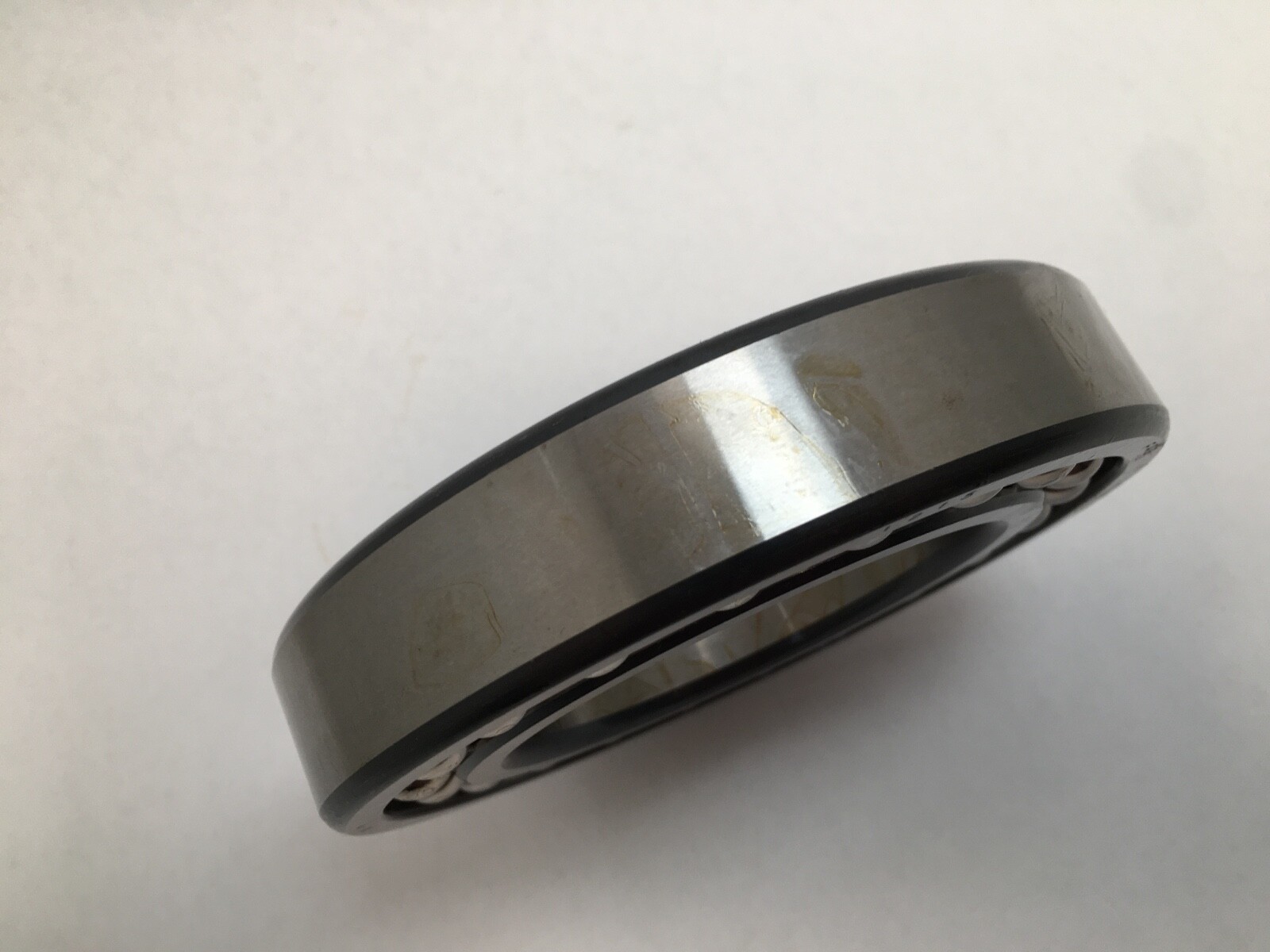

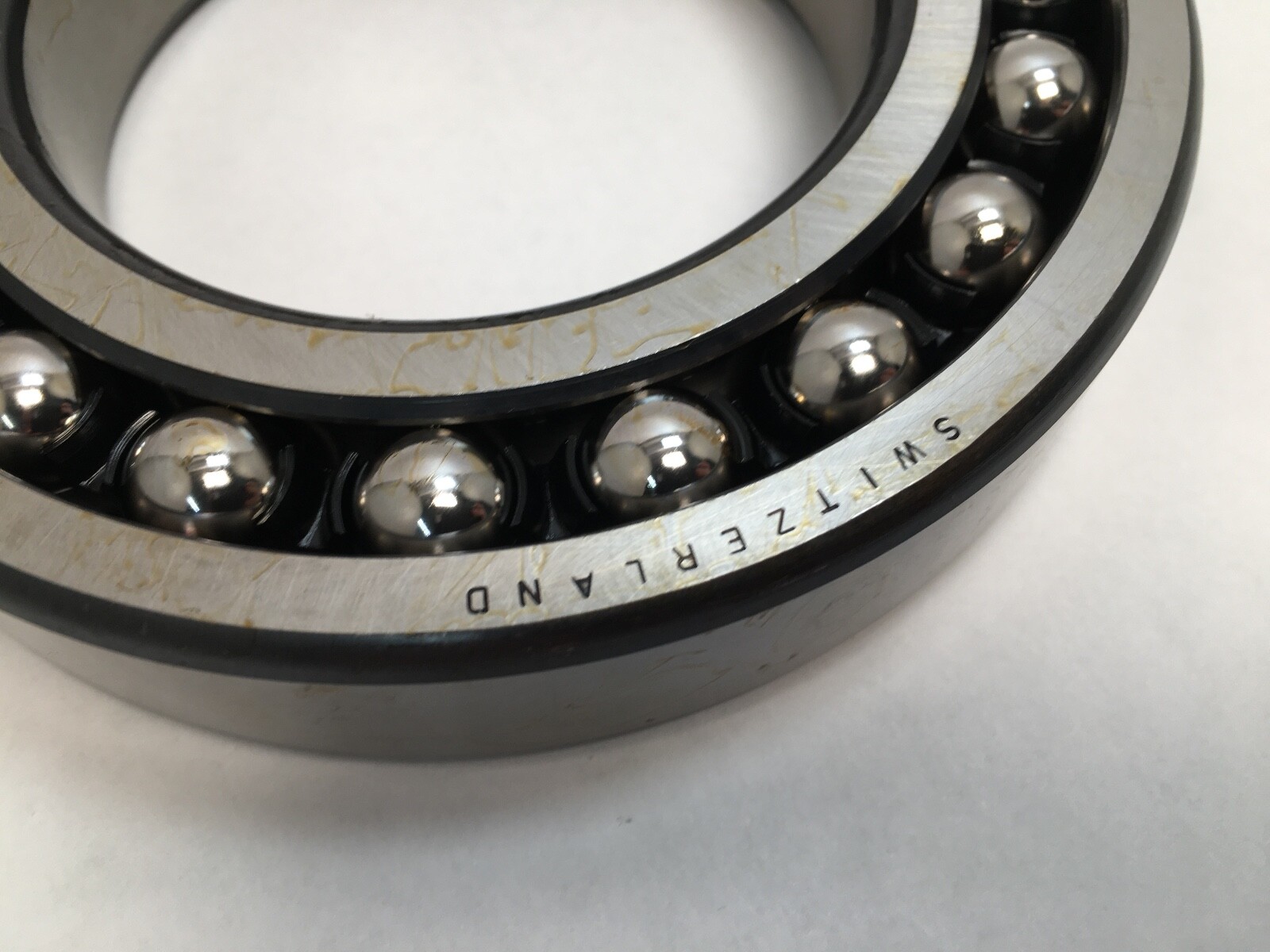

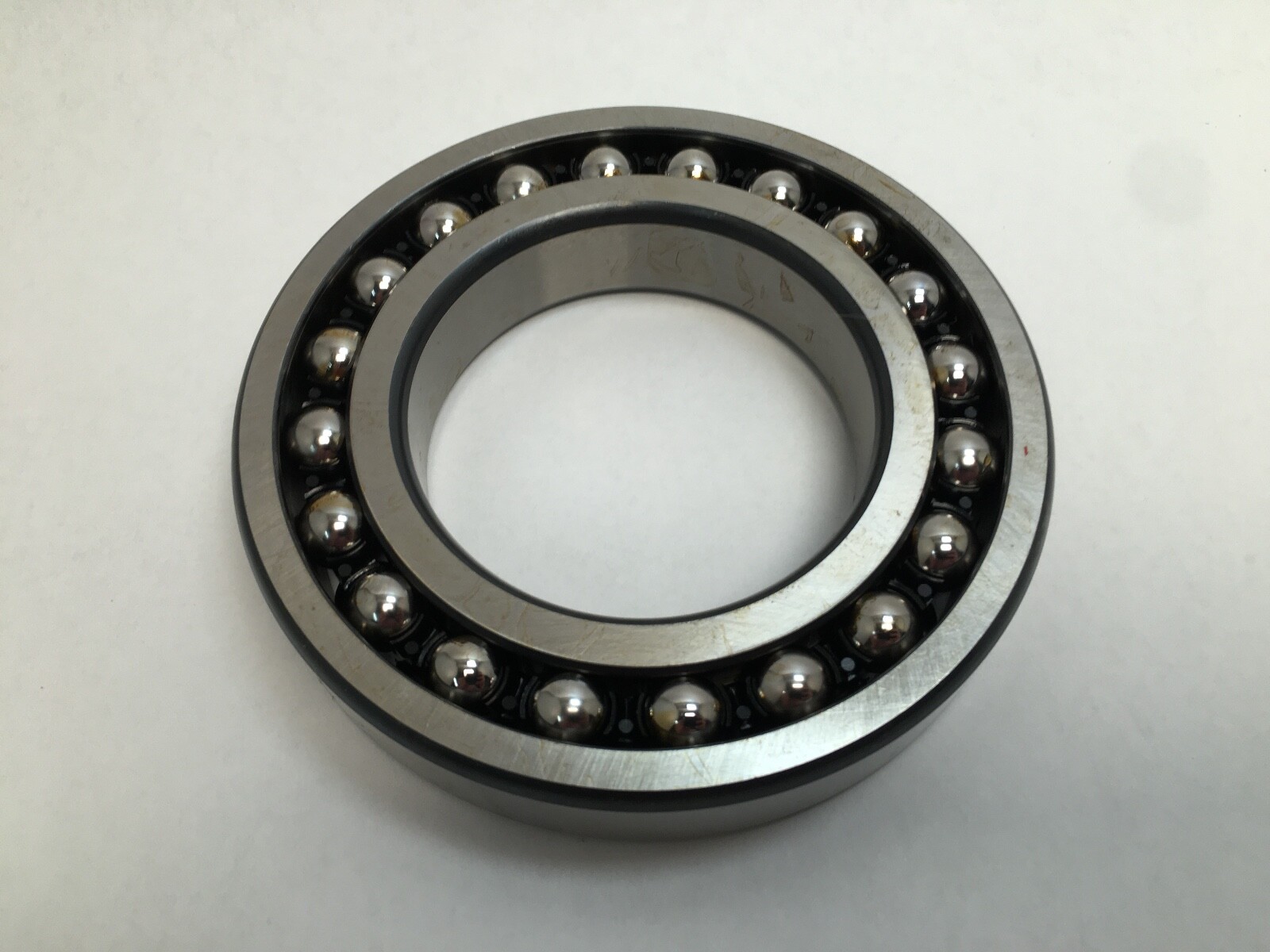

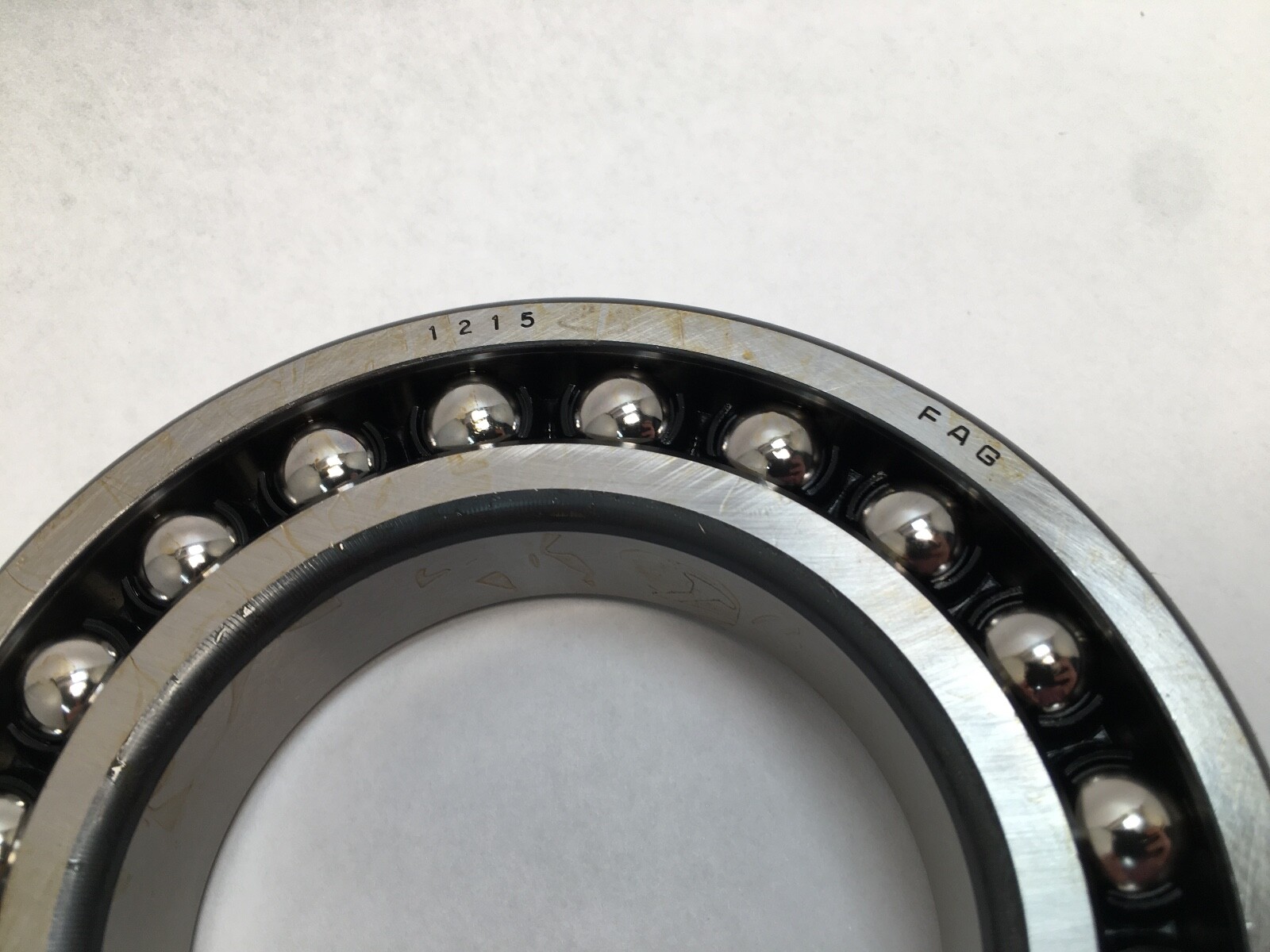

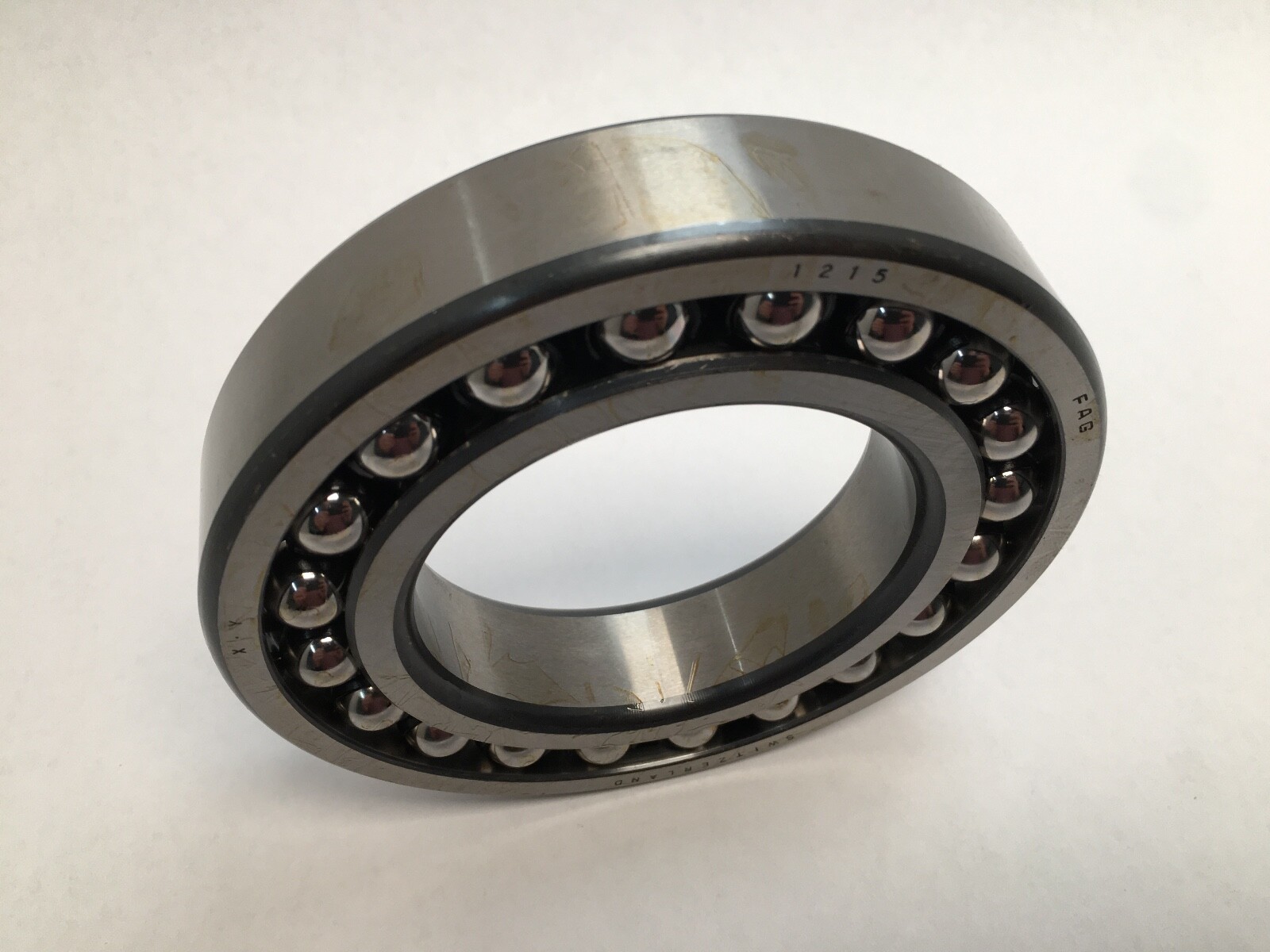

FAG 1215-TVH-C3 self-aligning ball bearing, 75 x 130 x 25 mm, cylindrical bore, polyamide cage, C3 clearance. Cr 39,000 N, C0r 15,700 N, 5,700 rpm.
List Price
$42.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1215TVC3 |
| Model | 1215-TVH-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 12 |
|---|---|
| Cage Type | Solid, glass-fibre reinforced |
| Dynamic Load Rating | 39,000 N |
| Static Load Rating | 15,700 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.42 kg (3.13 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 5,700 rpm |
| Internal Clearance | C3 |
| Industry Terms | self-aligning ball bearing, double row self aligning bearing, polyamide cage bearing |
| Overall Width | 25 mm |
| Mpn Variants | 1215-TVH-C3, 1215TV.C3, 1215-TV-C3, 1215TVC3, 1215 TV C3 |

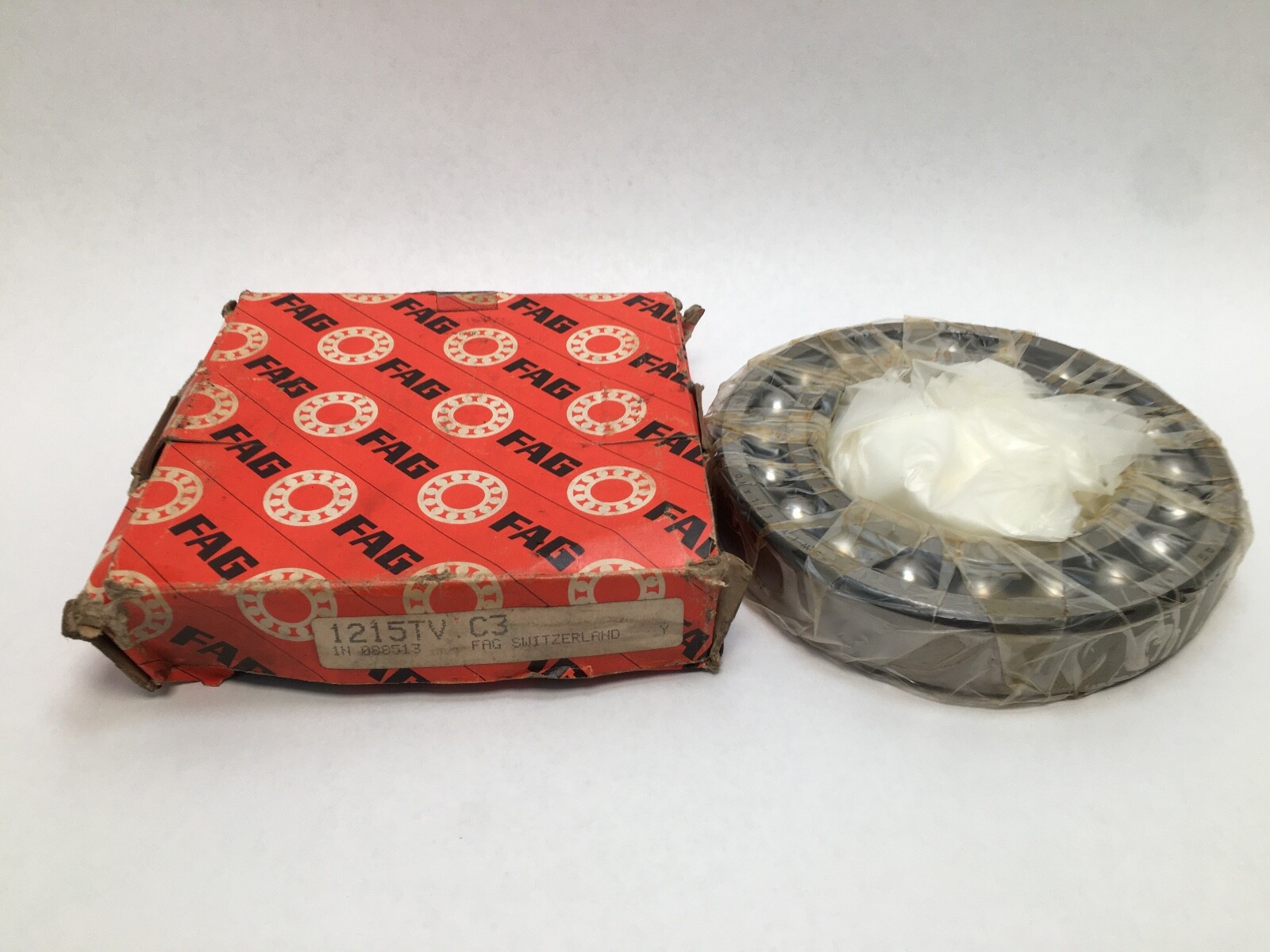

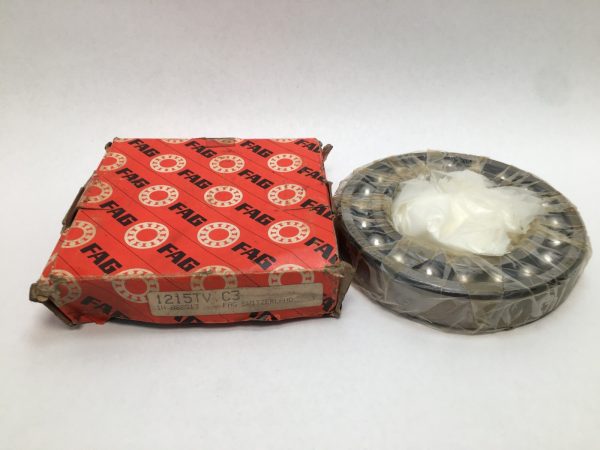

| Compatible With Replaces | Replaces FAG 1215TV.C3 |
| Additional Attributes | Fatigue limit load Cu: 980 N; Reference speed: 5,500 rpm; r min: 1.5 mm; da min: 84 mm; Da max: 121 mm |
| Min Temp | -30 °C |
| Harmonization Code | 8482.10 |
| Cross Reference 1 | SKF 1215 ETN9/C3 |
|---|---|
| Cross Reference 2 | NTN 1215SC3 |
| Cross Reference 3 | Koyo 1215C3 |
| Cross Reference 4 | NSK 1215C3 |
FAG 1215-TVH-C3 (formerly 1215TV.C3) is a double-row self-aligning ball bearing with cylindrical bore, glass-fibre reinforced polyamide cage and C3 clearance. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Bore Type: Straight. Number Of Rows: 2. Internal Clearance: C3.
12 — self-aligning ball bearing, dimension series 02.
15 — bore code, 75 mm.
TV / TVH — solid cage of glass-fibre reinforced polyamide.
C3 — radial internal clearance larger than normal.

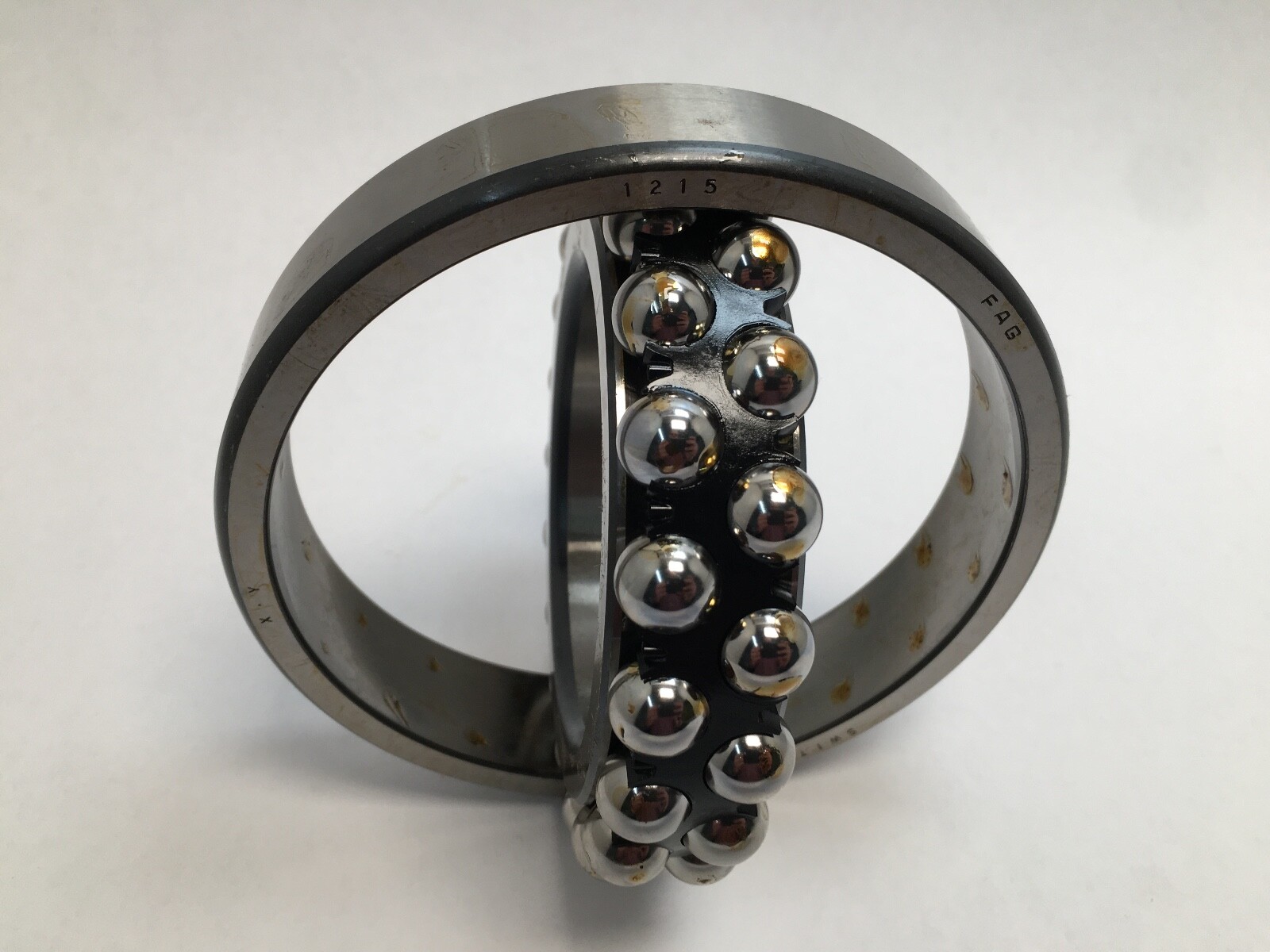

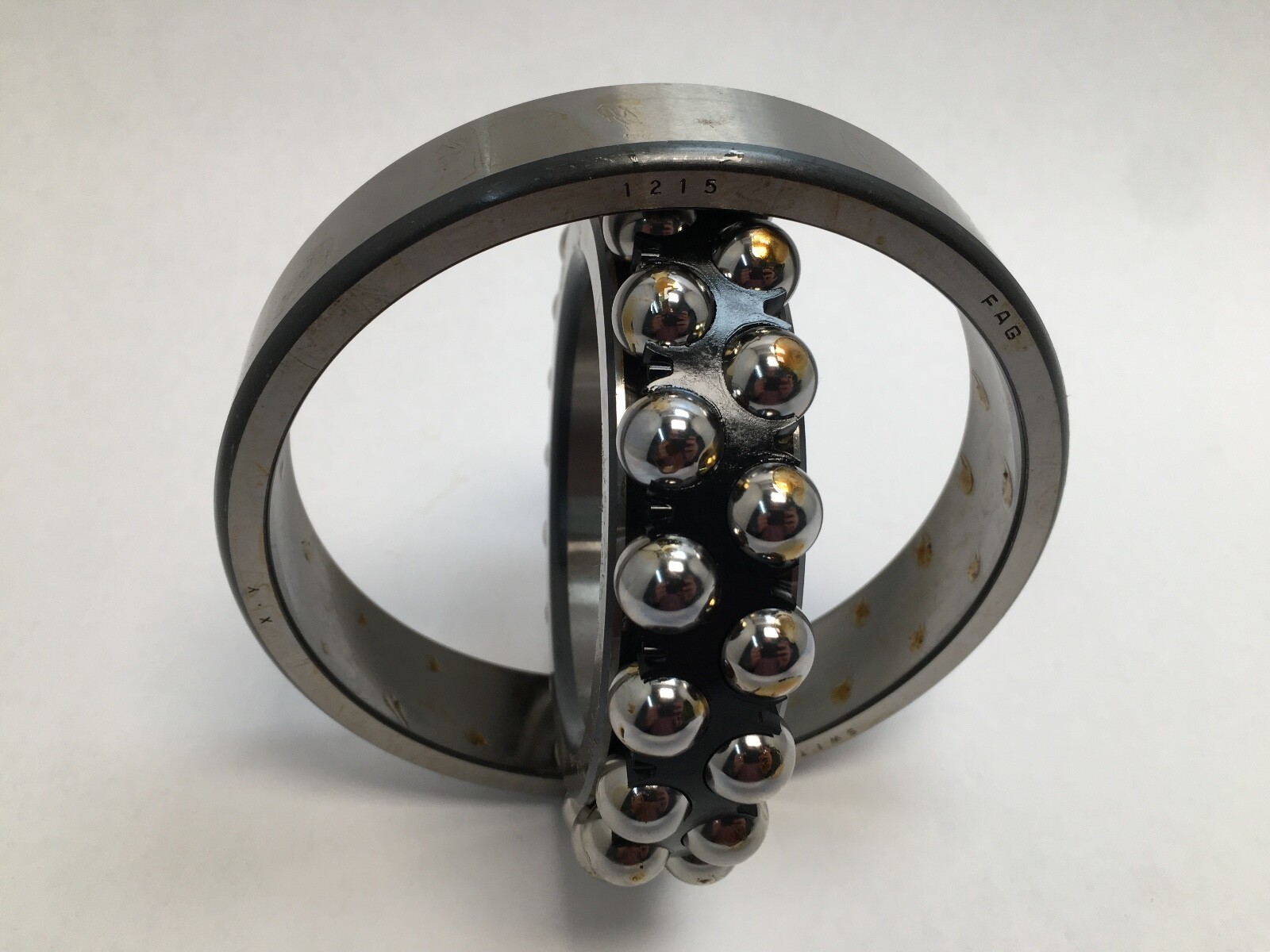

Dynamic Load Rating: 39,000 N. Static Load Rating: 15,700 N. Limiting Speed: 5,700 rpm. Reference Speed: 5,500 rpm. Fatigue Limit Load: 980 N. Item Weight: 1.42 kg (3.13 lb). Operating Temperature: -30 °C to 120 °C. The spherical outer raceway lets the inner ring and ball set swivel, accommodating shaft misalignment.
Chamfer r min: 1.5 mm. Fillet ra max: 1.5 mm. Shaft Abutment da min: 84 mm. Housing Abutment Da max: 121 mm.
Unit Quantity: 1 Pc.
Equivalent cylindrical-bore C3 self-aligning ball bearings: SKF 1215 ETN9/C3, NSK 1215C3, NTN 1215SC3, Koyo 1215C3. Replaces FAG 1215TV.C3.
