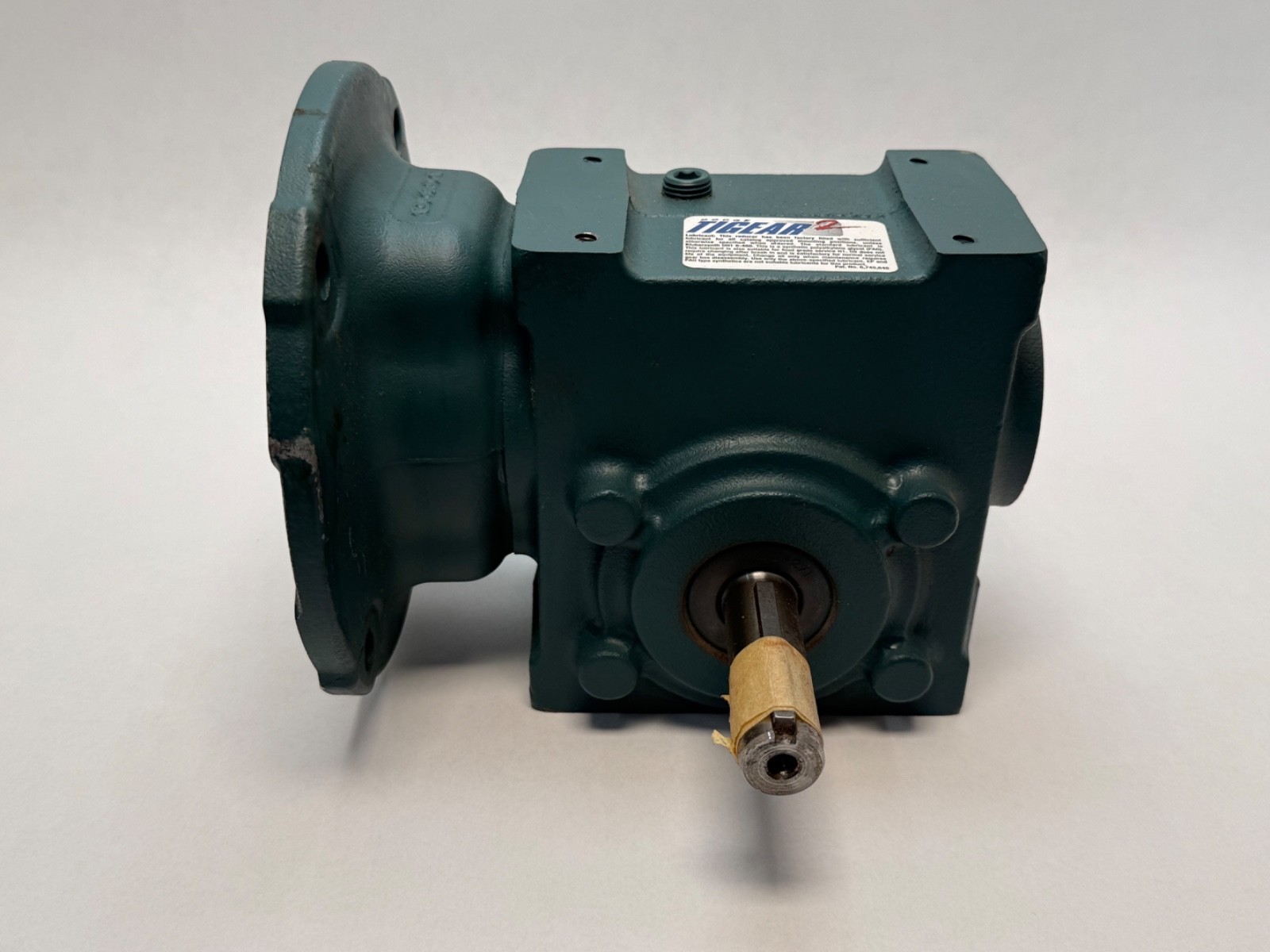

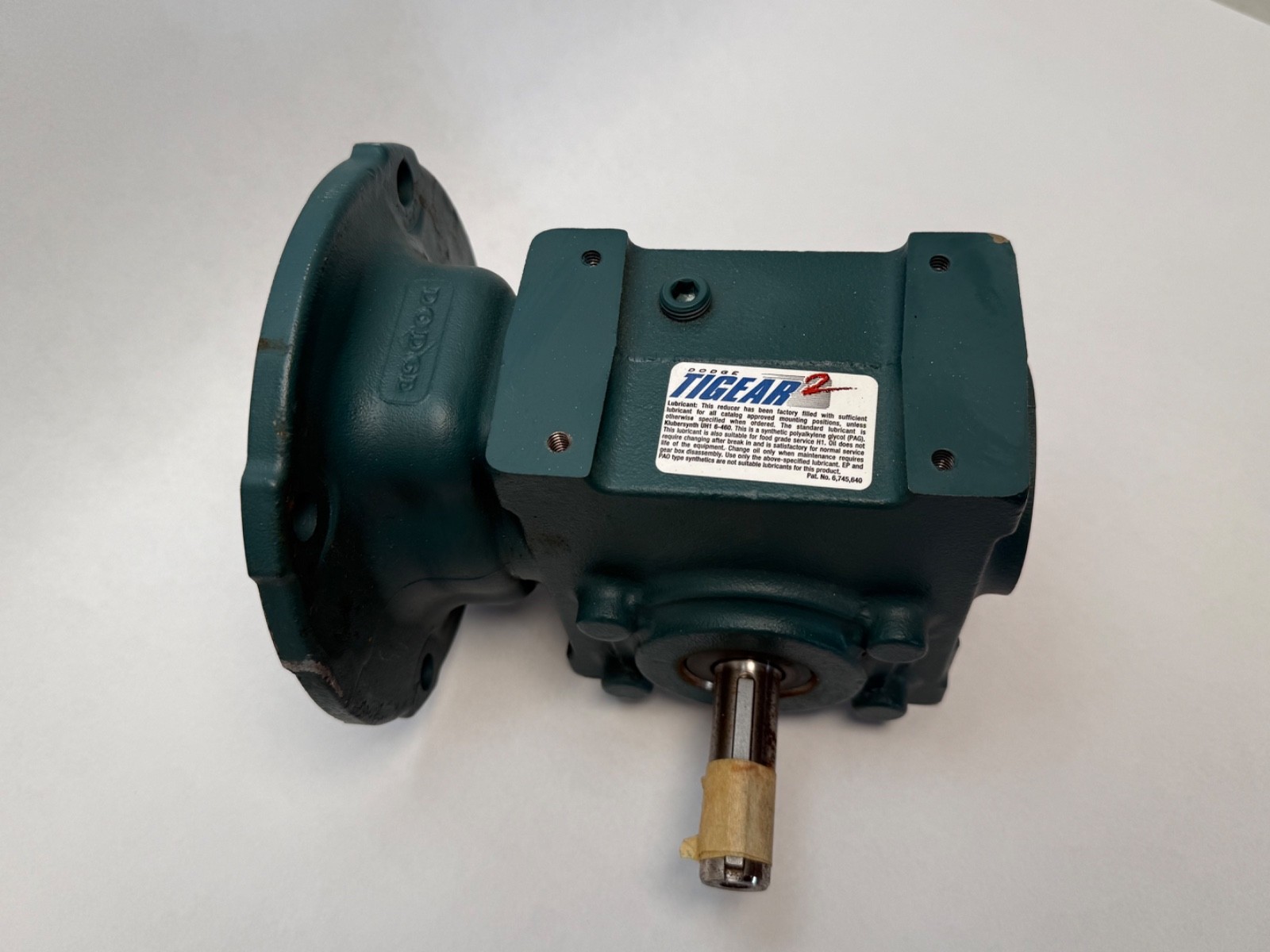

Dodge Tigear-2 worm gear speed reducer with 56C quill input and 3/4 in solid output shaft

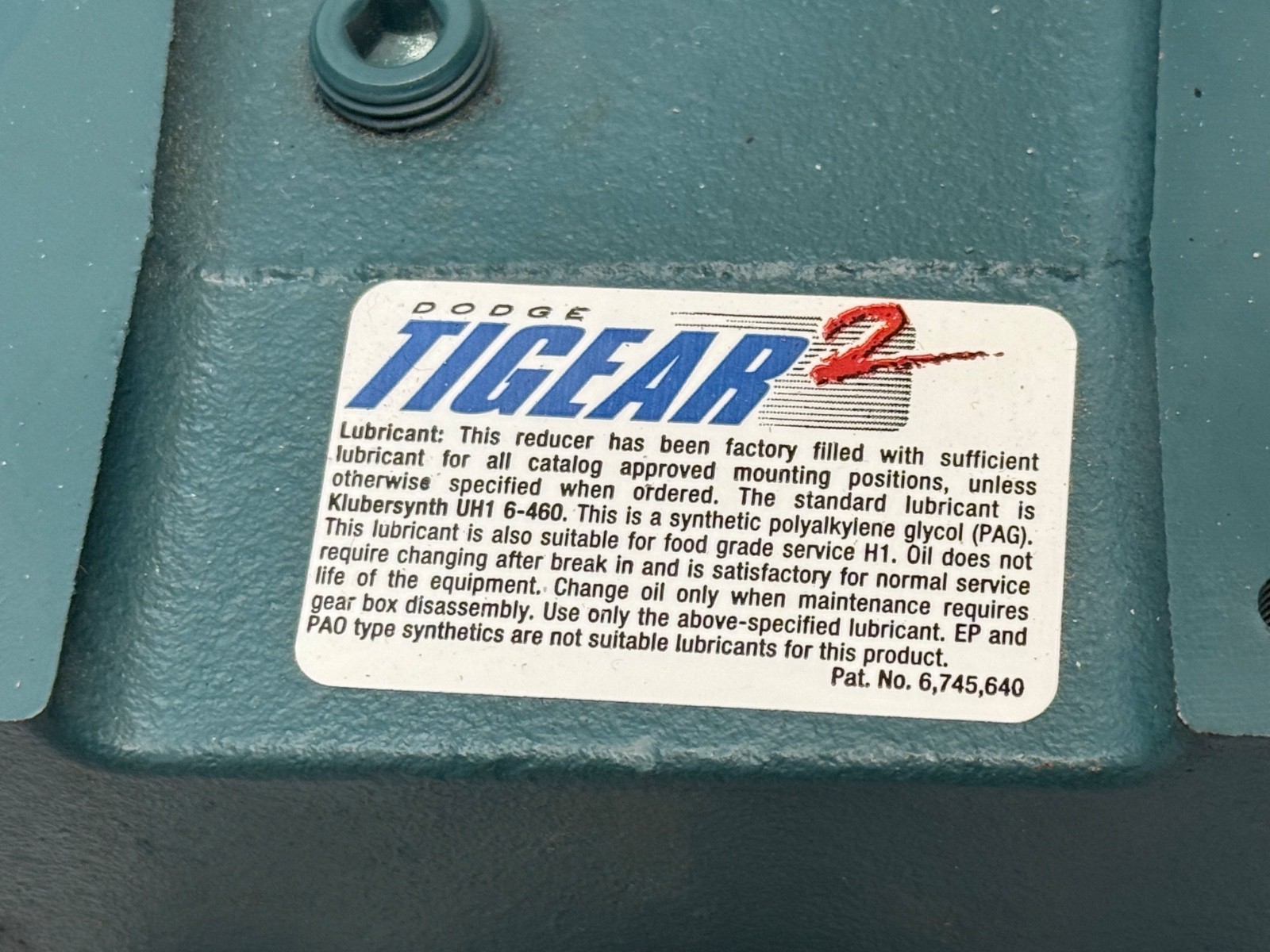

Dodge Tigear-2 worm gear speed reducer housing with lubricant label and fill plug

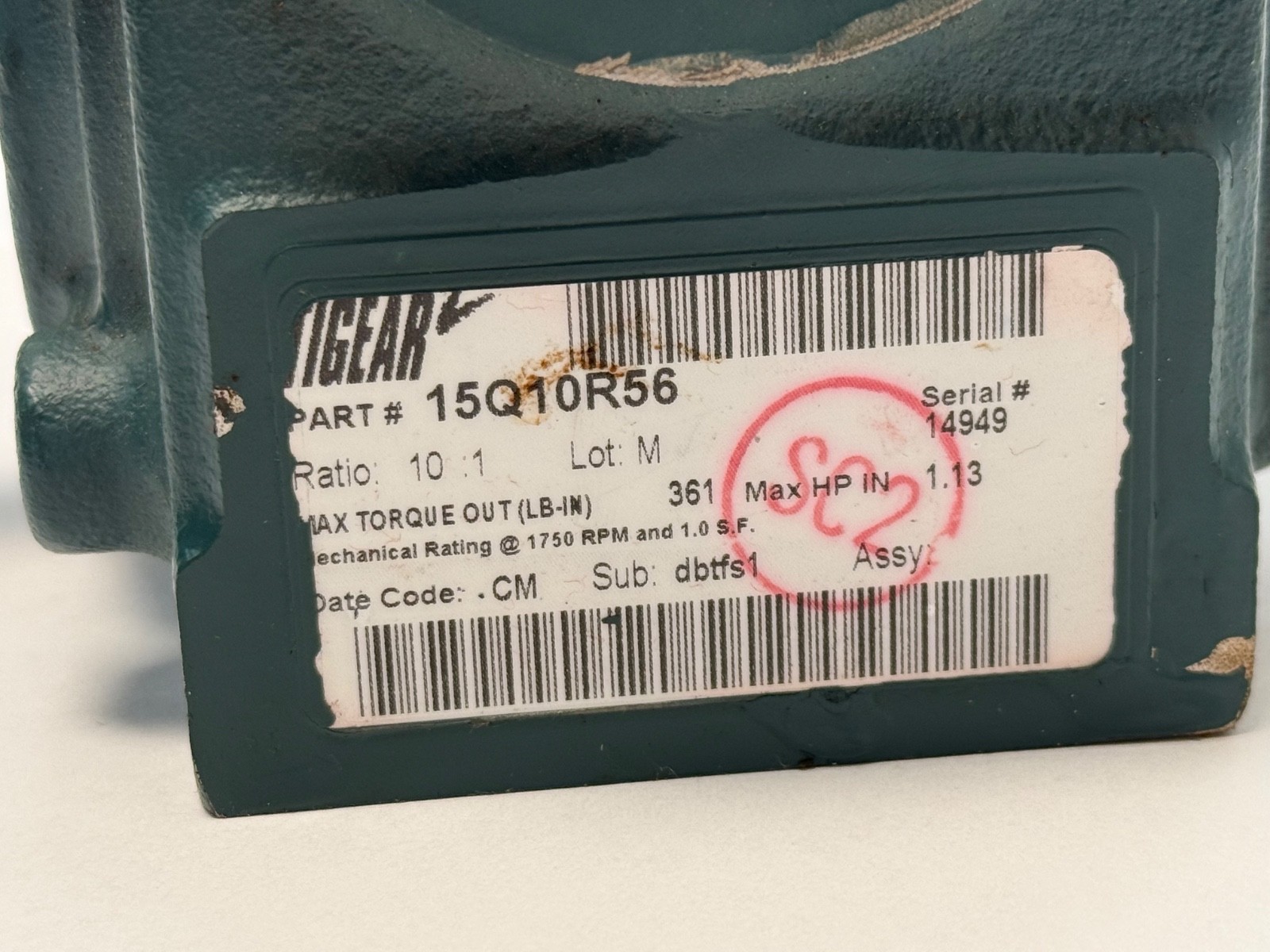

Nameplate on a Dodge Tigear-2 15Q10R56 worm gear speed reducer, showing part number, 10:1 ratio, and serial number

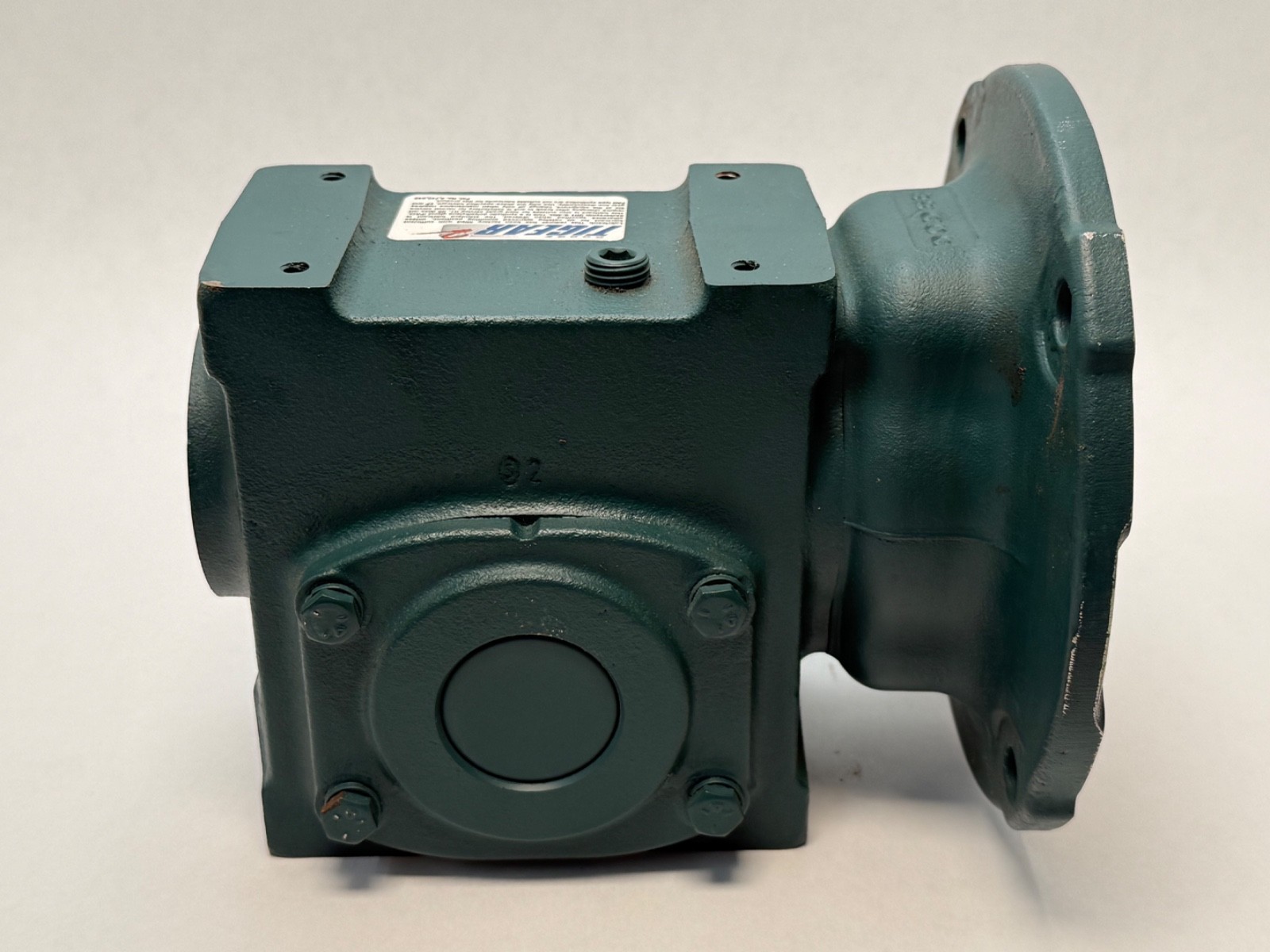

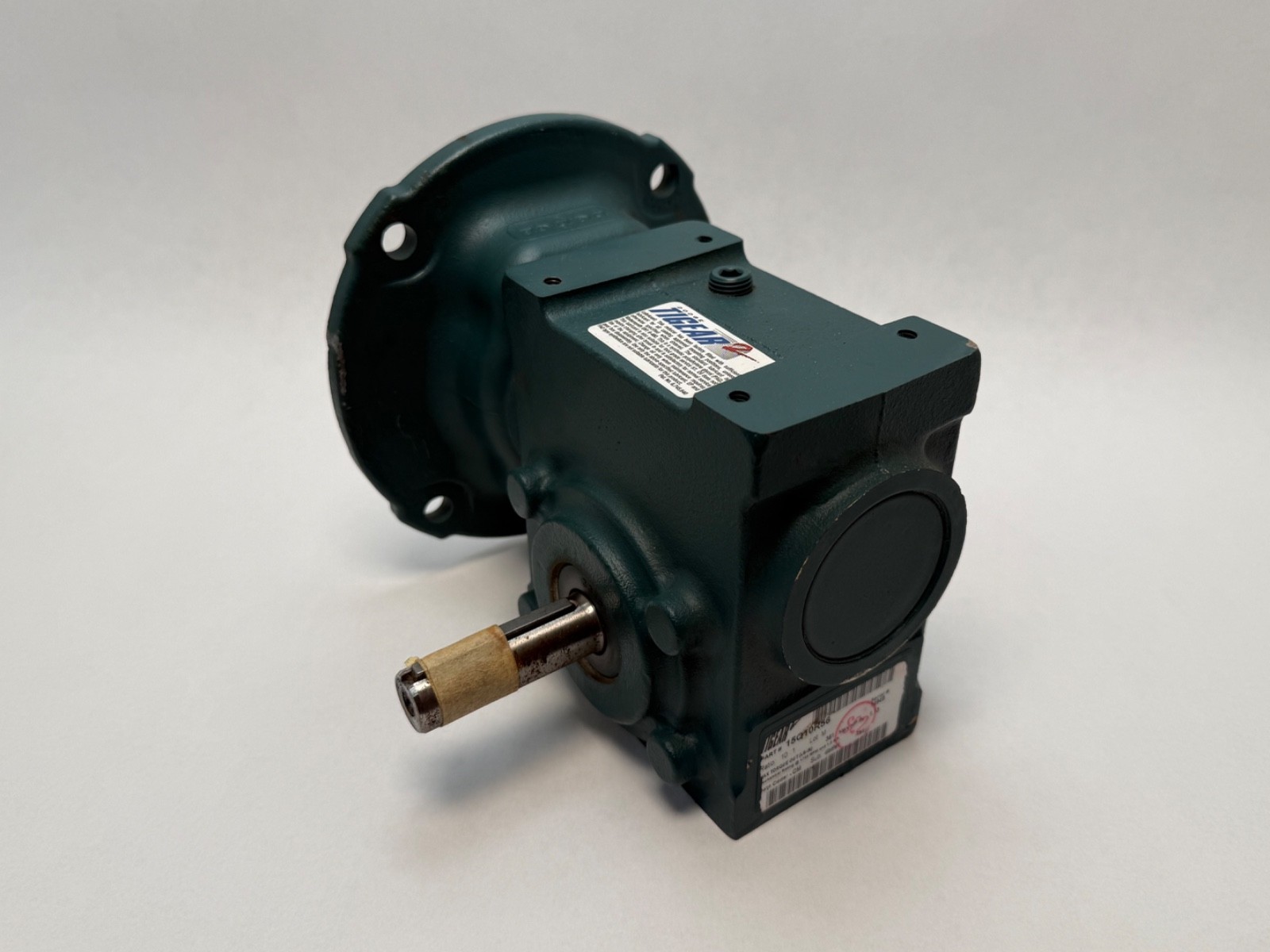

Dodge 15Q10R56 Tigear-2 worm gear speed reducer with 56C quill input flange and 3/4 in solid output shaft

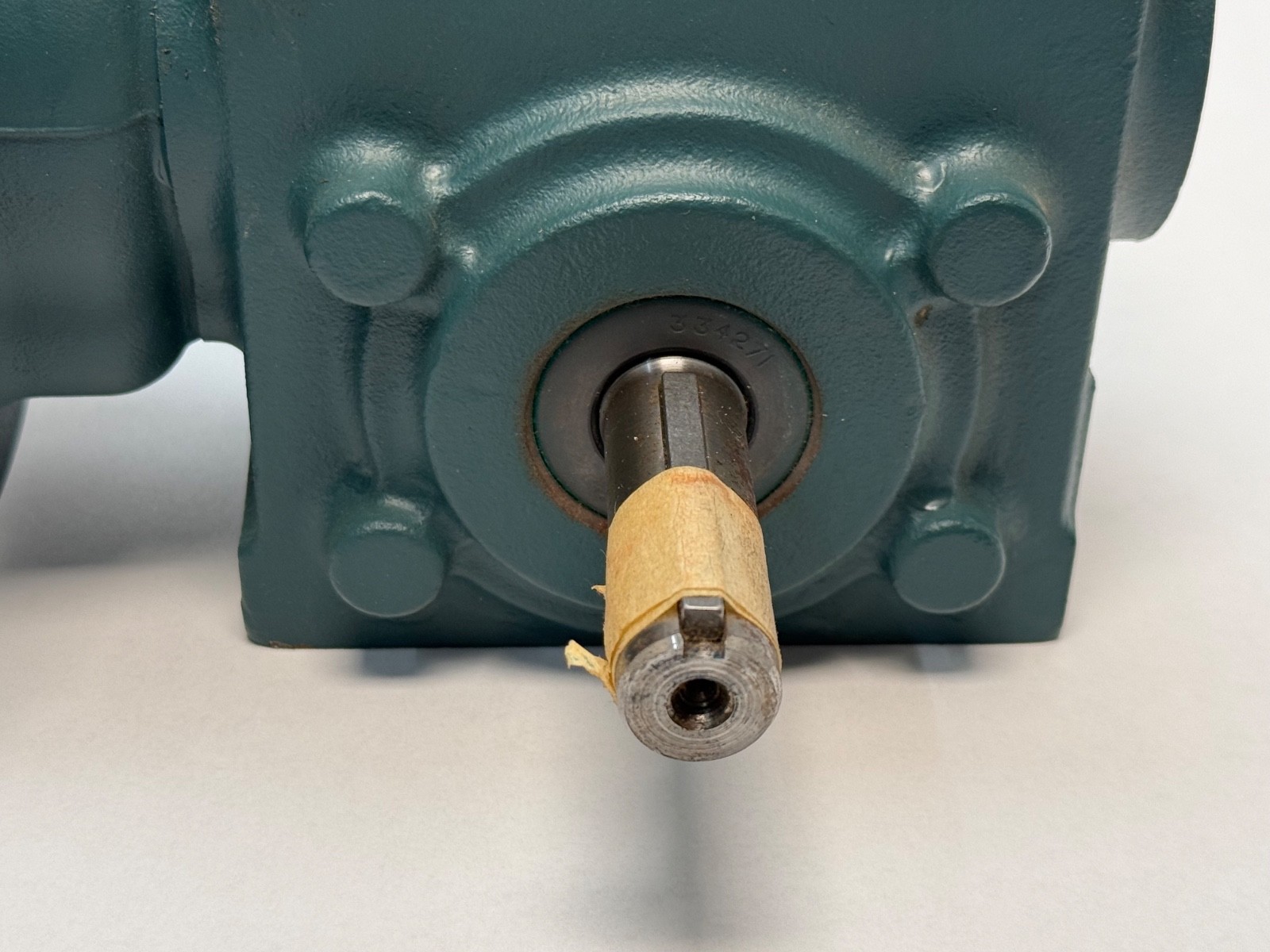

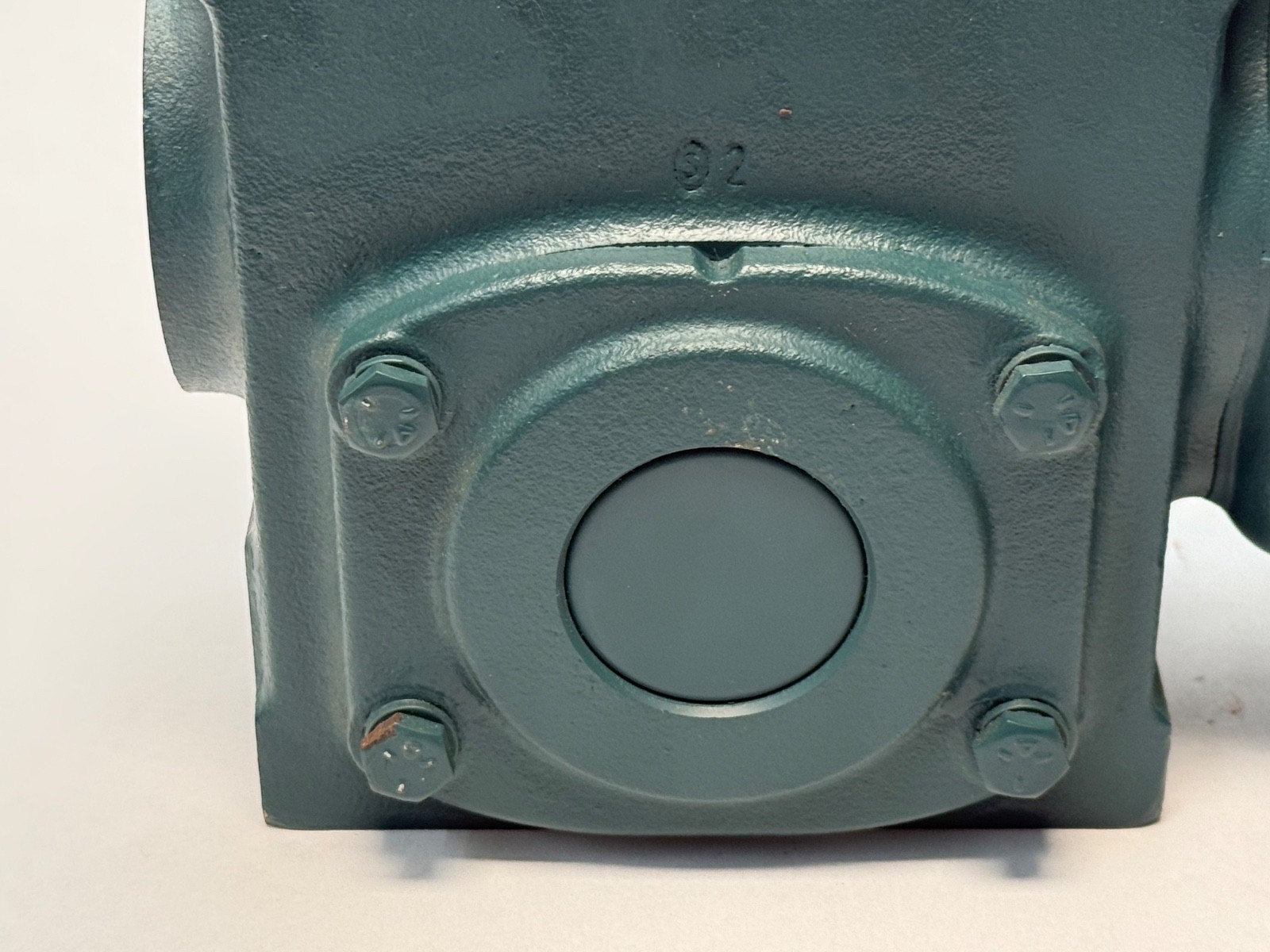

Dodge 15Q10R56 worm gear speed reducer, teal housing, with protective cap on the 3/4 in solid output shaft

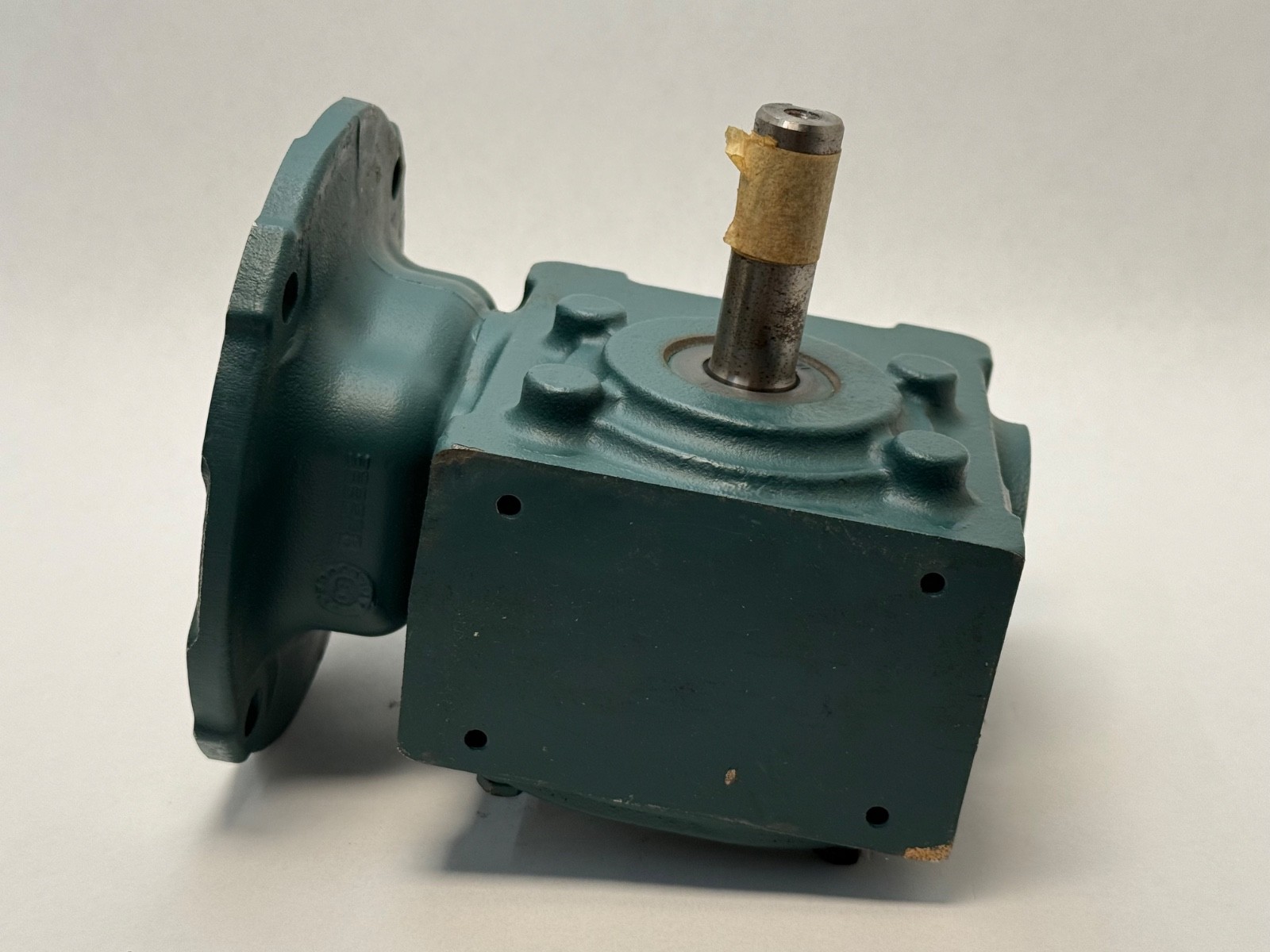

Dodge 15Q10R56 Tigear-2 worm gear speed reducer, front view showing output shaft and mounting holes

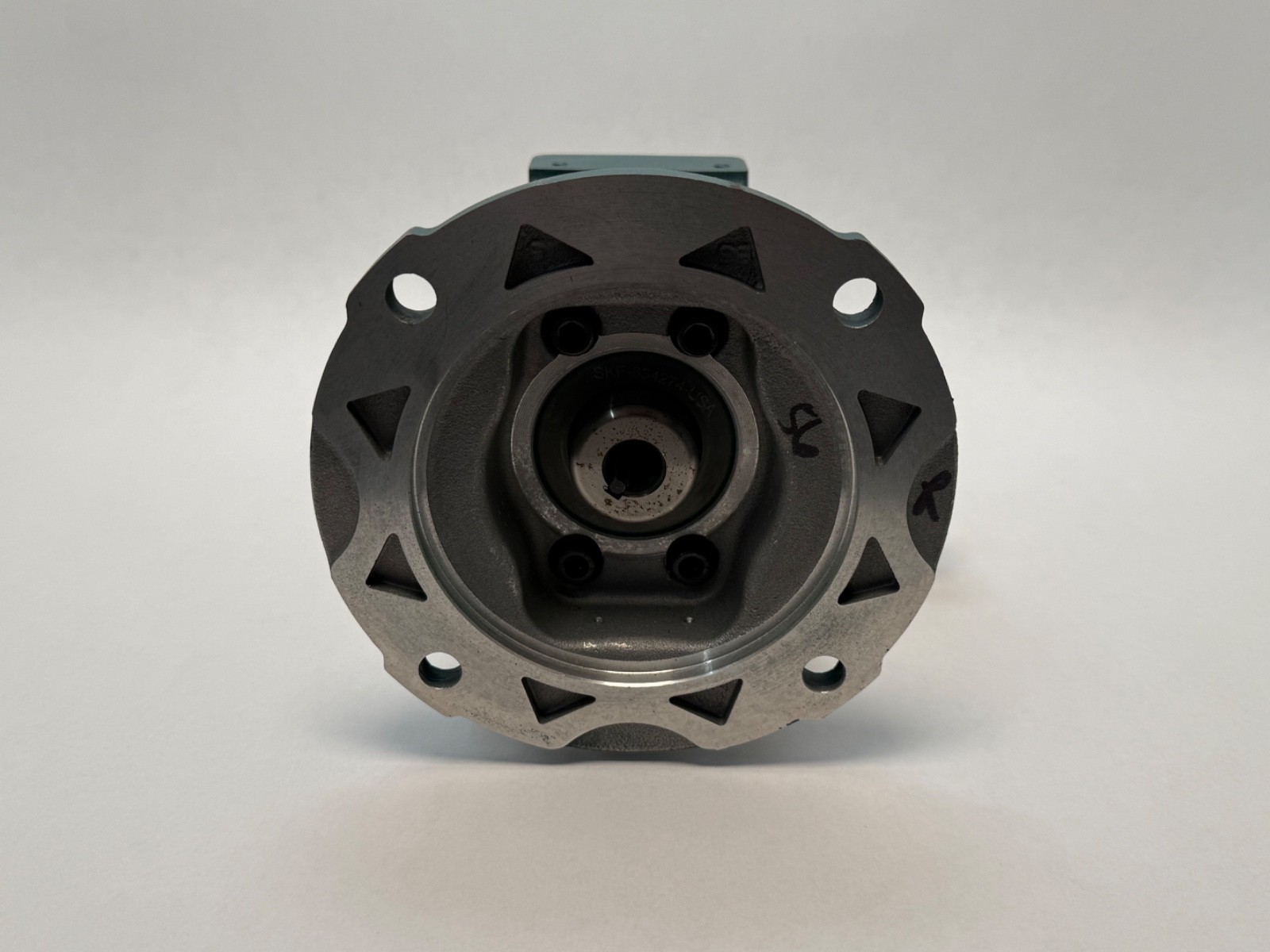

Dodge 15Q10R56 Tigear-2 worm gear speed reducer, 56C quill input end with bolt pattern and seal

Dodge 15Q10R56 Tigear-2 worm gear speed reducer with 56C quill input and solid output shaft

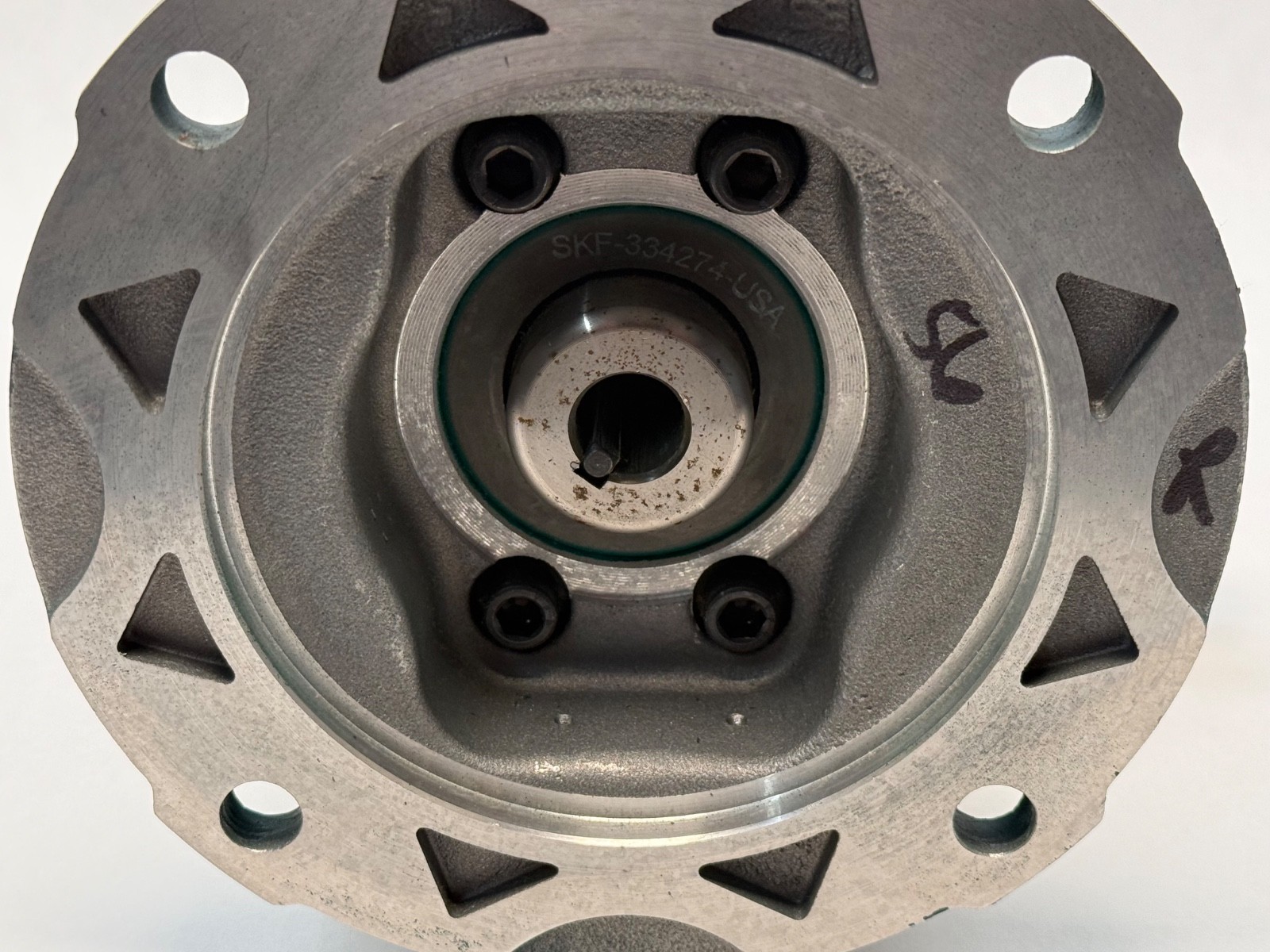

Dodge 15Q10R56 Tigear-2 worm gear speed reducer, close-up of the 56C quill input face with bolts

13k+ reviews

See our eBay reviews

Dodge15Q10R56Worm Gear Speed Reducer — Tigear-2, 1.50 in Center Distance, 10:1, 56C Quill Input, 3/4 in Right Solid Output

Name: Dodge 15Q10R56 Worm Gear Speed Reducer — Tigear-2, 1.50 in Center Distance, 10:1, 56C Quill Input, 3/4 in Right Solid Output
Brand: Dodge
SKU: BK3#I5M74Q
Price: 165.75 USD
Availability: InStock

Condition: New – Open box

Availability:

1 in stock

Categories: Bearings, Right Angle Speed Reducer

Dodge 15Q10R56 Tigear-2 worm gear reducer, 1.50 in center distance, 10:1, 56C quill input, 3/4 in right solid output, 361 lb-in, 175 rpm. New old stock.

List Price

$165.75

1 in stock

Prefer eBay? Visit our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Dodge
MPN	15Q10R56
Model	15Q10R56
Bearing Type	, Single-lip contact

Technical Specifications

Base Number	15Q10
Industry Terms	worm gear reducer; right angle gearbox; quill input speed reducer; 56C gearbox
Common Misspellings	Tigear 2; Tiger-2; Tigear II; 15Q10R-56
Centre Height Base To Bore Centerline	1.87 in
Input Hp	1.13 hp
Maximum Output Torque	361 lb-in
Bore Shaft Size	3/4 in output shaft
Mpn Variants	15Q10R56; 15Q10R 56; 15Q-10-R56; Tigear-2 15Q10R56
Compatible With Replaces	Sibling executions: 15Q10L56 (left output), 15Q10LR56 (double output), 15Q10H56 (hollow output), 15QZ10R56 (E-Z Kleen)
Additional Attributes	Product Line: Tigear-2; Case Size: 15; Center Distance: 1.50 in; Input: 56C quill; Output: Right solid shaft; Output HP: 1.00 hp; Output Speed: 175 rpm; Thermal Input HP: 2.22 hp; Overhung Load: 710 lbf; Output Shaft Length: 2.23 in; Mounting Bolt Pattern: 3.50 x 2.25 in; Output Center To Motor Face: 4.40 in; Output Center To Shaft End: 4.31 in; Lubricant: PAG, standard temperature
Input Shaft	C-Face Quill
Center Distance	1-1/2 in
Shaft Orientation	Right Angle
Nominal Ratio	10:1
Gear Ratio	10:1
Item Weight	19 lb
Housing Material	Class 30 grey cast iron
Compatible Model	NEMA 56C motors

Seller Part Number: BK3#I5M74Q

Product Description

What this part is

Dodge 15Q10R56 is a Tigear-2 right-angle worm gear speed reducer with a 56C quill input and a right-hand solid output shaft. Center Distance: 1.50 in. Gear Ratio: 10:1. Input HP: 1.13 hp. Output HP: 1.00 hp. Maximum Output Torque: 361 lb-in. Output Speed: 175 rpm. Thermal Input HP: 2.22 hp. Item Weight: 19 lb.

Decoding the designation

15 — case size, 1.50 in worm center distance.

Q — quill input for direct mounting of a C-face motor.

10 — 10:1 nominal ratio.

R — solid output shaft extending on the right side.

56 — NEMA 56C motor flange.

What these specs mean in practice

A 1,750 rpm 56C motor drives the output at 175 rpm. Overhung Load: 710 lbf. Output Shaft Diameter: 3/4 in. Output Shaft Length: 2.23 in. Seal Type: Single-lip contact. Lubricant: PAG, standard temperature.

Mounting data

Base To Output Centerline: 1.87 in. Mounting Bolt Pattern: 3.50 in x 2.25 in. Output Shaft Center To Motor Mounting Face: 4.40 in. Output Shaft Center To End Of Shaft: 4.31 in. Housing Material: Class 30 grey cast iron.

Interchange guidance

Same case and ratio as 15Q10L56 (left output), 15Q10LR56 (double output) and 15Q10H56 (hollow output). 15QZ10R56 is the E-Z Kleen washdown version. Condition: New old stock, open box.
