FafnirG1103KRR + COLBall Bearing Insert – 1-3/16 in Bore, 2-7/16 in Cylindrical OD, Eccentric Collar, Sealed, Snap Ring

Condition: New – Open box

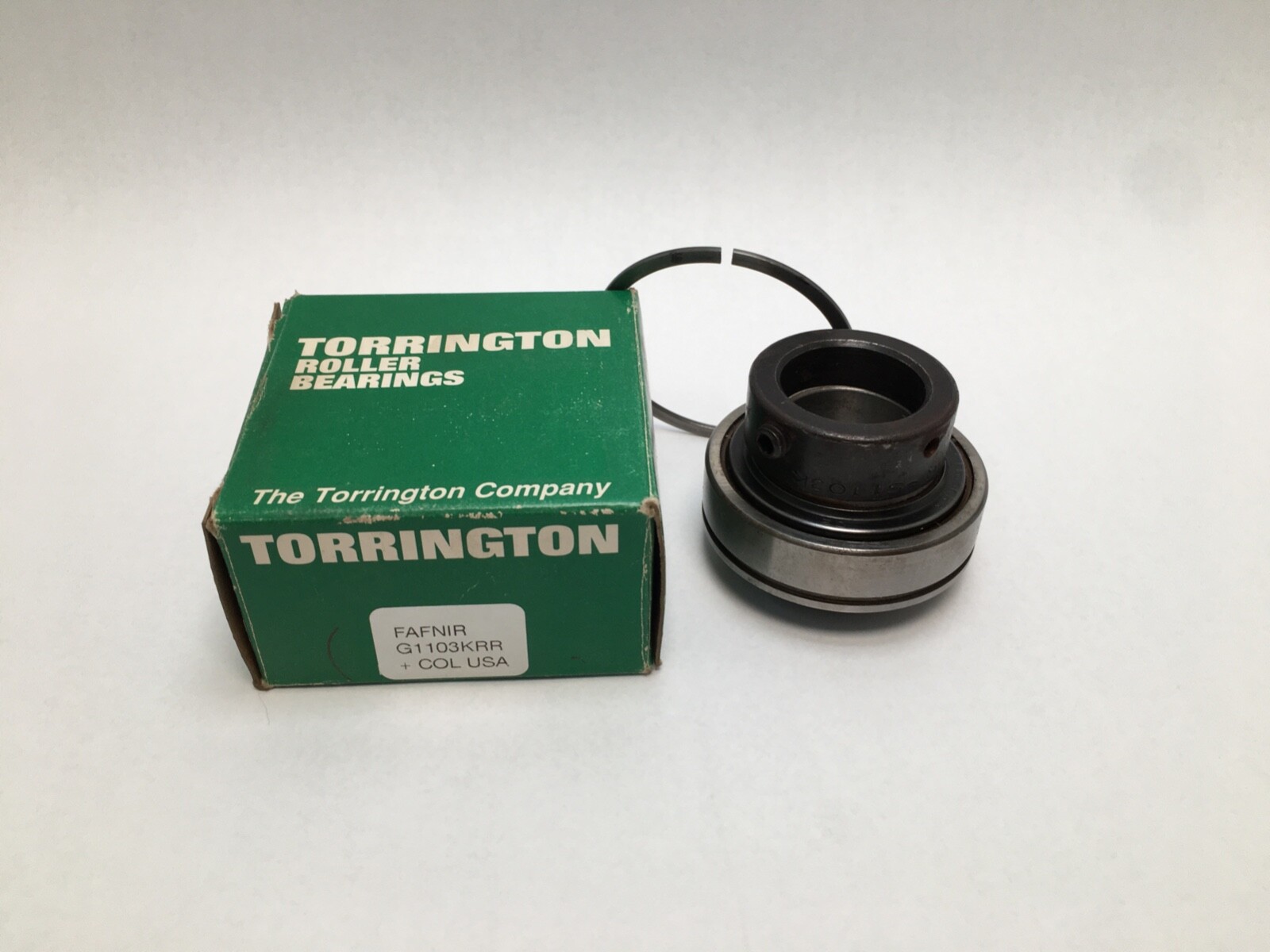

Condition Note: Made In USA, 2-7/16" Flat OD, w/ Collar + Snap Ring

Availability:

Out of stock

Categories: ,

Ball bearing insert, 1-3/16 in bore, 2-7/16 in cylindrical outside diameter, eccentric locking collar, sealed both sides, snap ring supplied.

List Price

$49.99

Out of stock

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

Out of stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFafnir
MPNG1103KRR + COL
ModelG 1103KRR
ID1.1875 in
OD2.4375 in

Technical Specifications

SeriesG-KRR
TypeInsert Bearing
LubricantGrease
MaterialBearing Steel
Base NumberG1103K
Locking MethodEccentric locking collar
Mpn VariantsG1103KRR; G 1103 KRR; G-1103-KRR; G1103KRR+COL; 1103KRR; G1103K
Rolling ElementsBall
Bearing TypeBall Bearing Insert
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedOuter ring snap ring supplied
Duty TypeStandard
Locking DeviceEccentric Collar
Insert Outer RingSpherical
Harmonization Code8482.10.50
Design UnitsImperial
Bearing MaterialChrome steel

Cross-References

Cross Reference 5Sealmaster ER-19
Seller Part Number: B-AM3B5#S9ZOUW

Product Description

What this part is

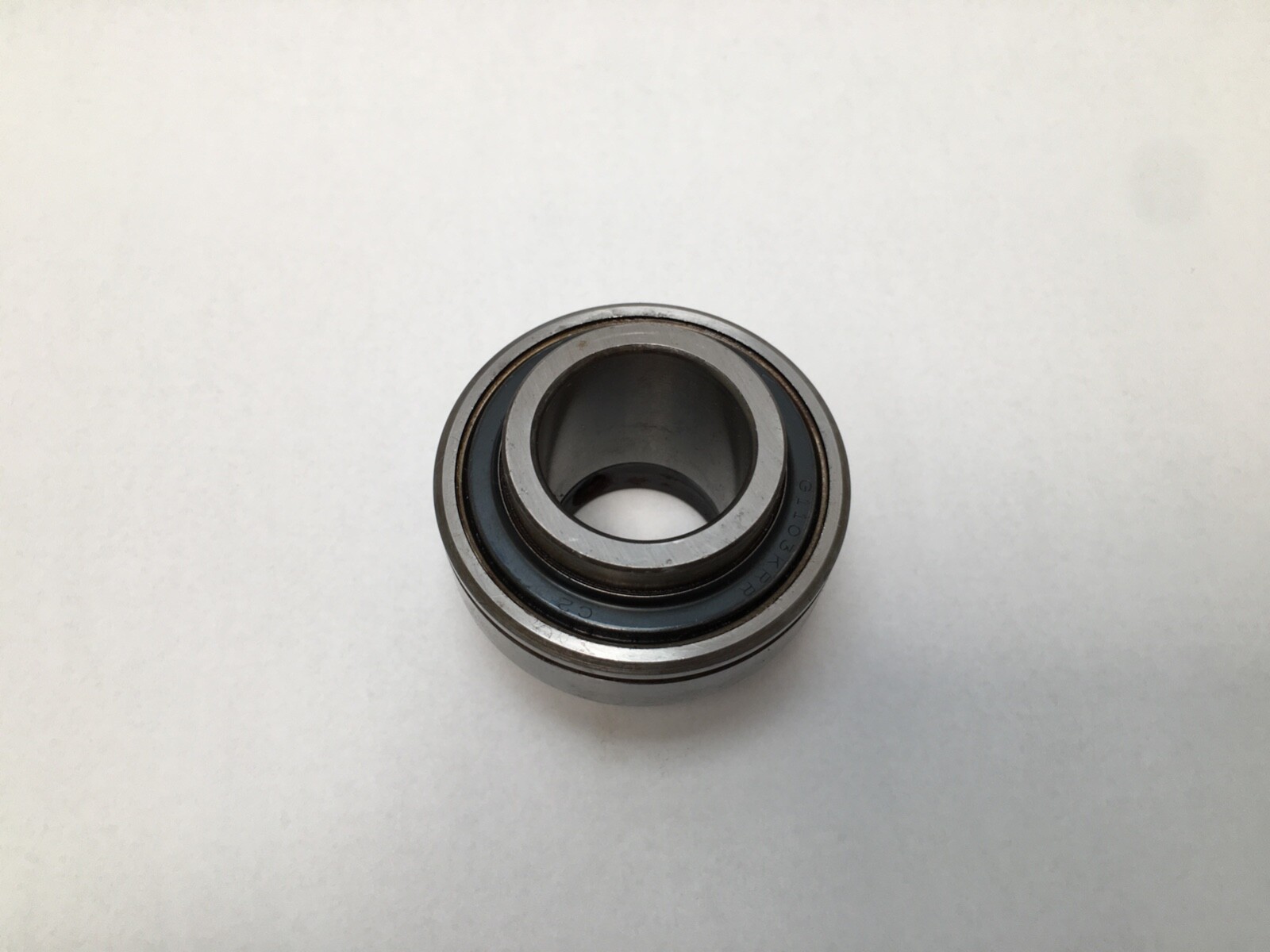

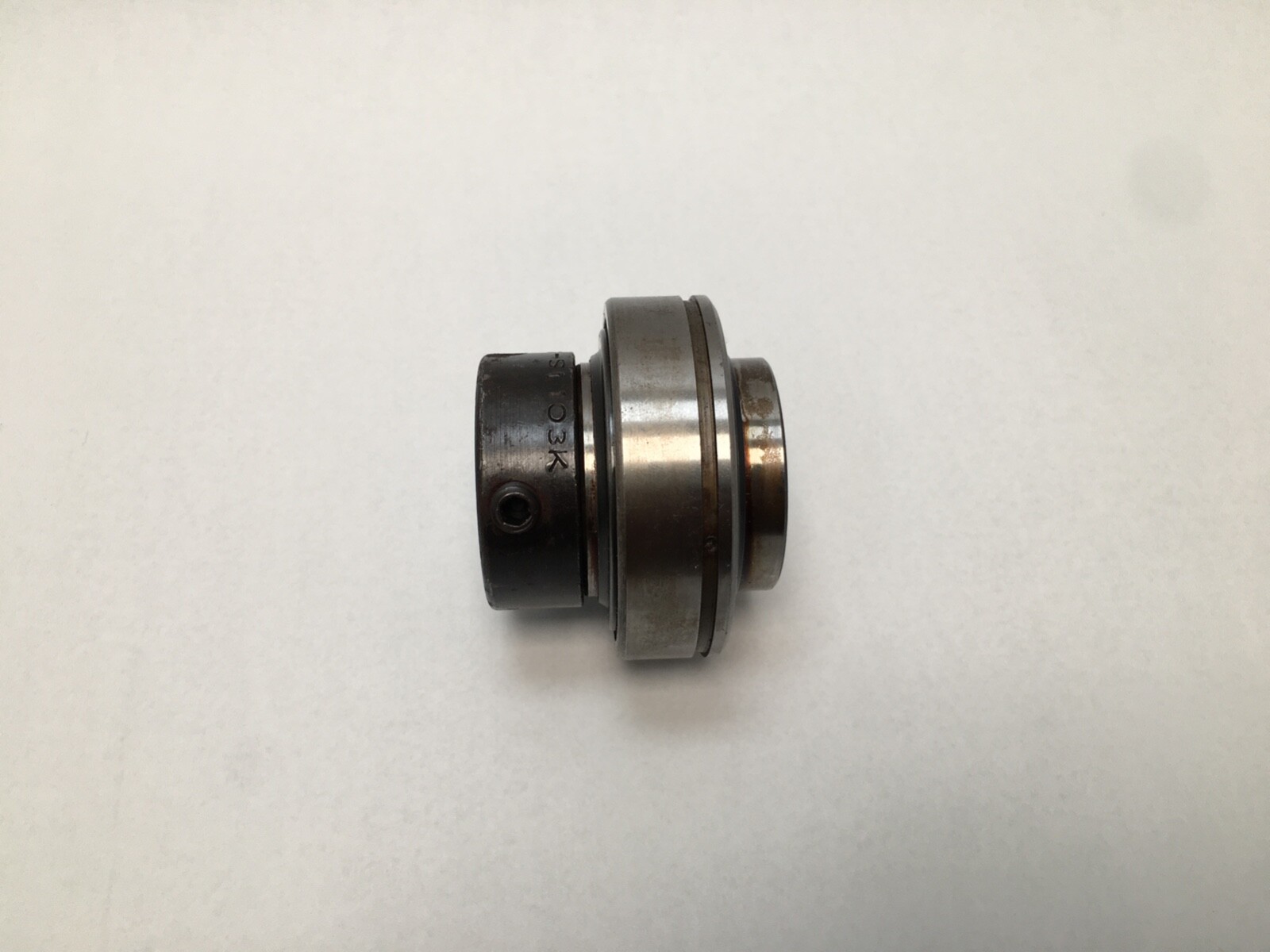

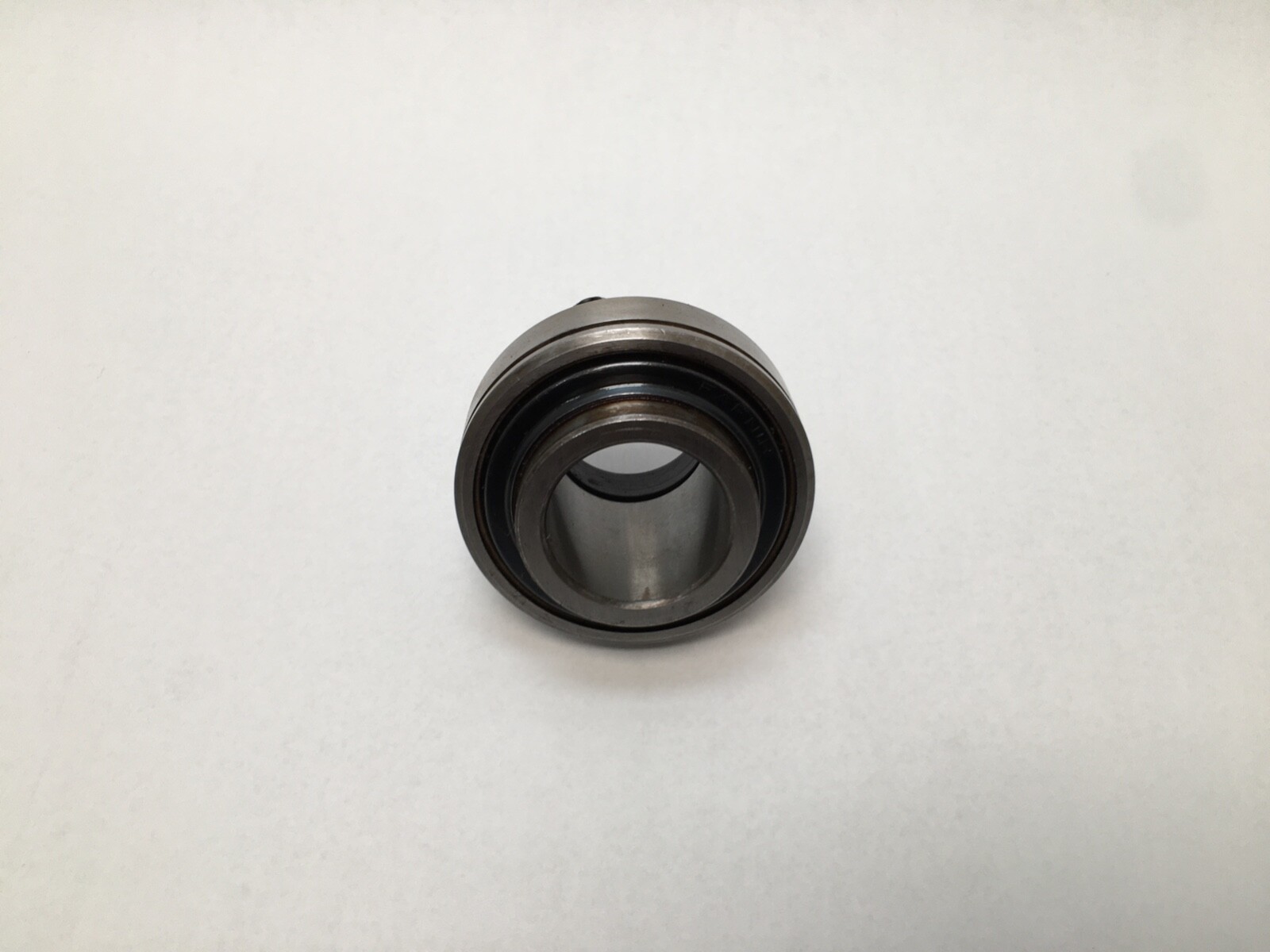

Fafnir G1103KRR, a ball bearing insert with a cylindrical outside diameter, supplied with its eccentric locking collar and an outer ring snap ring. Bore Diameter: 1.1875 in (1-3/16 in). Outside Diameter: 2.4375 in (2-7/16 in). Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Locking Method: Eccentric locking collar. Closure Type: Sealed both sides. Snap Ring Included: Outer ring snap ring supplied. Bearing Material: Chrome steel. Base Number: G1103K.

Decoding the designation

G — Fafnir ball bearing insert with an extended inner ring.

1103 — the size code in the 1100 insert range; the shaft size is 1-3/16 in.

K — the eccentric locking collar seat on the extended inner ring.

RR — a seal on each face.

COL — the locking collar itself, supplied with the insert.

What these specs mean in practice

The outside diameter is cylindrical rather than spherical, so this insert drops straight into a plain 2-7/16 in housing bore or cartridge and takes no misalignment through the outer ring; the shaft has to run true to the housing. The snap ring seats in the outer ring groove and locates the insert axially in a through-bored housing. The eccentric locking collar grips the shaft by cam action when it is turned against the inner ring and set with its grub screw, which holds the insert on a plain drawn shaft with no shoulder, threaded nut or keyway. Seals on both faces hold grease in and keep dust and washdown out.

Quantity and configuration

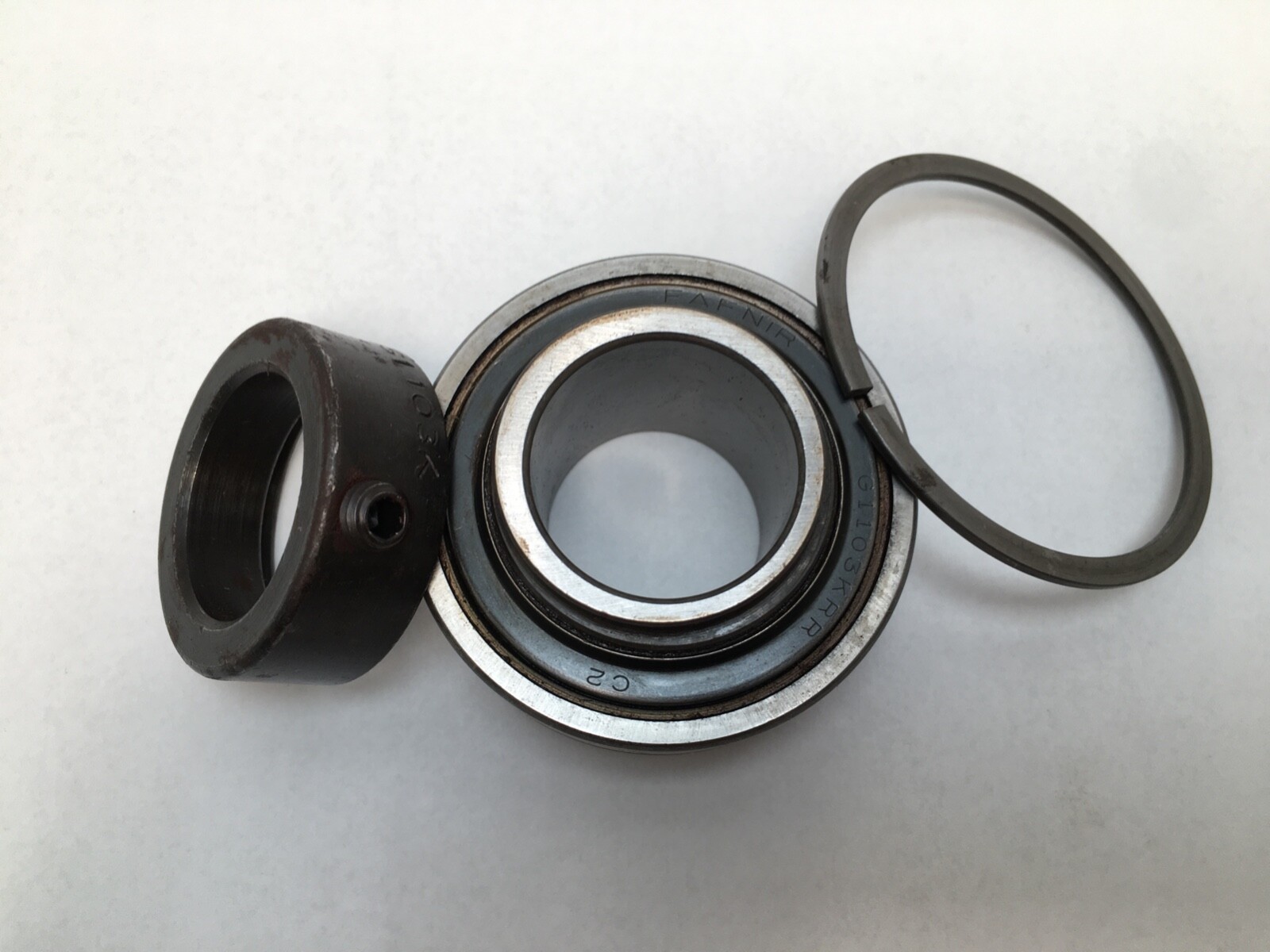

Unit Quantity: 1 Pc. One insert with its locking collar and snap ring.

Interchange guidance

Bearing inserts are numbered to each maker’s own housing, collar and seal system, so no like-for-like interchange is published for this part. Match a replacement on shaft size, the 2-7/16 in cylindrical outside diameter, inner ring width, locking method, seal type and snap ring groove. Searchable variants include G1103KRR, G 1103 KRR, G-1103-KRR, G1103KRR+COL, 1103KRR and G1103K.
