Replacement ball bearing insert only for a 1-3/16″ shaft — wide inner ring, spherical outer race, two setscrews at 120 degrees. No housing supplied: this drops into an existing Dodge SC-series pillow block or flange. Sold as 1 pc.
List Price
$35.40
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Cylindrical Cartridge Mounted Bearing Unit - 1-3/16 in Shaft, Setscrew Locking, Cast Iron Housing$68.25
Set Screw Ball Bearing Insert — 17 mm Bore, 40 mm OD, 1 in Wide, 203 Series$35.12
Insert Ball Bearing - 20 mm Bore, 47 mm OD, 31.2 mm Width, Set Screw Locking, 204 Series$35.05
Ball Bearing Insert - 2 in Bore, 3.543 in Spherical OD, Setscrew Locking, Contact Seals$53.05| MFR / Brand | Dodge |
|---|---|
| MPN | INS-SC-103 / 123338 |
| GTIN | 782475221172 |
| Model | INS SC 103 |
| ID | 1.1875 in |
| OD | 2.4409 in |
| Width | 1.5 in |
| Material | Chrome Steel |
|---|---|
| Series | SC |
| Type | Insert Bearing |
| Base Number | INS-SC-103 |
| Industry Terms | bearing insert, insert bearing, cartridge bearing, wide inner ring bearing, setscrew insert, replacement insert |
| Common Misspellings | Dodge INSSC103, INS SC103, INS-SC 1-3/16, INC-SC-103, Dodge insert SC103 |
| Application Types | Conveyors, fans, material handling, agricultural equipment, rebuilding mounted units |
| Bore Shaft Size | 1-3/16 in (1.1875 in / 30.16 mm) |
| Locking Method | Two setscrews, 120 degrees apart |
| Replacement Insert | Fits Dodge SC-series pillow block, F2B-SC / F4B-SC flange and SC take-up housings |
| Mpn Variants | INS-SC-103, INSC103, INS SC 103, INS-SC103, 123338 |
| Rolling Elements | Balls |
| Bearing Type | Ball bearing insert (mounted unit component) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8482.10.50.44 |
| Part Number | 123338 |

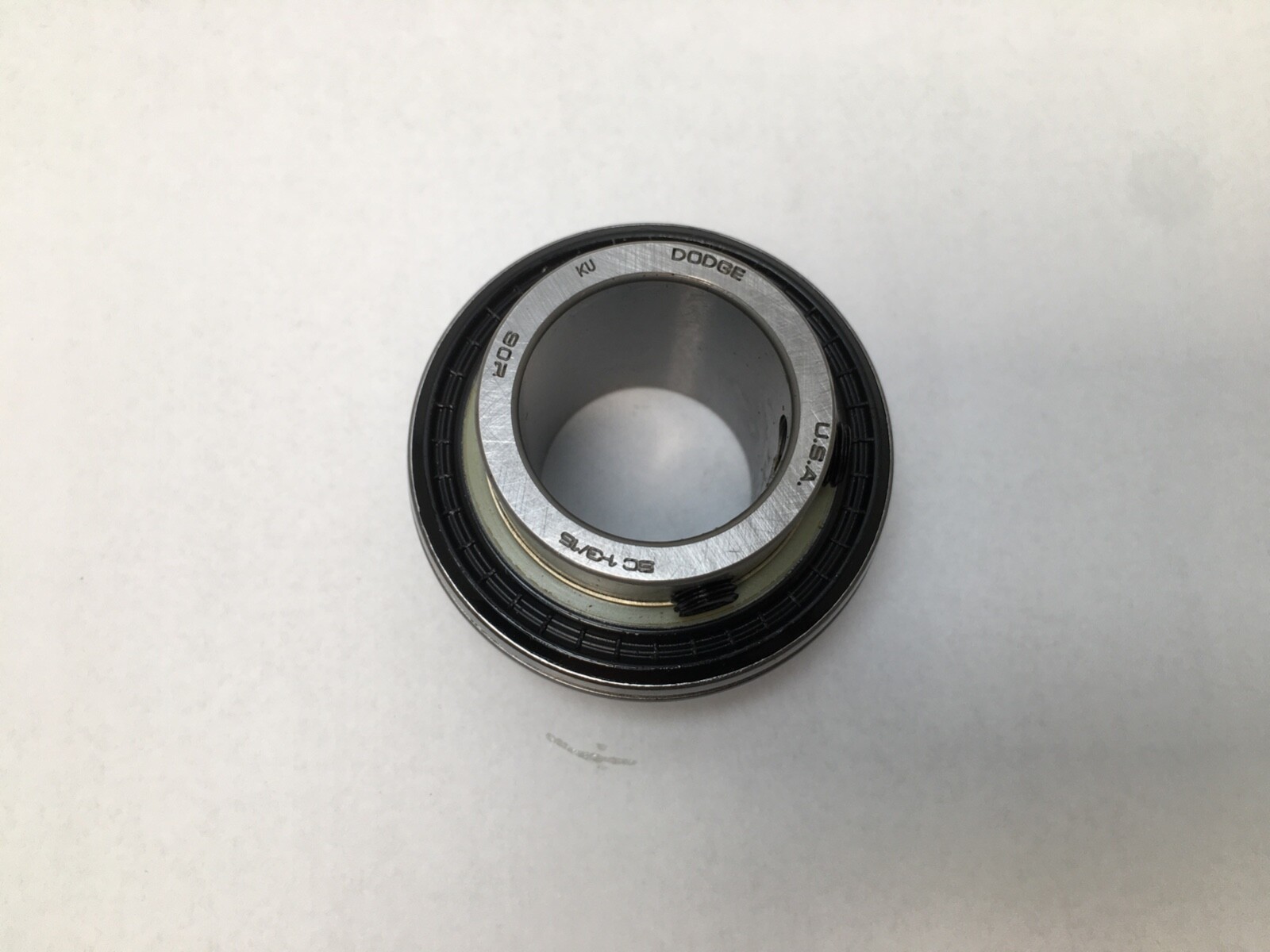

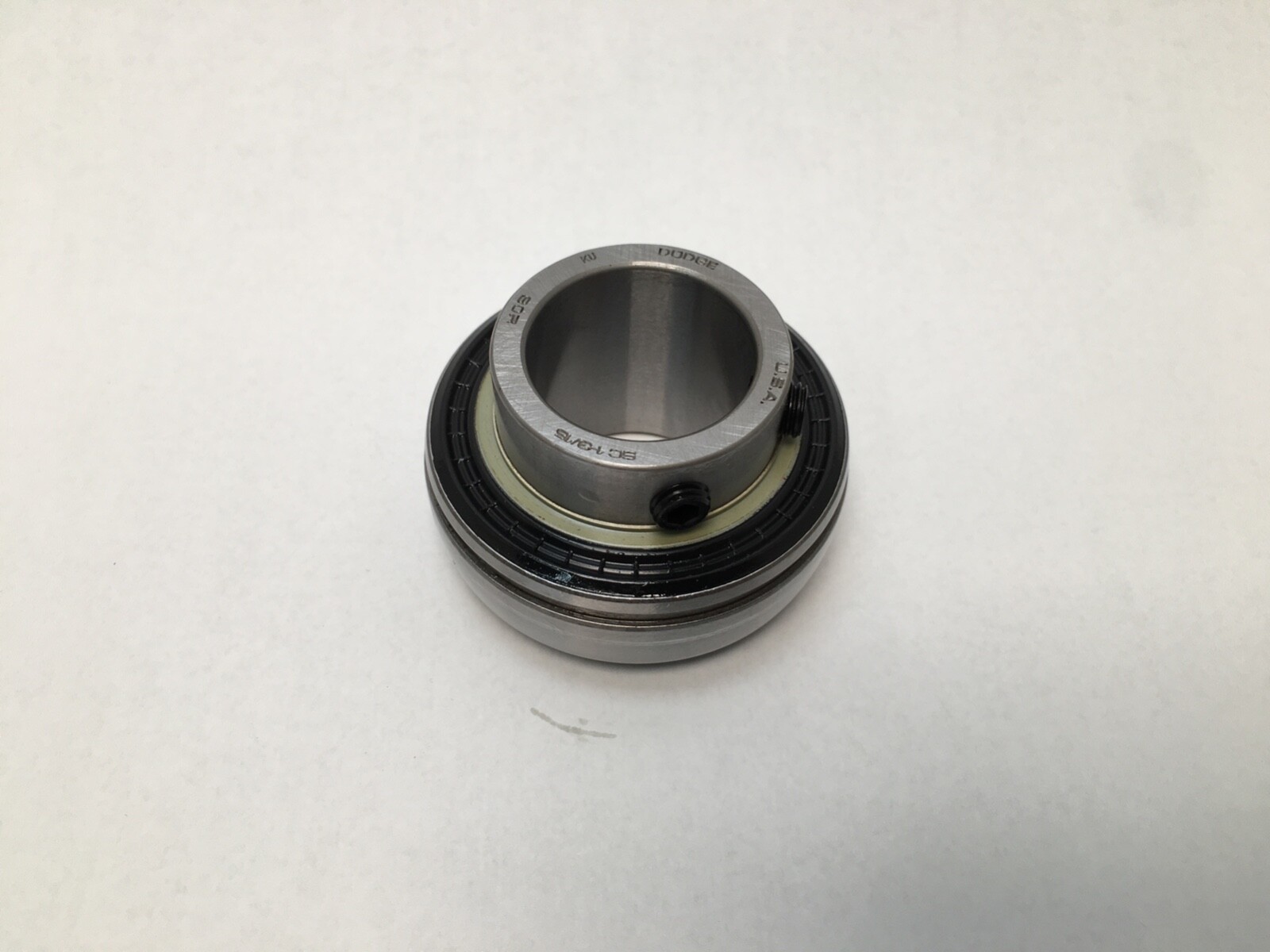

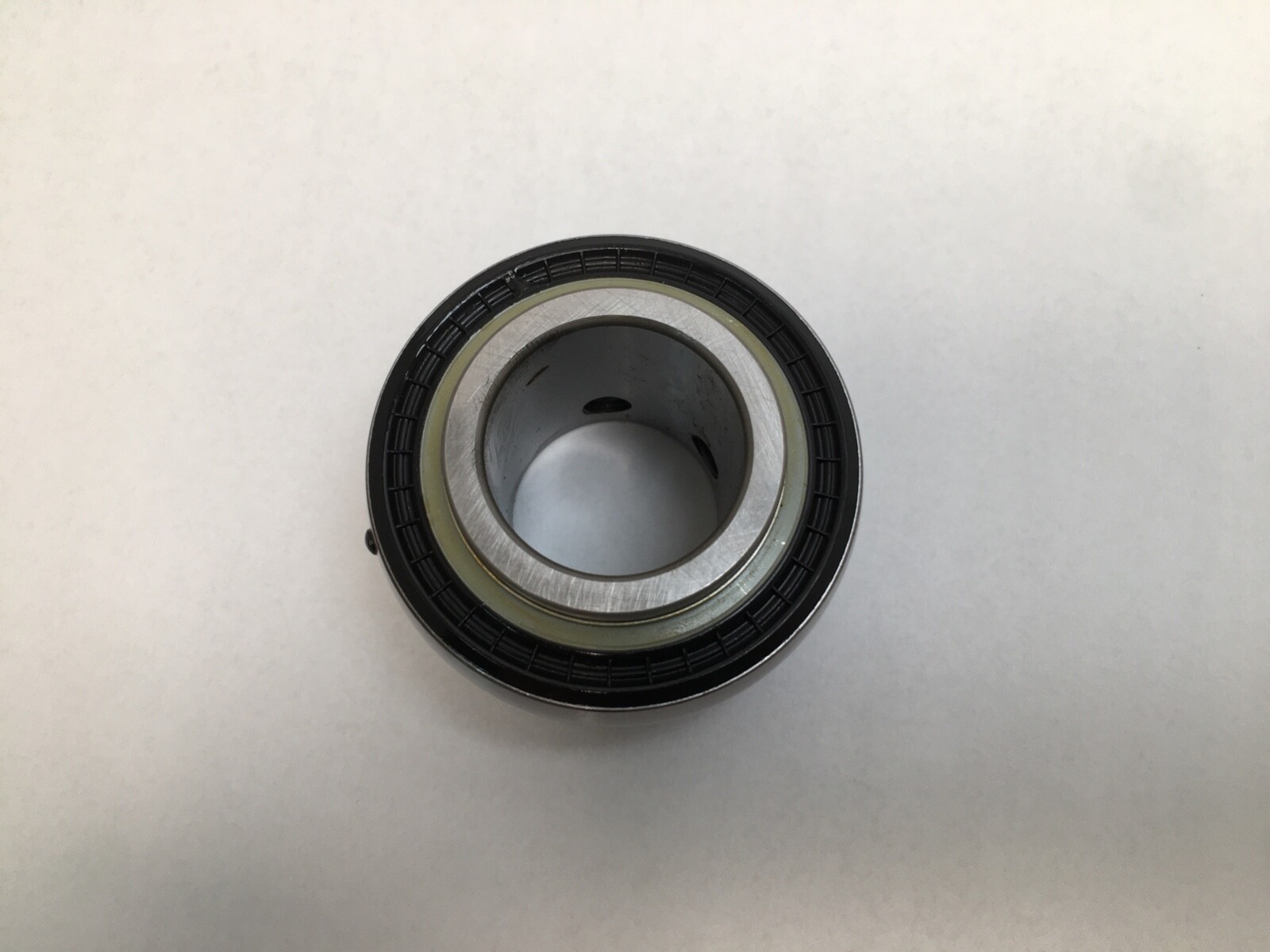

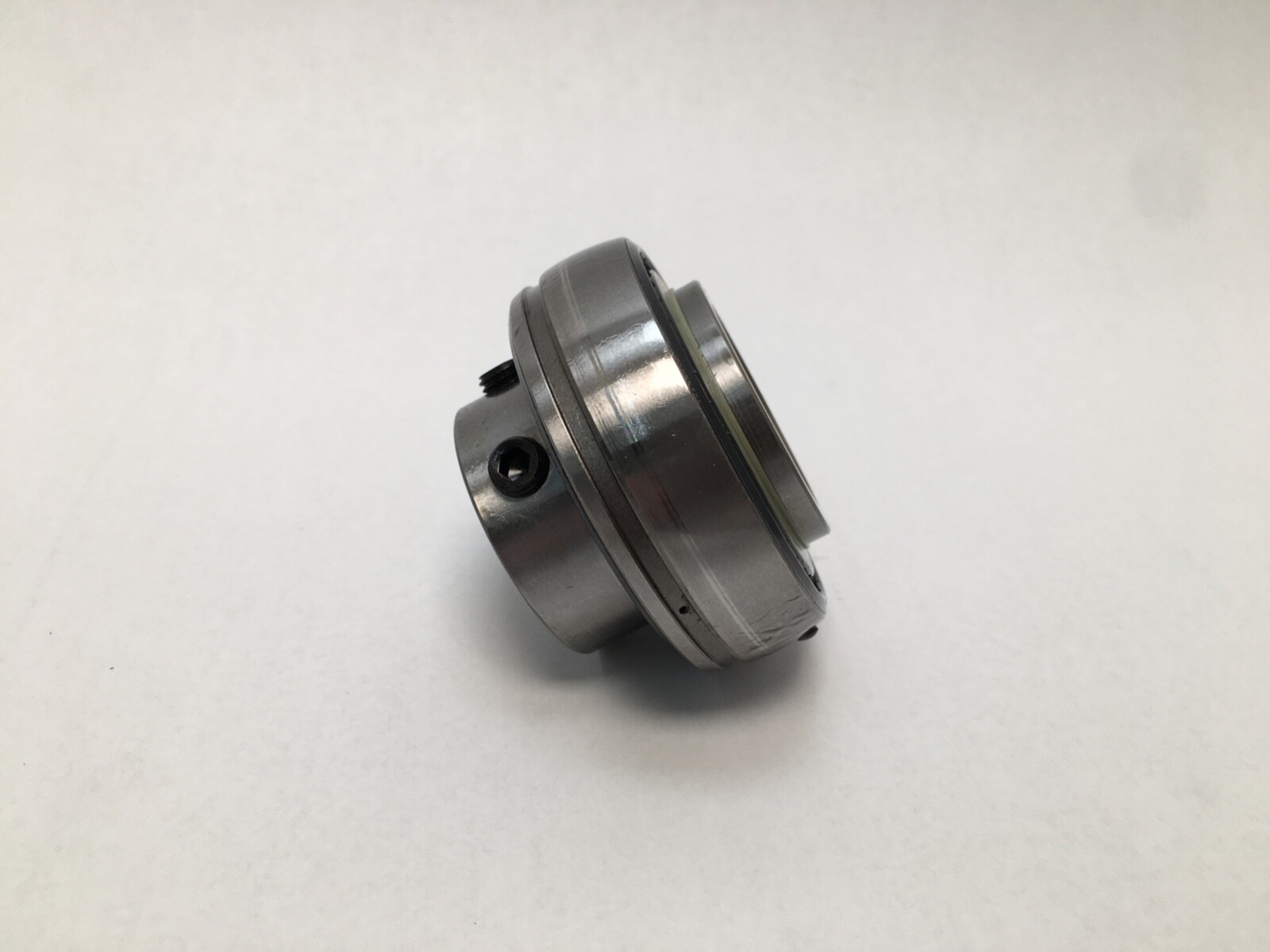

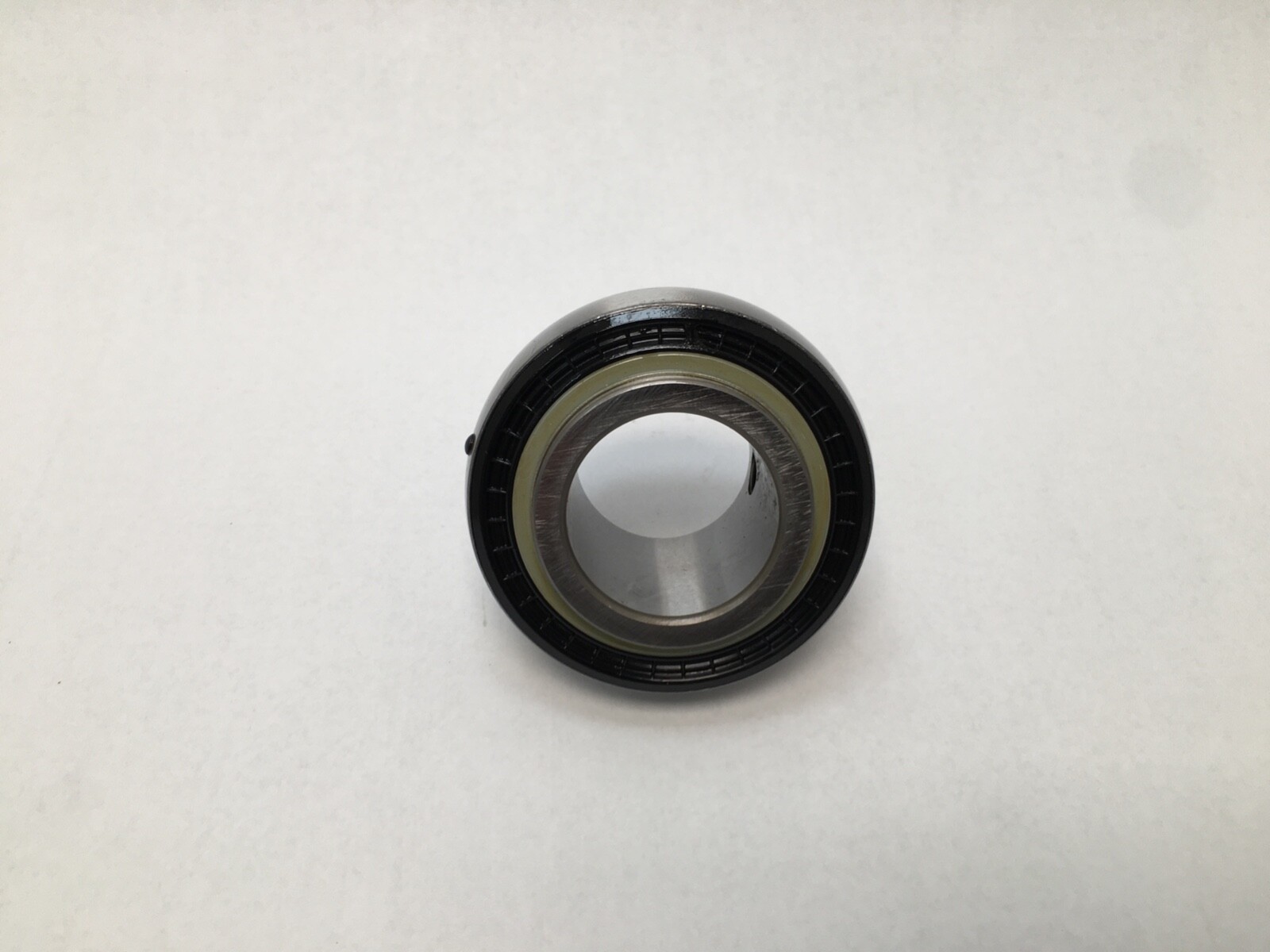

A Dodge INS-SC-103 bearing insert — the rotating cartridge only, for a 1-3/16 inch shaft. It is a single row ball bearing with a wide inner ring extended on both sides and drilled for two setscrews, and a spherical (crowned) outer race that swivels in a mating housing seat to take up installation misalignment.
This listing is the insert alone. There is no housing, no cap and no adapter sleeve. Use it to rebuild an existing Dodge SC-series mounted unit whose housing is still sound — an SC pillow block, an F2B-SC or F4B-SC flange, or an SC take-up cartridge. If you need the complete assembled unit, that is a different order code.
INS = insert, sold as a component. SC = Dodge SC series, setscrew-locking ball insert with a spherical outer race. 103 = 1-3/16 inch bore (1.1875 in). 123338 is the Dodge/Baldor part number for this build.
Bearing type: single row ball bearing insert, wide inner ringBore / shaft size: 1-3/16 in (1.1875 in / 30.16 mm)Outer race: spherical, self-aligning in the housing seatLocking method: two setscrews, 120° apart in the inner ringRolling elements: ball · number of rows: 1Relubrication: yes, through the housing grease pathDesign units: inch
Setscrew locking is simple and quick but it indents the shaft, so the insert is best treated as a one-position part — refitting it in a new spot means fresh marks. It also holds better in one direction of rotation than the other, so on a hard-reversing drive an adapter-mounted insert such as a Dodge Grip-Tight will hold more reliably.
Because the outer race is spherical, the insert has to go into a housing with a matching spherical seat. It will not sit correctly in a cylindrical-bore housing, and it is not a replacement for a plain deep groove ball bearing of the same nominal size.
Sold as 1 pc — one insert with its setscrews.
Clean the housing seat before fitting so the insert can still swivel. Slide it onto the shaft, position the assembly, align the housing, then torque both setscrews evenly to the Dodge figure. Rotate the shaft by hand and confirm no drag before running, and grease through the housing fitting so the path is purged.
Same-role setscrew ball inserts include SealMaster inserts, Link-Belt UG-series and Browning VS-series inserts in the same nominal bore, and generic UC-series inserts. Fit is governed by the housing seat diameter and insert width, not the bore alone, so measure your housing before buying across brands. A same-bore Dodge Grip-Tight or eccentric-collar insert is a different part — different locking method, and in some sizes a different outside diameter.
