A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Ball bearing insert, 2 in bore, 3.543 in spherical outside diameter, 1.94 in wide, setscrew locking with contact lip seals, 4,500 rpm.
List Price
$53.05
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | INS-SC-200 |
| GTIN | 782475227969 |
| Model | INS SC 200 / 123347 |
| ID | 2 in |
| OD | 3.5433 in (spherical) |
| Type | Insert Bearing |
|---|---|
| Base Number | INS-SC |
| Industry Terms | Bearing insert, ball bearing insert, spherical OD insert, setscrew insert bearing, pillow block replacement insert, wide inner ring insert |
| Common Misspellings | INS SC 200, INS-SC200, INSSC-200, Dodge 12334 7, INS-SC-2OO |
| Overall Width | 1.94 in |
| Bore Shaft Size | 2 in |
| Locking Method | Set screw |
| Mpn Variants | INS-SC-200, INSSC200, INS SC 200, 123347 |
| Additional Attributes | Spherical outer race profile for self-alignment in Dodge SC-series housings; standard (normal) duty; extended inner ring with two setscrews |
| Dynamic Load Rating | 7,891 lb |
| Static Load Rating | 5,213 lb |
| Series | INS-SC |
| Rolling Elements | Balls |
| Bearing Type | Mounted ball bearing insert, spherical outside diameter |
| Number Of Rows | 1 |
| Limiting Speed | 4,500 rpm |
| Part Number | INS-SC-200 |
| Cross Reference 1 | 123347 |
|---|---|
| Cross Reference 2 | INSSC200 |

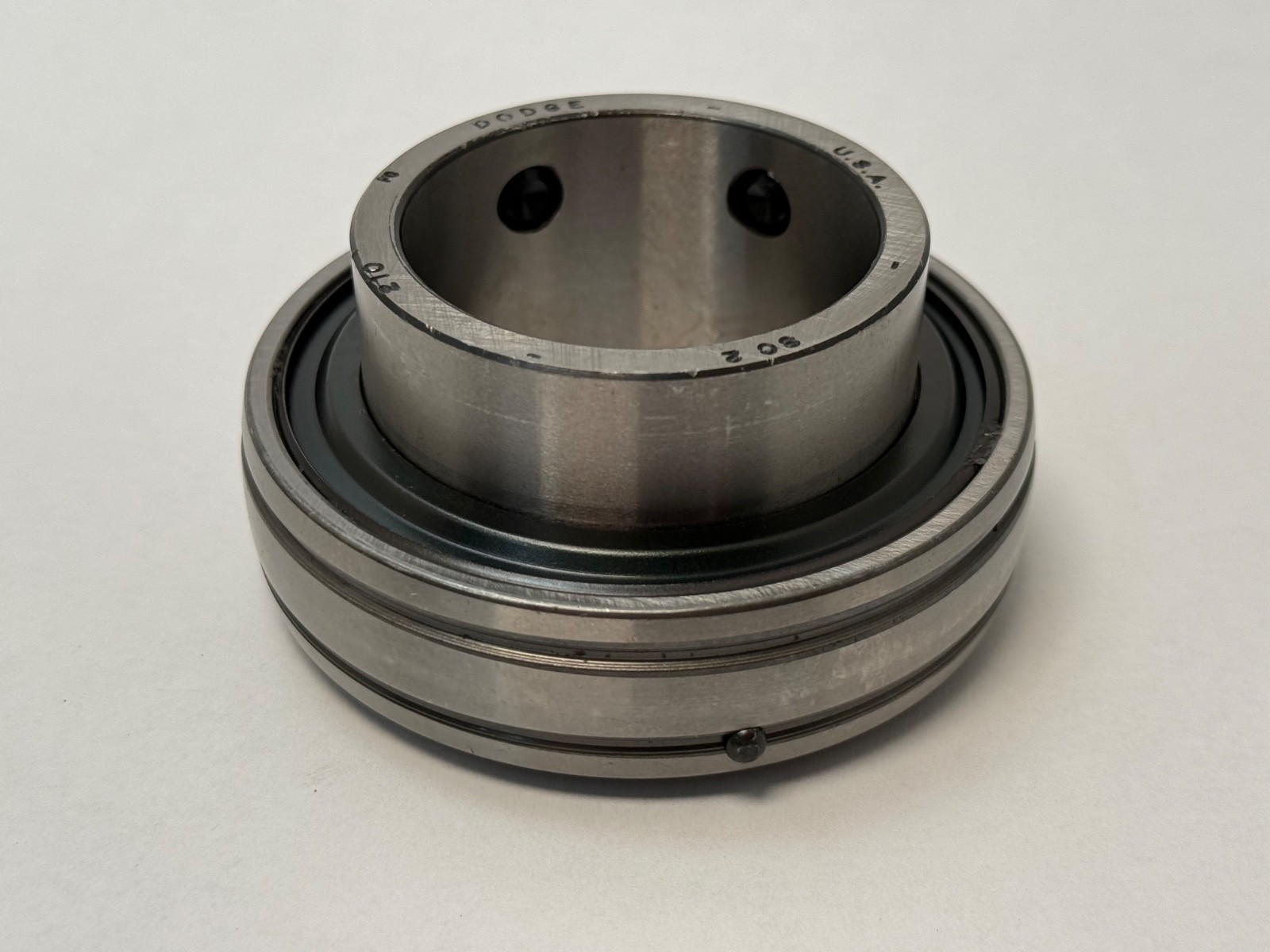

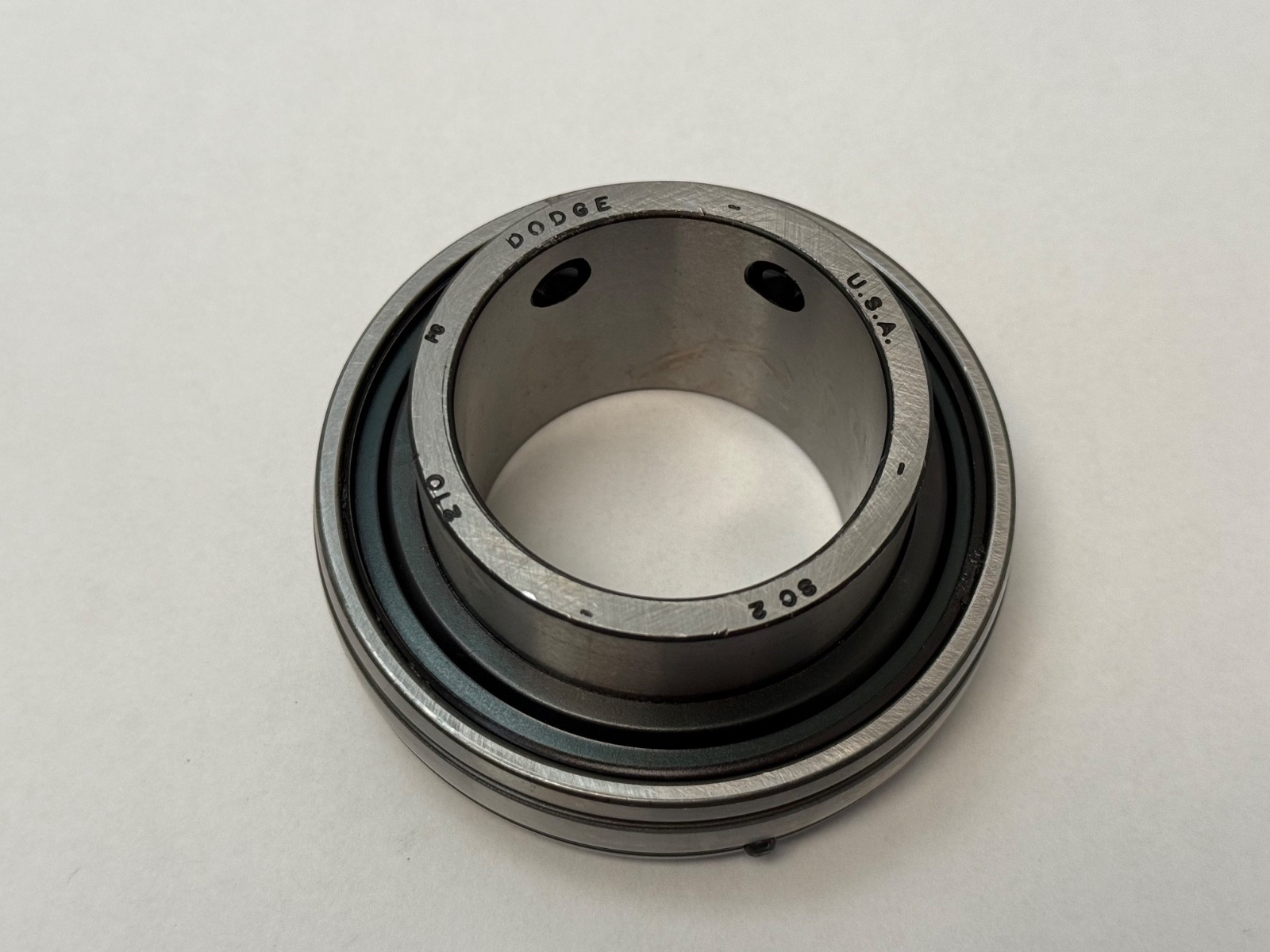

Dodge INS-SC-200 ball bearing insert, Dodge part number 123347. Bearing type: Mounted ball bearing insert, spherical outside diameter. Bore / Shaft Size: 2 in. Outside Diameter: 3.5433 in. Overall Width: 1.94 in. Locking Method: Set screw. Closure Type: Single-lip contact seal. Rolling Elements: Balls. Number Of Rows: 1.
INS — insert. The unit is the bearing element on its own, with a spherical outside diameter that seats into a matching Dodge pillow block, flange or take-up housing.

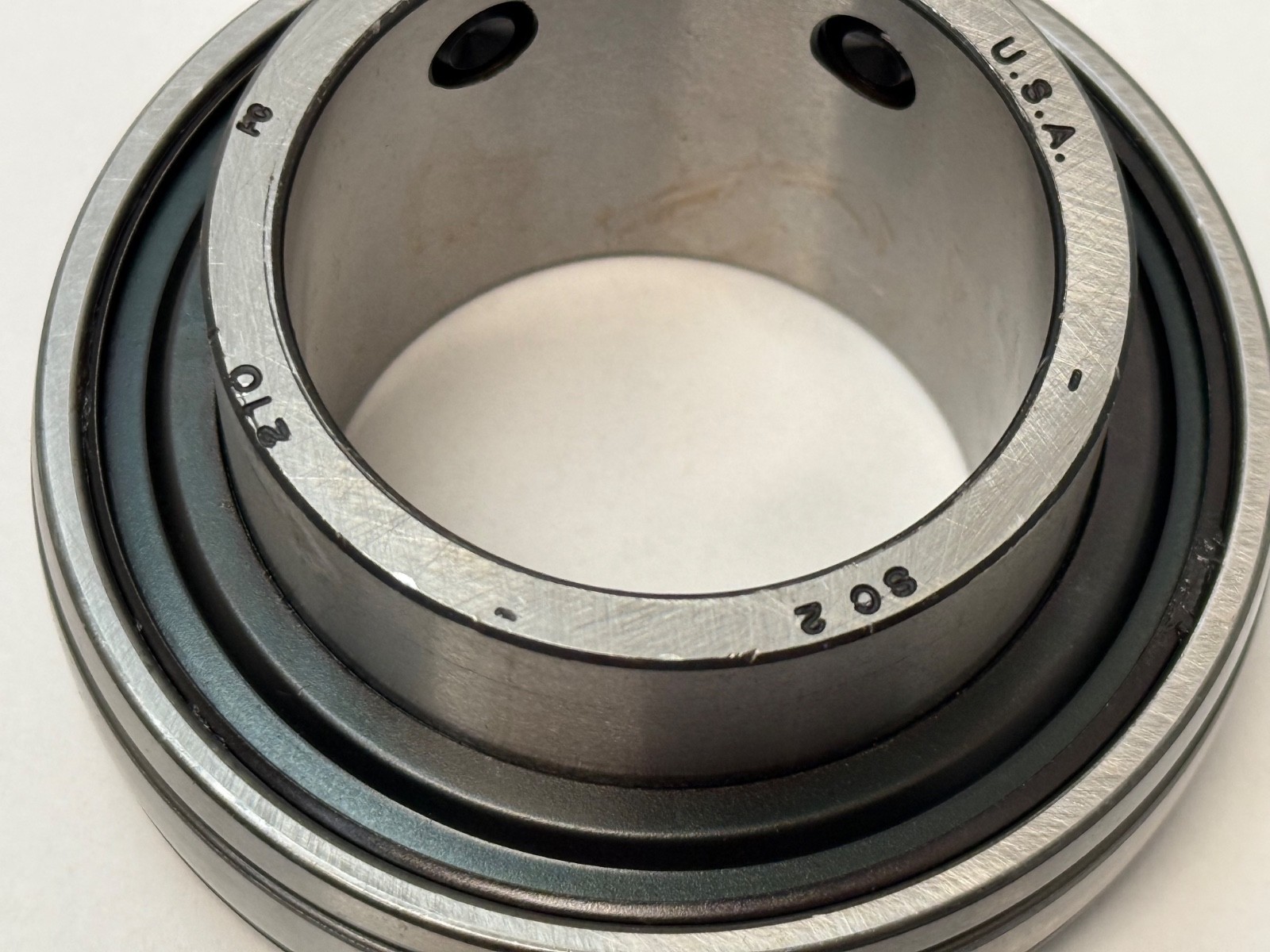

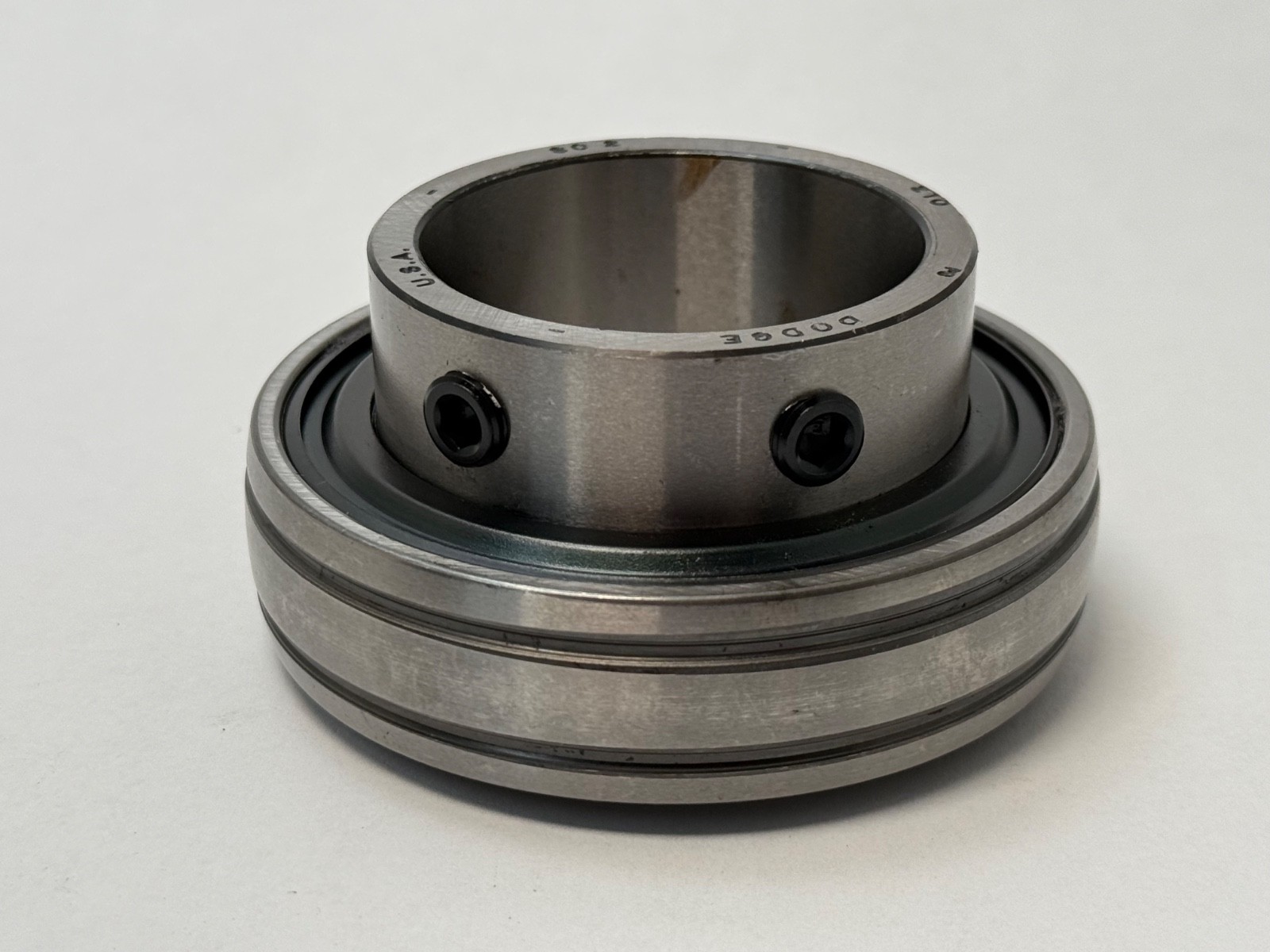

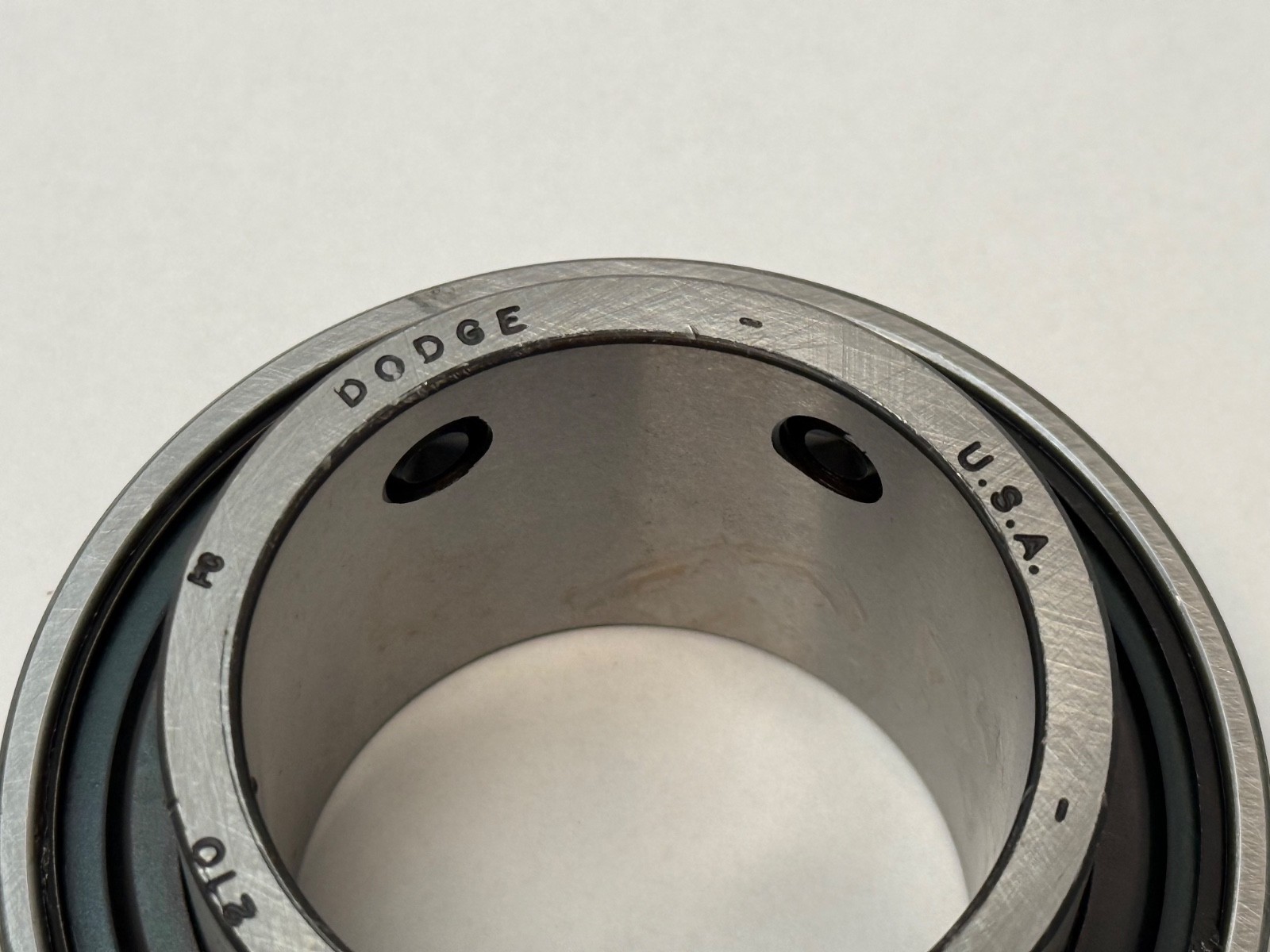

SC — setscrew locking. The extended inner ring carries two setscrews at 120° that clamp onto the shaft.
200 — Dodge bore code, read as whole inches and sixteenths: 2-00/16 = 2 in shaft.
123347 — Dodge stock number for this build, the number distributors order against.
Bore / Shaft Size: 2 in. Outside Diameter: 3.5433 in. Overall Width: 1.94 in. Dynamic Load Rating: 7,891 lb. Static Load Rating: 5,213 lb. Limiting Speed: 4,500 rpm. Duty rating: standard (normal) duty.

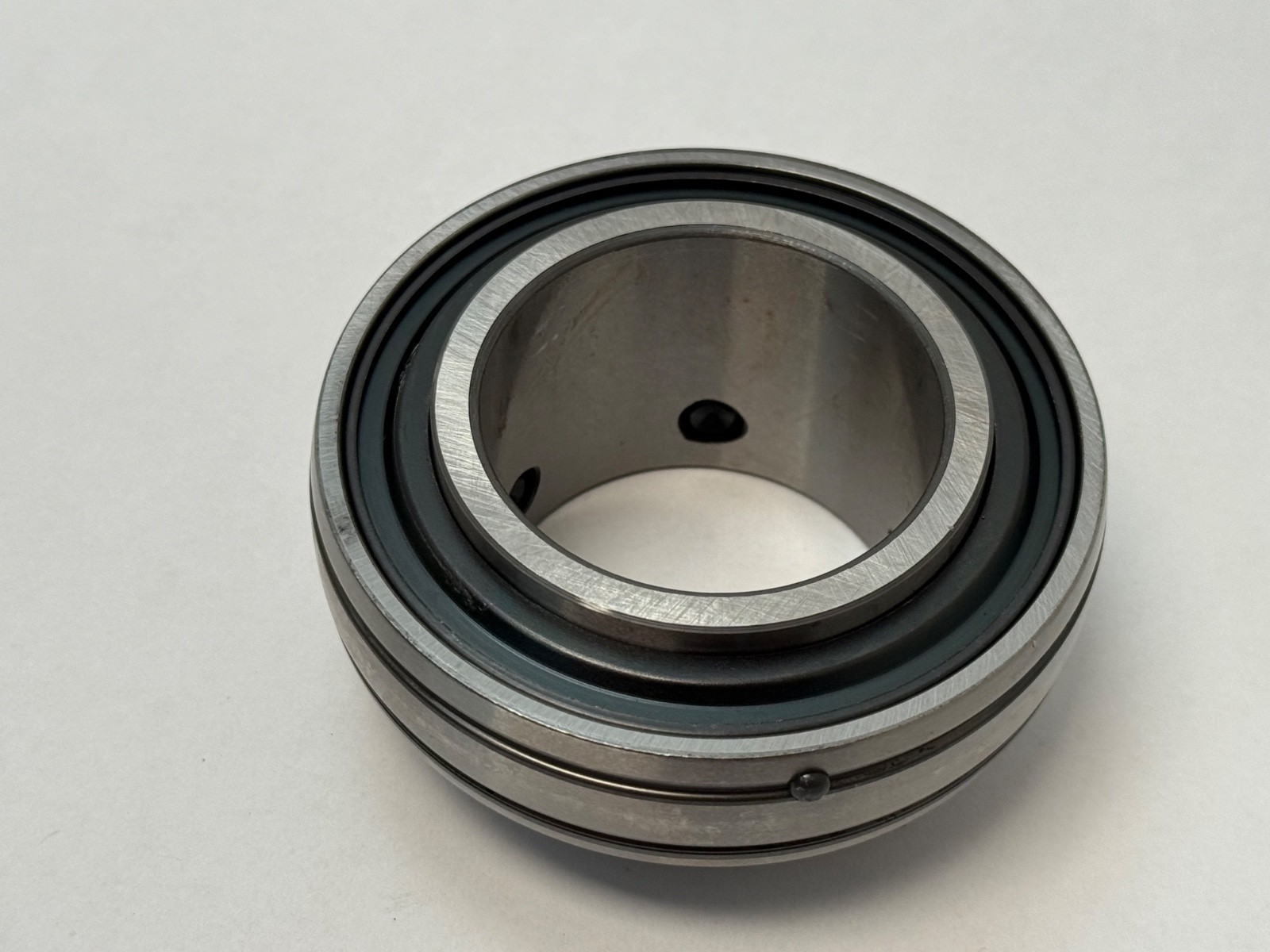

The spherical outside diameter is what makes the insert self-aligning: it swivels in the housing seat and takes up shaft-to-housing angular error at installation, so a frame that is not perfectly true does not preload the raceways. Setscrew locking is the fastest mounting to fit and to strip off again, and it holds well where rotation runs consistently in one direction. The single-lip contact seal keeps grease in the bearing cavity and keeps plant dust out at these speeds.
The spherical outside diameter mates with Dodge SC-series housings across the pillow block, two-bolt flange, four-bolt flange, take-up and hanger ranges. The insert is the wearing part of those units and is replaced independently of the housing.

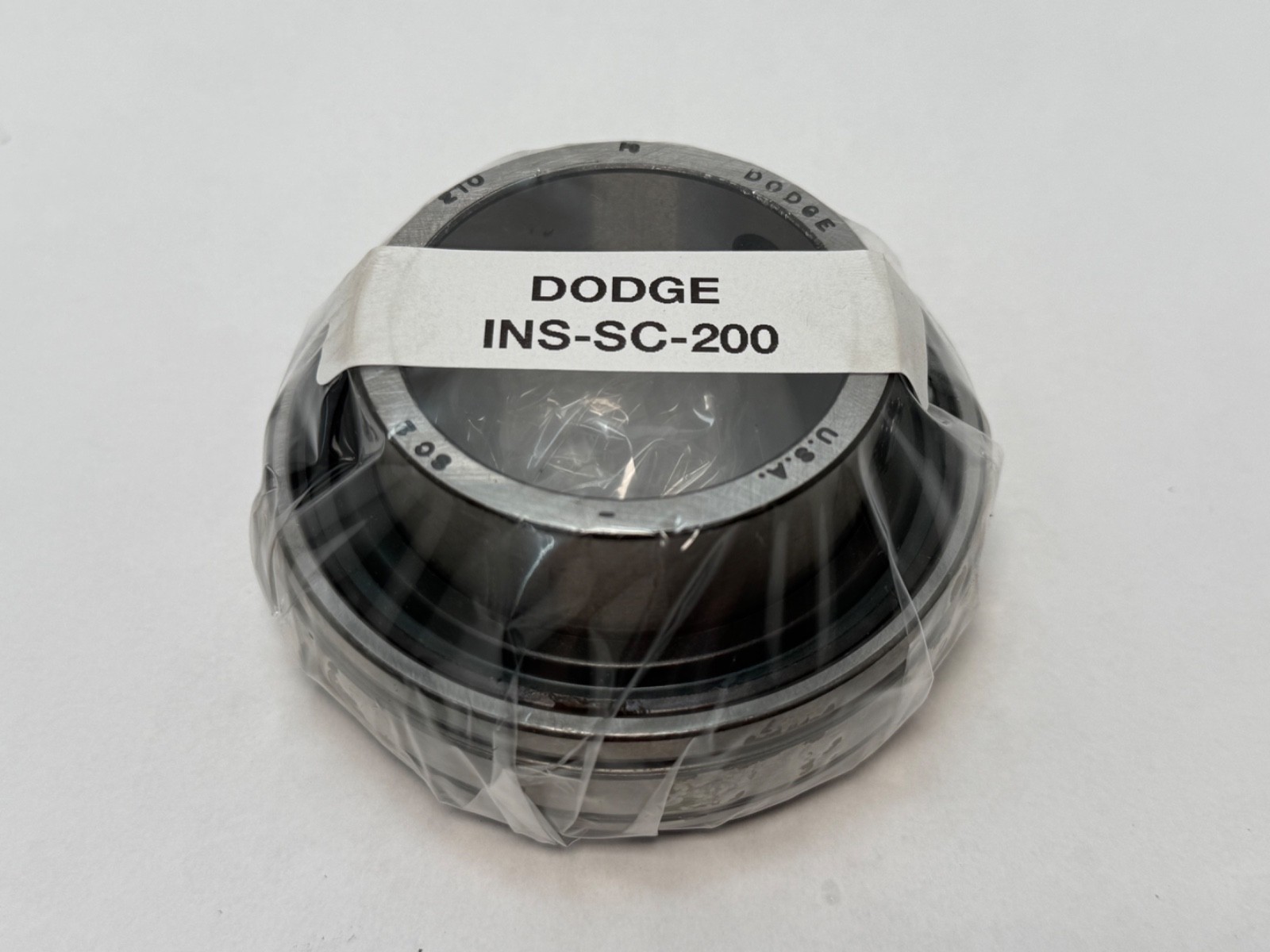

Unit Quantity: 1 Pc. One INS-SC-200 insert per unit, complete with its setscrews and seals.
Bore / Shaft Size: 2 in. Outside Diameter: 3.5433 in. Overall Width: 1.94 in. Outer race profile: spherical.
MPN Variants: INS-SC-200, INSSC200, INS SC 200, 123347. Dodge codes shaft size in whole inches plus sixteenths across the INS range, so INS-SC-107 is the same insert family at a 1-7/16 in shaft. The INS-SC-200-HT is the same envelope built for elevated temperature service.
