Availability:
4 in stock

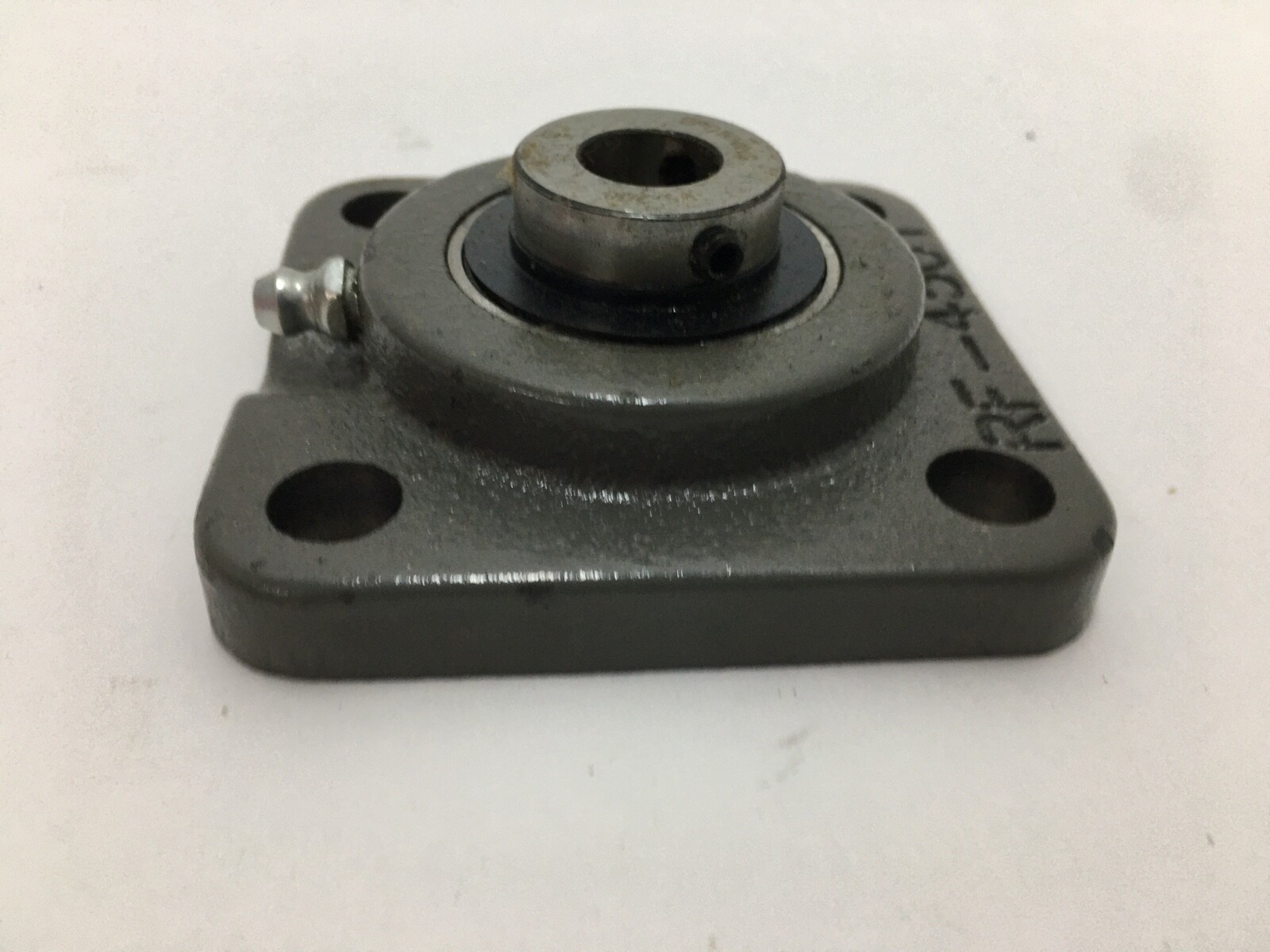

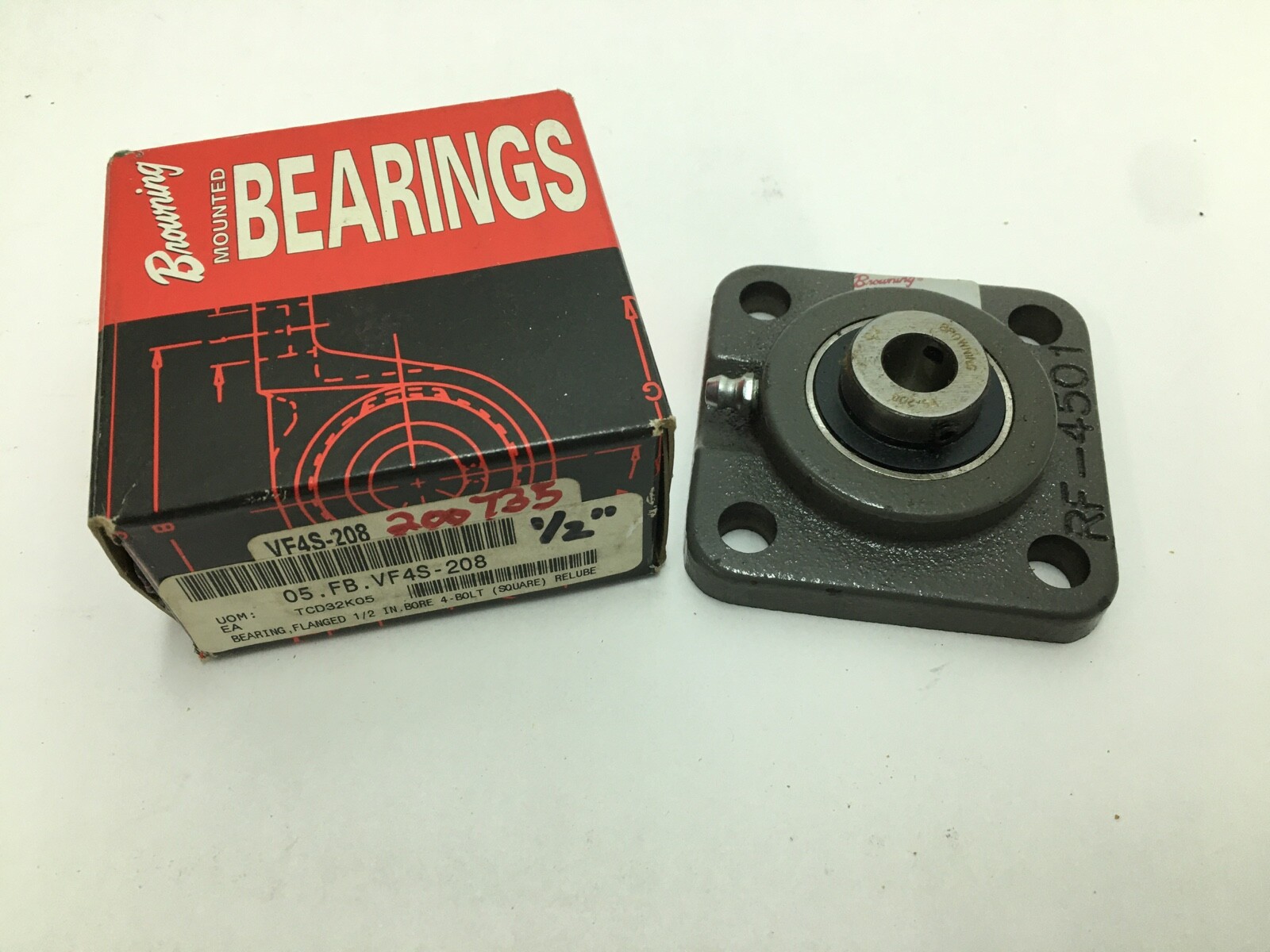

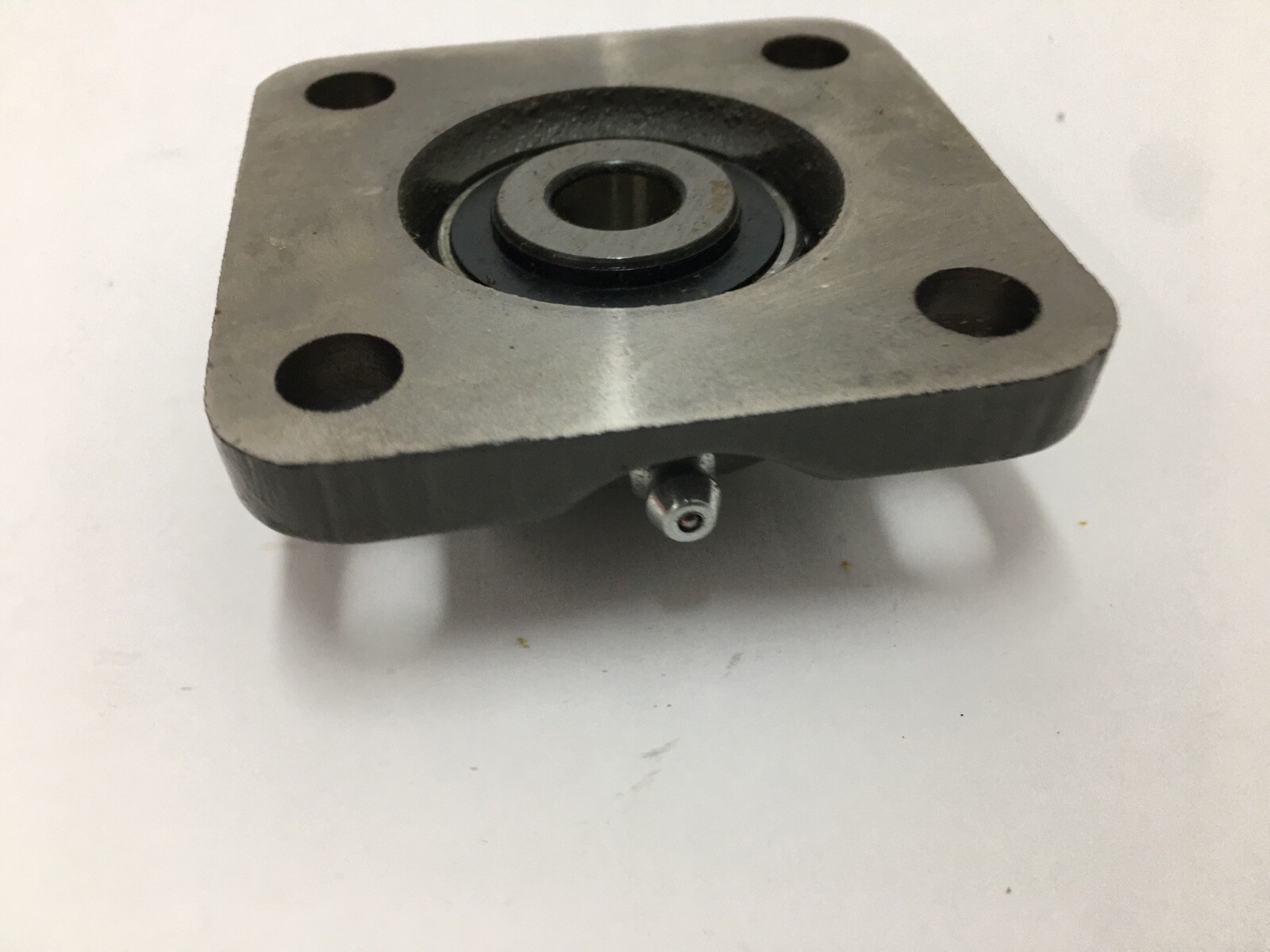

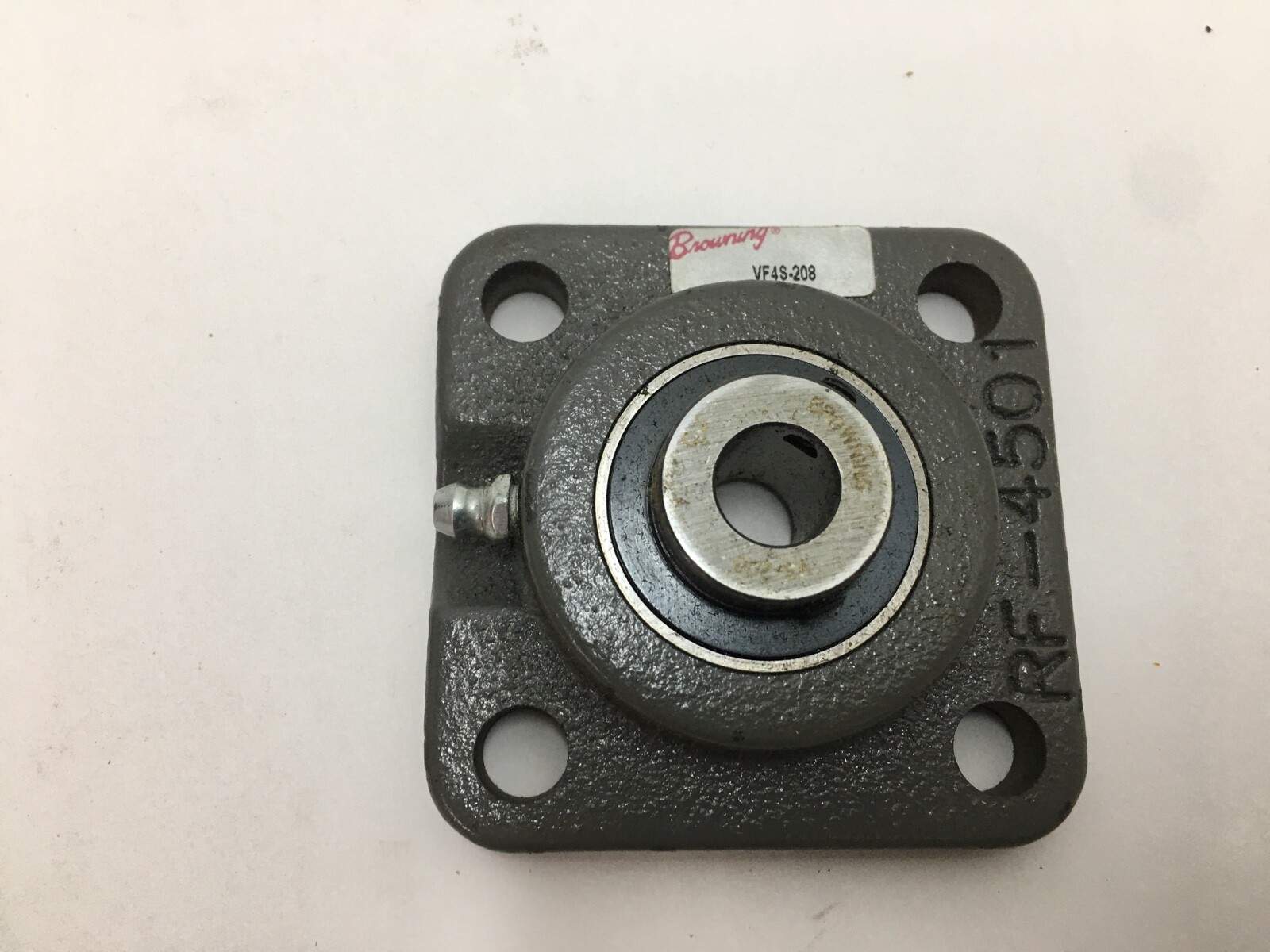

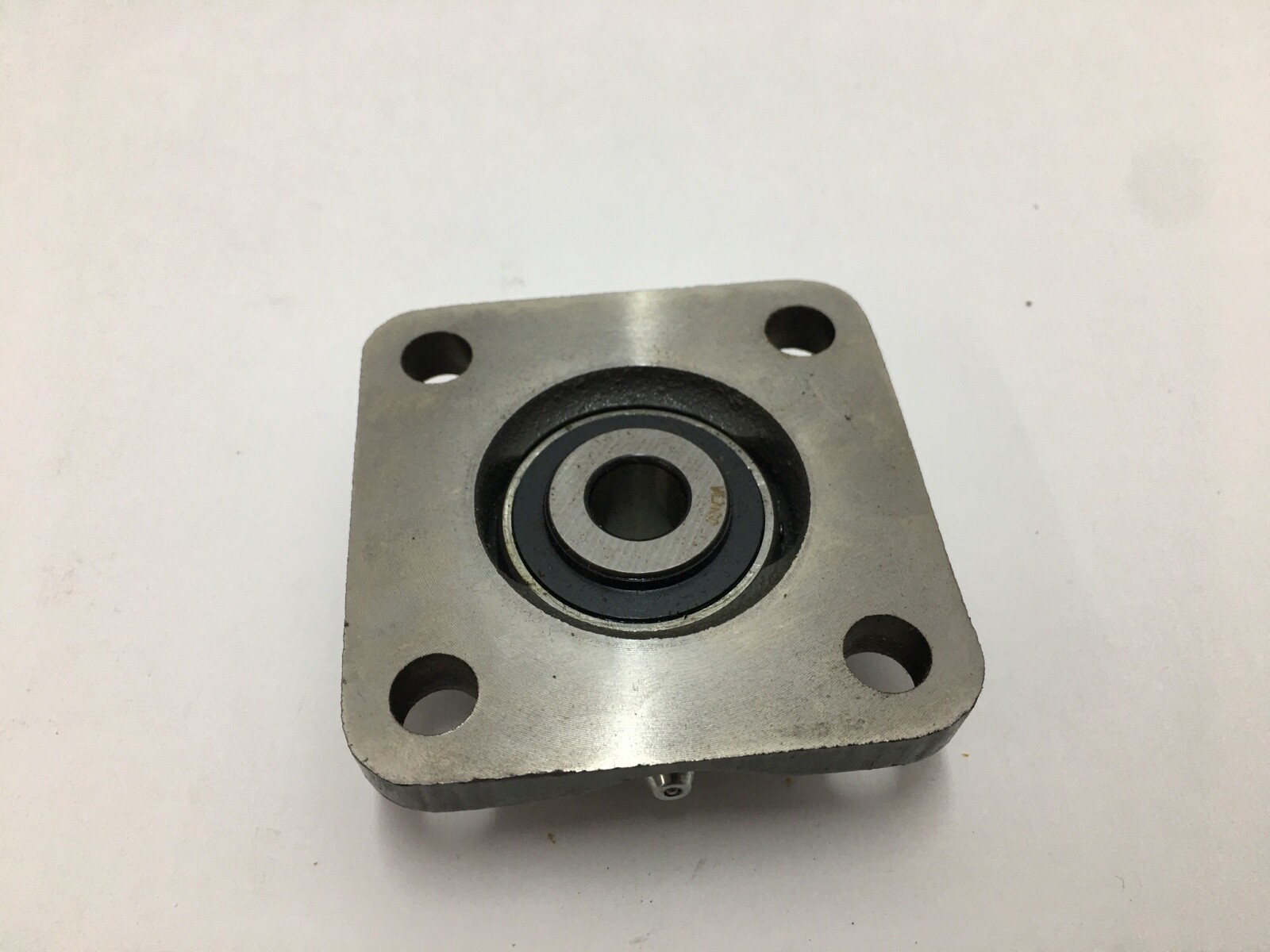

Four-bolt flange ball bearing unit, 1/2 in bore, set screw locking, cast iron housing, 2-1/8 in bolt centres. Browning VF4S-208, non-expansion, contact seal.
List Price
$35.69
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Browning |
|---|---|
| MPN | VF4S-208 |
| GTIN | 662289522545 |
| Model | VF4S 208 |
| ID | 1/2 in |
| Material | Cast Iron |
|---|---|
| Series | VF4S |
| Type | Four-Bolt Flange Ball Bearing Unit |
| Lubricant | Lithium complex NLGI 2 grease |
| Bolt Center To Center | 2.125 in |
| Number Of Bolt Holes | 4 |
| Number Of Bolt Holes For Fasteners | 4 |
| Rolling Elements | Ball |
| Max Temp | 200 °F |
| Bearing Type | Four-Bolt Flange Ball Bearing Unit |
| Item Weight | 1.02 lb |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard Duty |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast iron |
| Expansion Type | Non-expansion (fixed) |
| Overall Width | 3.000 in |
| Housing Style | 4-bolt flange |
| Locking Method | Set screw |
| Mpn Variants | VF4S-208, VF4S208, VF4S 208 |
| Overall Length | 3.000 in |
| Bearing Material | 52100 bearing steel, black oxided inner ring |
Browning VF4S-208 four-bolt flange ball bearing unit with a 1/2 in bore, set screw locking and a cast iron housing. VF4S series, standard duty, non-expansion (fixed) bearing.
VF4S — Browning four-bolt flange unit with set screw locking.
208 — 1/2 in bore, stated in sixteenths of an inch (08).
Bore Diameter: 1/2 in (0.5000 in). Housing Style: 4-bolt flange. Locking Method: Set screw. Housing Material: Cast iron. Bearing Material: 52100 bearing steel, black oxided inner ring. Seal Type: Single lip contact seal with flinger. Lubricant: Lithium complex NLGI 2 grease. Expansion Type: Non-expansion (fixed). Duty Type: Standard duty. Max Operating Temperature: 200 °F. Item Weight: 1.02 lb.
Overall Length: 3.000 in. Overall Width: 3.000 in. Overall Height: 1.078 in. Inner Ring Width: 1.031 in. Bolt Center To Center: 2.125 in. Bolt Size: 3/8 in. Number Of Bolt Holes: 4.
Direct replacement for Browning VF4S-208 and VF4S208 flange units on 1/2 in shafts.
What shaft size fits the Browning VF4S-208?
A 1/2 in shaft. The insert locks with set screws.
What is the bolt spacing of a VF4S-208?
Bolt Center To Center: 2.125 in, four 3/8 in bolts.
Is the VF4S-208 an expansion or fixed unit?
Non-expansion (fixed).
