Availability:
1 in stock

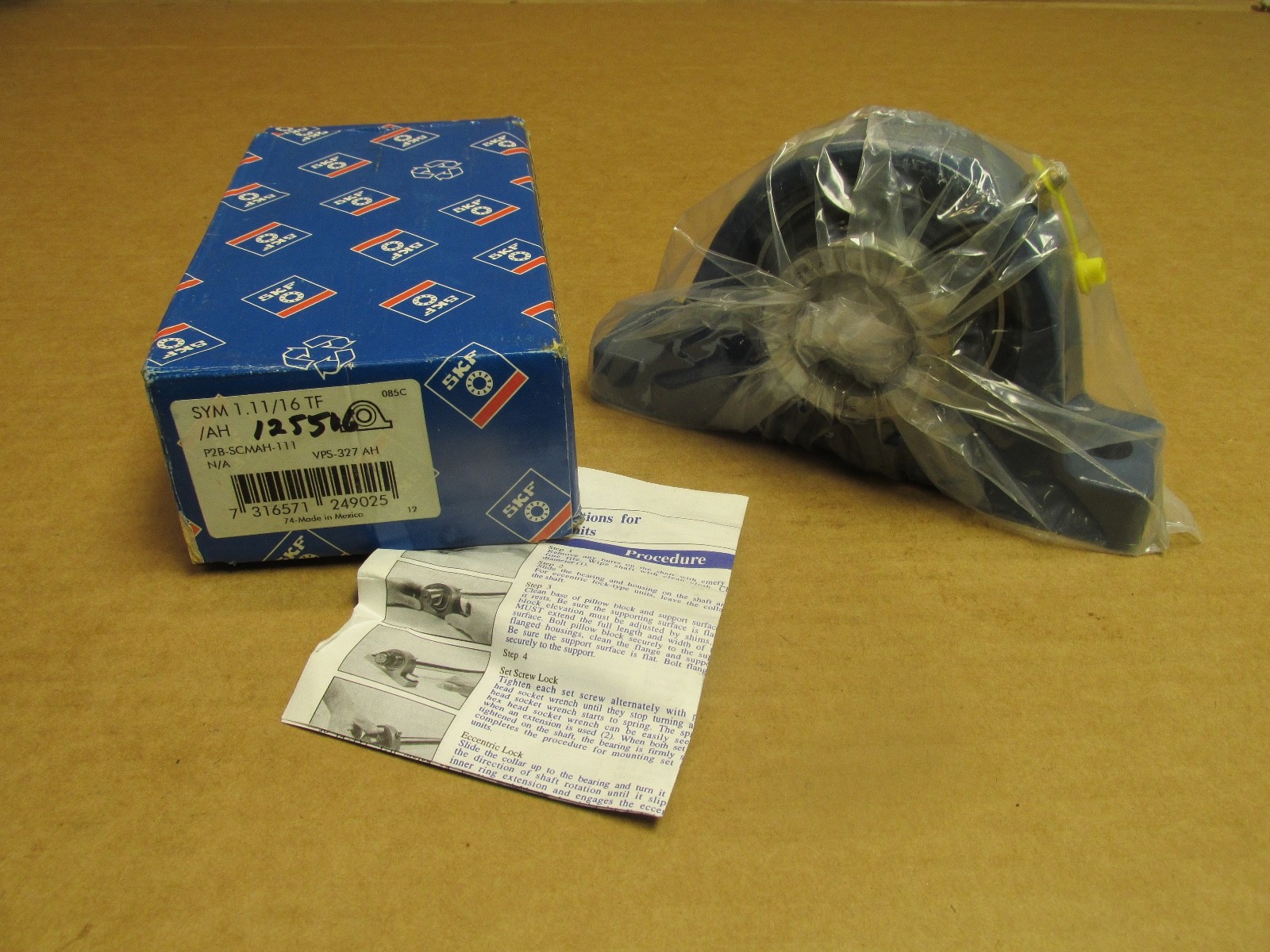

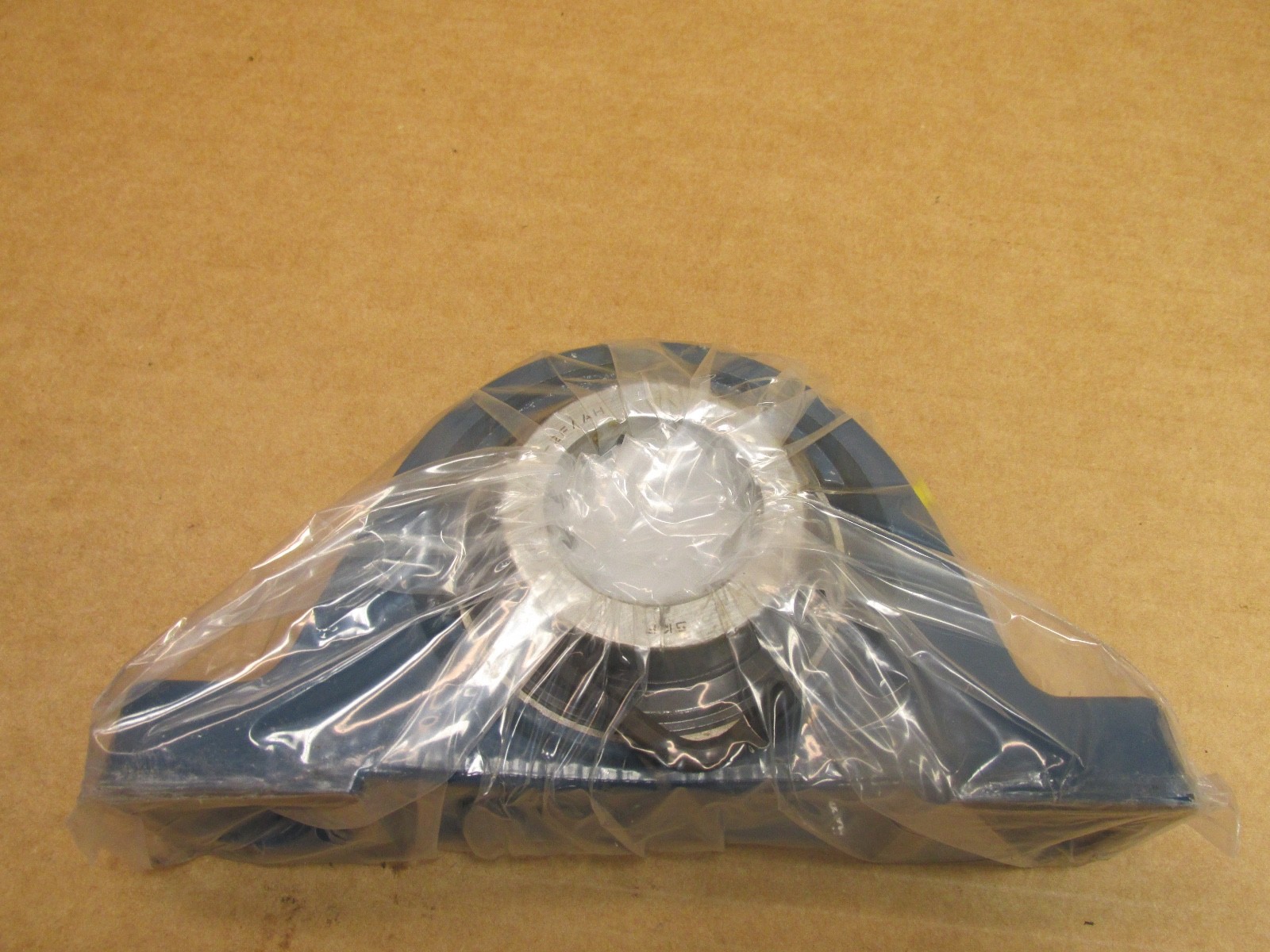

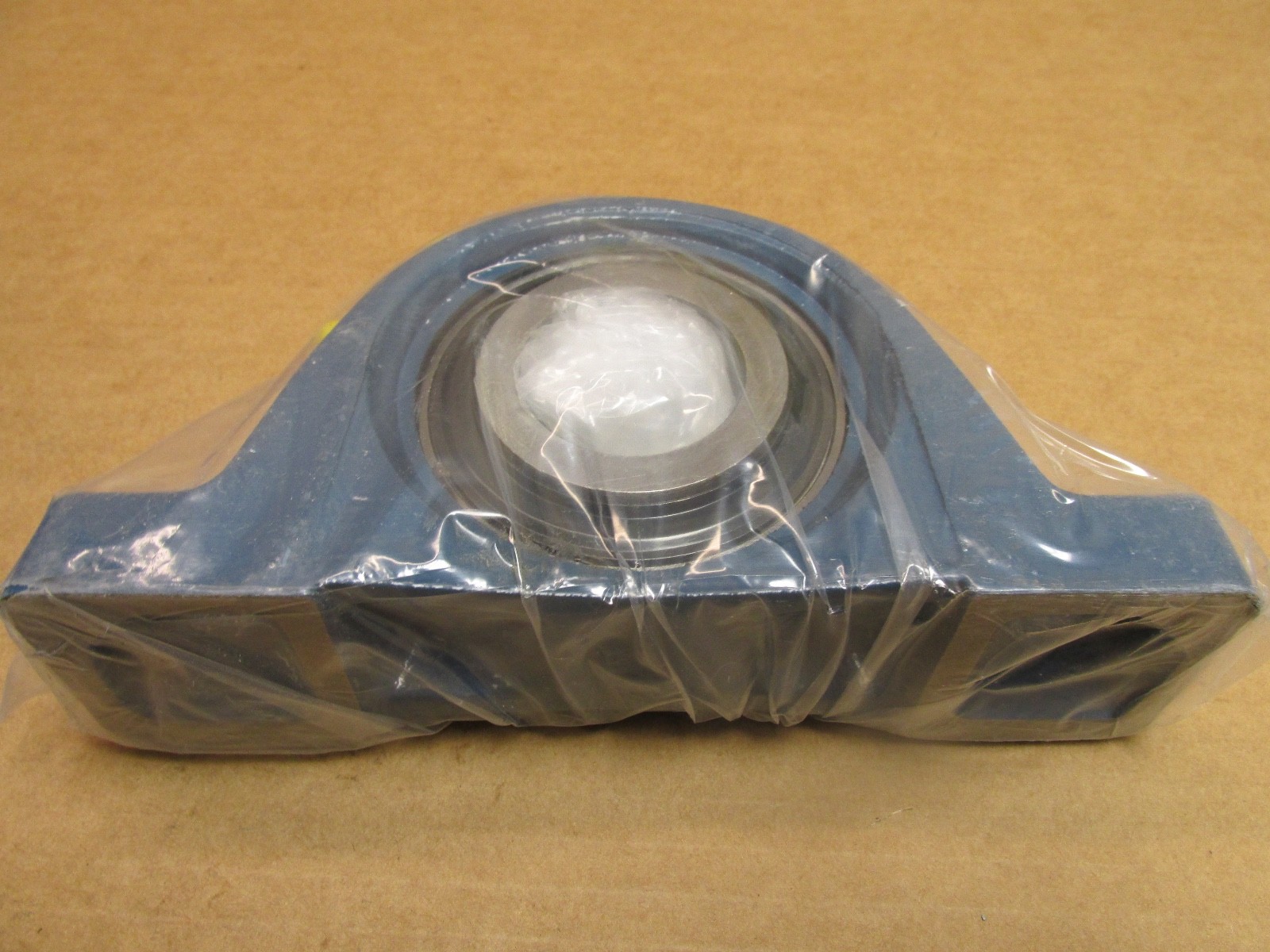

Two-bolt cast iron pillow block ball bearing unit for a 1-11/16 in shaft with set screw locking. SKF SYM 1-11/16 TF, Y-bearing insert, relubricatable.
List Price
$41.62
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | SYM 1-11/16 TF |
| GTIN | 7316571249025 |
| Model | SYM111/16TF |
| ID | 1-11/16 in (42.863 mm) |
| Series | SYM |
|---|---|
| Type | Pillow Block Bearing |
| Lubricant | grease, relubricatable |
| Material | Cast Iron |
| Bolt Center To Center | 6.5 in |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Centre Height Pillow Block | 2.25 in |
| Centre Height | 2.25 in |
| Rolling Elements | Ball |
| Bearing Type | Pillow Block Unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Medium Duty |
| Locking Device | Set Screw |
| Harmonization Code | 84832040 |
| Housing Material | Cast iron |
| Expansion Type | Non-Expansion |
| Maximum Permissible Misalignment | 2° |
| Housing Style | Pillow block, two-bolt |
| Locking Method | Set screw |
| Mpn Variants | SYM111/16TF, SYM 1.11/16 TF, SYM-1-11/16, SYM1-11/16 TF, P2B, VPS-337-AH |
| Mounting Type | Pillow Block |
| Industry Terms | pillow block bearing; two-bolt pillow block; Y-bearing unit; set screw pillow block; mounted ball bearing unit; plummer block |
| Common Misspellings | SKF SYM1-11/16TF; SKF SYM 1 11/16 TF; SKF SYM 111/16 TF; SKF SYM 1.11/16 TF |
| Application Types | Conveyors; agricultural machinery; fans and blowers; general industrial machinery |
The SKF SYM 1-11/16 TF is a mounted ball bearing unit: a two-bolt cast iron pillow block housing fitted with a Y-bearing insert for a 1-11/16 in shaft, locked to the shaft with set screws.
SY — SKF Y-bearing pillow block unit, two-bolt base.
M — inch-series unit in the SKF SY range.
1-11/16 — shaft diameter, 1-11/16 in.
TF — set screw (grub screw) locking on the inner ring.
Housing Style: Pillow block, two-bolt. Housing Material: Cast iron. Bore Diameter: 1-11/16 in (42.863 mm). Locking Method: Set screw. Rolling Elements: Ball. Lubricant: grease, relubricatable.
The unit bolts to a flat base through two slotted holes in the housing foot. The insert seats in a sphered housing bore for initial alignment.
Fills the same role as other two-bolt set screw pillow blocks for a 1-11/16 in shaft, searched as Dodge P2B and Browning VPS-337-AH. Housing centre height and bolt spacing vary by maker.
A 1-11/16 in (42.863 mm) shaft.
It is a two-bolt pillow block with a cast iron housing.
With set screws through the extended inner ring, identified by the TF suffix.
