Two-bolt wide flange unit, 1 in (25.4 mm) bore, 3-57/64 in bolt centre-to-centre, concentric Centrik-Lok collar locking, 7/16 in bolts. Complete housed unit. 1 Pc.
List Price
$31.07
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Rexnord |
|---|---|
| MPN | KFC2451 |
| Model | KFC-2451 |
| ID | 1 in |
| Condition | New |
|---|---|
| Type | Flanged Mount Bearing |
| Relubrication | Relubricatable via 1/4-28 UNF fitting |
| Base Number | KFC245 |
| Industry Terms | Two-bolt flange bearing, wide flange unit, Centrik-Lok flange bearing, concentric collar flange bearing, Krown Regal flange unit, MB flange bearing |
| Common Misspellings | KFC-245-1, KFC 245 1, KCF2451, KFC2451A, KFG2451, Rexnord KFC245I, KFC24S1 |
| Application Types | Conveyors, fans and blowers, agricultural machinery, material handling, packaging equipment, reversing drives |
| Total Width | Overall depth 1-5/16 in / 33.32 mm; insert bearing width 1.375 in / 34.93 mm |
| Bolt Center To Center Length | 3-57/64 in / 98.82 mm |
| Bore Shaft Size | 1 in / 25.4 mm |
| Housing Style | Wide two-bolt flange unit, cast iron, 1-piece |
| Locking Method | Centrik-Lok concentric locking collar (Rexnord Pat. 4,403,814) |
| Replacement Insert | KMB451-PA |
| Mpn Variants | KFC2451, KFC-2451, KFC 2451, KFC245-1, KFC245, KMB451, KMB451-PA, MB KFC2451 |
| Manufacturer Status | Legacy - no longer in the active Regal Rexnord ball bearing catalogue |
| Additional Attributes | Catalogue row size 205 letters: A 2-3/4 in, B 3-57/64 in, D 1-5/16 in, N 4-7/8 in, G 1/16 in, H 17/32 in, L 1-3/8 in, M 1-9/16 in, P 13/32 in; mounting bolt 7/16 in; Type E1 Viton seals optional to 212 degF; housing construction 1 piece; standard duty |
| Bearing Type | Mounted ball bearing unit, wide inner ring insert |
| Item Weight | 1.34 lb / 0.594 kg |
| Limiting Speed | 9600 RPM with Type N seals |
| Number Of Rows | 1 |
| Design Units | Inch |
| Part Number | KFC2451 |
| Cross Reference 1 | Link-Belt FX3Y216N (same 2-bolt flange bolt pattern, 1 in bore, eccentric collar) |
|---|---|
| Cross Reference 2 | NTN UELFL205-100 (same 2-bolt flange bolt pattern, 1 in bore, eccentric collar) |
| Cross Reference 3 | Asahi UELFL205-100 |

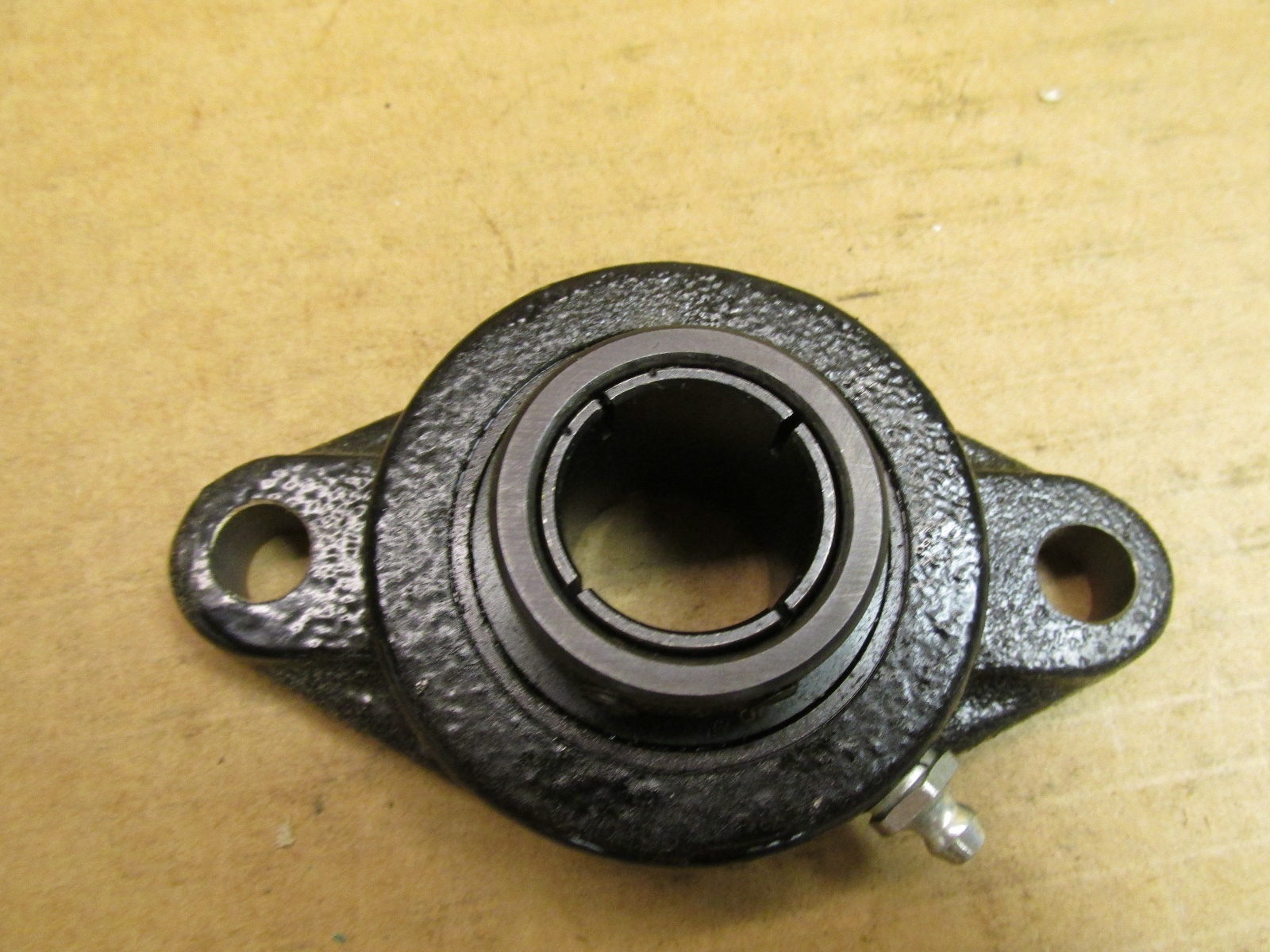

A complete housed ball bearing unit in the wide two-bolt flange style, from the MB Krown Regal Centrik-Lok line. Bore is 1 in (25.4 mm), size code 205. The one-piece cast iron housing takes two mounting bolts. Locking is by a Centrik-Lok concentric collar, not a setscrew and not an eccentric cam.
K — Centrik-Lok concentric locking collar construction
FC2 — flanged unit, two bolt
FC4 — flanged unit, four bolt, the KFC445 and KFC455 series
PFC4 — flanged cartridge unit, four bolt, round piloted, a separate style in the same scheme
245 — wide inner ring, standard duty series
1 — the bore digit, 1 in; bores of 1 in and over carry the leading 1
Insert bearing number KMB451-PA, wide inner ring, standard duty
Two mounting bolts, 7/16 in, centre-to-centre 3-57/64 in (98.82 mm). Overall length across the flange 2-3/4 in (69.8 mm); overall height 4-7/8 in (123.8 mm); overall depth 1-5/16 in (33.32 mm).
The Centrik-Lok collar grips concentrically rather than eccentrically, so it clamps the shaft on a full circumference instead of wedging on one side. Concentric clamping keeps the shaft centred to the bearing bore, which suits reversing drives and shafts where runout matters, and it holds without the setscrew indentations that a setscrew unit leaves on the shaft. The wide inner ring gives a longer bearing seat than the narrow FC22 series, raising the load capacity.
Bore: 1 in / 25.4 mm
Size code: 205
Bolt centre-to-centre: 3-57/64 in / 98.82 mm
Mounting bolt size: 7/16 in
Overall length (A): 2-3/4 in / 69.8 mm
Overall height (N): 4-7/8 in / 123.8 mm
Overall depth (D): 1-5/16 in / 33.32 mm
Insert bearing width: 1.375 in / 34.93 mm
Dynamic load rating: 2430 lb / 10810 N
Static load rating: 1760 lb / 7830 N
Approximate speed limit, Type N seals: 9600 RPM
Lubrication fitting: 1/4-28 UNF
Weight: 1.34 lb / 0.594 kg

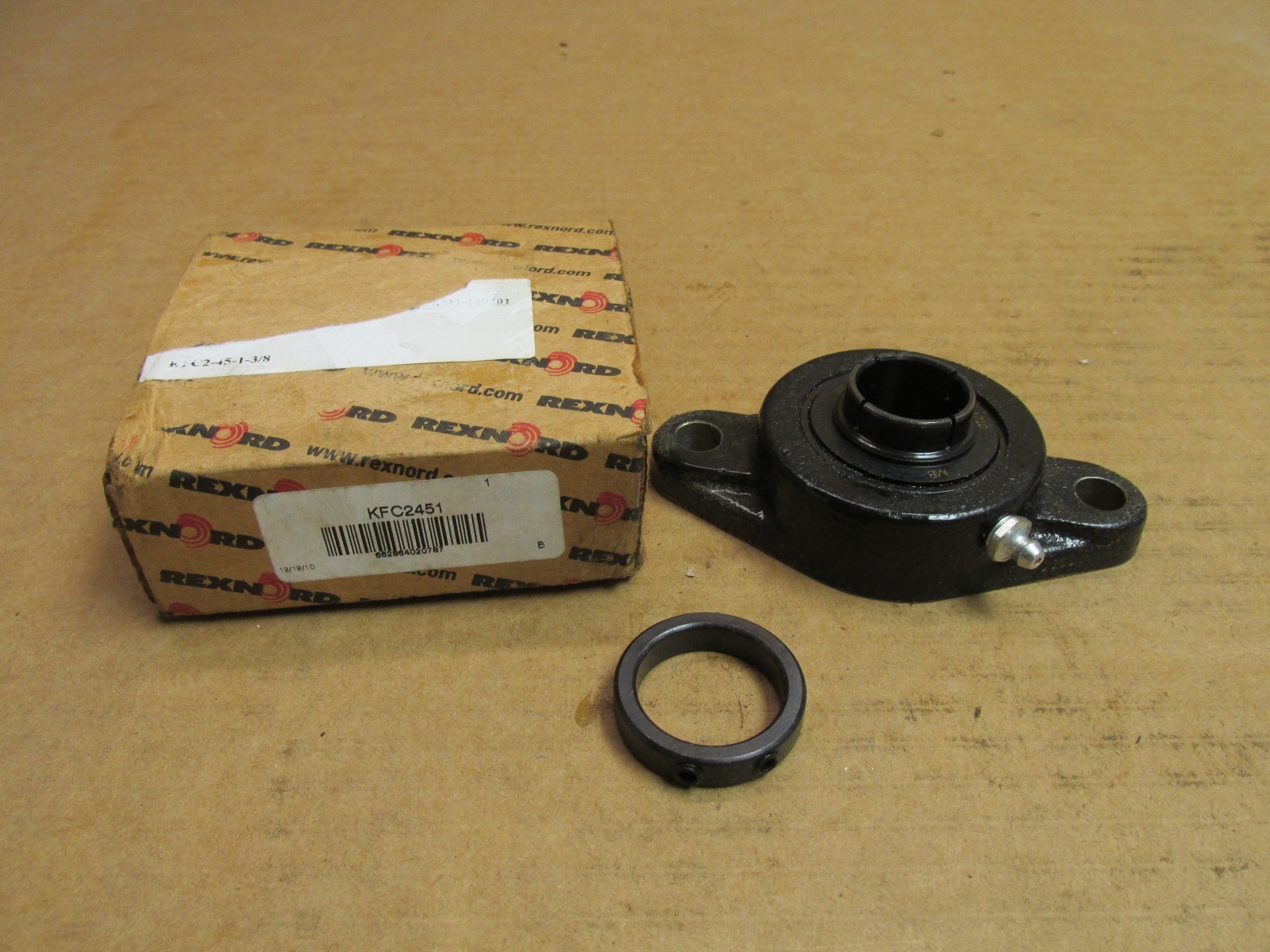

1 Pc. Complete housed unit: one-piece cast iron wide two-bolt flange housing with the KMB451-PA insert bearing and its Centrik-Lok concentric collar fitted. Relubricatable through the 1/4-28 UNF fitting. Type N single-lip contact seals standard. Non-expansion.
The flange seats against a flat rigid face, shimmed where uneven, on two 7/16 in fasteners at 3-57/64 in centres. The flange bolts are drawn down first so the insert settles into its aligned seat, then the Centrik-Lok collar is clamped onto the shaft. Shaft seat is a commercial ground 1.000 in diameter.
The 3-57/64 in two-bolt flange pattern in 1 in bore is shared with Link-Belt FX3Y216N, NTN UELFL205-100 and Asahi UELFL205-100, so the mounting geometry interchanges. Those units use eccentric cam or setscrew locking rather than a concentric collar, so the insert and collar do not interchange. The four-bolt Rexnord KFC4451 and the narrow-insert FC2251 are related sizes in the same scheme rather than interchanges. The Centrik-Lok collar is a Rexnord patented design, so no other brand publishes a same-spec locking equivalent.
