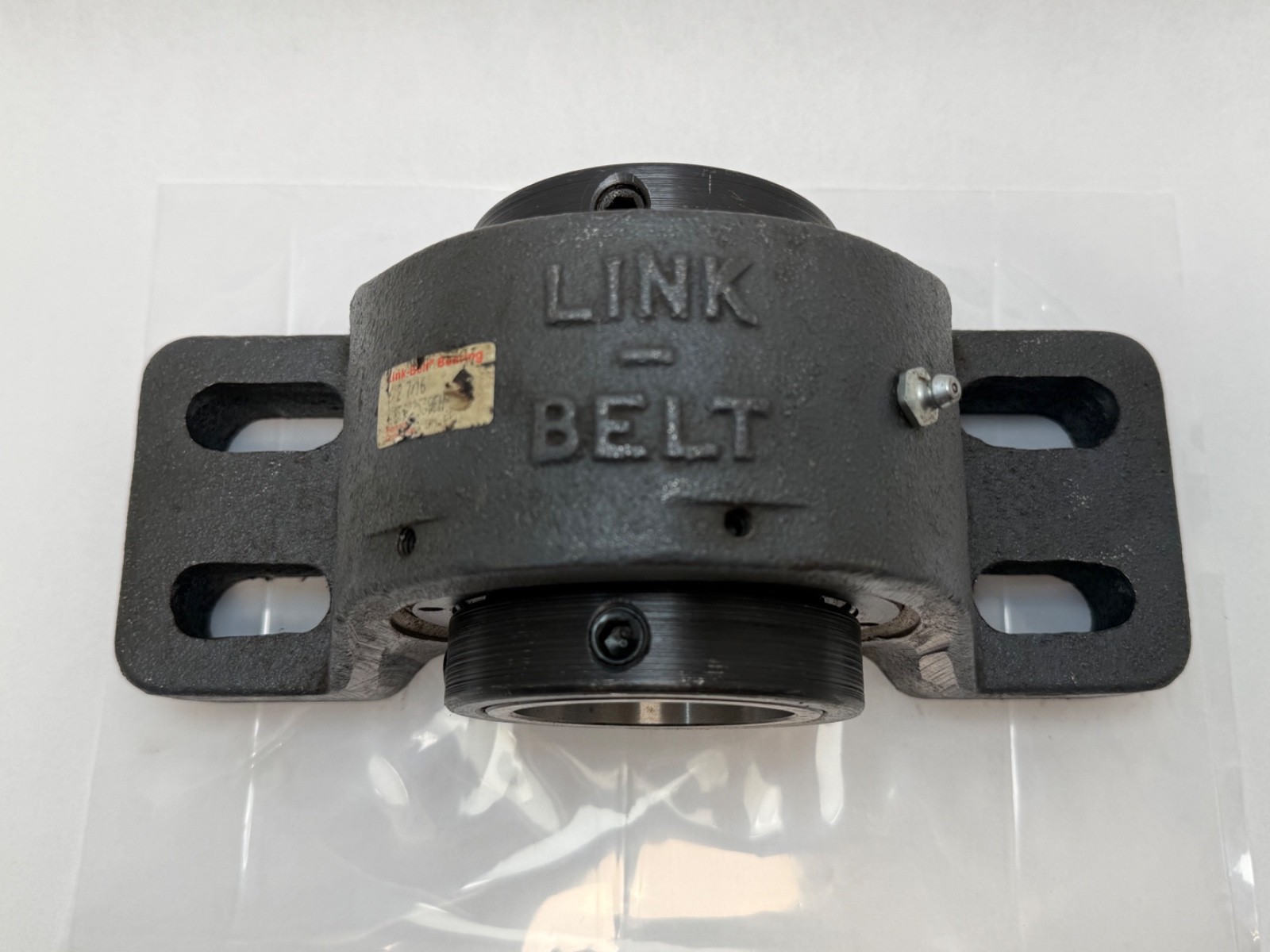

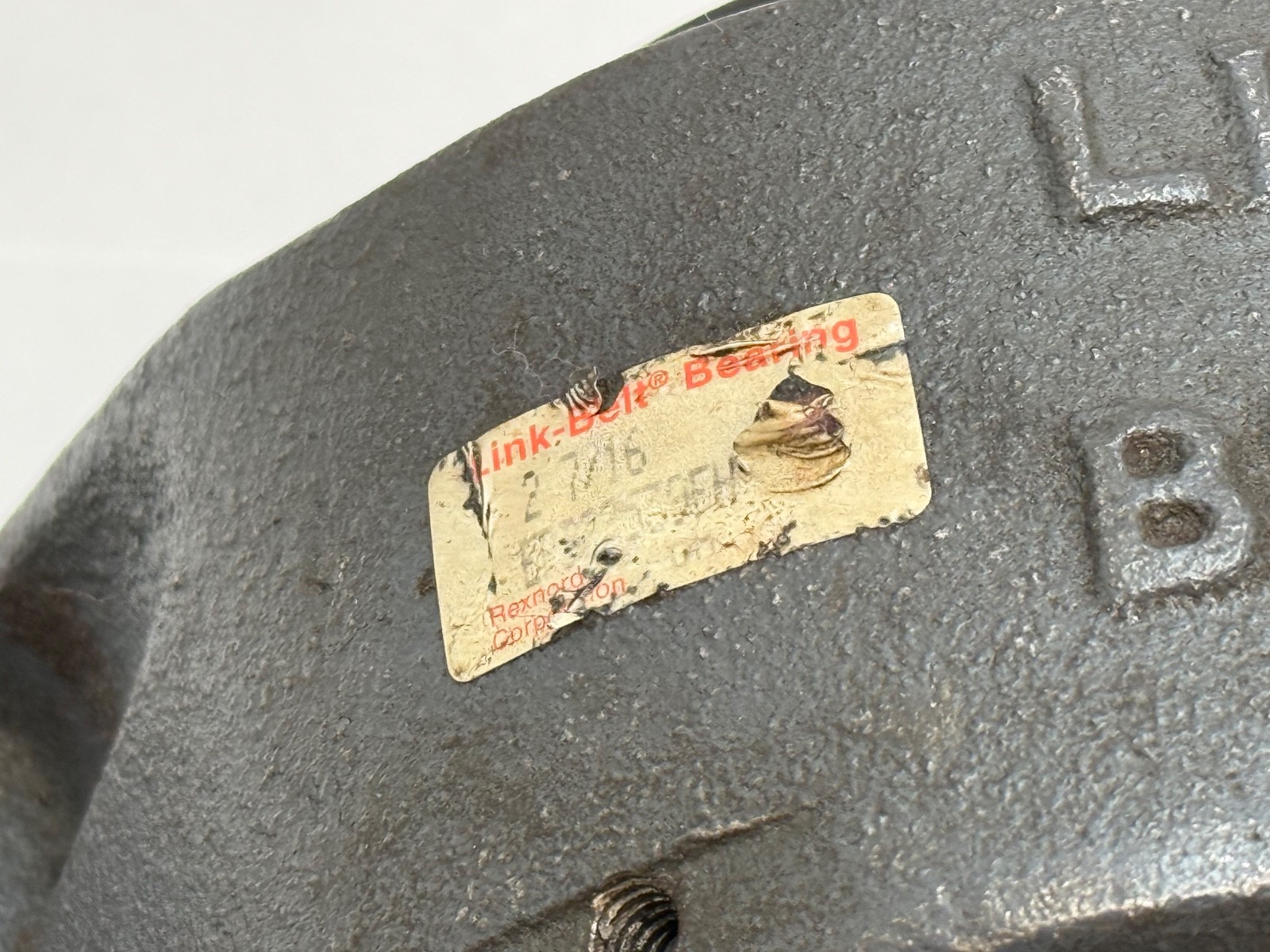

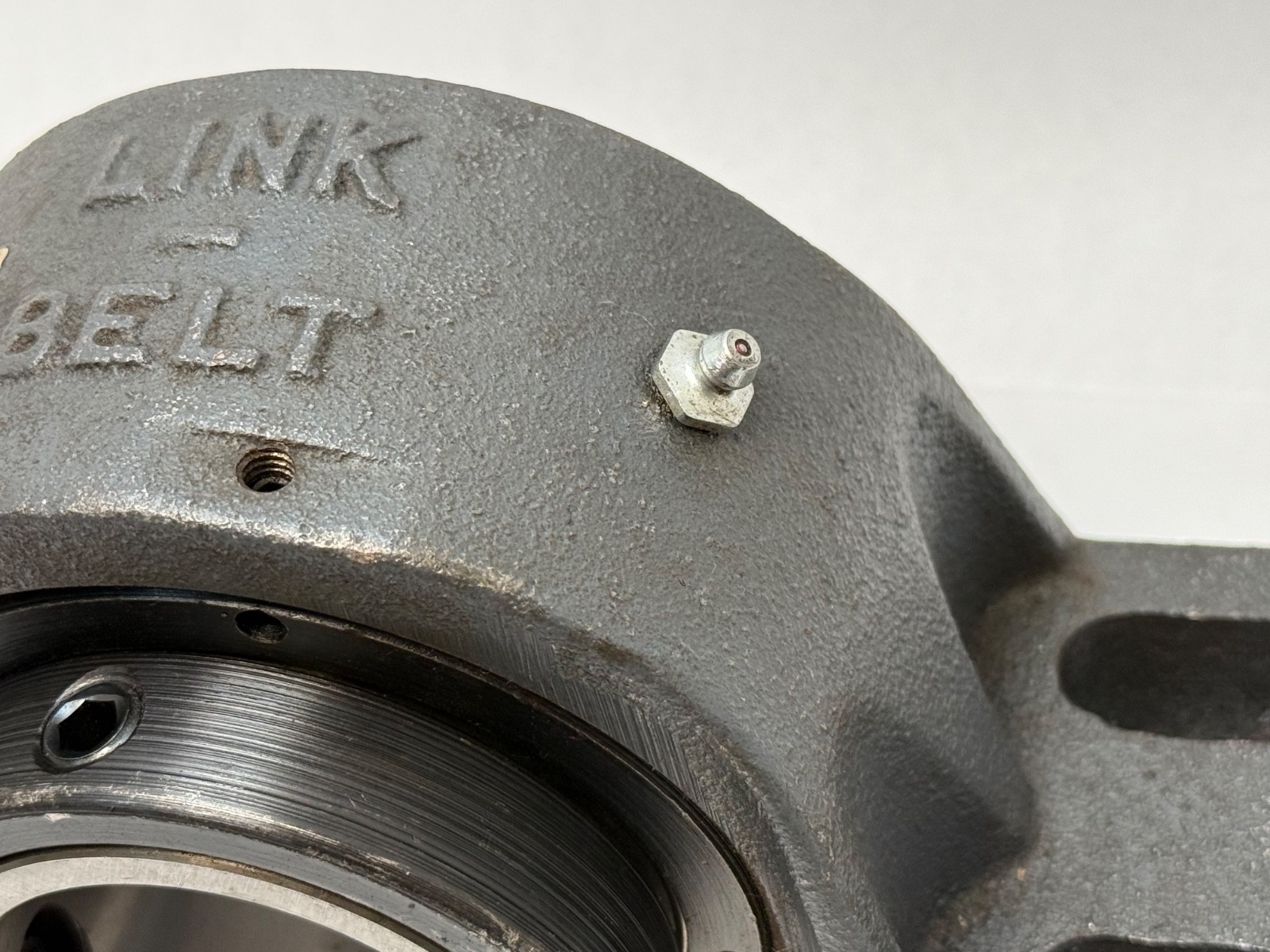

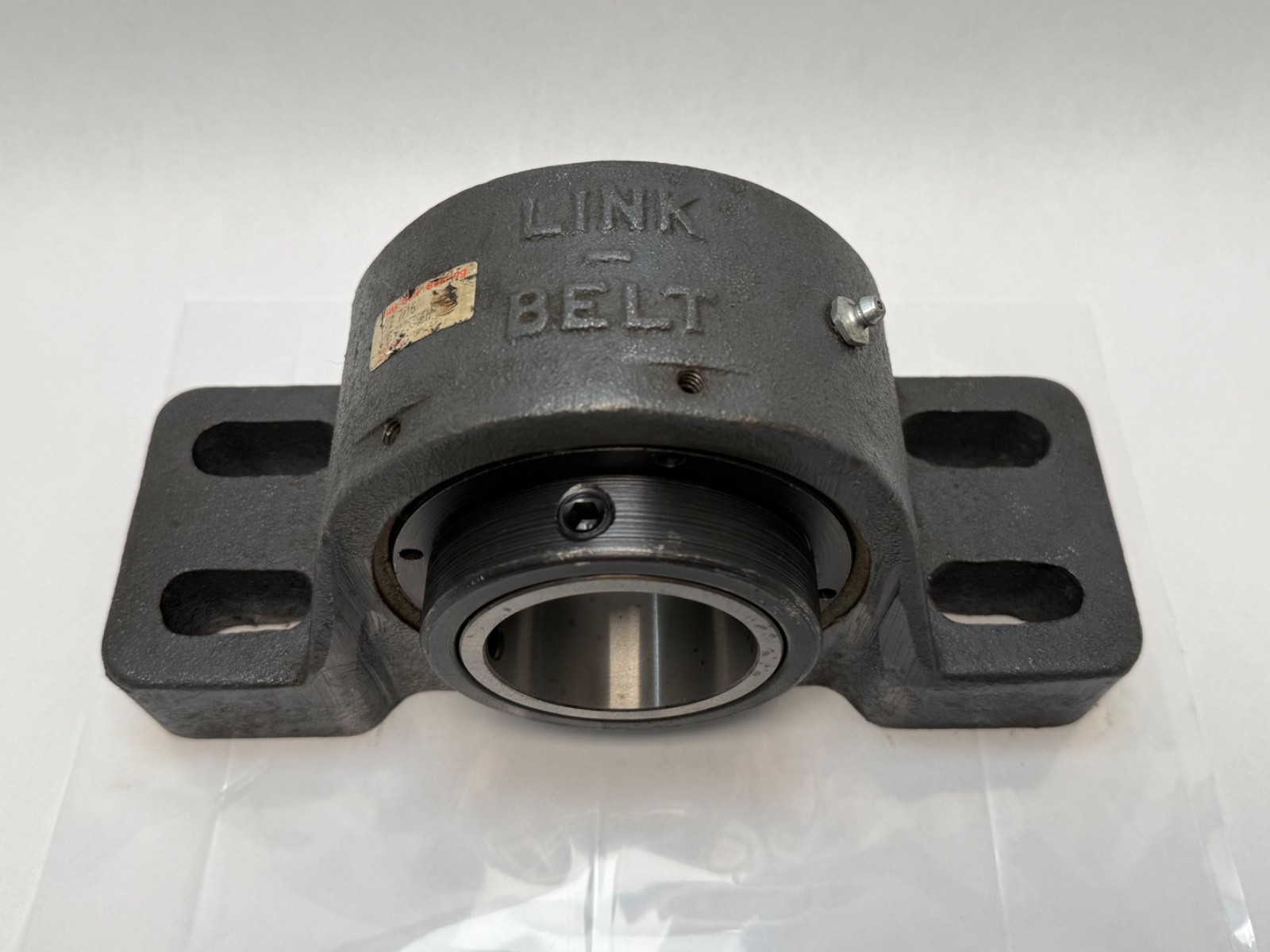

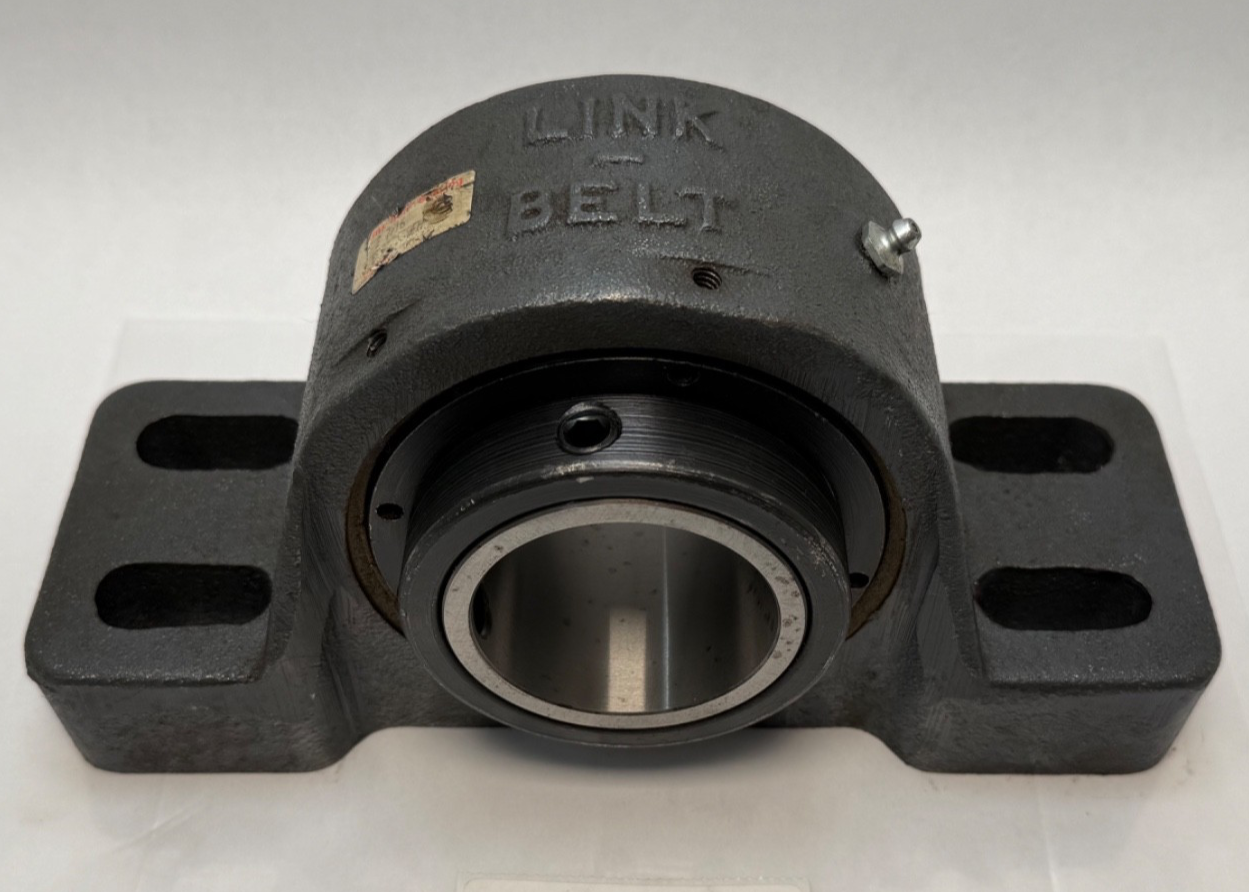

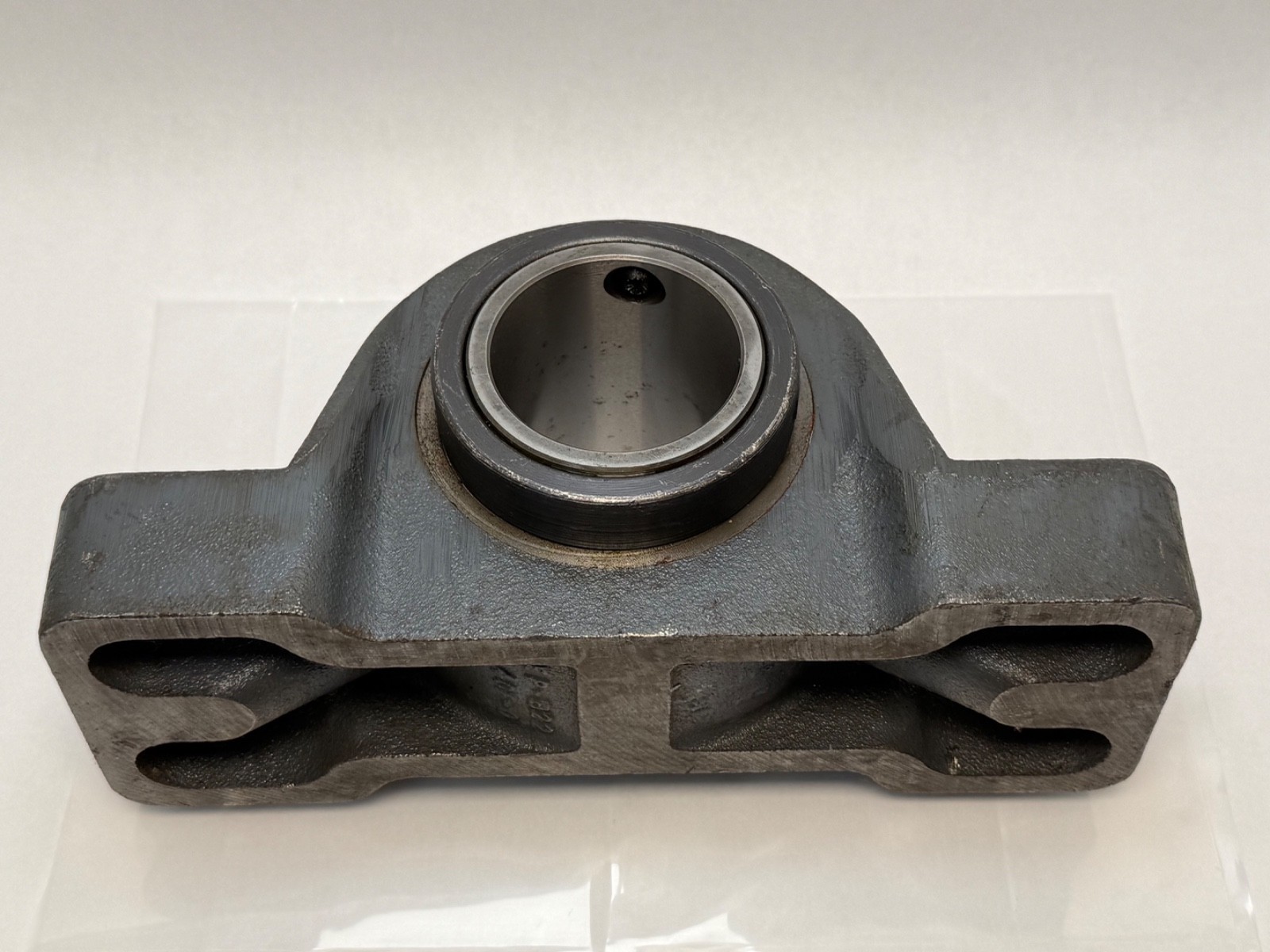

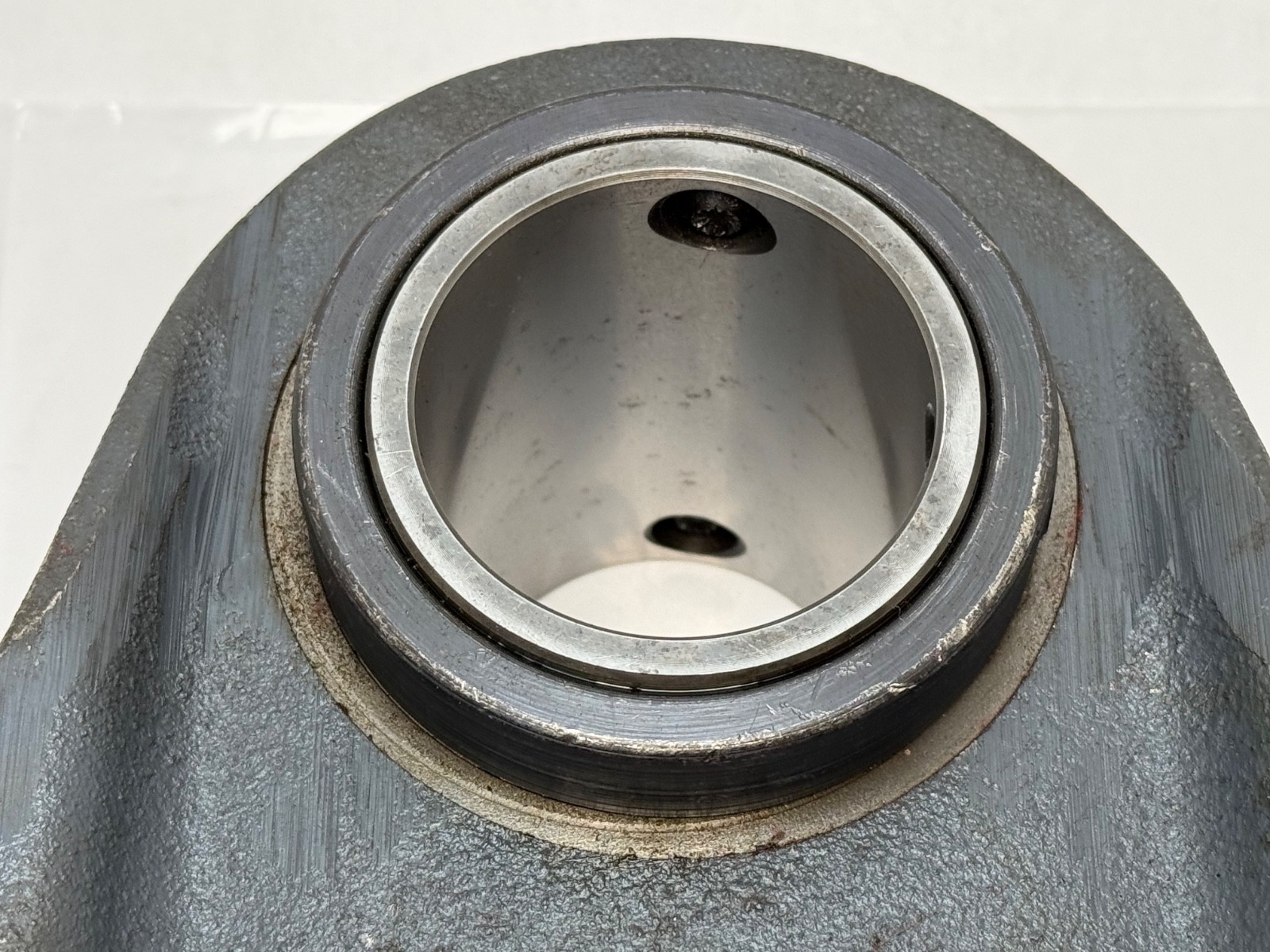

Link-Belt PEB22539FH two-bolt pillow block, spherical roller bearing, 2-7/16 in (61.9 mm) bore, cast iron, clearance labyrinth seal, double-setscrew collar.
List Price
$443.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Link Belt |
|---|---|
| MPN | PEB22539FH |
| Model | PEB 22539 FH |
| ID | 2-7/16 in |
| Material | Cast Iron |
|---|---|
| Type | Pillow Block Bearing |
| Category Id | 35565 |
| Currency | USD |
| Bearing Insert Type | Spherical Roller |
| Bolt Center To Center Length | 8-1/4 in (209.6 mm) |
| Additional Attributes | Maximum speed: 2,300 rpm; temperature rating to 107 C; shaft locking: double-setscrew collar; seal: clearance labyrinth (H); base-to-shaft centerline 3 in; overall length 11-1/4 in; overall height 5-3/4 in |
| Dynamic Load Rating | 170,400 N |
| Static Load Rating | 238,000 N |
| Item Weight | 10.9 kg (24 lb) |
| Relubrication Feature | Relubricatable |
| Industry Terms | pillow block bearing; spherical roller pillow block; solid housed pillow block; 2-7/16 pillow block |
| Common Misspellings | Linkbelt PEB22539FH; Link Belt PEB-22539-FH; Link-Belt PEB22539 FH |
| Application Types | Fans; blowers; conveyors; aggregate and process equipment |
| Mpn Variants | PEB22539FH; PEB-22539-FH; PEB22539-FH; PEB 22539 FH |
Link-Belt PEB22539FH two-bolt solid-housed pillow block mounting a double-row spherical roller bearing insert with a 2-7/16 in (61.91 mm) bore in a cast iron housing. The 22539 insert is self-aligning (±2° misalignment). Link-Belt is a Rexnord (Regal Rexnord) brand. Unit Quantity: 1 Pc. Also written PEB-22539-FH and PEB22539-FH.
Bore Diameter: 2-7/16 in (61.91 mm). Bearing Insert Type: Spherical Roller. Shaft Locking: double-setscrew collar. Seal: clearance/floating labyrinth (H). Relubrication: relubricatable. Dynamic Load Rating: 170,400 N (38,300 lbf). Static Load Rating: 238,000 N (53,500 lbf). Maximum Speed: 2,300 rpm. Temperature Rating: to 107 °C (225 °F). Housing Material: cast iron. Item Weight: 10.9 kg (24 lb).

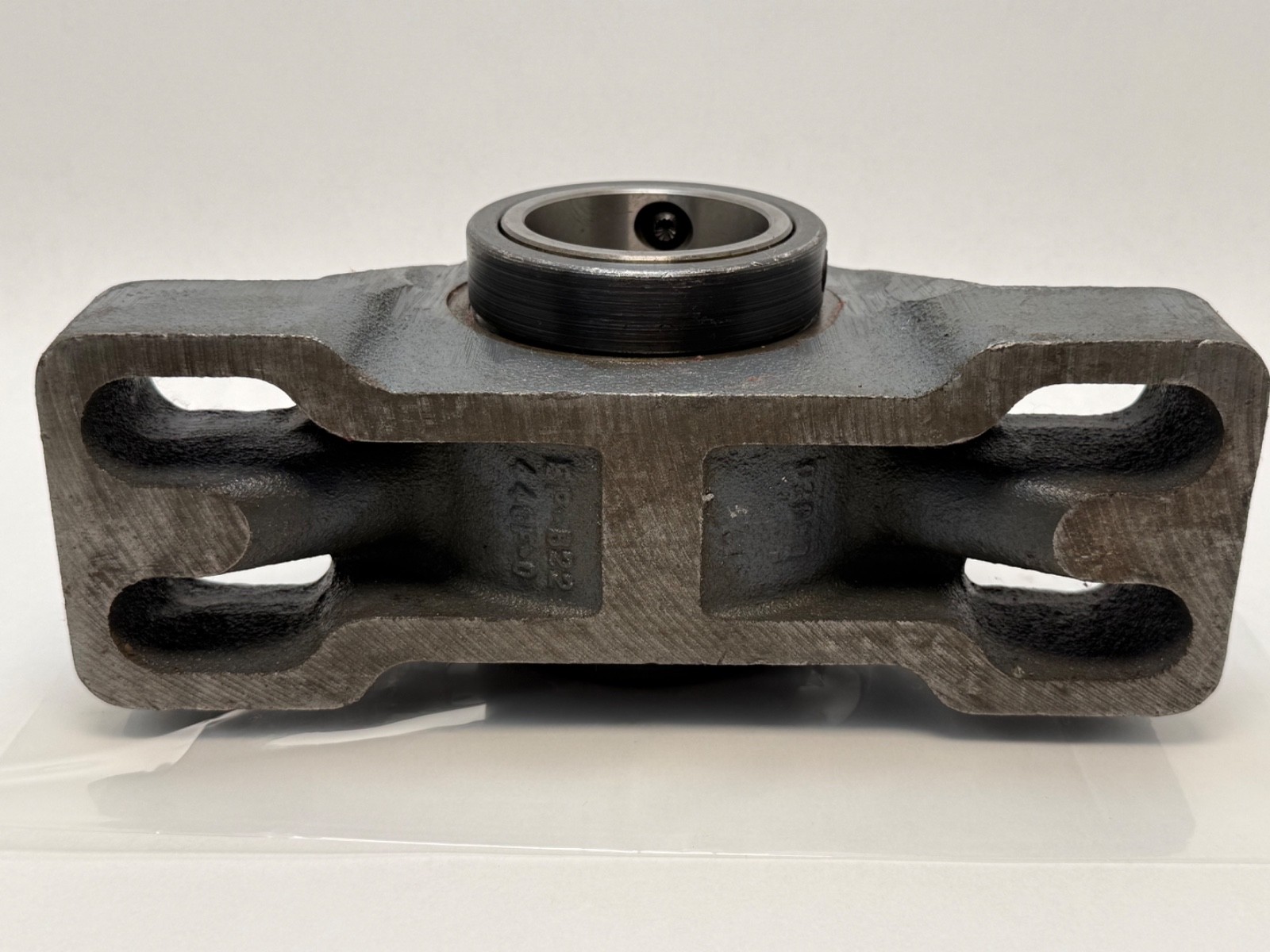

Base-to-Shaft Centerline: 3 in (76.2 mm). Bolt Center Spacing: 8-1/4 in (209.6 mm). Overall Length: 11-1/4 in (285.8 mm). Overall Height: 5-3/4 in (146.1 mm).

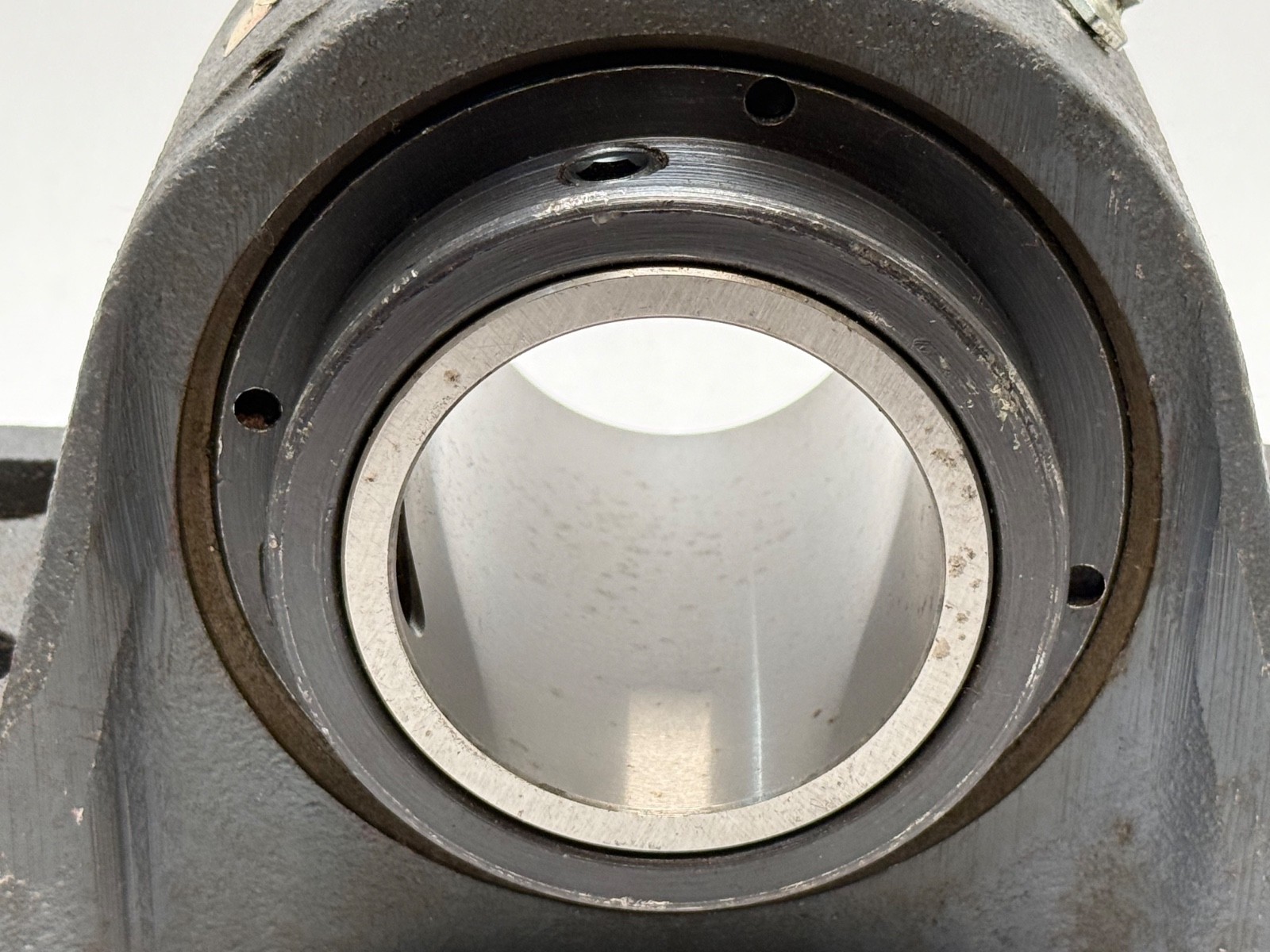

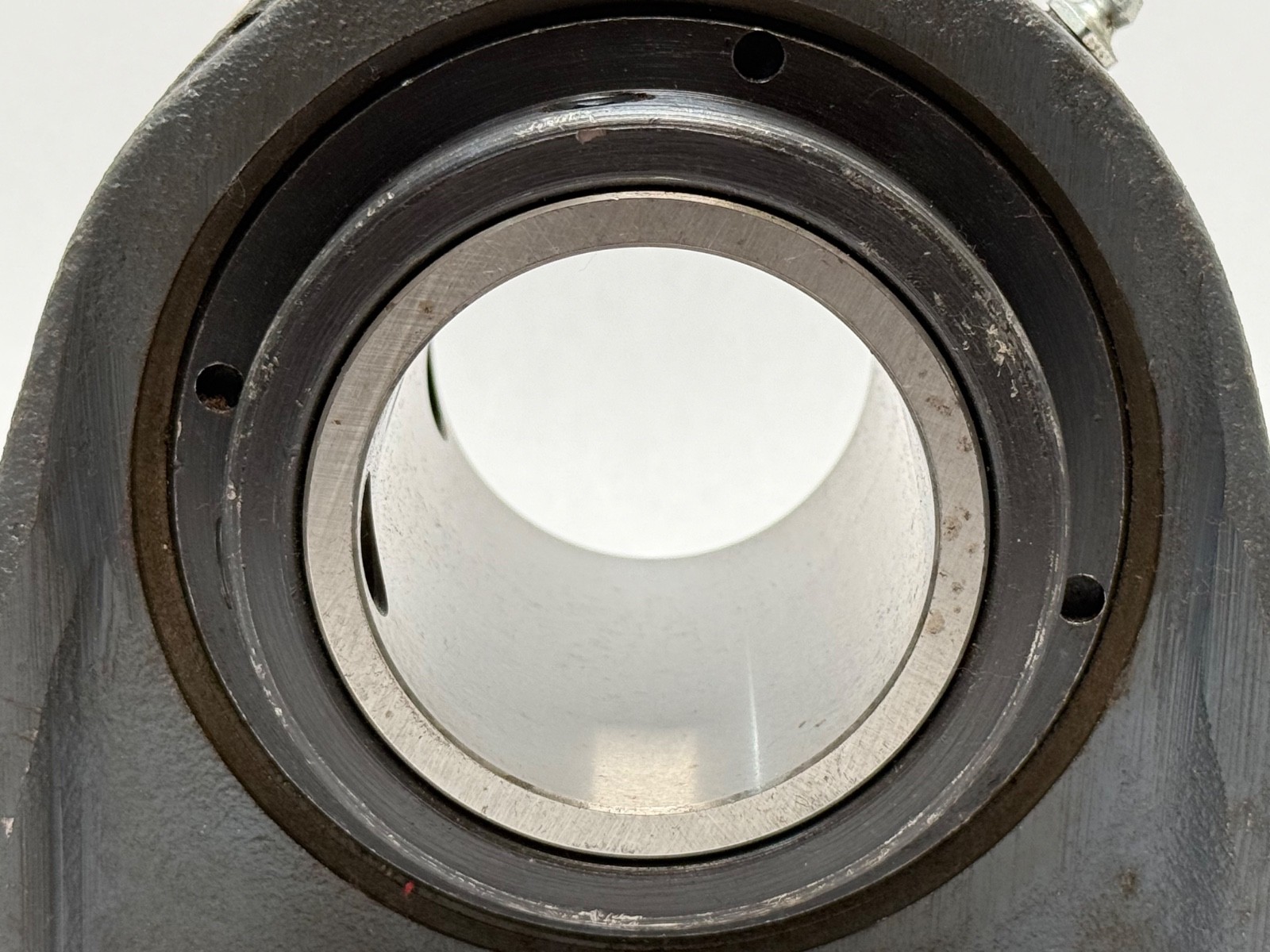

2-7/16 in (61.91 mm), in a two-bolt cast iron pillow block housing.
A 22539 double-row spherical roller insert, self-aligning to ±2° misalignment.
Dynamic load rating 170,400 N (38,300 lbf) and static load rating 238,000 N (53,500 lbf); maximum speed 2,300 rpm.
