Flange Unit - 30 mm Bore, 2 bolt, Cast Iron, Standard Duty, Non-Expanding$66.50
2-Bolt Flange Ball Bearing Unit 1-7/16" Bore, Medium Duty, Setscrew Locking, Seal and Flinger Both Sides$44.14
Two-Bolt Rhombus Flange Mount Bearing Unit – 5/8 in Bore, Cast Iron, Setscrew Lock, Light Duty, 2 Pcs$66.90
Two-Bolt Rhombus Flange Mount Bearing Unit, 1 in Bore, Eccentric Collar Locking, Cast Iron$25.39| MFR / Brand | NTN |
|---|---|
| MPN | UCFL208 |
| Model | UCFL-208 UC-208 |
| ID | 40 mm |
| Series | UCFL |
|---|---|
| Condition | New |
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Material | Cast Iron Housing |
| Bolt Center To Center | 144 mm |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 144 mm |
| Number Of Bolt Holes For Fasteners | 2 |
| Min Temp | -20 °C |
| Dynamic Load Rating | 29.1 kN / 6540 lbf |
| Static Load Rating | 17.8 kN / 4000 lbf |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Bearing Type | 2-Bolt Flange Bearing Unit |
| Item Weight | 3.53 lbs |
| Number Of Rows | 1 |
| Bore Type | straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Duty Type | Standard |
| Locking Device | Set Screw |
| Relubrication Feature | Yes |
| Housing Material | Cast Iron |
| Expansion Type | Fixed |
| Cross Reference 1 | SKF FY 40 TF |
|---|---|
| Cross Reference 2 | FAG FL208 |
| Cross Reference 3 | Dodge F2B-SC-40M |

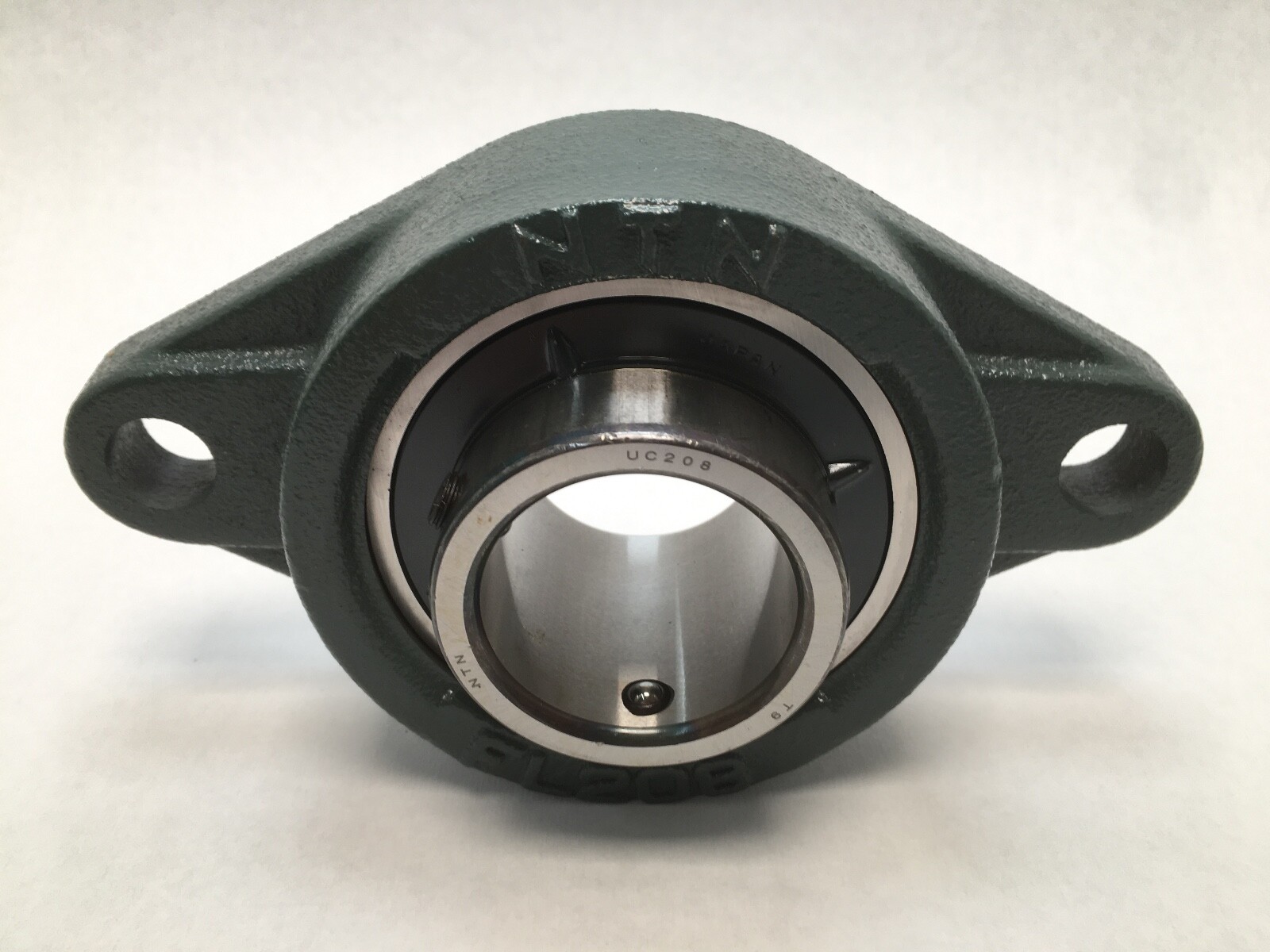

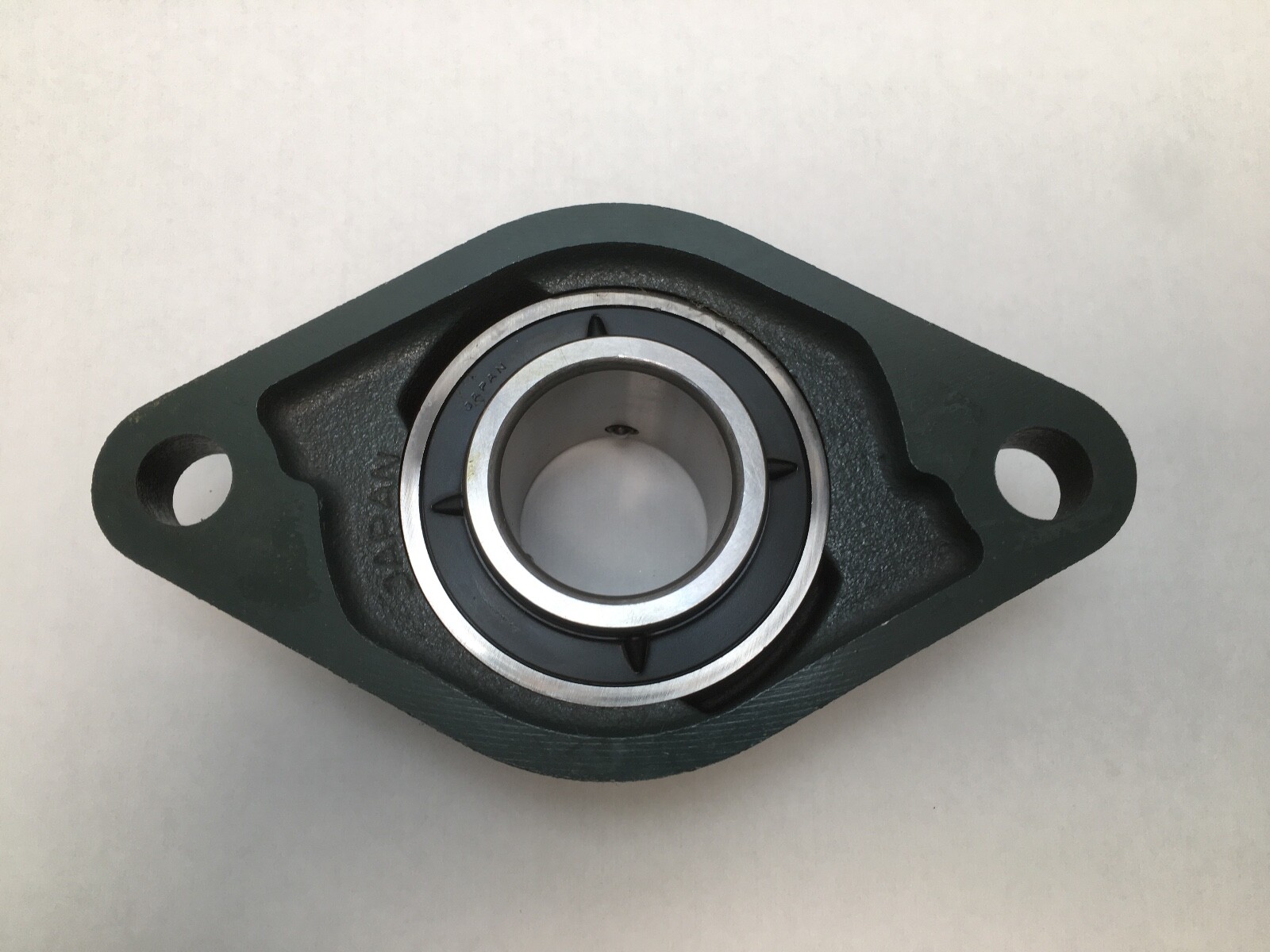

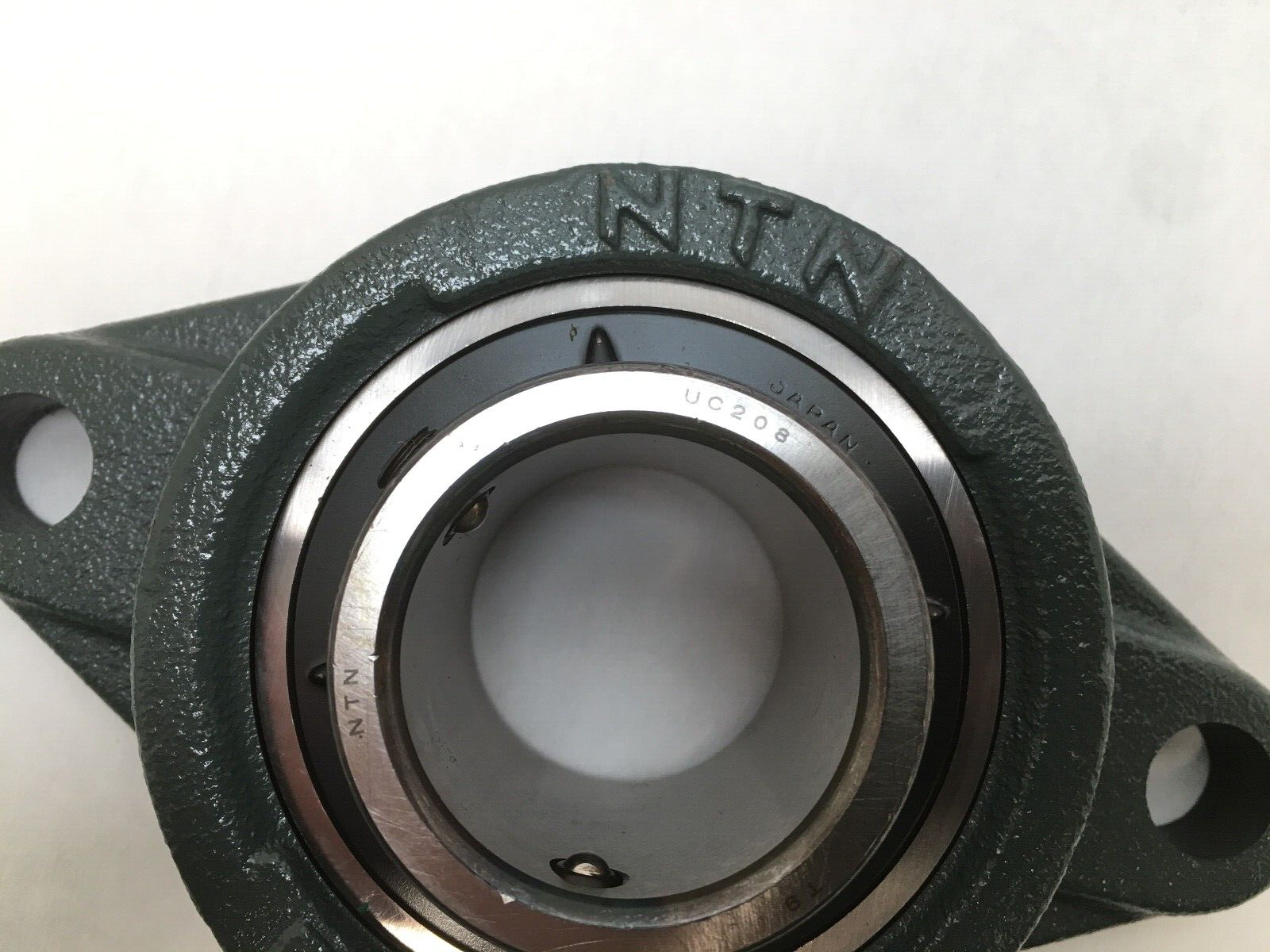

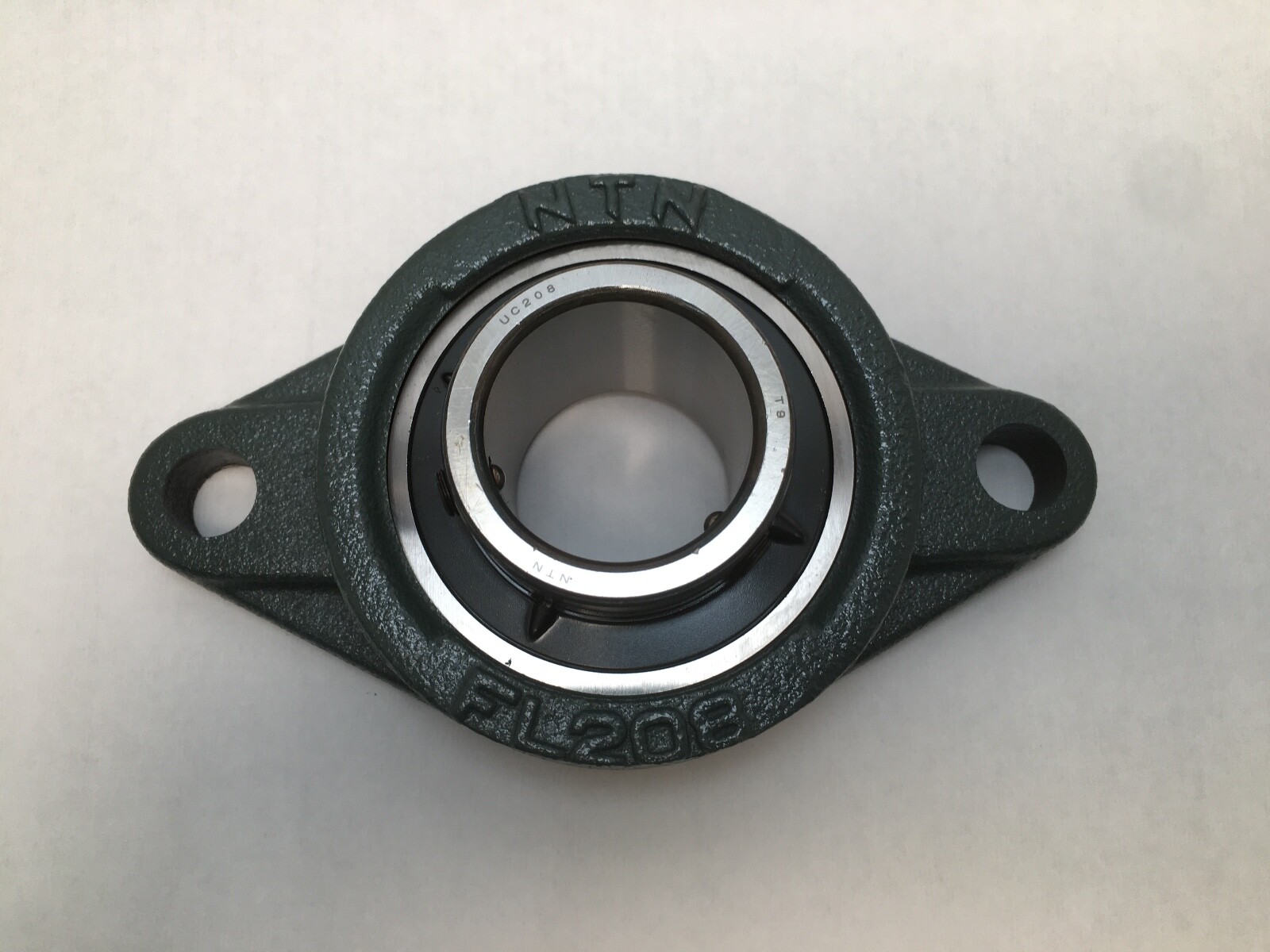

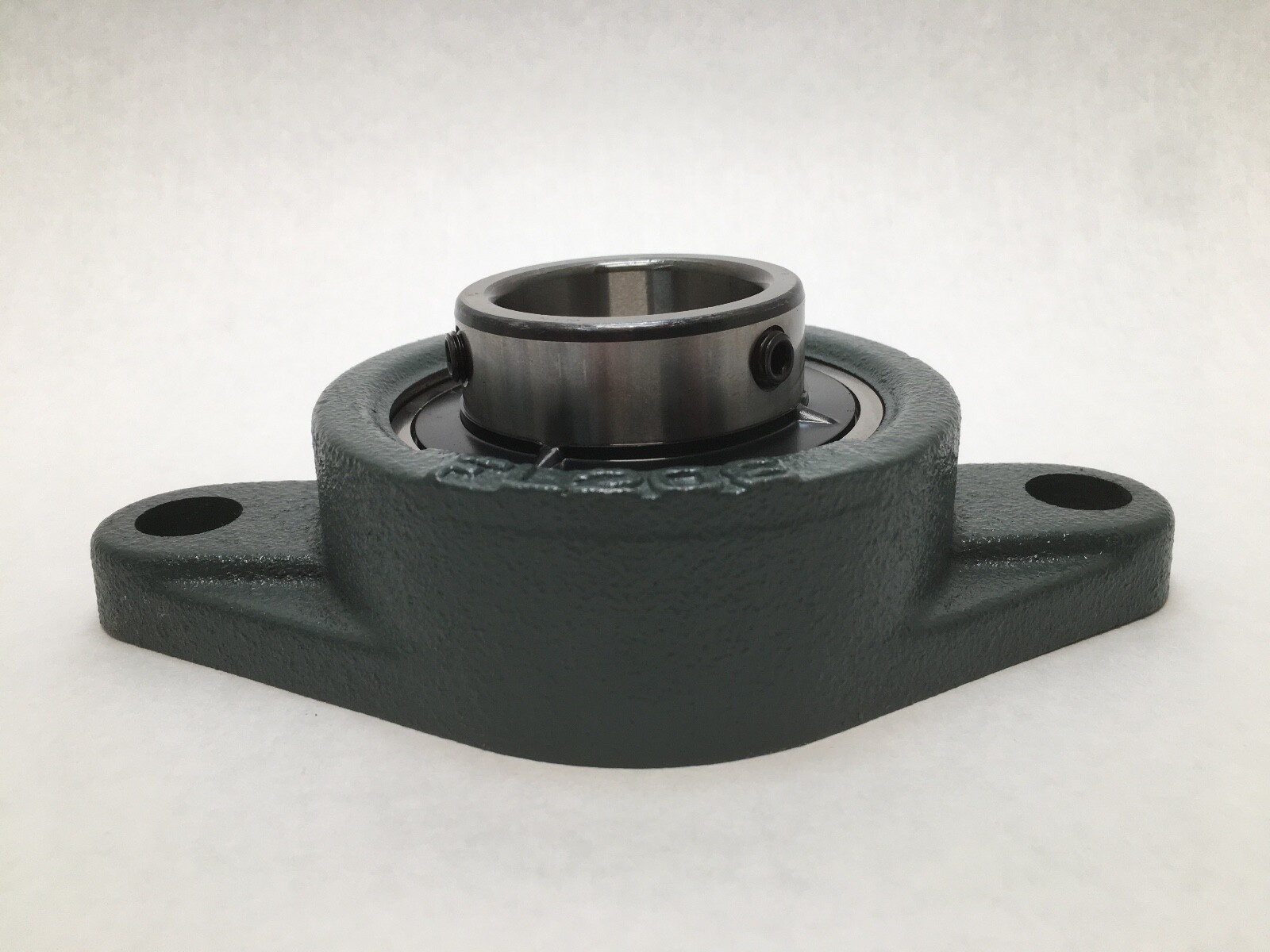

Introducing the NTN UCFL208 Flange Mount Bearing Unit – the ultimate solution for your bearing needs, featuring precision engineering from Japan that elevates your projects to new heights. With a robust bore diameter of 40 mm, this flanged mount bearing guarantees exceptional functionality and reliability, making it an ideal choice for a broad range of applications in both industrial and commercial settings.
Brand: NTN, a name renowned for quality and durability.
Type: Flanged Mount Bearing designed for effortless installation and maintenance.
Model: UCFL-208 (also referred to as UC-208) for compatibility with numerous setups.
MPN: UCFL208, ensuring precise ordering.
Origin: Proudly manufactured in Japan, meeting high standards of craftsmanship.
Whether you are replacing bearings or enhancing your machinery’s performance, the NTN UCFL208 is your best bet. We offer combined shipping on multiple purchases for quick delivery of your needed products. Enjoy same-day and next-day shipping options at checkout for fast receipt of your essential components.
Note: We also purchase surplus bearings. Please reach out for more information!
Enhance your operational efficiency with the NTN UCFL208 Flange Mount Bearing Unit today!
