Single-row deep groove ball bearing, 75 mm bore x 130 mm OD x 25 mm wide, open both faces, pressed brass cage, straight bore, no snap ring groove.
List Price
$55.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 6215 Y/C782 |
| Model | 6215 Y C782 / M215K |
| Bearing Type | Deep Groove Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6200 |
| Base Number | 6215 |
| Industry Terms | deep groove ball bearing; single row radial ball bearing; open ball bearing; brass cage ball bearing; Conrad bearing |
| Common Misspellings | 6215 Y C782; 6215-YC782; 6215 YC 782 |
| Application Types | electric motors; fans and blowers; gearboxes; pumps and general industrial shafting |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 6215 Y/C782; 6215YC782; 6215-Y-C782; 6215 Y C782; 6215Y; 6215 |
| Rolling Elements | Ball |
| Cage Material | Brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Part Number | 6215 Y/C782 |
| Closure Type | Open |
| Overall Width | 25 mm |

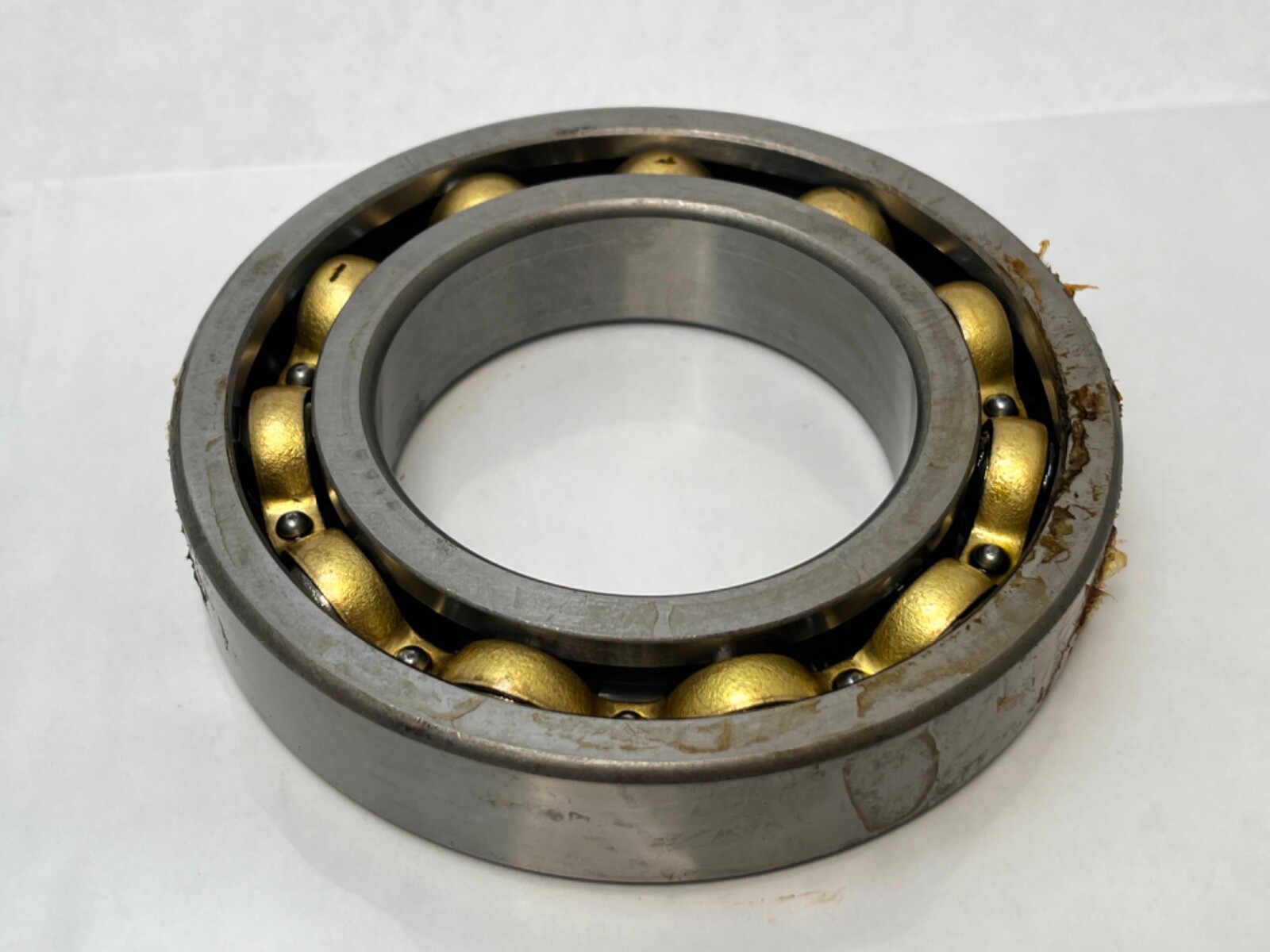

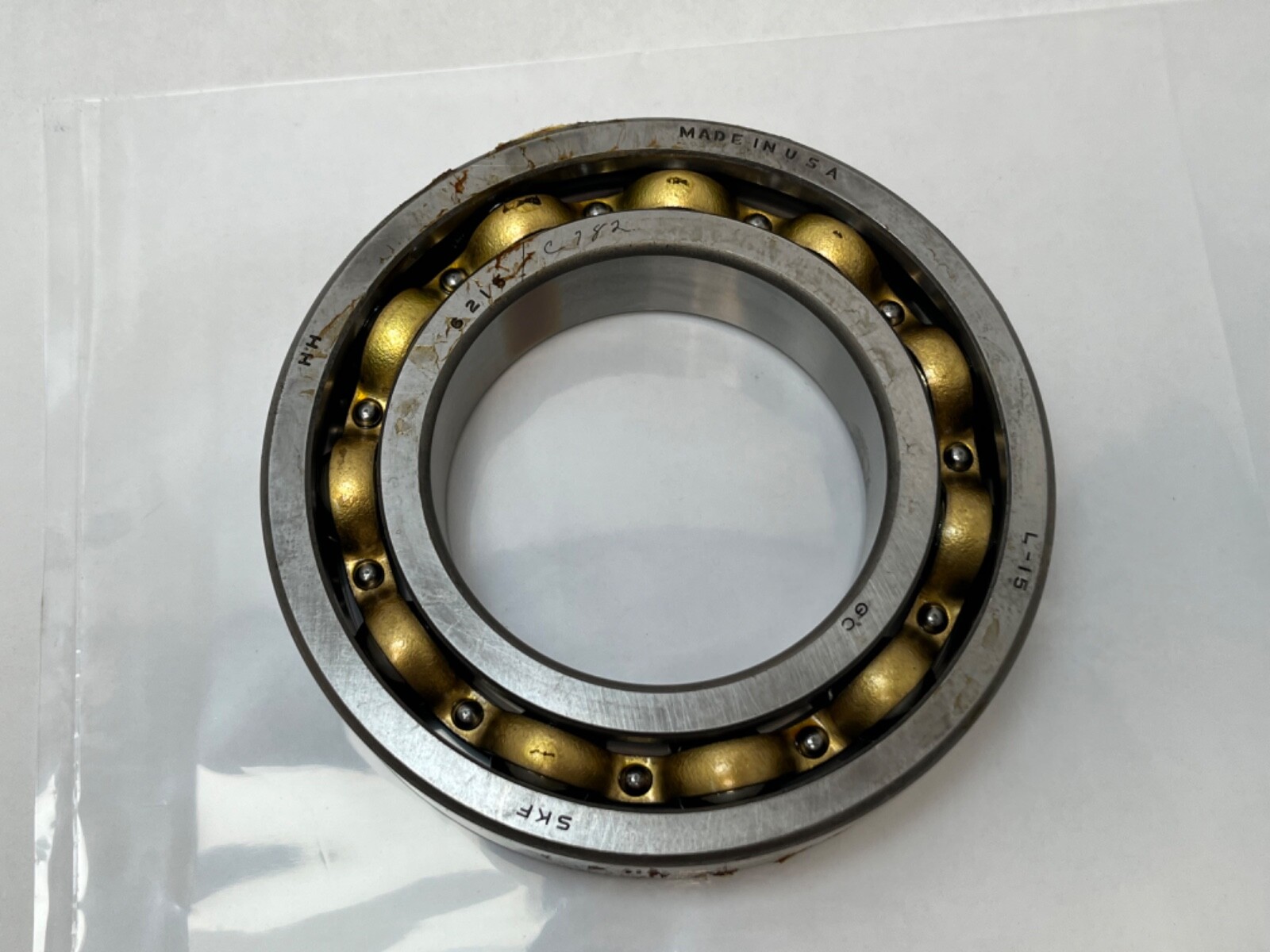

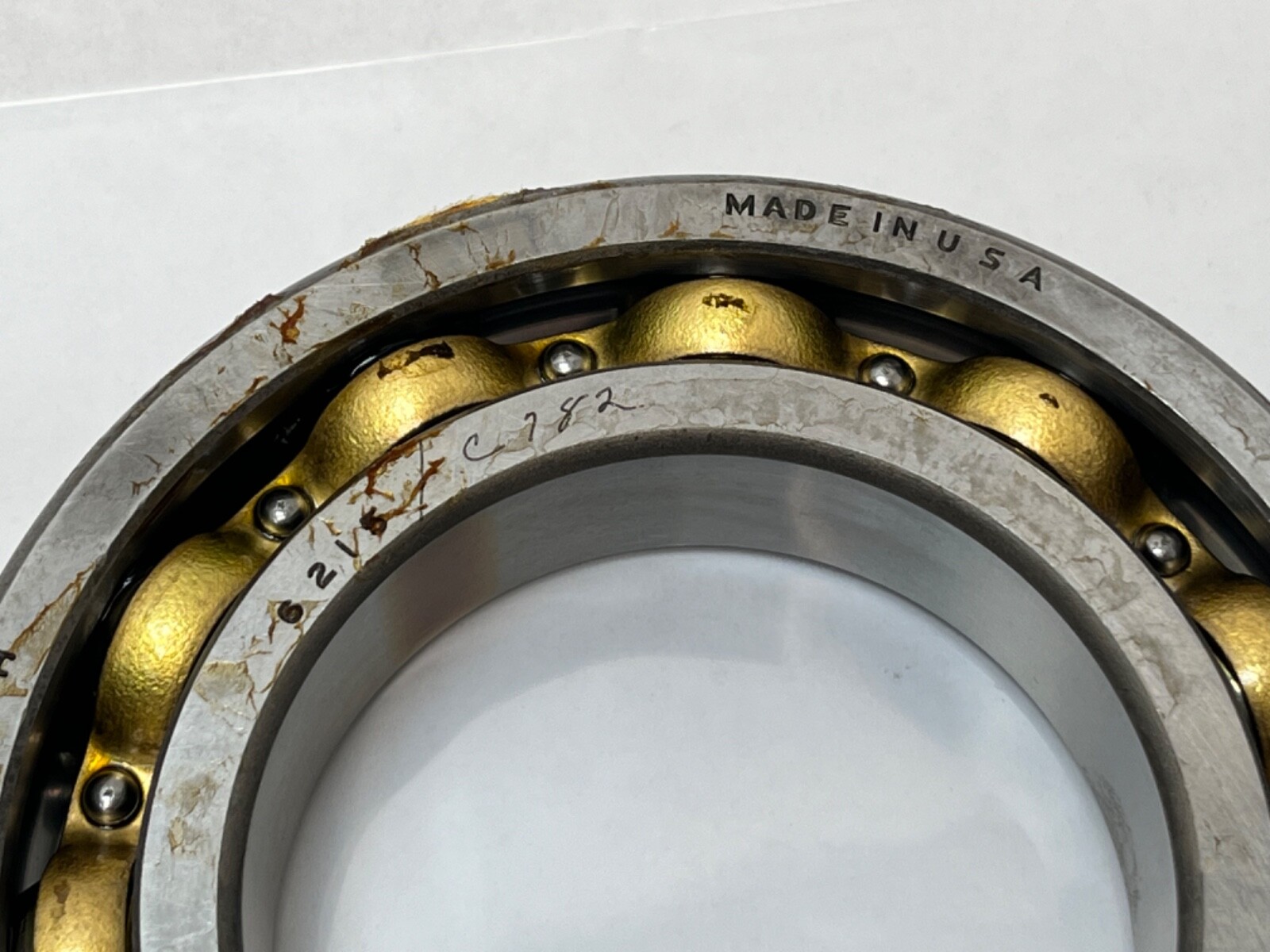

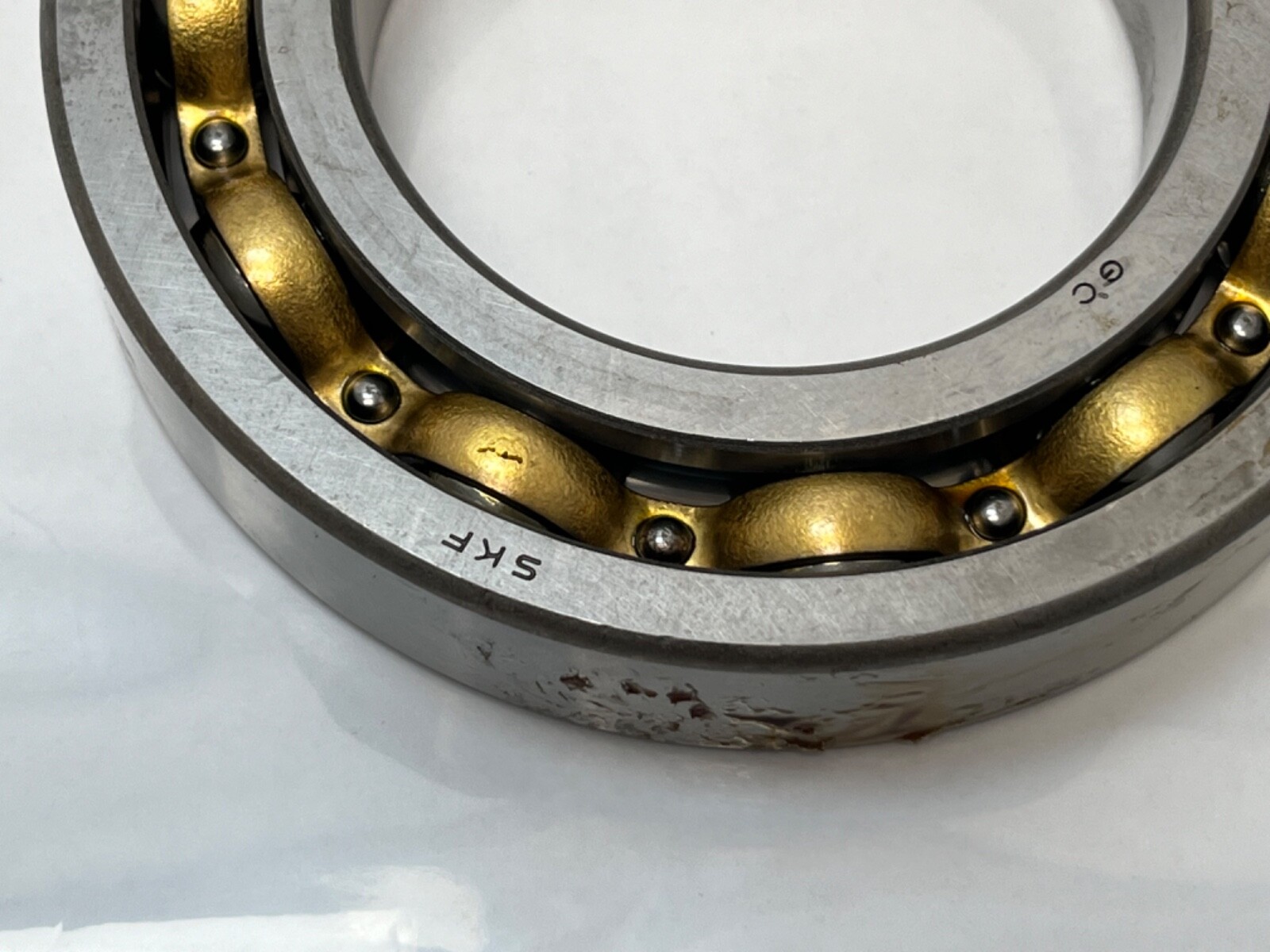

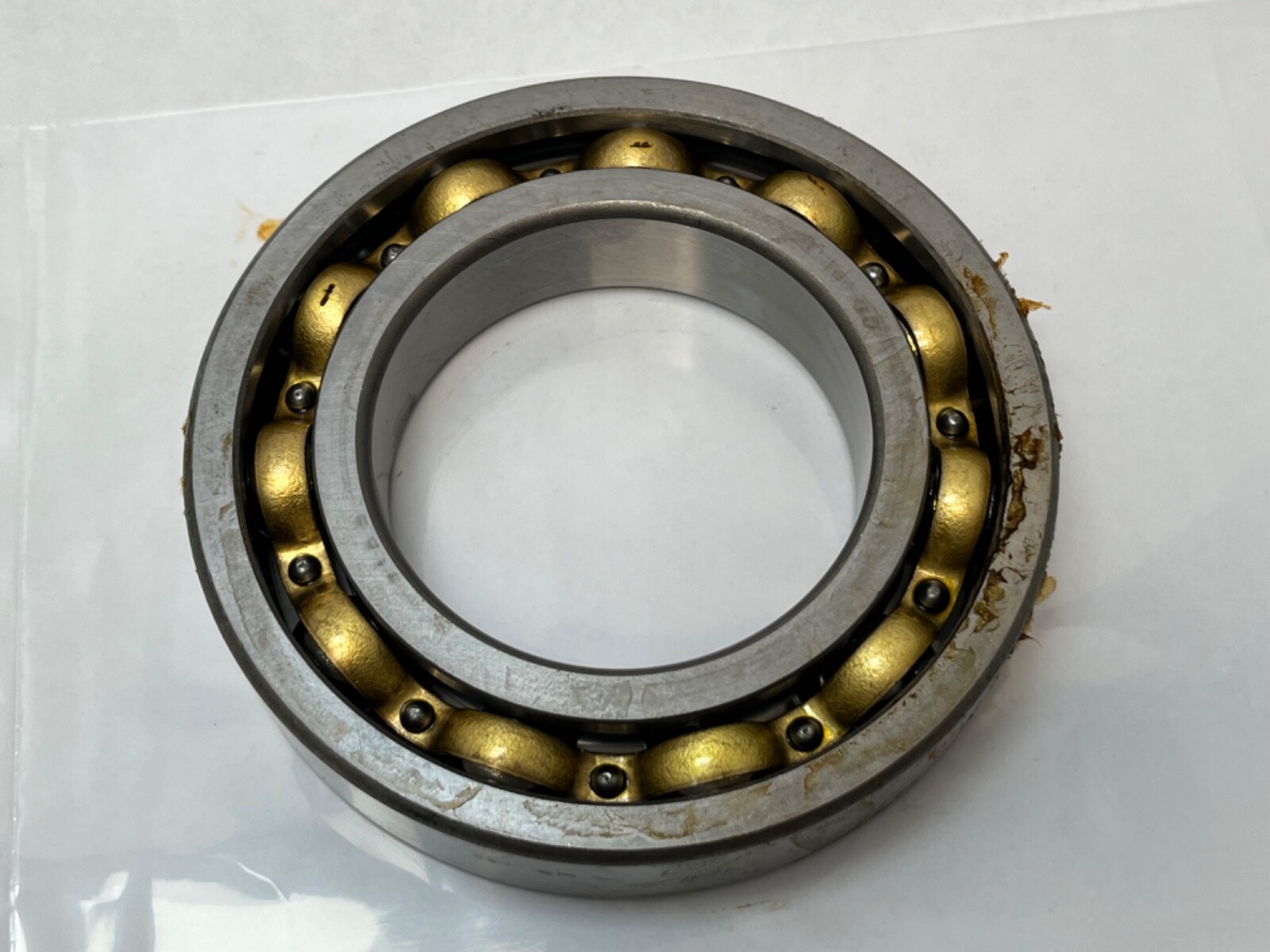

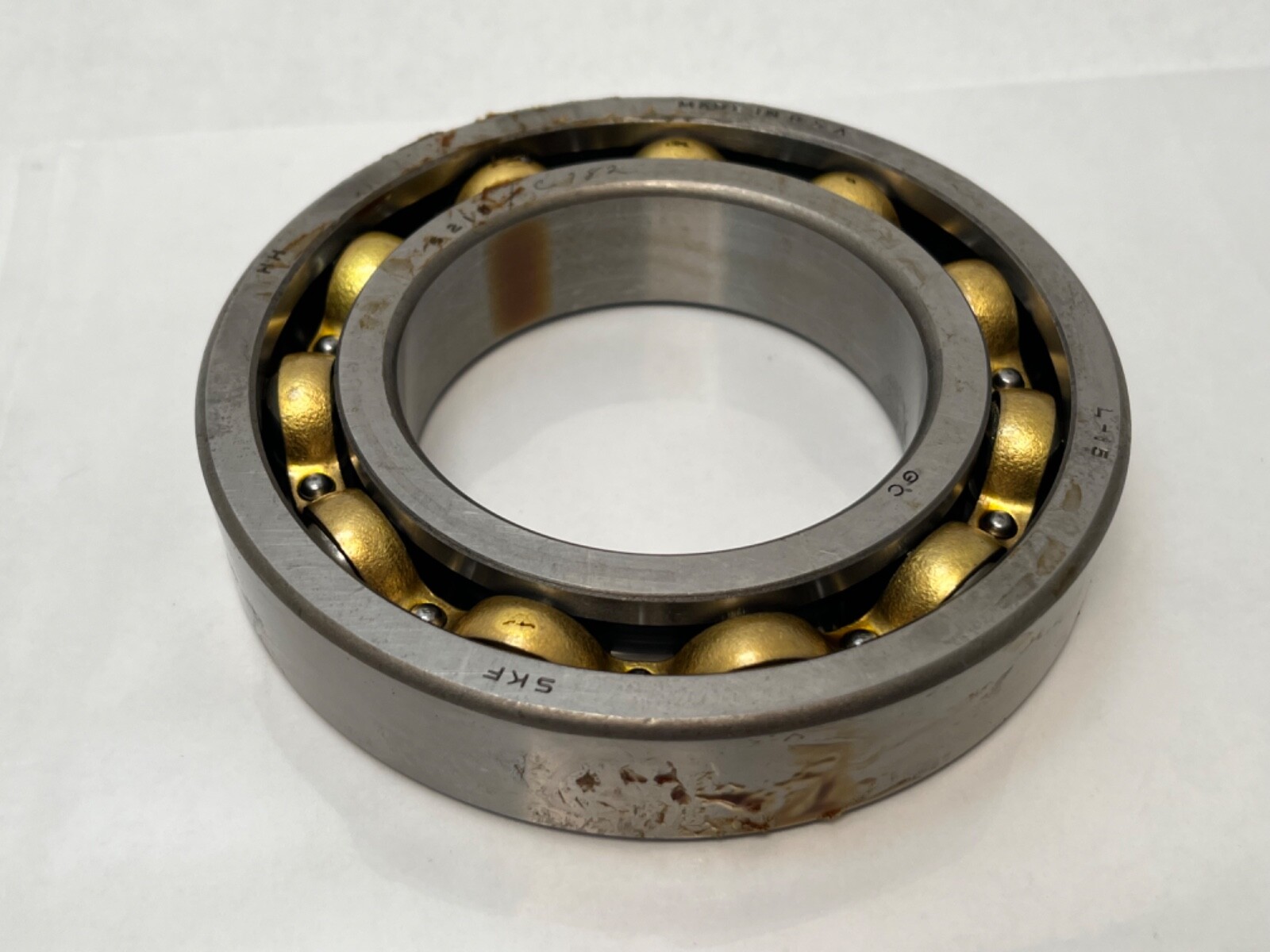

An SKF 6215 Y single-row deep groove ball bearing. Bore 75 mm, outside diameter 130 mm, width 25 mm. Open on both faces, straight bore, pressed brass cage. The balls run in deep circumferential grooves in both rings, which lets the bearing take axial load in either direction as well as radial load.
62 — medium deep groove dimension series.
15 — bore code, 75 mm bore.
Y — pressed brass cage in place of the pressed steel cage of the standard build.
No closure suffix — both faces open.
No N or NR — the outer ring has no snap ring groove.
Bore Diameter: 75 mm (2.9528 in). Outside Diameter: 130 mm. Width: 25 mm. Rolling Elements: Balls. Number Of Rows: 1. Bore Type: Straight. Seal Type: Open. Cage Material: Brass. Series: 62 (medium). Base Number: 6215. Snap Ring Included: No. Unit Quantity: 1 Pc.
Straight bore for a cylindrical shaft seat. Open both faces. No snap ring groove on the outer ring.
Base number 6215, 75 x 130 x 25 mm. A standard steel-cage 6215 shares the envelope at different published ratings; a 6215-2RS1 or 6215-2Z adds seals or shields; a 6315 is the 63 series on the same bore. MPN variants: 6215 Y/C782; 6215YC782; 6215-Y-C782; 6215 Y C782; 6215Y; 6215.
A pressed brass cage.
75 mm bore, 130 mm outside diameter, 25 mm width.
No. Both faces are open.
