Availability:
5 in stock
Deep groove ball bearing, 80 x 125 x 22 mm, steel shields both sides, C3 internal clearance, pressed steel cage, 49.4 kN dynamic load rating.
List Price
$43.45
5 in stock
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 6016-2ZJEM |
| GTIN | 7316577116512 |
| Model | 6016 ZZ C3 HT51 |
| Bearing Type | Deep Groove Ball Bearing, Shielded both sides |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Steel |
|---|---|
| Condition | New |
| Base Number | 6016 |
| Bore Shaft Size | 80 mm |
| Mpn Variants | 6016 2ZJEM; 6016-2ZJEM; 6016ZZC3; 6016-ZZ-C3; 6016 2Z C3; 6016-ZZ-C3-HT51 |
| Cage Type | Pressed, ball-guided |
| Dynamic Load Rating | 49.4 kN |
| Static Load Rating | 40 kN |
| Series | 60 |
| Rolling Elements | Ball |
| Item Weight | 2.03 lb (919 g) |
| Cage Material | Pressed steel |
| Limiting Speed | 5600 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Design Units | Metric |
| Bearing Material | Chrome Steel |
| Part Number | 6016-2ZJEM |
| Cross Reference 1 | SKF 6016-2Z/C3 |
|---|---|
| Cross Reference 2 | SKF 6016-2Z |

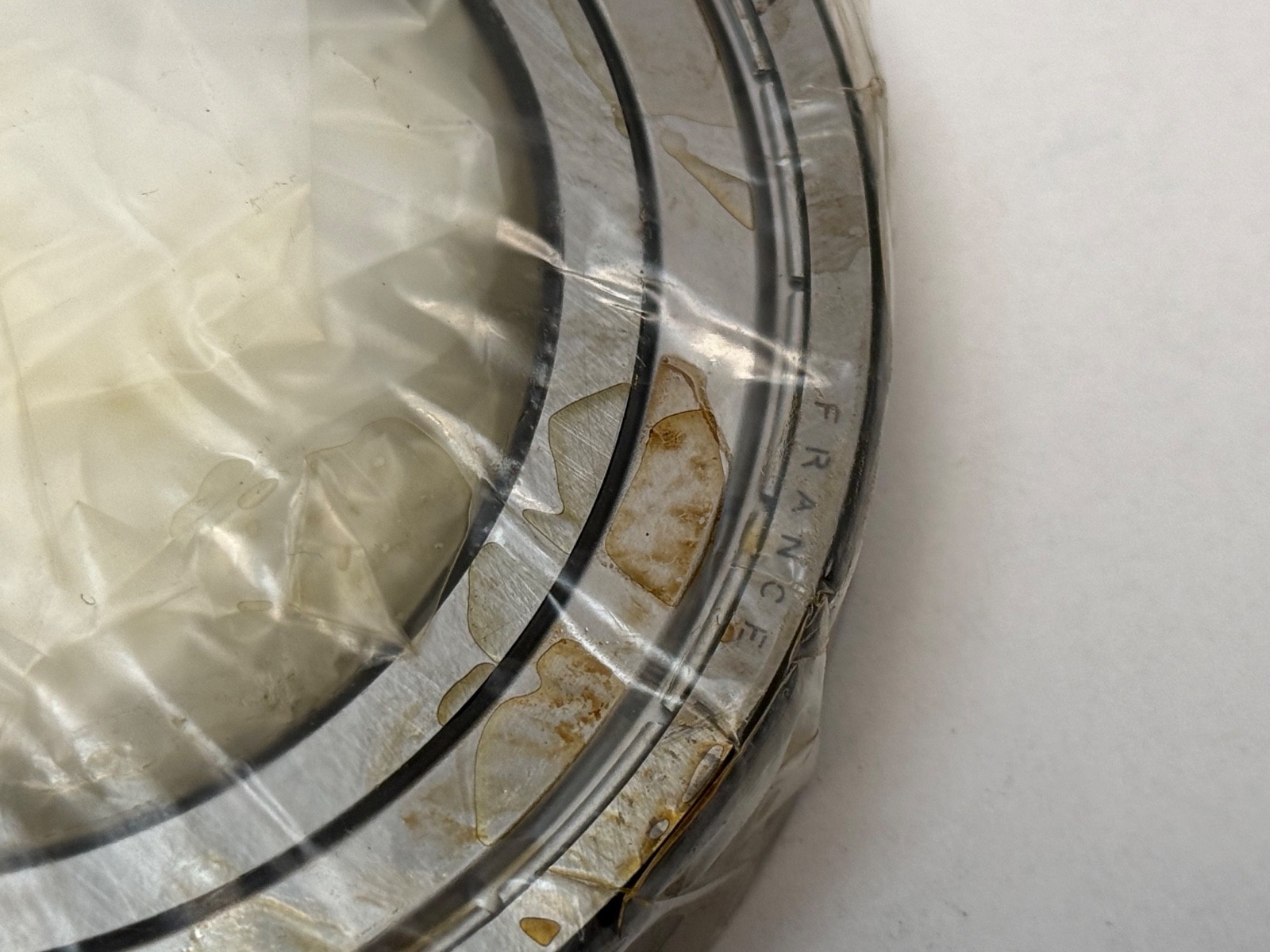

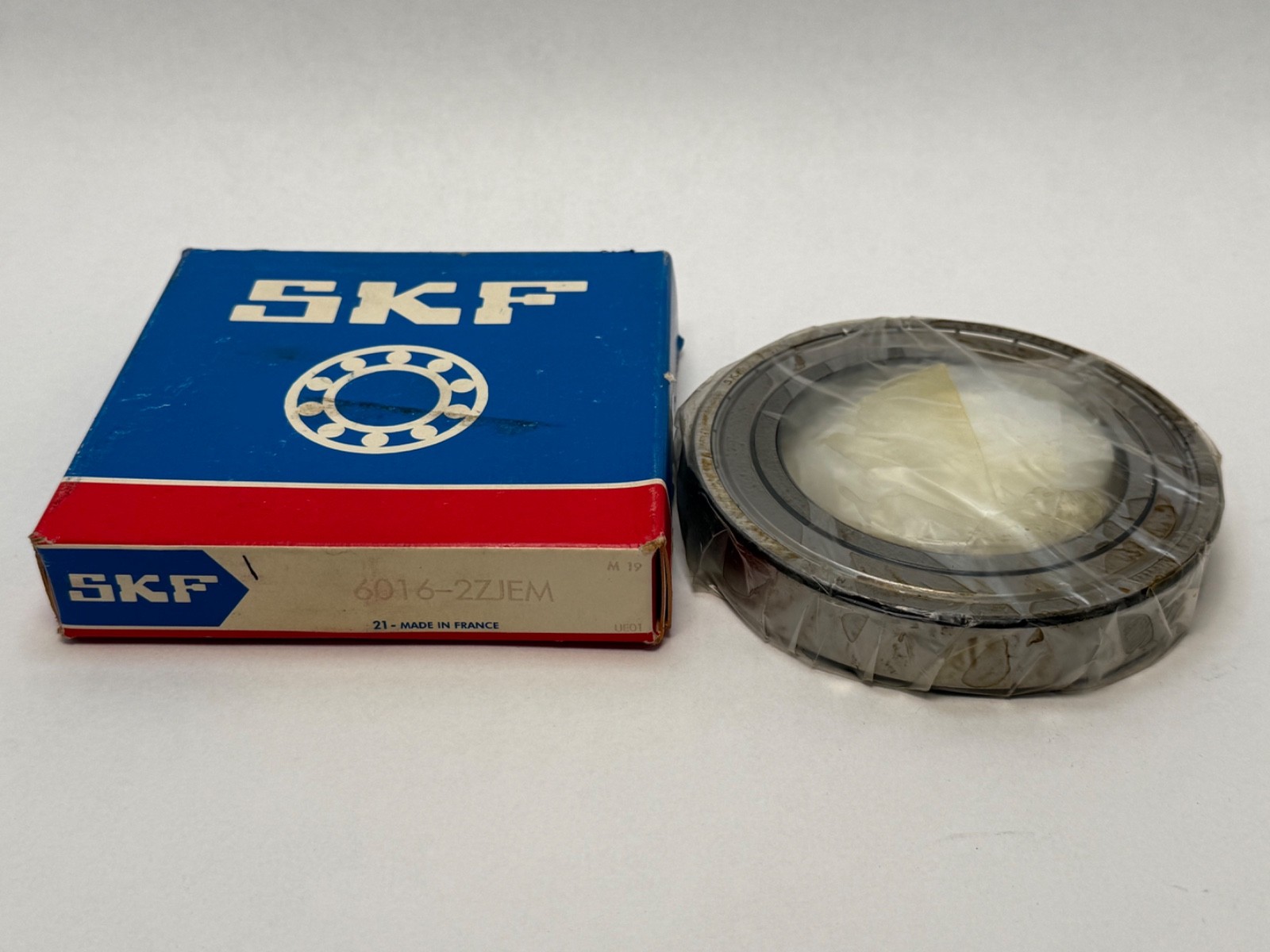

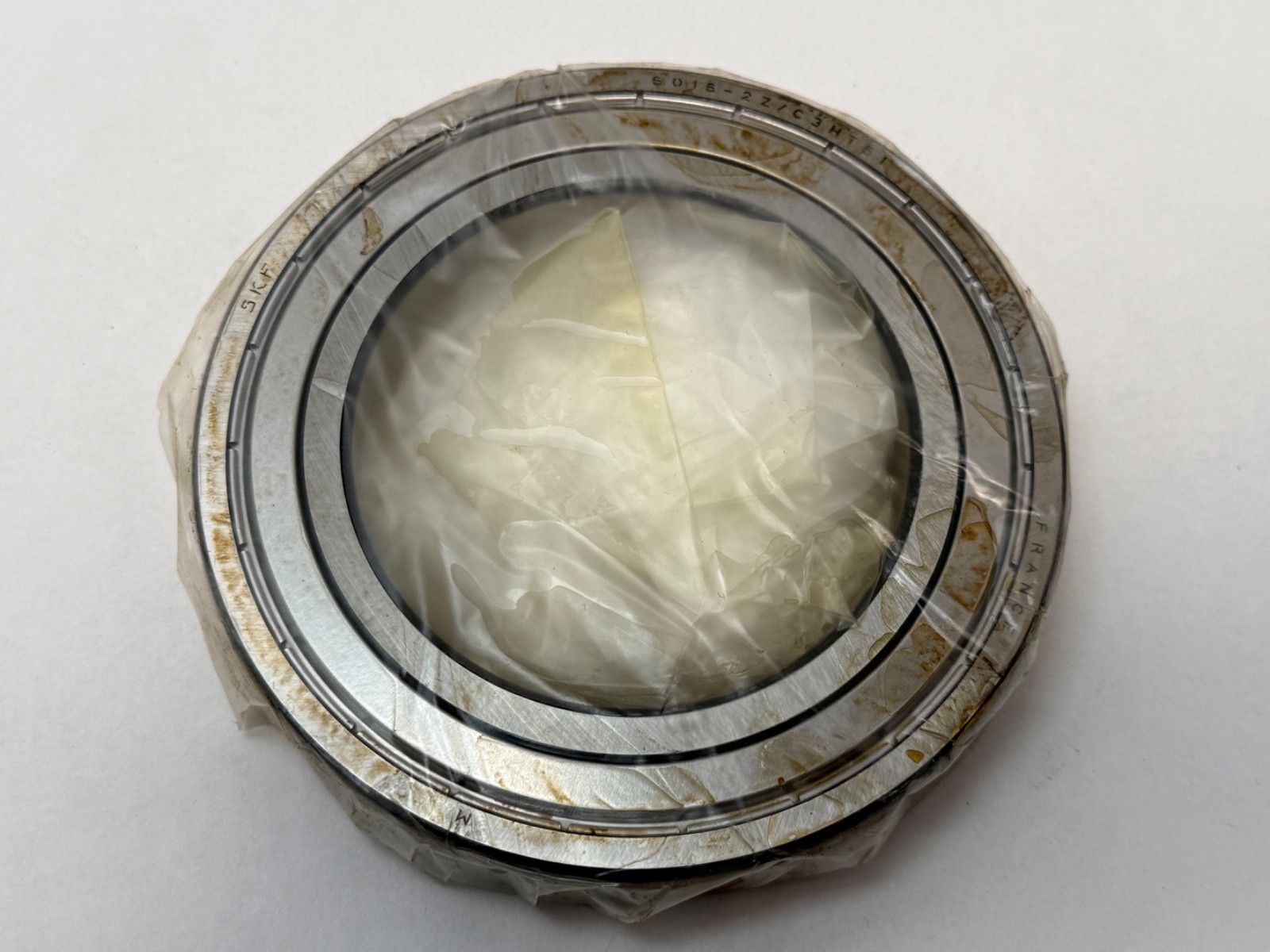

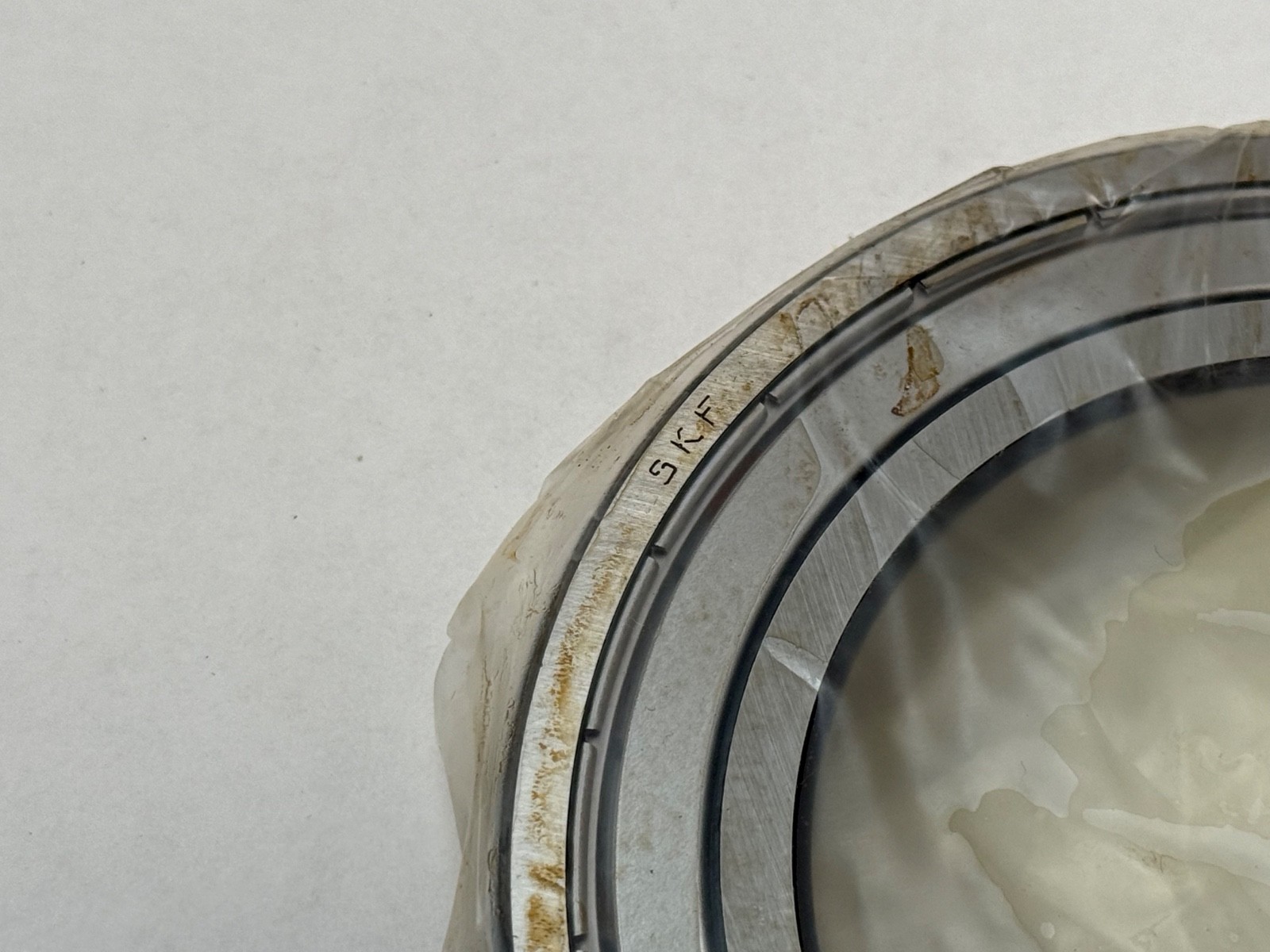

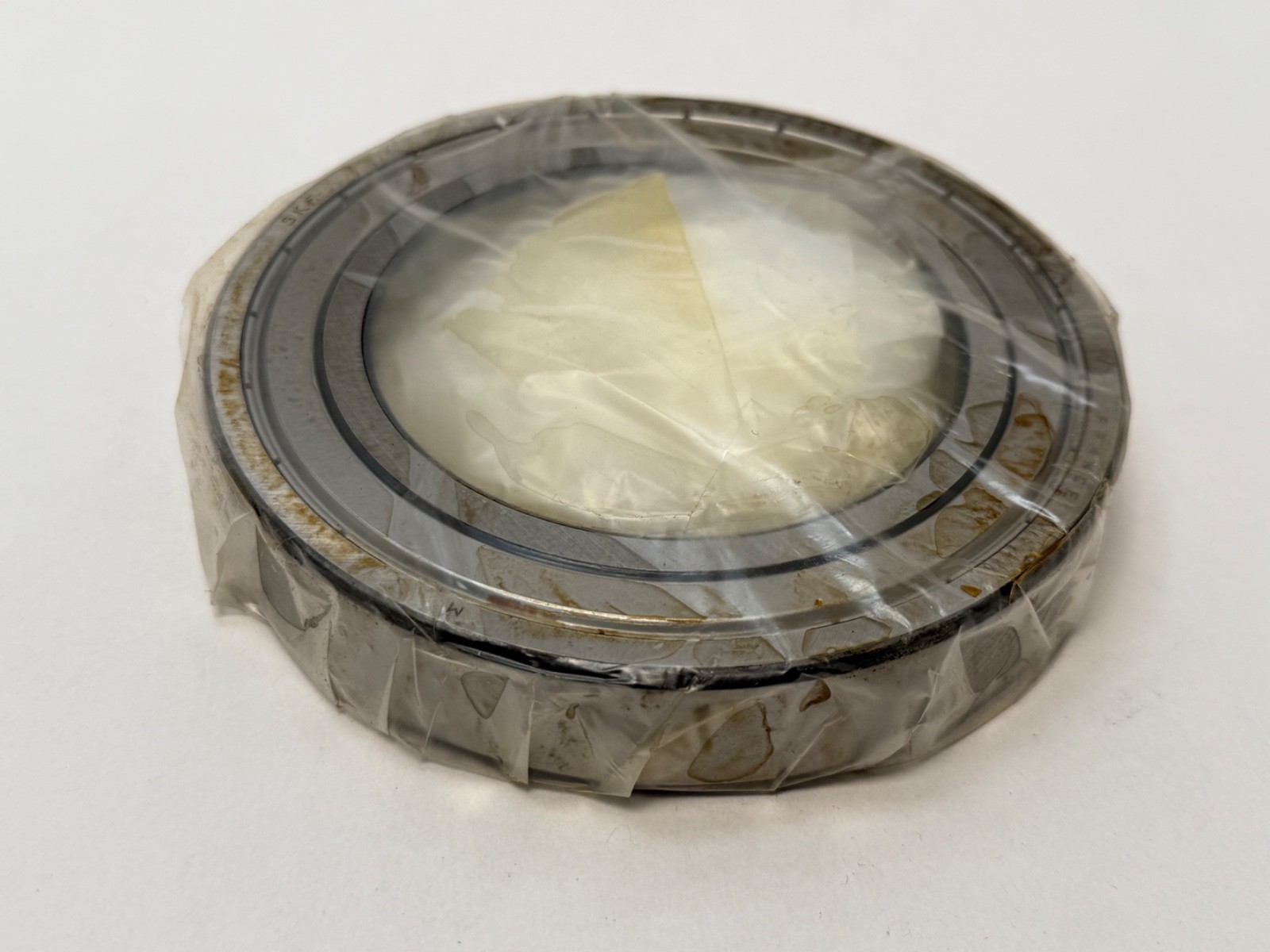

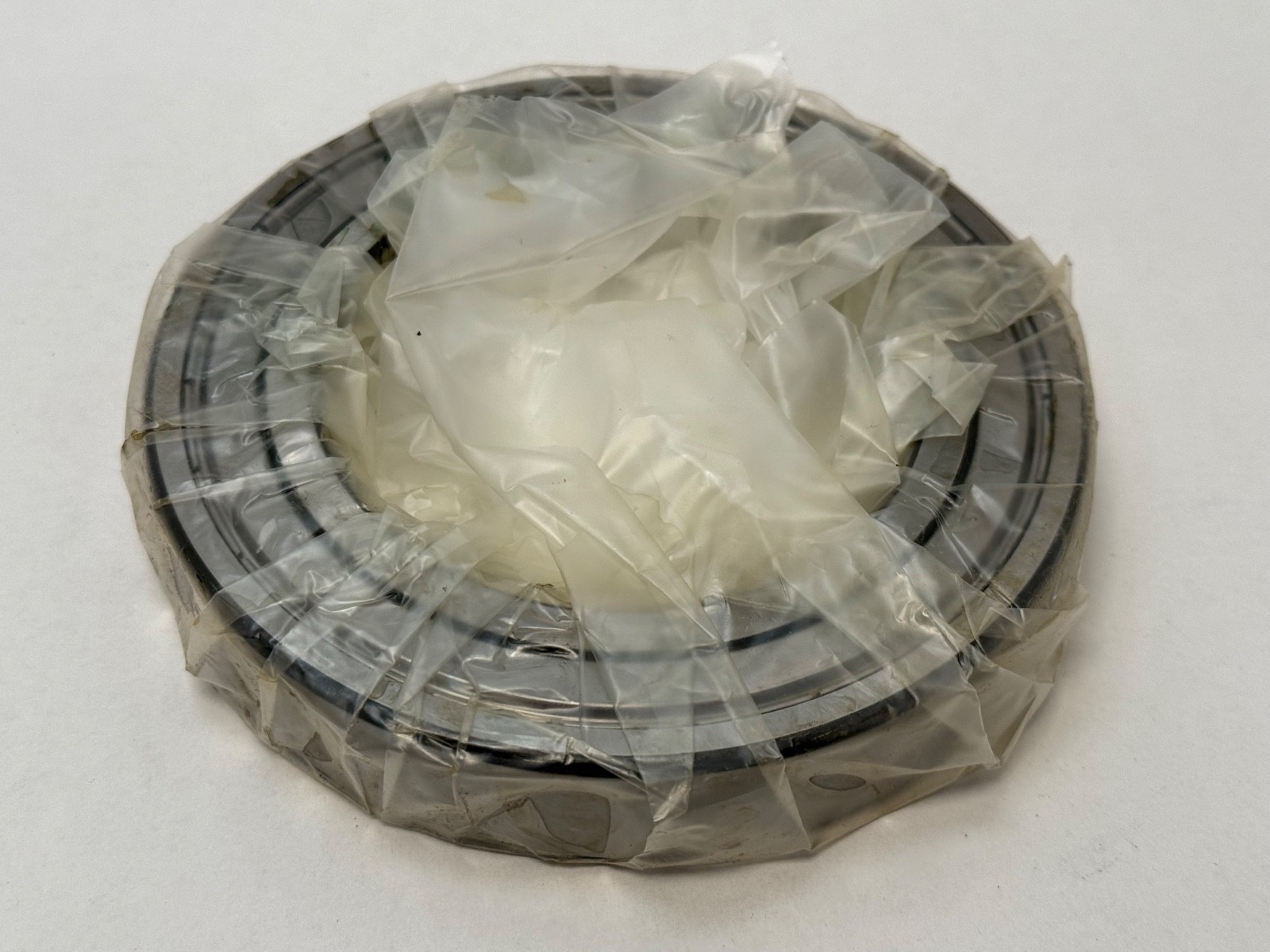

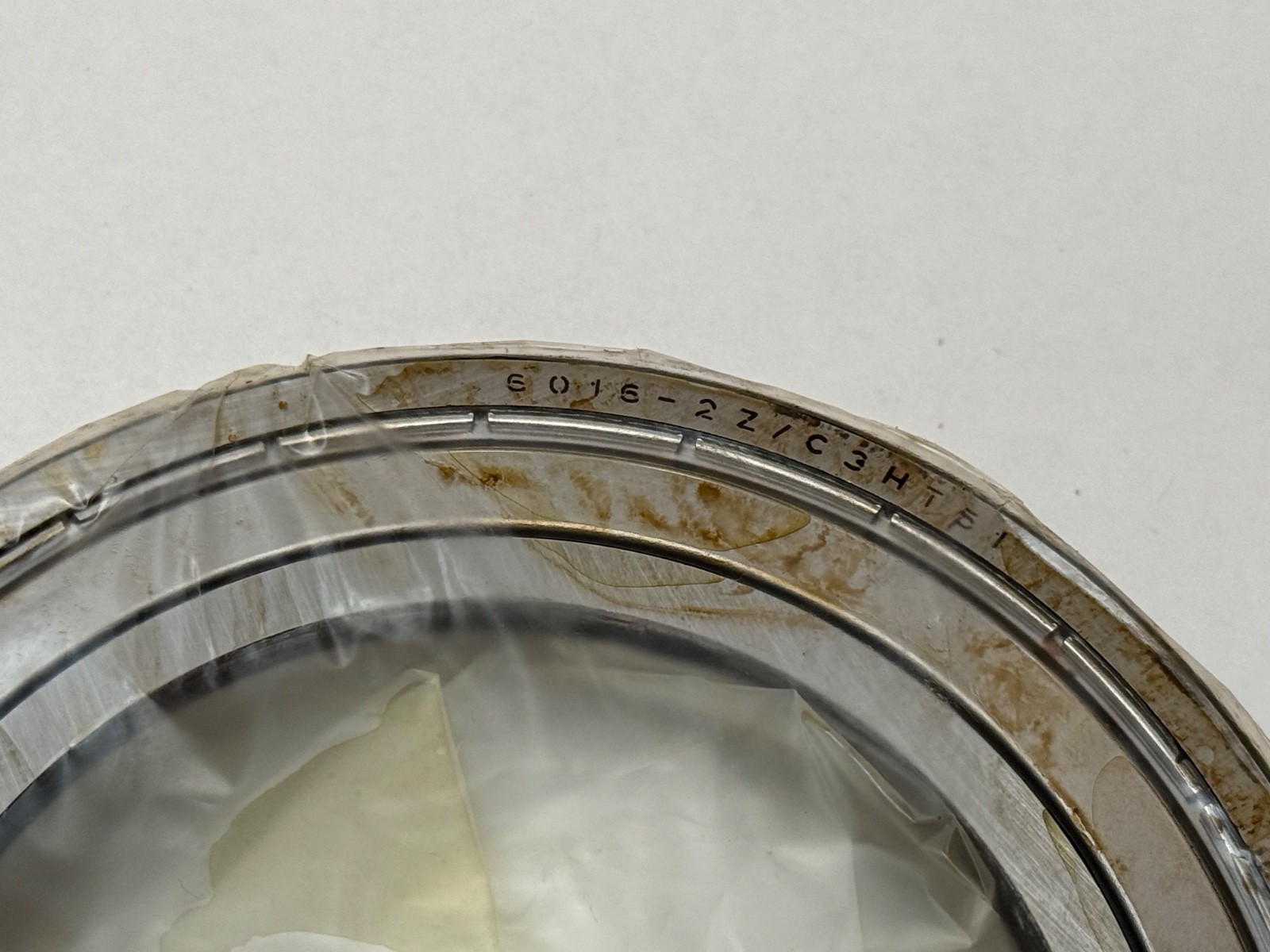

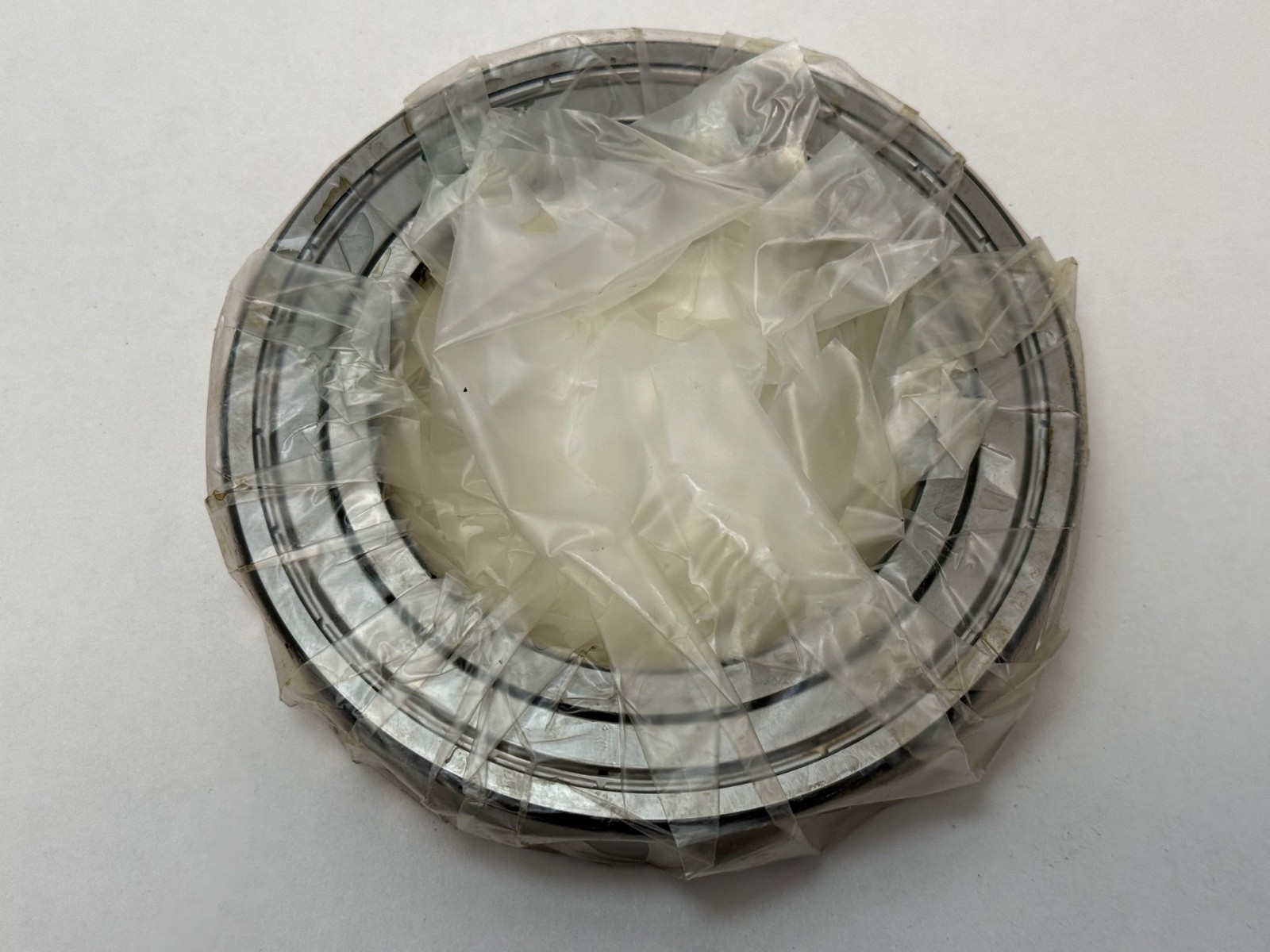

SKF 6016 2ZJEM single-row deep groove ball bearing. Bore: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Shielded both sides. Cage Material: Pressed steel. Internal Clearance: C3. Bearing Material: Chrome steel. Dynamic Load Rating: 49.4 kN. Static Load Rating: 40 kN. Limiting Speed: 5 600 r/min. Item Weight: 919 g (2.03 lb). GTIN: 7316577116512.
6016 — ISO 60 dimension series at an 80 mm bore, giving an 80 x 125 x 22 mm envelope.
2Z — a pressed steel shield on each side, non-contact, retaining the factory grease charge.
J — pressed steel cage.
C3 — radial internal clearance greater than normal.
Dynamic Load Rating 49.4 kN sets the life calculation; Static Load Rating 40 kN sets what the raceways take at rest and under shock.
C3 clearance leaves room for the inner ring to grow against an interference shaft fit and against a running temperature difference across the bearing. It is the usual choice for electric motors, fan shafts and anything running warm.
Non-contact shields keep the grease in and coarse contamination out without the drag of a rubbing seal, which is why the shielded execution keeps a high limiting speed of 5 600 r/min.
A pressed steel cage is light, low friction and dimensionally stable across the whole normal temperature range of a deep groove bearing.
Unit Quantity: 1 Pc. Single bearing, straight bore, shielded on both sides.
6016-2Z/C3 is the metric-catalogue form of the same execution on the same 80 x 125 x 22 mm envelope with the same ratings. 6016-2Z is the same bearing in normal clearance.
Searchable designation forms: 6016-2ZJEM, 6016 2ZJEM, 6016ZZC3, 6016-ZZ-C3, 6016 2Z C3, 6016-ZZ-C3-HT51.
