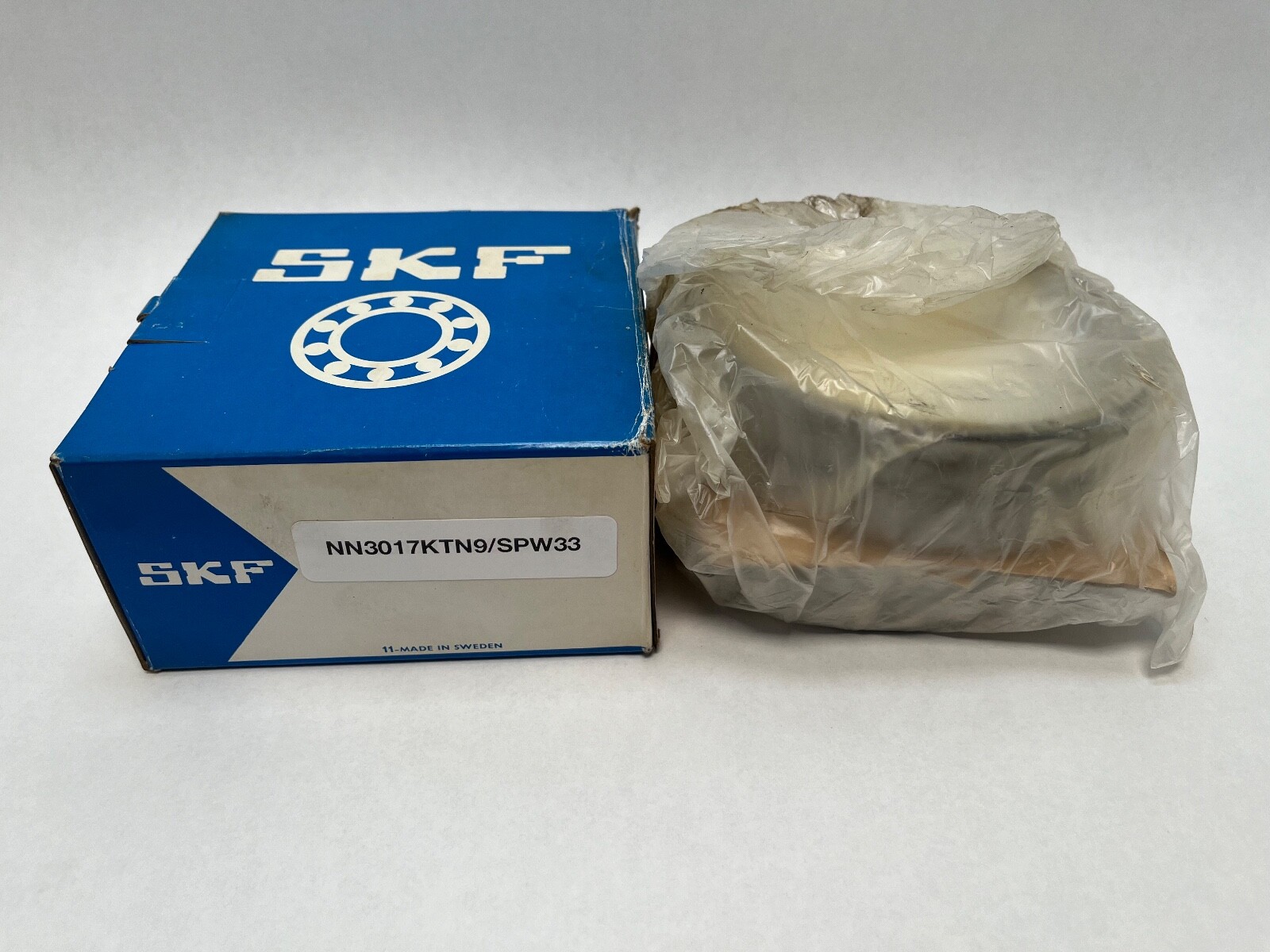

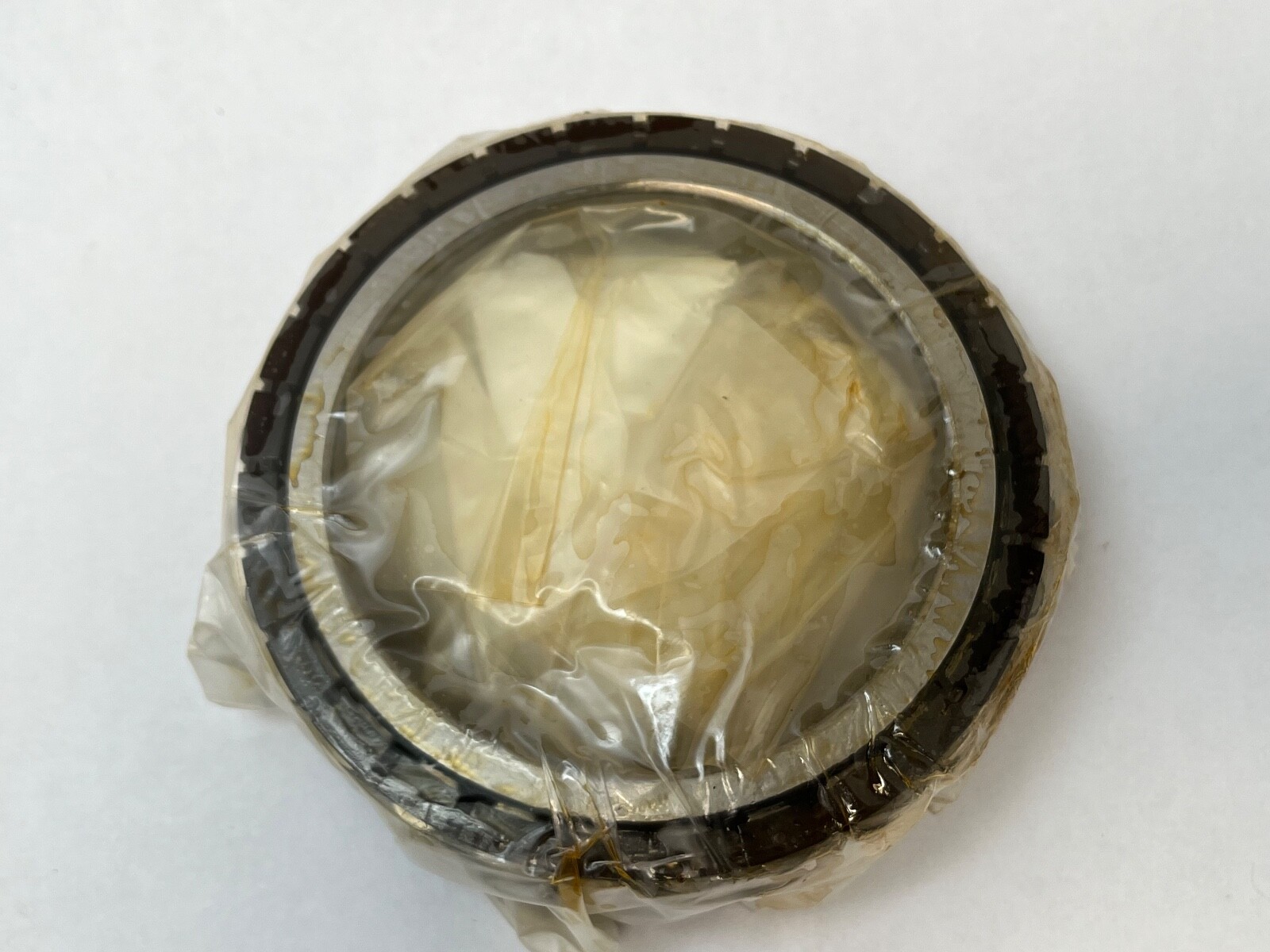

SKFNN-3017-KTN9/SPW33Double-Row Cylindrical Roller Bearing 85x130x34 mm Tapered 1:12 Bore Polyamide Cage SP Precision W33

Product Description

What this part is

SKF NN 3017 KTN9/SPW33, a double-row cylindrical roller bearing with a tapered 1:12 bore. Two rows of cylindrical rollers run between a one-piece outer ring and a one-piece inner ring. Boundary dimensions 85 mm bore × 130 mm outside diameter × 34 mm width.

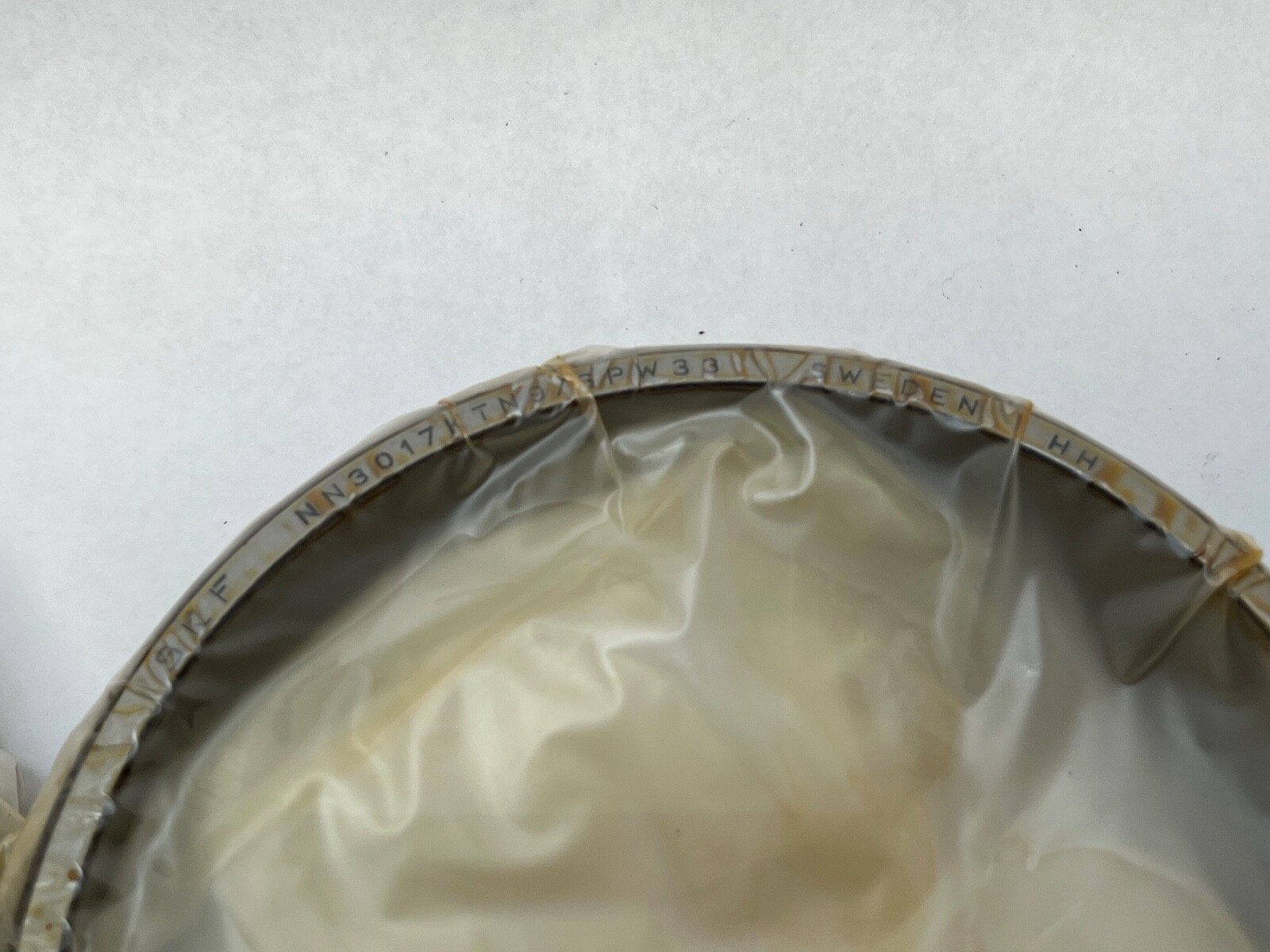

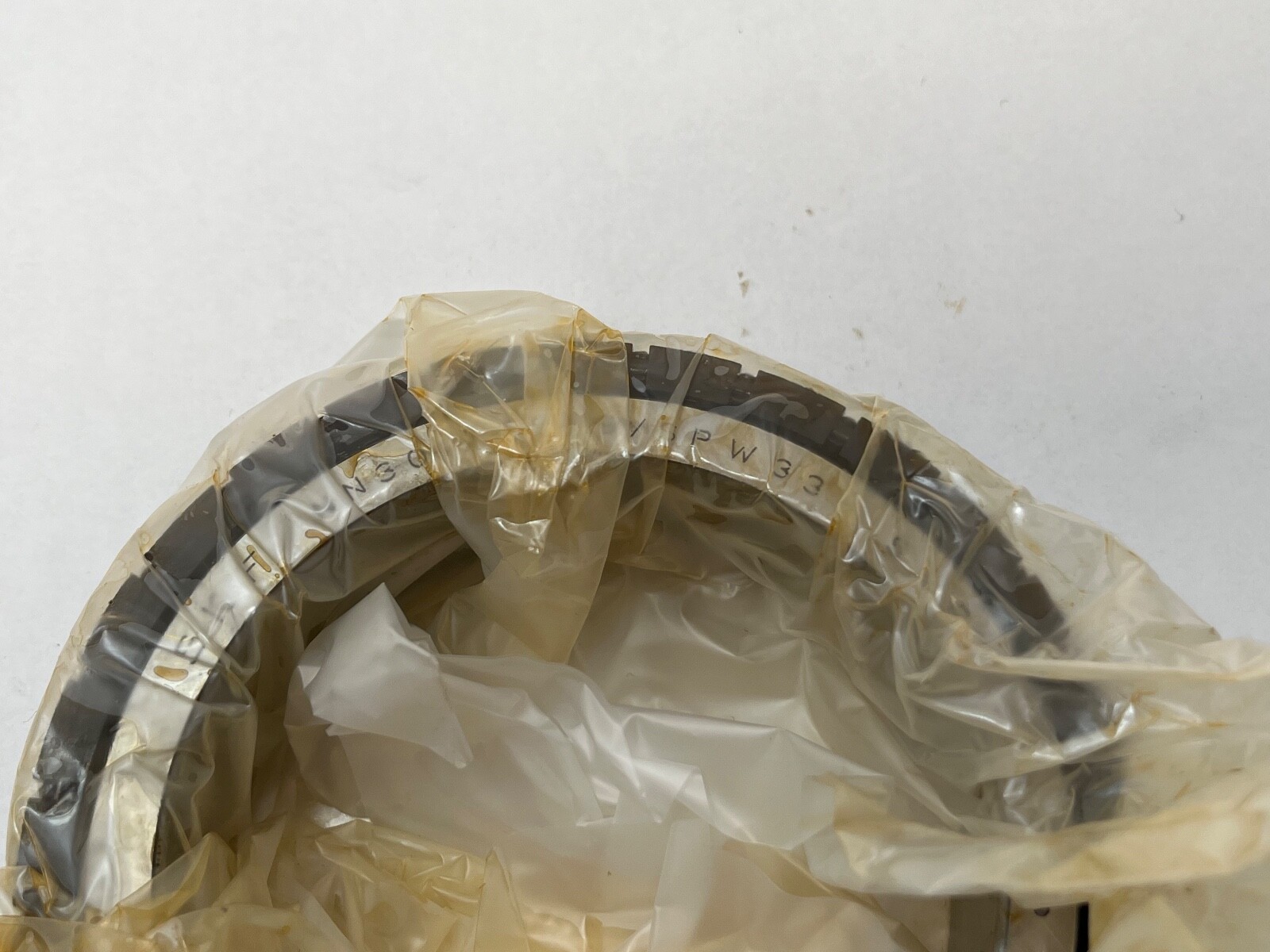

Decoding the designation

Series NN30 is the double-row cylindrical roller line in ISO dimension series 30. Bore Code: 17, giving an 85 mm bore. Bore Type: K, 1:12 tapered bore. Cage Material: TN9, glass-fibre reinforced polyamide, continuous service to 120°C. Precision Class: SP, SKF special precision class for spindle bearings. Relubrication: W33, lubrication groove in the outer ring with three radial holes.

What these specs mean in practice

Two rows of cylindrical rollers give very high radial capacity and radial stiffness in a short width, which is why this type takes the front position on machine-tool spindles. The design is non-locating: radial load only, with axial location taken by a separate bearing elsewhere on the shaft. On an NN the 1:12 tapered bore mounts directly on a matching tapered spindle journal, with no adapter sleeve involved, and drive-up along the taper sets the radial internal clearance. A polyamide cage is light and quiet and accelerates well, with the trade-off being its 120°C ceiling against a machined brass cage. The W33 groove and holes let oil or grease reach the roller sets through the housing.

Published specifications

Bore: 85 mm (3.3465 in), tapered 1:12. Outside Diameter: 130 mm (5.1181 in). Overall Width: 34 mm (1.3386 in). Number Of Rows: 2. Rolling Elements: cylindrical rollers. Cage Material: glass-fibre reinforced polyamide (TN9). Cage temperature ceiling: 120°C continuous. Precision Class: SP. Arrangement: non-locating. Relubrication: W33 groove and three radial holes.

Quantity and configuration

1 Pc. Bearing only, mounted directly on a tapered journal.

Fitting notes

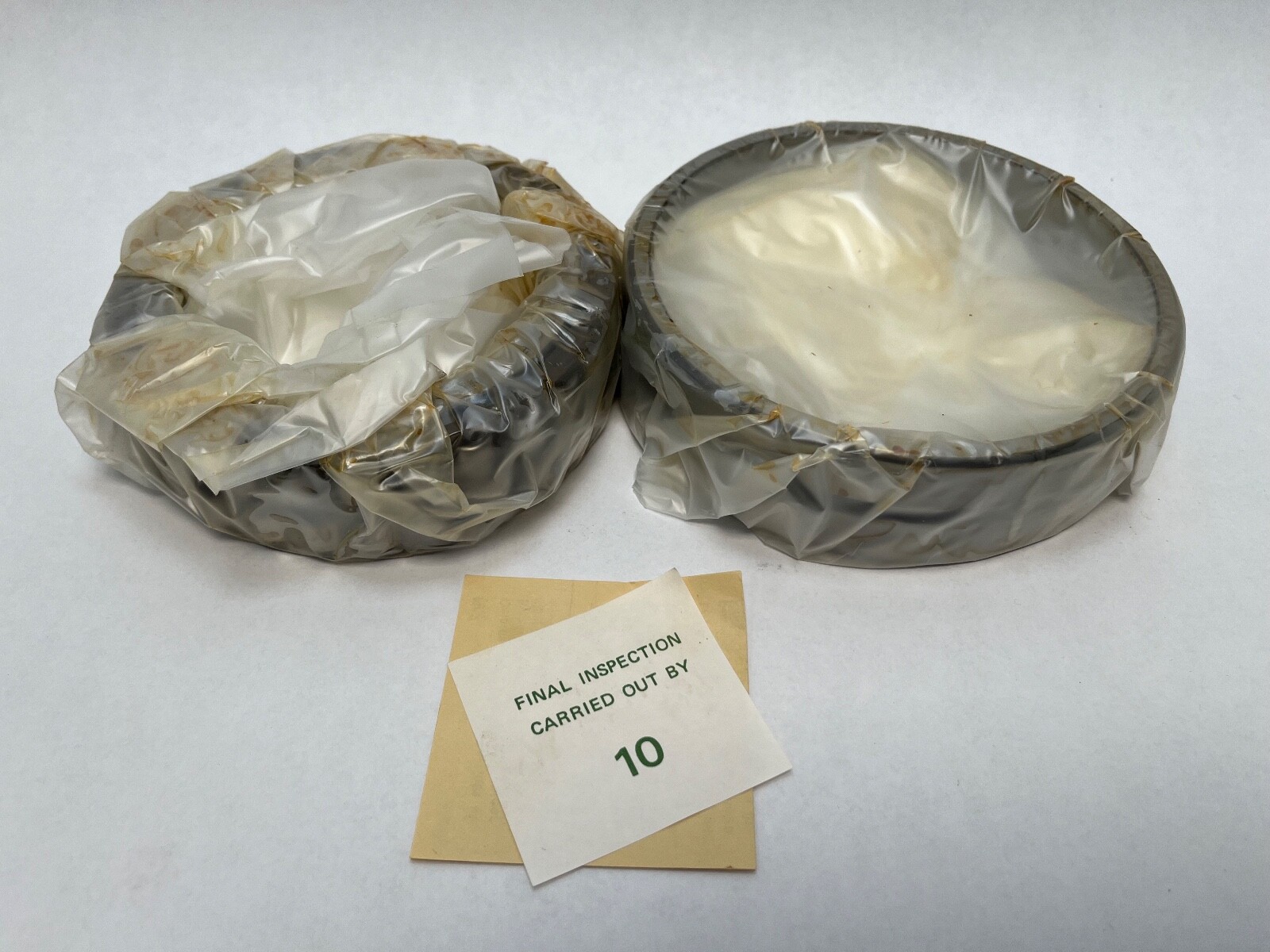

Radial internal clearance is set on assembly by how far the inner ring is driven up the 1:12 taper, so the mounted clearance is a function of drive-up rather than of the bore fit alone. The W33 groove aligns with the housing relubrication port. The outer ring carries no axial load and floats in the housing unless the shaft is located elsewhere. Both rings are one piece, so the inner ring and roller set separate from the outer for mounting.

Interchange guidance

Same-spec tapered-bore SP-class equivalents in other schemes: FAG NN3017-AS-K-M-SP in its polyamide-cage form NN3017-K-TVP-SP, NSK NN3017KCC1P5, NTN NN3017KC1NAP5. Straight-bore NN3017 forms, machined-brass-cage M variants, and the NNU series with its different rib arrangement are related sizes rather than interchanges.
