Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

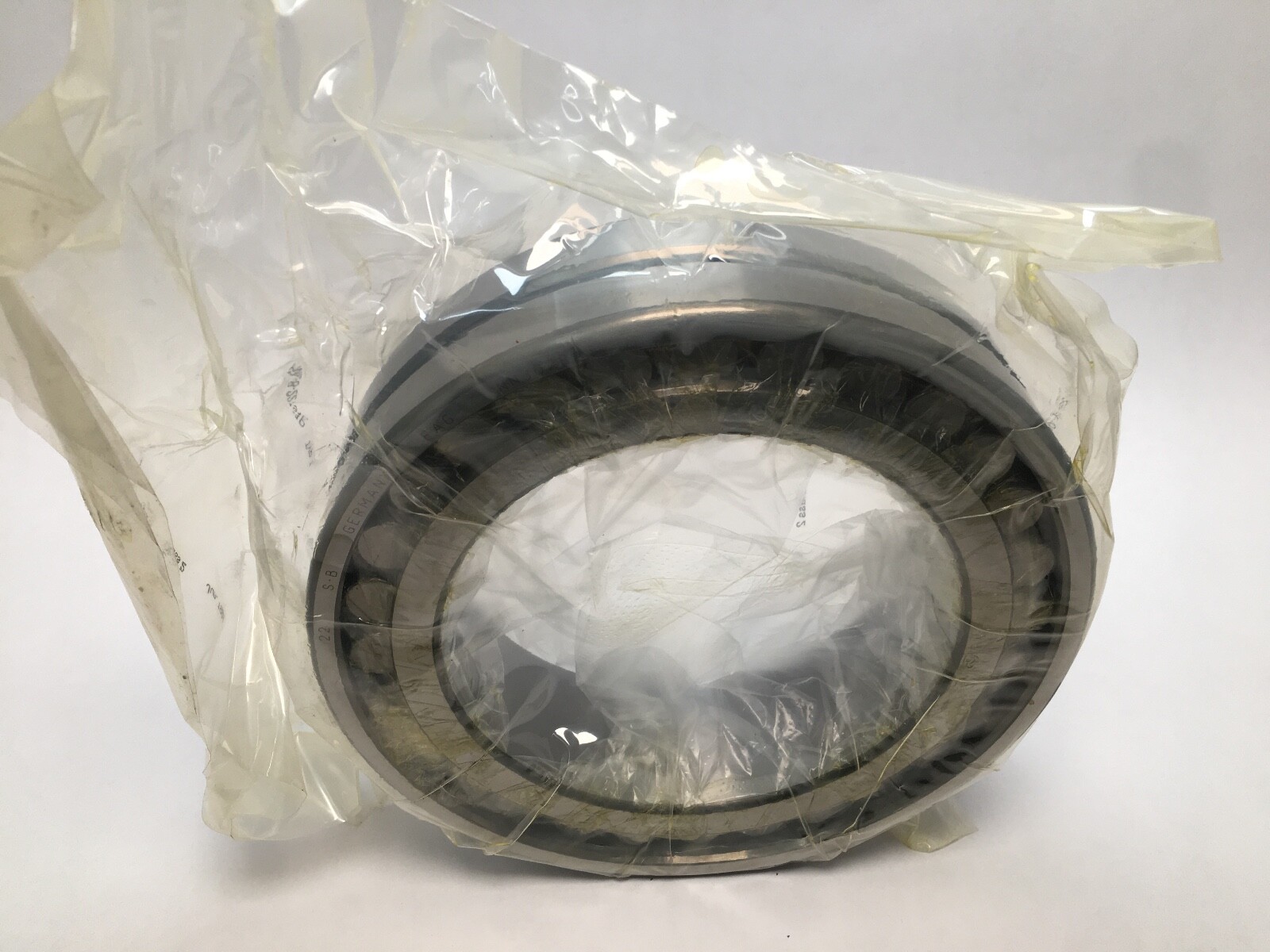

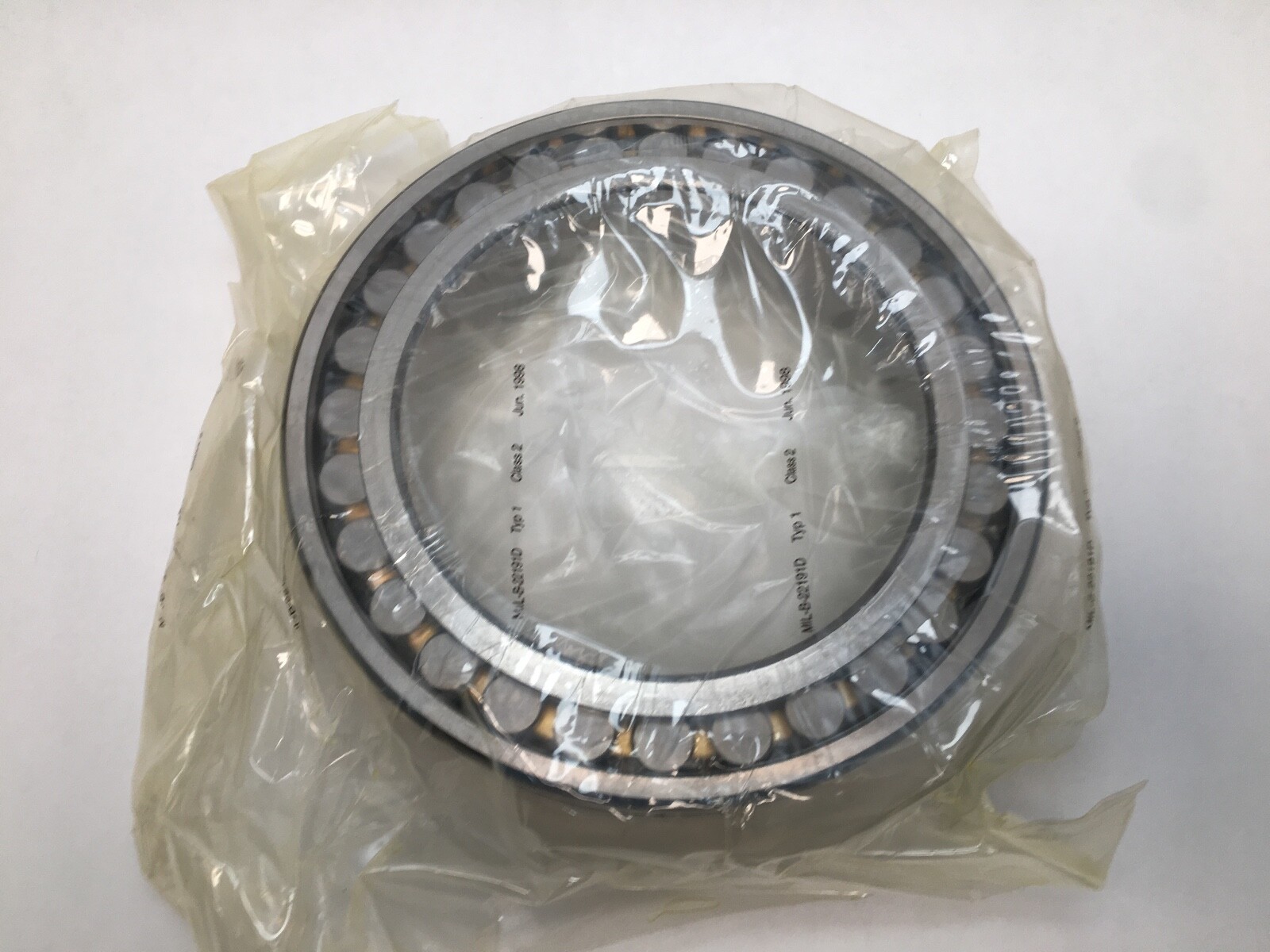

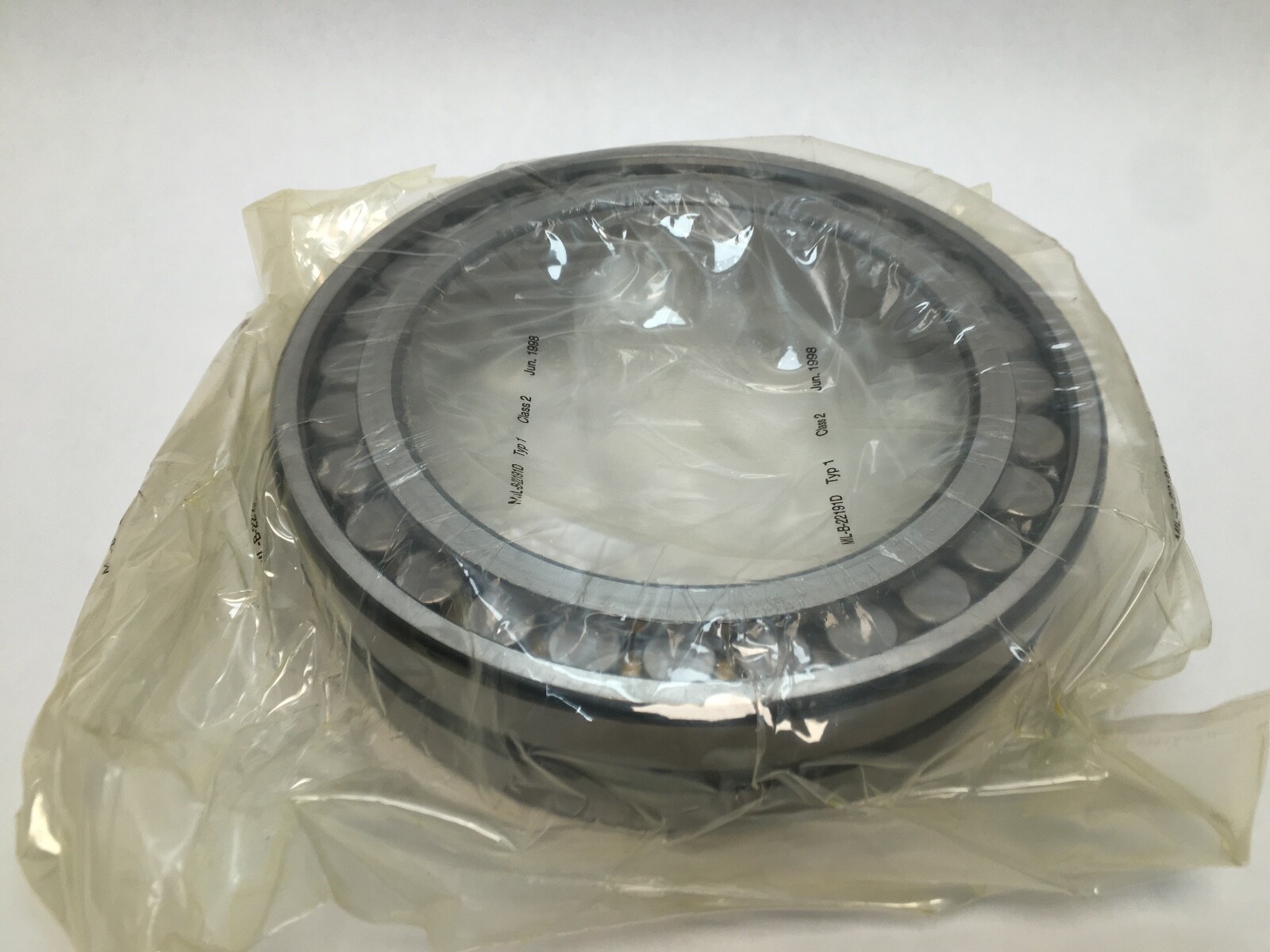

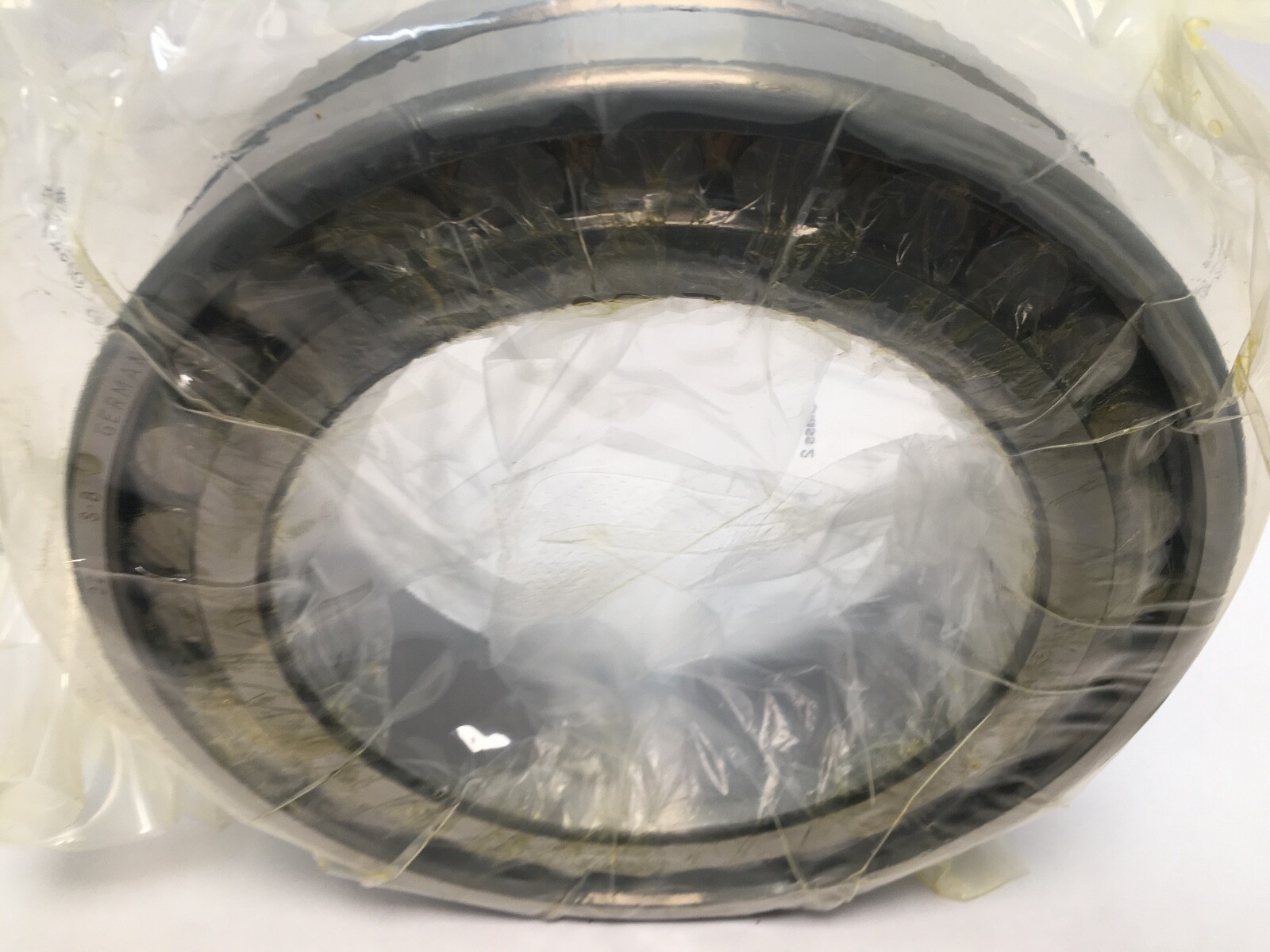

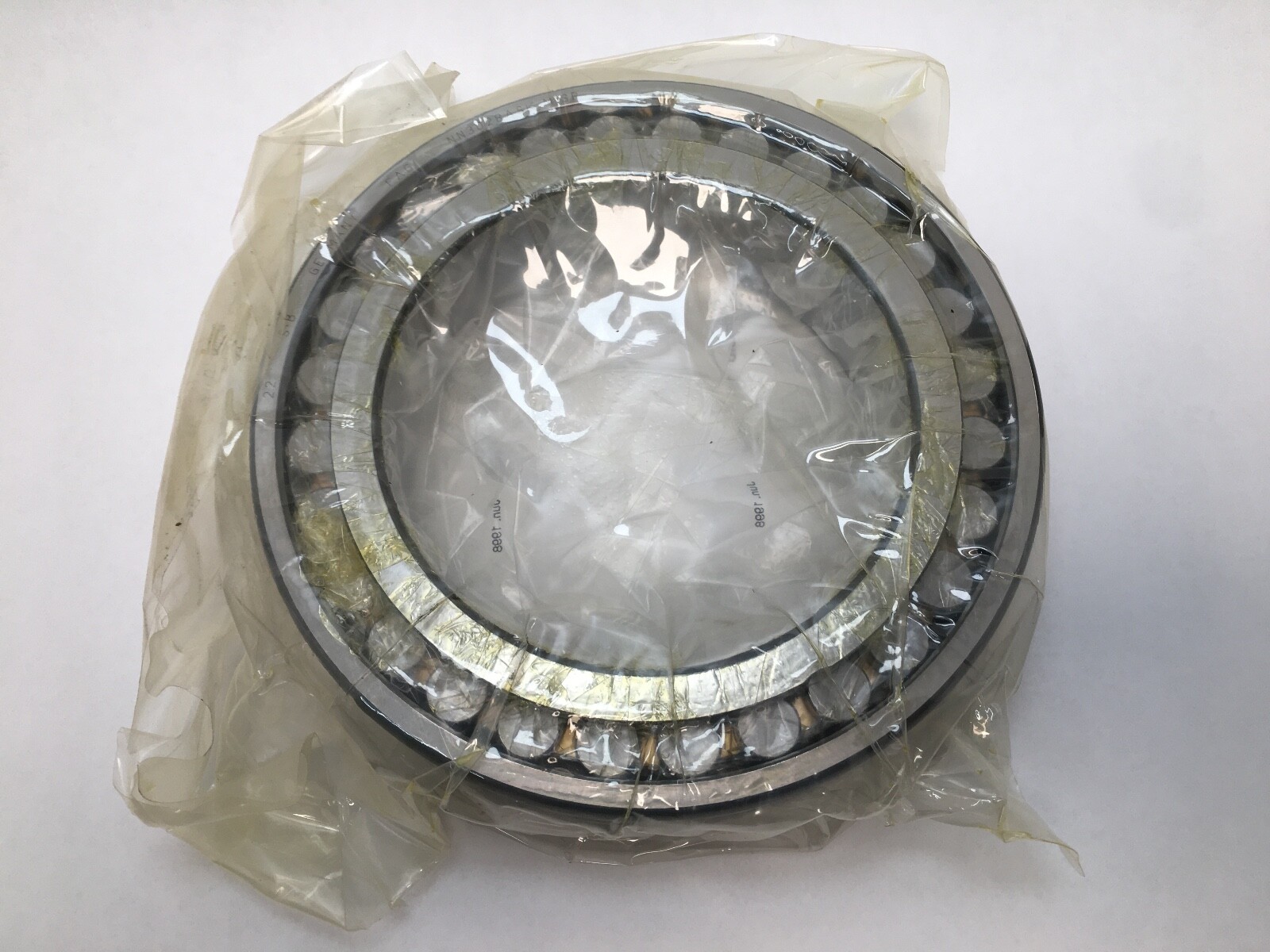

Double-row cylindrical roller bearing, 140 mm bore, 210 mm outside diameter, 53 mm width. 1:12 tapered bore, machined brass cage, lubrication groove and holes in the outer ring, FAG SP special precision class.
List Price
$535.44
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NN3028ASKMSP |
| GTIN | 4012801231657 |
| Model | NN-3028-AS-K-M-SP W33 |
| Bearing Type | Cylindrical Roller Bearing |
| ID | 140 mm |
| OD | 210 mm |
| Width | 53 mm |
| Material | Chrome Steel |
|---|---|
| Base Number | NN3028 |
| Industry Terms | double row cylindrical roller bearing; precision spindle bearing; machine tool bearing; tapered bore roller bearing; brass cage roller bearing |
| Common Misspellings | NN3028ASKM SP; NN 3028 ASKM.SP; NN3028AKSM.SP; FAB; FGA |
| Application Types | Machine tool spindles; grinding spindle front bearings; precision gearboxes; rotary tables |
| Bore Shaft Size | 140 mm (5.5118 in), 1:12 tapered |
| Mpn Variants | NN3028ASKM.SP; NN3028AS.K.M.SP; NN3028ASKMSP; NN-3028-AS-K-M-SP; NN3028ASK.M.SP; NN3028K |
| Manufacturer Status | FAG is a Schaeffler brand |
| Rolling Elements | Rollers |
| Number Of Rows | 2 |
| Harmonization Code | 8482.50.00.00 |
| Part Number | NN3028AS.K.M.SP |

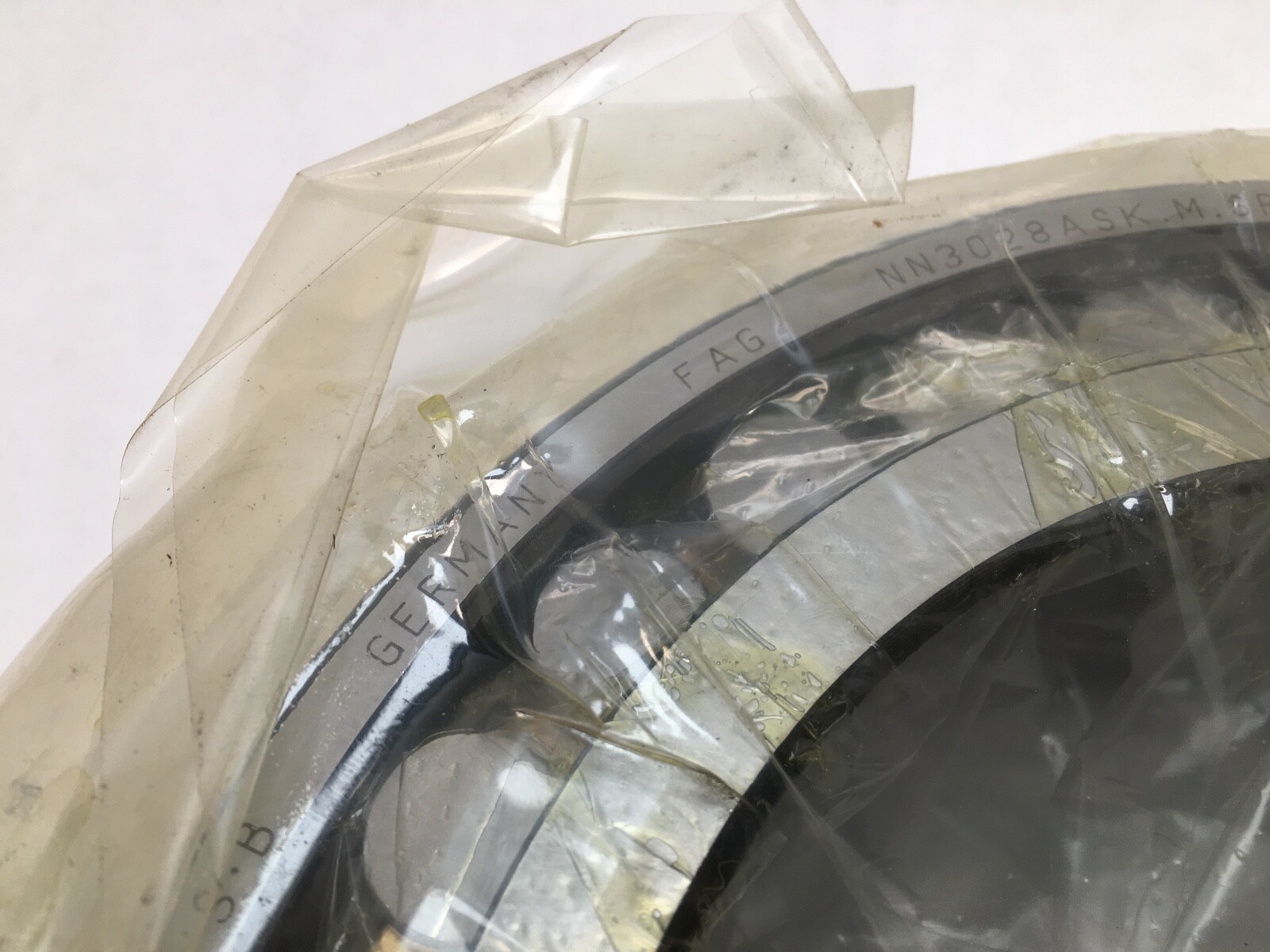

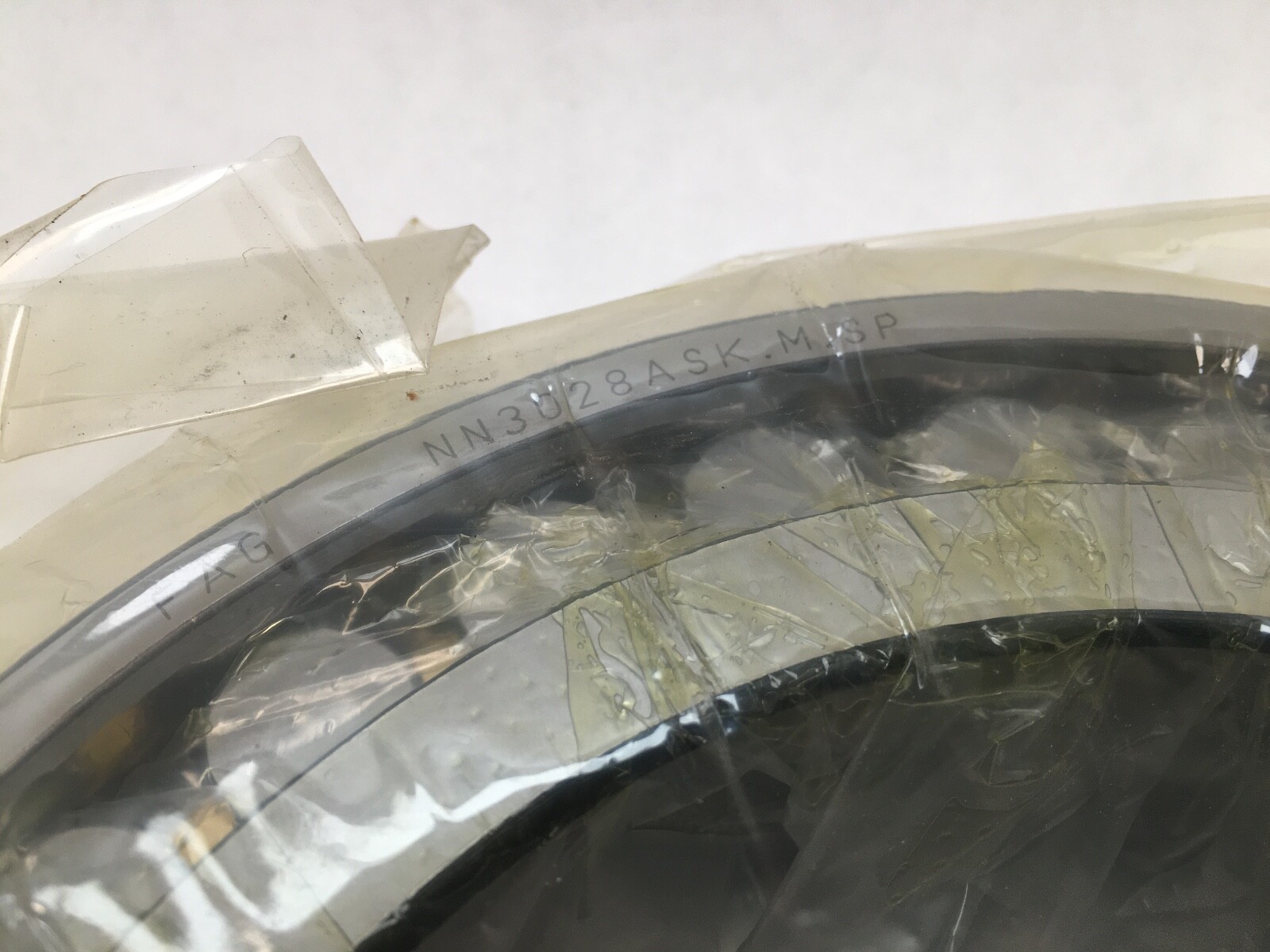

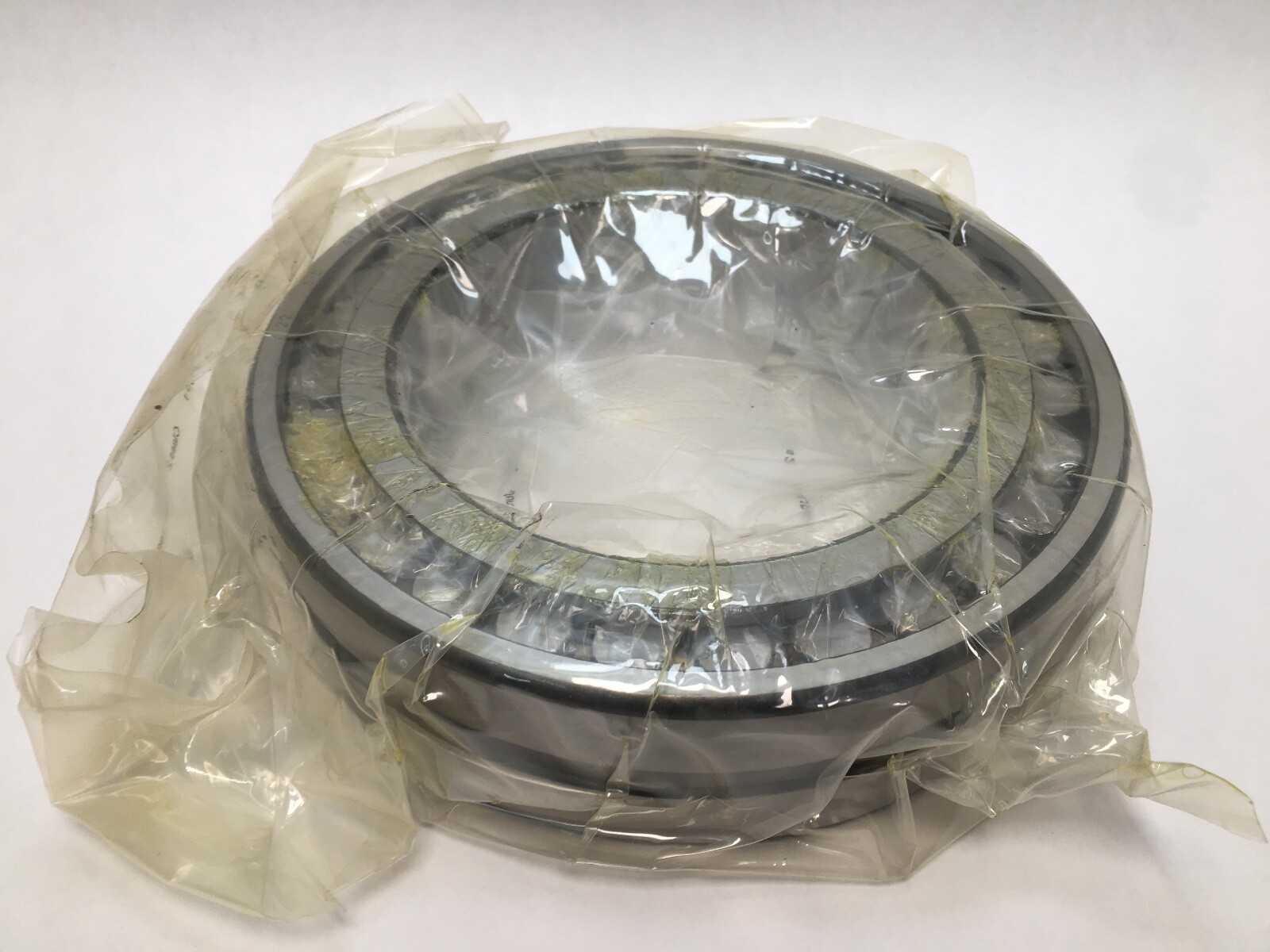

A FAG NN3028AS.K.M.SP double-row cylindrical roller bearing for precision spindle work. Tapered bore, machined brass cage, lubrication groove and feed holes in the outer ring.
NN — double-row cylindrical roller.
3028 — dimension series 30, bore code 28, giving a 140 mm bore.

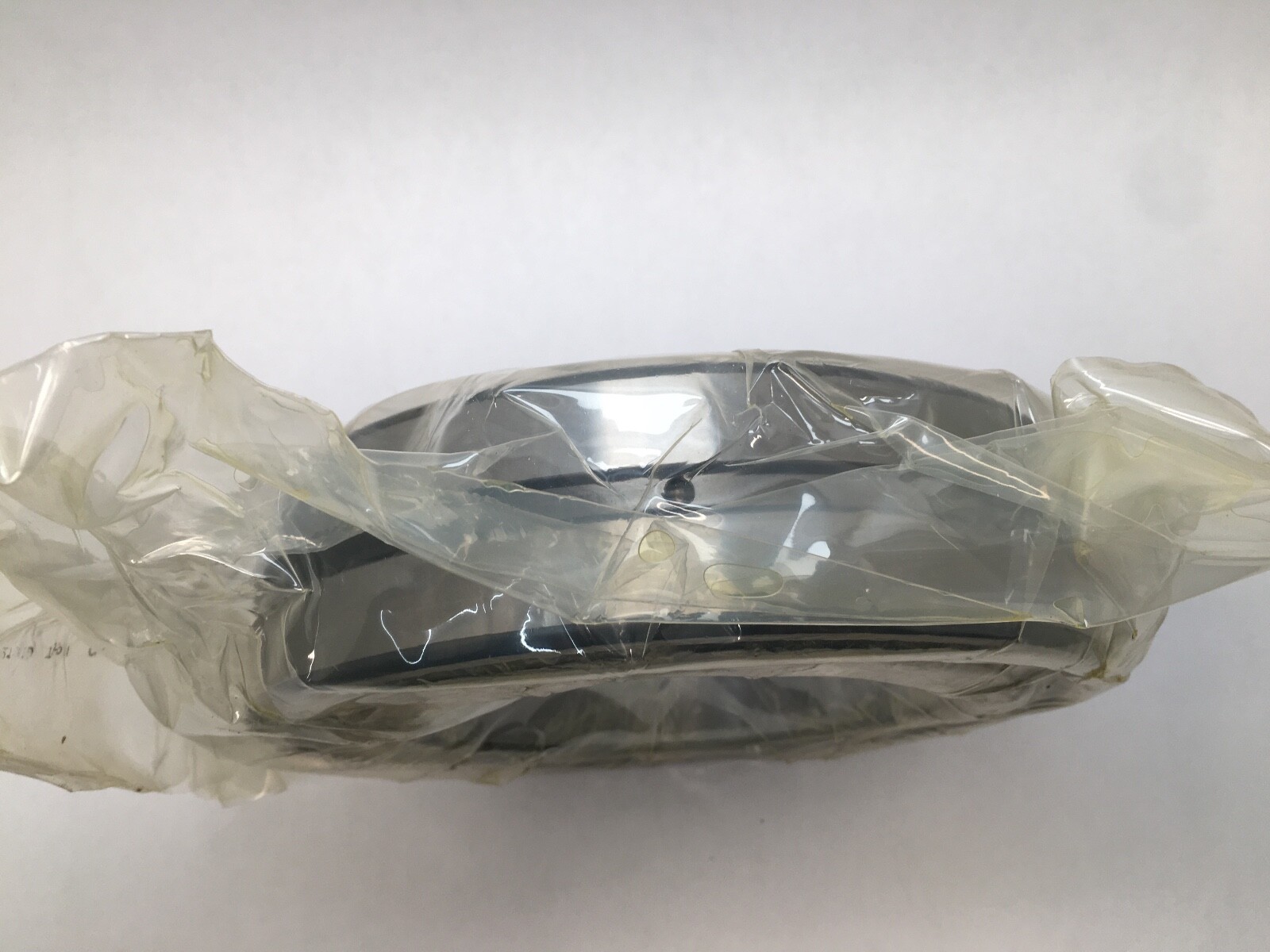

AS — lubrication groove and feed holes in the outer ring.
K — 1:12 tapered bore.
M — machined brass cage.
SP — FAG special precision class.
Two rows of cylindrical rollers give a very high radial capacity in a short axial length, which is why this section sits at the front of a machine tool spindle. The 1:12 tapered bore seats directly on a matching tapered spindle journal, and drawing the ring up the taper expands the inner ring to set radial clearance to a measured figure, so preload is adjustable at assembly. A machined brass cage tolerates higher speeds and higher temperatures than a pressed-steel cage and is dimensionally stable under oil-jet lubrication. The AS groove and holes let coolant or oil be fed straight to the roller path through the housing. An NN double-row cylindrical carries radial load only, so it is non-locating and leaves shaft position to be set by another bearing in the arrangement.
Bore: 140 mm (5.5118 in), 1:12 taper
Outside diameter: 210 mm (8.2677 in)
Width: 53 mm (2.0866 in)
Rows: 2
Rolling elements: cylindrical steel rollers
Cage: machined brass
Precision class: FAG SP special precision
Relubrication: groove and feed holes in the outer ring
Axial location: non-locating, radial load only
The tapered bore mounts directly onto a matching 1:12 tapered spindle journal. No adapter sleeve is involved on an NN cylindrical.

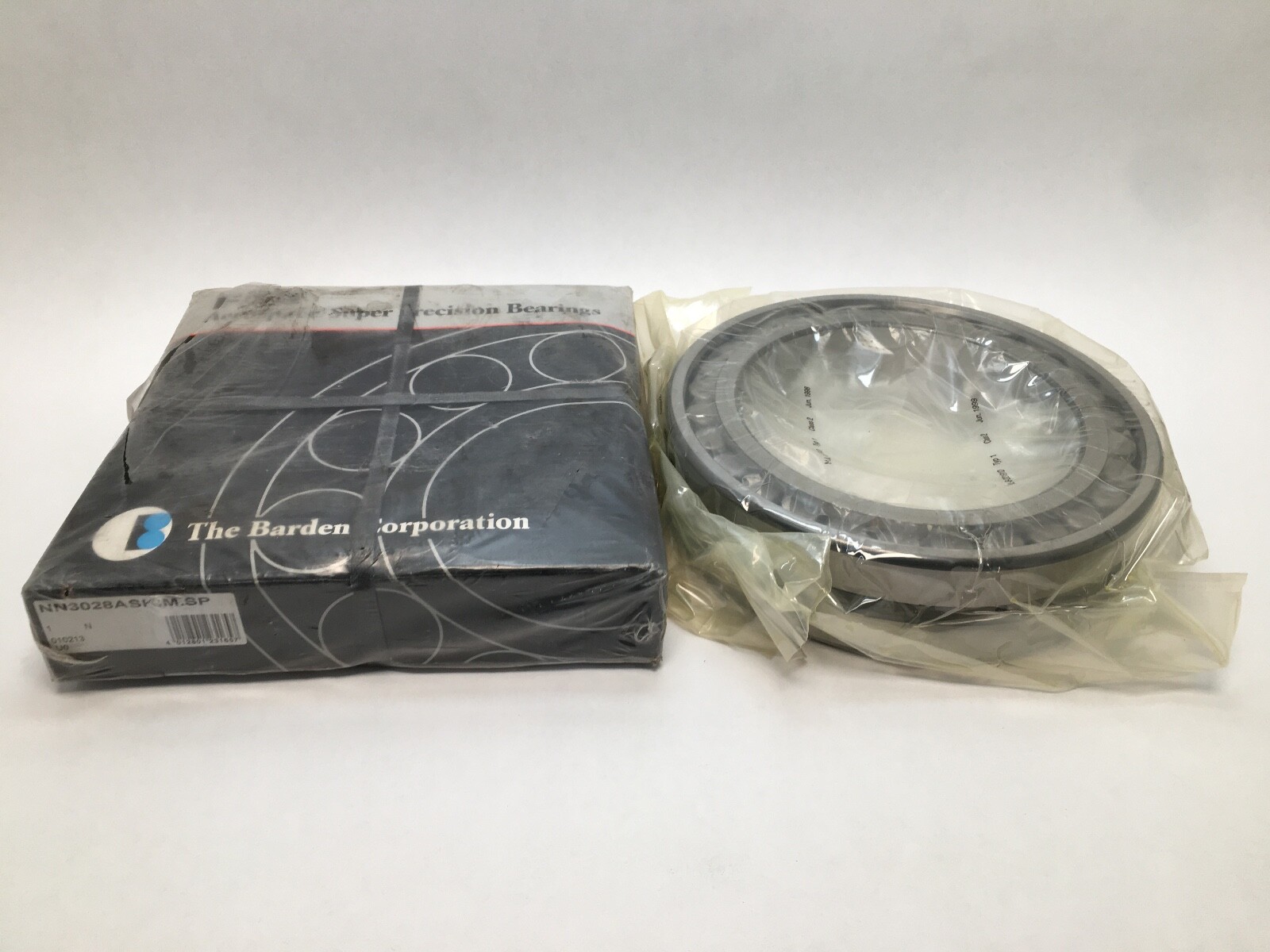

1 Pc.
ISO base number NN3028K. Searchable forms are NN3028ASKM.SP, NN3028AS.K.M.SP, NN3028ASKMSP, NN-3028-AS-K-M-SP and NN3028K. An NN3028-M-SP with a straight bore, an NN3028-AS-K30 with a 1:30 taper, and an NNU4928 on a different dimension series are all related sizes rather than interchanges.
