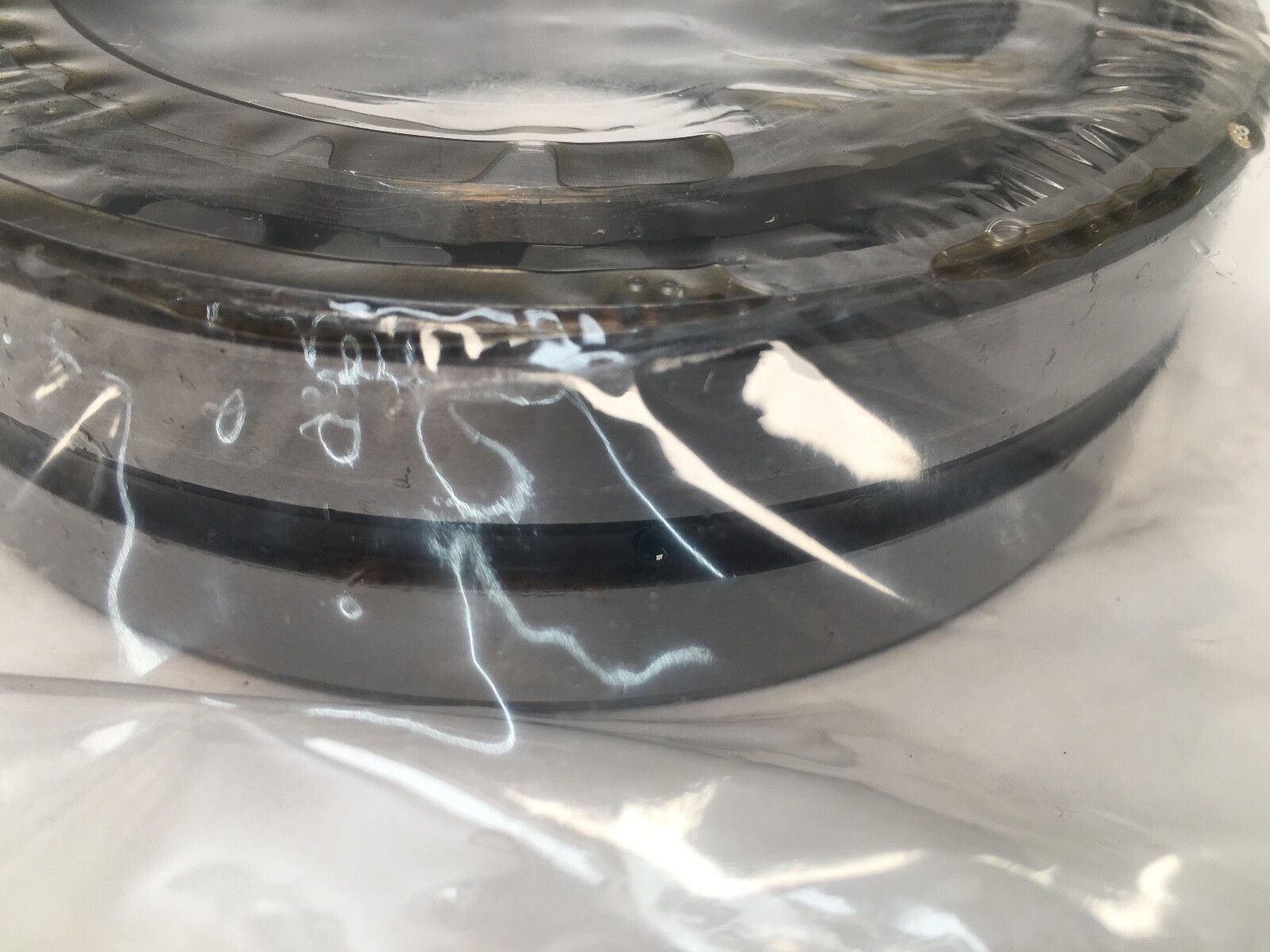

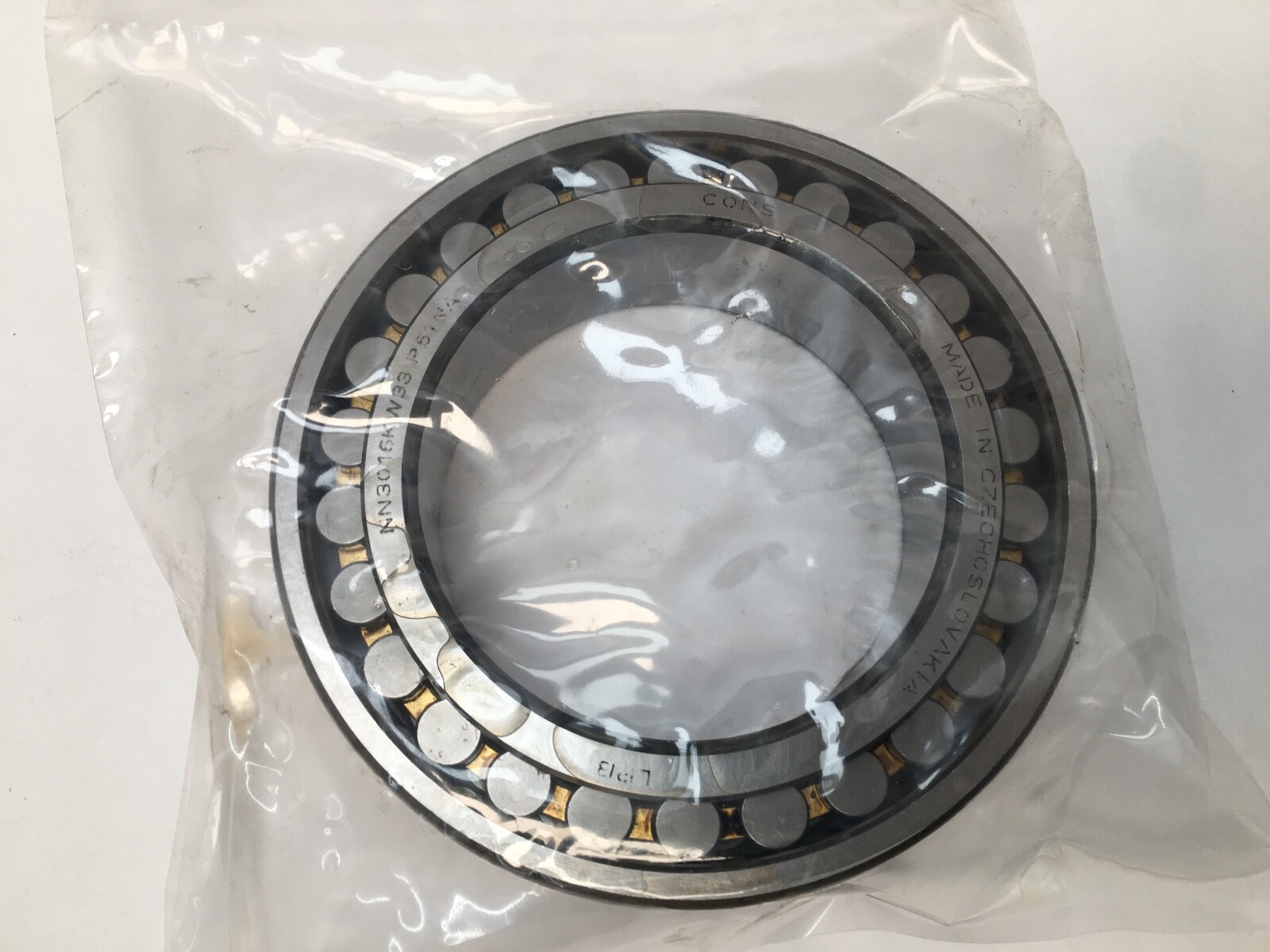

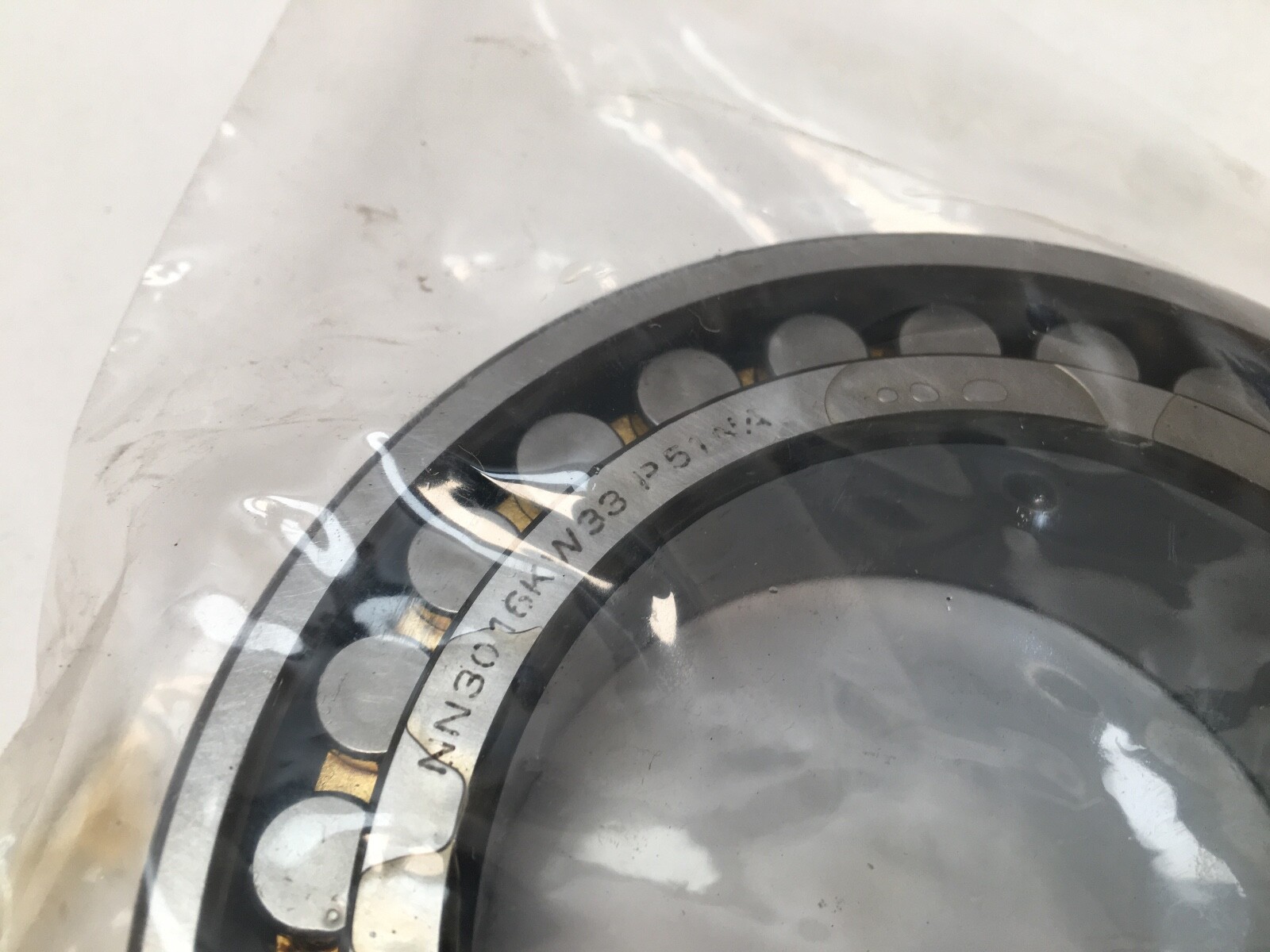

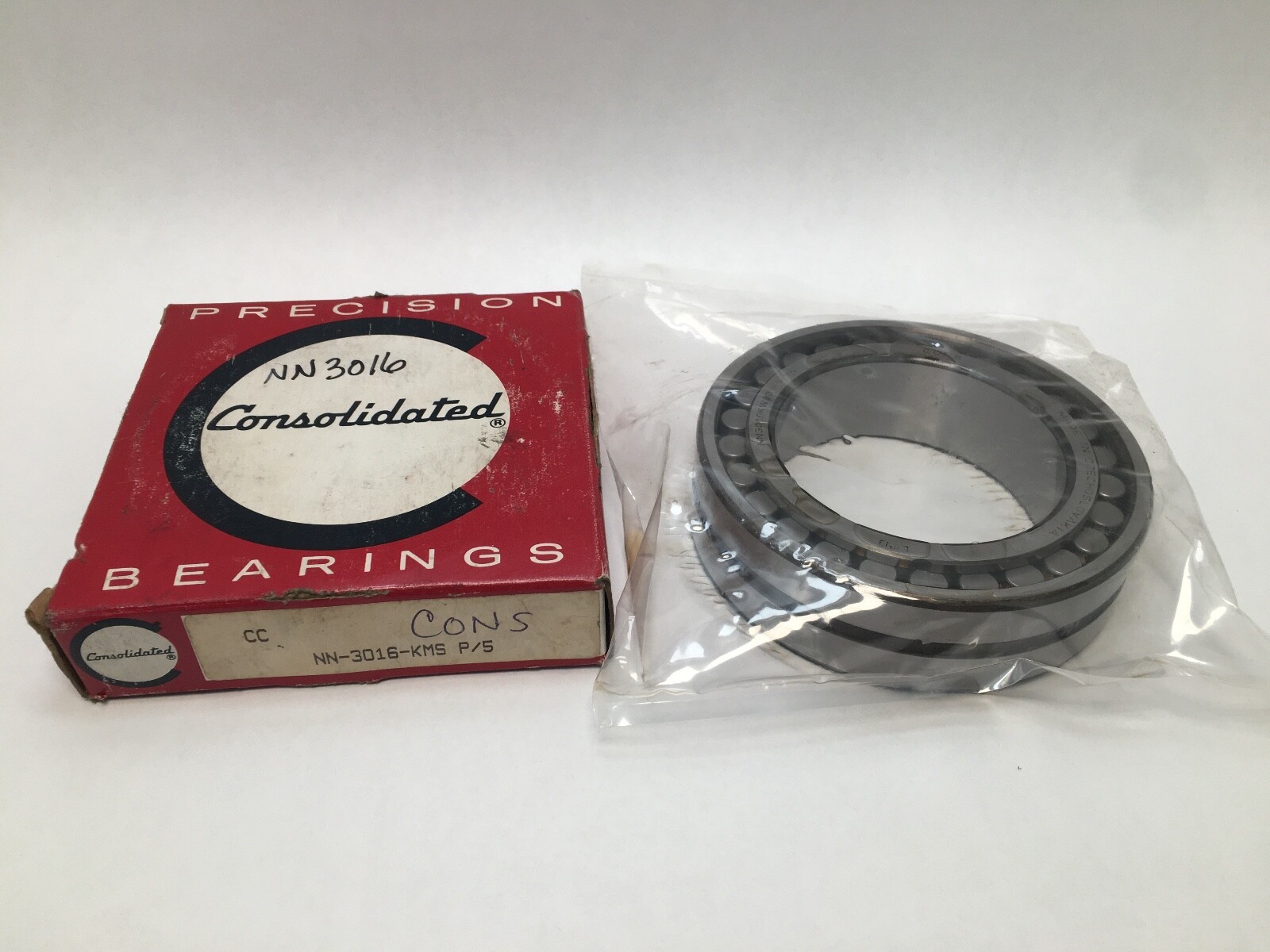

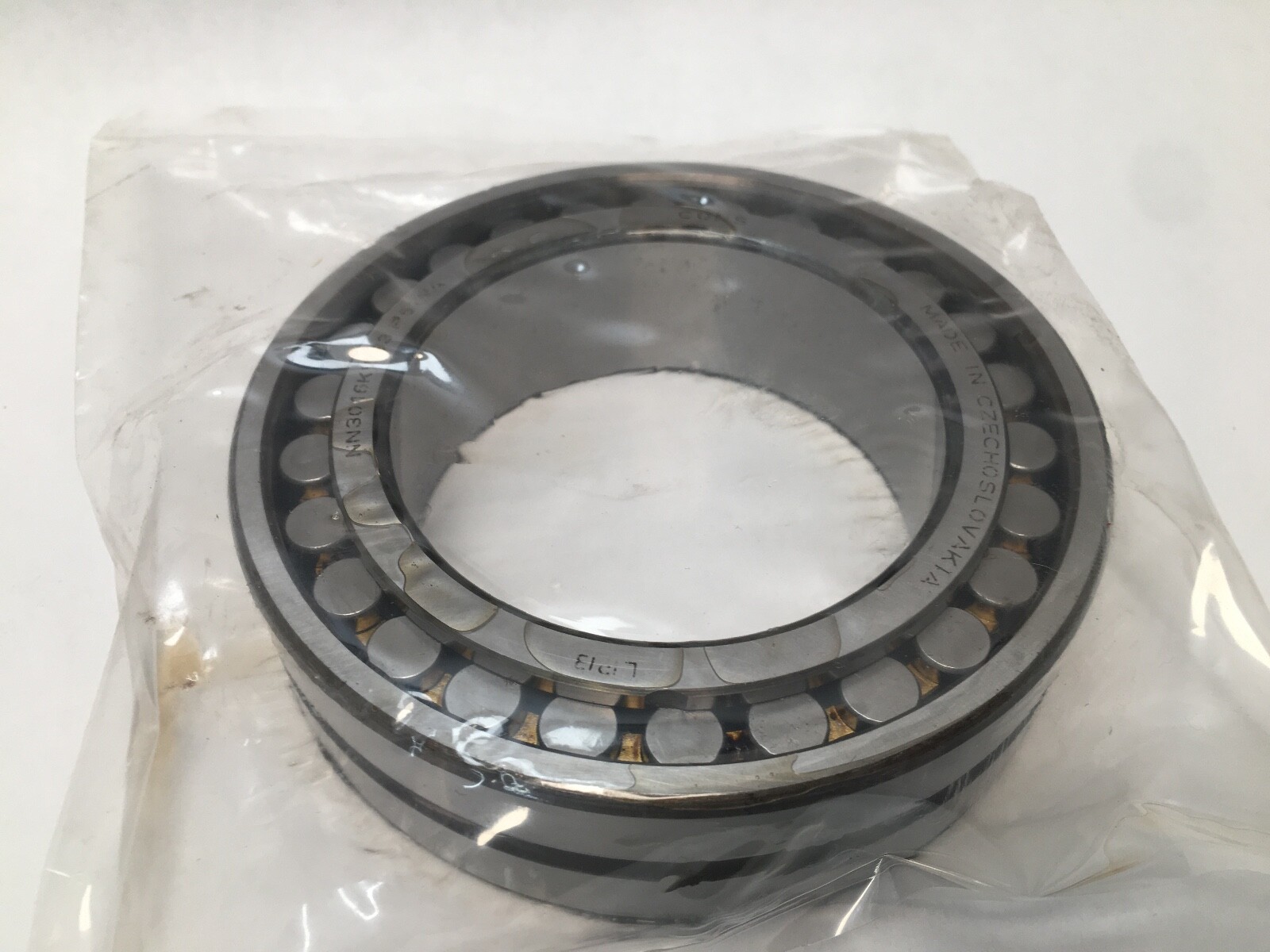

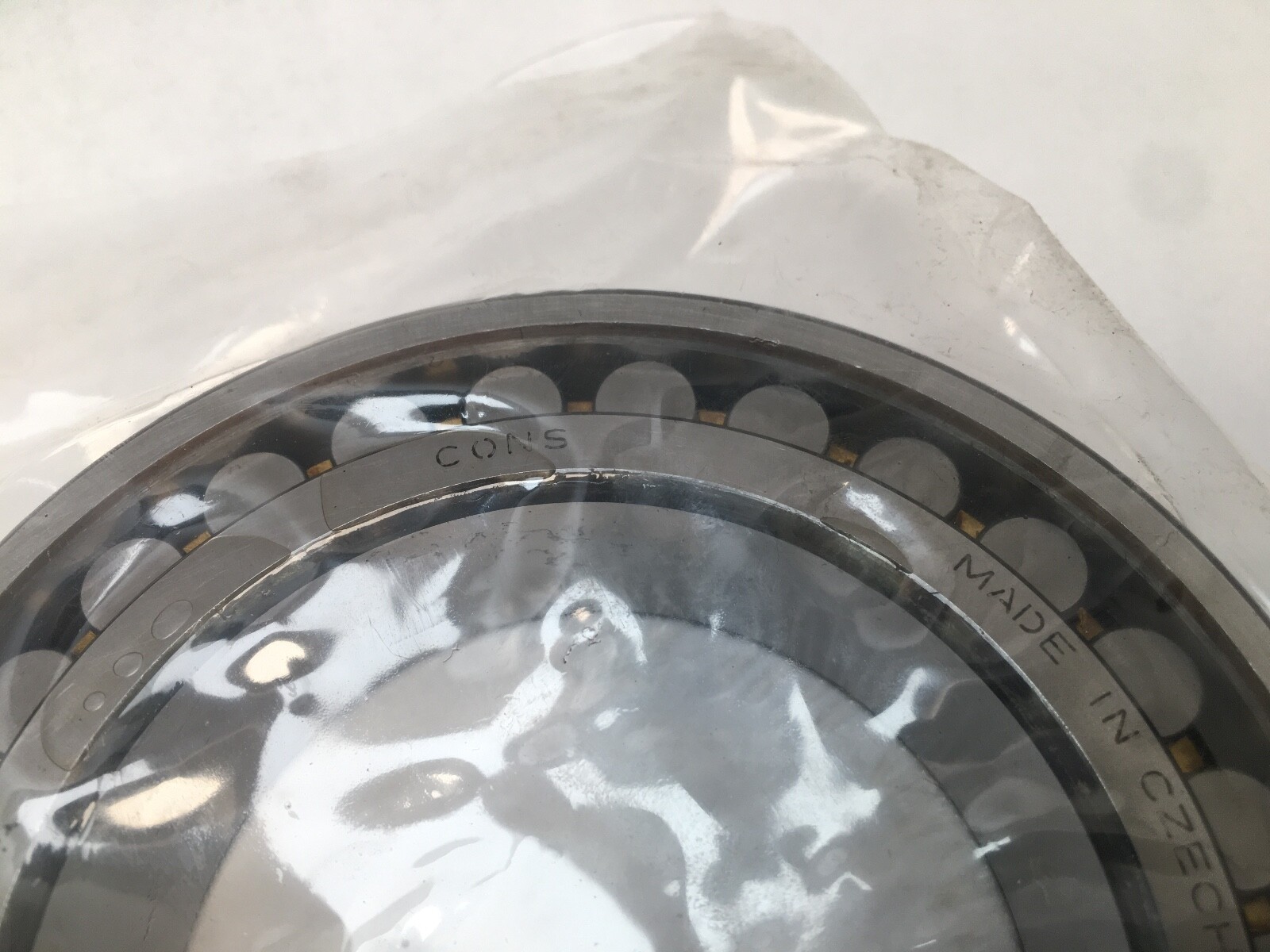

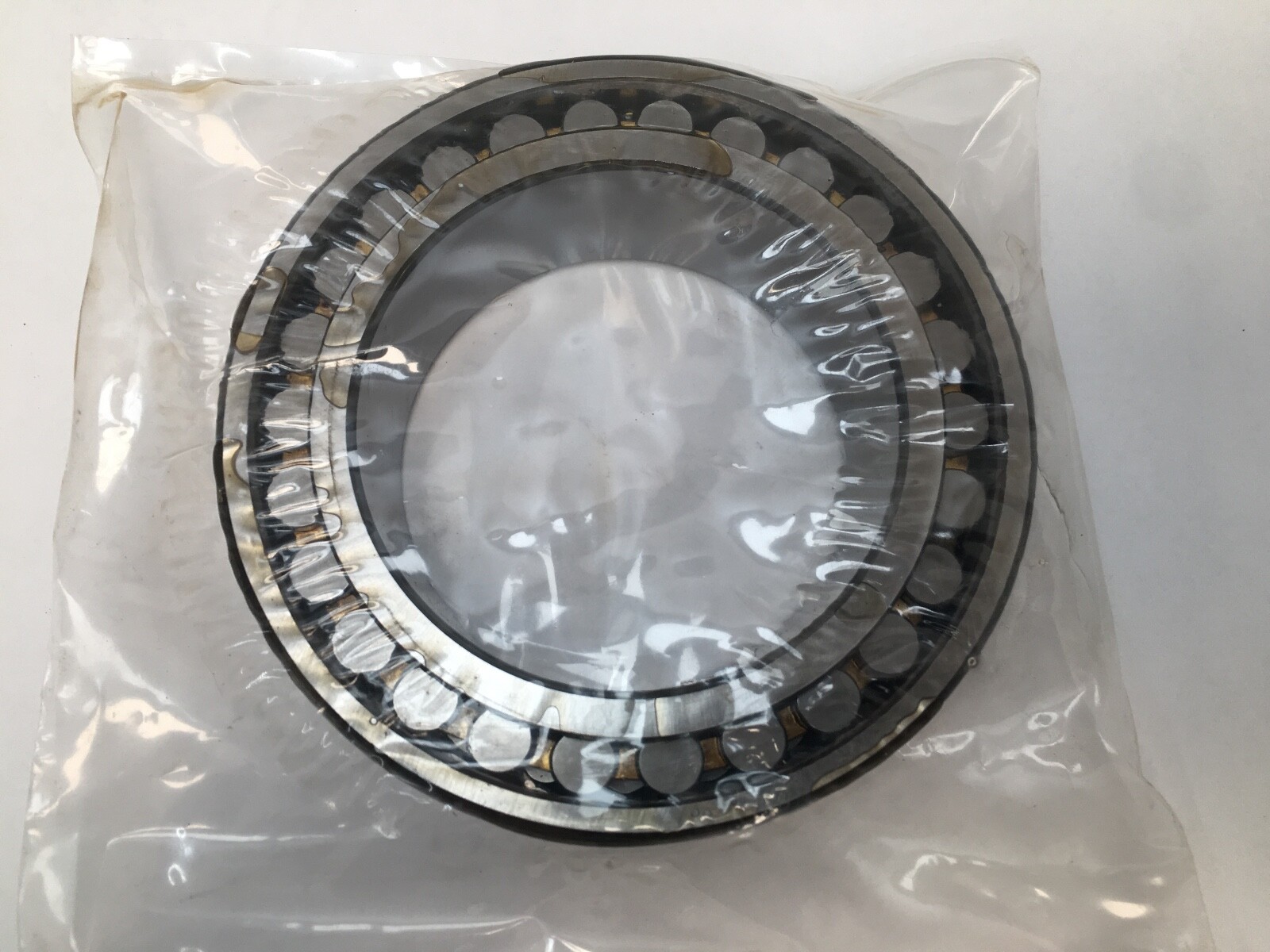

Precision double-row cylindrical roller bearing, 80 x 125 x 34 mm, tapered 1:12 bore, machined brass cage, SP precision class, NN3016 K M SP.
List Price
$180.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NN3016KMSP |
| Model | NN 3016 K M S P5 / NN 3016 K NA P5A W33 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 34 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN3000 |
| Base Number | NN3016 |
| Industry Terms | double row cylindrical roller bearing, precision spindle bearing, NN series bearing, tapered bore roller bearing, machine tool spindle bearing |
| Application Types | Machine tool spindles, boring and grinding spindles, precision gearboxes, rotary tables |
| Bore Shaft Size | 80 mm (tapered bore, taper 1:12) |
| Locking Method | Tapered bore - driven up a 1:12 tapered spindle seat to set radial clearance |
| Mpn Variants | NN3016KMSP5, NN3016KMSP, NN3016K.M.SP, NN3016-K-M-SP, NN3016KM, NN3016K, NN3016 |
| Cage Type | Machined, solid |
| Rolling Elements | Cylindrical |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Part Number | NN3016 K M SP |
| Common Misspellings | NN 3016 KMSP; NN3016 K MSP; NN3016KMS P; NN3016KMSP5 |
| Overall Width | 34 mm |
| Cross Reference 1 | SKF NN 3016 KTN9/SP |
|---|---|
| Cross Reference 2 | FAG NN3016-AS-K-M-SP |
Precision double-row cylindrical roller bearing NN3016 K M SP, NN30 series, 80 x 125 x 34 mm, tapered 1:12 bore, machined brass cage. Unit Quantity: 1 Pc.
NN — double-row cylindrical roller bearing.
30 — dimension series.
16 — bore code, 80 mm bore.
K — tapered bore, taper 1:12.
M — solid machined brass cage.
SP — precision class: P5 dimensional tolerance with P4-level running accuracy.
W33 (alternate number) — lubrication groove and three feed holes in the outer ring.
Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 34 mm. Bore Type: Tapered, 1:12. Rolling Elements: Cylindrical Roller. Number Of Rows: 2. Cage Material: Brass. Closure Type: Open. Series: NN30. Base Number: NN3016. Unit Quantity: 1 Pc.
Bore Type: Tapered, 1:12. Radial internal clearance is set by the position of the inner ring on the 1:12 taper. The bearing carries radial load.
Cross-references: SKF NN 3016 KTN9/SP, FAG NN3016-AS-K-M-SP. Also written NN3016KMSP5, NN3016K.M.SP, NN3016-K-M-SP, NN 3016 K M SP.
80 mm bore, 125 mm outside diameter, 34 mm width, tapered 1:12 bore.
K is a tapered bore, taper 1:12. M is a solid machined brass cage. SP is a precision class with P5 dimensional tolerance and P4-level running accuracy.
Two rows of cylindrical rollers (NN series, double row).
