Single-row barrel roller bearing, 50 mm bore x 90 mm OD x 20 mm wide. 1:12 tapered bore, machined brass cage, C3 clearance, radial load with self-alignment. 1 Pc.
List Price
$75.70
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 20210 K MB C3 |
| Bearing Type | Barrel Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | Chrome Steel |
|---|---|
| Series | 20200 |
| Base Number | 20210 |
| Bore Shaft Size | 50 mm (1.9685 in) |
| Mpn Variants | 20210-K-MB-C3, 20210K.MB.C3, 20210KMBC3, 20210K |
| Closure Type | Open |
| Rolling Elements | Rollers |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00.40 |

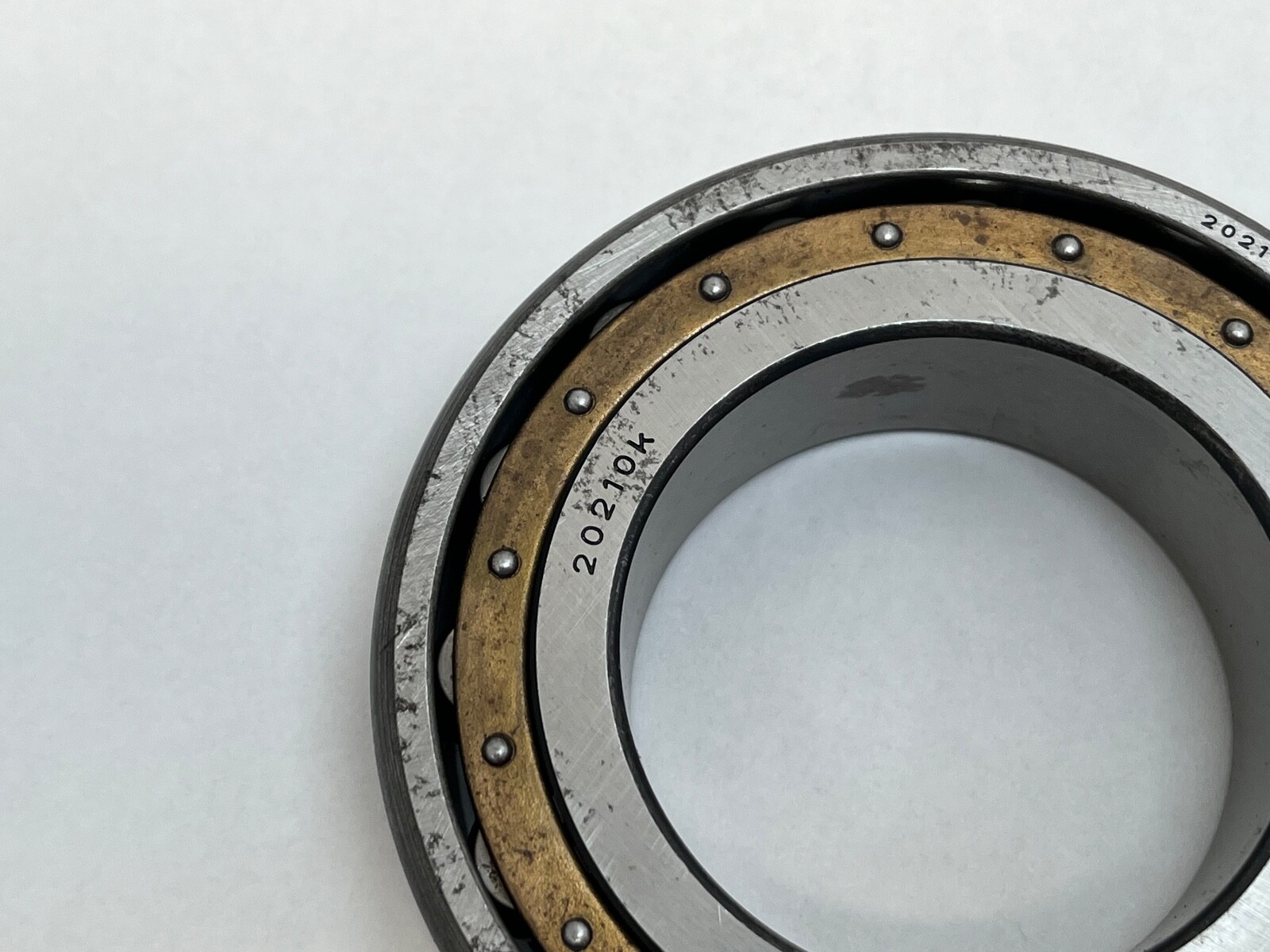

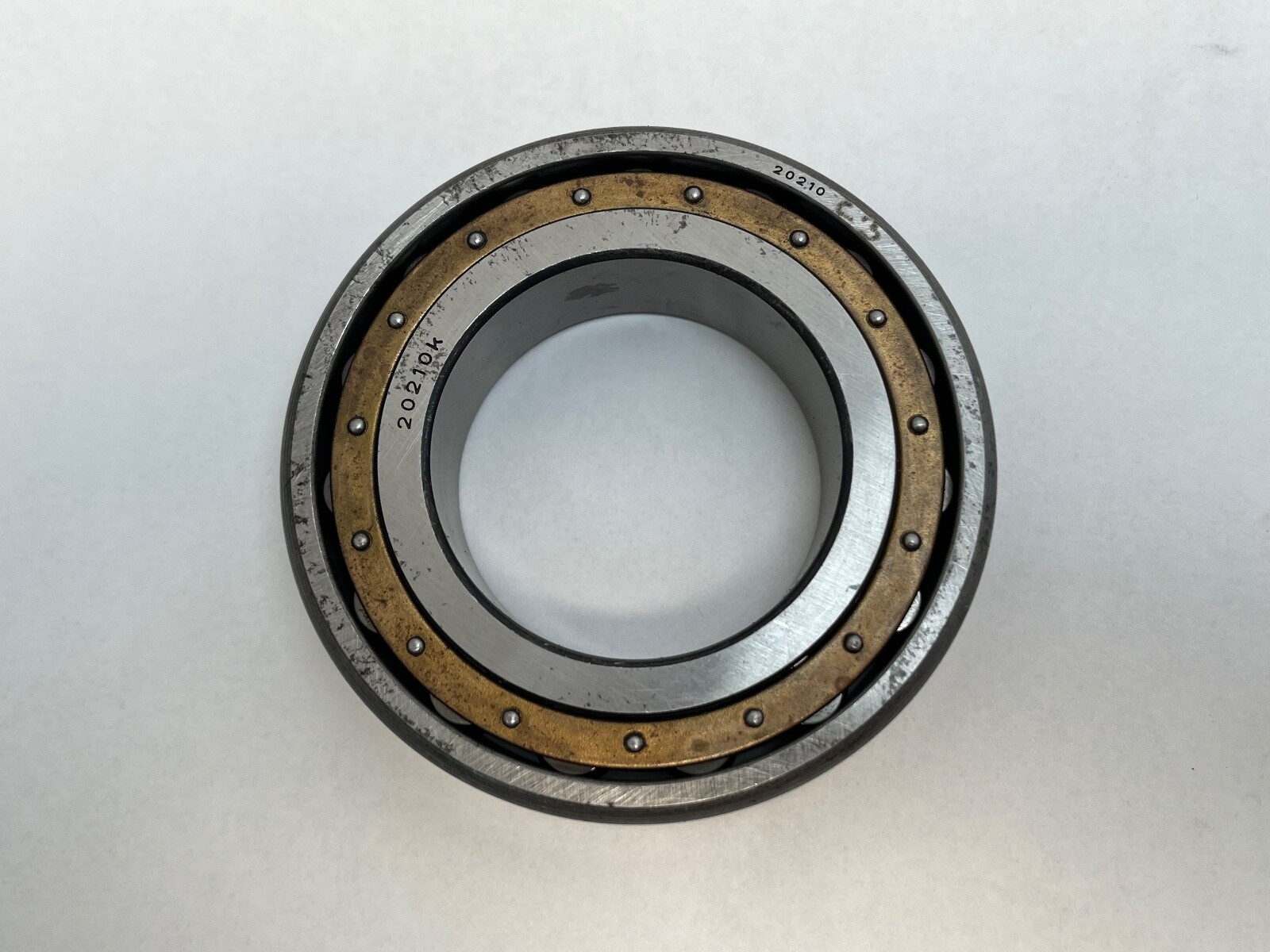

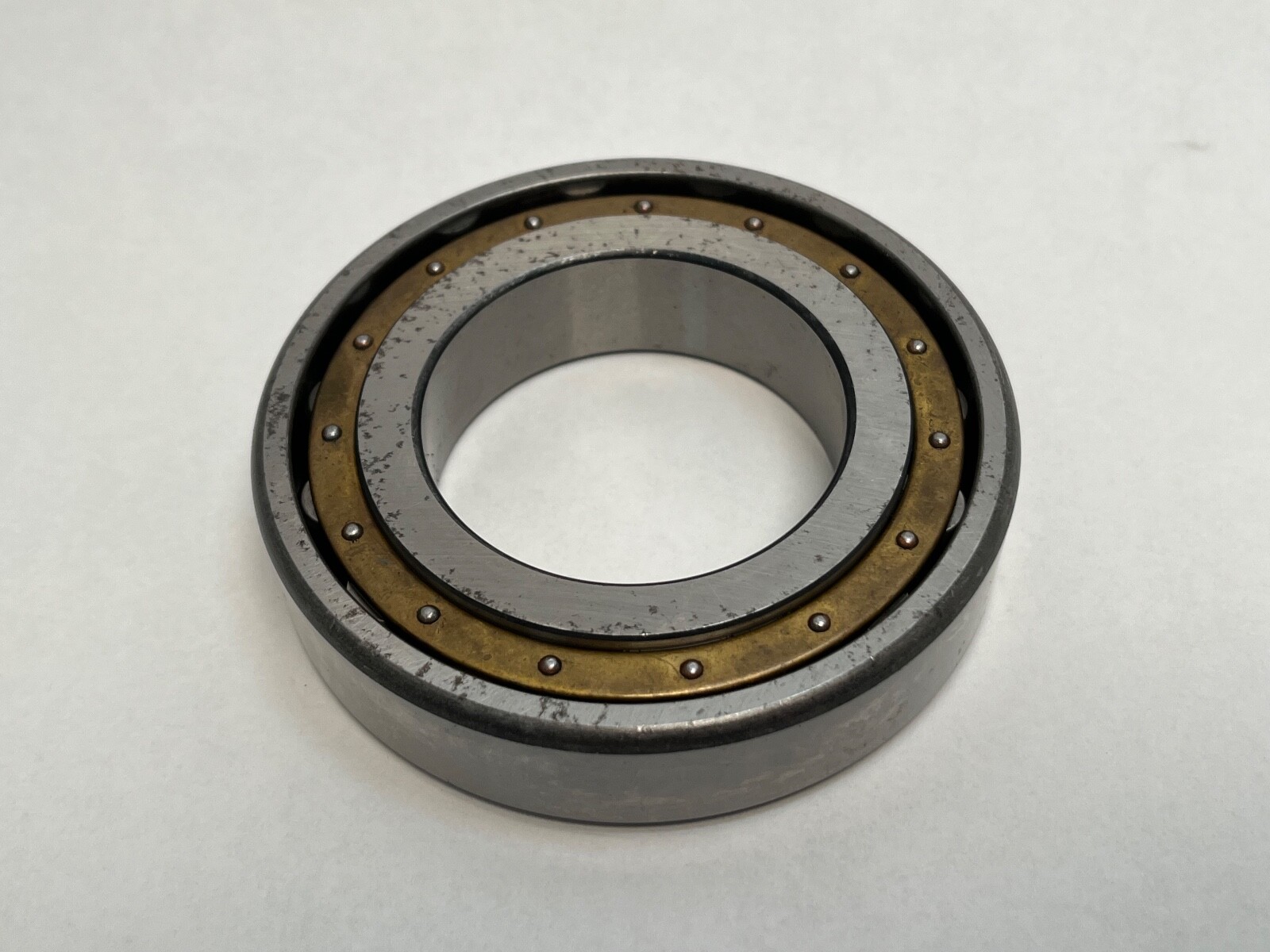

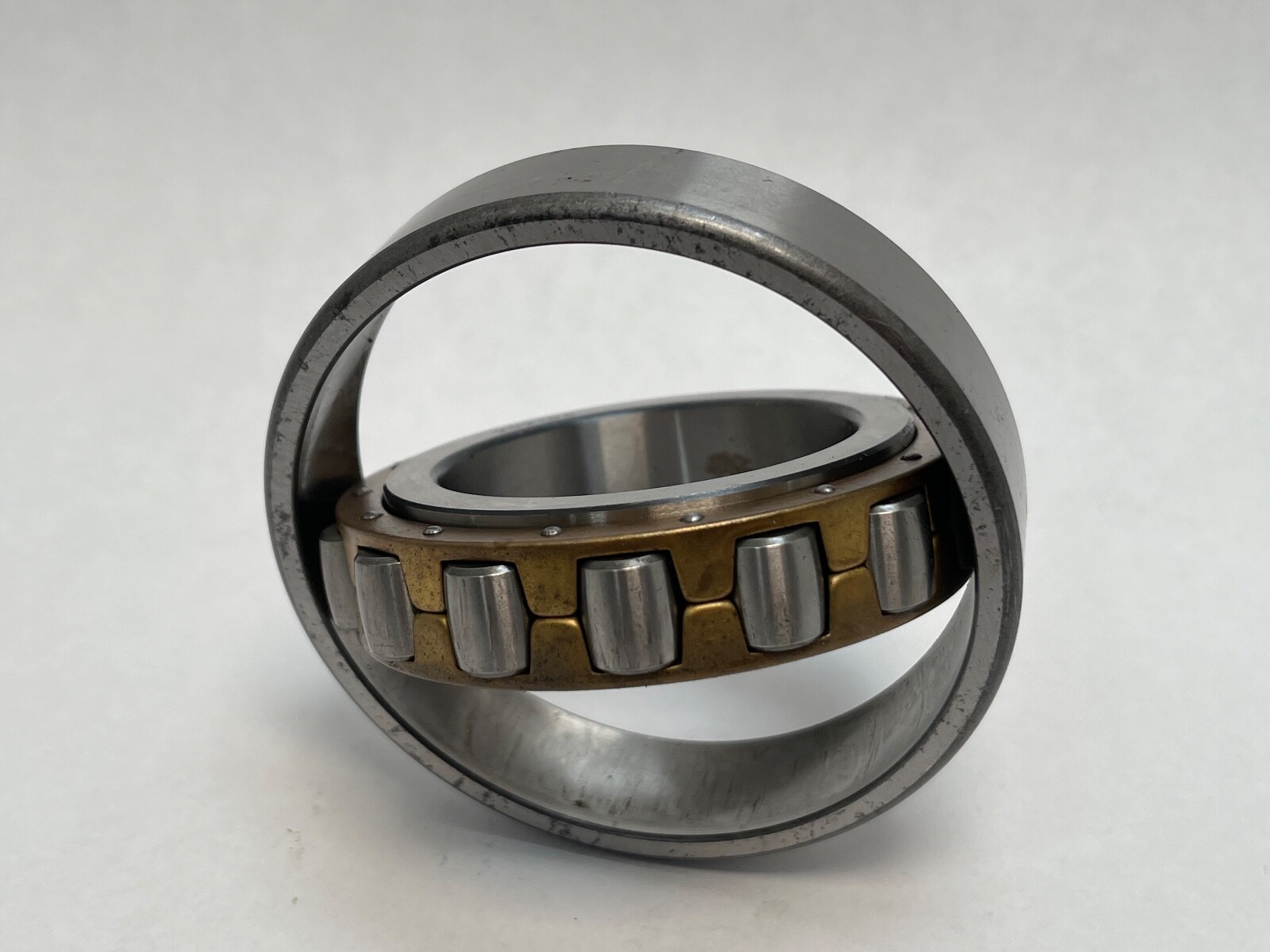

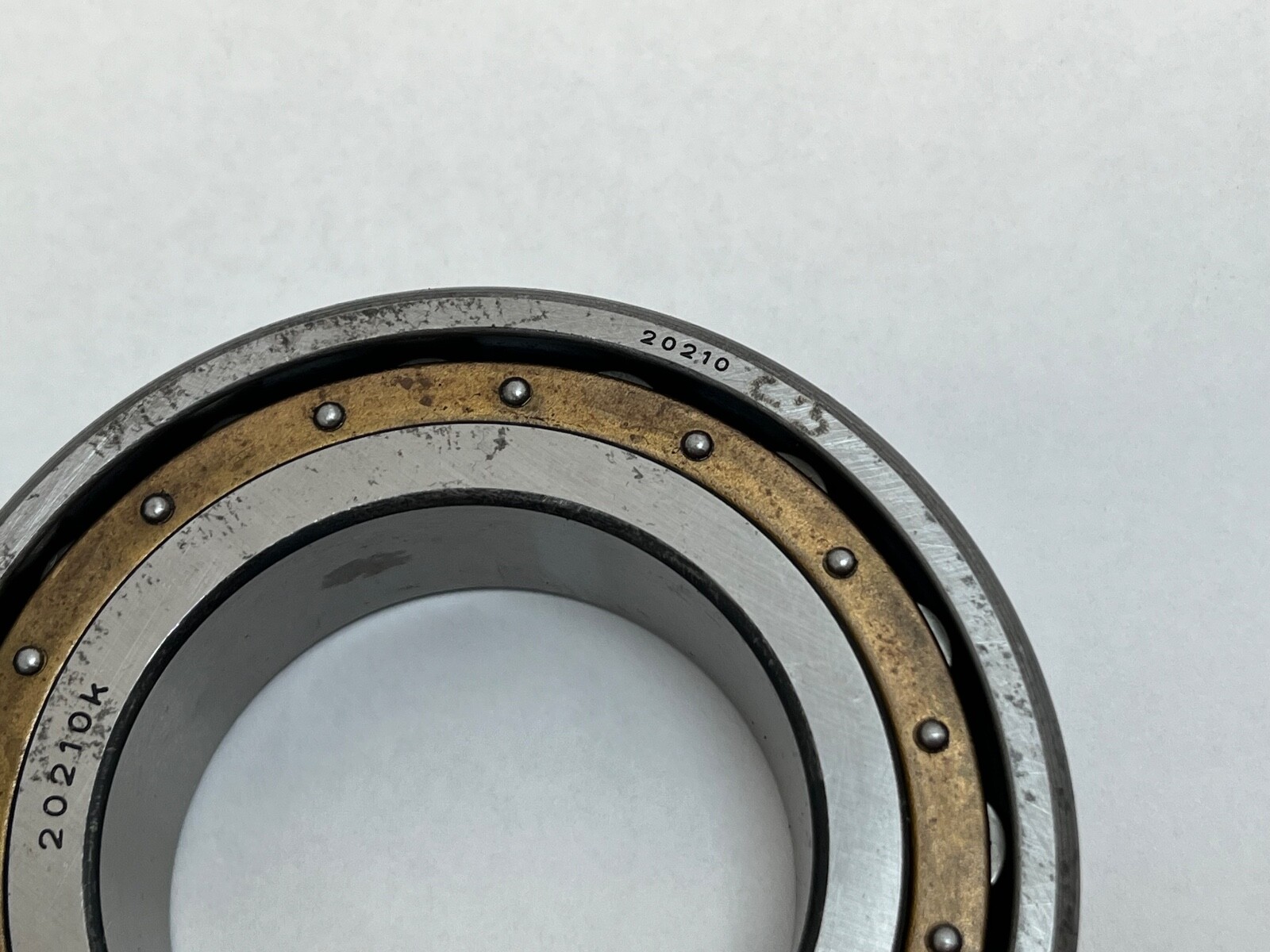

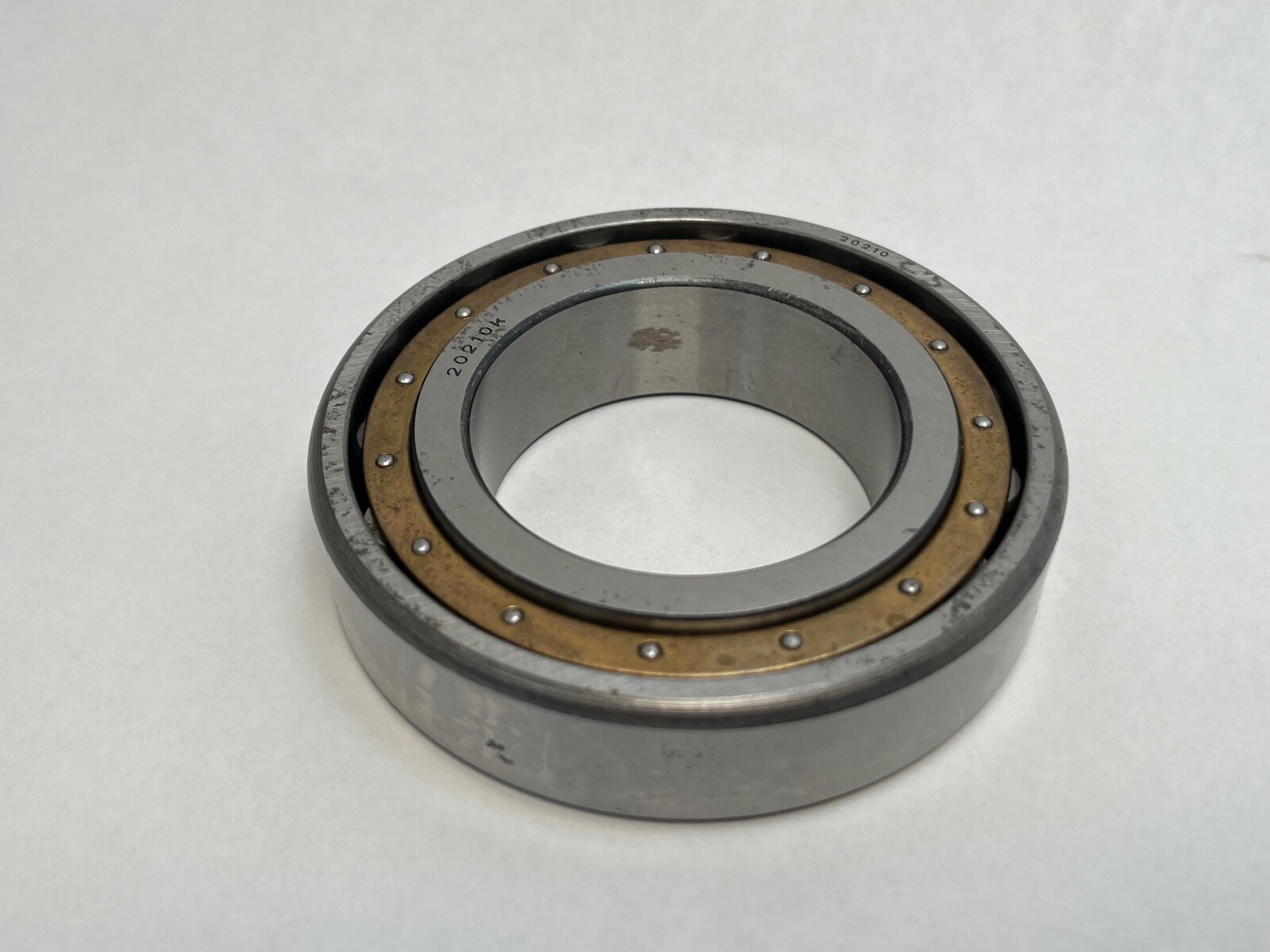

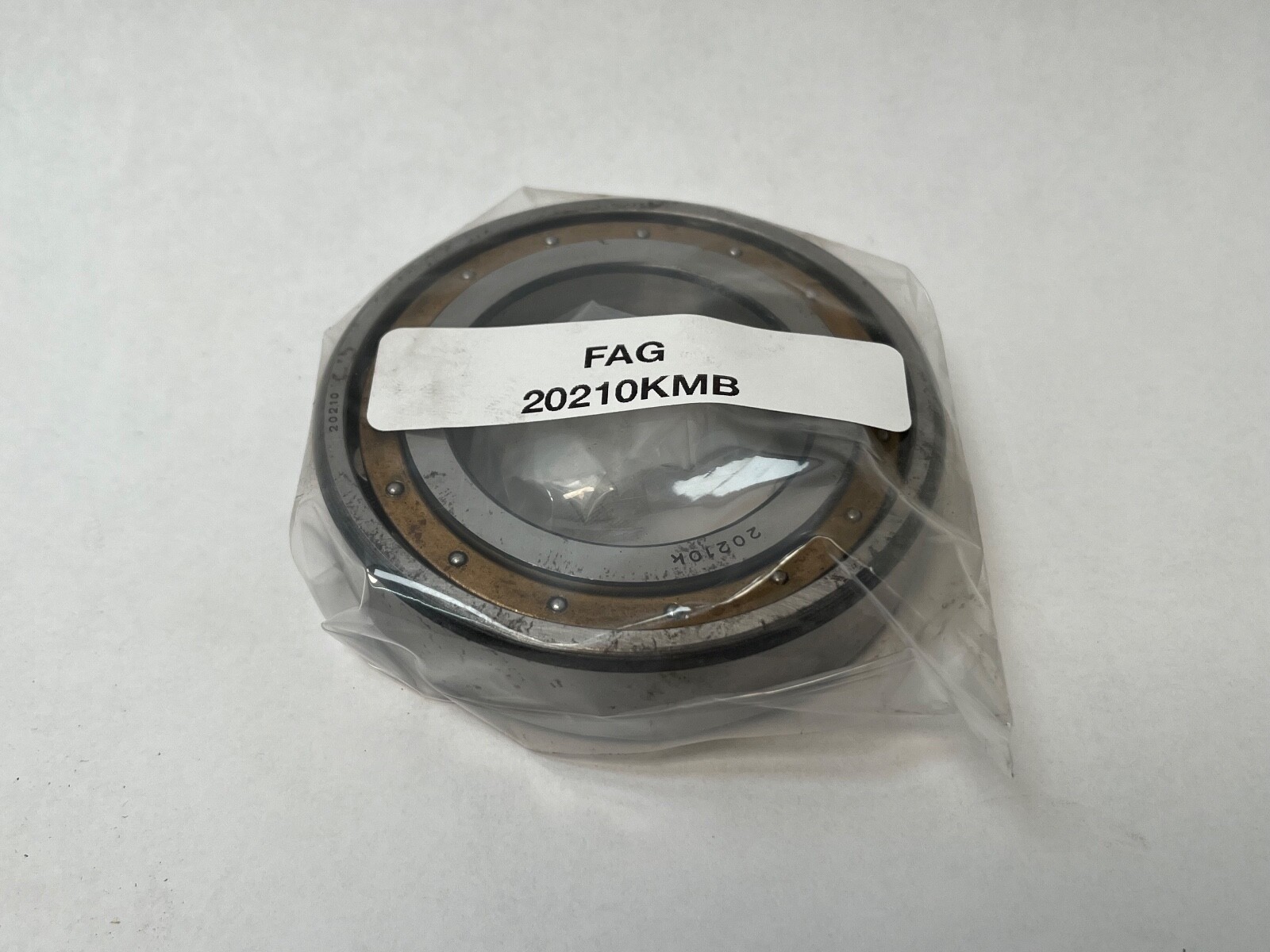

FAG 20210-K-MB-C3, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 50 mm bore × 90 mm outside diameter × 20 mm width. Tapered bore, 1:12.
20 – barrel roller, single row2 – ISO dimension series10 – bore code, 10 × 5 = 50 mm boreK – tapered bore, taper 1:12MB – machined brass cage, inner-ring guidedC3 – radial internal clearance greater than normal
The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. C3 clearance leaves running clearance after a tight shaft fit and after thermal growth of the inner ring. The machined brass cage runs at higher speed and temperature than a pressed steel cage.
Bore: 50 mm (1.9685 in)Outside diameter: 90 mm (3.5433 in)Width: 20 mm (0.7874 in)Rows: 1Bore form: tapered, 1:12Cage: machined brass, MBInternal clearance: C3
1 Pc. Bearing only. Supplied without adapter sleeve.
A tapered-bore barrel roller seats on an adapter sleeve when it goes onto a plain cylindrical shaft; the sleeve for a 20210K is an H210, whose shaft seat is 45 mm, one bore-code step below the bearing bore.
Alternate written forms of the same bearing: 20210-K-MB-C3, 20210K.MB.C3, 20210KMBC3, 20210K. The cylindrical-bore 20210MB is a related size on the same envelope with a different bore form. The 22210K is a double-row spherical roller bearing, a different bearing type.
