Deep Groove Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, Phenolic Cage, ABEC 5 / P5$49.05| MFR / Brand | SNR |
|---|---|
| MPN | 6212EEJ30 |
| Model | 62122RS C3 |
| Bearing Type | Ball Bearing, Double Rubber Seal |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Series | 6200 |
|---|---|
| Condition | New – Open box |
| Lubricant | Grease |
| Material | Bearing Steel |

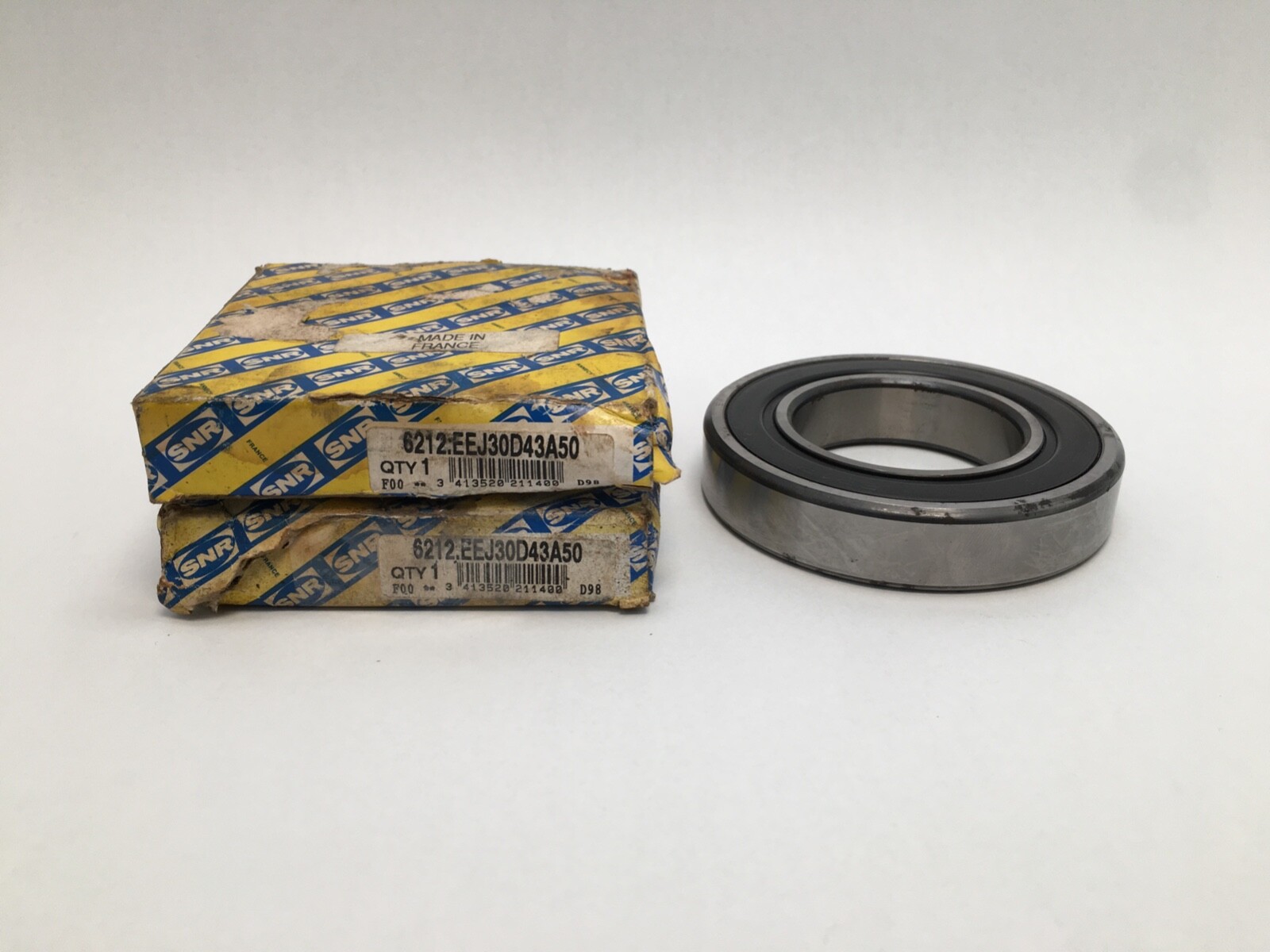

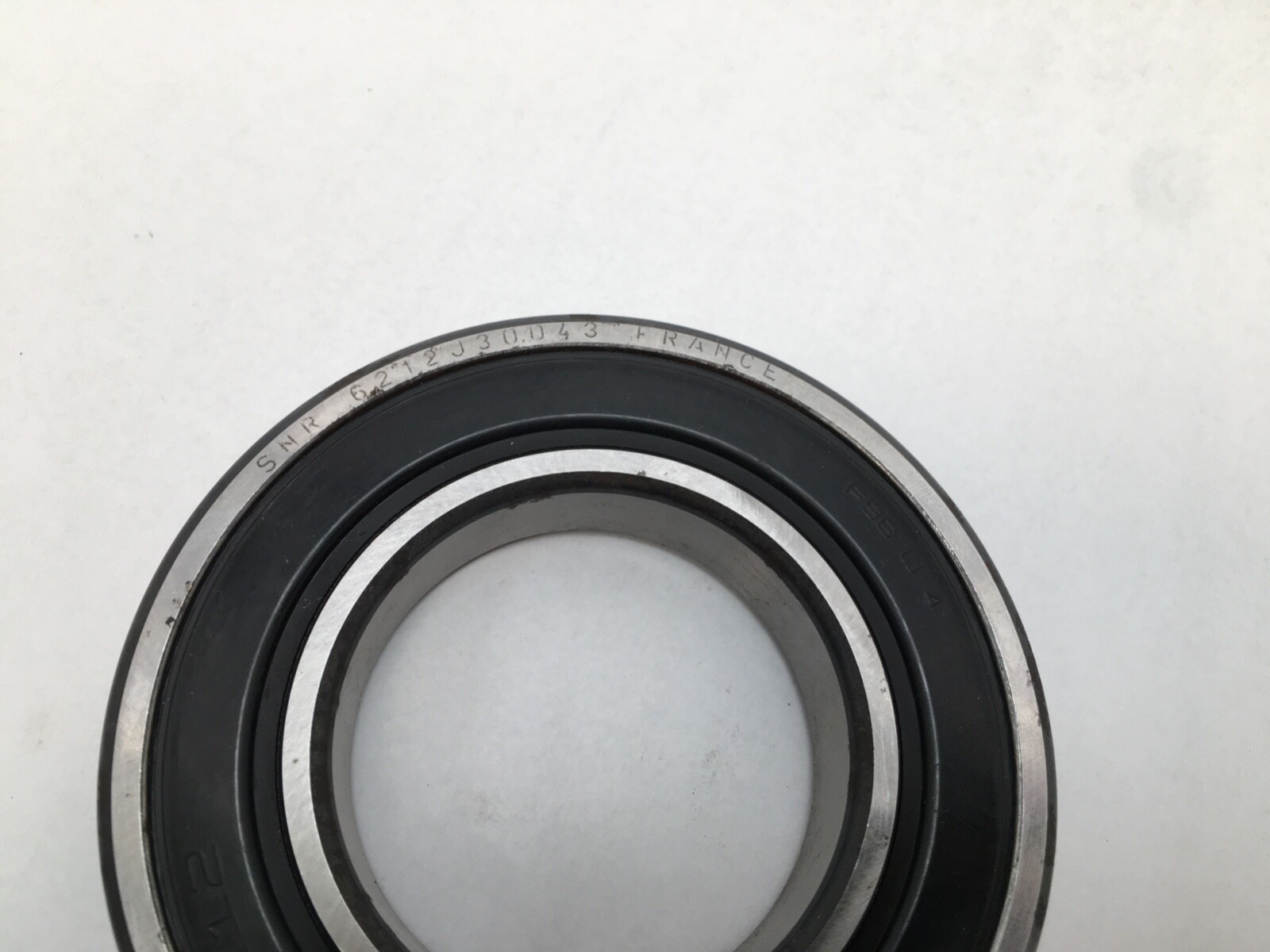

| Condition Note | New Old Stock, Bearing Has Surface Rust, Spins Freely, Made In France |
| Cage Type | Riveted |
| Dynamic Load Rating | 52 kN / 11690 lbf |
| Static Load Rating | 36 kN / 8093 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 110°C |
| Item Weight | 1.72 lbs |
| Cage Material | Steel |
| Limiting Speed | 4300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C3 |

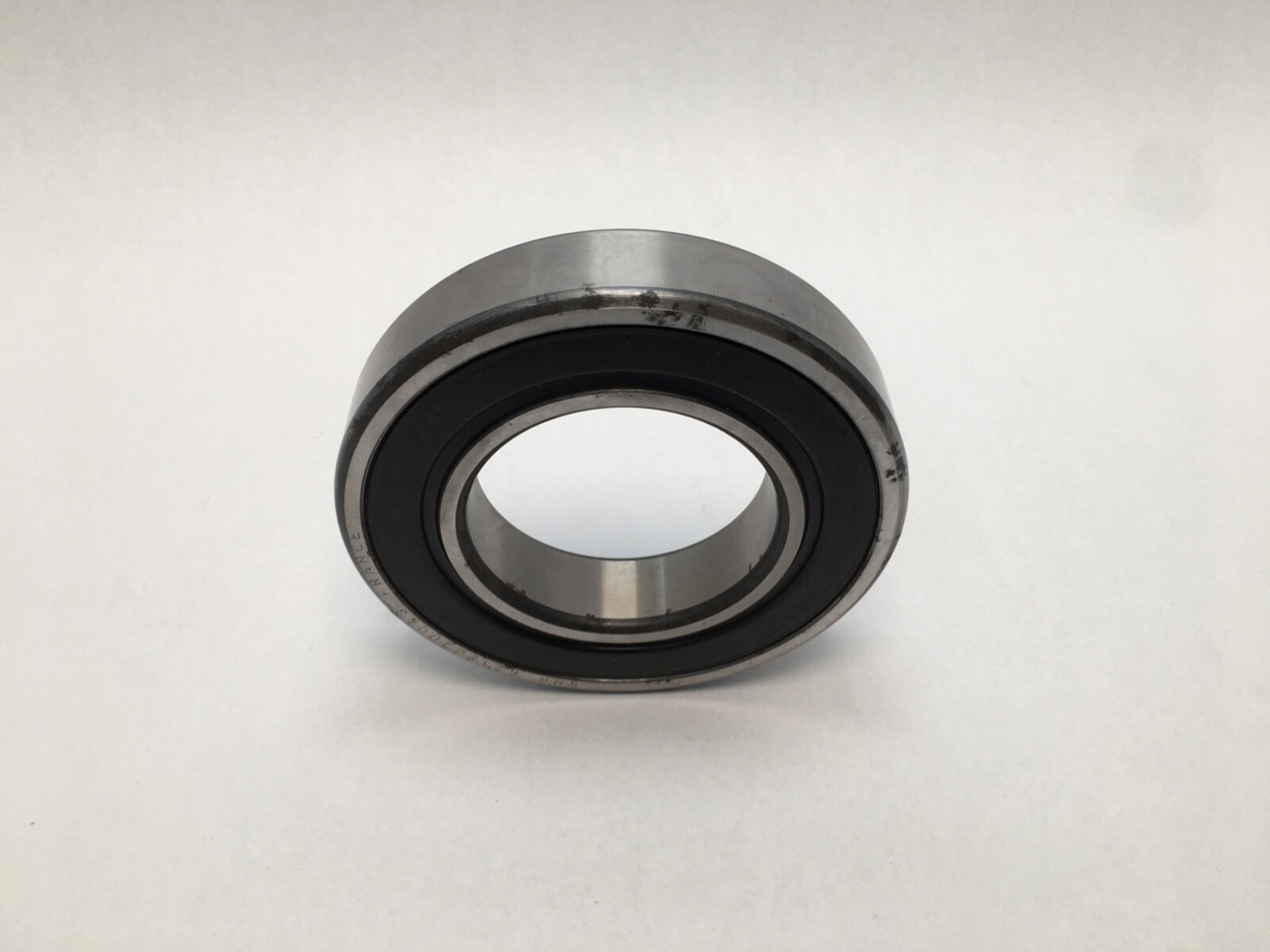

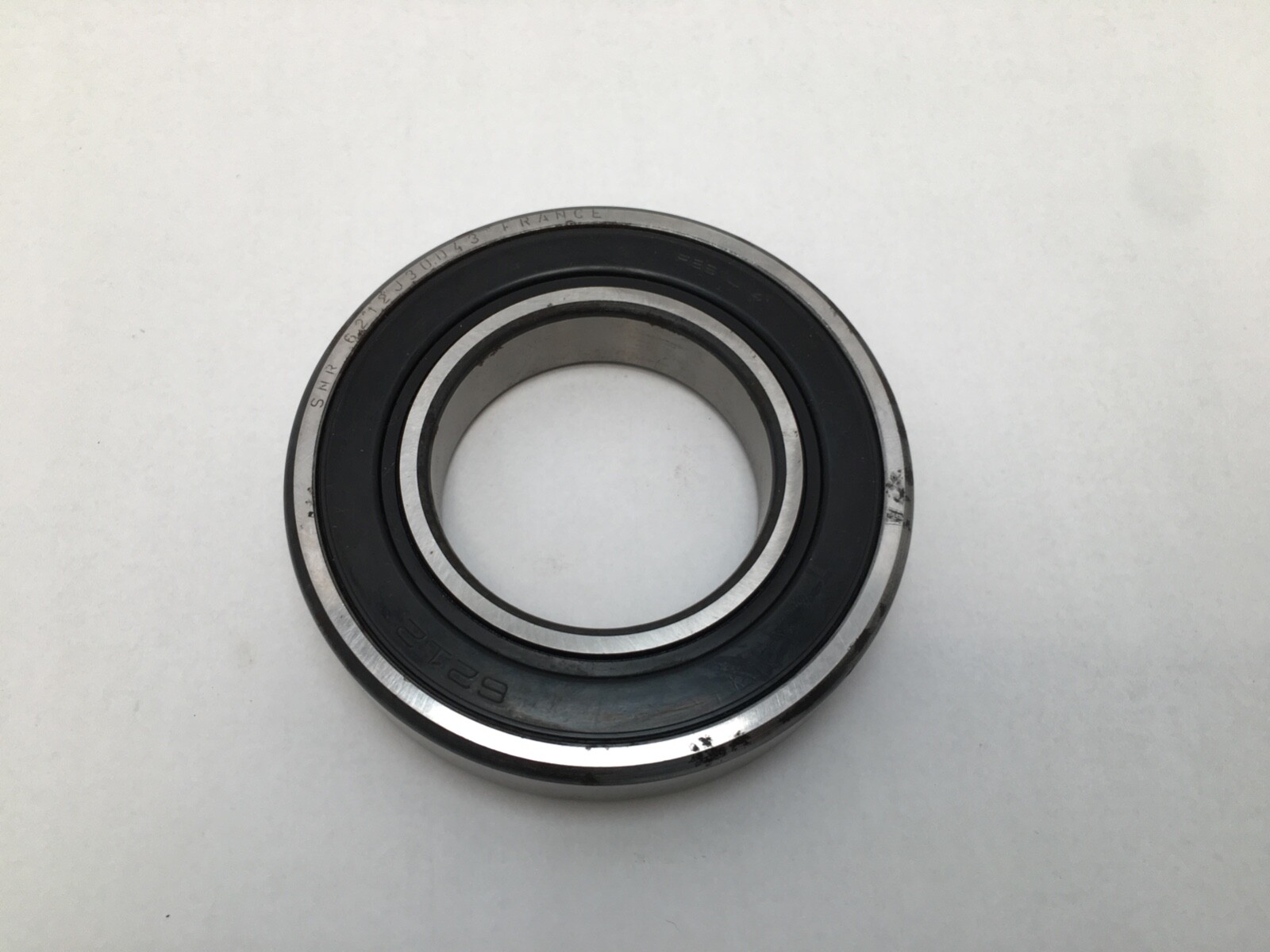

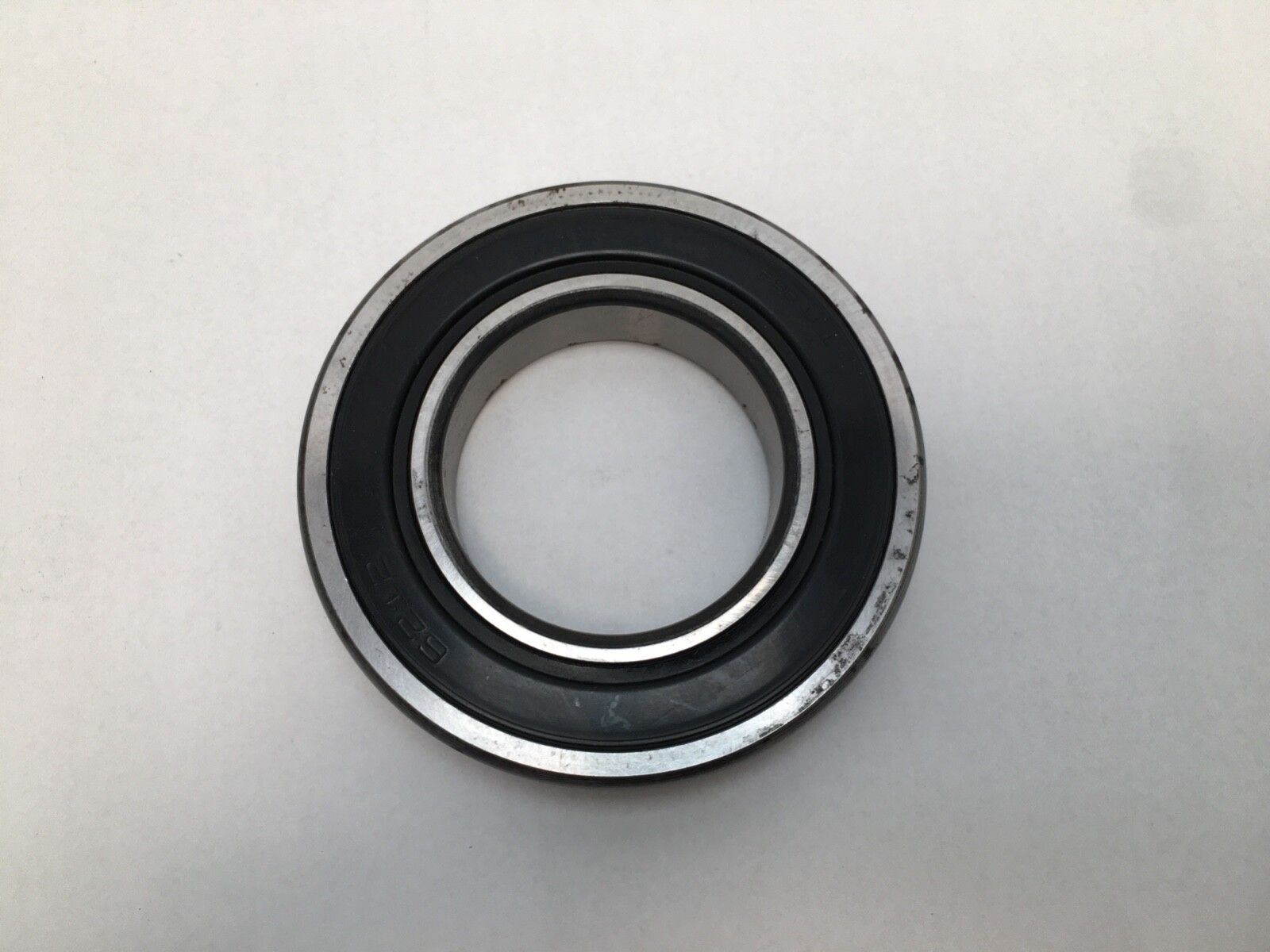

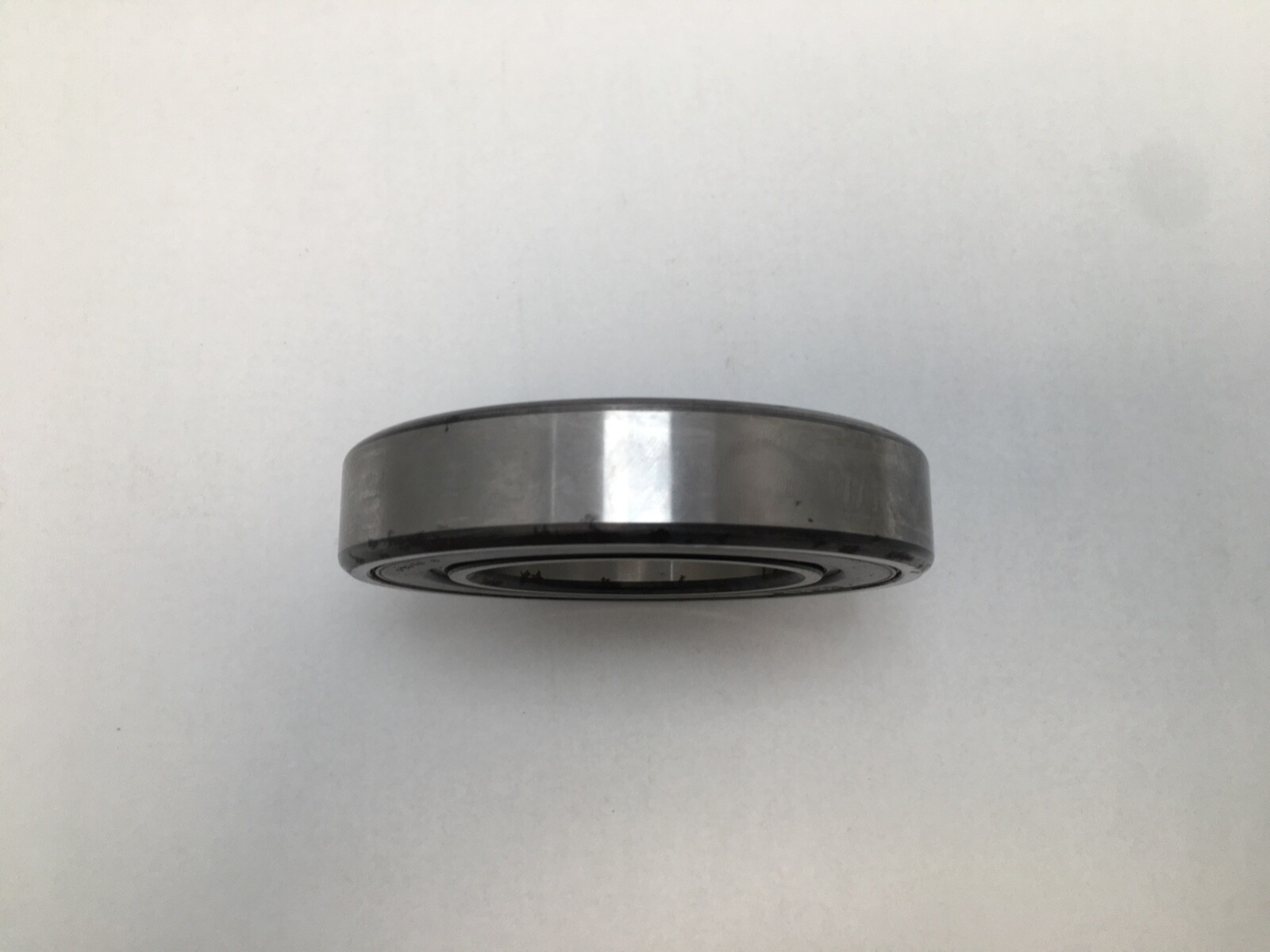

Deep Groove Ball Bearing – Straight Bore, 60 mm ID, 110 mm OD, 22 mm Width, Double Rubber Seal, Without Snap Ring
$26.58
199 in stock
