Deep groove ball bearing, 100 mm bore, 150 mm OD, 24 mm wide, P5 precision with C2 clearance. SKF 6020/P52, 60 extra-light series, open, single row.
List Price
$76.01
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 6020/P52 |
| Model | 6020P52 |
| Bearing Type | Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Chrome Steel |
|---|---|
| Series | 60 |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C2 |
| Base Number | 6020 |
| Overall Width | 24 mm |
| Mpn Variants | 6020P52, 6020-P52, 6020/P52, 6020-P5, 6020 P5 C2 |
| Precision Class | ABEC 5 / P5 |
| Cross Reference 1 | FAG 6020-P5-C2 |
|---|---|
| Cross Reference 2 | NSK 6020 P5 C2 |
| Cross Reference 3 | NTN 6020 P5 C2 |

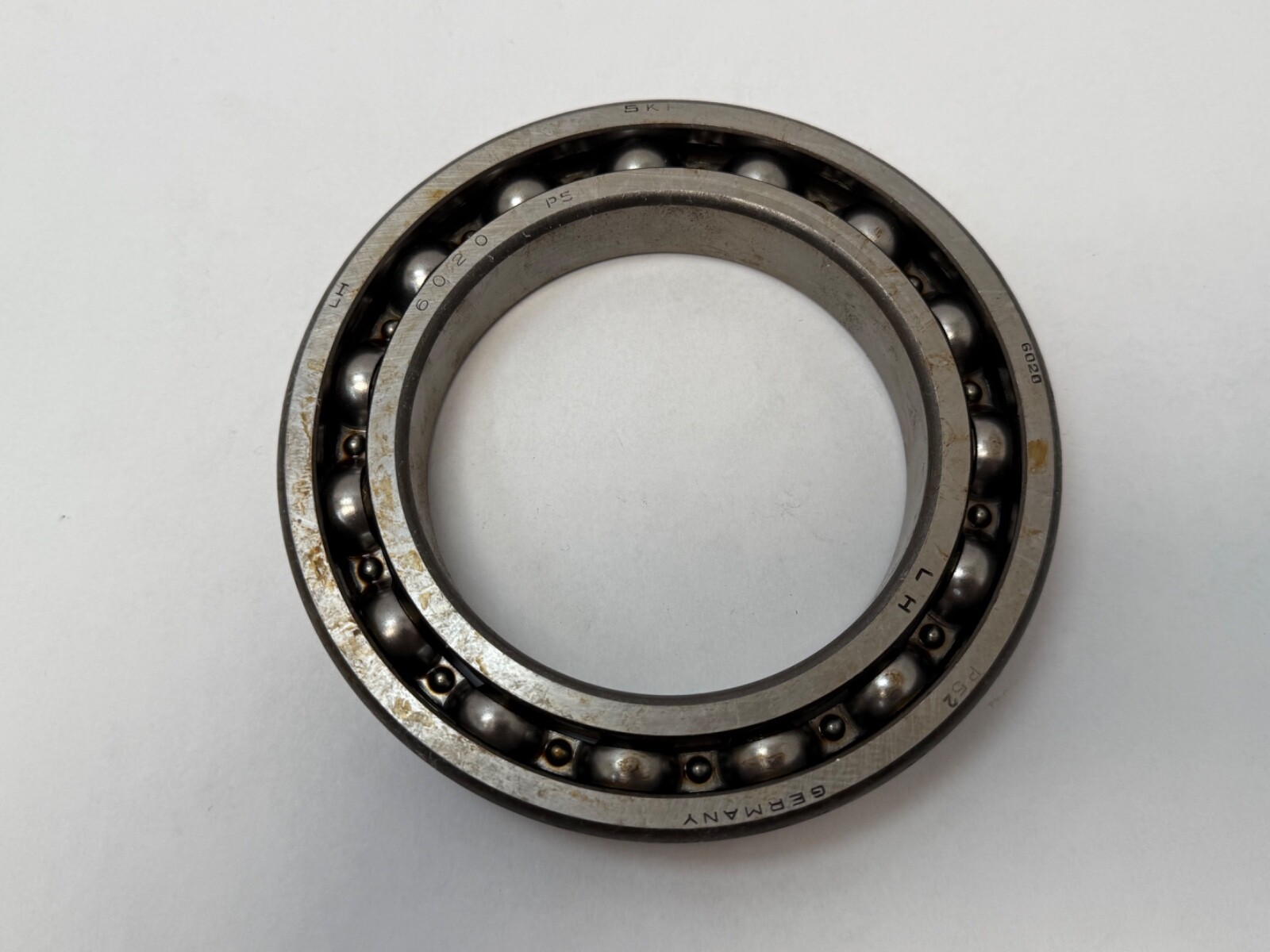

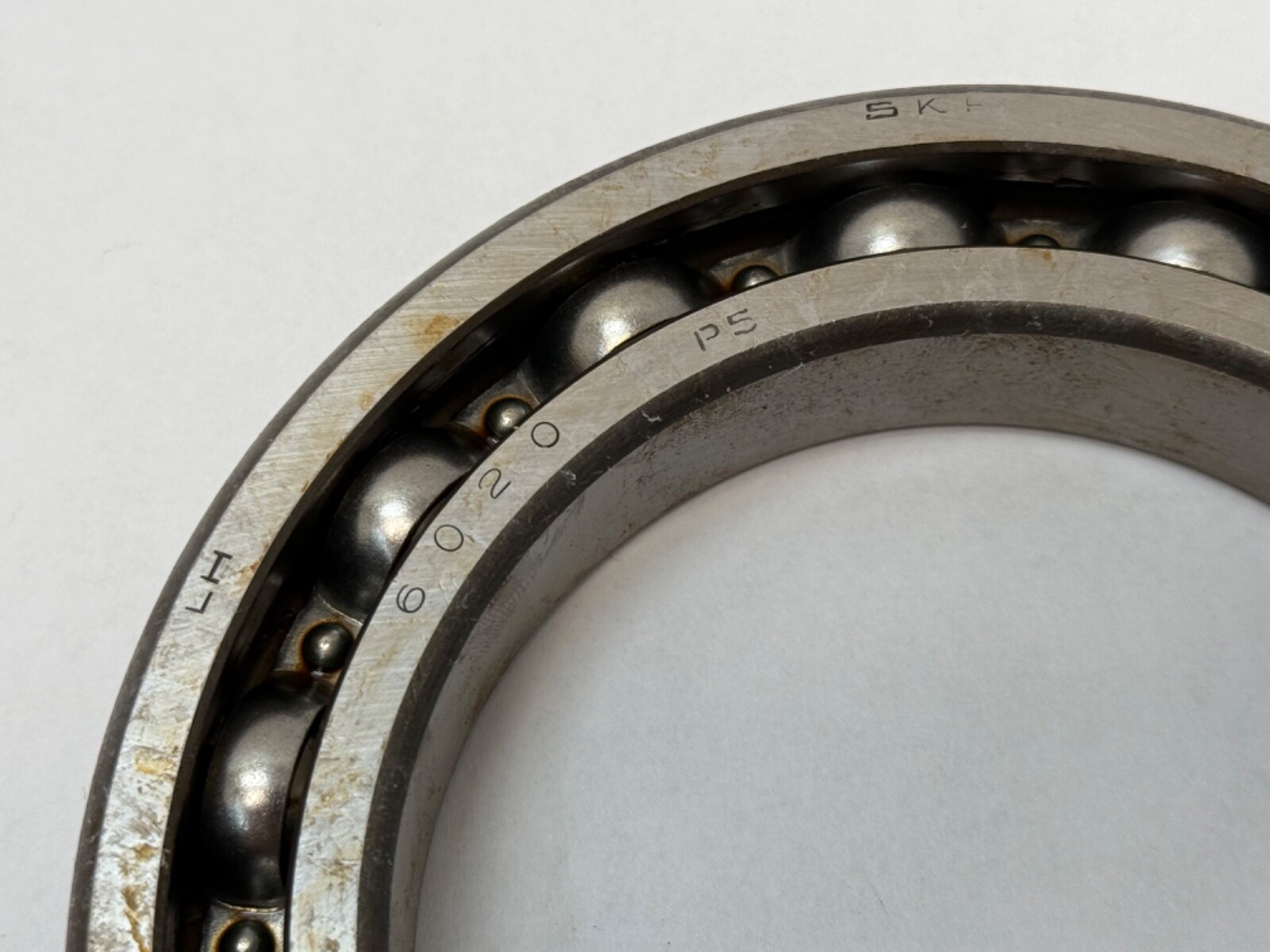

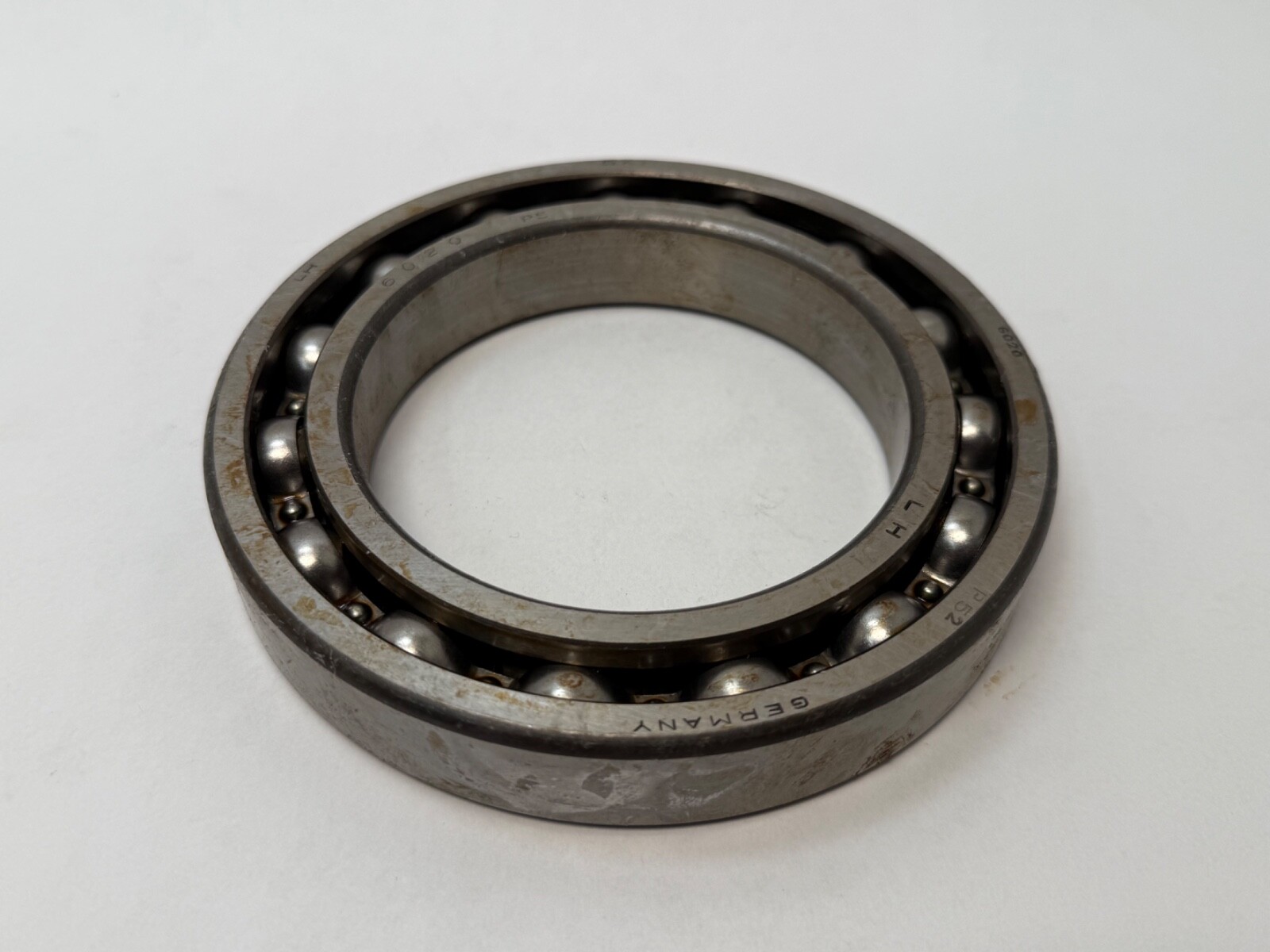

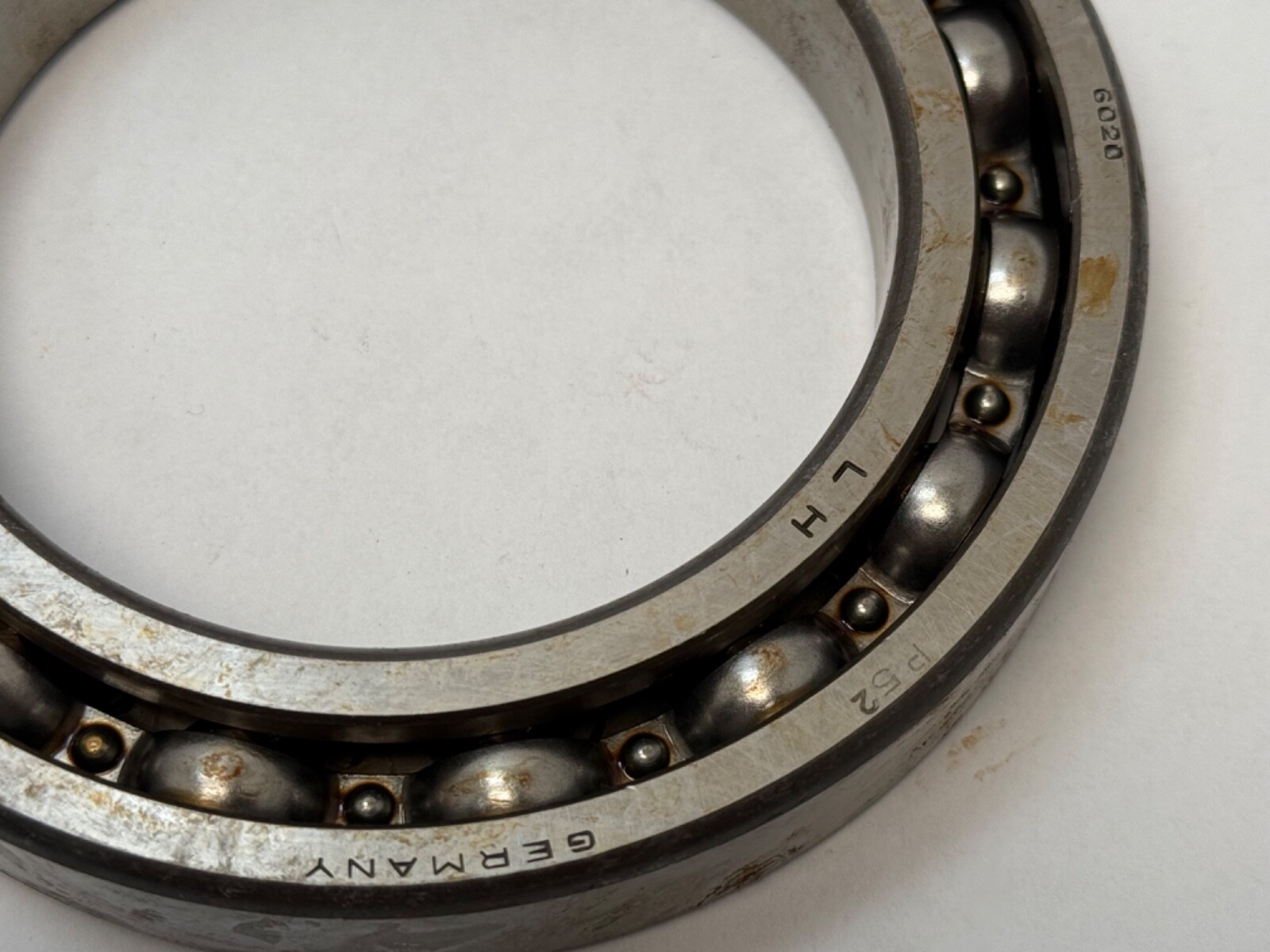

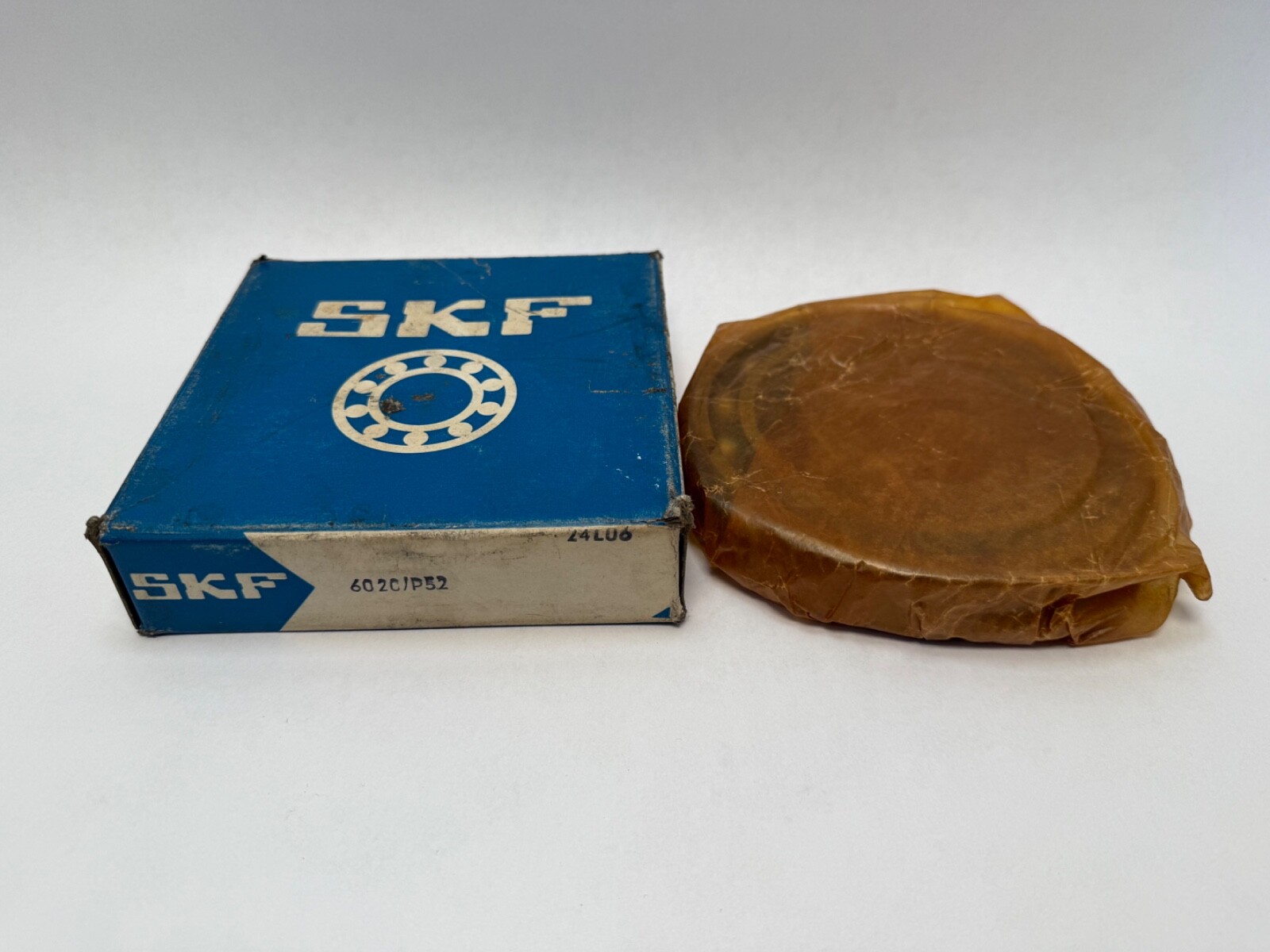

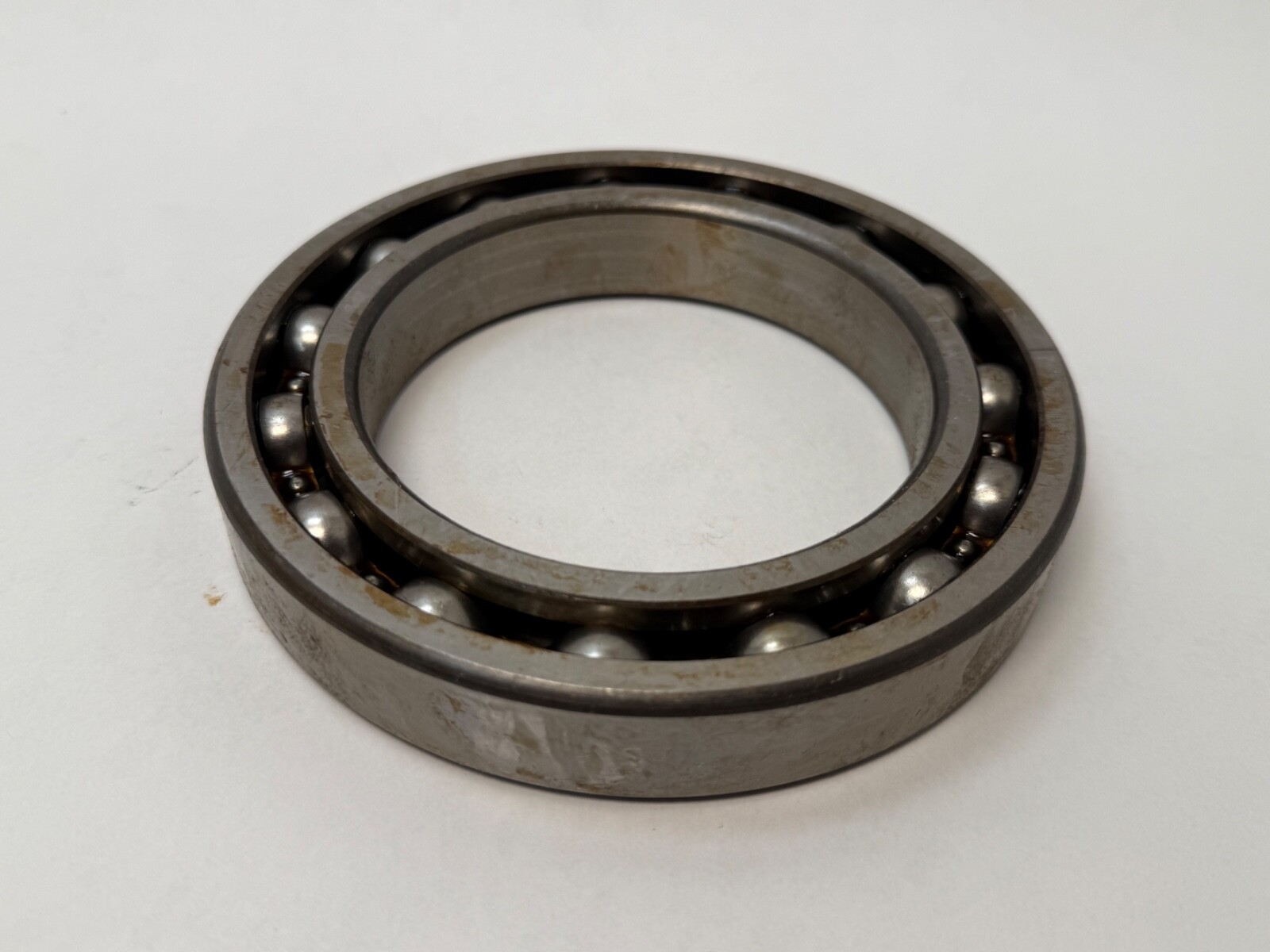

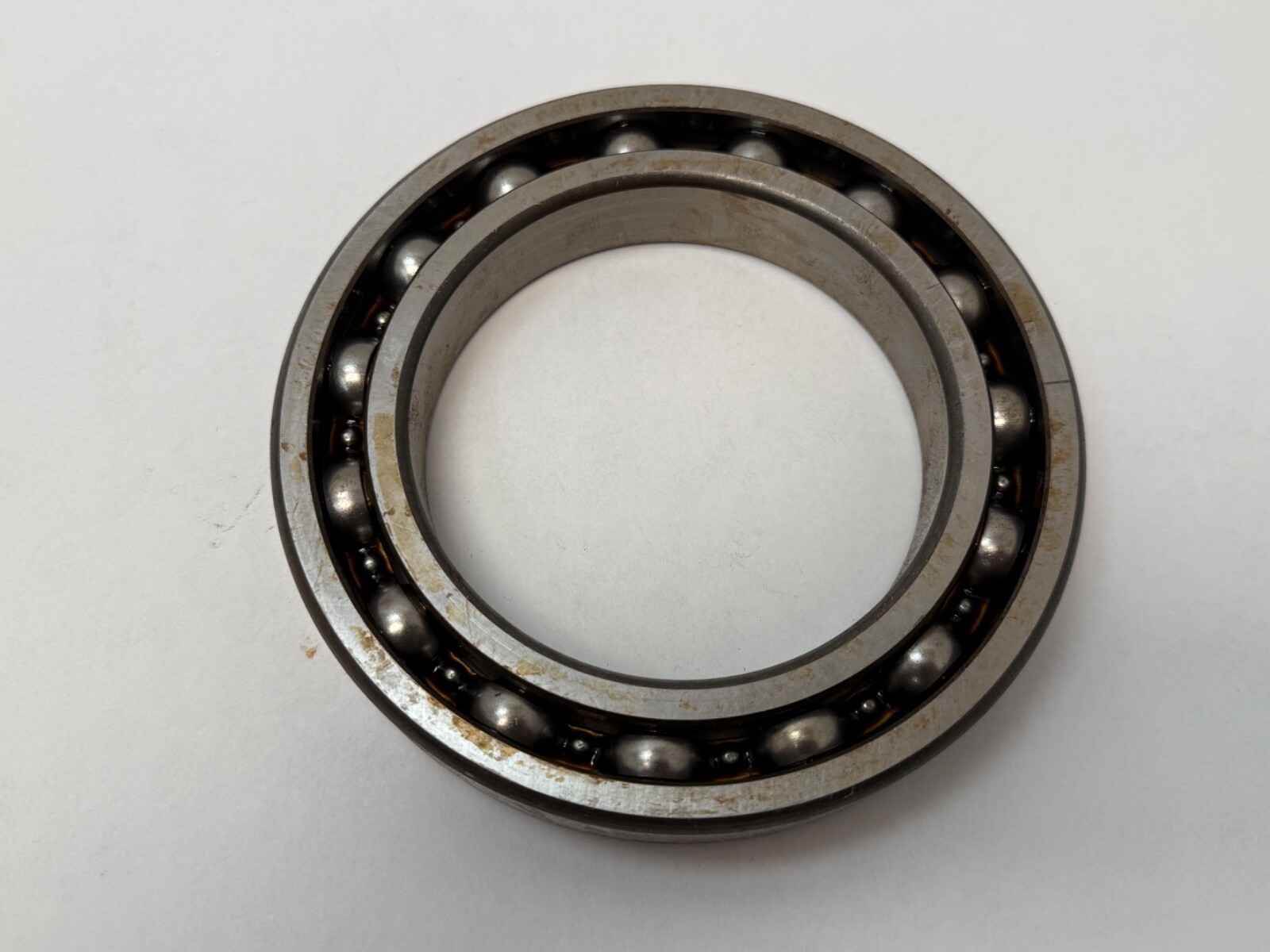

The SKF 6020/P52 is a single-row deep groove ball bearing from the 60 extra-light series, made to P5 tolerances with C2 internal clearance. Open on both sides.
6020 — SKF deep groove ball bearing, 60 dimension series, bore code 20 = 100 mm.
P52 — P5 dimensional and running accuracy combined with C2 radial internal clearance, tighter than normal.
Bearing Type: Deep Groove Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Snap Ring: No. Precision Class: ABEC 5 / P5. Internal Clearance: C2. Series: 60.
Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. P5 tolerances give tighter bore, OD and runout limits than the normal P0 class.
Cross-references at P5 with C2 clearance: FAG 6020-P5-C2, NSK 6020 P5 C2 and NTN 6020 P5 C2. Standard-precision 6020 bearings have the same boundary dimensions at P0 tolerance.
P5 precision class with C2 internal clearance.
100 mm bore, 150 mm outside diameter and 24 mm width.
It is an open bearing with no shields or seals.
