Super precision deep groove ball bearing, 15 mm bore, 32 mm OD, 9 mm wide, ABEC 7 / P4, open, machined phenolic cage. Fafnir MM9102K envelope.
List Price
$21.89
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 6002TBHP4 |
| Model | 6002 TBH P4 / ABEC 7 |
| Bearing Type | Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | 52100 Chrome Steel |
|---|---|
| Series | 6000 |
| Mpn Variants | 6002TBHP4, 6002-TBH-P4, 6002P4, 6002 TBH P4, MM9102KCR |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, inner-ring centred |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.5028 |
| Closure Type | Open |
| Cross Reference 1 | Fafnir MM9102K |
|---|---|
| Cross Reference 2 | SKF 6002/P4 |
| Cross Reference 3 | NSK 6002 P4 |

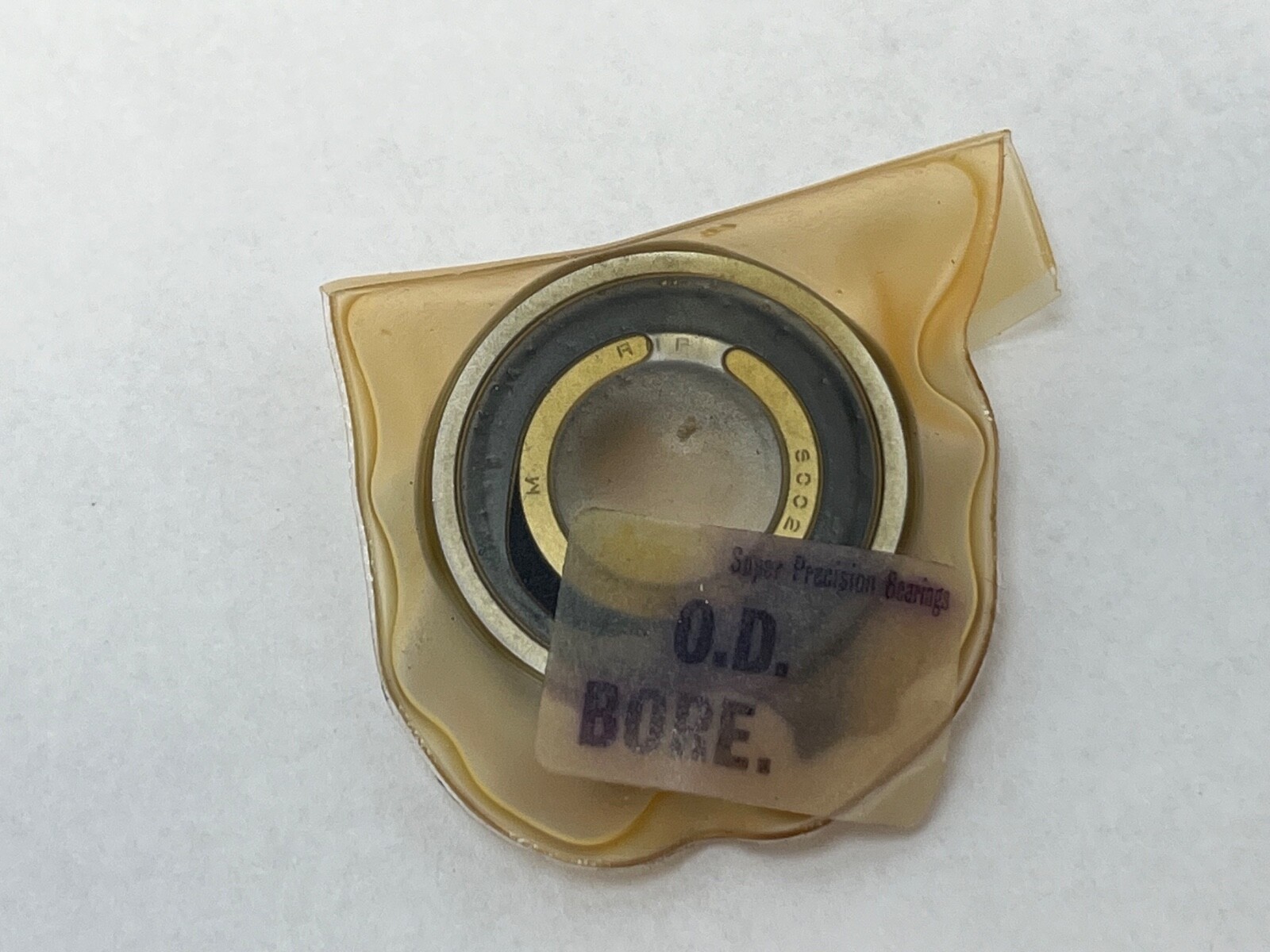

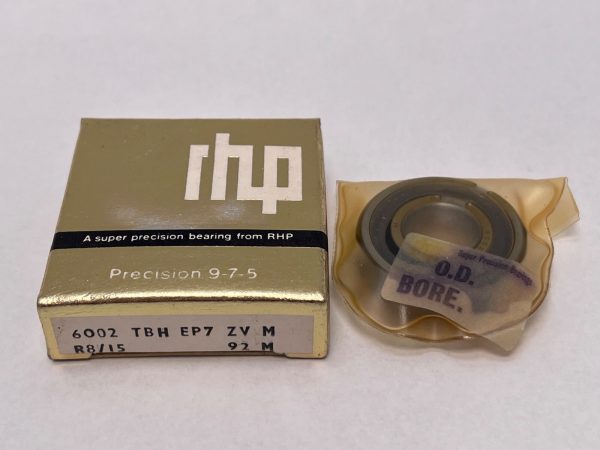

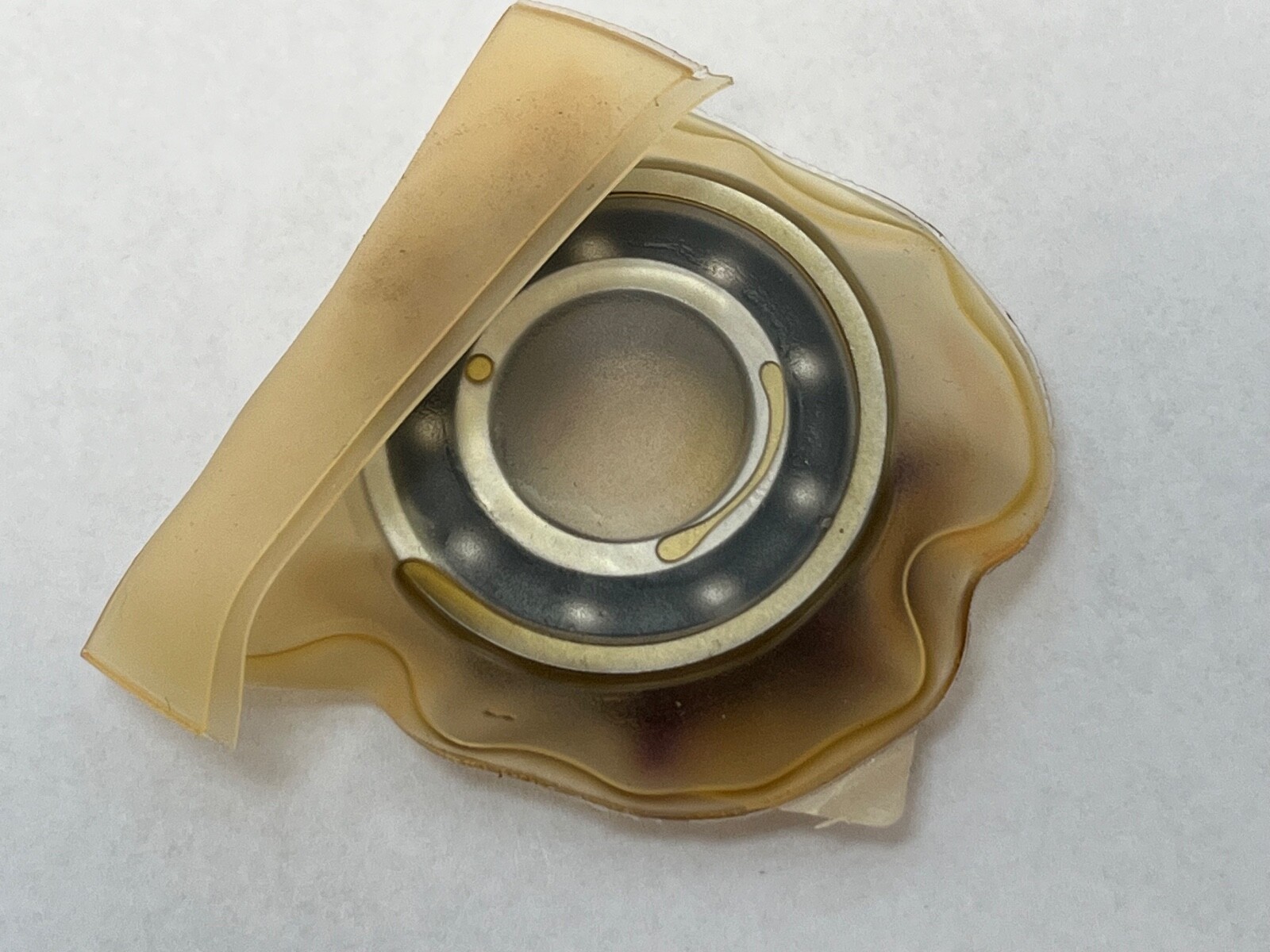

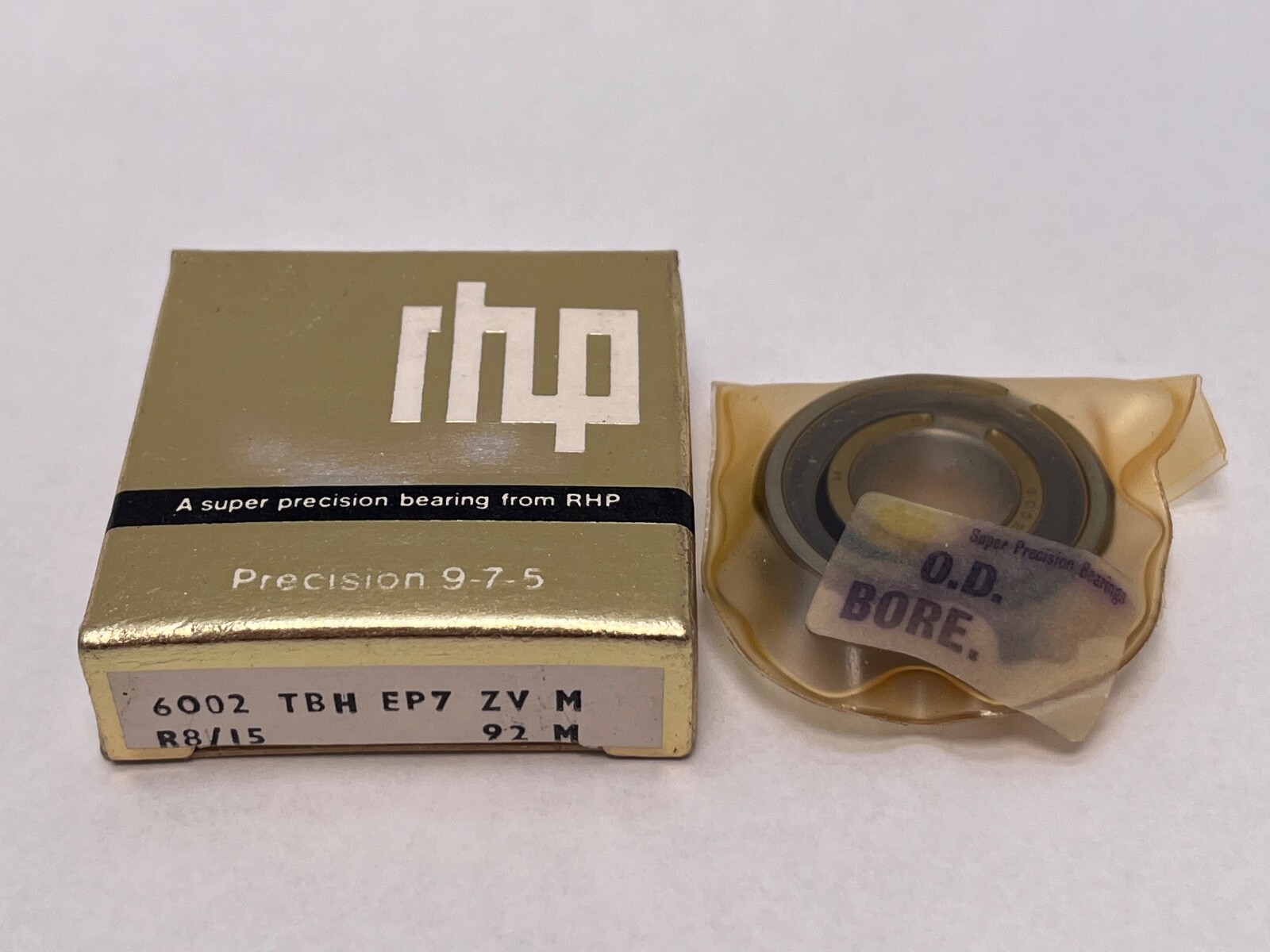

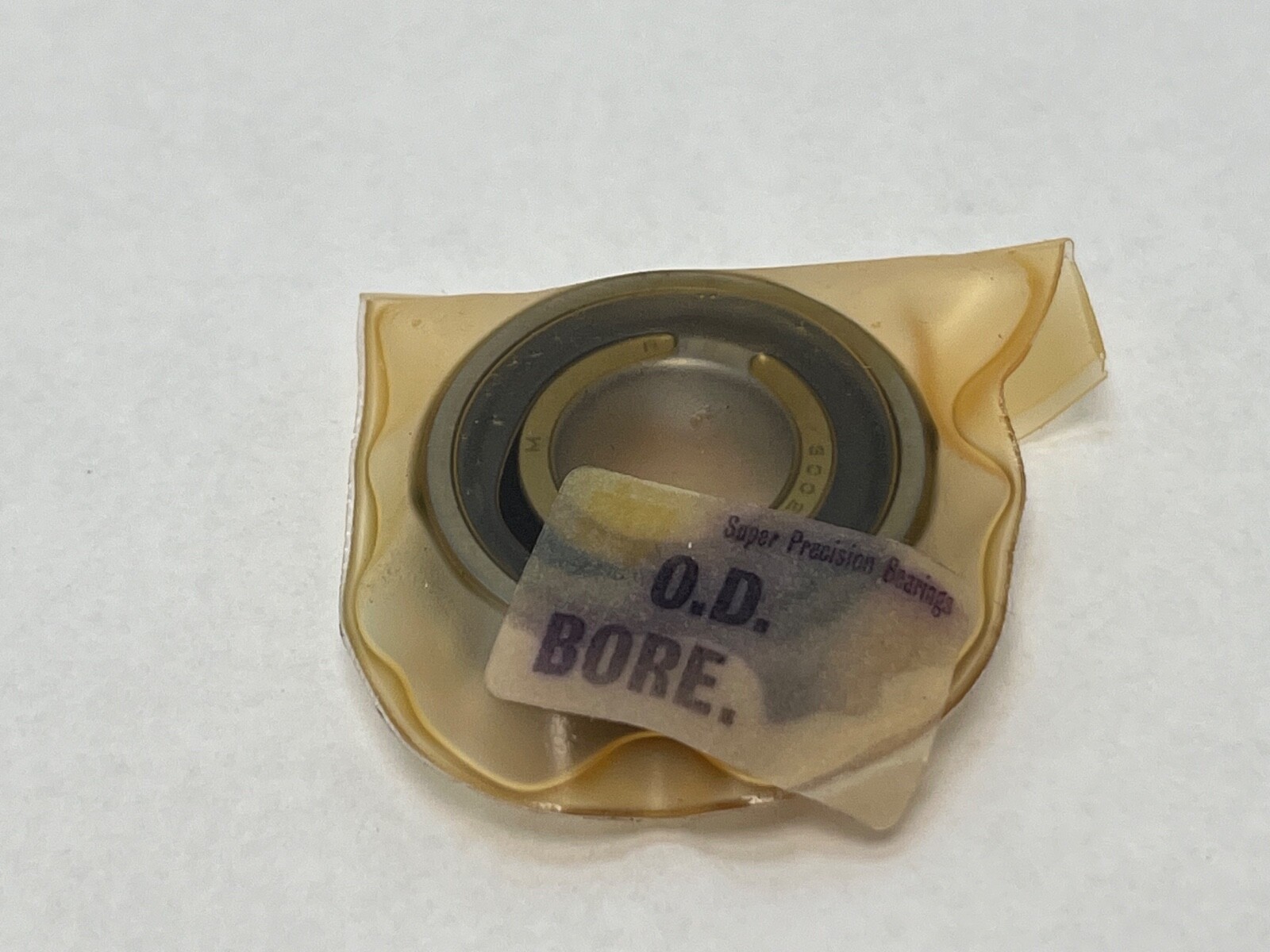

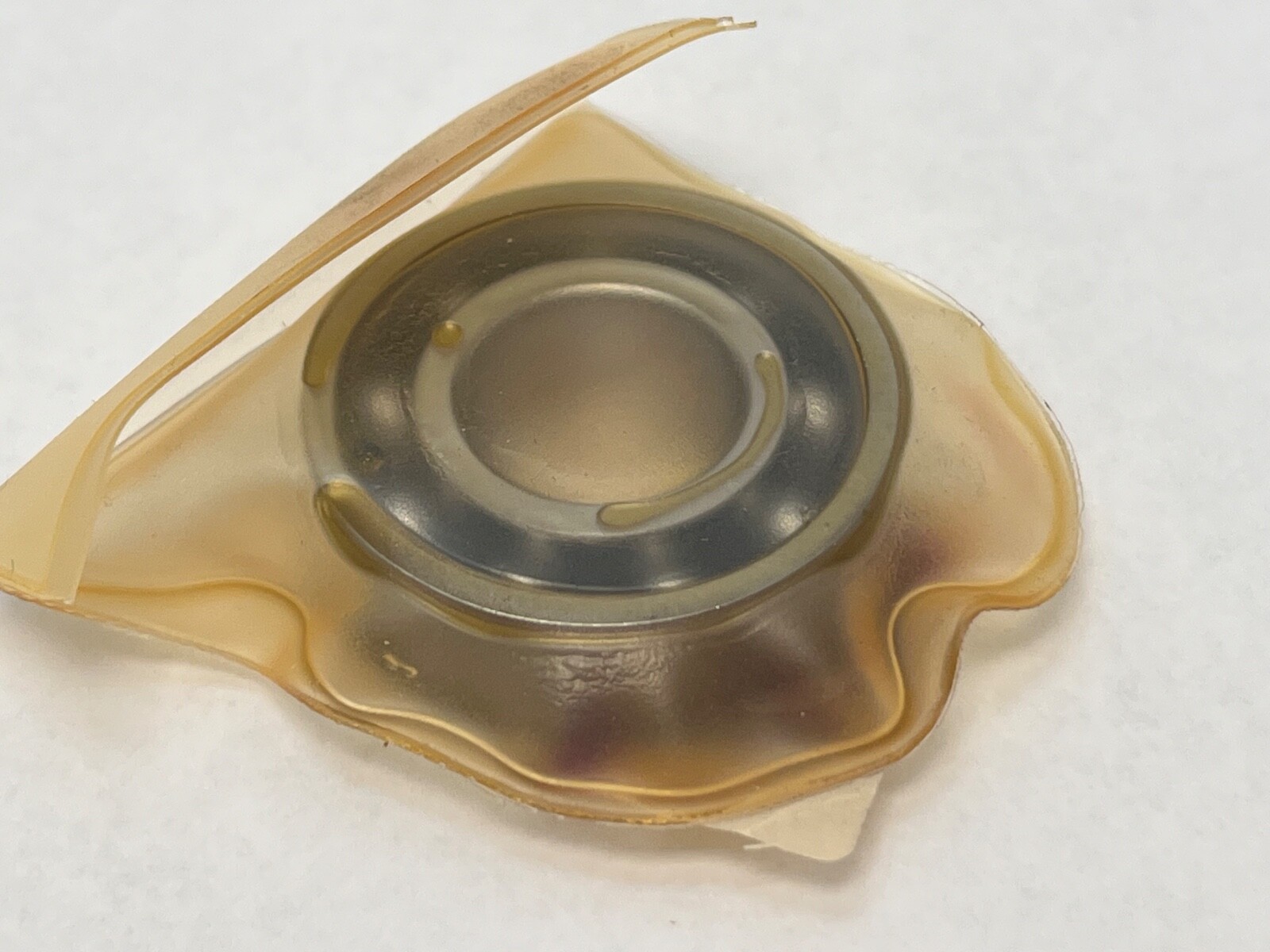

RHP 6002TBHP4 super precision single-row deep groove ball bearing, 1 Pc. ISO 6002 envelope, 15 mm bore, 32 mm outside diameter, 9 mm width, ABEC 7 / P4, open, machined phenolic cage.
6002 — ISO deep groove series 60, bore code 02 = 15 mm.
TB — one-piece machined laminated phenolic cage, inner-ring centred.
P4 — ISO P4 tolerance class, ABEC 7.
Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, inner-ring centred. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight. Series: 6000. Material: 52100 Chrome Steel. Number Of Rows: 1. Unit Quantity: 1 Pc.
Envelope: 15 x 32 x 9 mm.
Cross-Reference 1: Fafnir MM9102K, ABEC 7, 15 x 32 x 9 mm. Cross-Reference 2: SKF 6002/P4. Cross-Reference 3: NSK 6002 P4. MPN Variants: 6002TBHP4, 6002-TBH-P4, 6002P4, 6002 TBH P4, MM9102KCR.
Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm.
Precision Class: ABEC 7 / P4, with a machined phenolic cage.
Closure Type: Open.
