Availability:
7 in stock

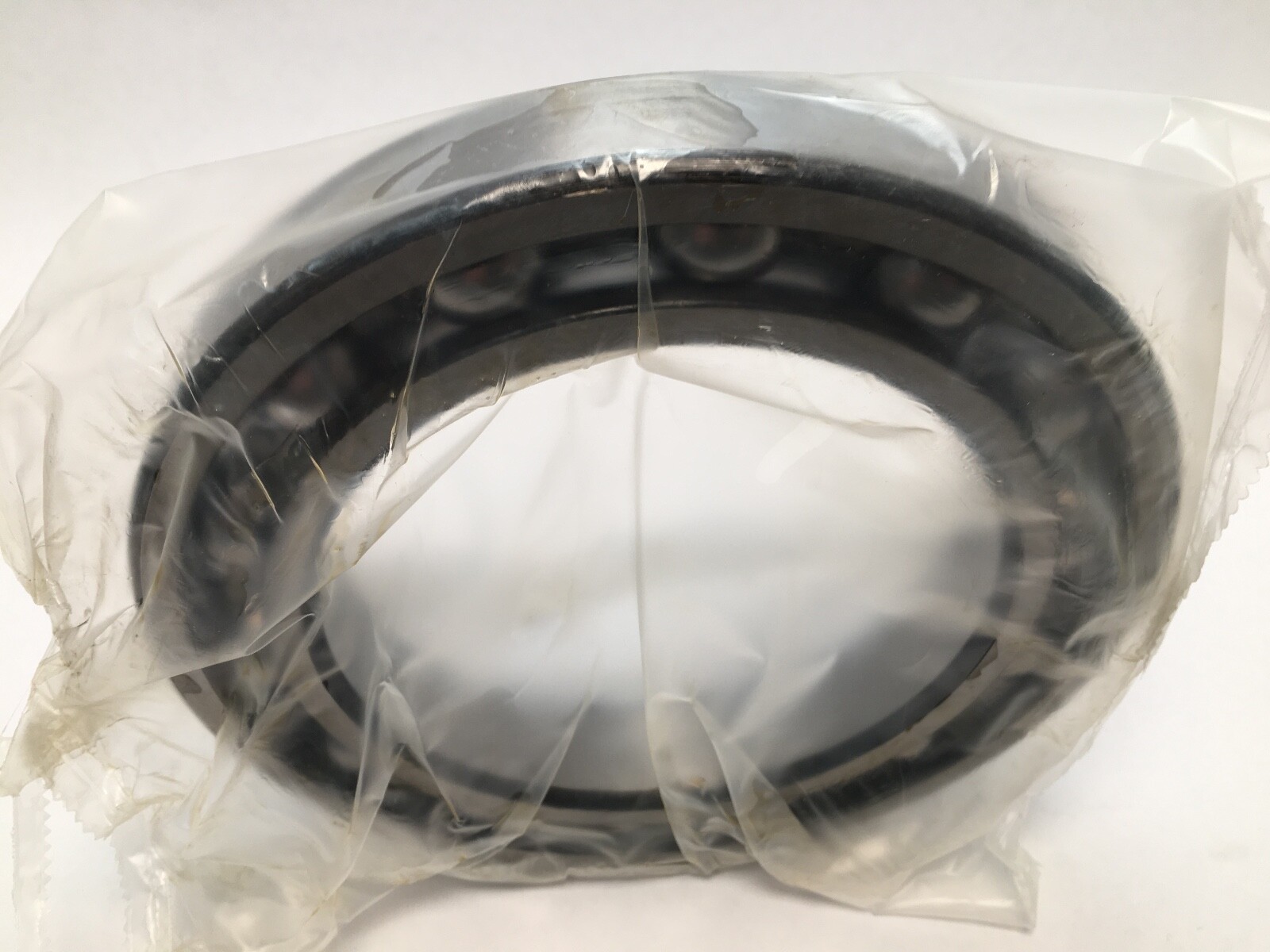

Deep groove ball bearing, 120 x 180 x 28 mm, open both sides, pressed steel cage, straight bore. 97 kN dynamic capacity, 4,800 rpm on oil.
List Price
$242.45
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6204CG200U2 |
| Model | 6024 CG 200 U2 |
| Bearing Type | Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Material | Chrome steel |
|---|---|
| Series | 60 |
| Lubricant | Grease or oil |
| Base Number | 6024 |
| Common Misspellings | 6204CG200U2, 6024 CG200U2, NSK6024 |
| Mpn Variants | 6024CG200U2, 6024 CG 200 U2, 6024CG200-U2, 6024 |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating | 97,000 N |
| Static Load Rating | 80,000 N |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Item Weight | 2.08 kg (4.59 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 4,000 rpm grease; 4,800 rpm oil |
| Harmonization Code | 8482.10.50 |
| Bearing Material | Chrome steel |
| Cross Reference 1 | SKF 6024 |
|---|---|
| Cross Reference 2 | FAG 6024 |
| Cross Reference 3 | NTN 6024 |
| Cross Reference 4 | Timken 6024 |
| Cross Reference 6 | Koyo 6024 |
| Cross Reference 7 | MRC 6024 |
| Cross Reference 8 | SNR 6024 |
| Cross Reference 9 | 6024DDU (related, contact-sealed execution) |

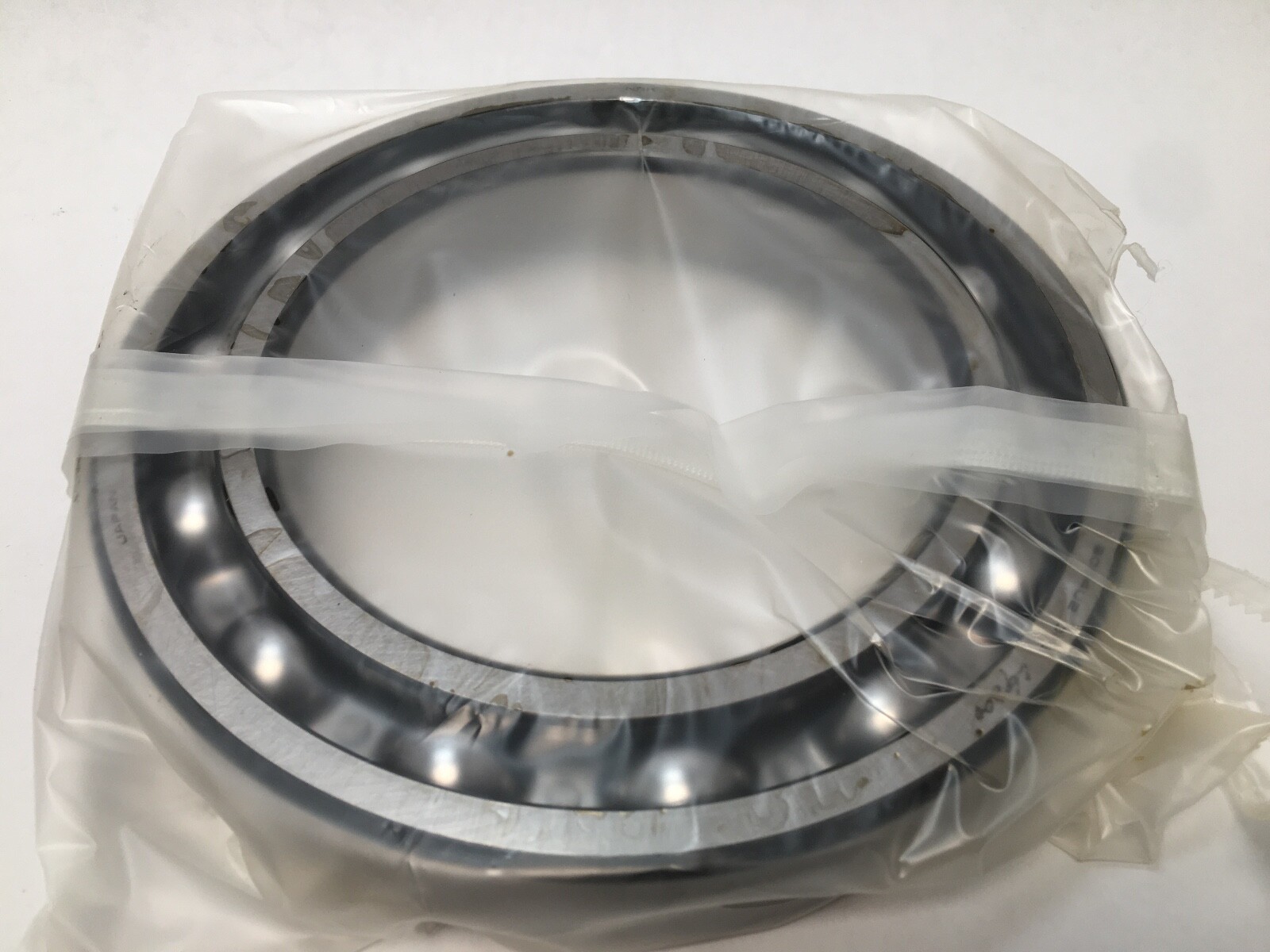

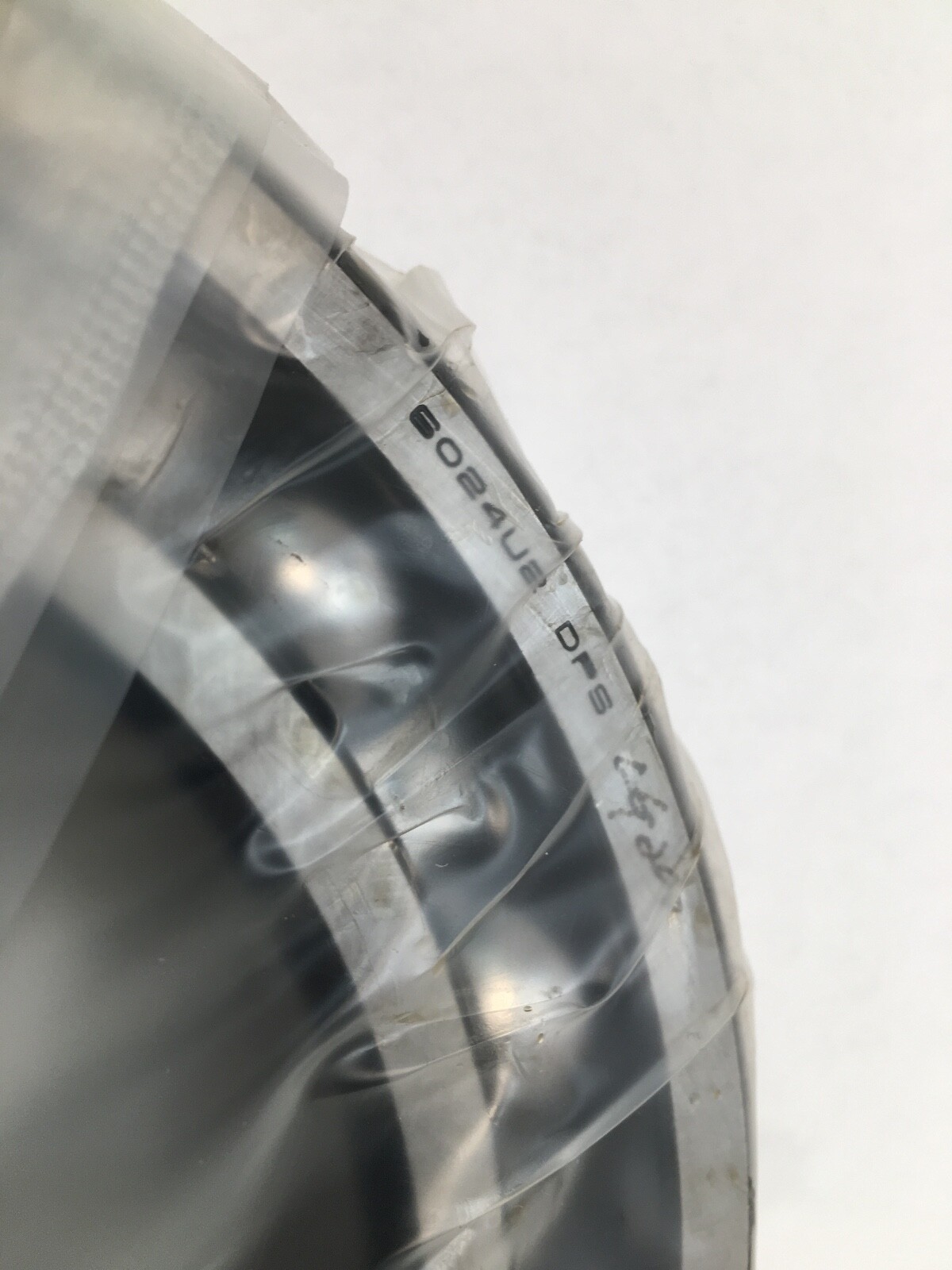

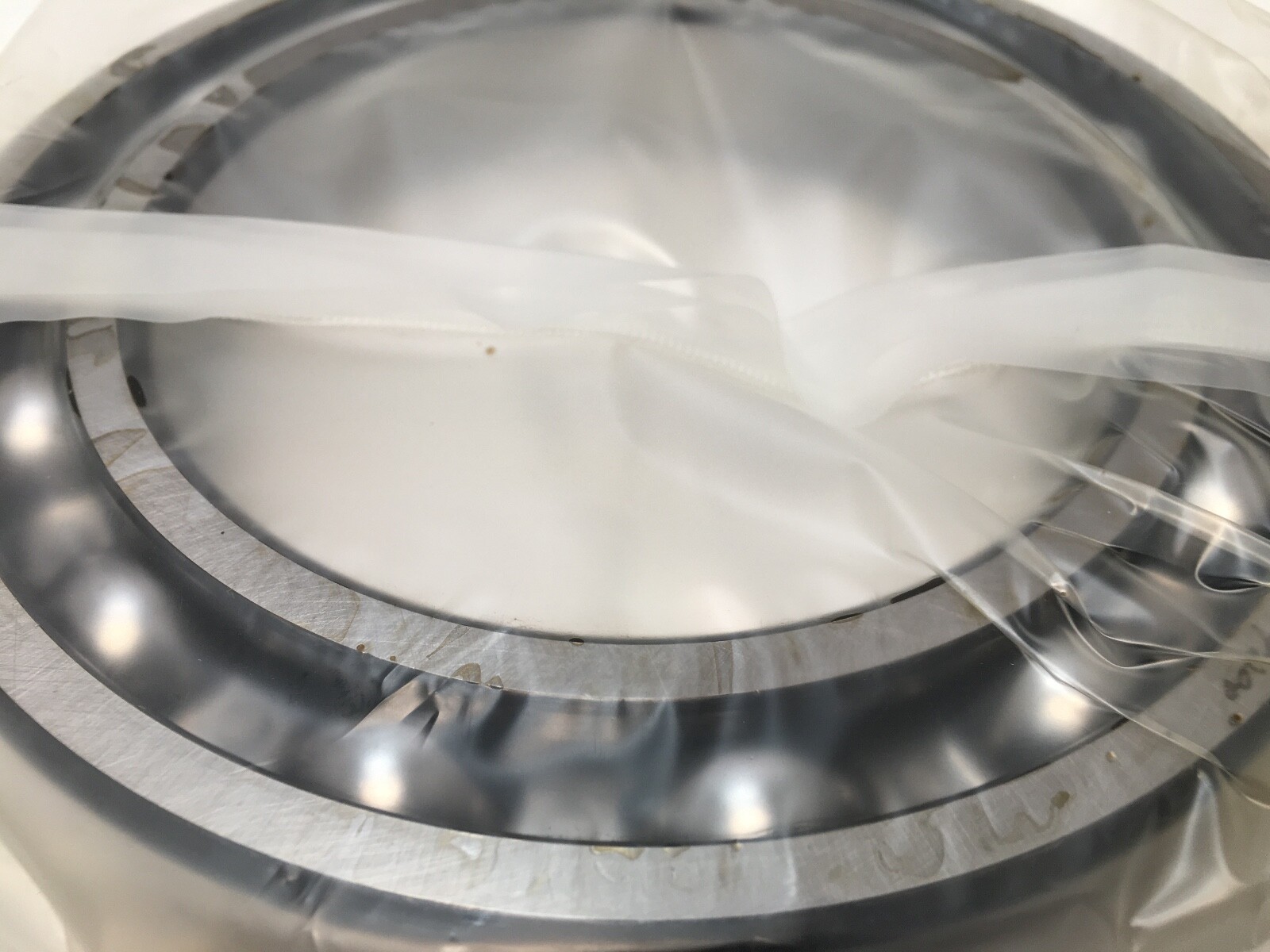

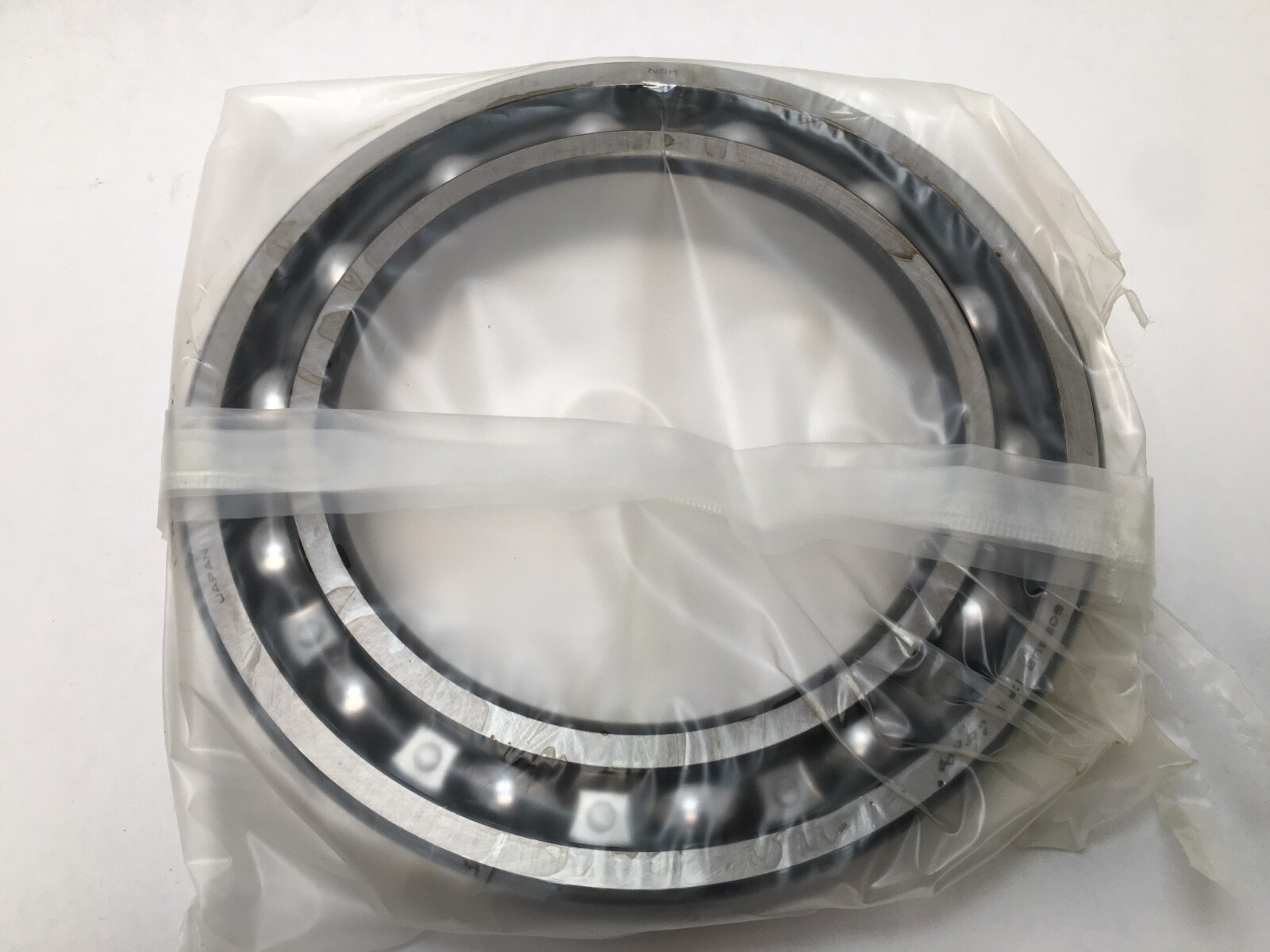

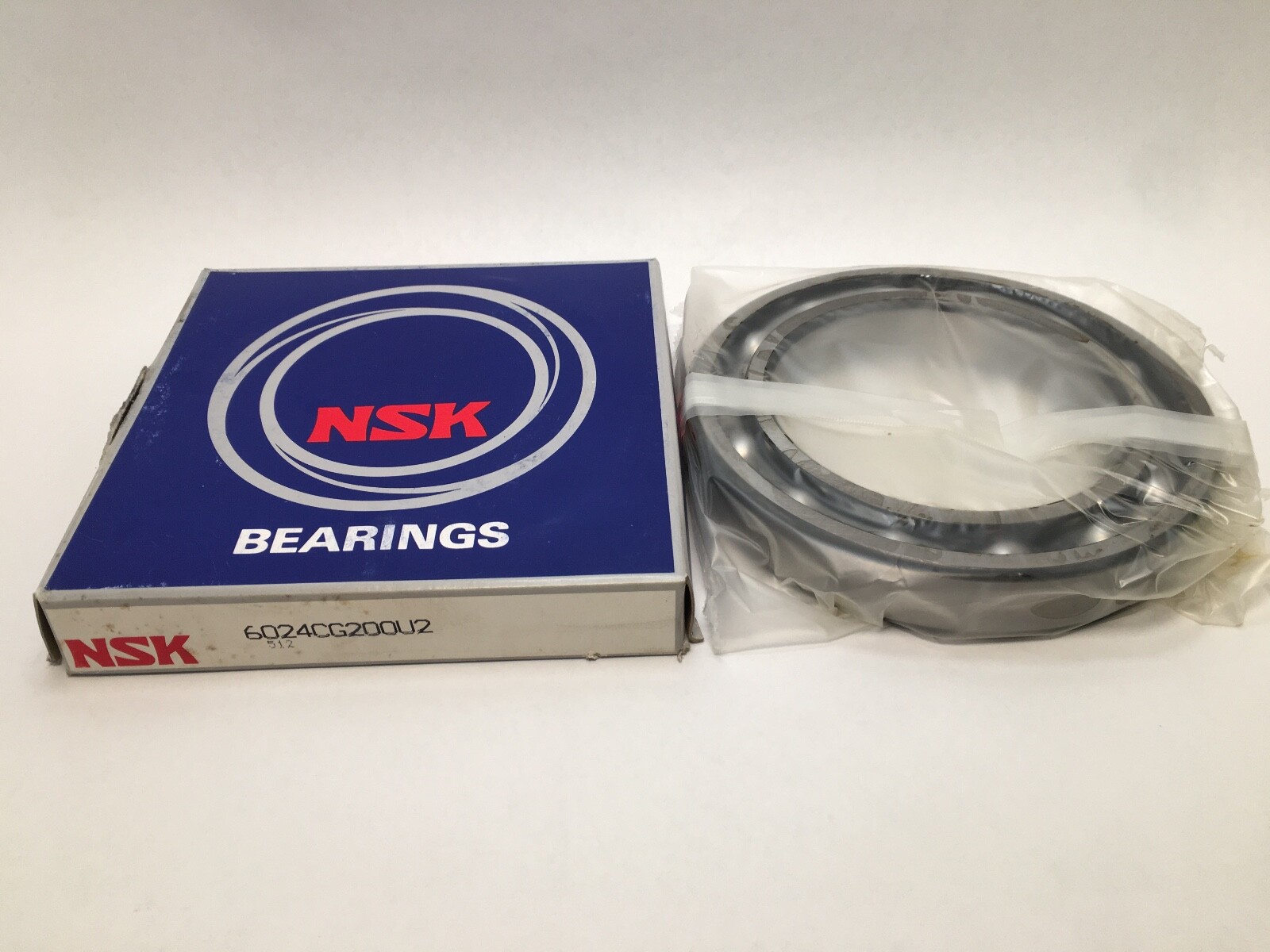

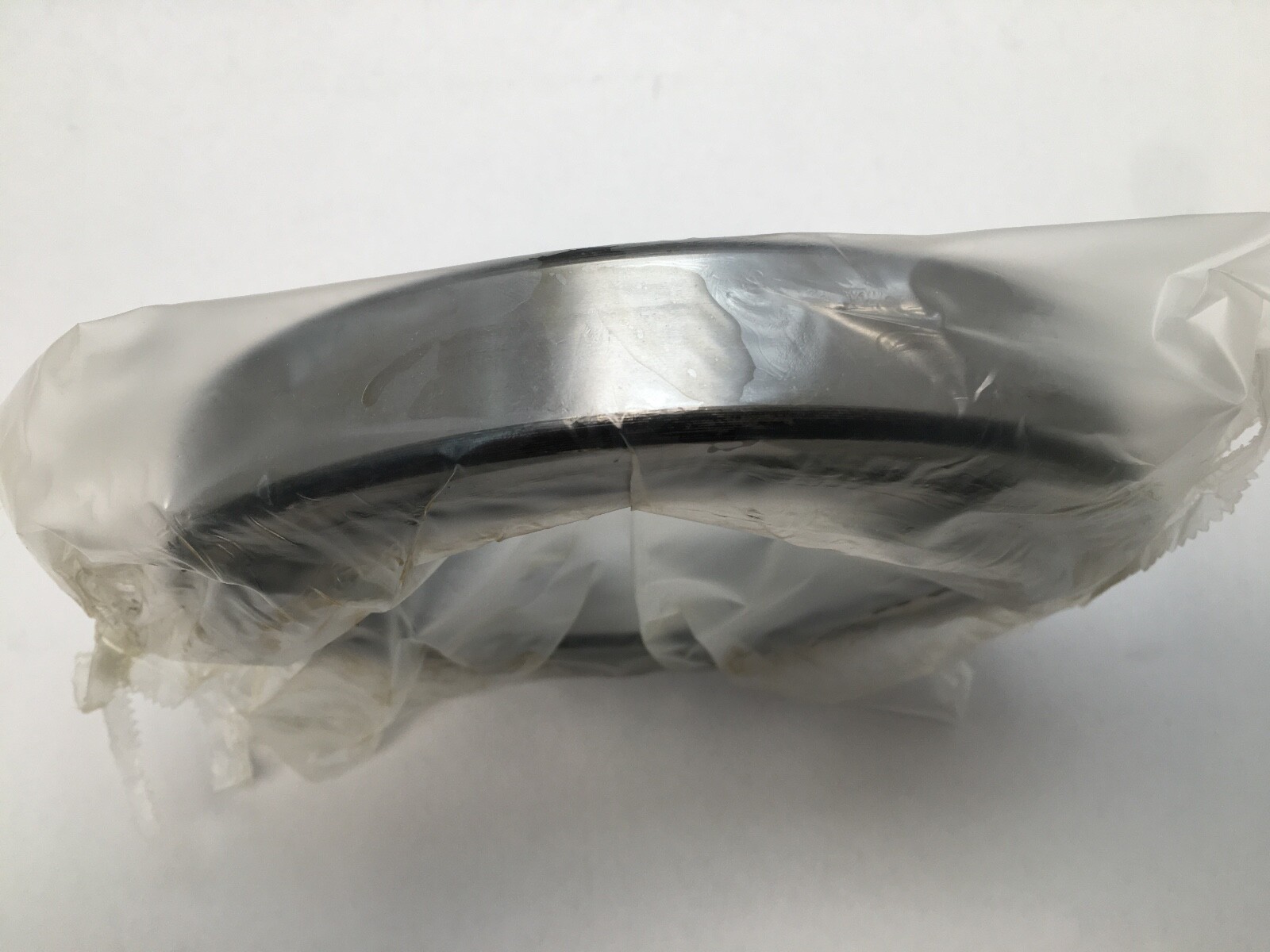

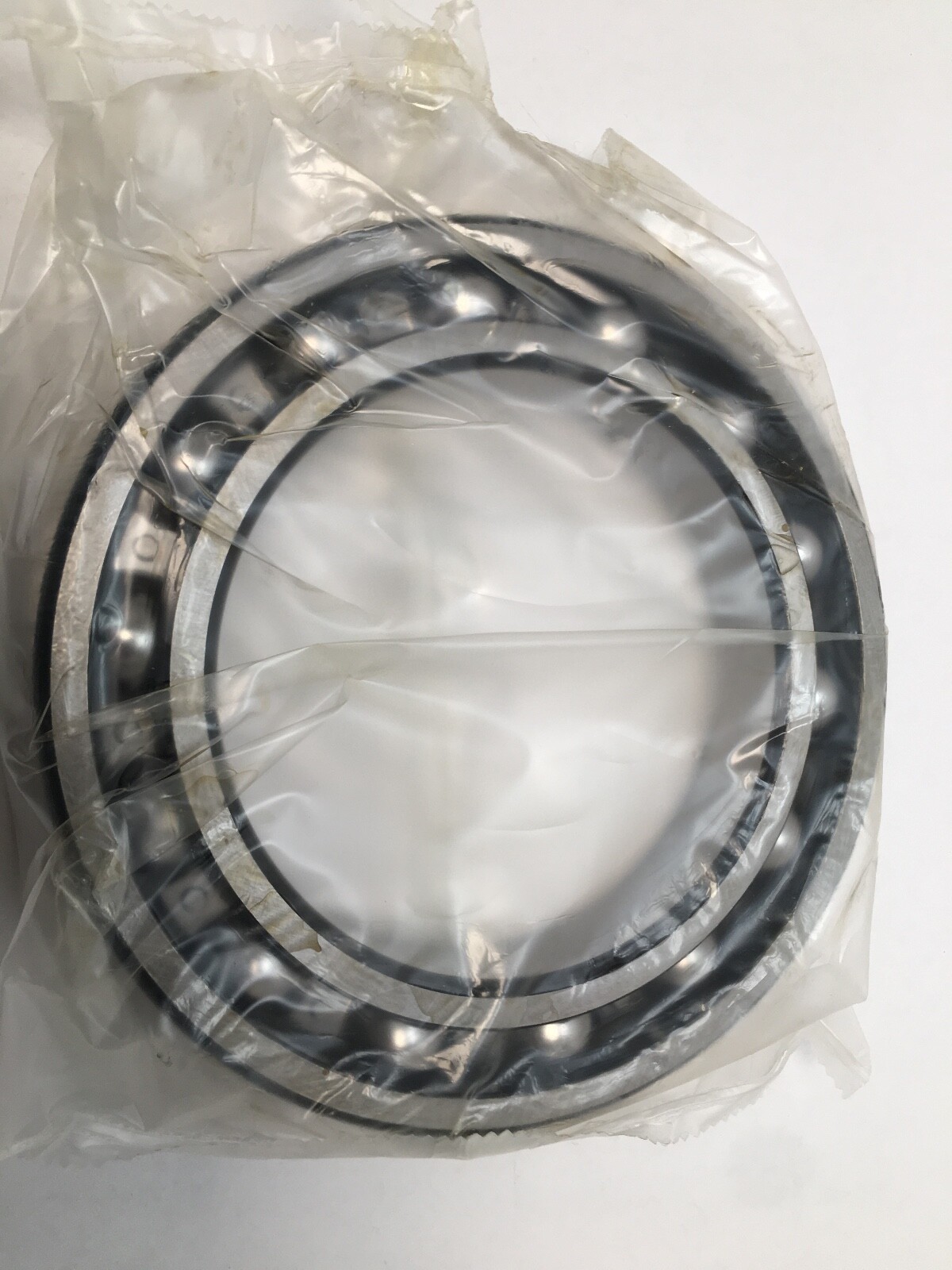

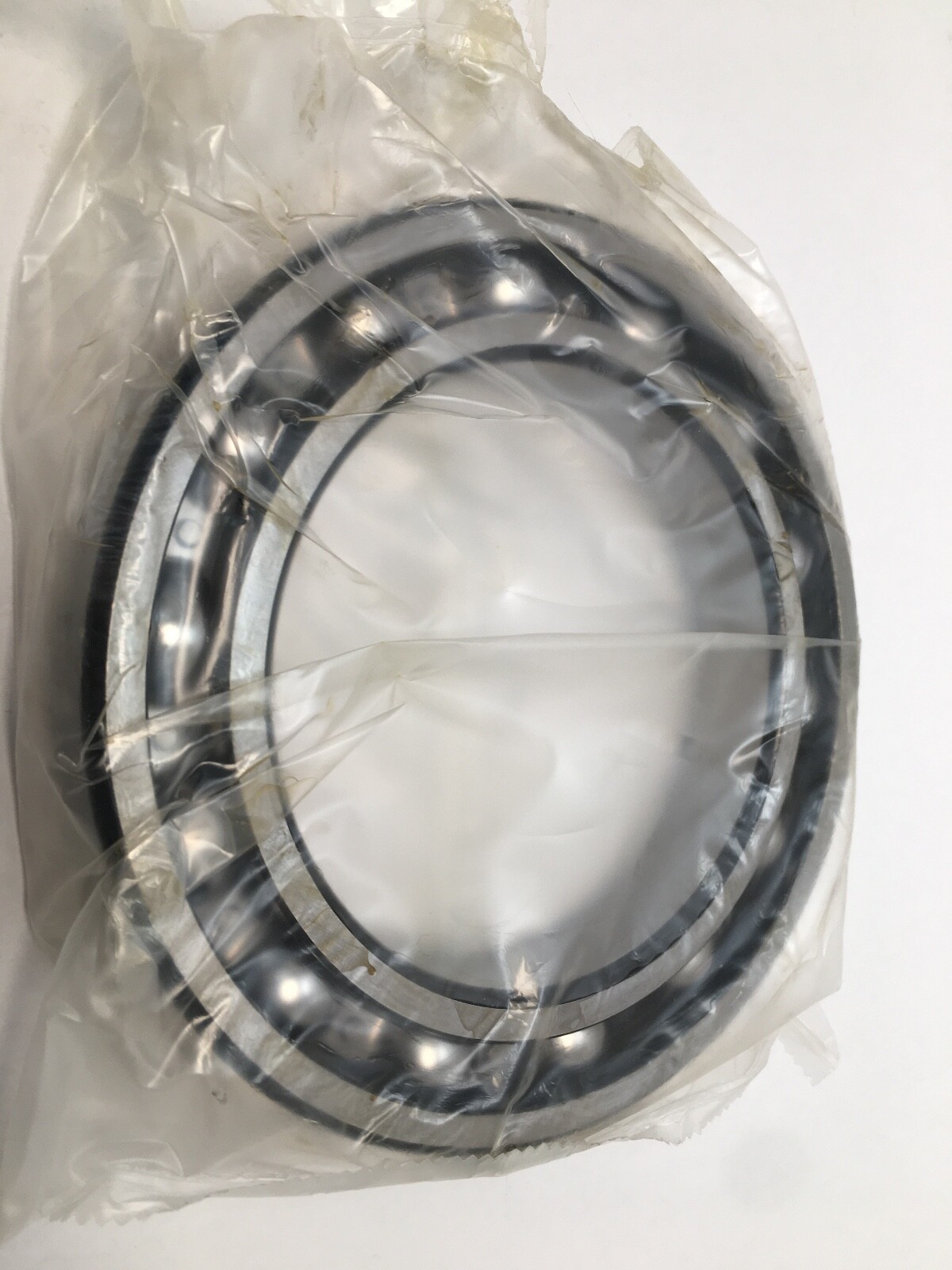

NSK 6024CG200U2 single-row deep groove ball bearing. Bore Diameter: 120 mm. Outside Diameter: 180 mm. Overall Width: 28 mm. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Series: 60. Base Number: 6024. Cage Material: Pressed steel. Bearing Material: Chrome steel. Unit Quantity: 1 Pc.
6024 — ISO 60 extra-light dimension series, bore code 24, giving a 120 mm bore in a slim 28 mm section.
Dynamic Load Rating: 97,000 N. Static Load Rating: 80,000 N. Limiting Speed: 4,000 rpm grease; 4,800 rpm oil. Item Weight: 2.08 kg (4.59 lb). Precision Class: ABEC 1 / P0.
The 60 series puts a large ball complement into a thin cross-section, so the 6024 carries 97 kN of dynamic radial capacity on a shaft where a heavier 62 or 63 series would not fit. Deep groove geometry takes radial load with a useful share of thrust in either direction. Open construction lets the housing supply grease or circulating oil, which is what allows the 4,800 rpm oil-bath figure.
Diameter of shaft abutment, da min: 129 mm. Ball count: 14. Ball diameter: 19.05 mm (0.75 in). The straight bore takes an interference fit on the shaft in the usual way for a rotating-inner-ring application.
Unit Quantity: 1 Pc. Single bearing, open on both faces, supplied as one loose piece.
6024 is an ISO boundary-dimension number, so the 120 x 180 x 28 mm envelope is common to every major maker: SKF 6024, FAG 6024, NTN 6024, Timken 6024, RHP 6024, Koyo 6024, MRC 6024 and SNR 6024 all share it. Sealed and shielded executions of the same number — 6024DDU, 6024ZZ, 6024VV — occupy the same envelope but change the closure and the speed rating.
