Availability:
1 in stock

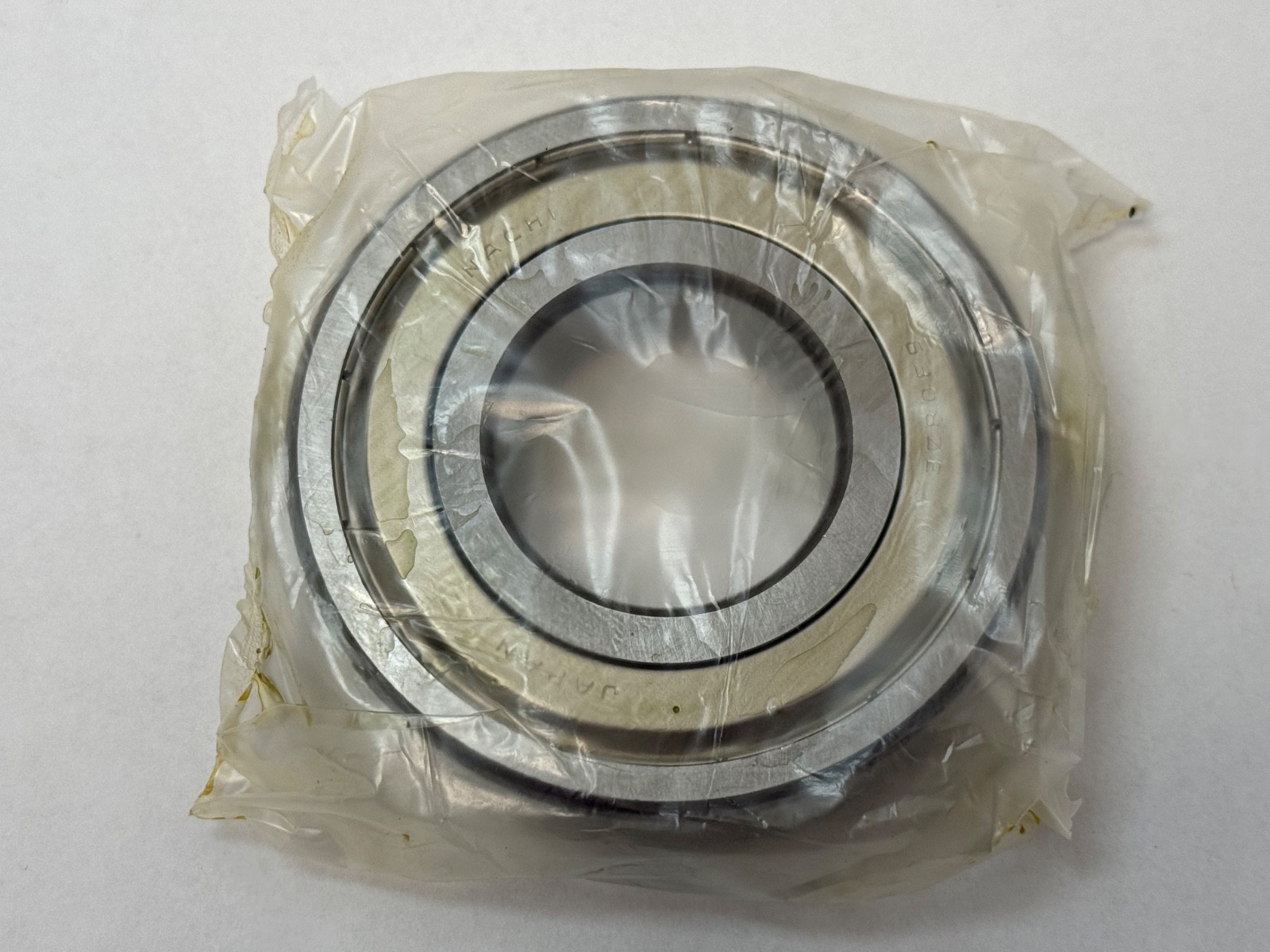

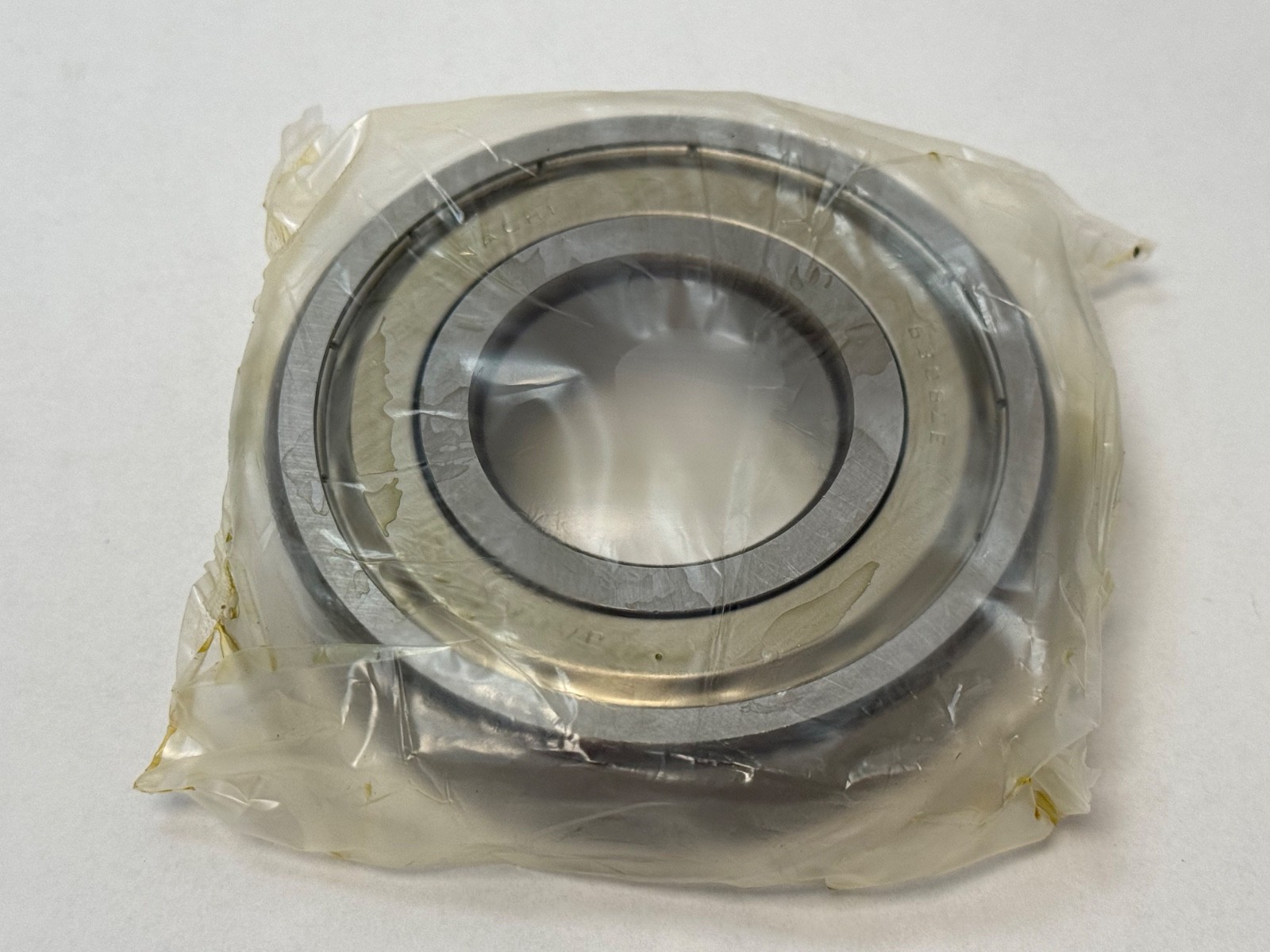

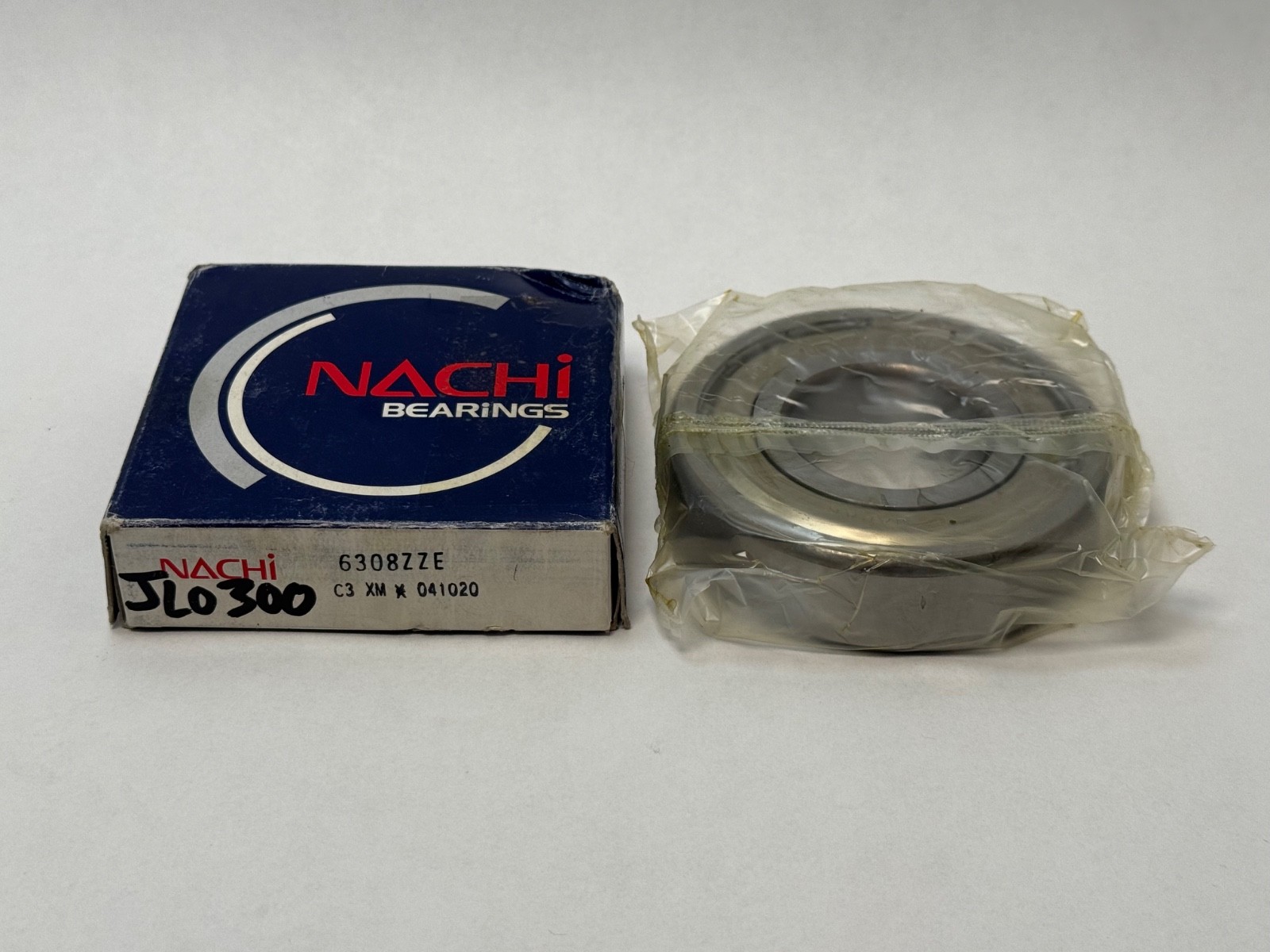

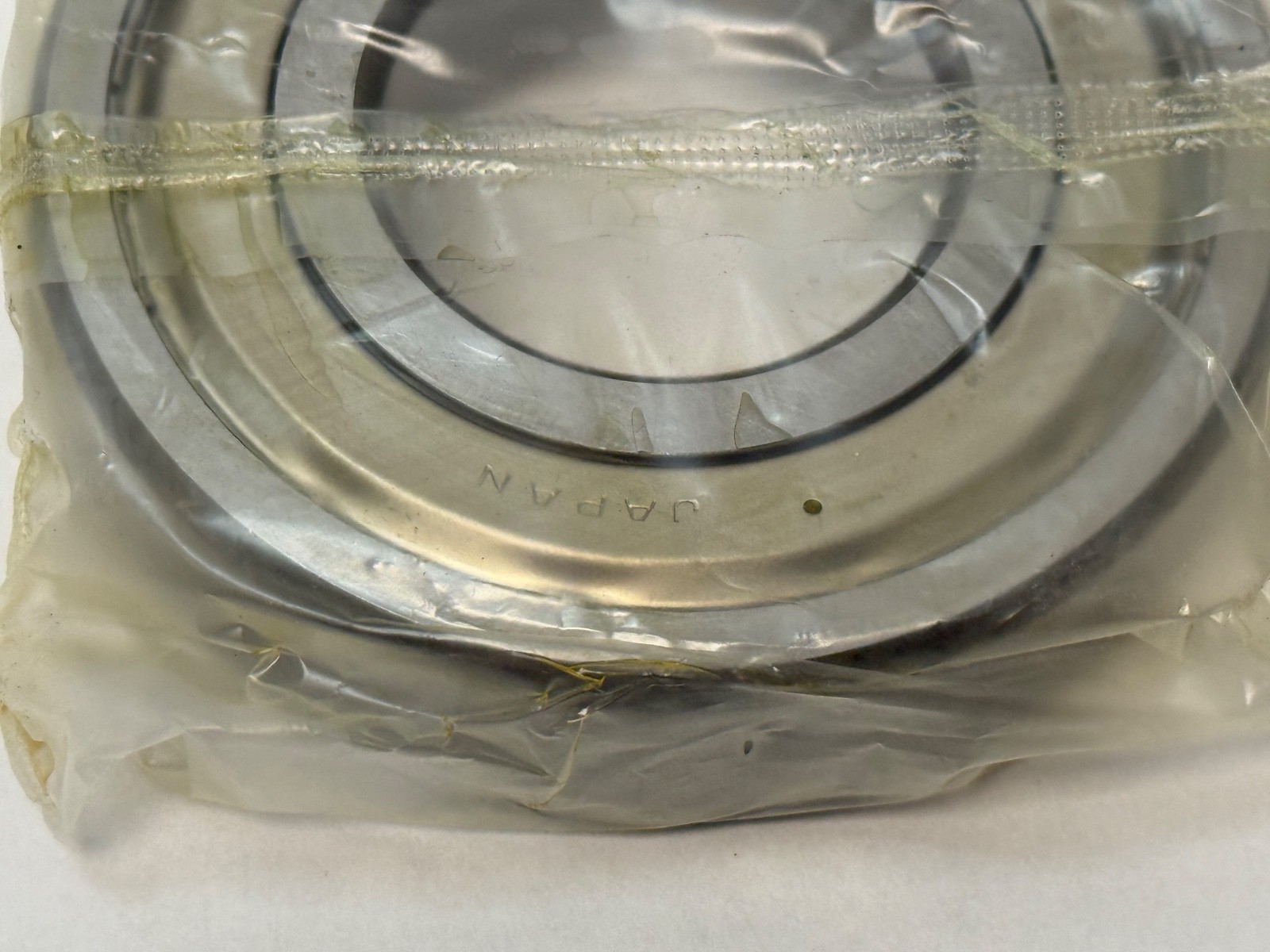

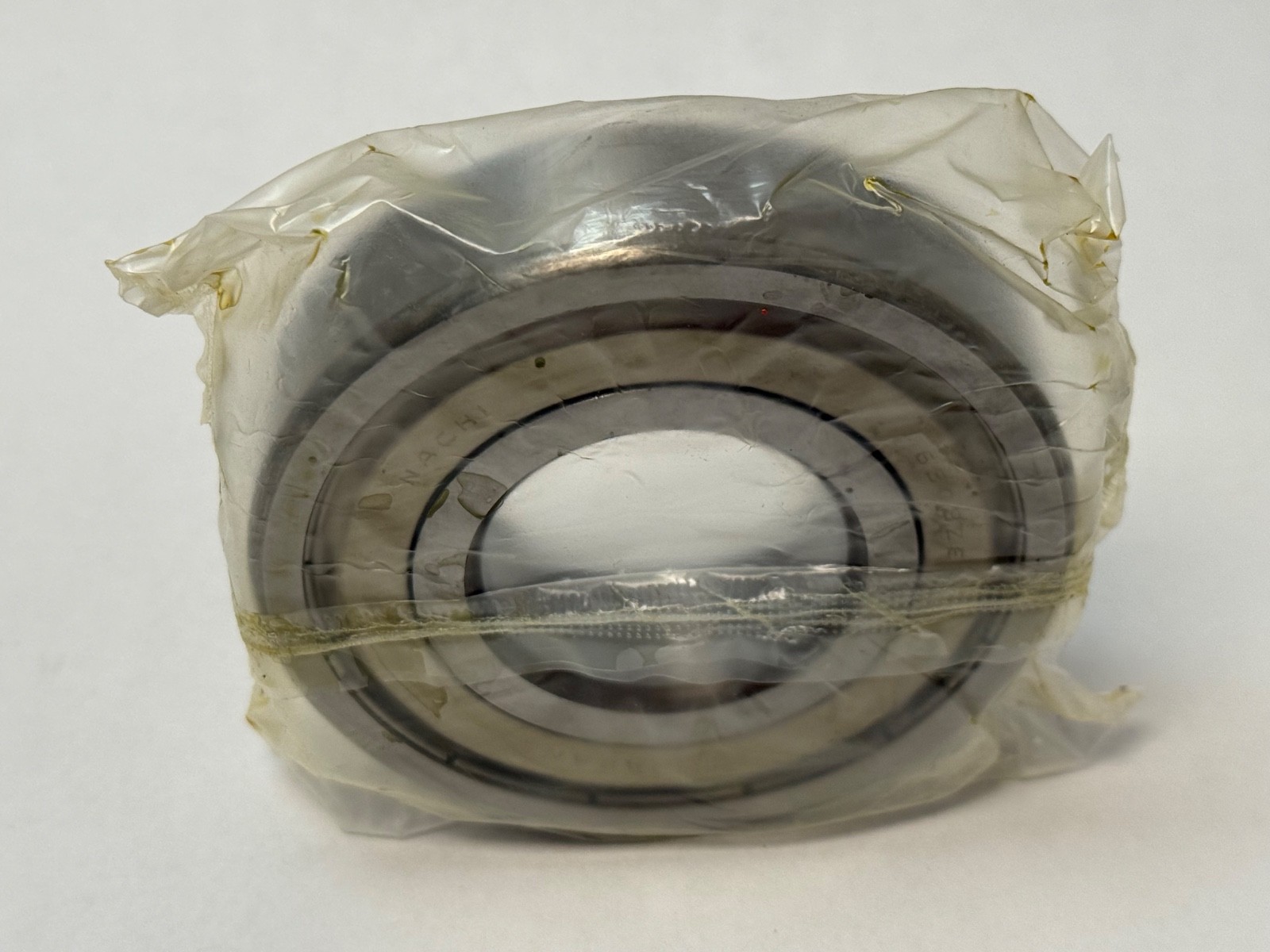

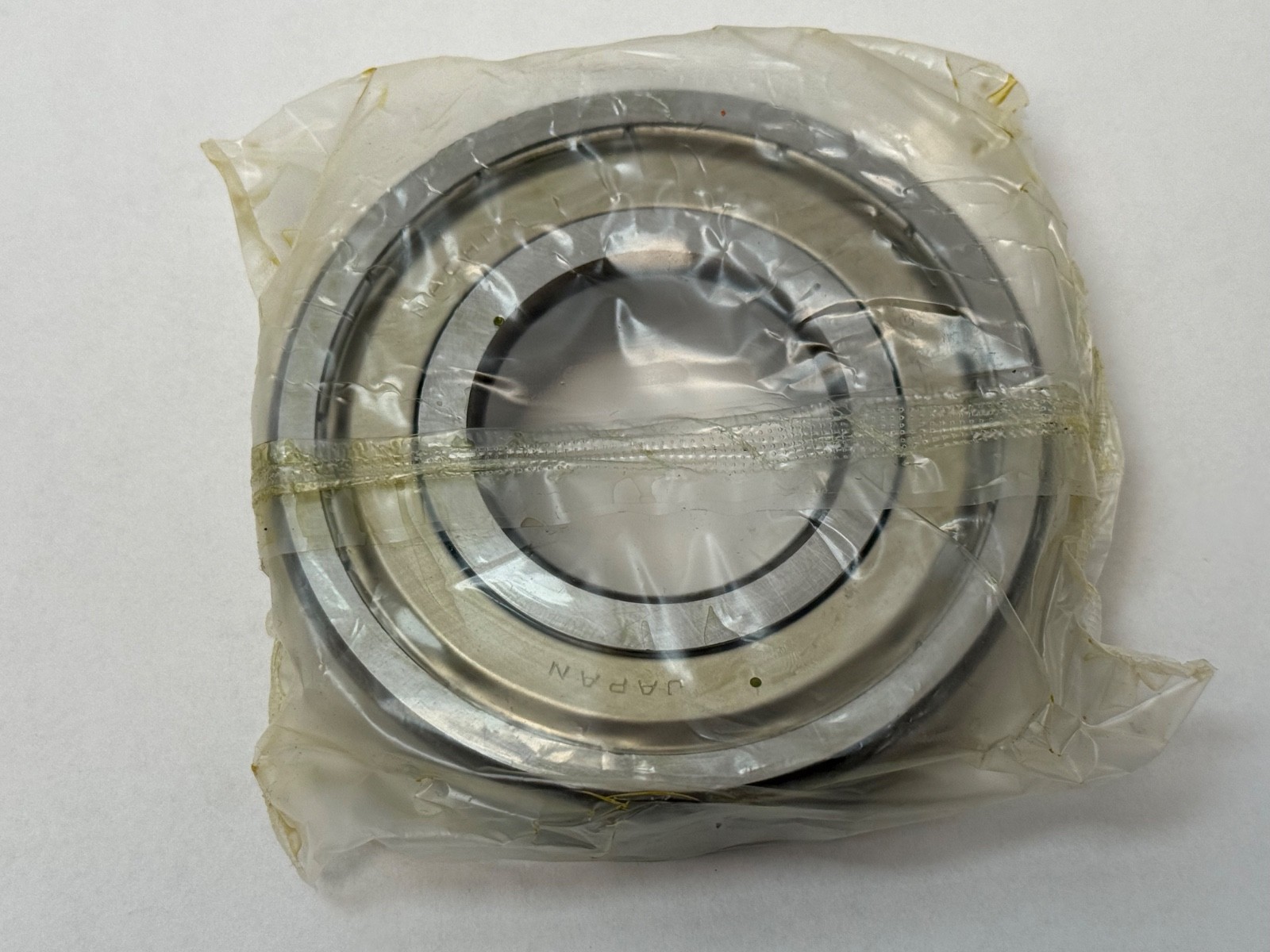

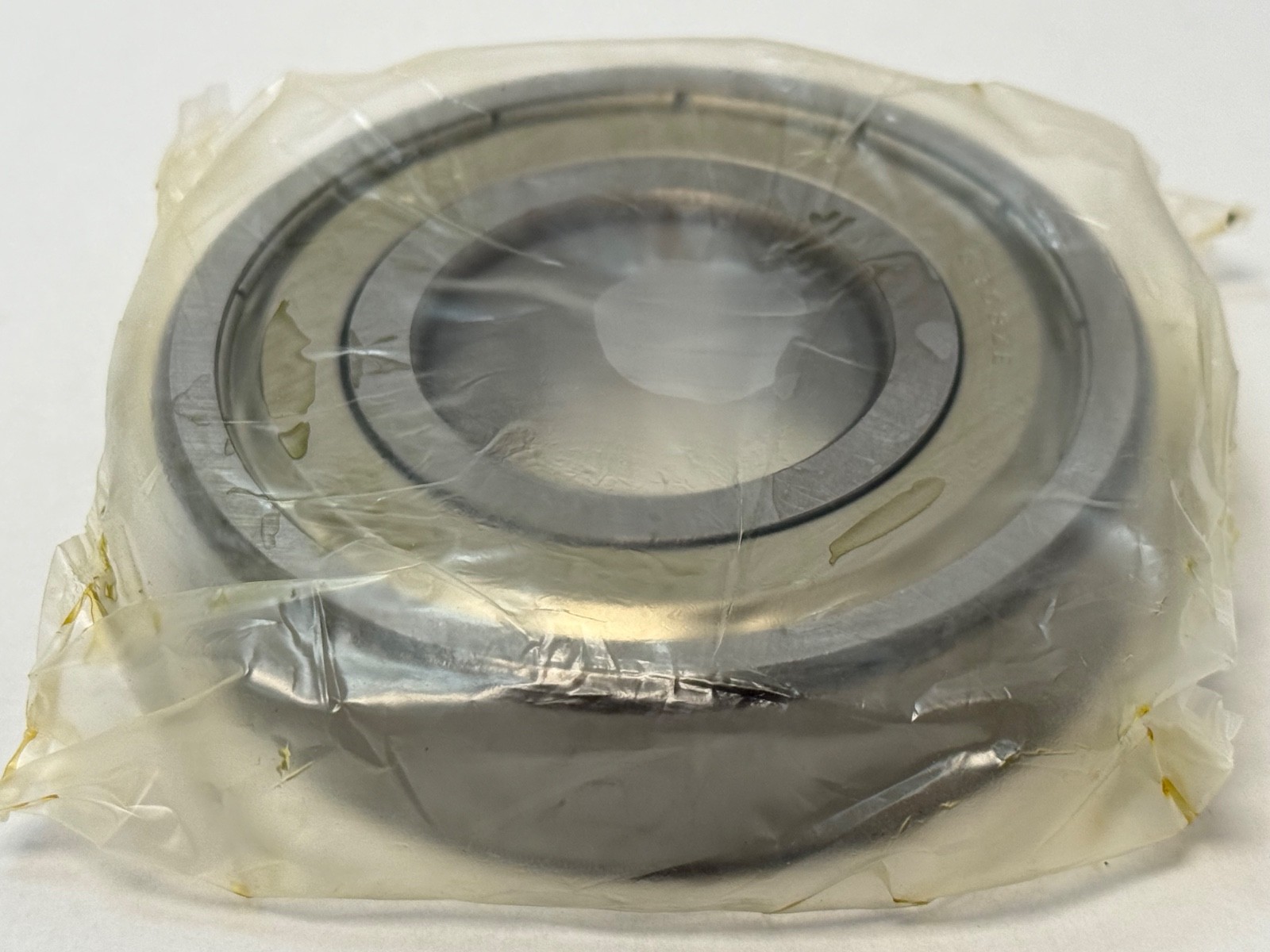

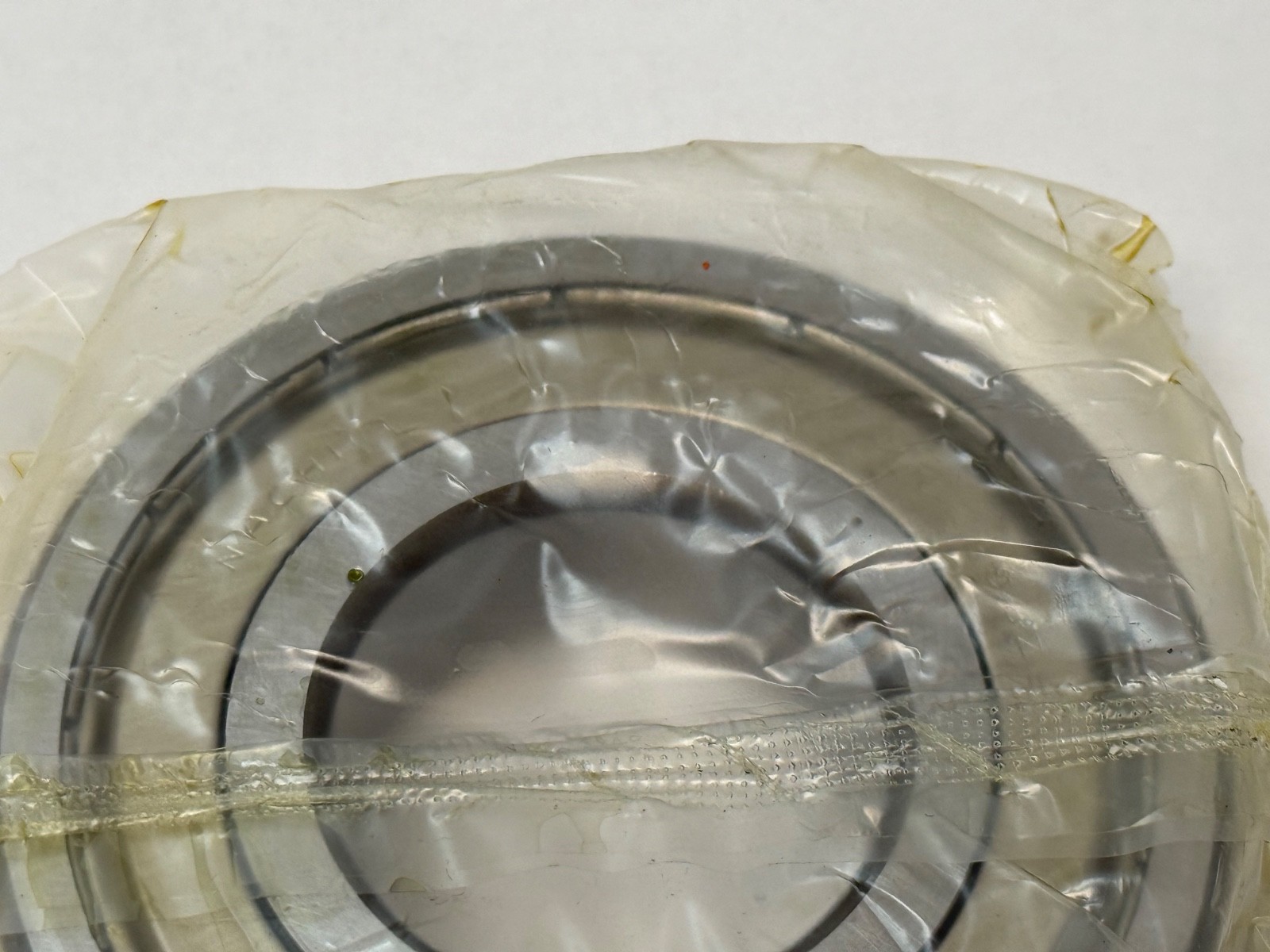

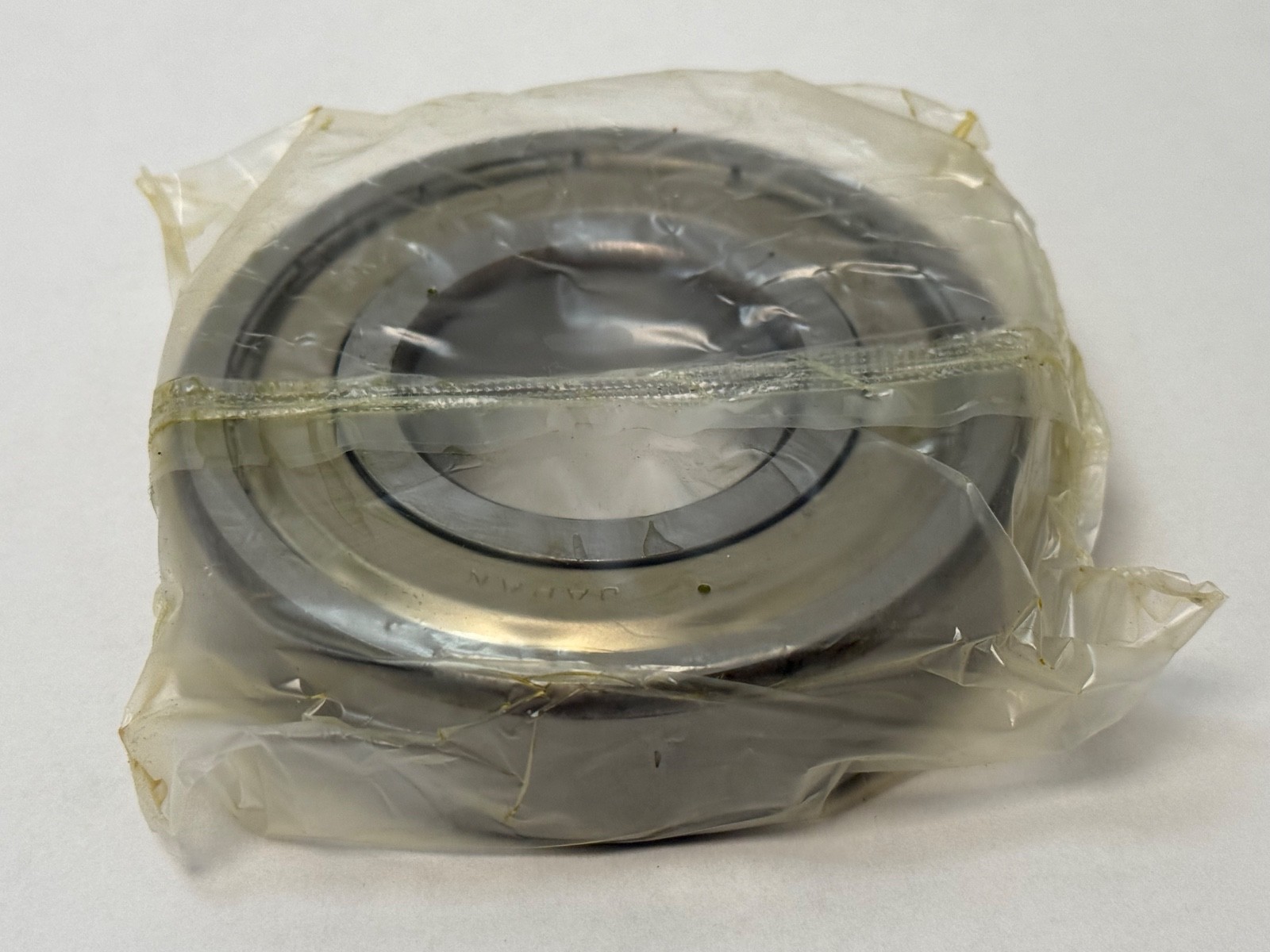

6308ZZE C3 deep groove ball bearing, 40 mm bore, 90 mm OD, 23 mm wide, steel shields both sides. Rated 40,500 N dynamic, 24,100 N static, 7,800 rpm grease.
List Price
$25.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Nachi |
|---|---|
| MPN | 6308ZZE |
| Model | 6308ZZEC3 |
| Bearing Type | Ball Bearing, Shields both sides |
| ID | 40 mm |
| OD | 90 mm |
| Width | 23 mm |
| Dynamic Load Rating | 40,500 N |
|---|---|
| Static Load Rating | 24,100 N |
| Limiting Speed | 7,800 rpm grease |
| Internal Clearance | C3 |
| Base Number | 6308 |
| Industry Terms | deep groove ball bearing, radial ball bearing, shielded bearing, ZZ bearing, 2Z bearing, C3 clearance |
| Common Misspellings | 6208-ZZ-E-C3, 6308 ZZE, 6308ZZ E, 6308-2ZE |
| Mpn Variants | 6308ZZE, 6308ZZE C3, 6308ZZEC3, 6308-ZZE-C3, 6308ZZ, 6308-ZZ-C3, 6308-2Z |
| Compatible With Replaces | SKF 6308-2Z/C3, FAG 6308-2Z-C3, NSK 6308ZZC3, NTN 6308ZZC3, Koyo 6308ZZC3 |
| Series | 6300 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Cross Reference 1 | SKF 6308-2Z/C3 |
|---|---|
| Cross Reference 2 | FAG 6308-2Z-C3 |
| Cross Reference 3 | NSK 6308ZZC3 |
| Cross Reference 4 | NTN 6308ZZC3 |
| Cross Reference 6 | Timken/Fafnir 308KDD |
| Cross Reference 7 | MRC 308SFF |
Nachi 6308ZZE C3 single-row deep groove ball bearing with steel shields on both sides. Bore Diameter: 40 mm. Outside Diameter: 90 mm. Width: 23 mm. The bearing carries radial, axial or combined loads.
6308 — 63 medium series deep groove ball bearing, bore code 08 for a 40 mm bore.
ZZ — steel shields both sides, forming a labyrinth clearance.
E — Nachi execution suffix carried on the carton designation 6308ZZE.
C3 — internal clearance greater than normal, as marked on the carton.
Bearing Type: Deep groove ball bearing. Closure Type: Shields both sides. Internal Clearance: C3. Dynamic Load Rating: 40,500 N. Static Load Rating: 24,100 N. Limiting Speed: 7,800 rpm grease. Rolling Elements: Ball. Number Of Rows: 1. Unit Quantity: 1 Pc.
Bore Diameter: 40 mm. Outside Diameter: 90 mm. Width: 23 mm. Bore Type: Straight (cylindrical).
Standard ISO 6308 envelope, 40 x 90 x 23 mm. Equivalent shielded designations: SKF 6308-2Z/C3, FAG 6308-2Z-C3, NSK 6308ZZC3, NTN 6308ZZC3, Koyo 6308ZZC3, Timken/Fafnir 308KDD, MRC 308SFF.
What are the dimensions of the Nachi 6308ZZE?
40 mm bore, 90 mm outside diameter and 23 mm width.
What does ZZ mean on a Nachi bearing?
Steel shields fitted on both sides of the bearing.
What are the load ratings of the 6308ZZE?
Dynamic Load Rating: 40,500 N. Static Load Rating: 24,100 N.
