MRC211SZZCDeep Groove Ball Bearing — Cartridge Width, 55 mm ID, 100 mm OD, 1-5/16 in Width, Two Rubber Seals

Product Description

What this part is:

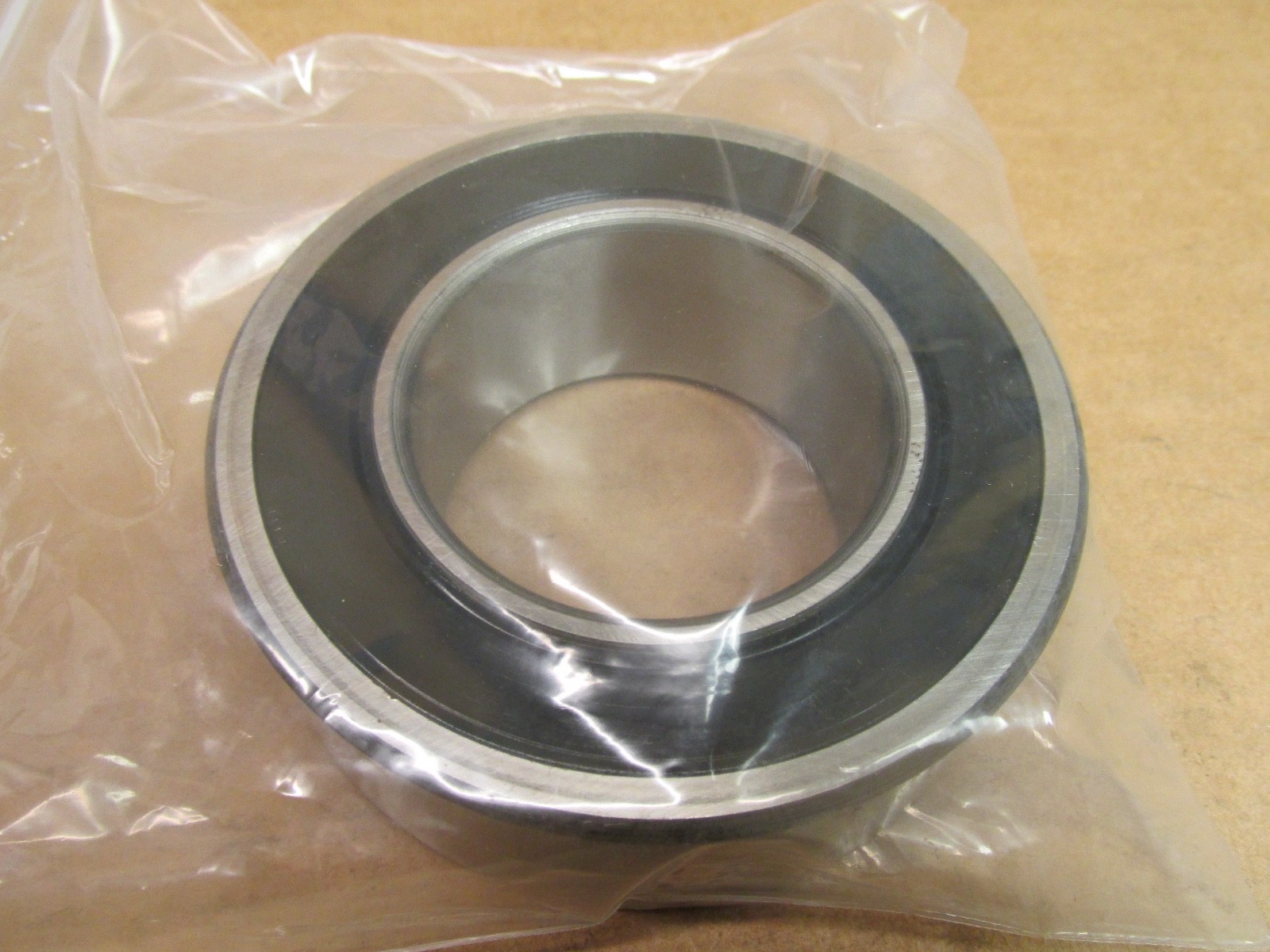

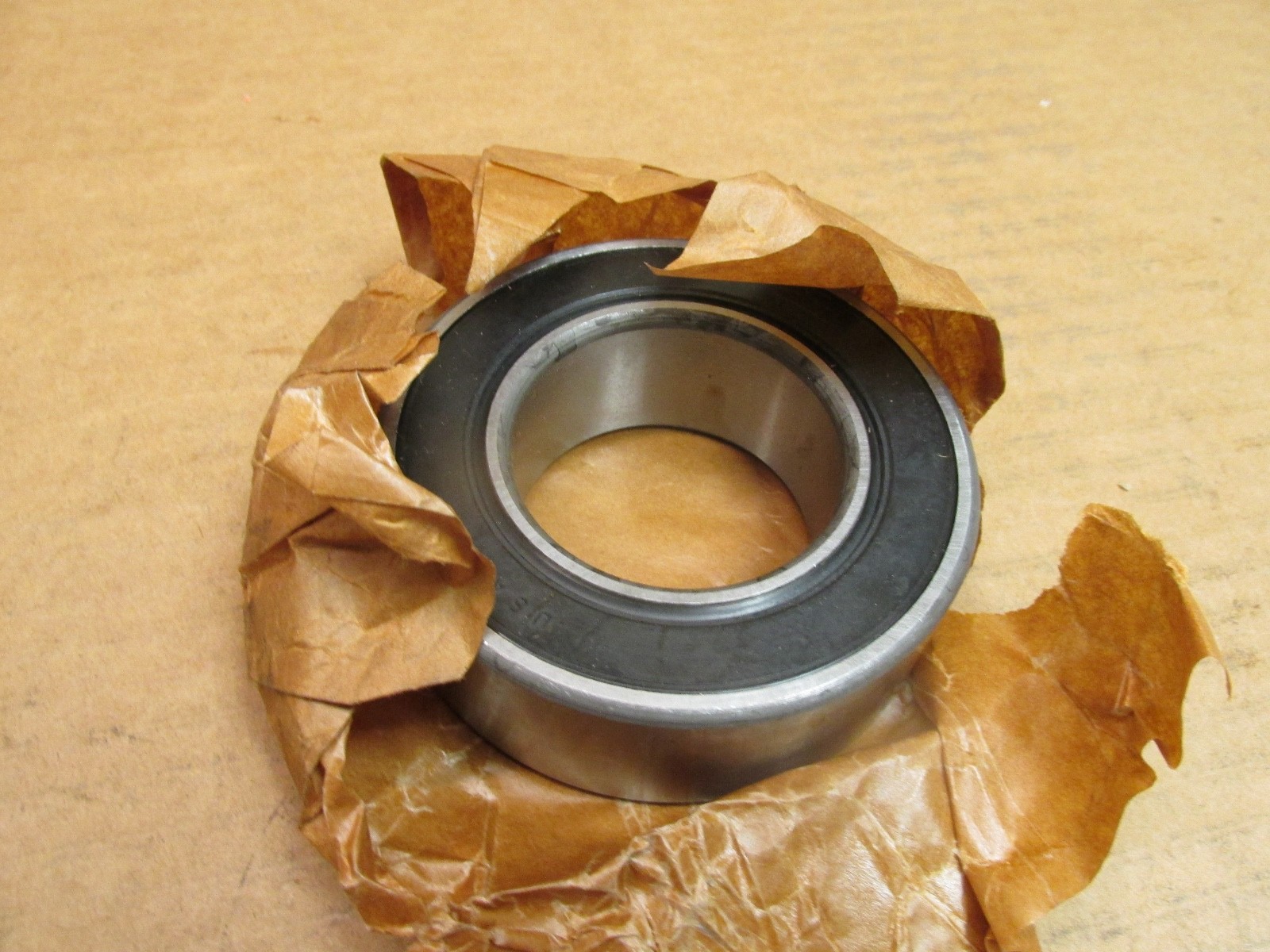

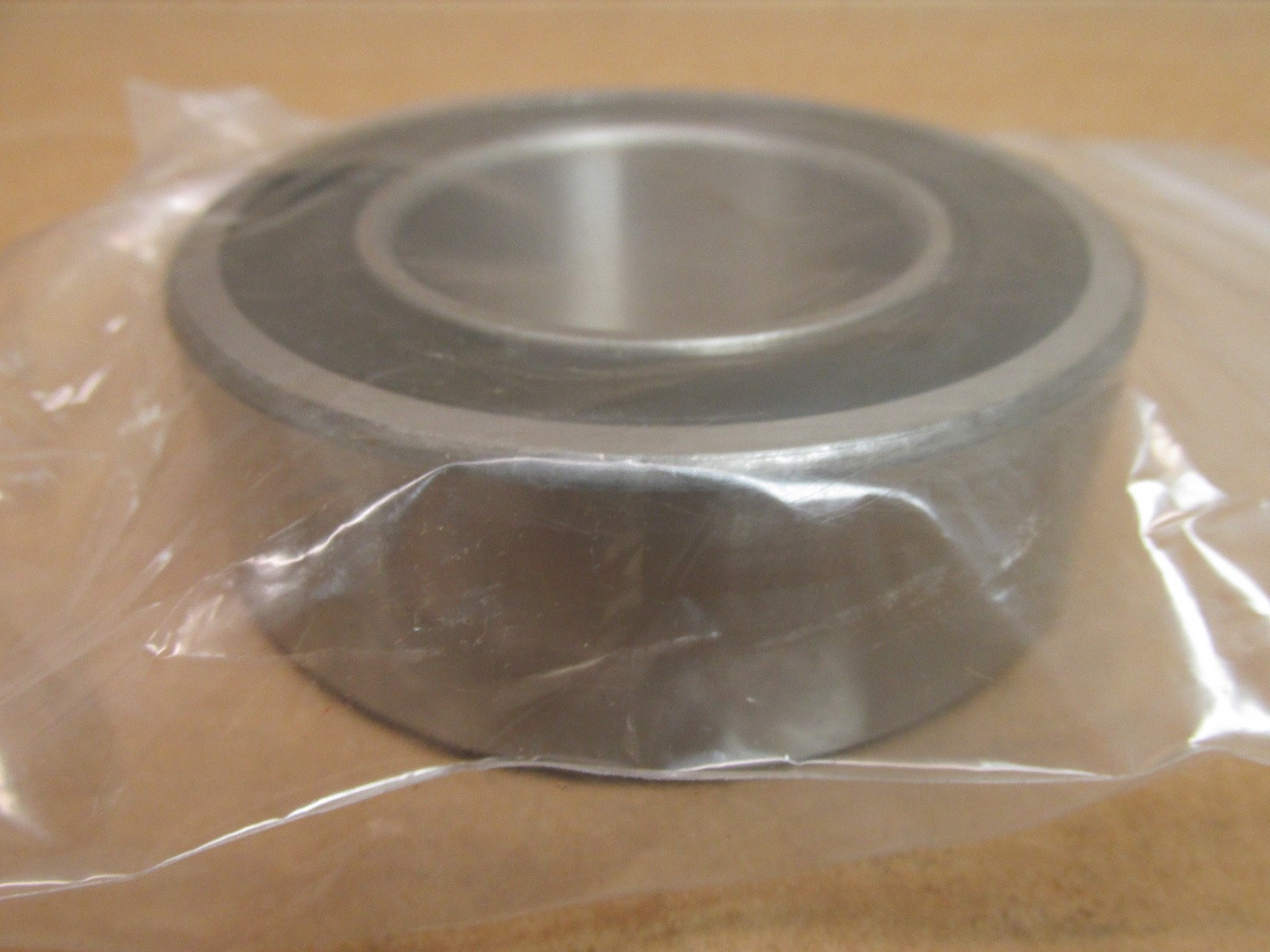

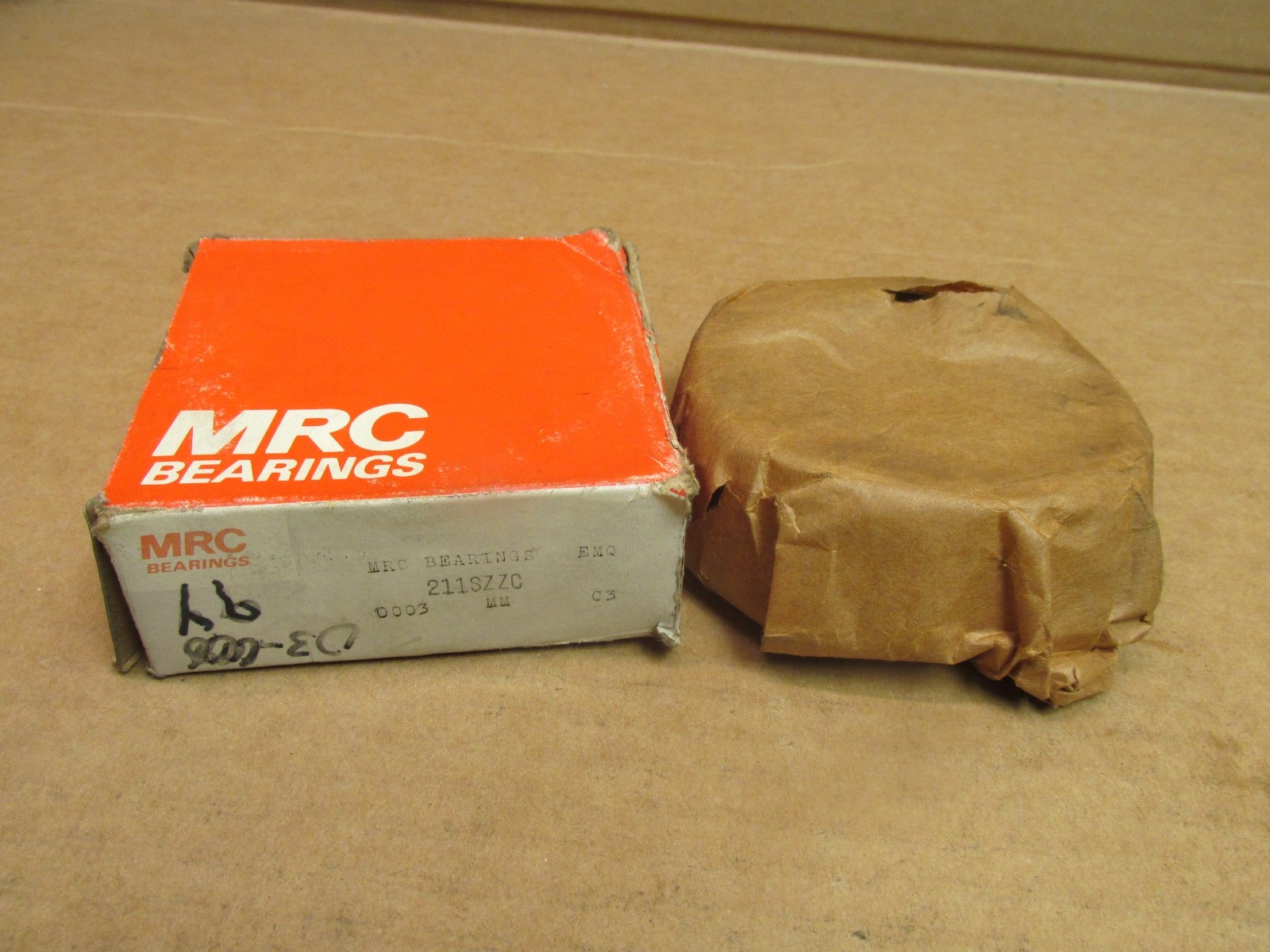

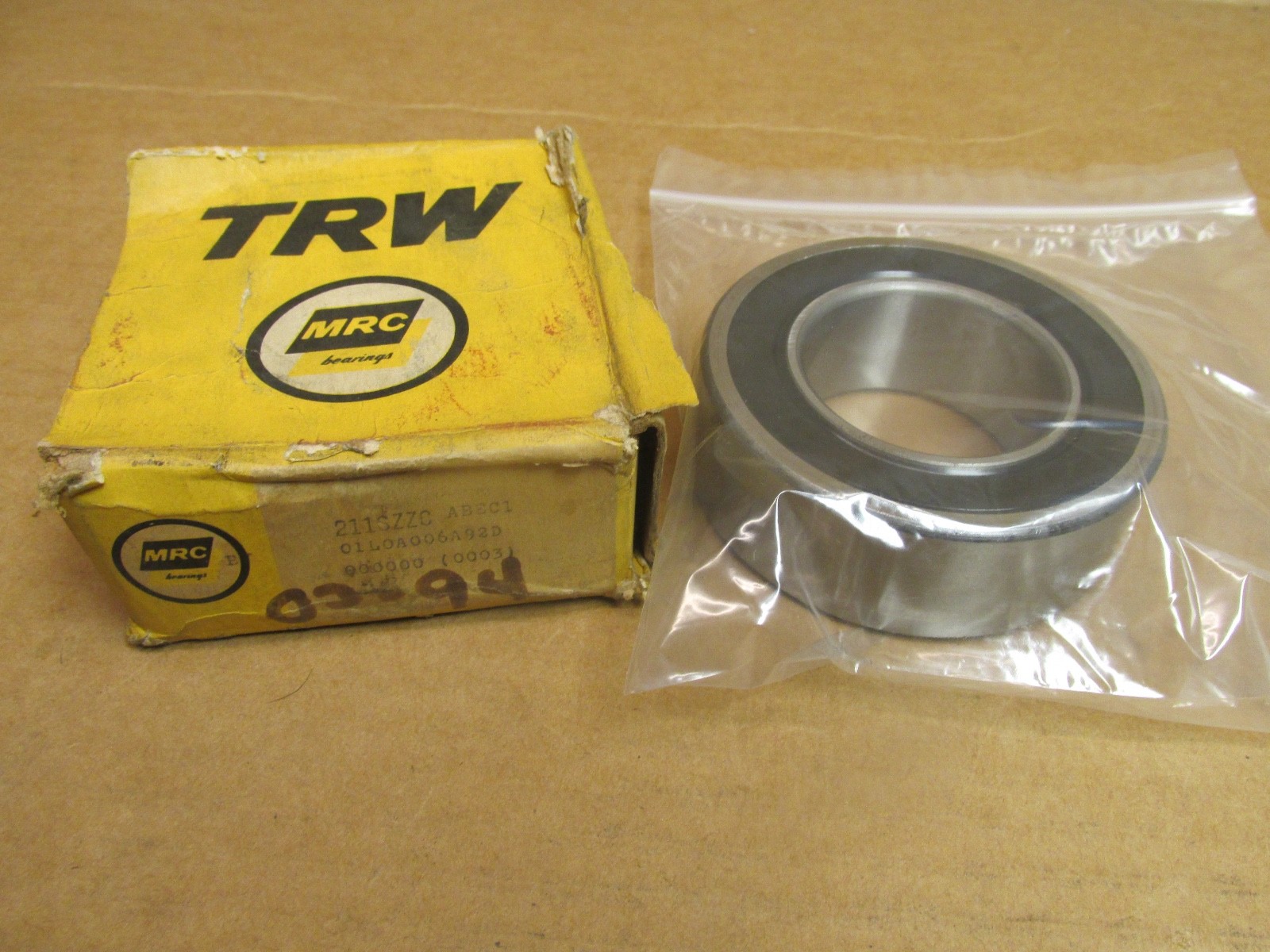

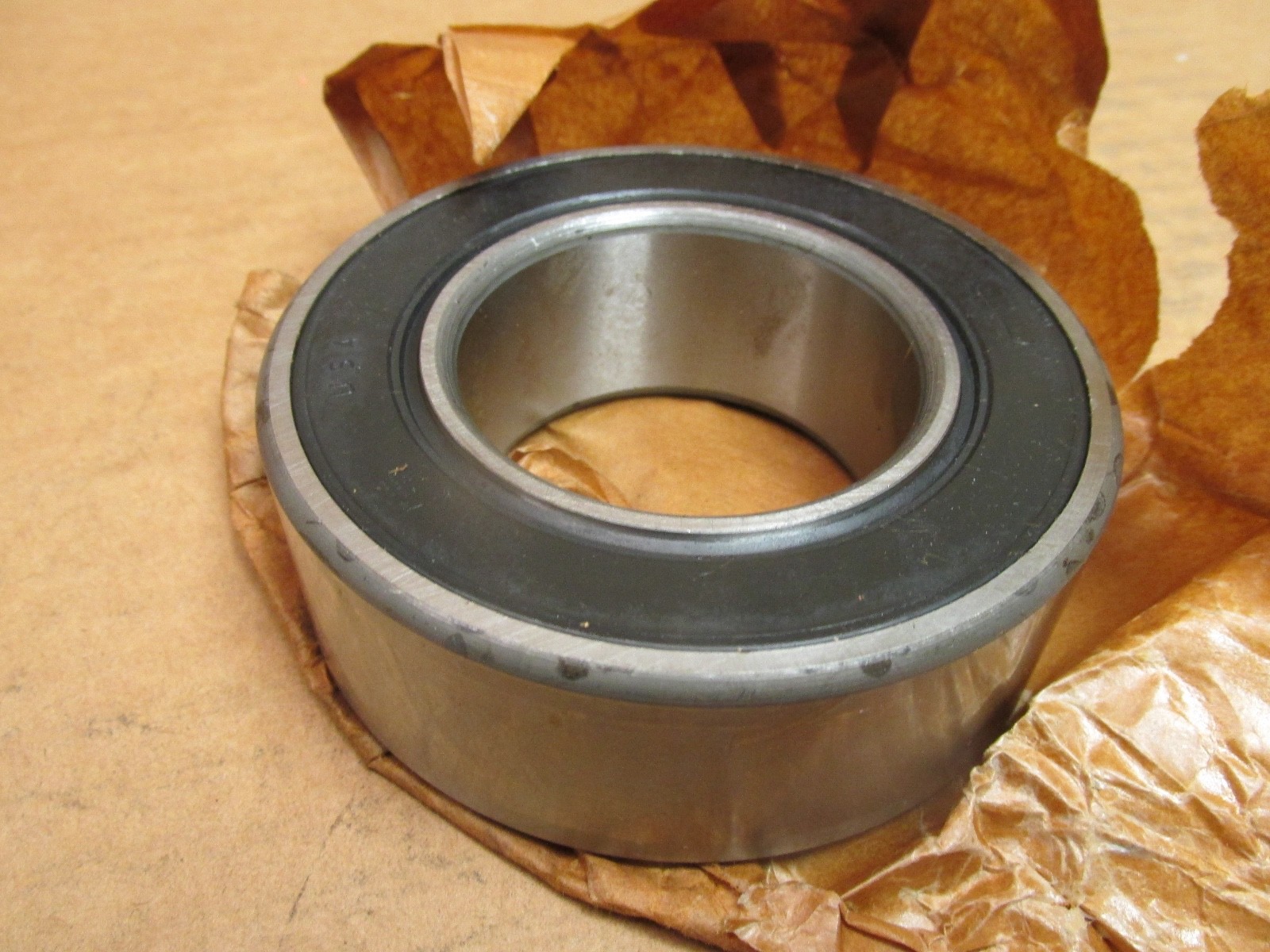

MRC 211SZZC single-row deep groove ball bearing in cartridge width, with a rubber seal on each face. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 1-5/16 in (33.34 mm). Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Contact seals both sides. Seal Type: Double Rubber Seal. Bore Type: Straight. Unit Quantity: 1 Pc.

Decoding the designation:

211 — MRC 200-series bore code, 55 mm bore on the 100 mm OD of the 6211 section.

S — Conrad-assembly single-row deep groove construction.

ZZ — two rubber seals, one on each face. On MRC this code is an elastomer seal.

C — cartridge width. Both rings are widened to 1-5/16 in, against 21 mm on the standard 211S.

Specifications:

Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 1-5/16 in (33.34 mm). Bore Type: Straight. Closure Type: Contact seals both sides. Harmonization Code: 8482.10.50.68.

Dimensions and mounting:

Both rings share the full 1-5/16 in width: 33.34 mm of axial length on a 100 mm OD.

Compatibility and replacement:

A standard 6211-2RS has the same bore and OD at 21 mm width. Carton and search variants: 211 S ZZ C, 211-SZZC, 211SZZ-C.

Frequently asked questions:

What size is the MRC 211SZZC?

Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 1-5/16 in (33.34 mm).

What does the C mean in 211SZZC?

Cartridge width: both rings are widened to 1-5/16 in, against 21 mm on the standard 211S.

What seals does the MRC 211SZZC have?

Two rubber seals, one on each face.
