Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
3 in stock

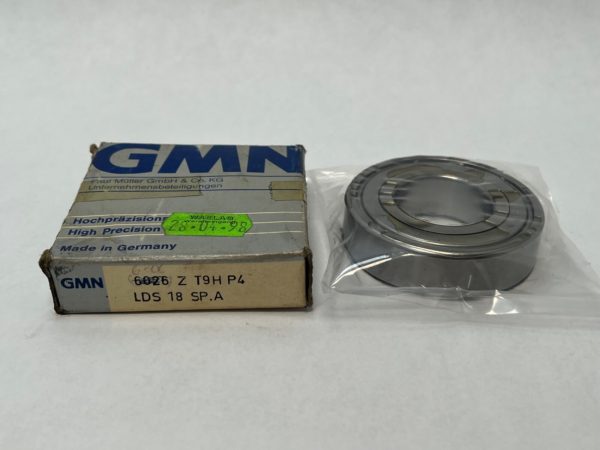

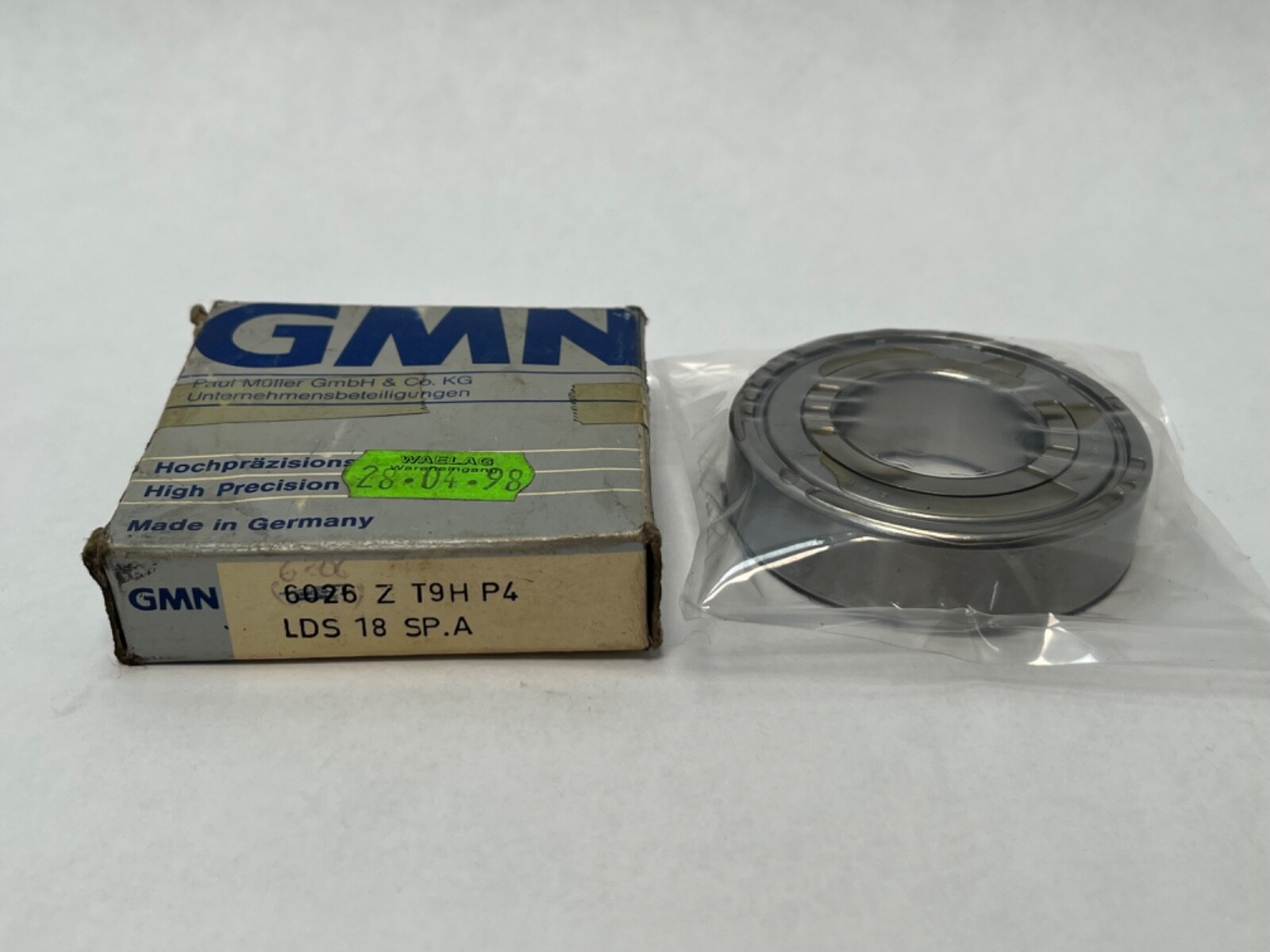

High precision deep groove ball bearing, 30 mm bore x 62 mm OD x 16 mm, one shield, glass-fibre polyamide T9H cage, P4 tolerance, CN clearance. GMN 6206 Z T9H P4.
List Price
$76.29
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| Model | 6206ZT9HP4 |
| Bearing Type | Ball Bearing, Shield one side |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 62 |
| Cage Type | T9H, one-piece crown cage, ball-guided |
| Dynamic Load Rating | 20,000 N |
| Static Load Rating | 11,800 N |
| Rolling Elements | Ball |
| Item Weight | 0.199 kg (0.44 lb) |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | CN |
| Overall Width | 16 mm |
| Mpn Variants | 6206ZT9HP4, 6206 Z T9H P4, 6206-Z-T9H-P4 |
| Precision Class | P4 |
| Additional Attributes | Balls: 9 x 9.525 mm; Cage max operating temperature: 140 °C; Shield fastened with snap ring |
| Cross Reference 1 | Fafnir MM206K - closure and cage differ |
|---|---|
| Cross Reference 2 | NSK 6206 P4 - open, no shield |
GMN 6206 Z T9H P4 high precision deep groove ball bearing with one shield. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Cage Material: Glass-fibre reinforced polyamide. Cage Type: Crown cage, ball-guided. Precision Class: P4. Internal Clearance: CN. Closure Type: Shield one side. Rolling Elements: Ball, 9 x 9.525 mm.
6206 — deep groove ball bearing, dimension series 02, bore code 06: 30 x 62 x 16 mm.

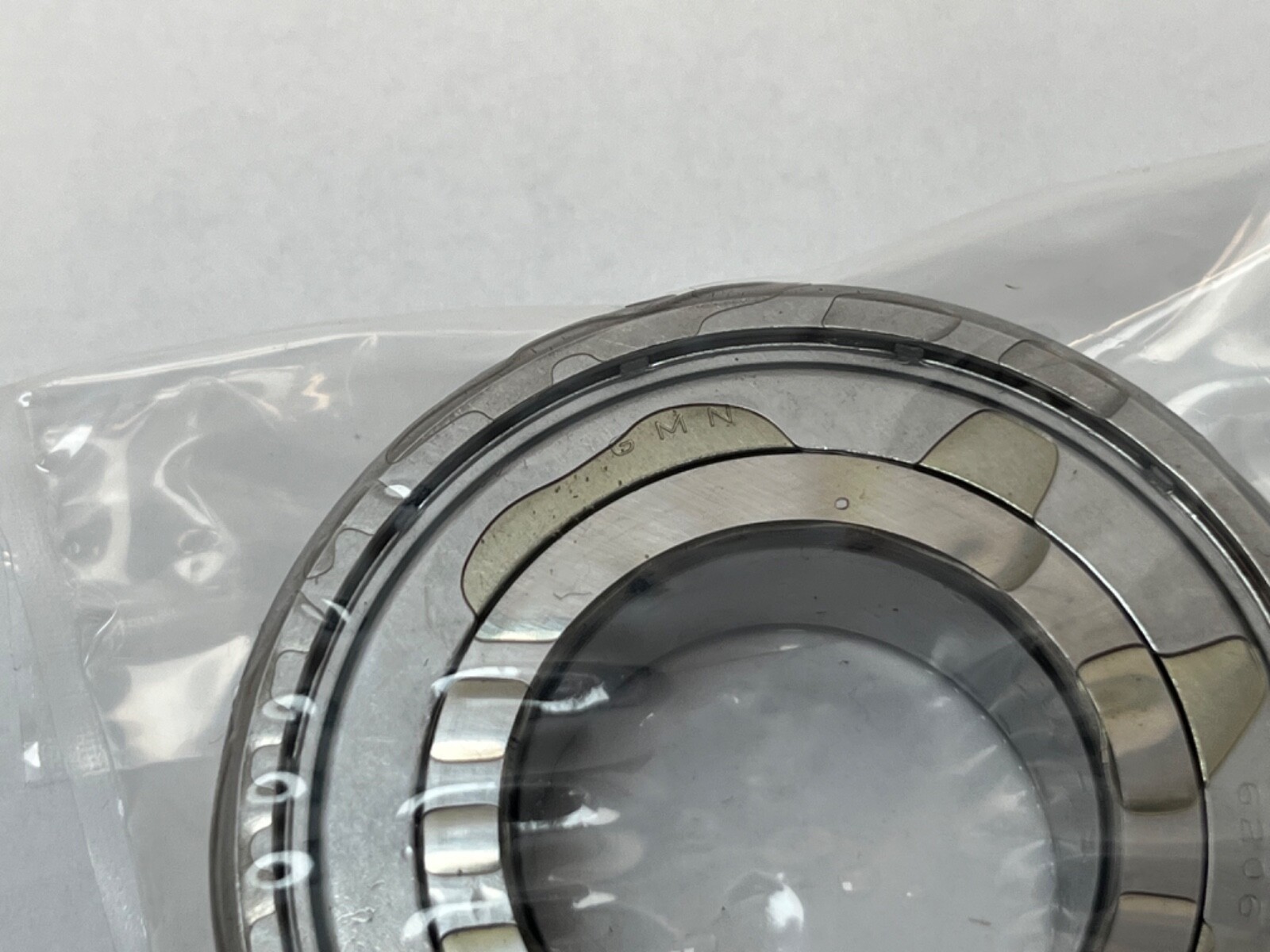

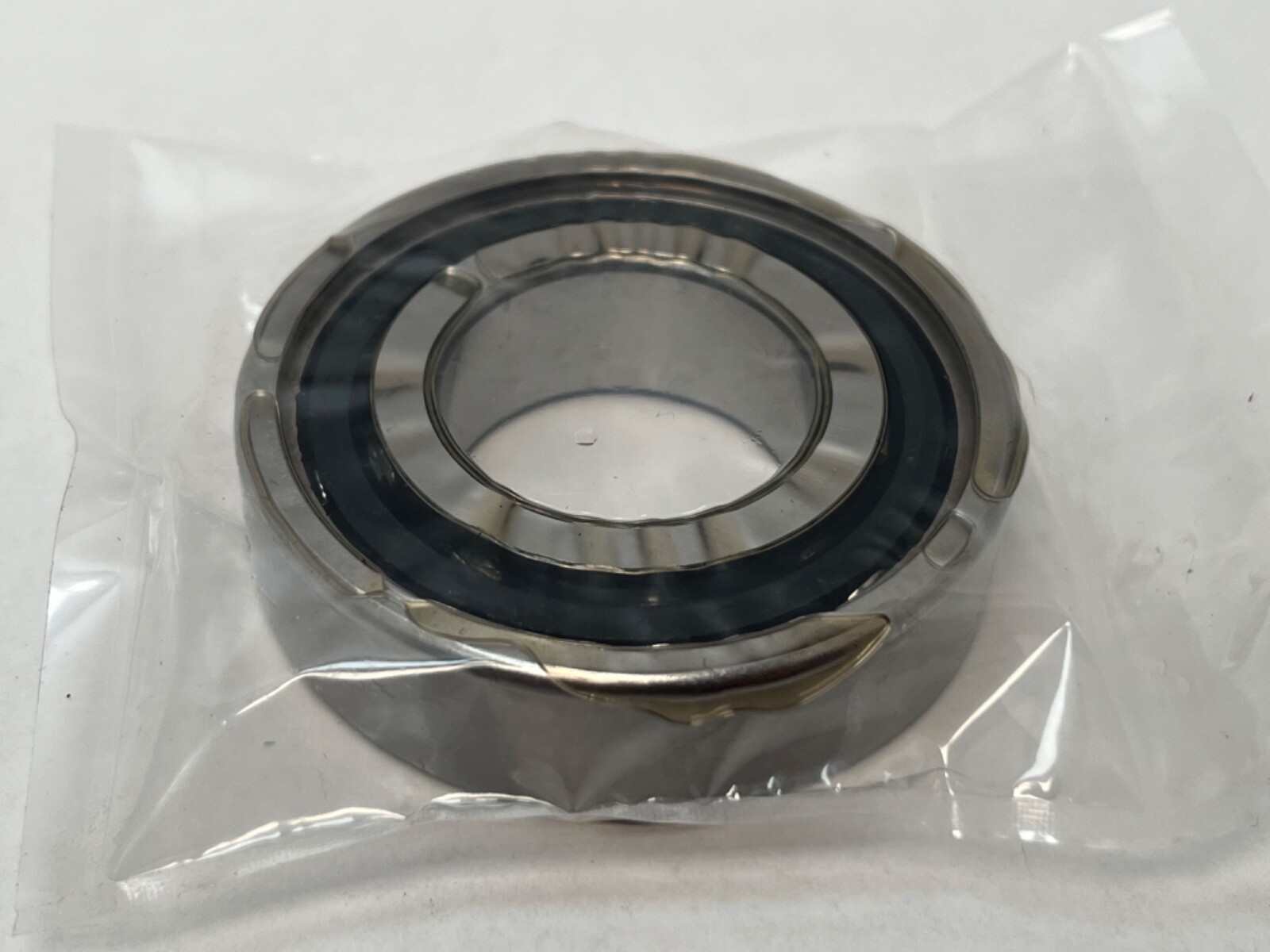

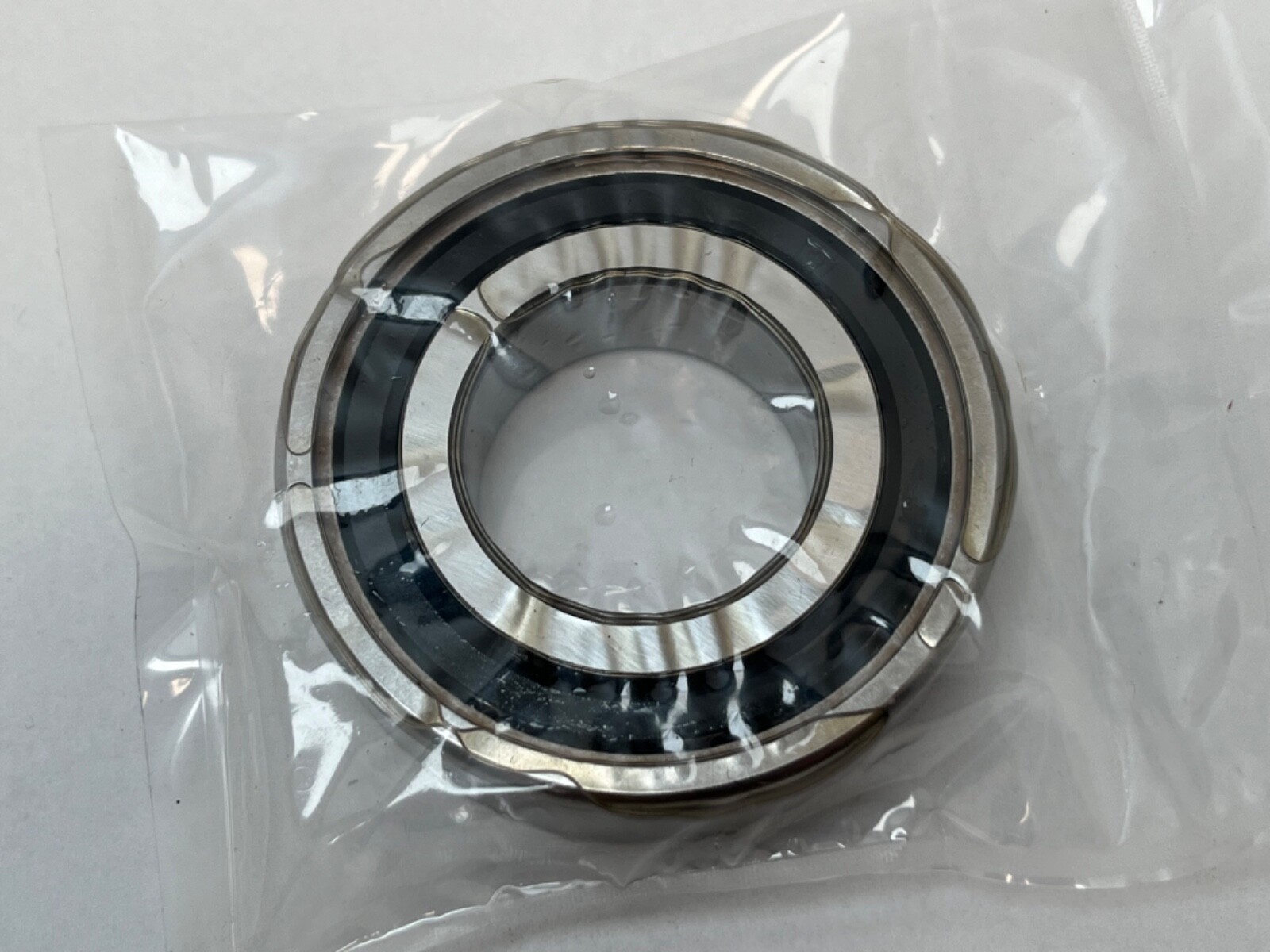

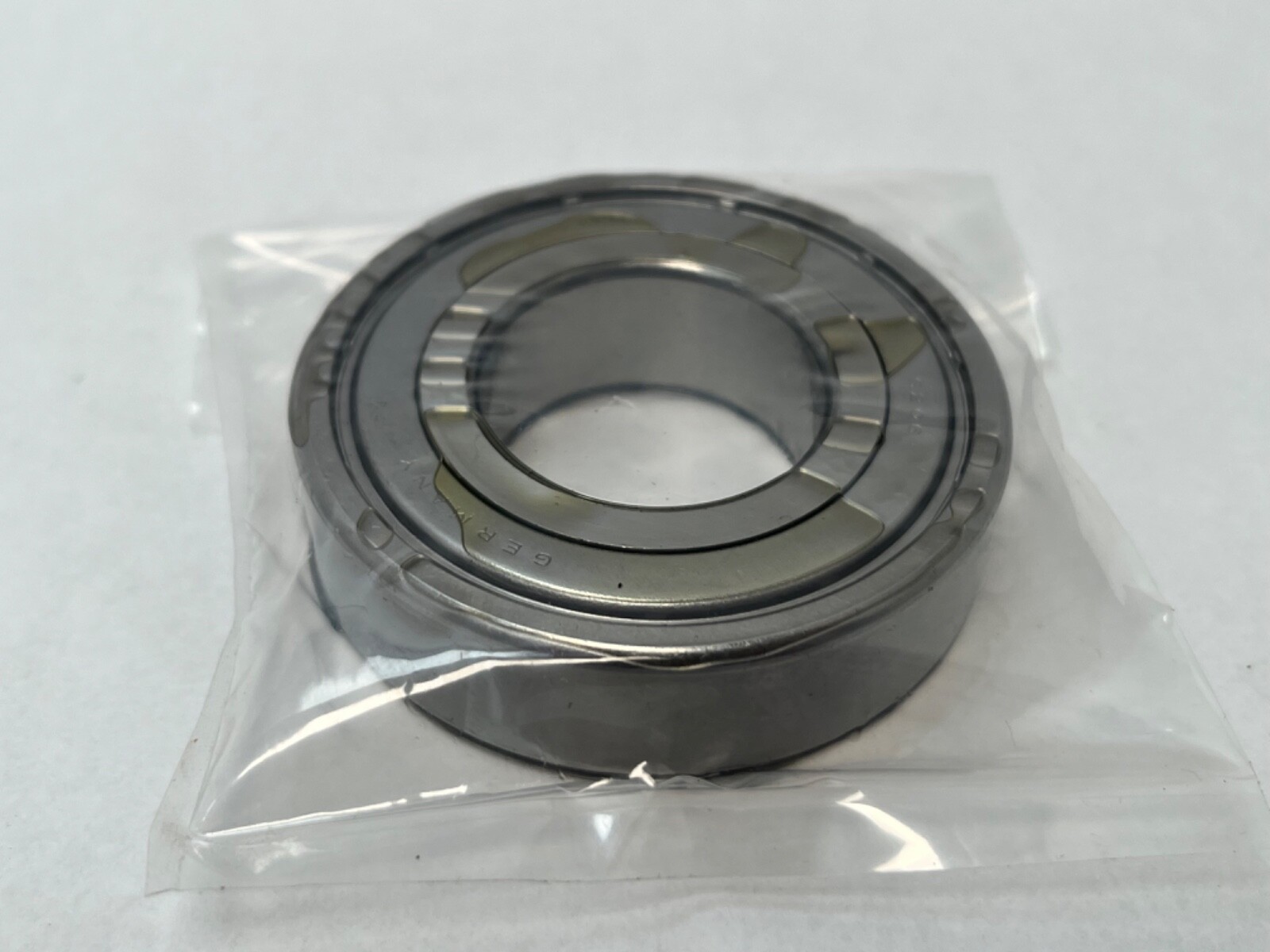

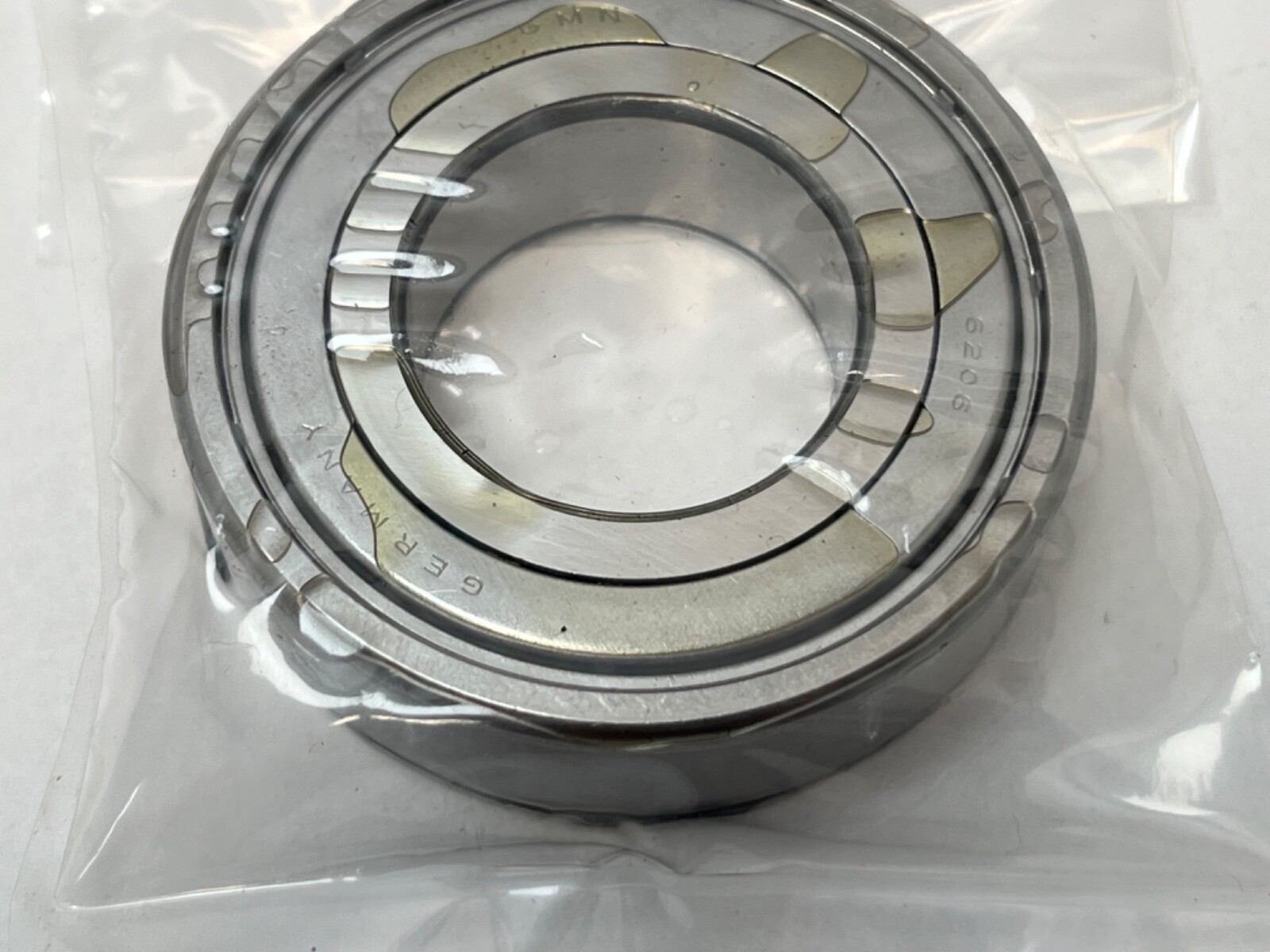

Z — shield on one side, held by a snap ring; the opposite face is open.
T9H — one-piece crown cage of glass-fibre reinforced polyamide, ball-guided, rated to 140 °C.
P4 — tolerance class P4.
Dynamic Load Rating: 20,000 N. Static Load Rating: 11,800 N. Item Weight: 0.199 kg (0.44 lb). P4 tolerances give low running runout for spindles, precision motors and instrument drives. The deep groove takes radial load and moderate axial load in both directions. Snap Ring: No.
Unit Quantity: 1 Pc.
Same 30 x 62 x 16 mm deep groove envelope in precision grades: Fafnir MM206K, NSK 6206 P4. Closure and cage vary by execution.
