FAG6310.2ZR.C3Deep Groove Ball Bearing – 50 mm ID, 110 mm OD, 27 mm Width, Steel Shields Both Sides, C3 Clearance

Product Description

What this part is:

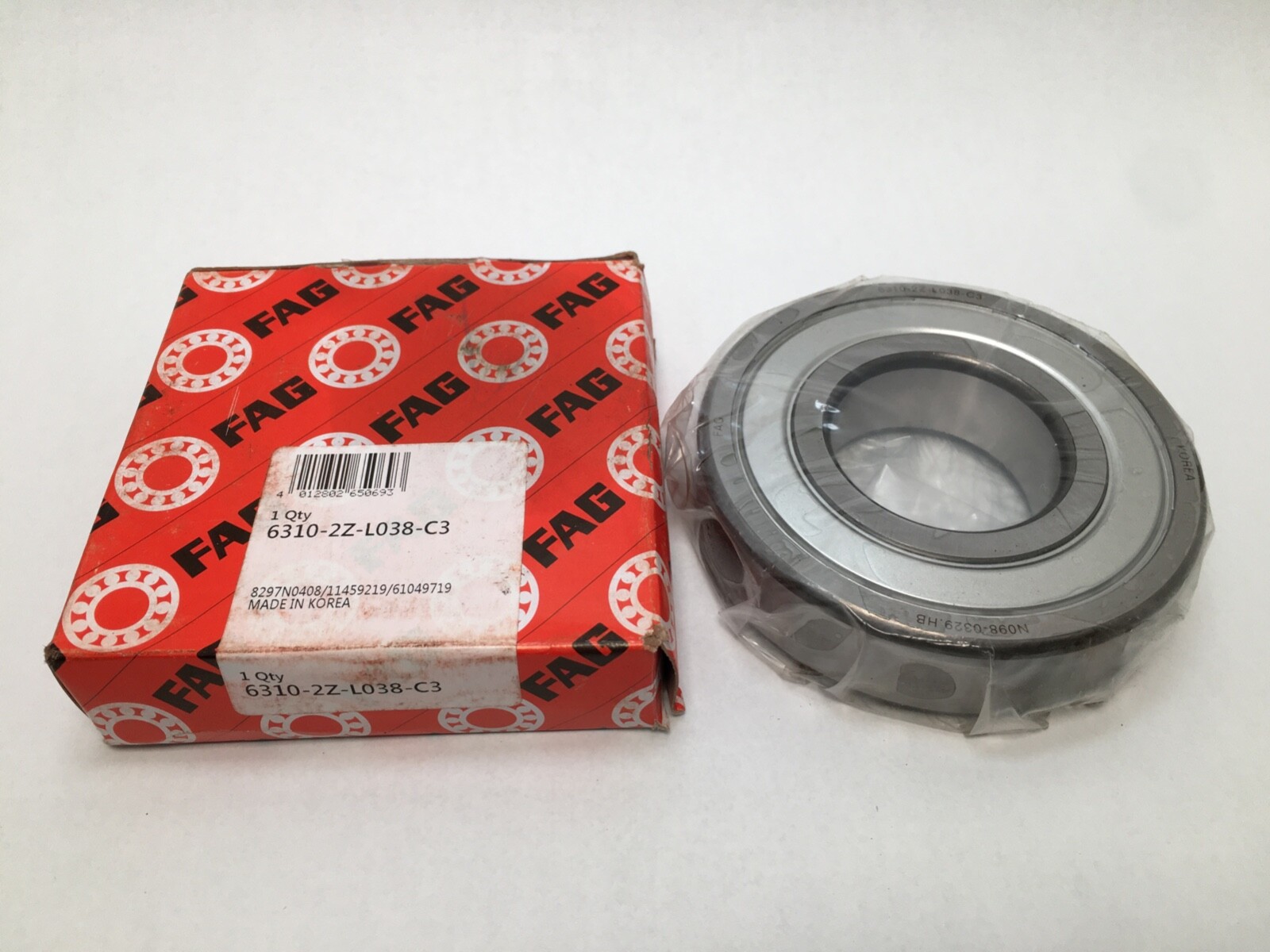

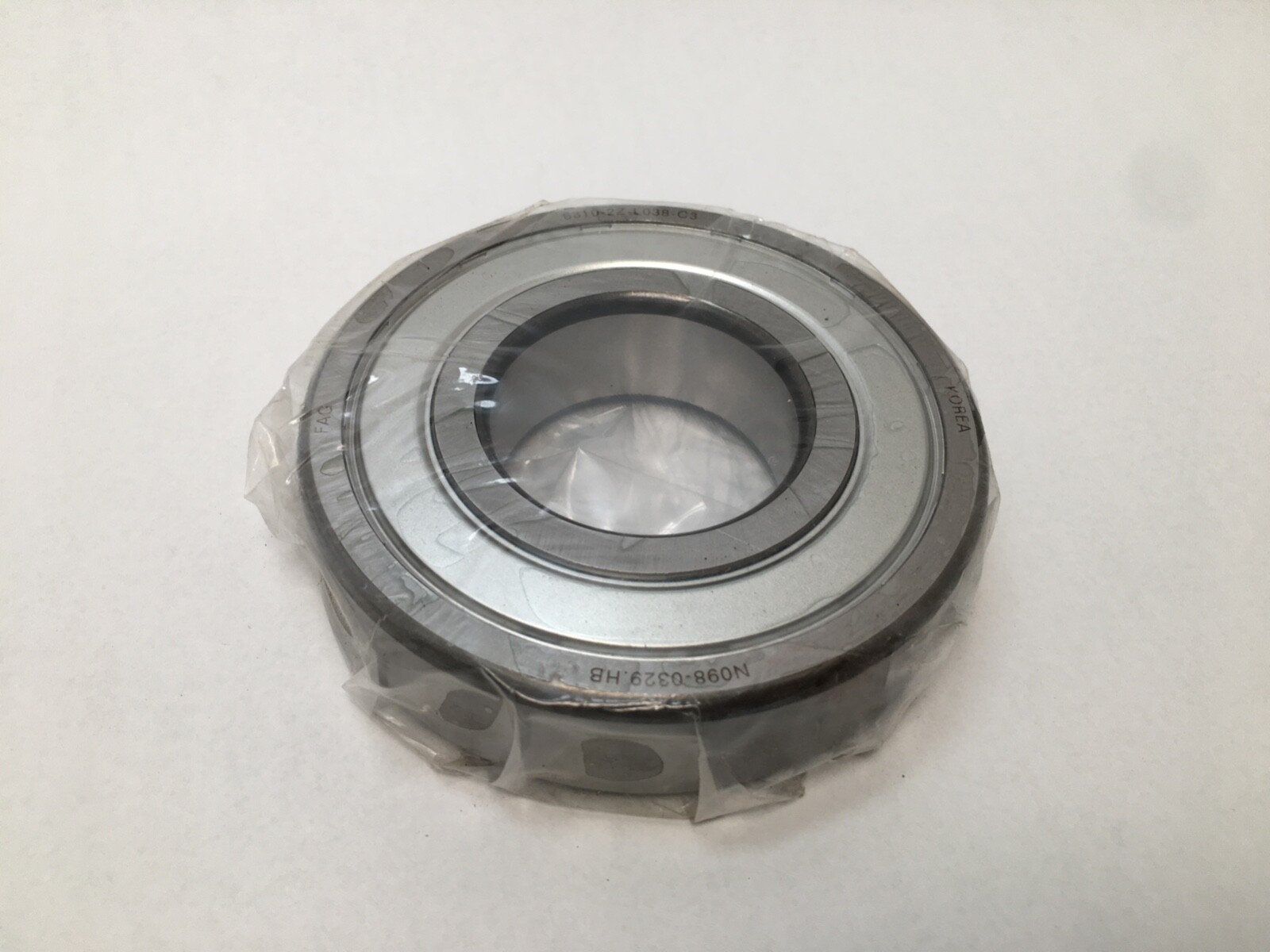

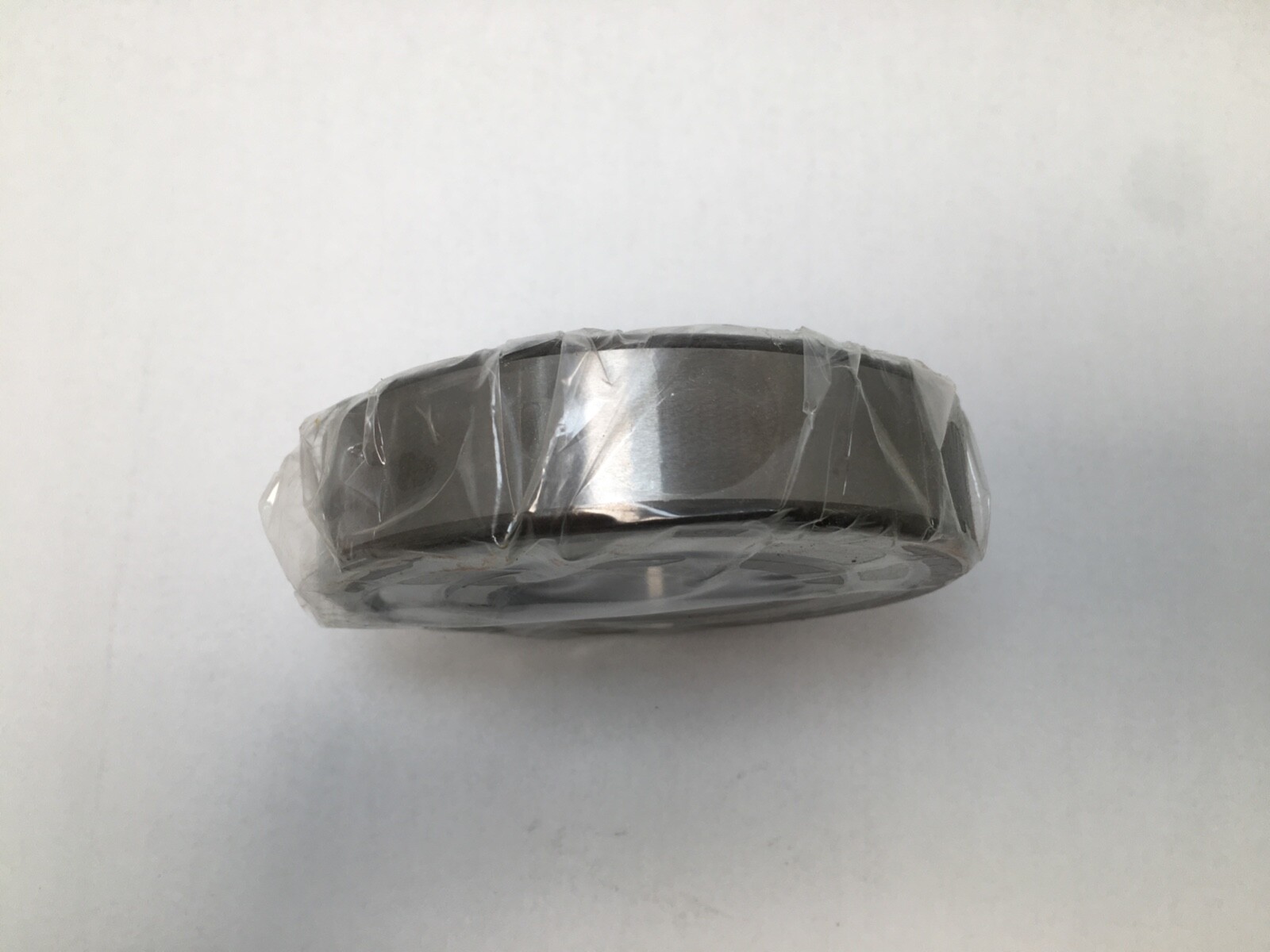

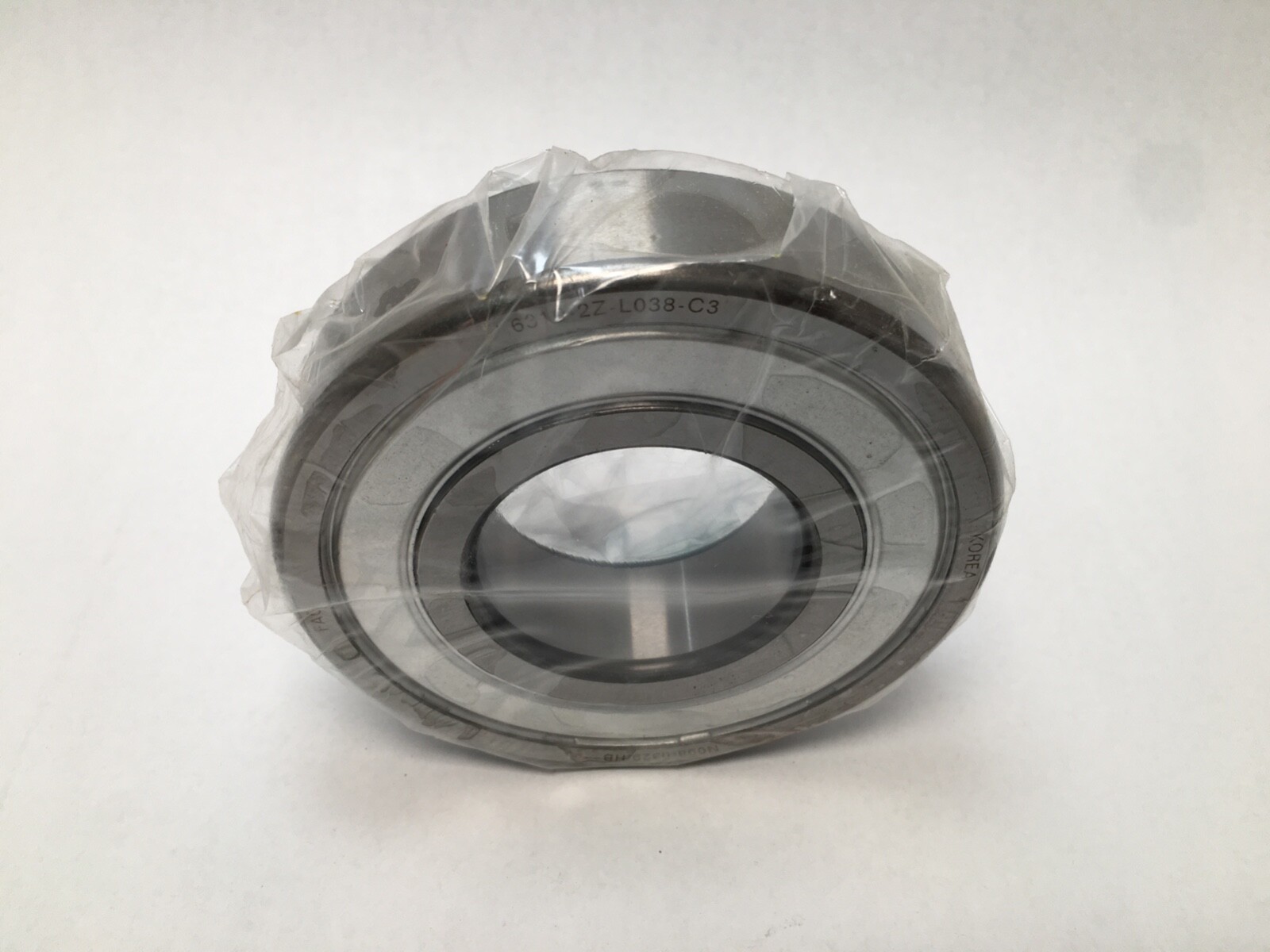

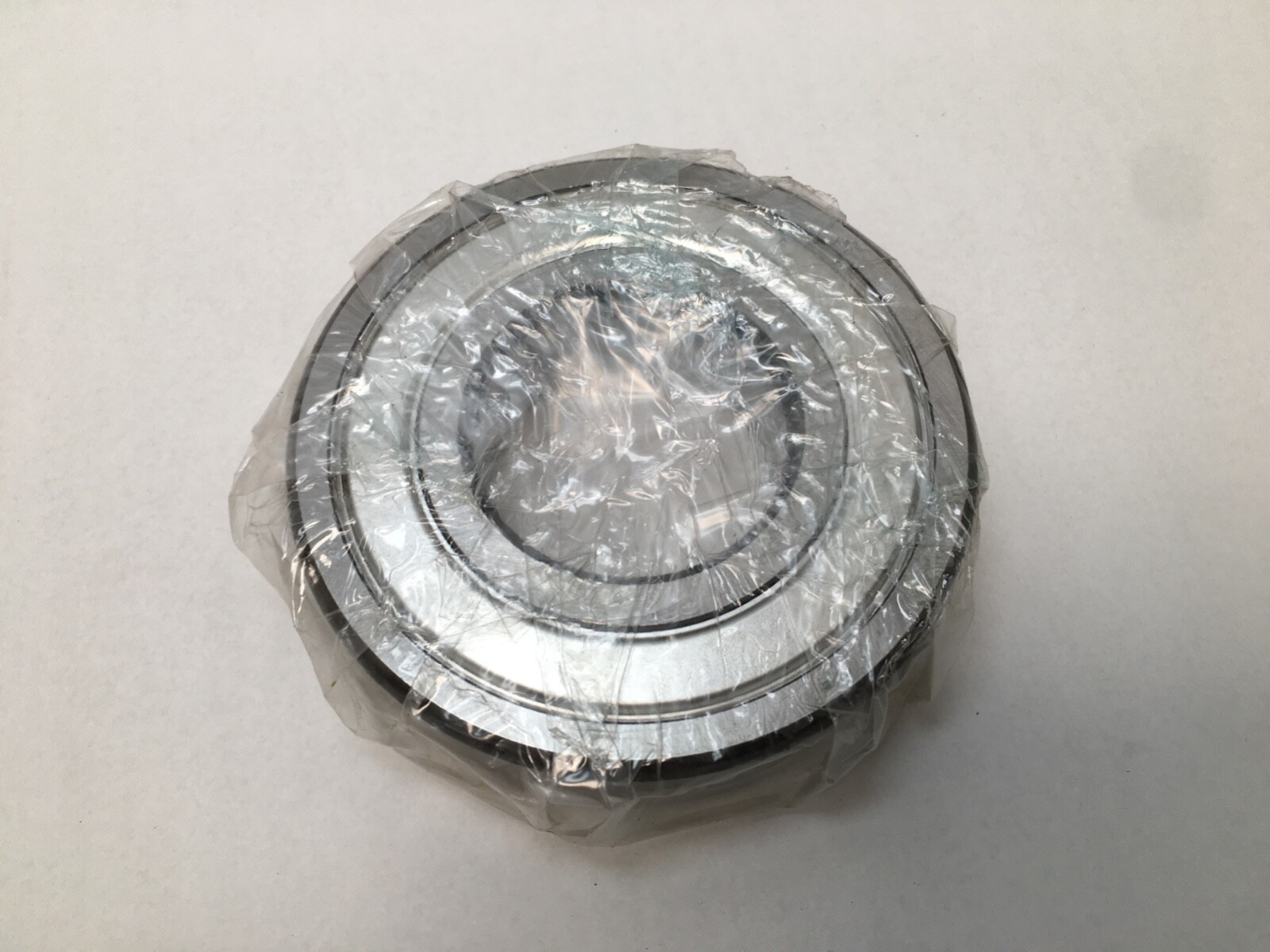

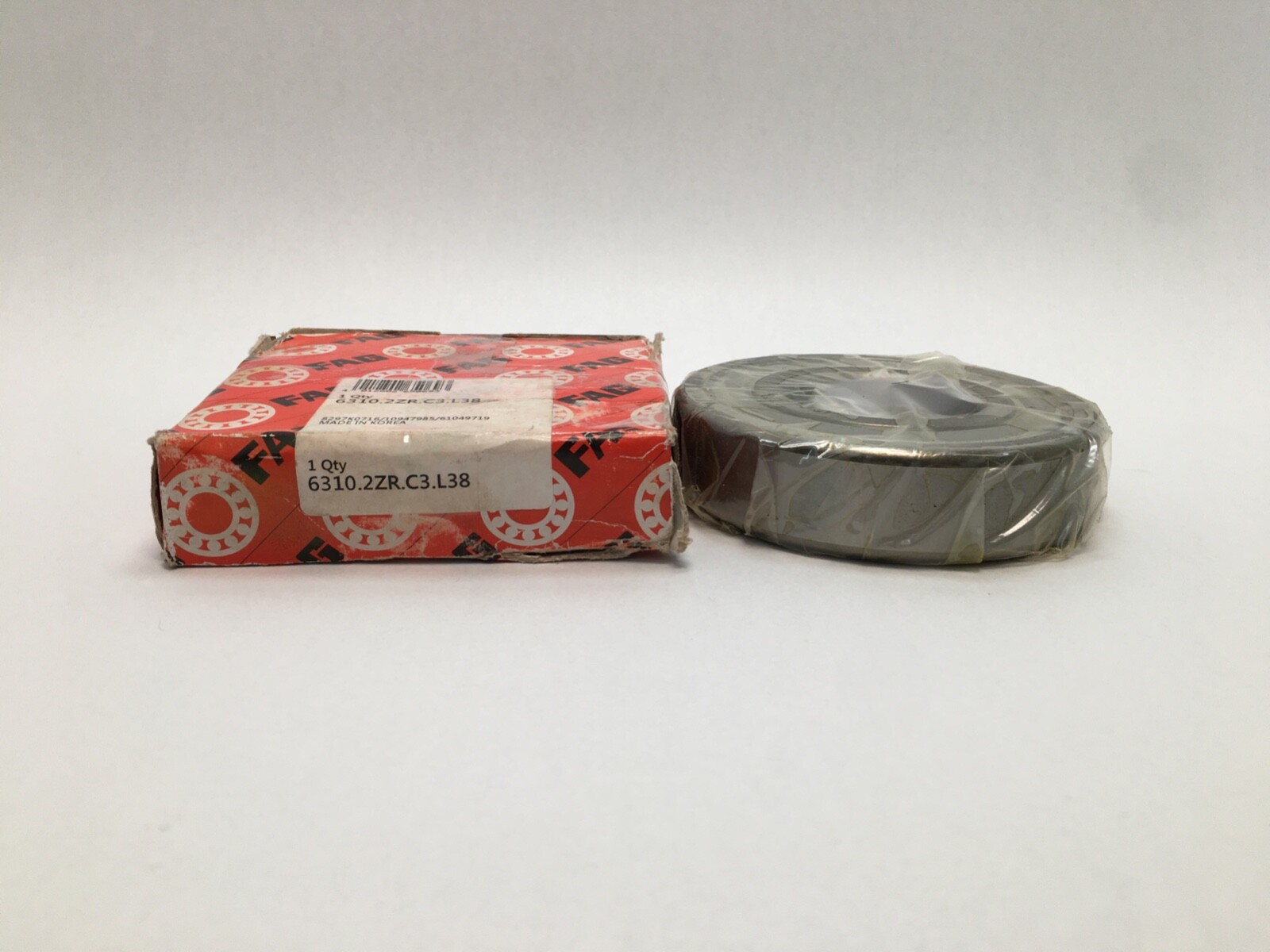

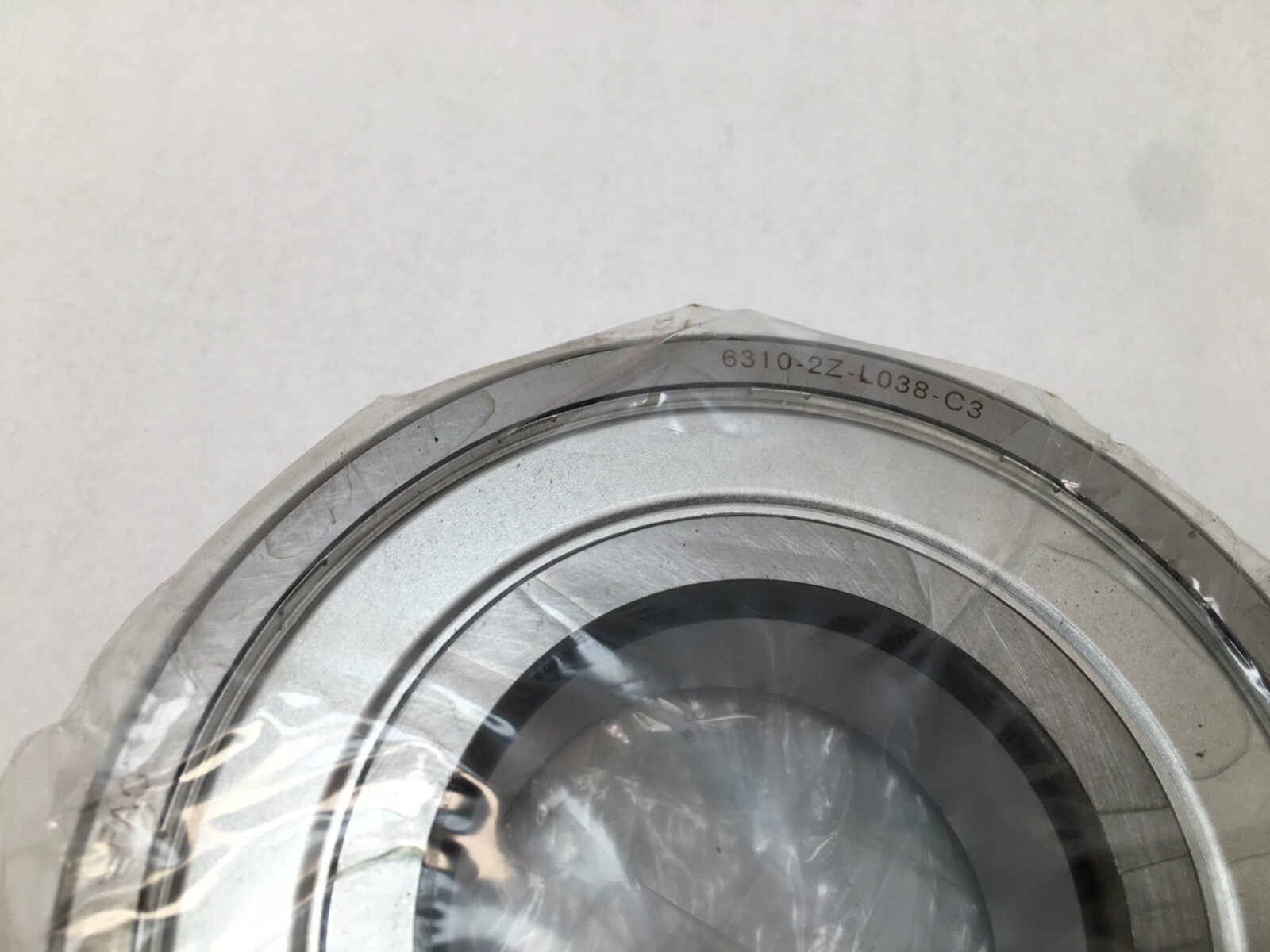

FAG 6310.2ZR.C3 (current designation 6310-2Z-C3) is a single-row deep groove ball bearing with non-contact steel shields on both sides and C3 radial internal clearance. It is lubricated for life with factory-filled grease. Unit Quantity: 1 Pc.

Decoding the designation:

6310 — 63 medium series deep groove ball bearing, bore code 10 = 50 mm, envelope 50 x 110 x 27 mm.

2ZR / 2Z — non-contact steel shield on both sides. 2ZR is the earlier FAG form of 2Z.

C3 — radial internal clearance larger than normal.

Specifications:

Dynamic Load Rating: 68,000 N. Static Load Rating: 38,500 N. Limiting Speed: 8,000 rpm grease. Thermal Speed Rating: 7,700 rpm. Cage Material: Pressed steel. Internal Clearance: C3. Precision Class: ABEC 1 / P0. Closure Type: Shields both sides. Lubricant: Grease, factory filled. Operating temperature: -20 °C to 120 °C. Number Of Rows: 1. Rolling Elements: Ball. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Diameter: 50 mm. Outside Diameter: 110 mm. Overall Width: 27 mm. Minimum shaft shoulder diameter: 61 mm. Maximum housing shoulder diameter: 99 mm. Maximum fillet radius: 2 mm. Minimum chamfer: 2 mm. Item Weight: 1.083 kg (2.39 lb).

Compatibility and replacement:

Shielded C3 executions at 50 x 110 x 27 mm: SKF 6310-2Z/C3, NSK 6310ZZC3, NTN 6310ZZC3, Koyo 6310ZZC3, Timken 6310-ZZ-C3, SNR 6310ZZC3. Ratings differ by maker. Current FAG designation: 6310-2Z-C3.

Frequently asked questions:

What are the dimensions of the FAG 6310.2ZR.C3?

Bore Diameter: 50 mm. Outside Diameter: 110 mm. Overall Width: 27 mm.

What is the current designation?

The current FAG designation is 6310-2Z-C3. 2ZR is the earlier FAG form of 2Z.

What are the load ratings and speed limit?

Dynamic Load Rating: 68,000 N. Static Load Rating: 38,500 N. Limiting Speed: 8,000 rpm grease.
