Deep groove ball bearing, 40 x 80 x 18 mm, open, C2 internal clearance, ISO P6 precision, 31 kN dynamic rating. Supplied as a two-piece set.
List Price
$44.18
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing — 40 mm ID, 80 mm OD, 18 mm Width, Non-Contact Seals Both Sides, C3 Clearance$41.57
Ball Bearing — 40 mm ID, 80 mm OD, 18 mm Width, Metal Shields, Phenolic Separator, ABEC 5$59.48
Spindle Deep Groove Ball Bearing, 40 x 90 x 23 mm, ABEC 3 / P6$25.46
Deep Groove Ball Bearing - Straight Bore, 40 mm ID, 62 mm OD, 12 mm Width, Rubber Contact Seals Both Sides, 69 Thin Section Series$27.51| MFR / Brand | FAG |
|---|---|
| MPN | 6208AC2P62 |
| Model | 6208 A C2 P62 |
| Bearing Type | Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 18 mm |
| Base Number | 6208 |
|---|---|
| Bore Shaft Size | 40 mm |
| Mpn Variants | 6208AC2P62; 6208-A-C2-P62; 6208 A C2 P62; 6208 C2 P62; 6208-C2-P62 |
| Precision Class | ISO P6 (ABEC 3) |
| Additional Attributes | Fatigue limit load 0.9 kN |
| Material | Chrome Steel |
| Dynamic Load Rating | 31 kN |
| Static Load Rating | 17.8 kN |
| Precision Rating | ISO P6 (ABEC 3) |
| Series | 62 |
| Rolling Elements | Ball |
| Item Weight | 0.82 lb (0.372 kg) |
| Limiting Speed | 12300 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | C2 |
| Mounting Arrangement | Single |
| Design Units | Metric |
| Part Number | 6208-A-C2-P62 |
| Cross Reference 1 | FAG 6208-C2 |
|---|---|
| Cross Reference 2 | FAG 6208 |

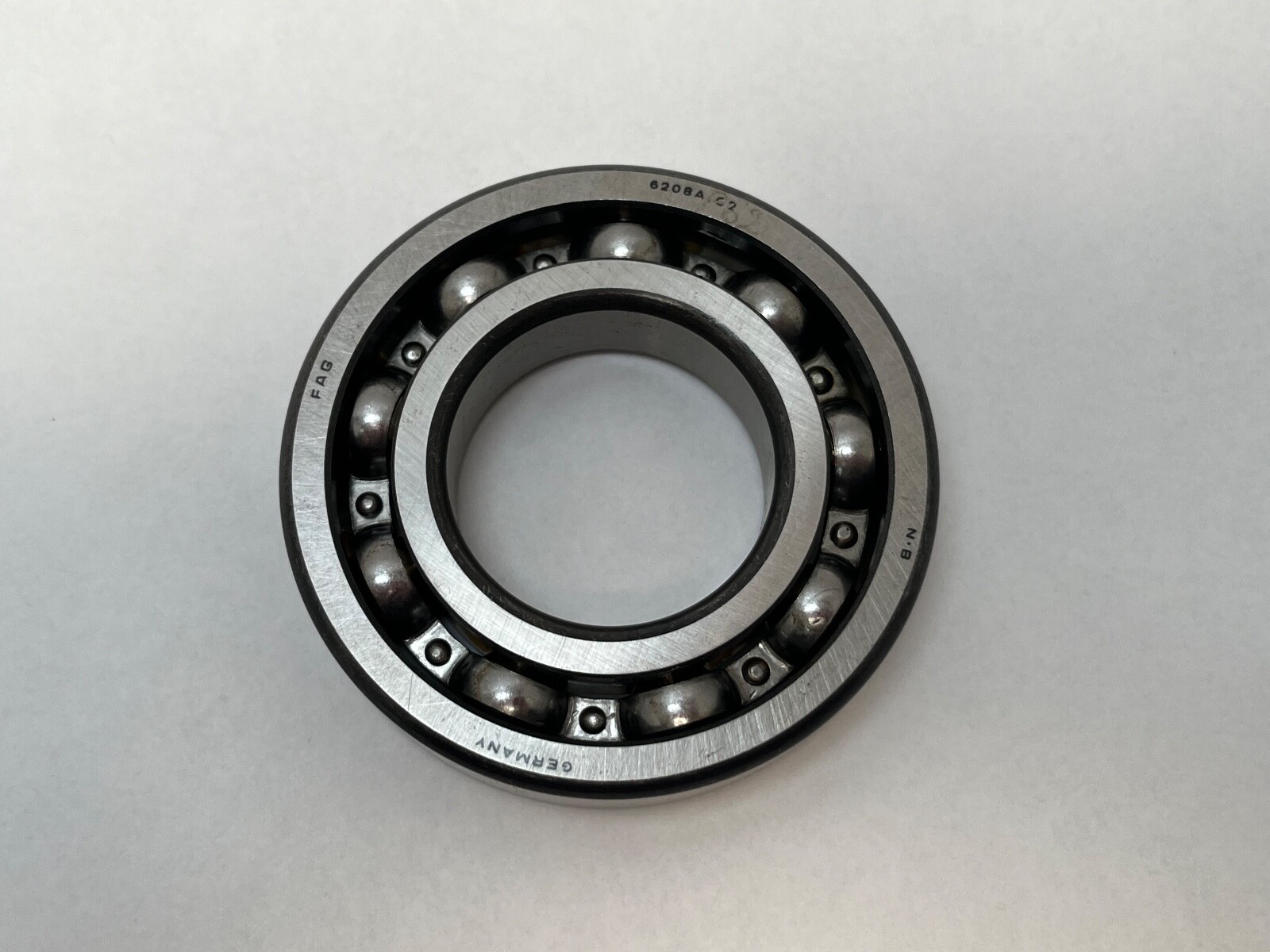

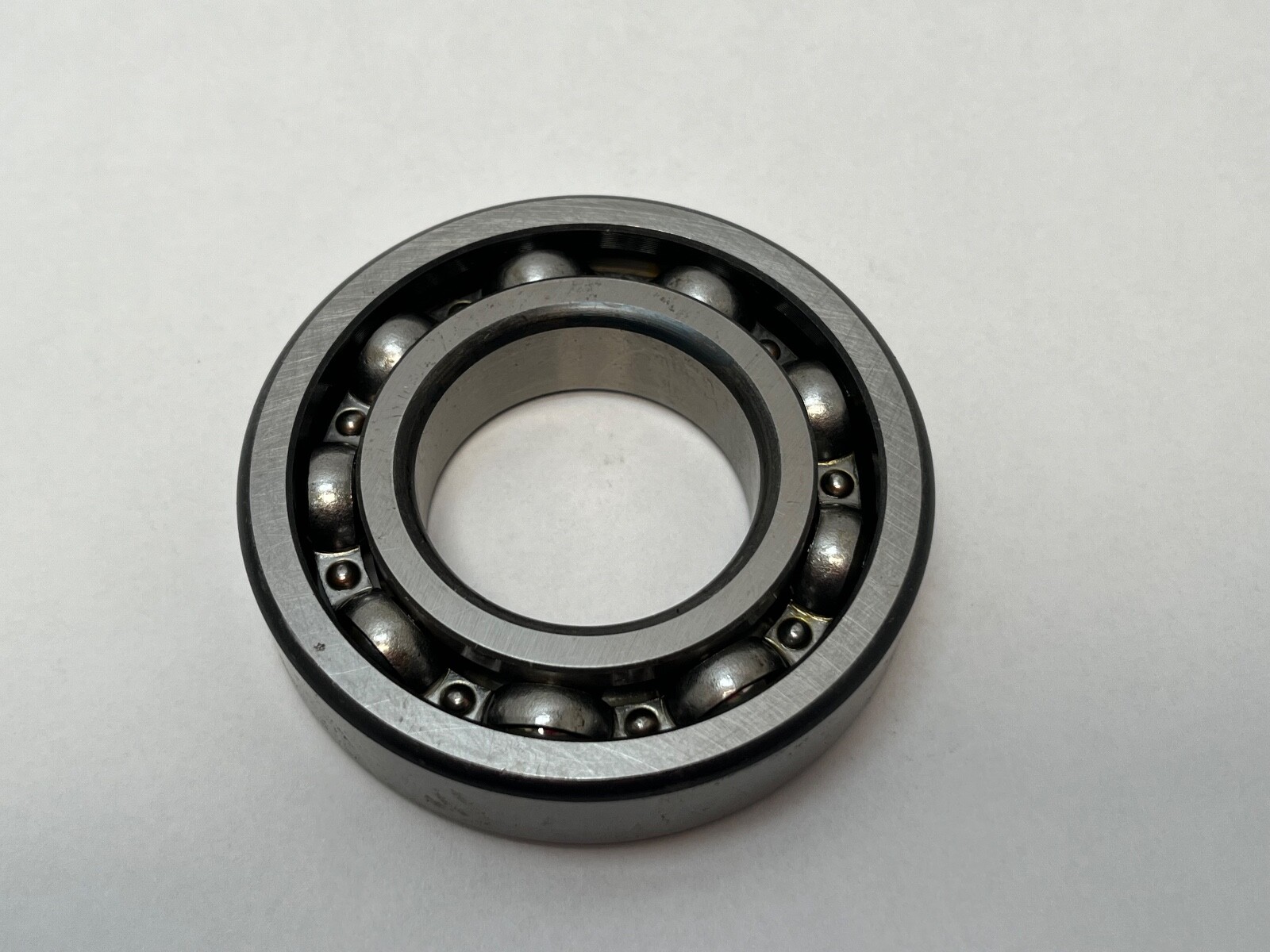

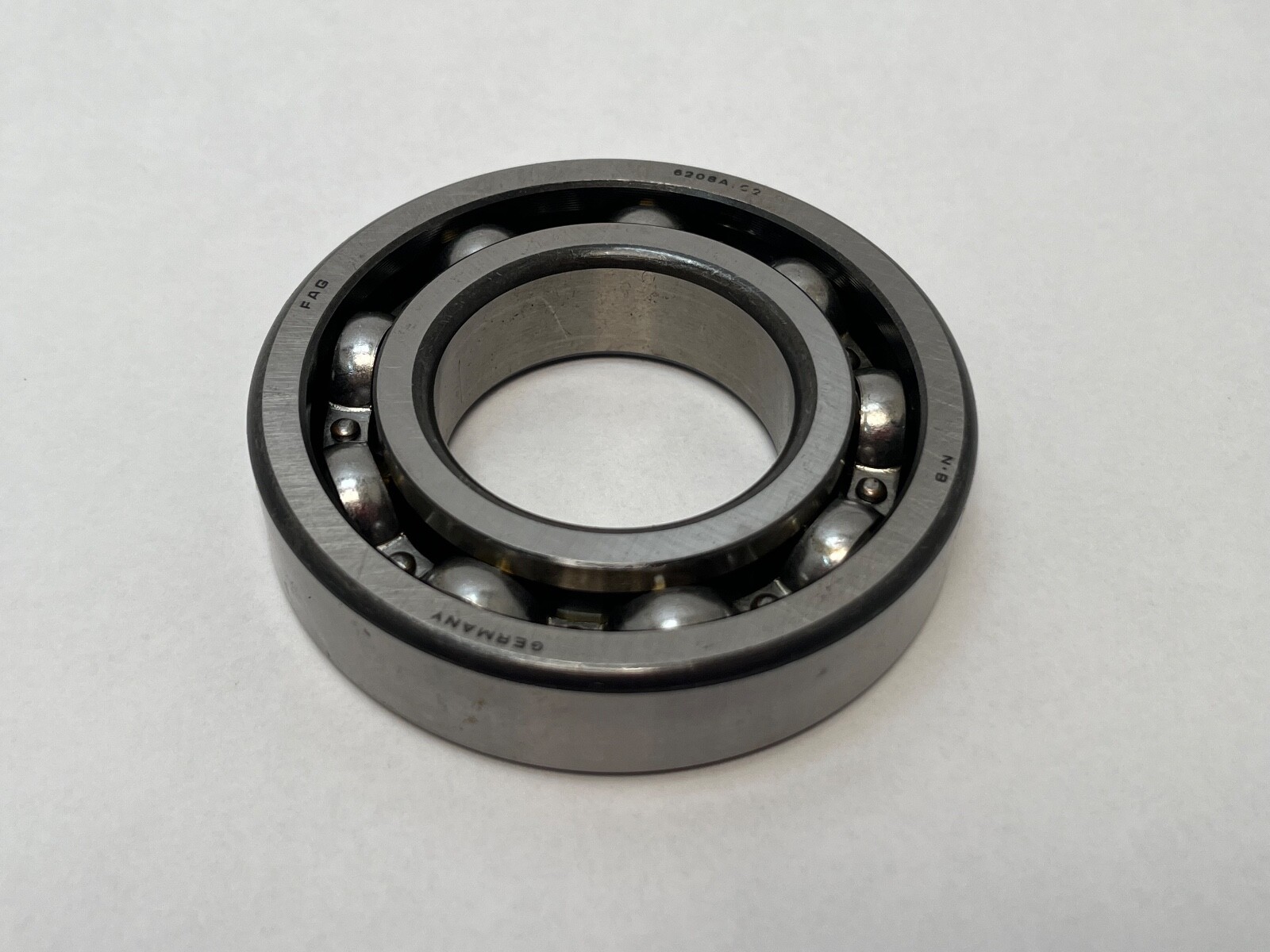

FAG 6208-A-C2-P62 single-row deep groove ball bearing. Bore: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Internal Clearance: C2. Precision Class: ISO P6 (ABEC 3). Dynamic Load Rating: 31 kN. Static Load Rating: 17.8 kN. Fatigue Limit Load: 0.9 kN. Reference Speed: 9 300 r/min. Limiting Speed: 12 300 r/min. Item Weight: 0.372 kg (0.82 lb).
6208 — ISO 62 dimension series at a 40 mm bore, giving a 40 x 80 x 18 mm envelope.
C2 — radial internal clearance below normal.
P62 — ISO tolerance class 6 combined with C2 radial internal clearance, FAG’s combined code for the two.
C2 clearance closes the ball-to-raceway gap tighter than normal. Running clearance after fitting is smaller, which raises radial stiffness and cuts shaft wander, and it suits an application where the bearing runs close to ambient with a light shaft fit.
ISO P6 holds bore, outside diameter, width and running accuracy to tighter limits than normal class, so the shaft and housing seats locate more precisely and running runout is lower.
Dynamic Load Rating 31 kN drives the L10 life calculation; Static Load Rating 17.8 kN is the limit on permanent raceway indentation at rest and under shock.

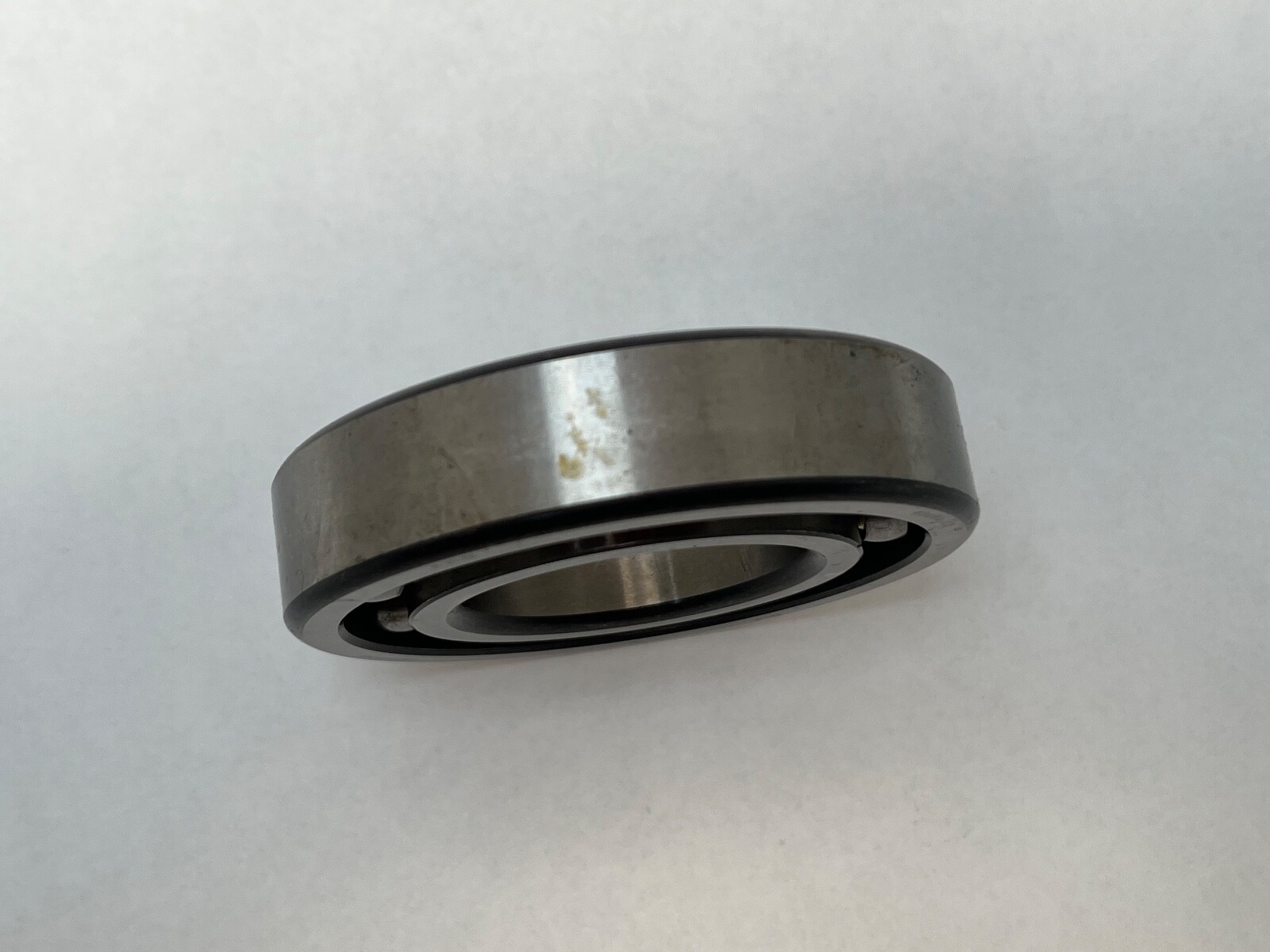

Open on both faces, so the bearing takes its lubricant from the housing rather than from a sealed-in grease charge.

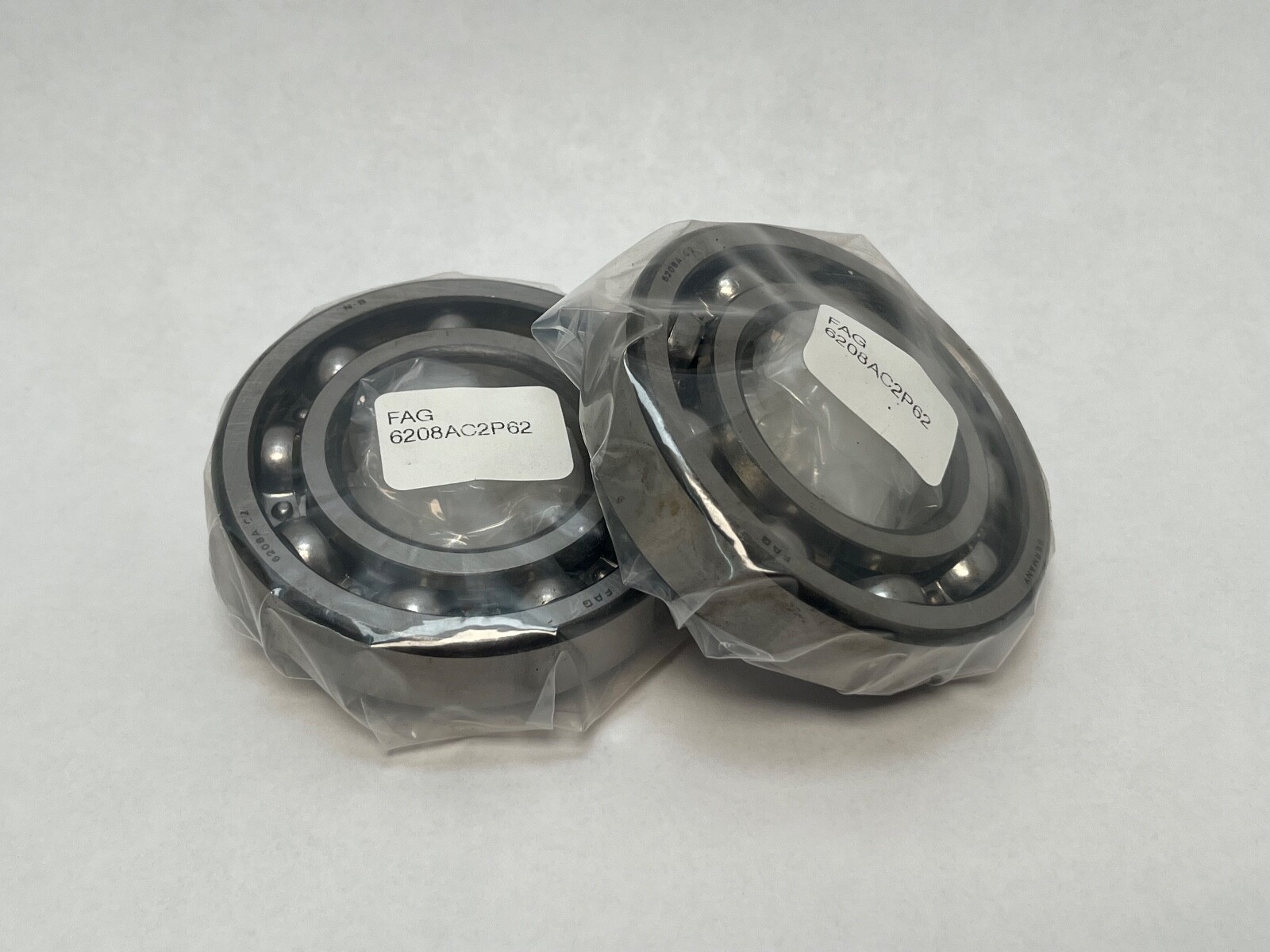

Unit Quantity: 2 Pcs. Two bearings supplied together, each a single-row open bearing on a straight bore.
6208-C2 is the same bearing in normal tolerance class with the same C2 clearance. A plain 6208 shares the 40 x 80 x 18 mm envelope and the same load ratings in CN clearance and normal class.
Searchable designation forms: 6208AC2P62, 6208-A-C2-P62, 6208 A C2 P62, 6208 C2 P62, 6208-C2-P62, 6208.
